Pioneer QX-949 Quadraphonic Receiver – 60W Stereo / 40W x4 – Restored – 1-Year Warranty
$1,799
-
- Authentic Pioneer QX-949 4-Channel Quadraphonic Receiver
- 60W per channel in 2-channel stereo operation
- 40W per channel into 8 ohms in 4-channel operation
- Built-In CD-4, SQ, and Regular Matrix Quadraphonic Decoding
- Unique 4-Channel Level Indicator
- 2-Channel Power Boosting Circuit
- Switches Cleaned, Radio Bulbs and LEDs Replaced
- Capacitors Replaced and 3A Fuse Replaced
- Fully Tested by HQaudios
- Backed by Our 1-Year HQaudios Warranty
1 in stock

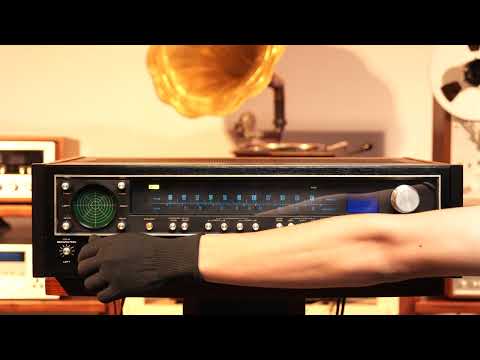

SOUND DEMO / AUDIO EXPERIENCE
For the best audio experience, please use headphones or external speakers.

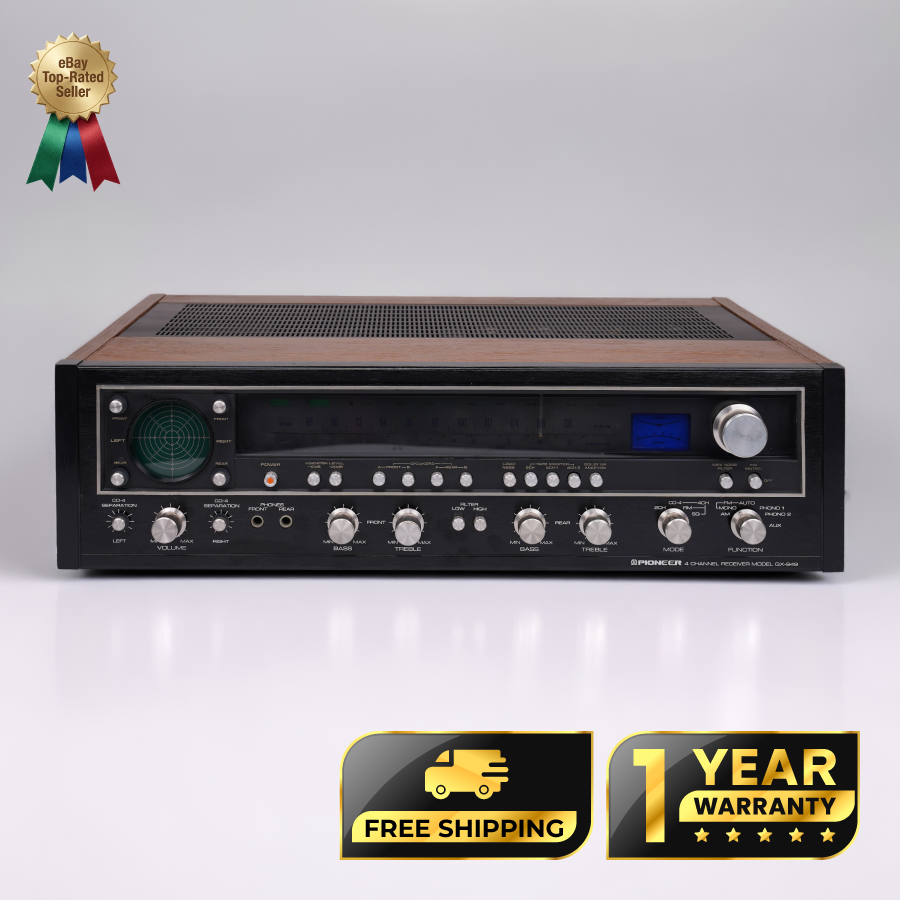

Pioneer QX-949 4-Channel Quadraphonic AM/FM Receiver – Multi-Voltage Model
Restored by HQaudios – Inspected & Tested – Backed by Our 1-Year Warranty
KEY HIGHLIGHTS
Pioneer QX-949 4-channel quadraphonic AM/FM receiver
40 W x 4 in 4-channel mode or 60 W x 2 in 2-channel Power Boost mode
Built-in CD-4 / SQ / Regular Matrix quadraphonic decoding

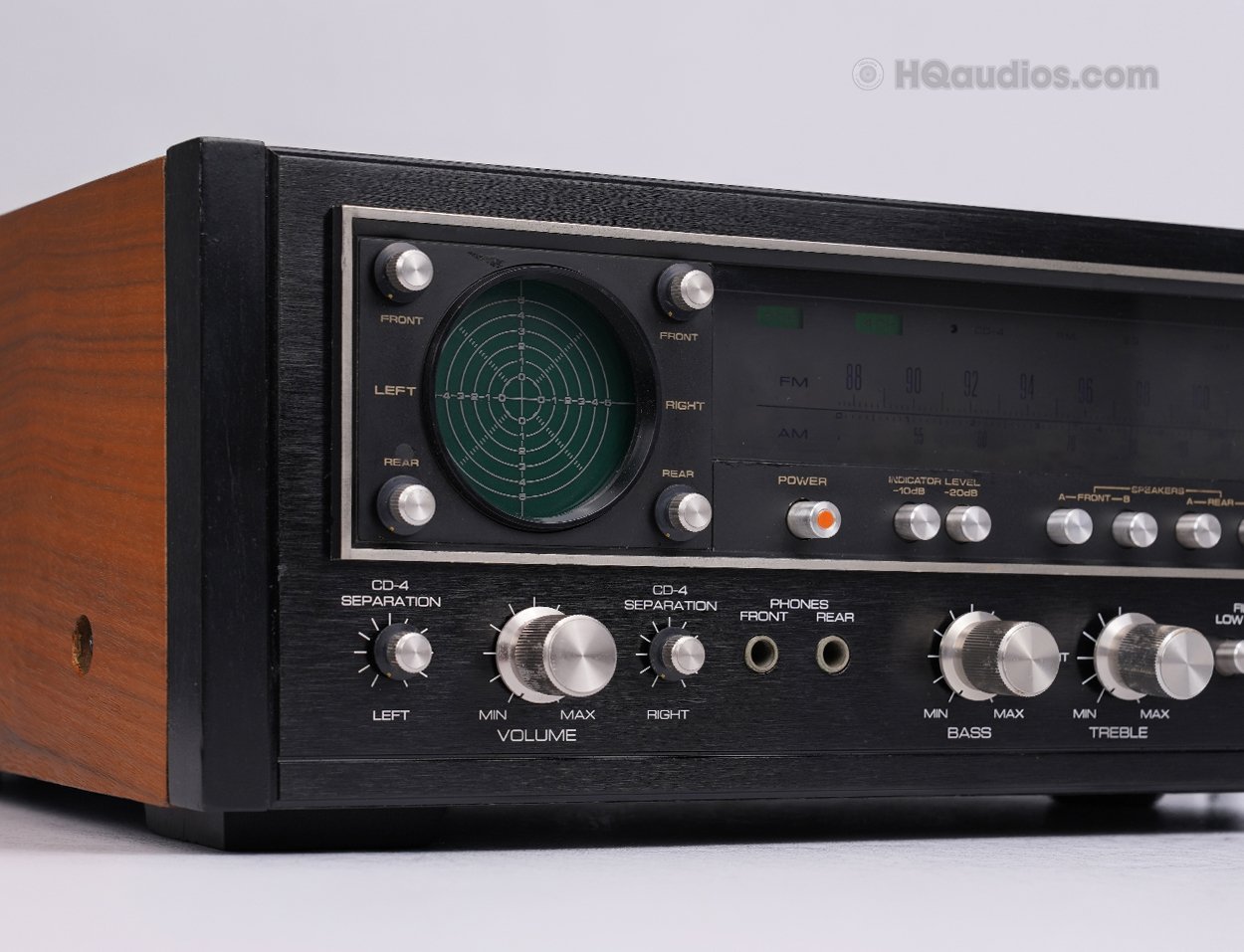

Distinctive 4-channel level indicator

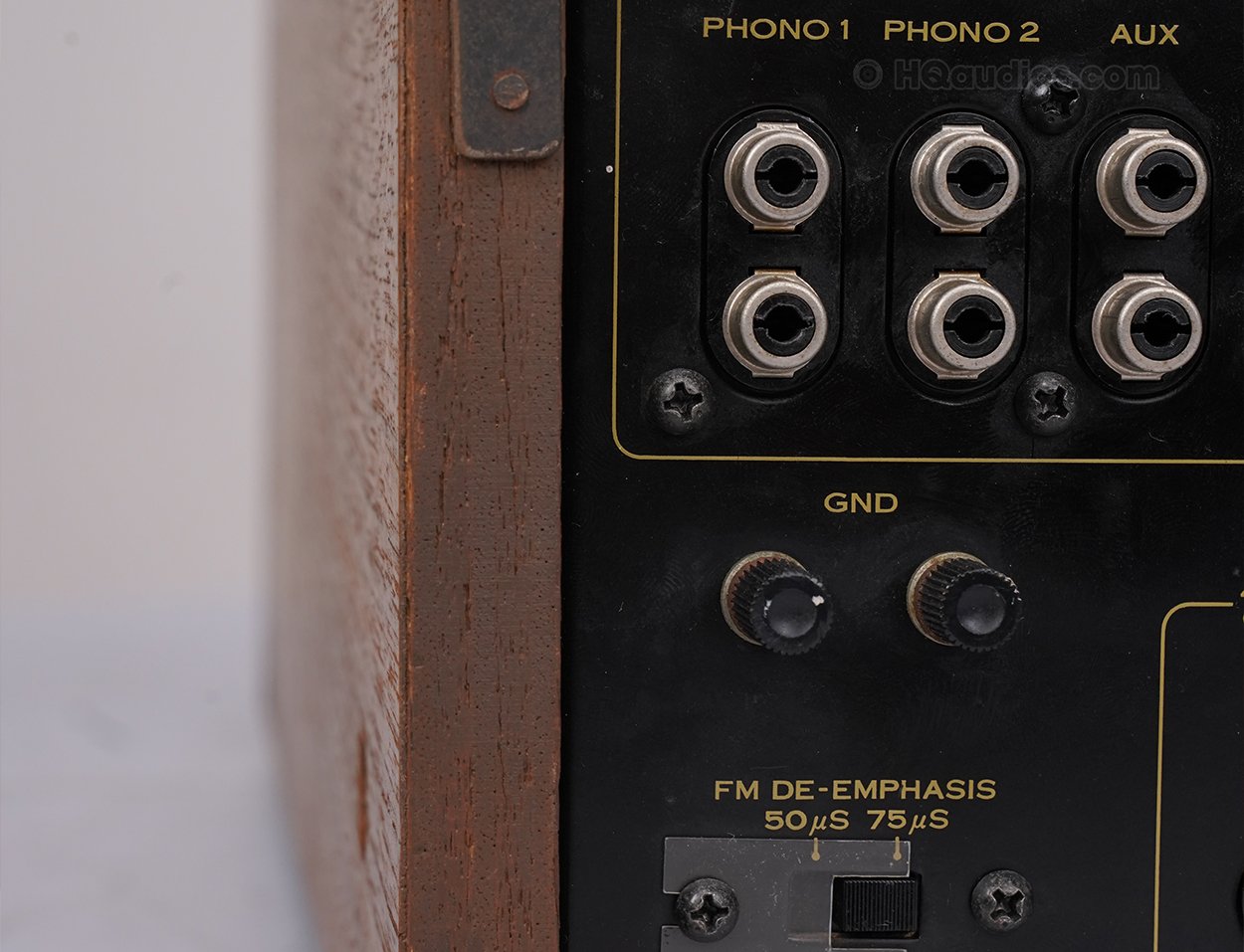

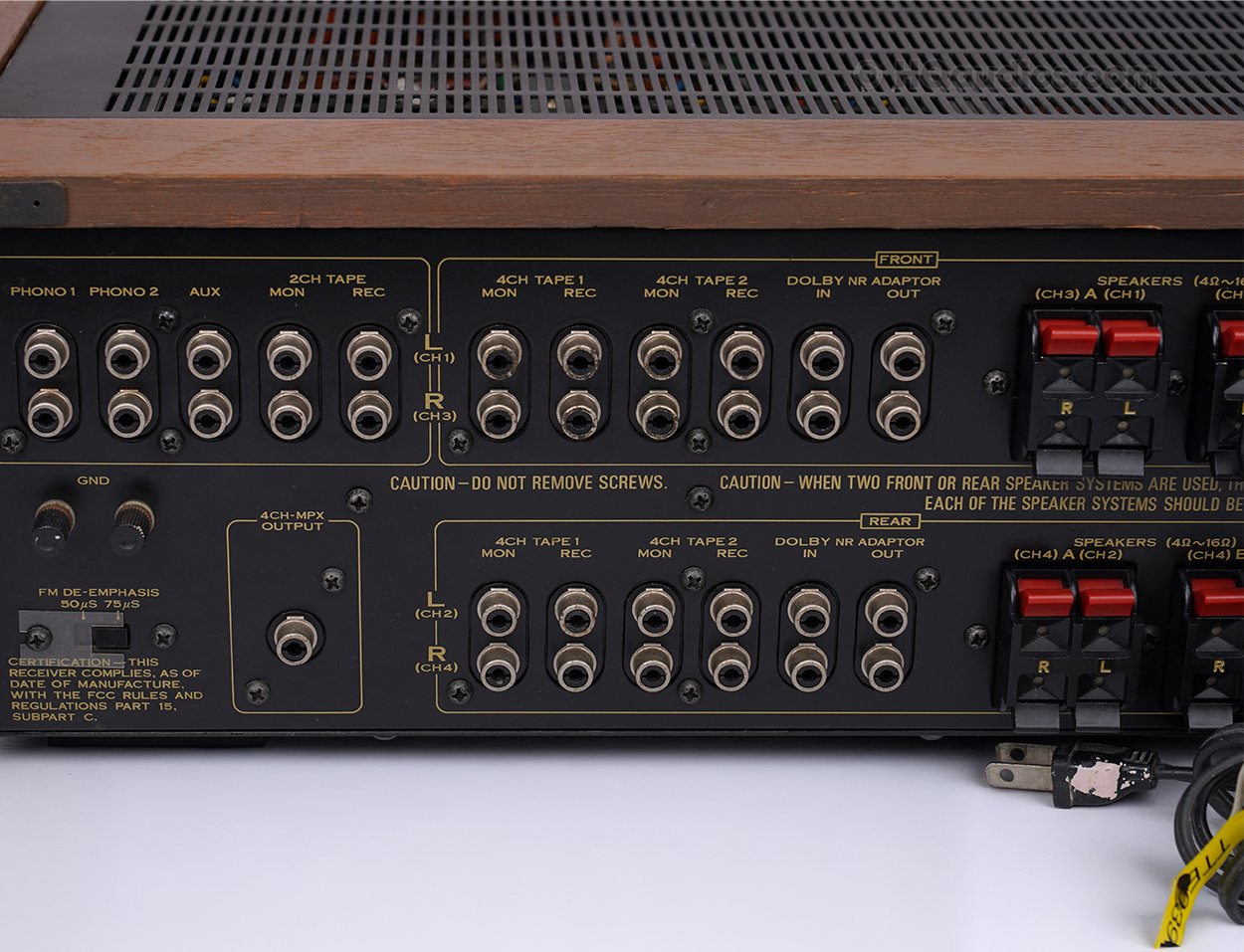

Dual phono inputs with extensive tape and quad connectivity
Multi-voltage selector: 110V / 120V / 130V / 220V / 240V, 50/60 Hz
Restored and tested by HQaudios
Backed by our 1-Year HQaudios Warranty
PRODUCT OVERVIEW

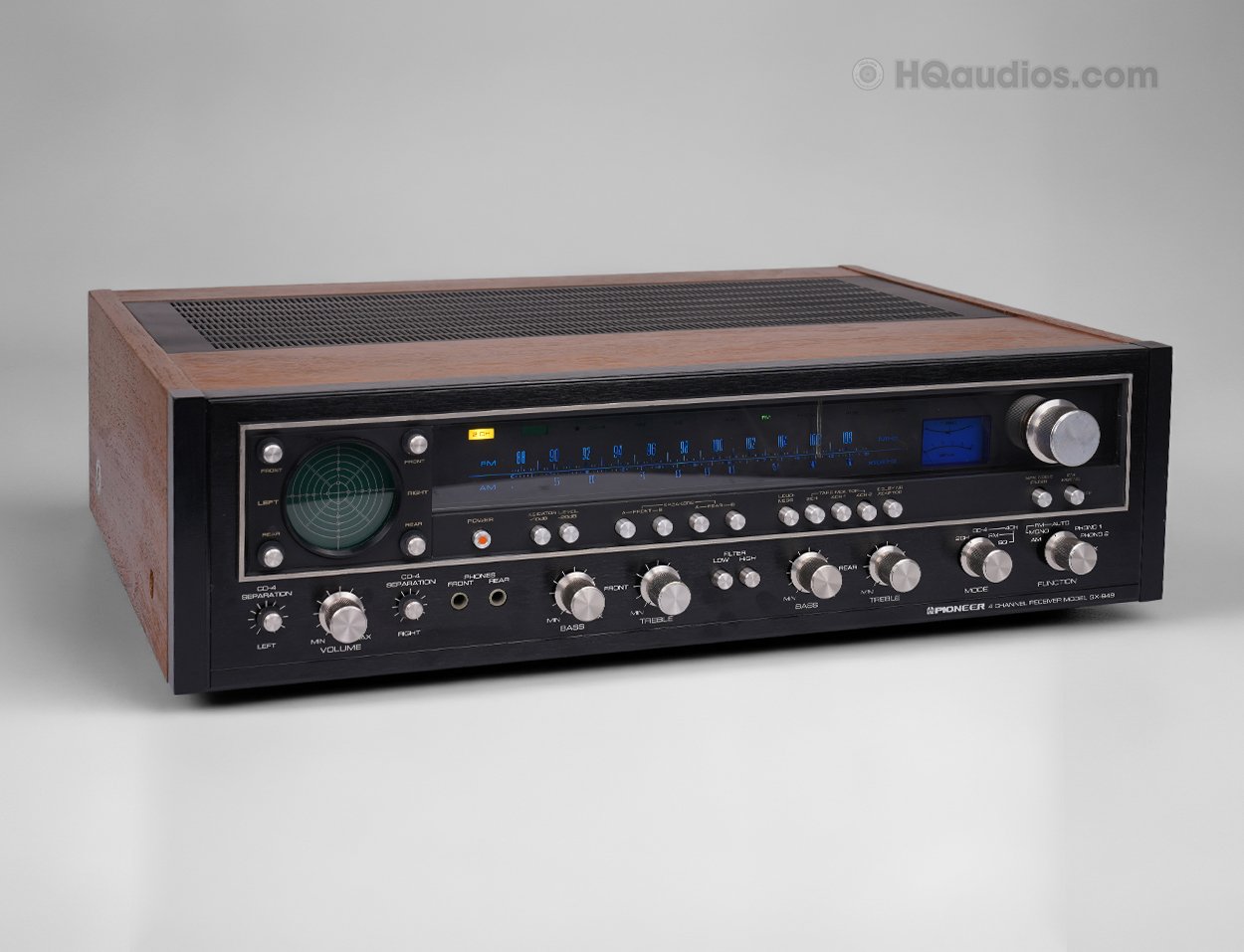

The Pioneer QX-949 is a 1974 four-channel quadraphonic AM/FM receiver from Pioneer’s classic silver-faceplate era, built to run either as a conventional stereo receiver or as a true four-channel system.

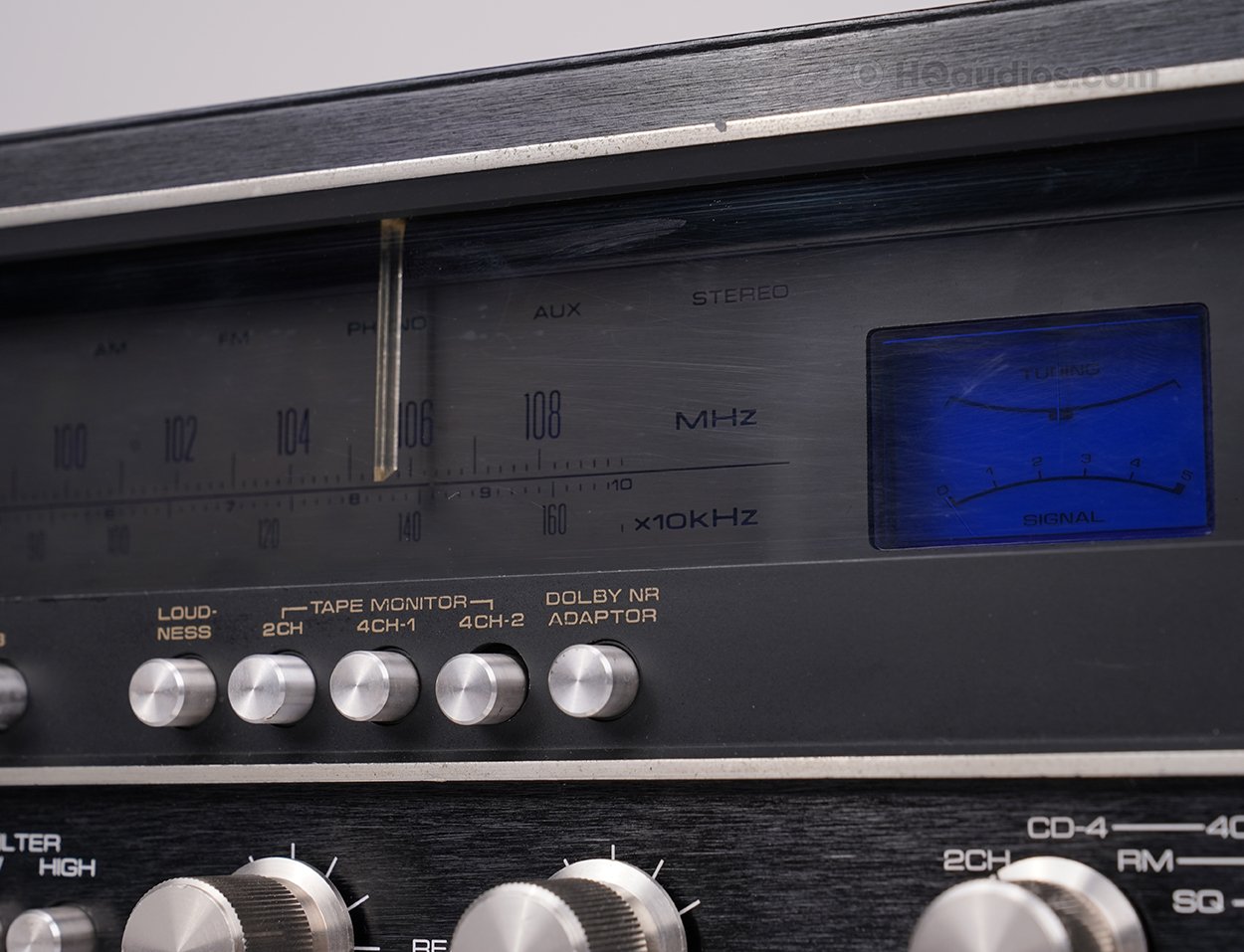

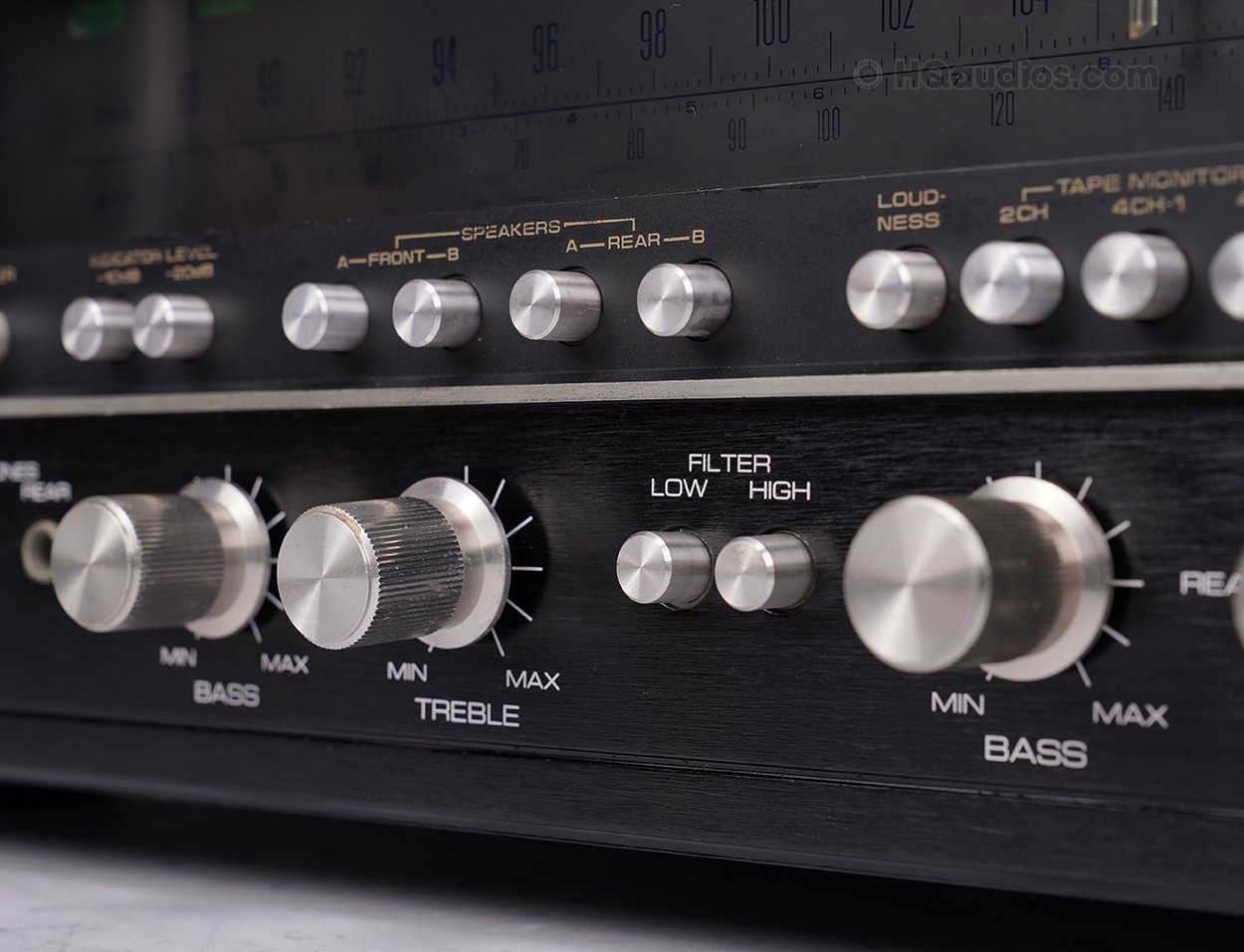

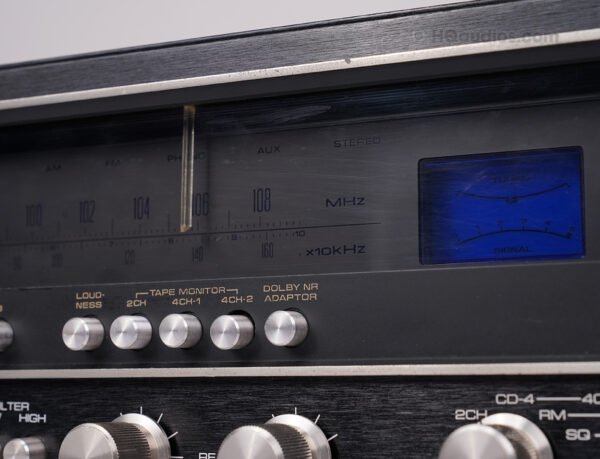

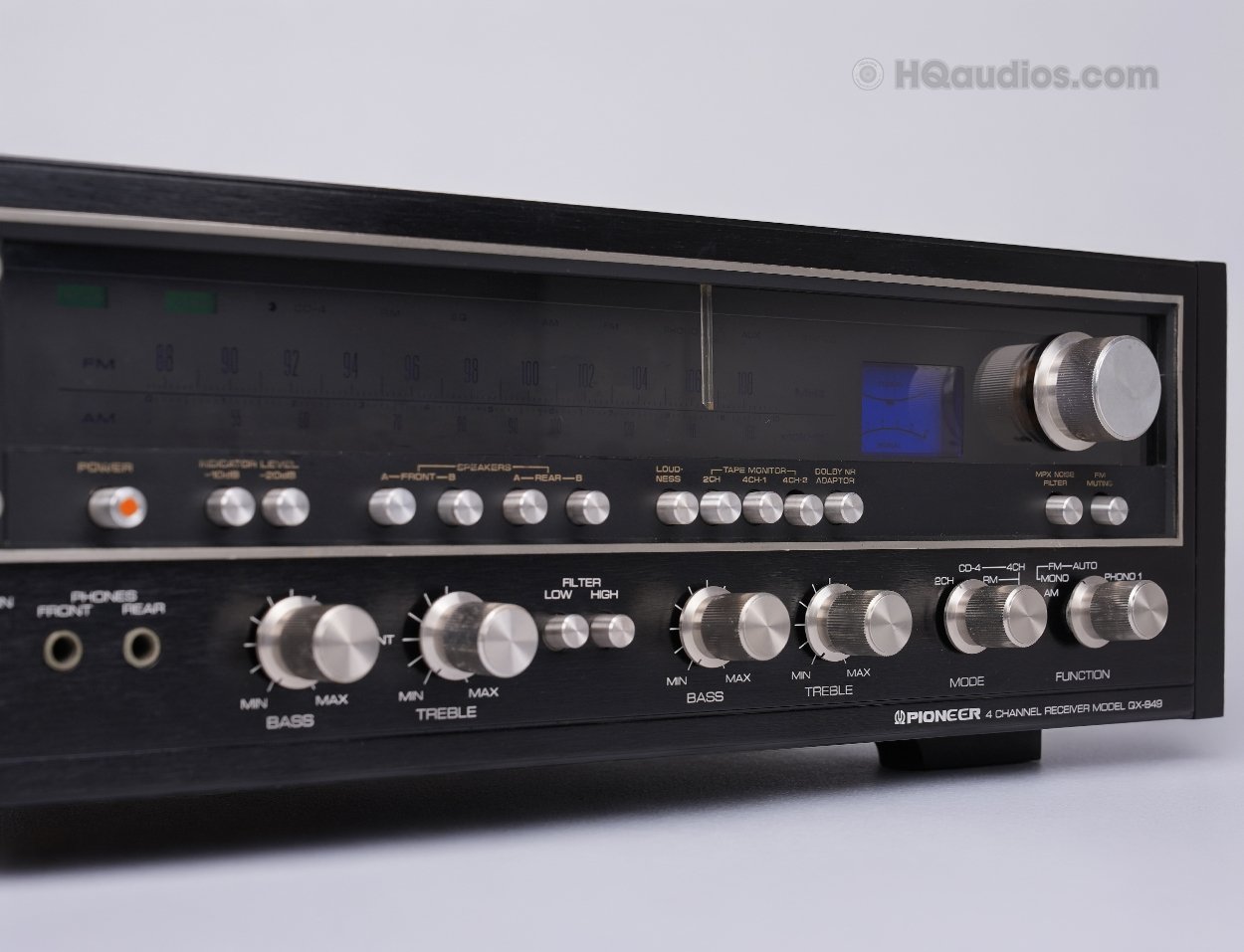

It supports CD-4, SQ and Regular Matrix quadraphonic formats and delivers 40 W x 4 in 4-channel mode, or 60 W x 2 when the 2-channel Power Boost circuit is engaged. The front panel adds the distinctive 4-channel level indicator, dual phono inputs, multiple tape connections and separate front/rear controls.
We restored this unit with careful attention to technical operation and cosmetic presentation, while preserving the original Pioneer design and character.
SPECIFICATIONS
Brand: Pioneer
Model: QX-949
Type: 4-Channel Quadraphonic AM/FM Receiver
Year: 1974
Power Output (4-channel): 40 W per channel x 4 into 8 ohms, 20 Hz – 20 kHz
Power Output (2-channel, Power Boost): 60 W per channel x 2 into 8 ohms, 20 Hz – 20 kHz
Total Harmonic Distortion: 0.3% at rated output
Frequency Response: 7 Hz – 25 kHz
Damping Factor: 35
Phono Input Sensitivity: 2.5 mV / 50k ohms
Signal-to-Noise Ratio: 70 dB (phono) / 90 dB (line)
Quadraphonic Systems: CD-4 / SQ / Regular Matrix

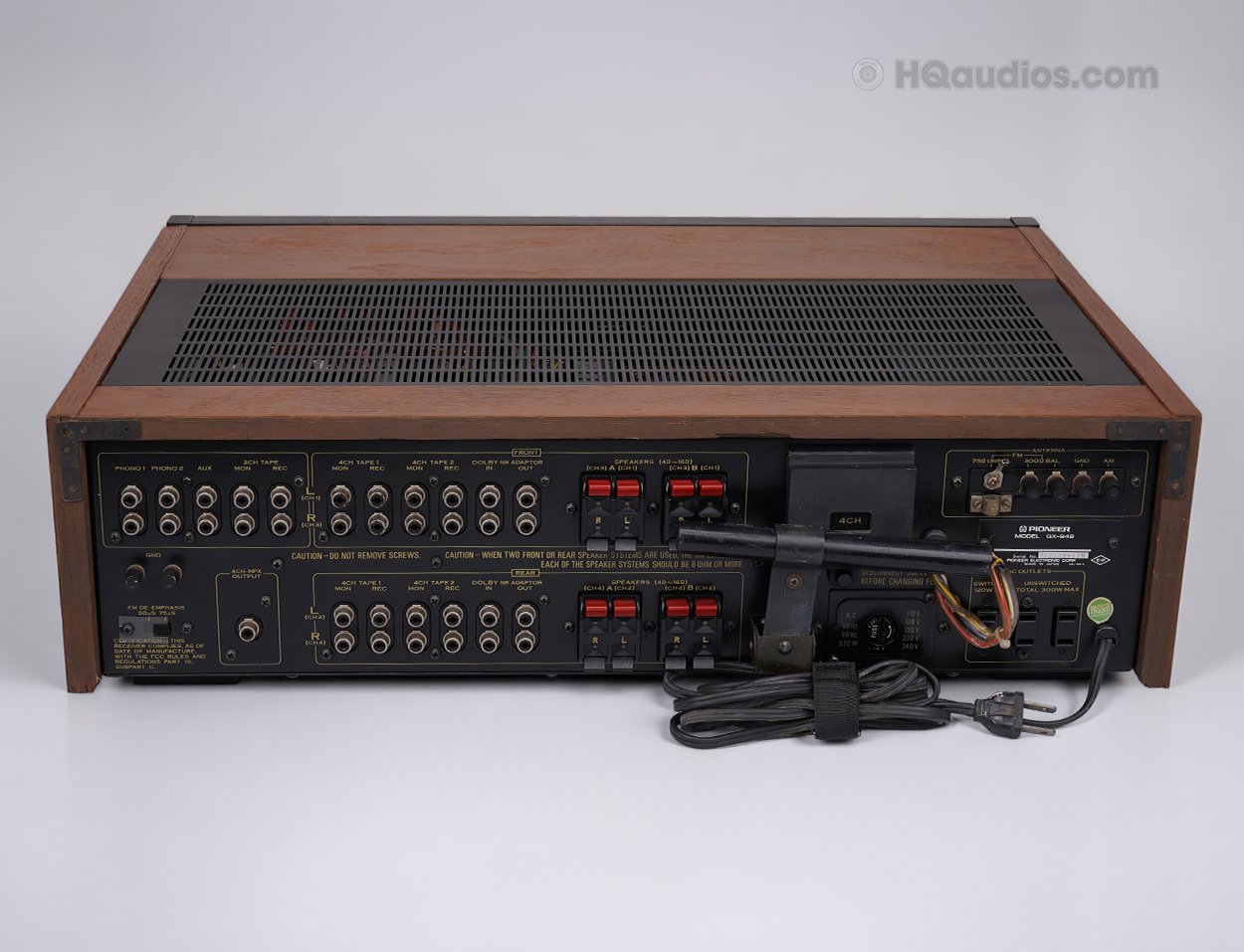

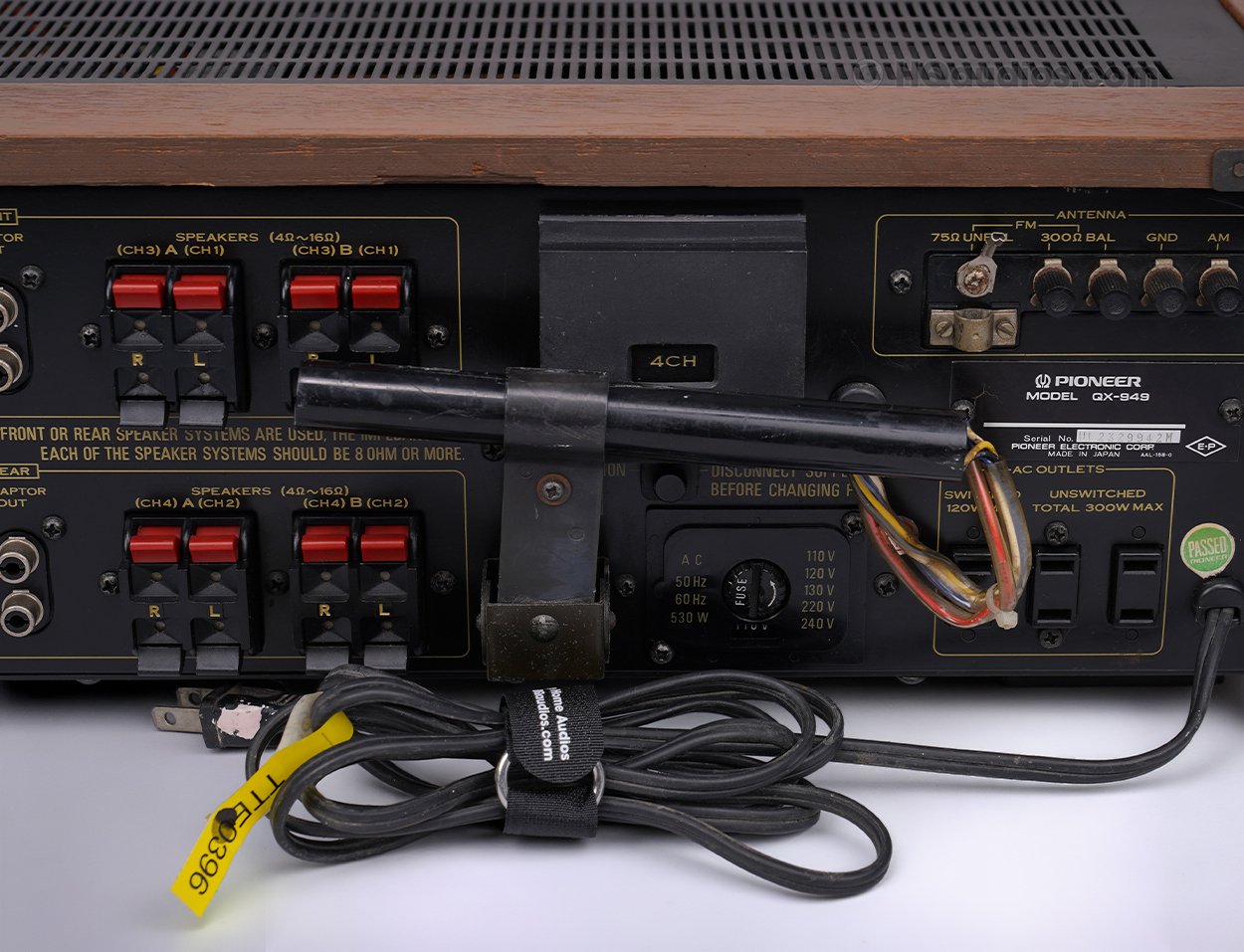

Speaker Outputs: Front A/B + Rear A/B
Speaker Impedance: 4 – 16 ohms; 8 ohms or higher when using A+B

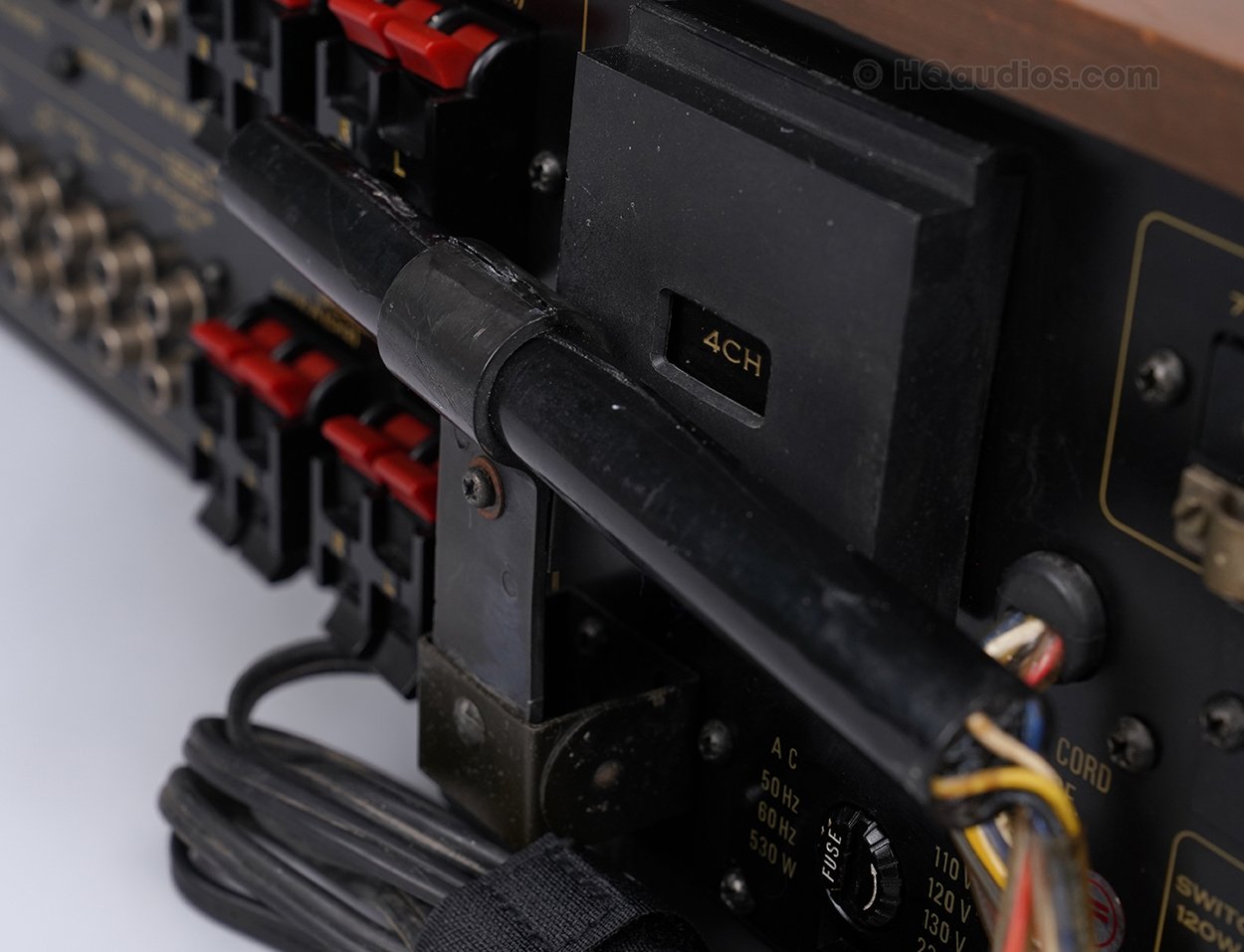

Power: AC 110V / 120V / 130V / 220V / 240V, 50/60 Hz (selectable), 530 W
Dimensions: approx. 21.65 W × 6.30 H × 17.32 D in
Weight: approx. 49.4 lbs
WHAT IS INCLUDED
1 Pioneer QX-949 Quadraphonic Receiver
Attached AC power cord
Only the items specifically listed above are included. Speakers, cables, remote control and other accessories are not included.
SHIPPING & PACKAGING
Your vintage audio equipment will be professionally packed by HQaudios using protective materials appropriate for its size, weight, and construction. Large or heavy items may be palletized and shipped by freight when required for safer transportation.
Please contact us before purchase for the most current availability information.
1-YEAR WARRANTY & CUSTOMER SUPPORT
Your purchase is backed by our 1-Year HQaudios Warranty. Our team provides support before and after your purchase. If you have questions about setup, operation, compatibility, or your order, please contact HQaudios for assistance.
