Tannoy System 10 DMT Dual Concentric Studio Monitor Speaker Pair
Professionally Restored by HQaudios – Inspected & Tested – Backed by Our 1-Year Warranty
KEY HIGHLIGHTS

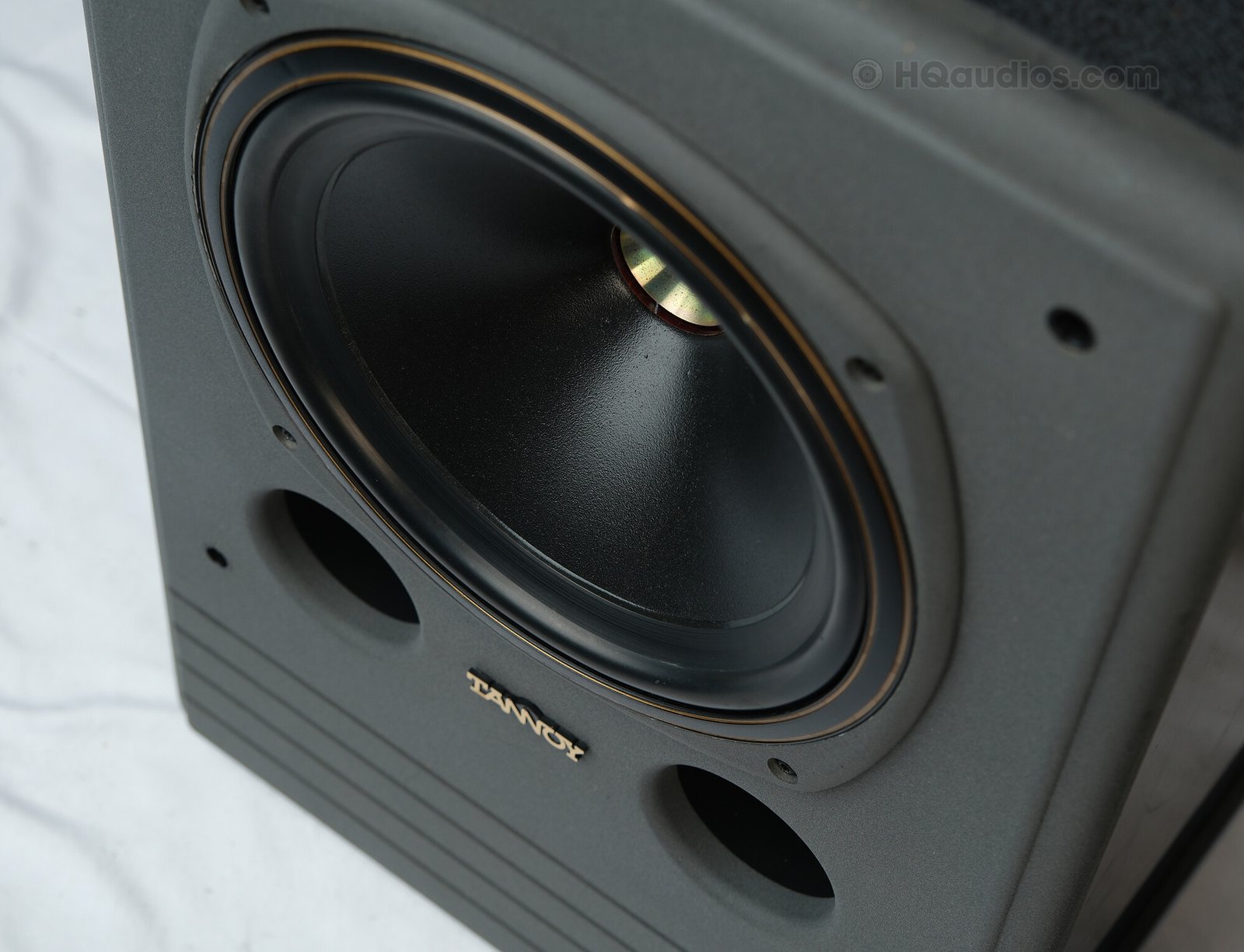

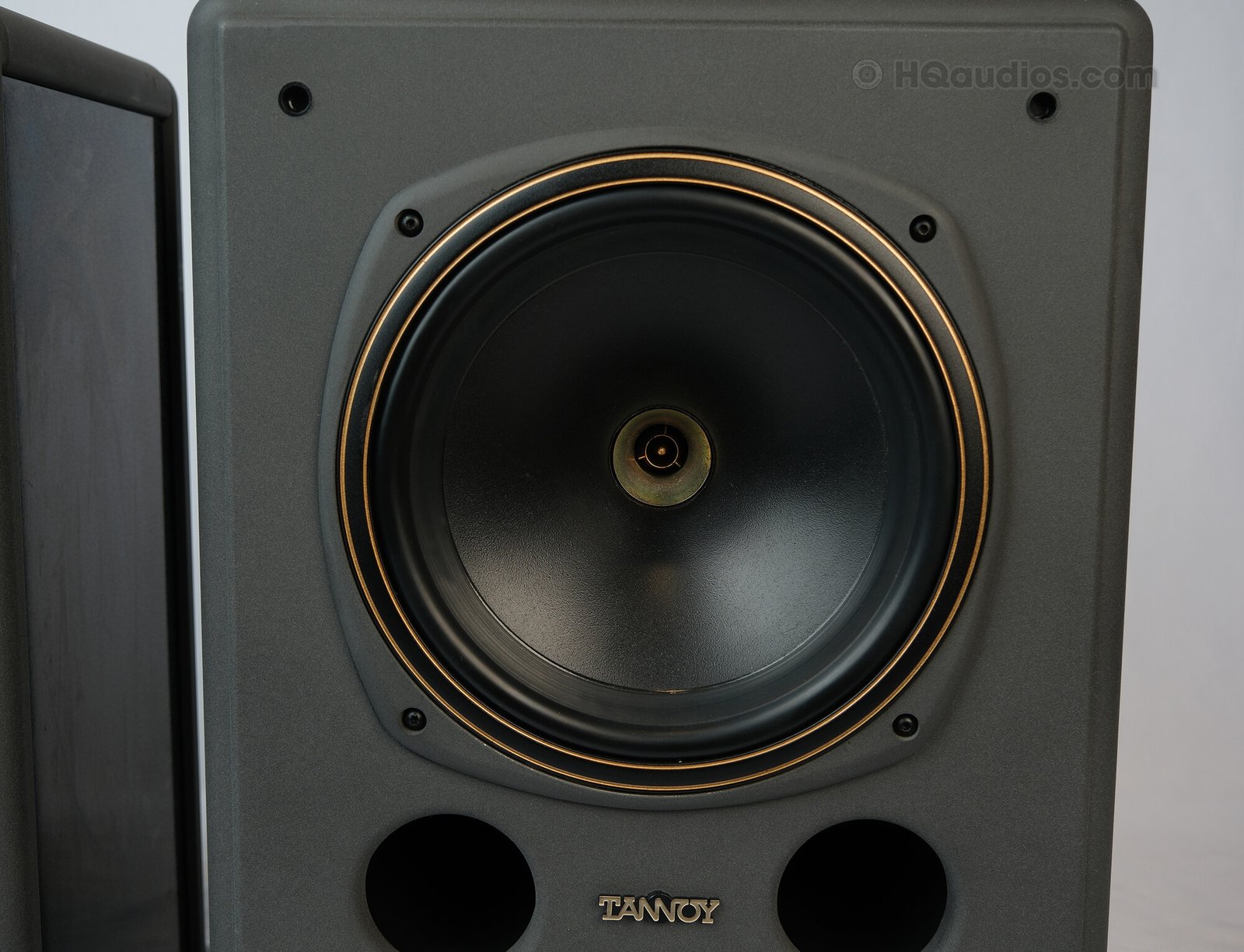

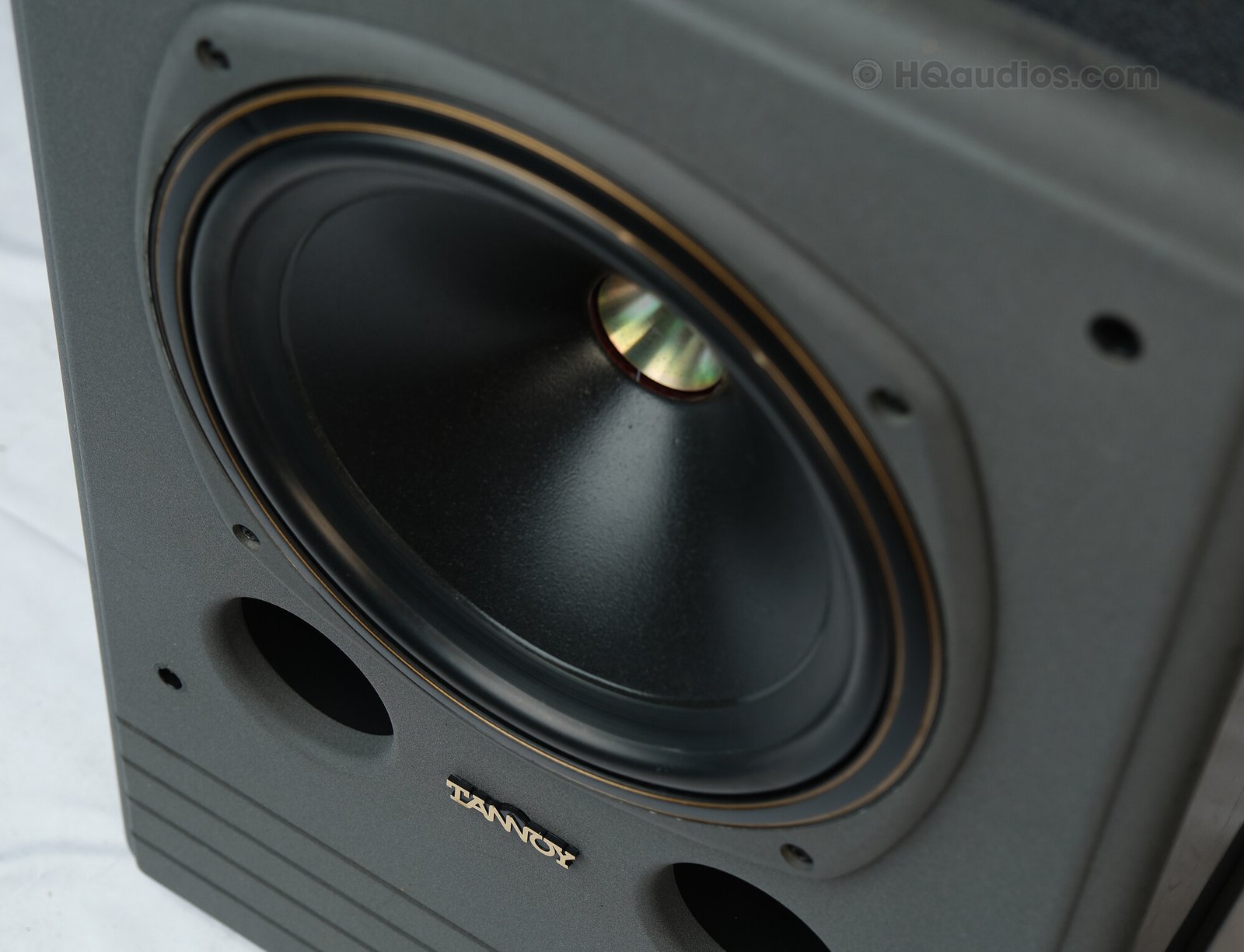

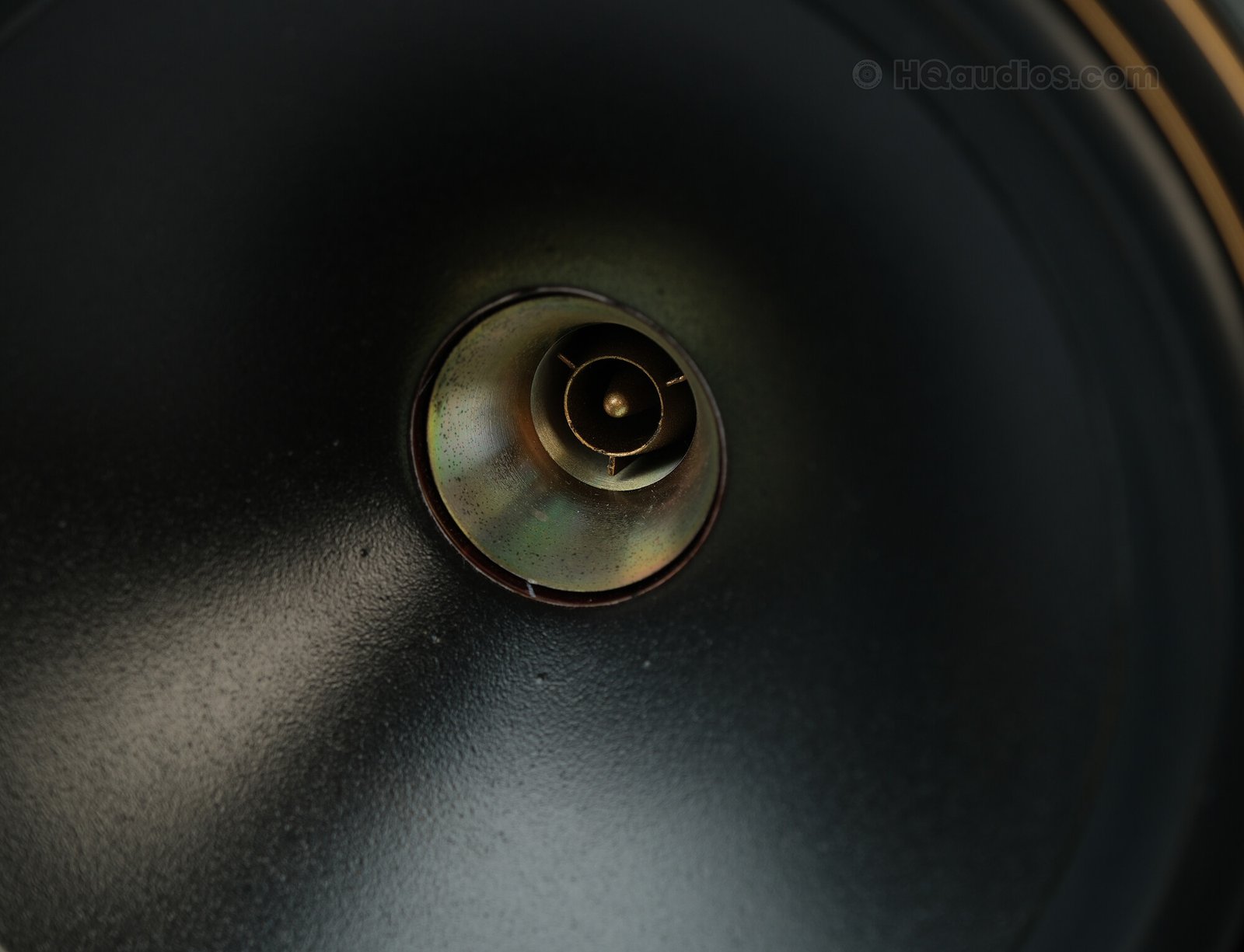

Tannoy 10-inch Dual Concentric studio monitor architecture
Two-way passive design with front bass-reflex loading
Rear HF level adjustment and speaker connection terminals

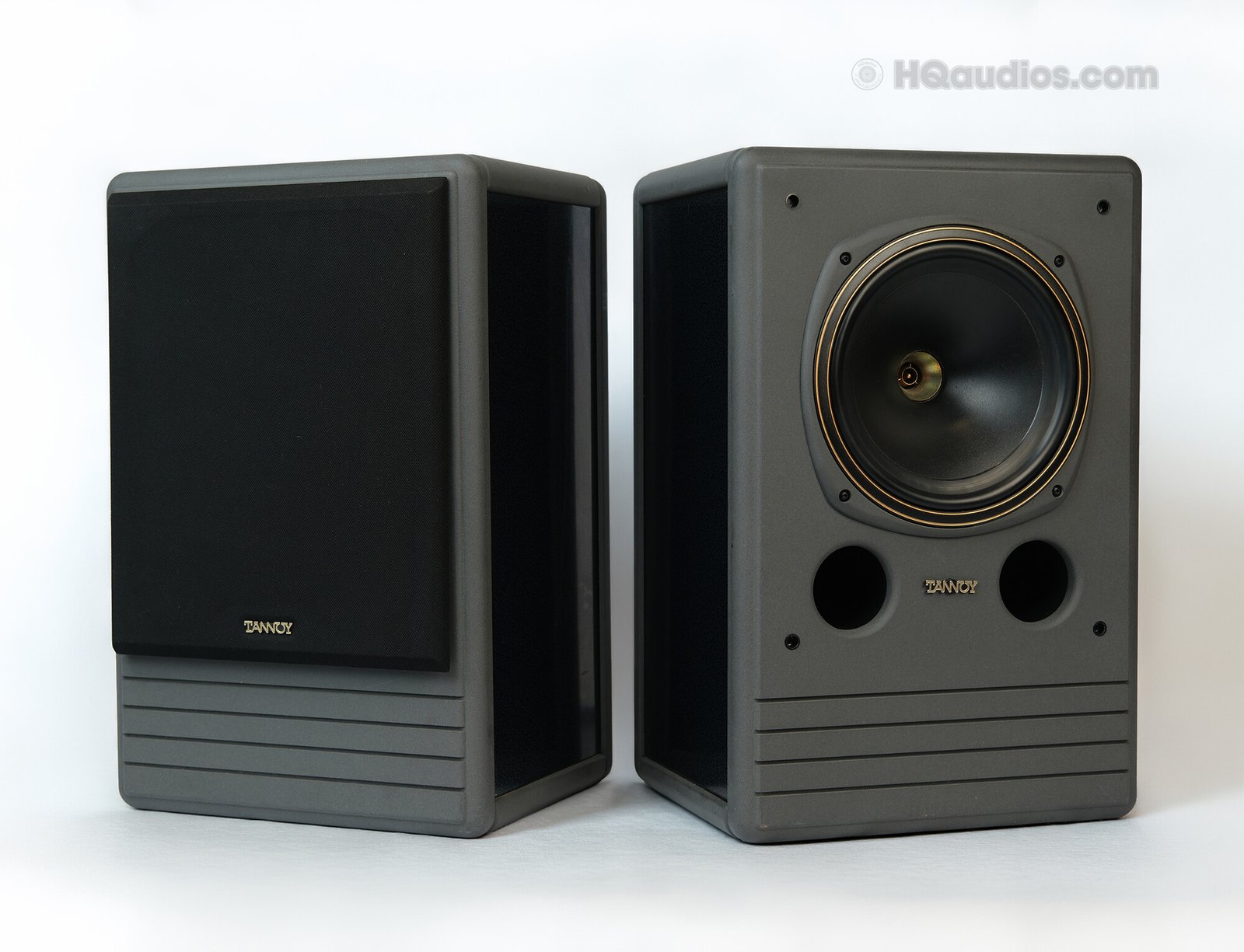

Pair in dark textured cabinets with front grilles shown in the photographs
PRODUCT OVERVIEW
The Tannoy System 10 DMT is a two-way passive studio monitor built around Tannoy’s Dual Concentric architecture, which positions its high-frequency source concentrically with the low-frequency driver. Designed for critical stereo monitoring, the system also features bass-reflex loading and a rear-panel treble energy control.

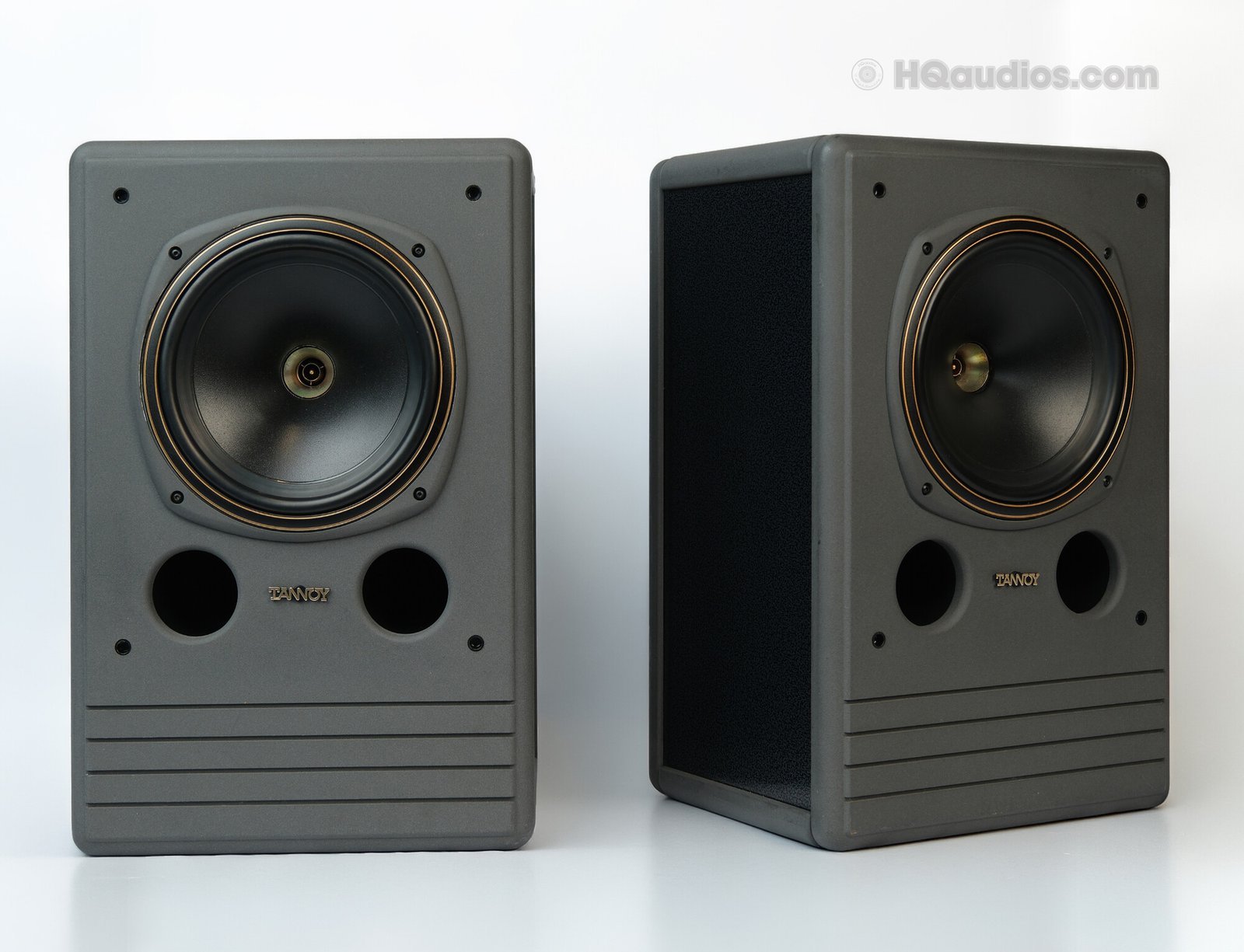

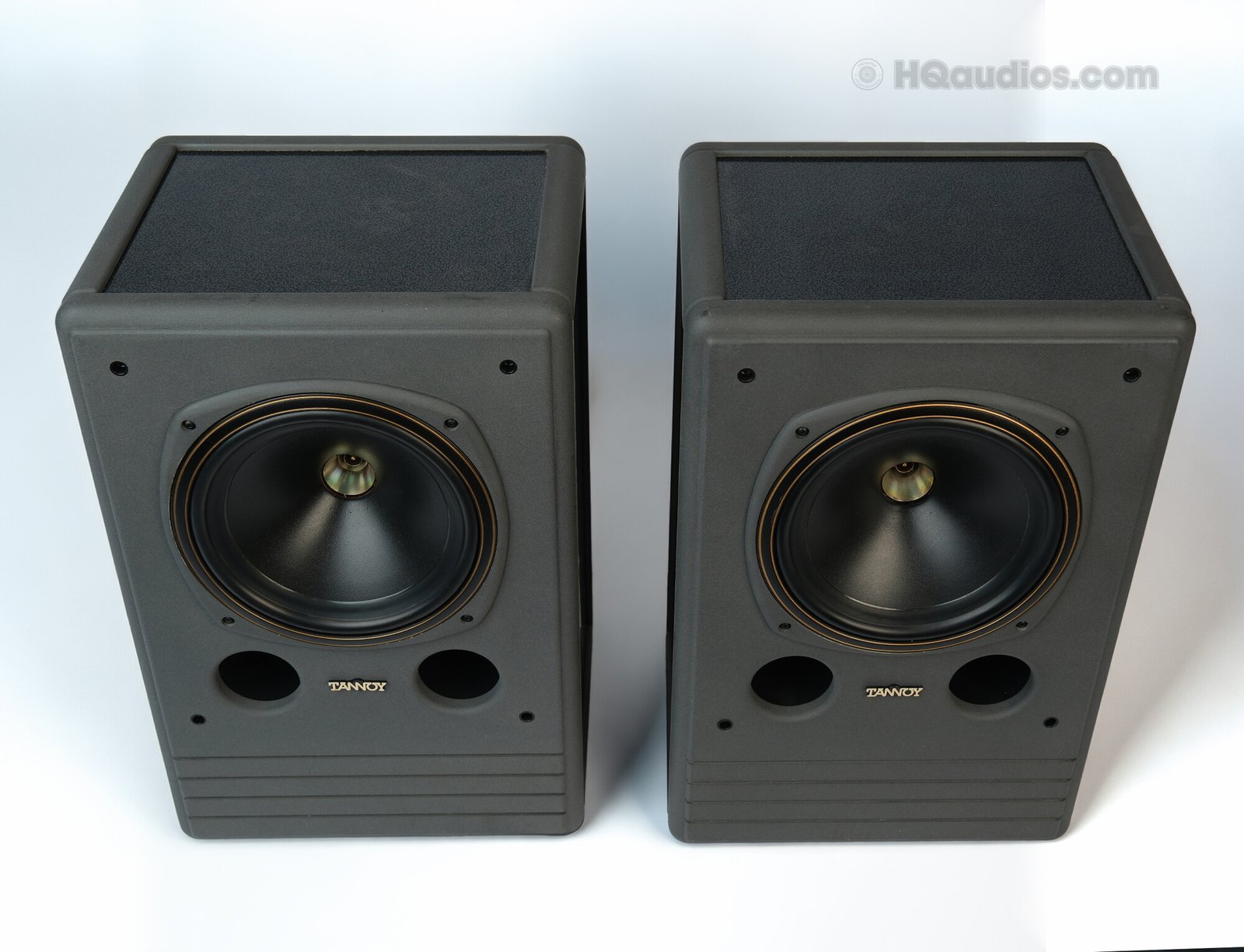

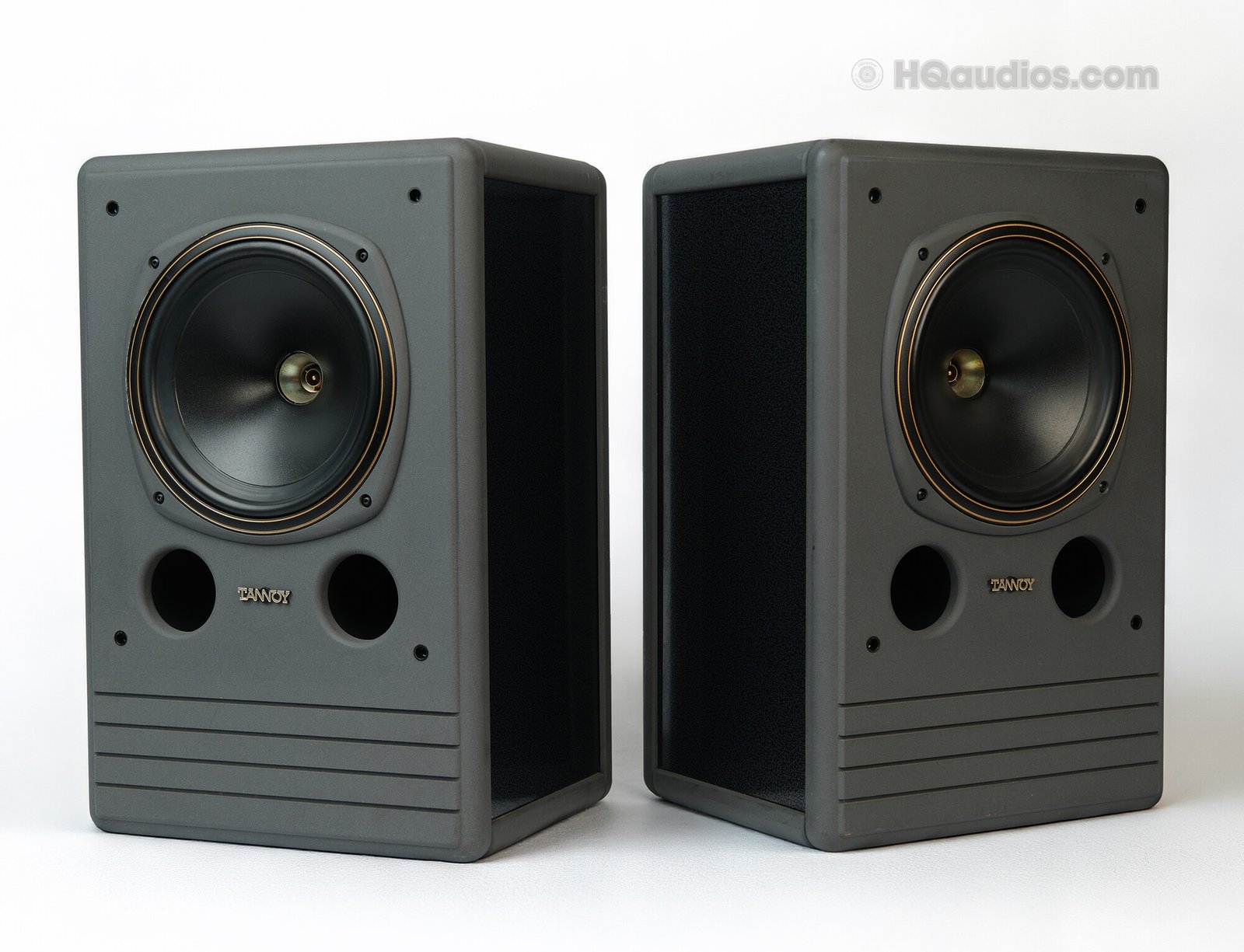

This offering is a pair of System 10 DMT monitors in a dark textured cabinet finish. The actual-item photographs show the cabinet surfaces, front grilles, and rear-panel connection arrangements.
HQAUDIOS RESTORATION & TESTING
Professionally inspected, tested, and serviced. Aging or degraded components have been replaced where necessary to restore performance as close as possible to original factory specifications.
Before Restoration
We received this vintage Tannoy speaker pair for a full mechanical, electrical, and functional inspection prior to service.
During Restoration
Drivers: We tested each Dual Concentric assembly and measured driver DC resistance.

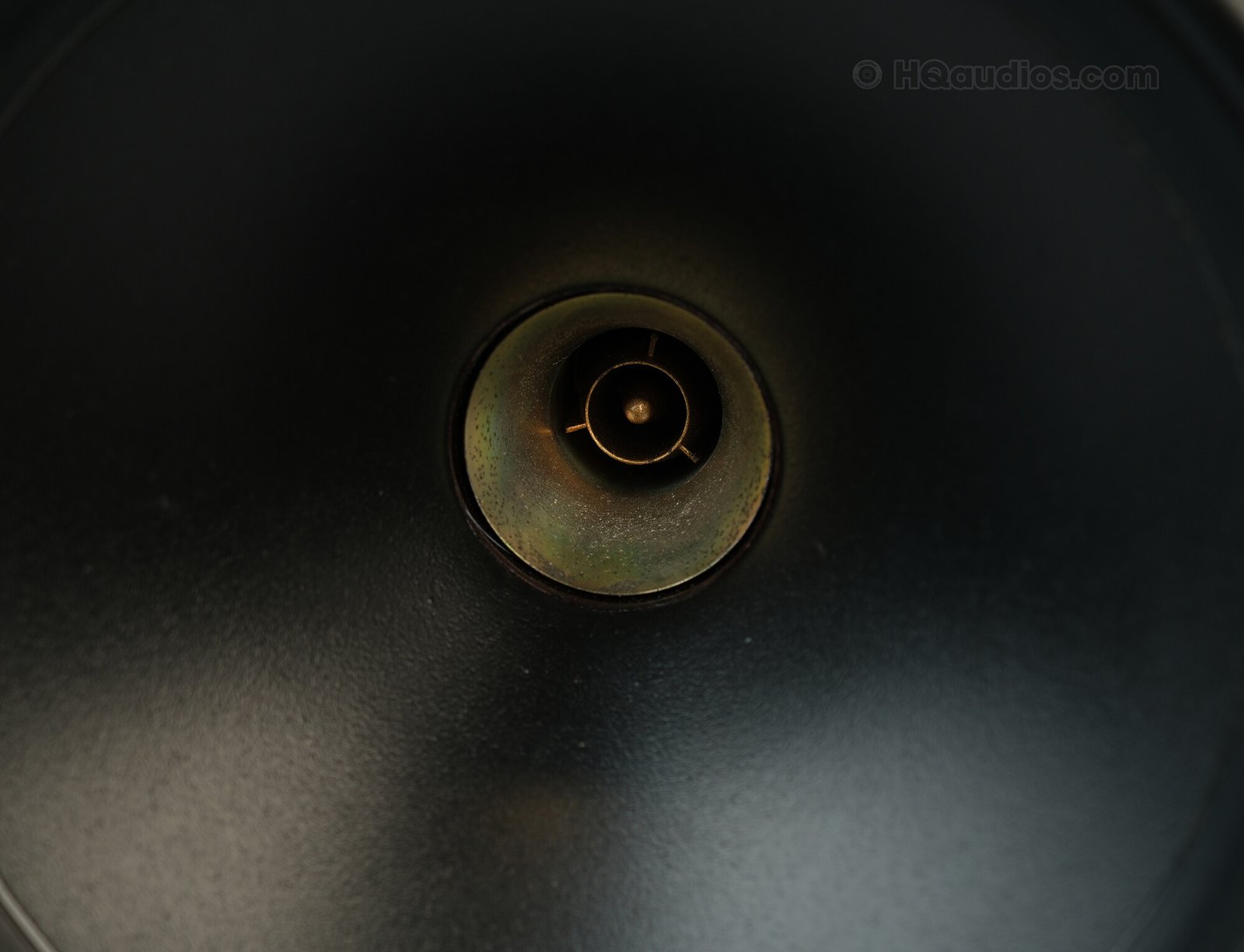

HF Sections: We inspected and tested the integrated high-frequency driver sections.
Crossovers: We inspected and measured the crossover components; out-of-spec capacitors were replaced.
Cabinet Restoration: We repaired, sanded, and refinished the cabinets under the HQaudios speaker restoration process.

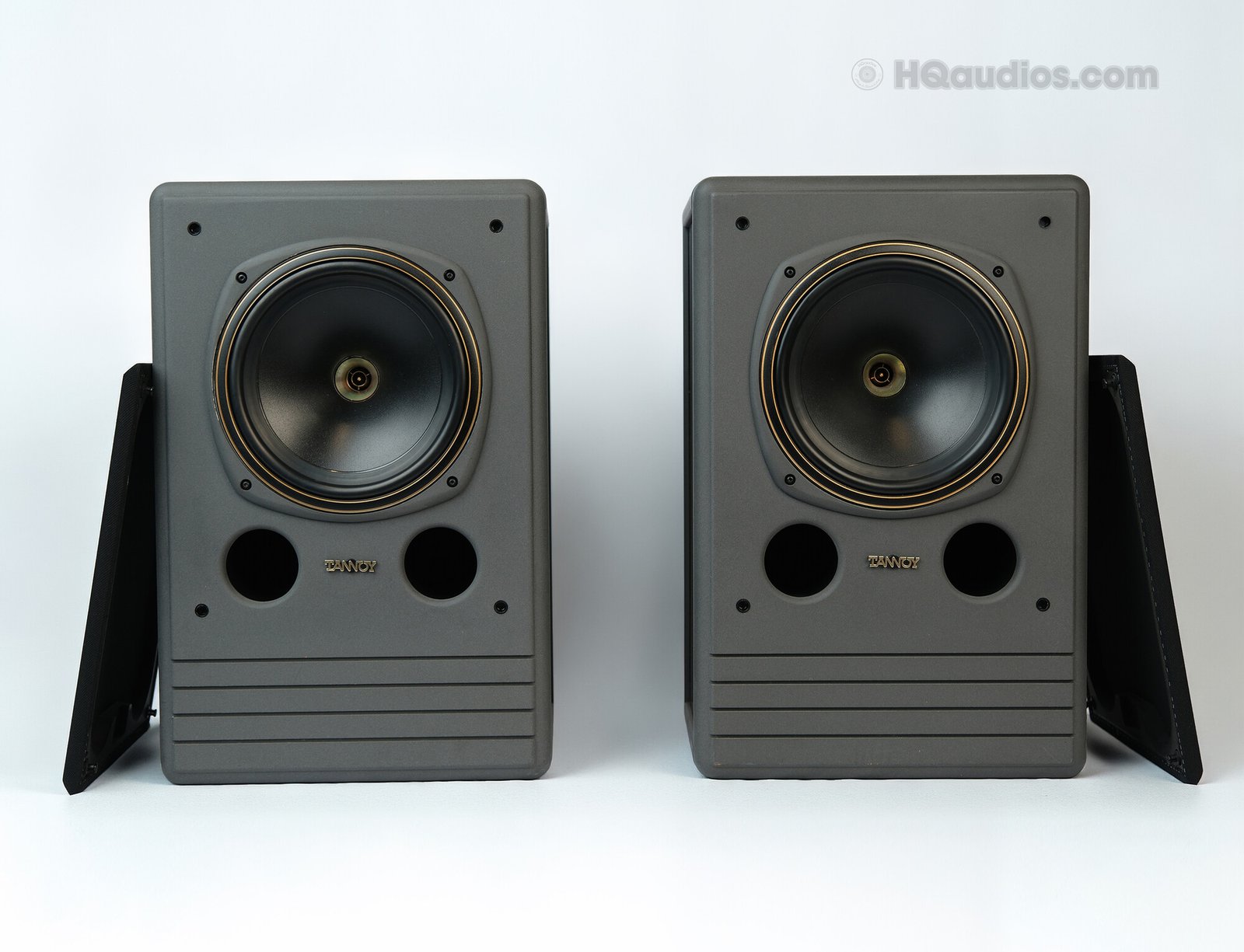

Grilles: We cleaned and restored the removable front grille assemblies.
Terminals & Wiring: We inspected and cleaned the speaker terminals and internal wiring.
Gaskets & Hardware: We checked the driver mounting hardware and cabinet gasket seals.
HF Controls: We inspected and serviced the rear high-frequency adjustment controls.
After Restoration / Final Testing
Burn-in: We completed a speaker burn-in test to evaluate operation and stability.
Acoustic Tests: We performed frequency-sweep and listening tests on each speaker.
CONDITION
Technical Condition
Speaker Operation: Both speakers produced sound during functional playback.

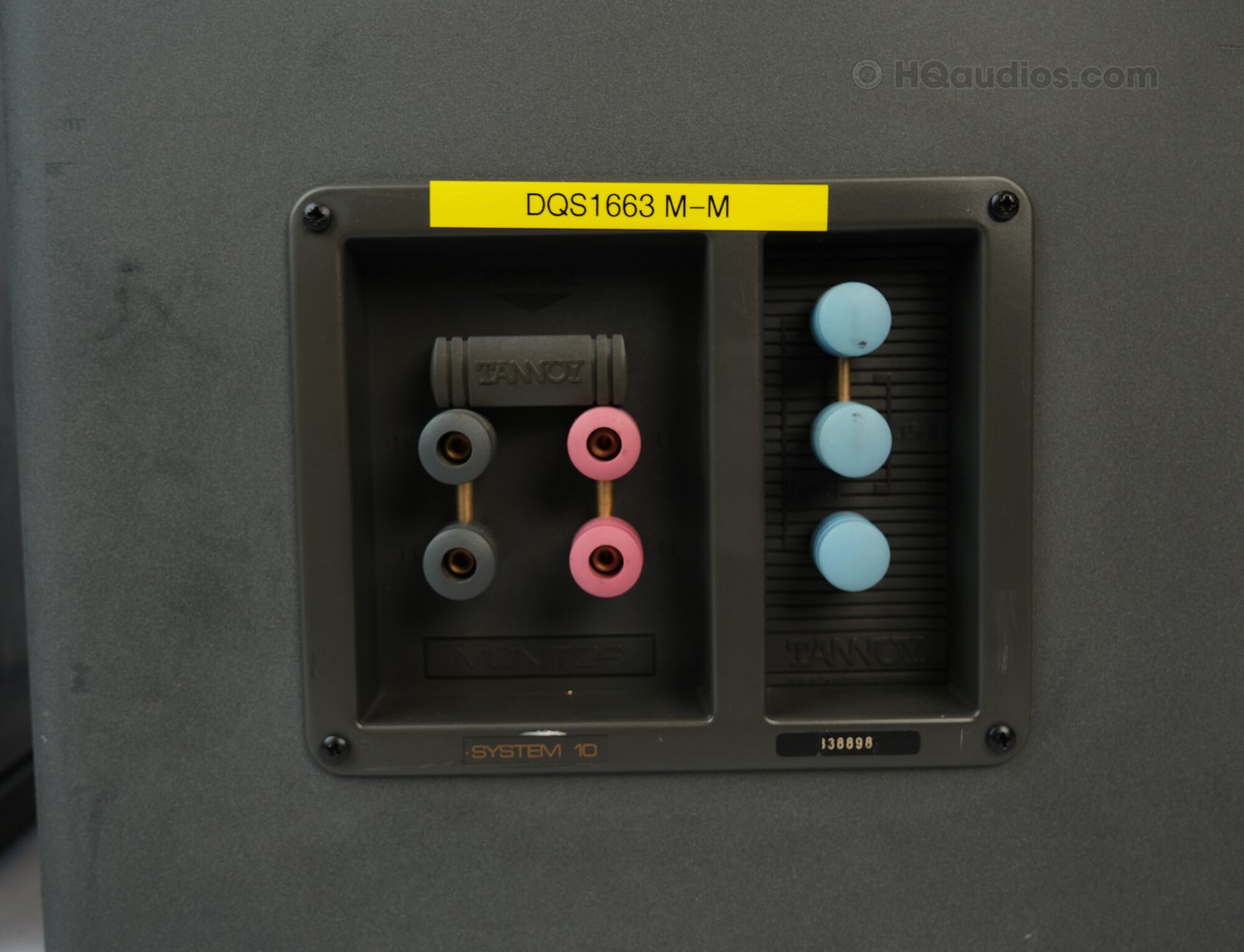

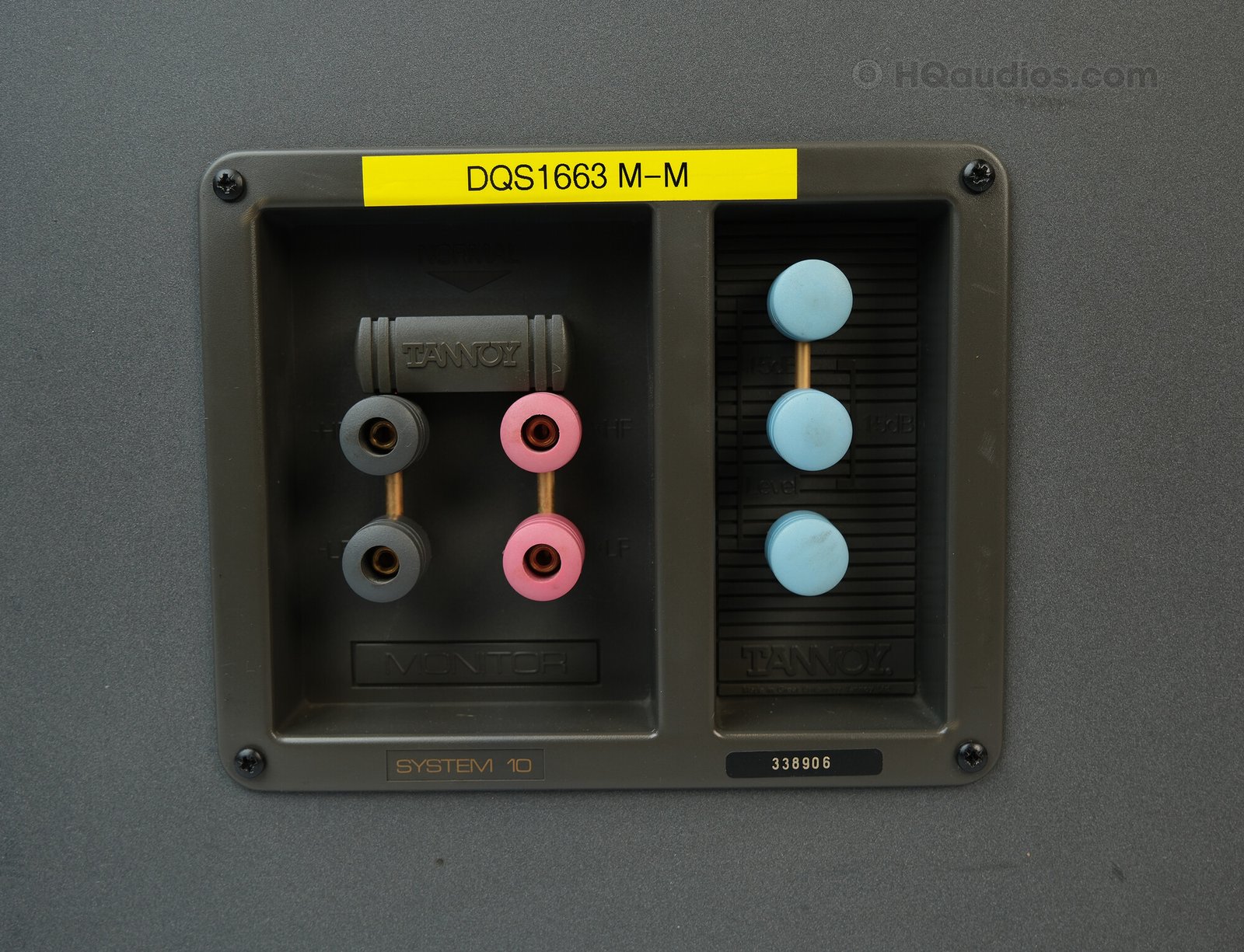

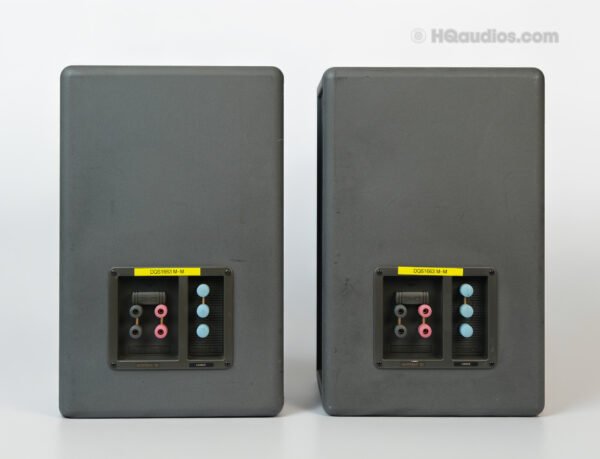

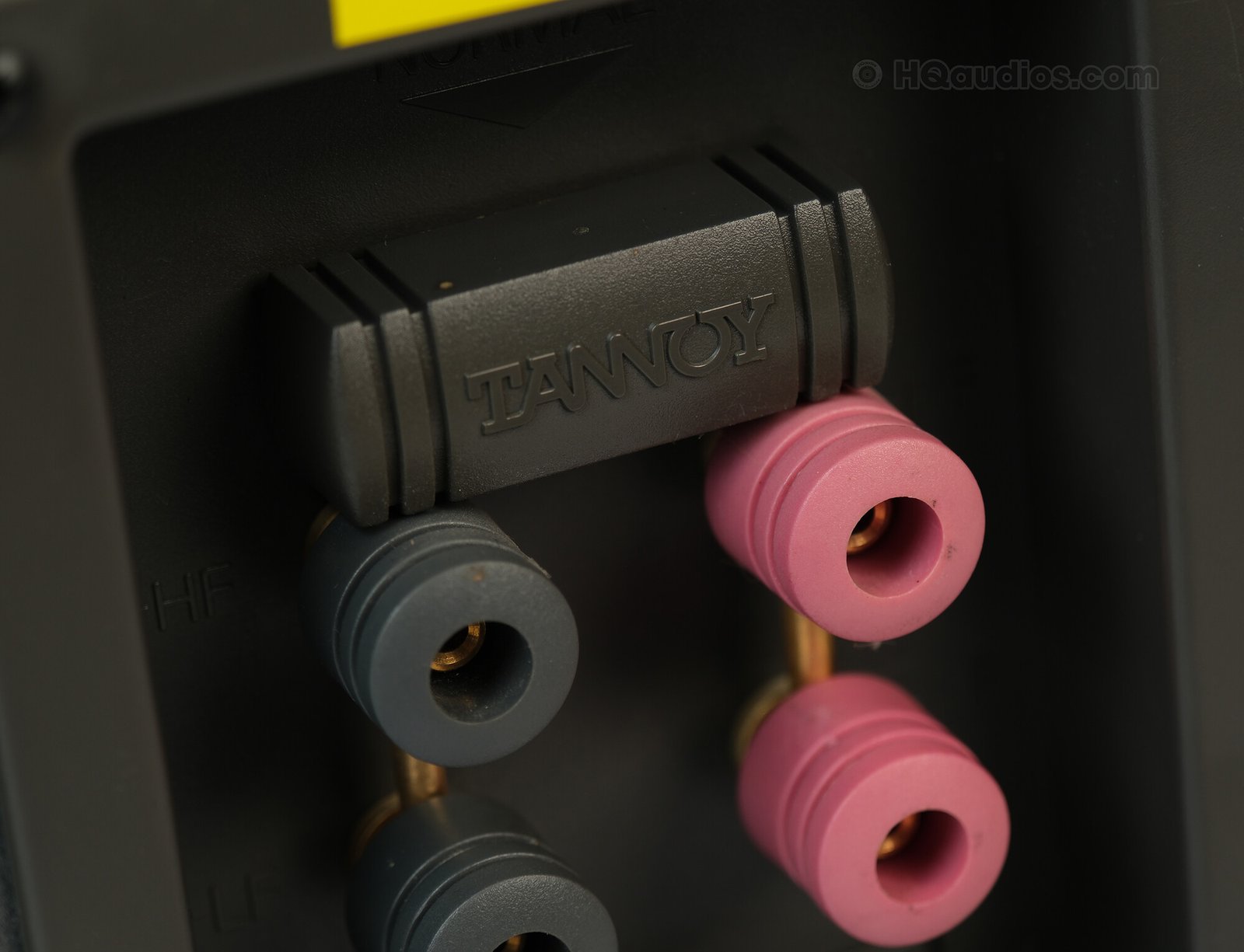

Rear Connections: Binding-post speaker connections and treble energy controls are present.
Cosmetic Condition

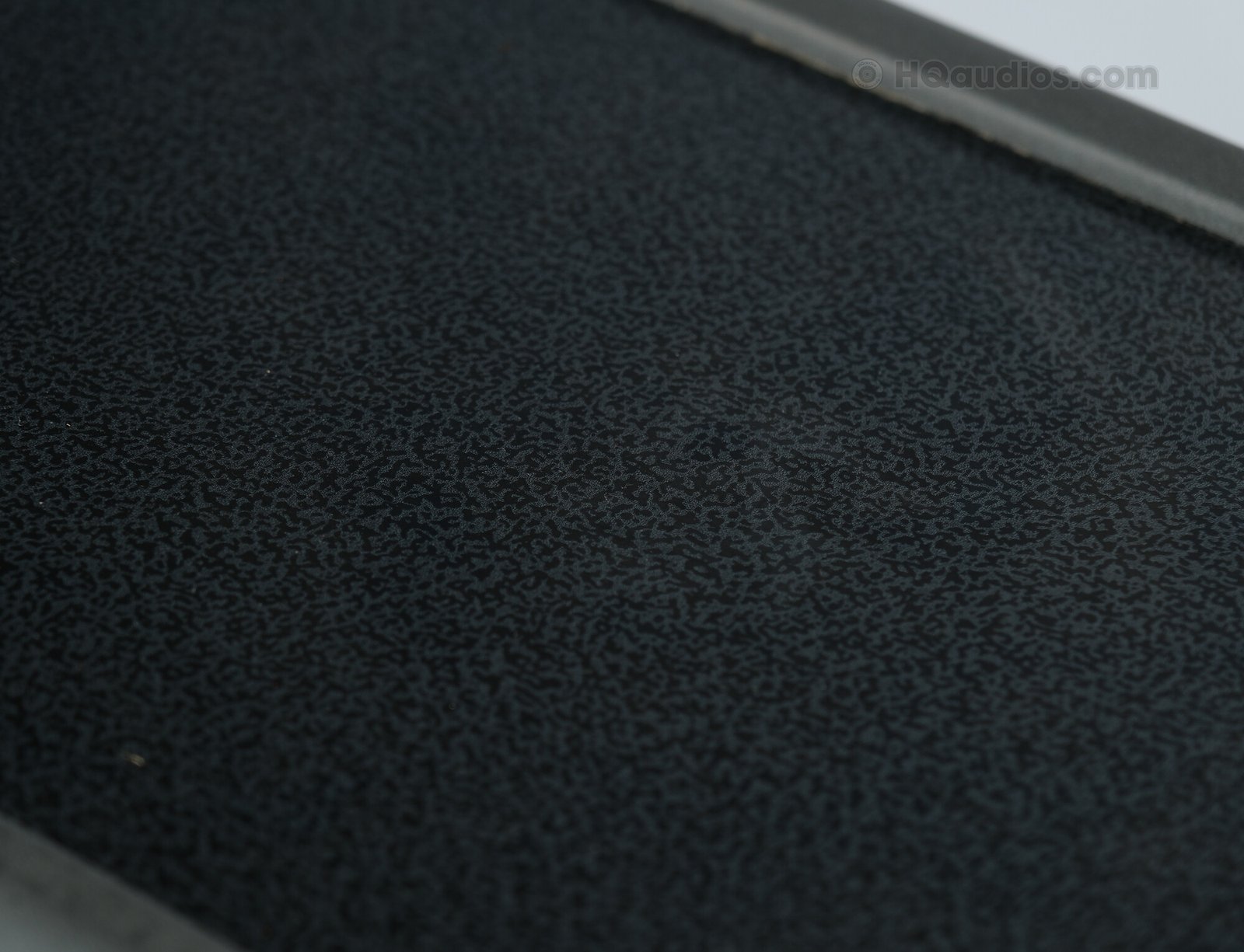

Cabinets: Dark textured surfaces with visible light scuffs, marks and normal vintage wear.

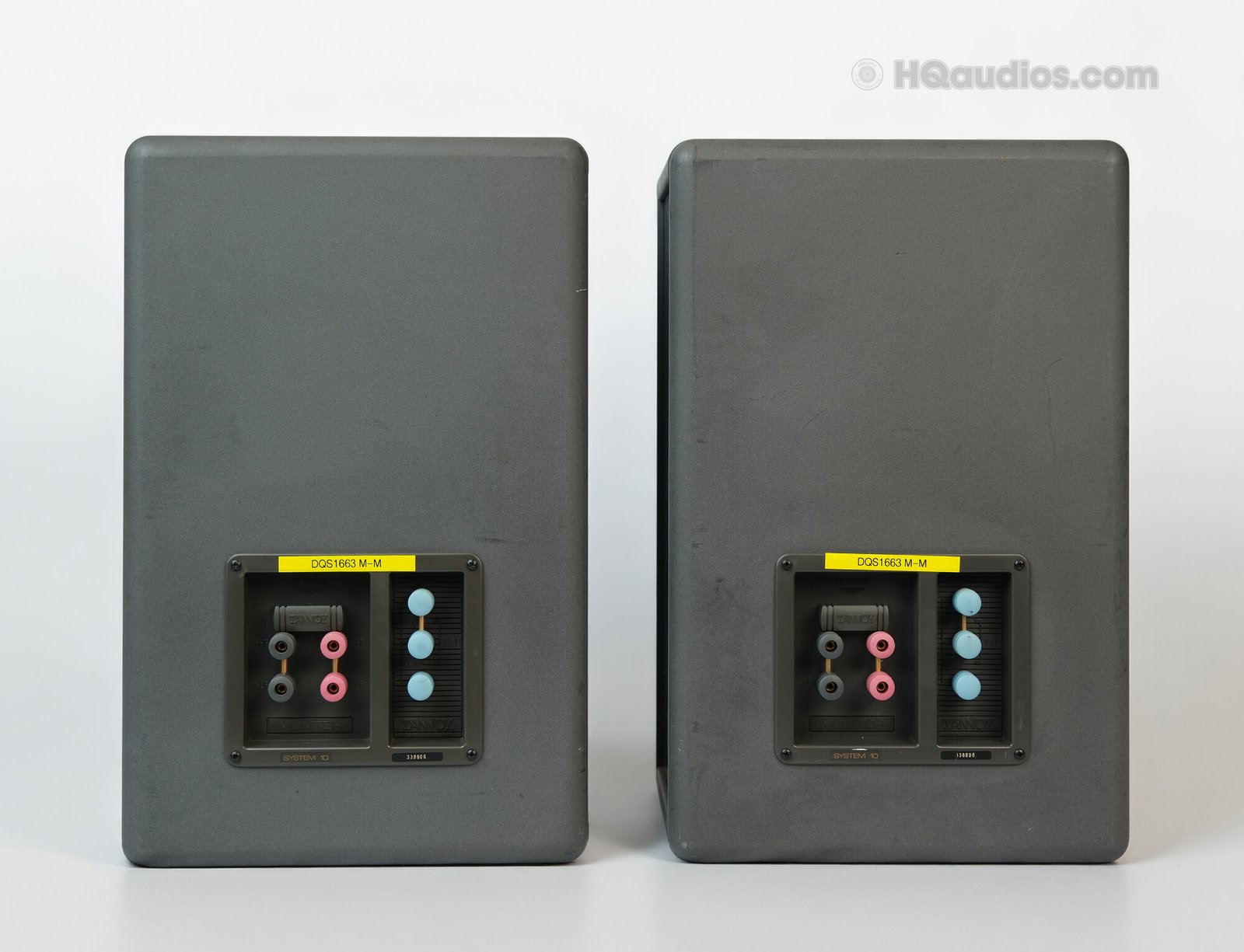

Rear Panels: Age-related marks and surface wear remain.

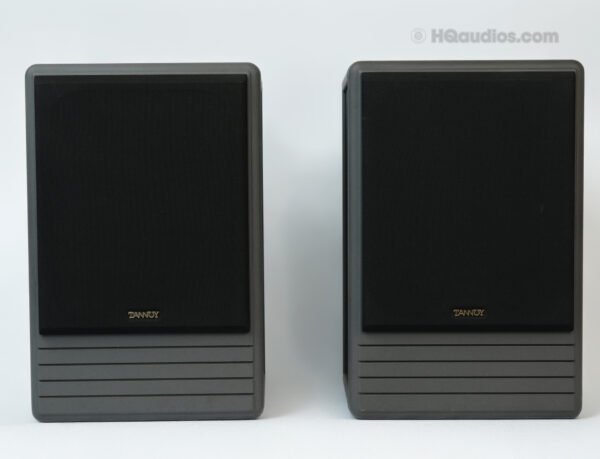

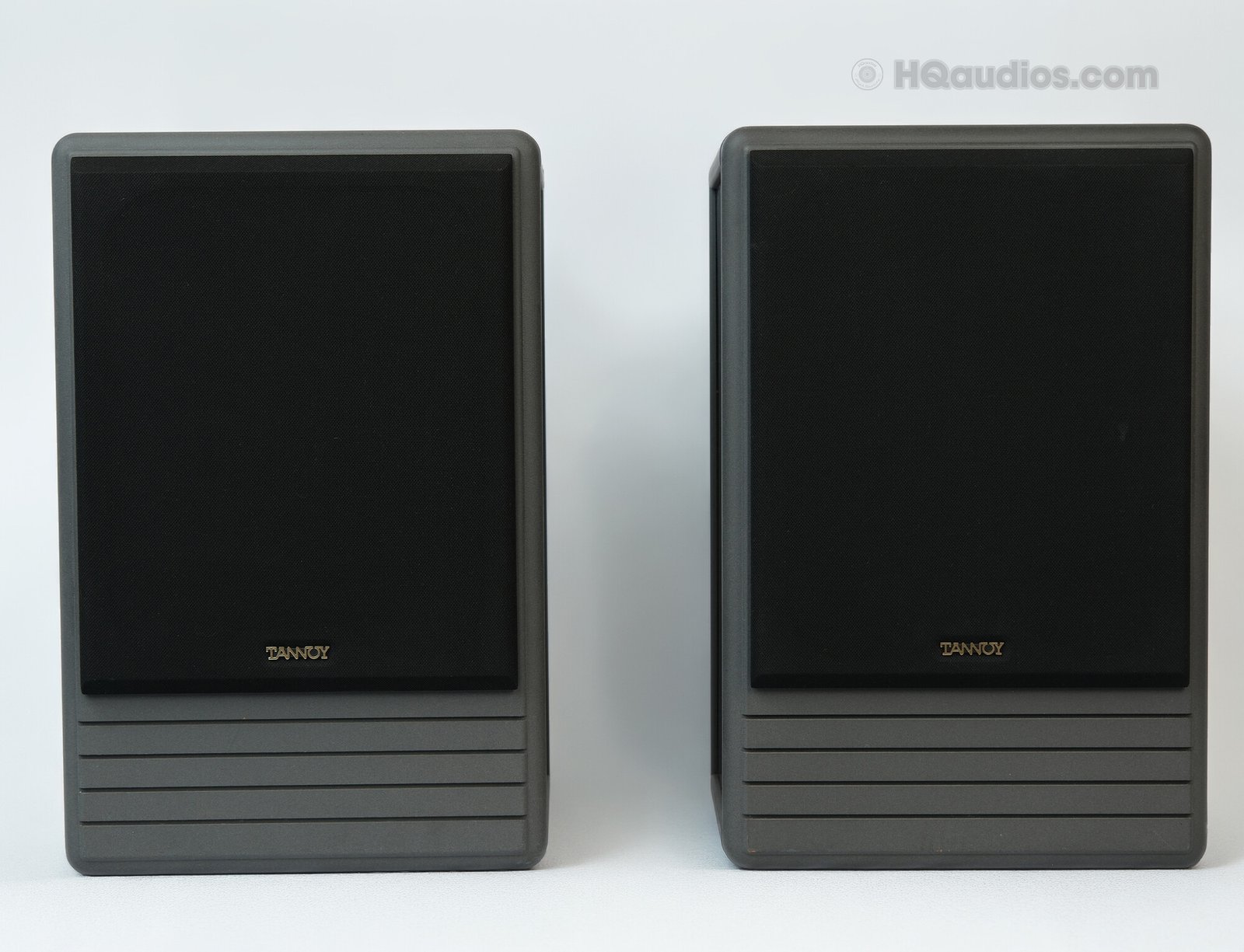

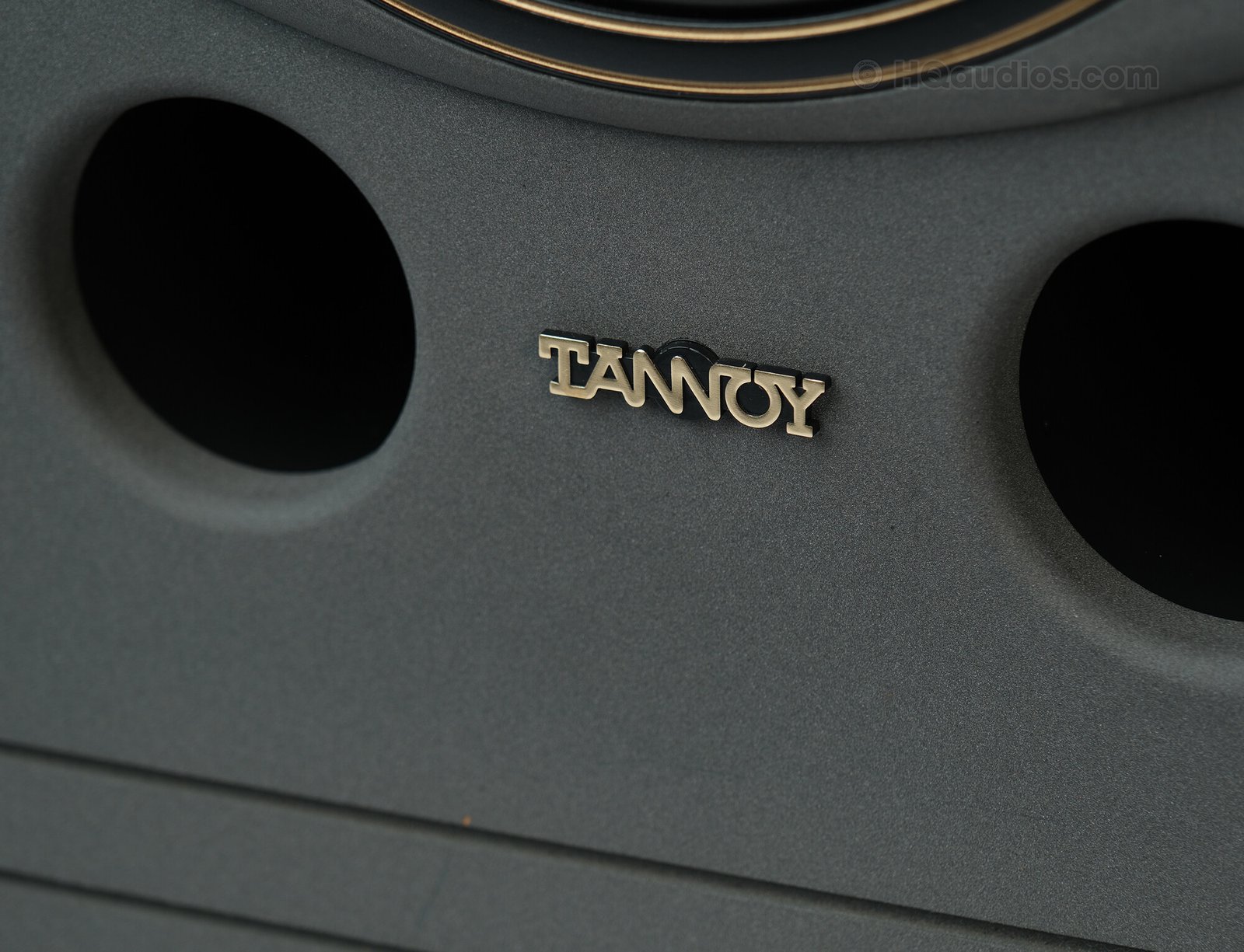

Grilles and Badges: Front grilles and Tannoy badges are shown in the product photographs.
Overall Appearance: Review the actual-item photographs closely for the finish and remaining cosmetic imperfections.
Speaker burn-in and acoustic testing completed.
SPECIFICATIONS
Brand: Tannoy
Model: System 10 DMT
Type: Passive two-way studio monitor loudspeaker

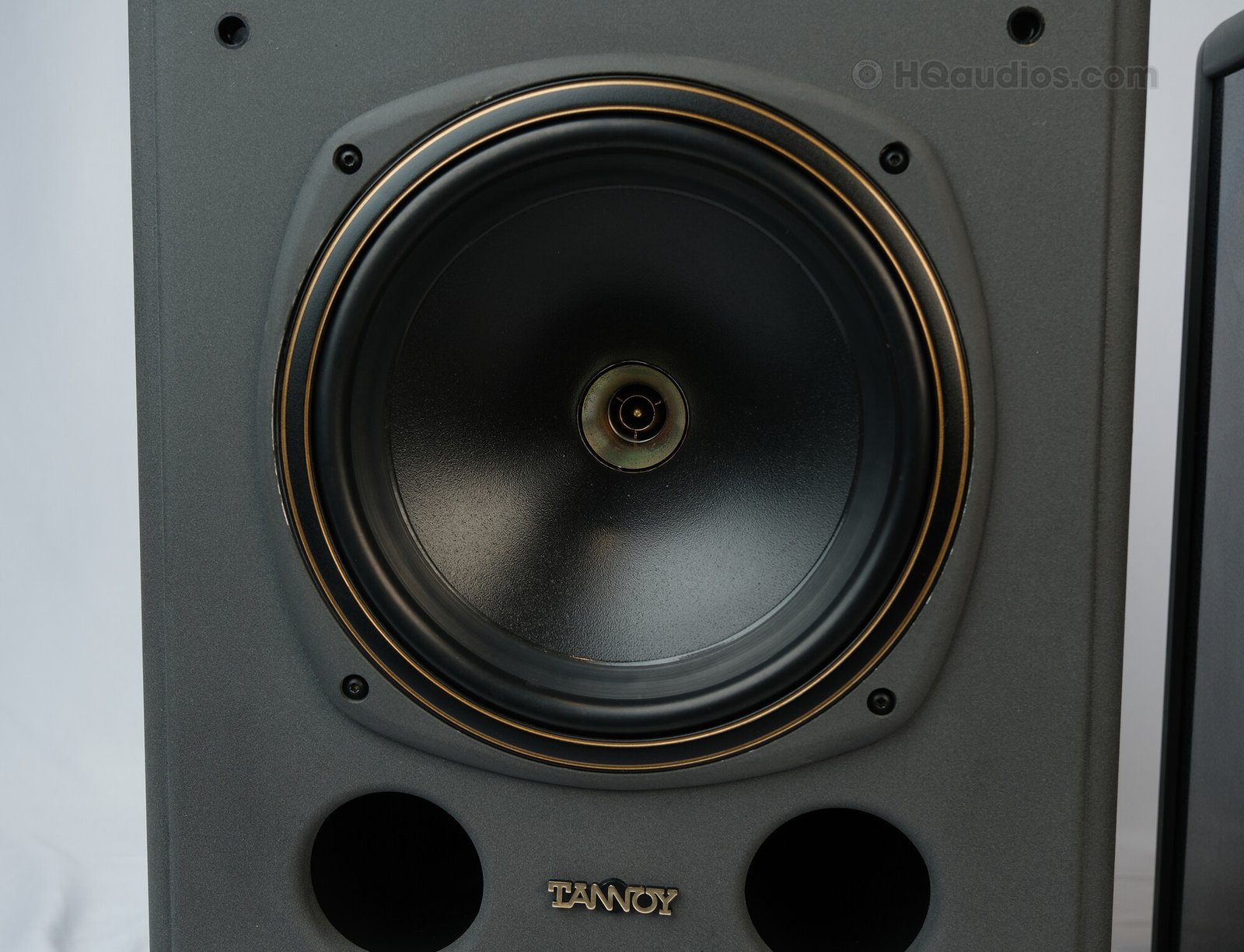

Configuration: 10-inch Dual Concentric driver assembly

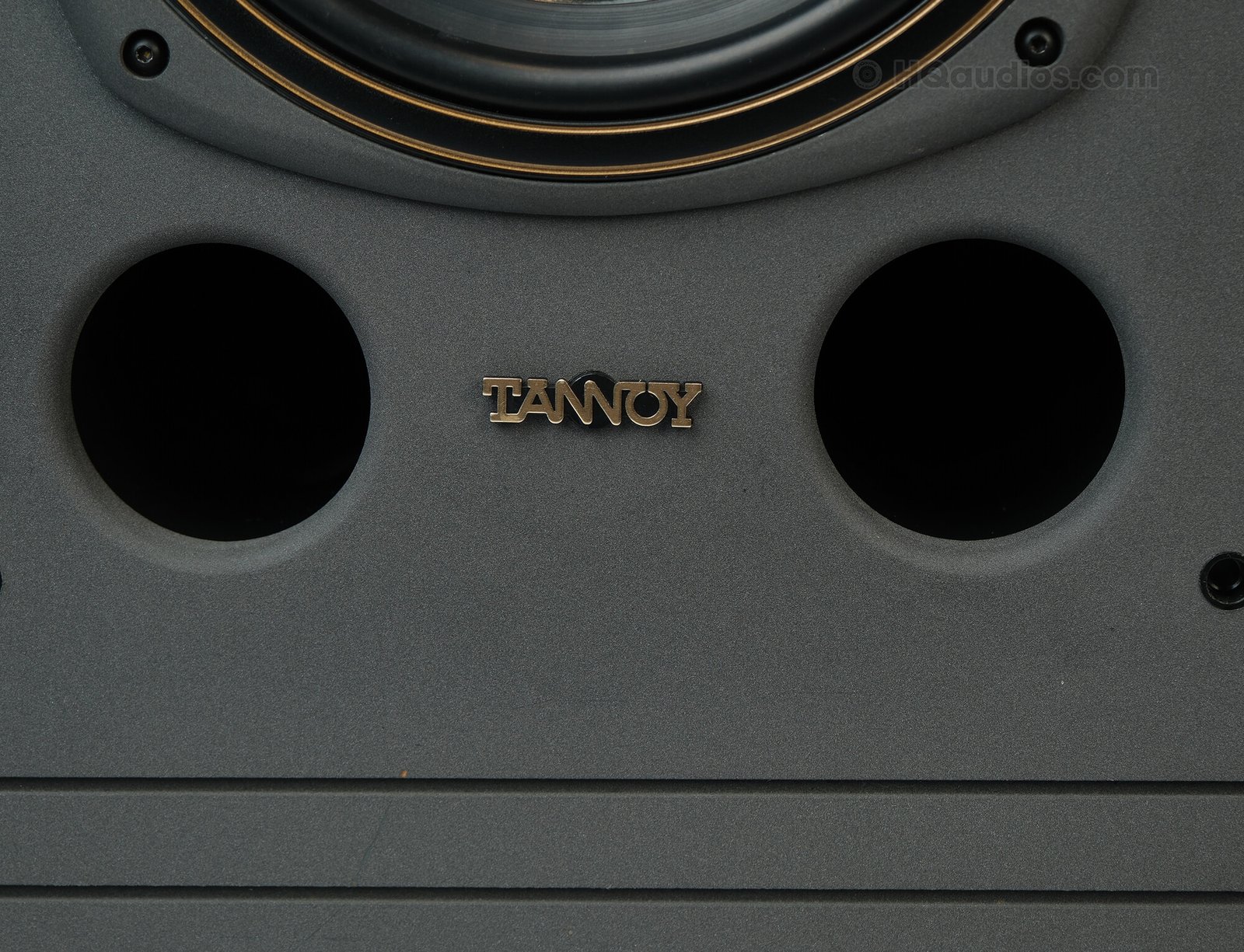

Enclosure: Bass reflex
Frequency Response: 46 Hz – 25 kHz (±3 dB)
Nominal Impedance: 8 ohms
Recommended Amplifier Power: 30–150 W
Peak Power Handling: 250 W peak
Crossover Frequency: 2.3 kHz
High-Frequency Adjustment: Rear treble energy control: +1.5 dB / level / −1.5 dB
Dimensions: 14.4 W × 22.0 H × 11.4 D in — each speaker
Weight: 41.9 lbs — each speaker
WHAT IS INCLUDED
1 pair of Tannoy System 10 DMT studio monitor loudspeakers (2 speakers)
Only the items specifically listed above are included.
