Yamaha NS-10M Monitor Speaker Pair – Original Version – Serviced – 1-Year Warranty

Original price was: $1,299.Current price is: $999.

-

  • One pair of Yamaha NS-10M monitors – original version (not Studio/Pro/MX)
  • 18 cm white-cone woofer and 3.5 cm soft-dome tweeter
  • Rear label: 25 W rated / 50 W maximum, 8 ohms
  • Inspected, cleaned and tested by HQaudios
  • Backed by our 1-Year HQaudios Seller Warranty

1 in stock

SKU: 12QE0175 Categories: , ,

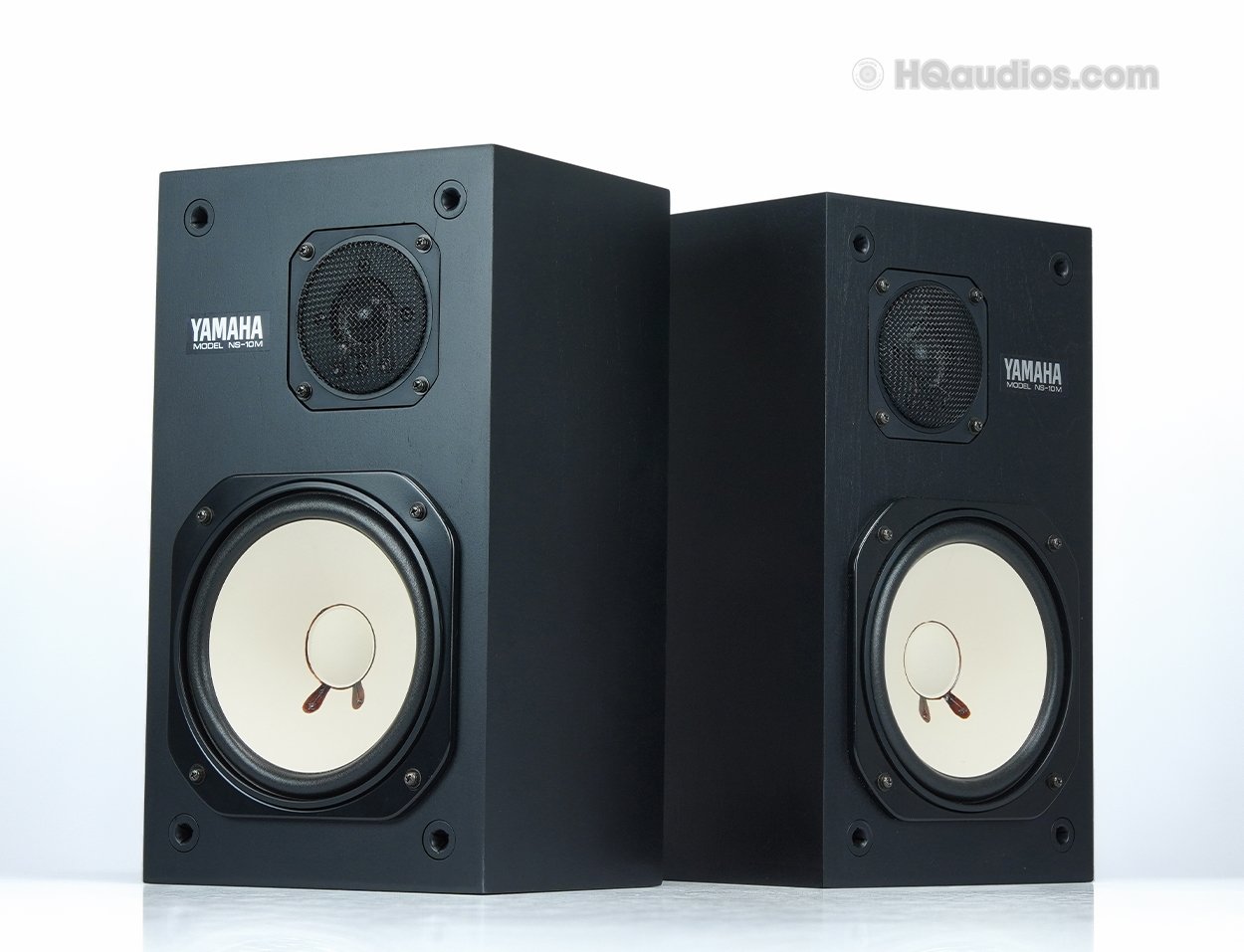

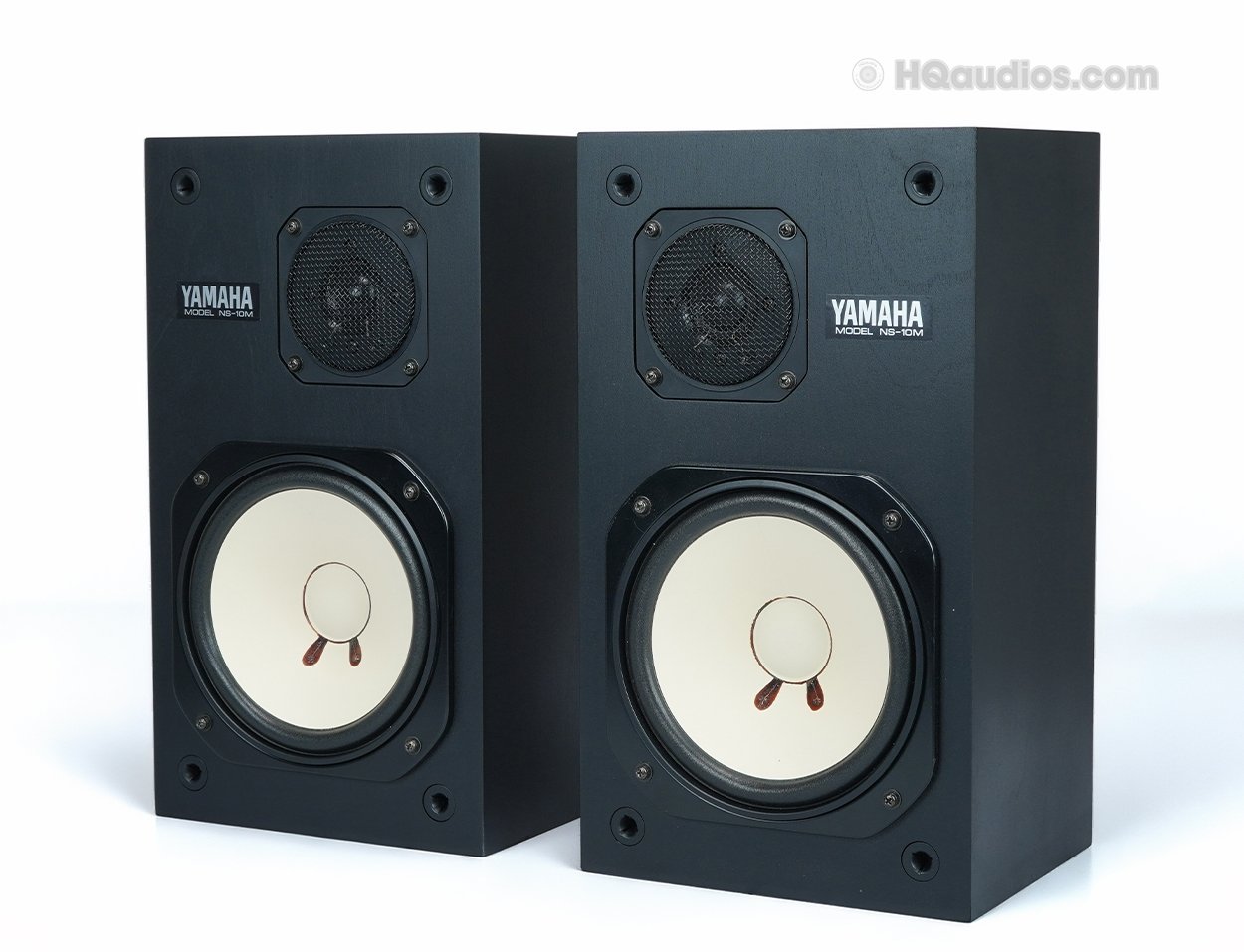

Yamaha NS-10M Monitor Speaker Pair – Original Version
Professionally Restored by HQaudios – Inspected & Tested – Backed by Our 1-Year Warranty

KEY HIGHLIGHTS
Yamaha NS-10M – the original 2-way sealed bookshelf monitor (circa 1978), not the Studio, Pro or MX version

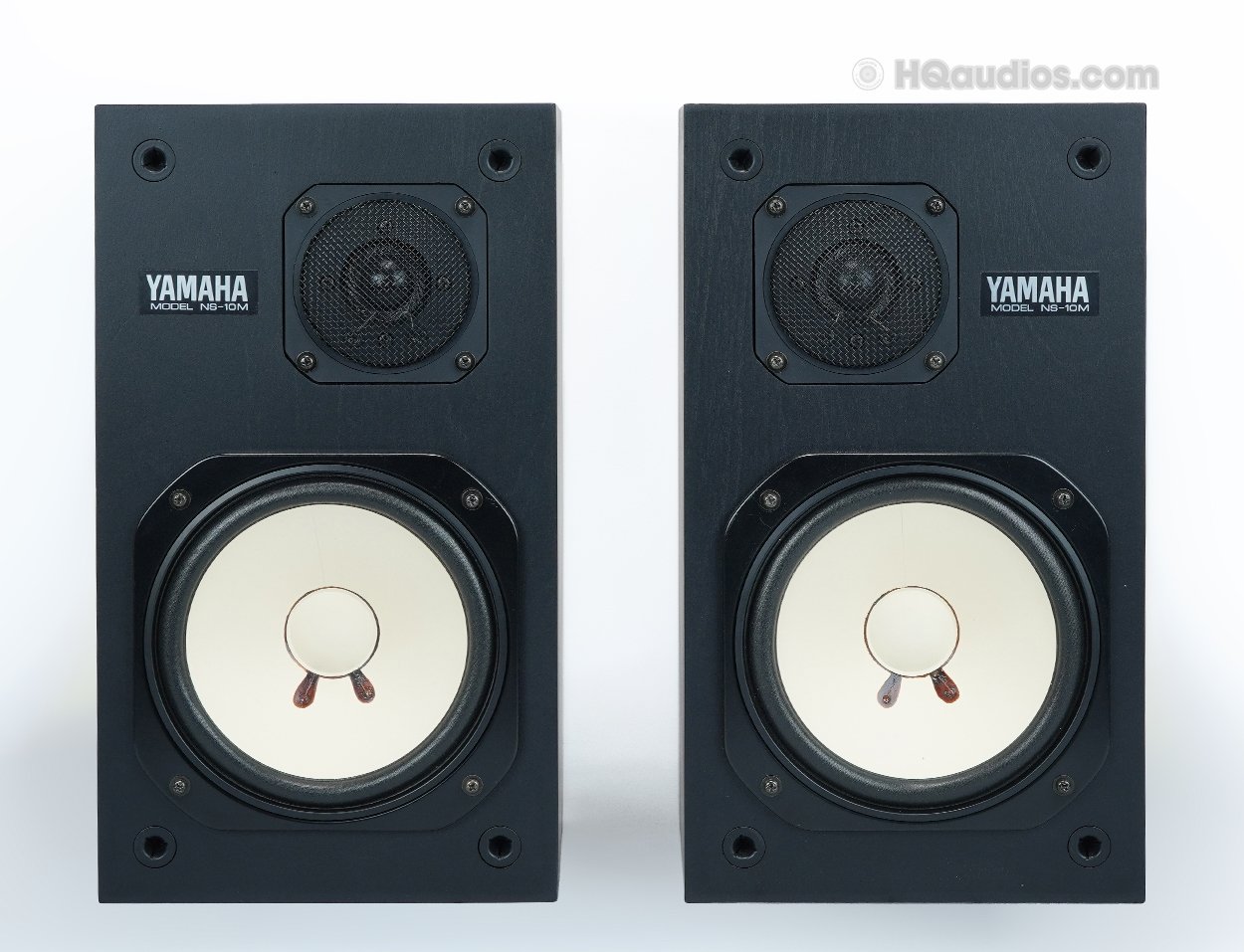

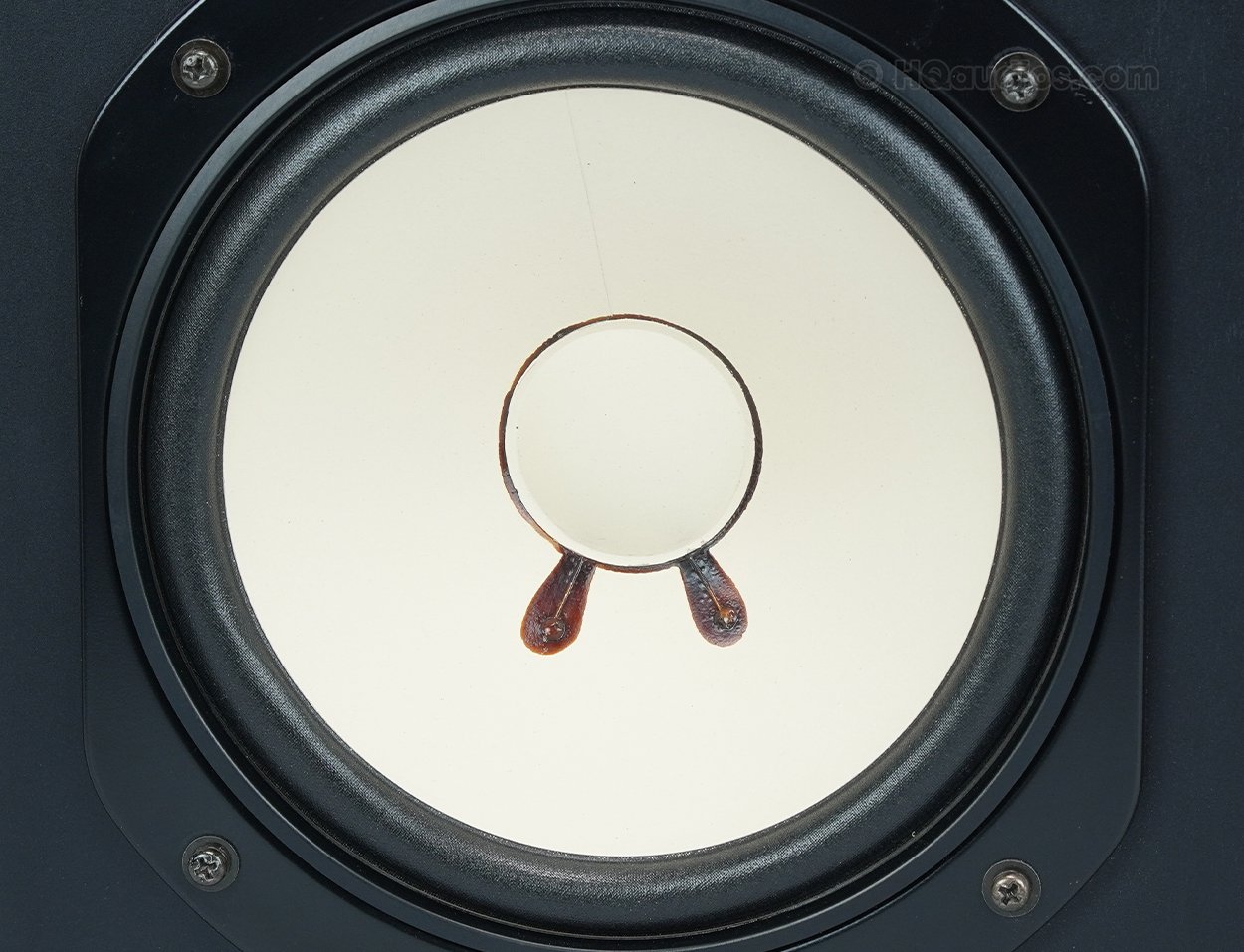

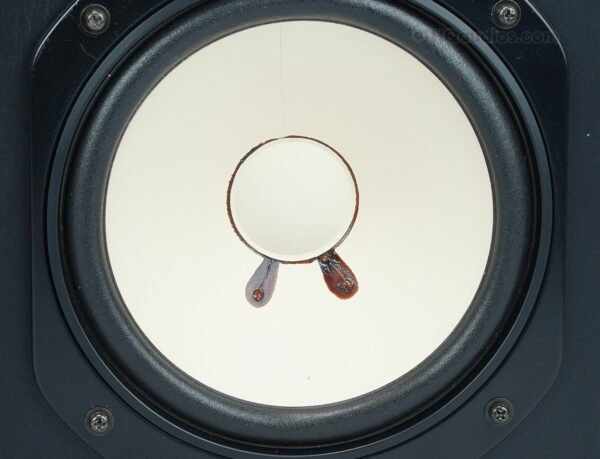

18 cm (approx. 7") white-cone woofer and 3.5 cm (approx. 1.4") soft-dome tweeter
Rear label rating: 25 W rated / 50 W maximum, 8 ohms

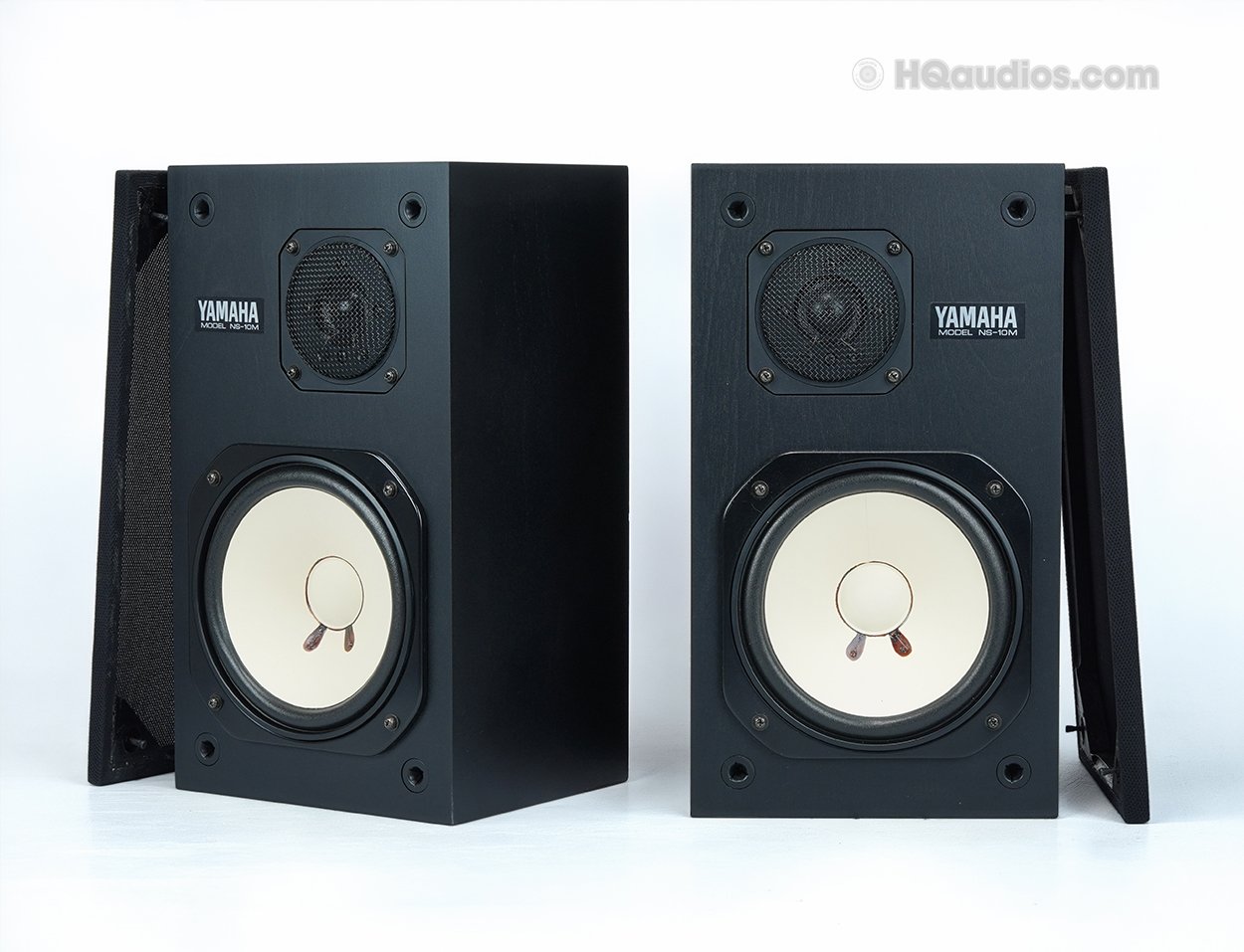

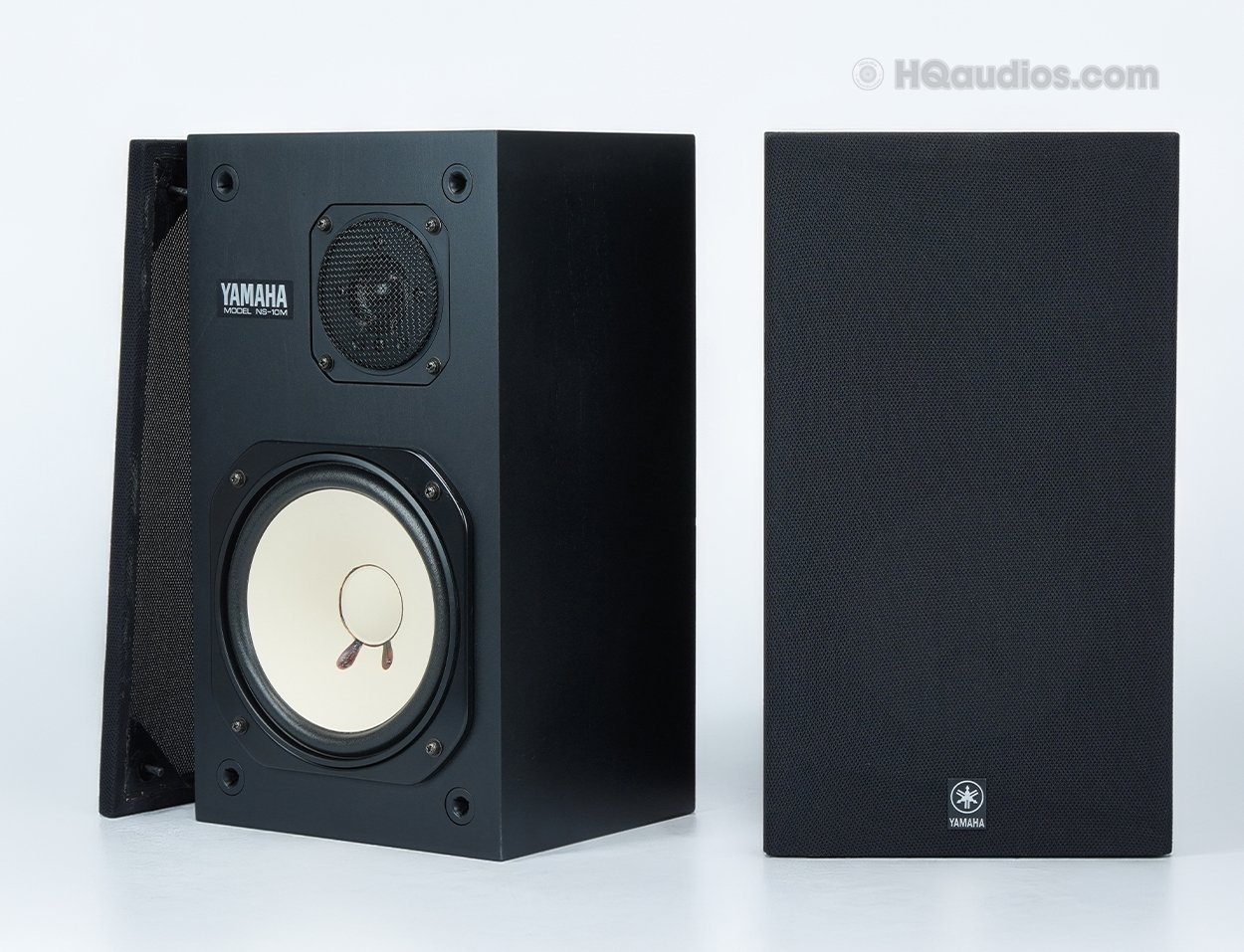

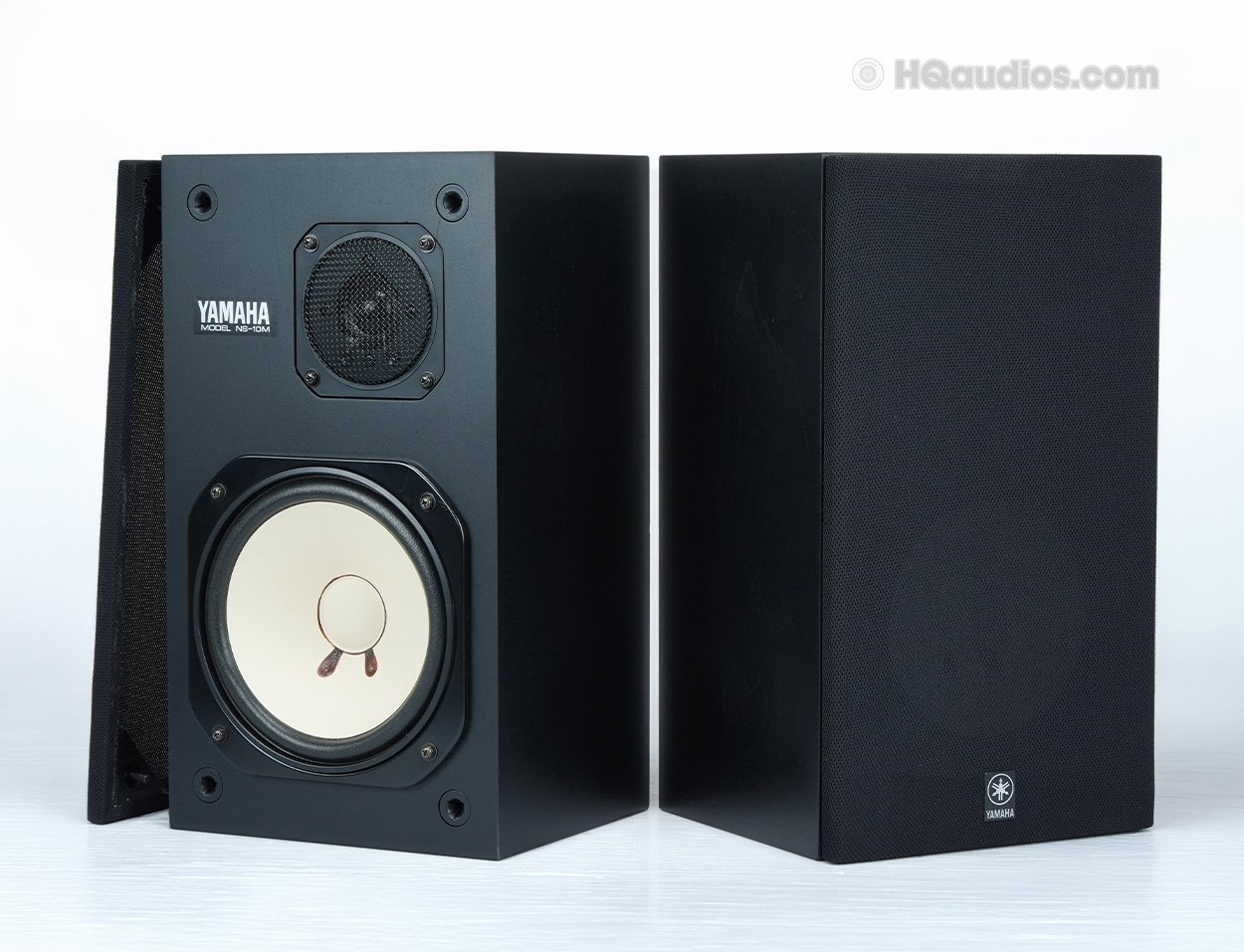

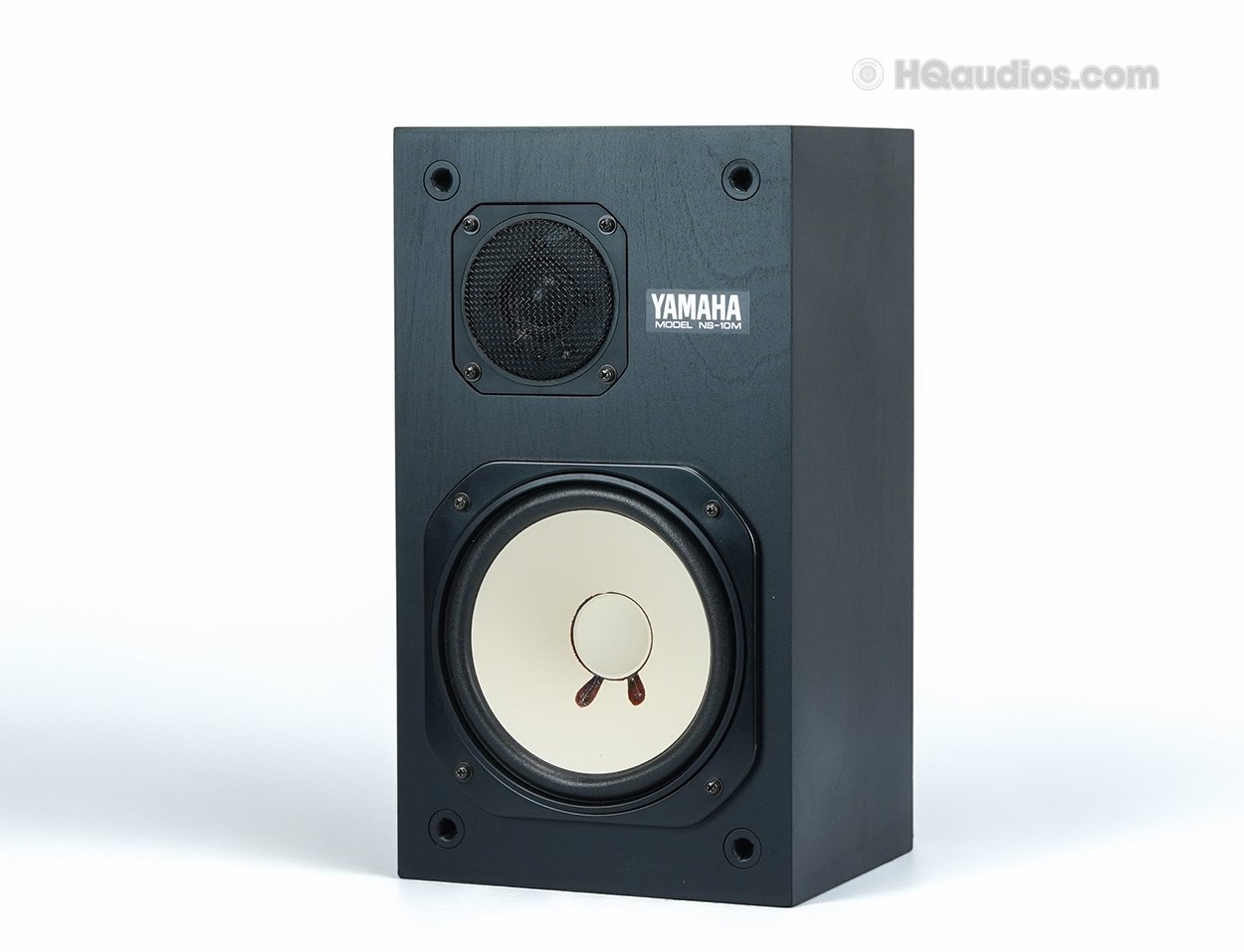

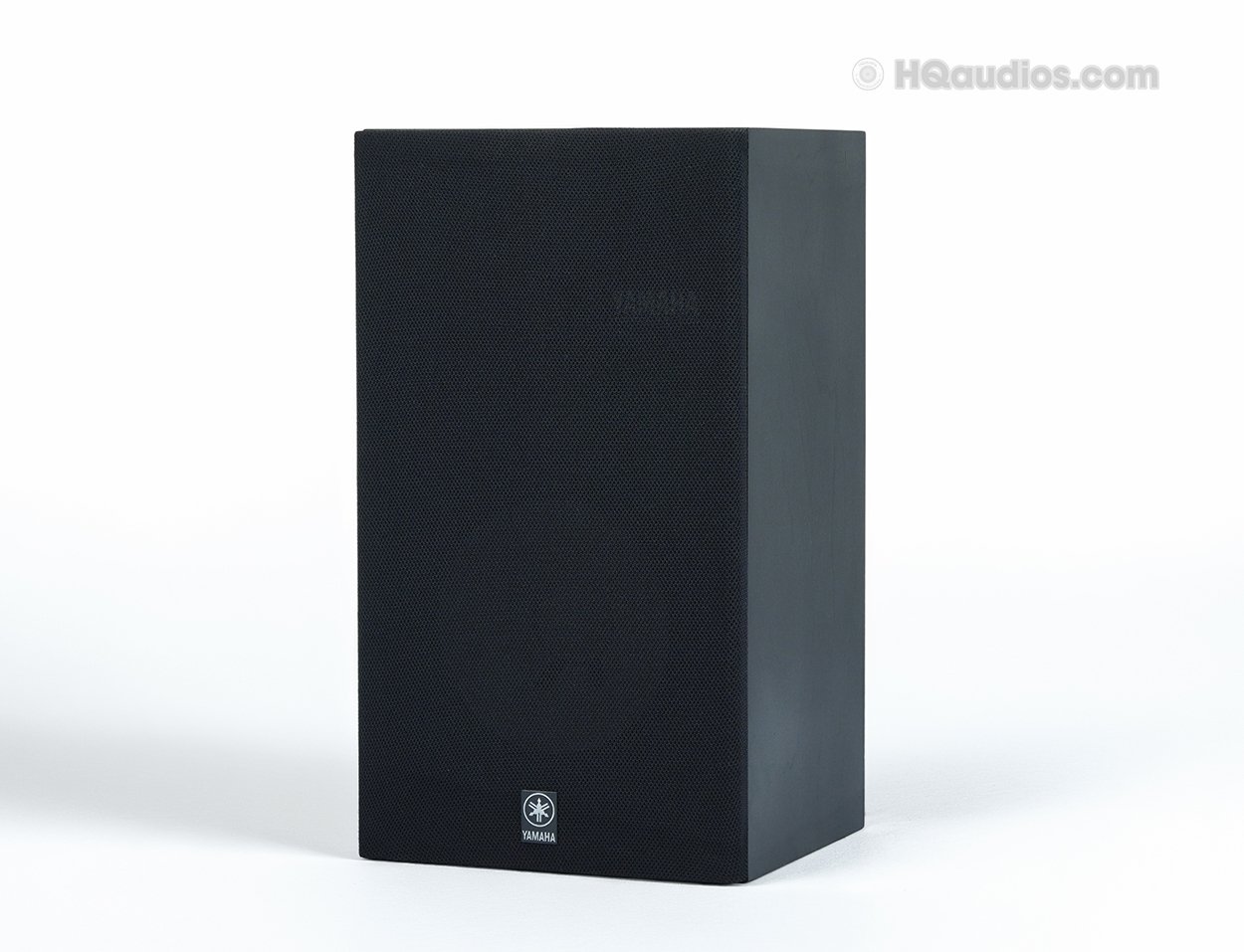

Black cabinets with removable front grilles
Inspected and tested by HQaudios – every driver checked for voice-coil rub and DC resistance
Backed by our 1-Year HQaudios Seller Warranty

PRODUCT OVERVIEW
The Yamaha NS-10M is the original home version of Yamaha’s famous NS-10 monitor, a compact sealed 2-way design with an 18 cm white paper-cone woofer and a 3.5 cm soft-dome tweeter crossed over at 2 kHz.

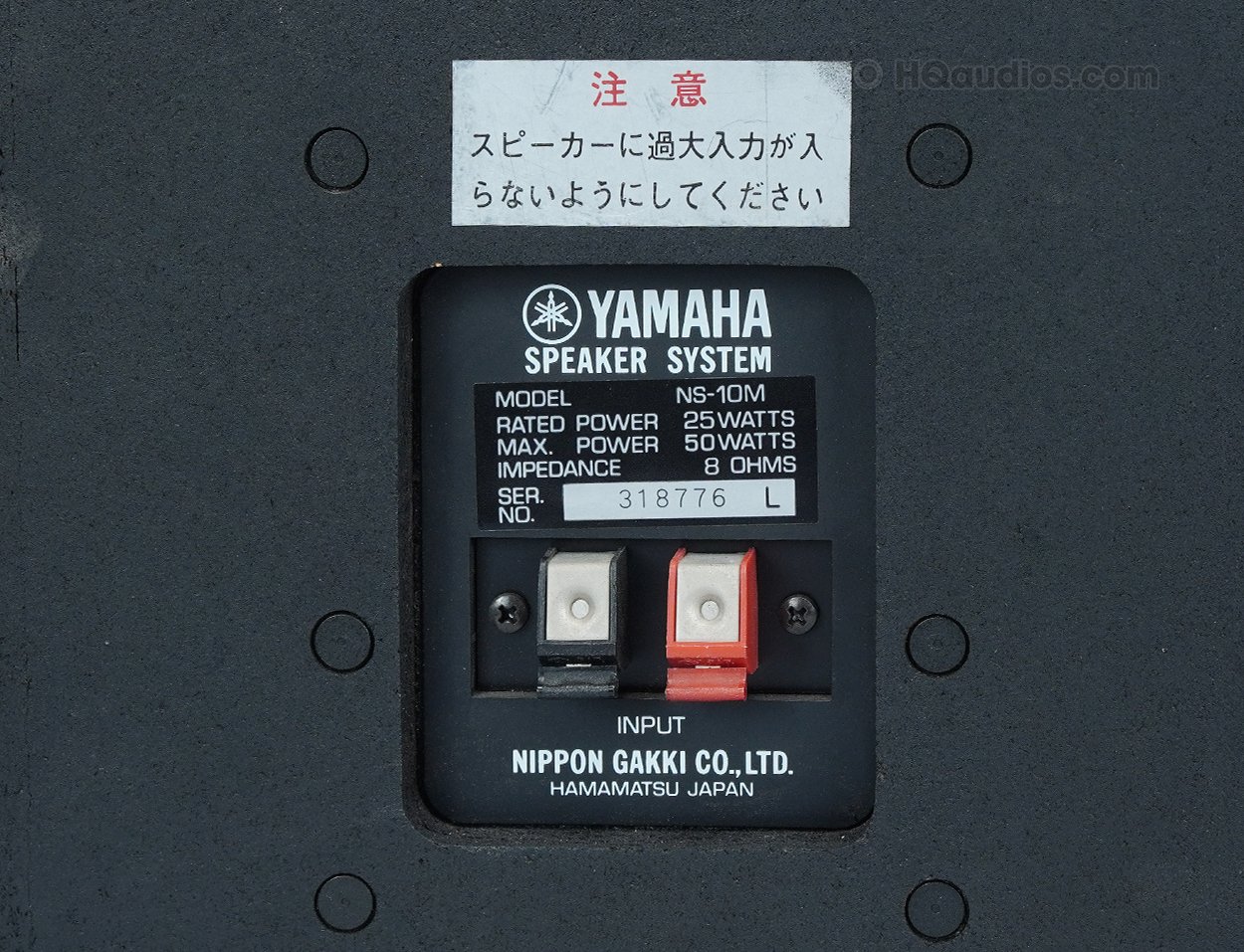

This pair is the original NS-10M, confirmed by the rear labels (25 W rated / 50 W maximum, 8 ohms). It should not be confused with the later NS-10M Studio, Pro or MX, which have different power ratings.
It has been inspected, cleaned and tested by HQaudios. The photos show the actual pair you will receive.


HQAUDIOS RESTORATION & TESTING

Before Restoration
This Yamaha NS-10M pair was carefully inspected upon arrival to evaluate its mechanical, electrical, and cosmetic condition.

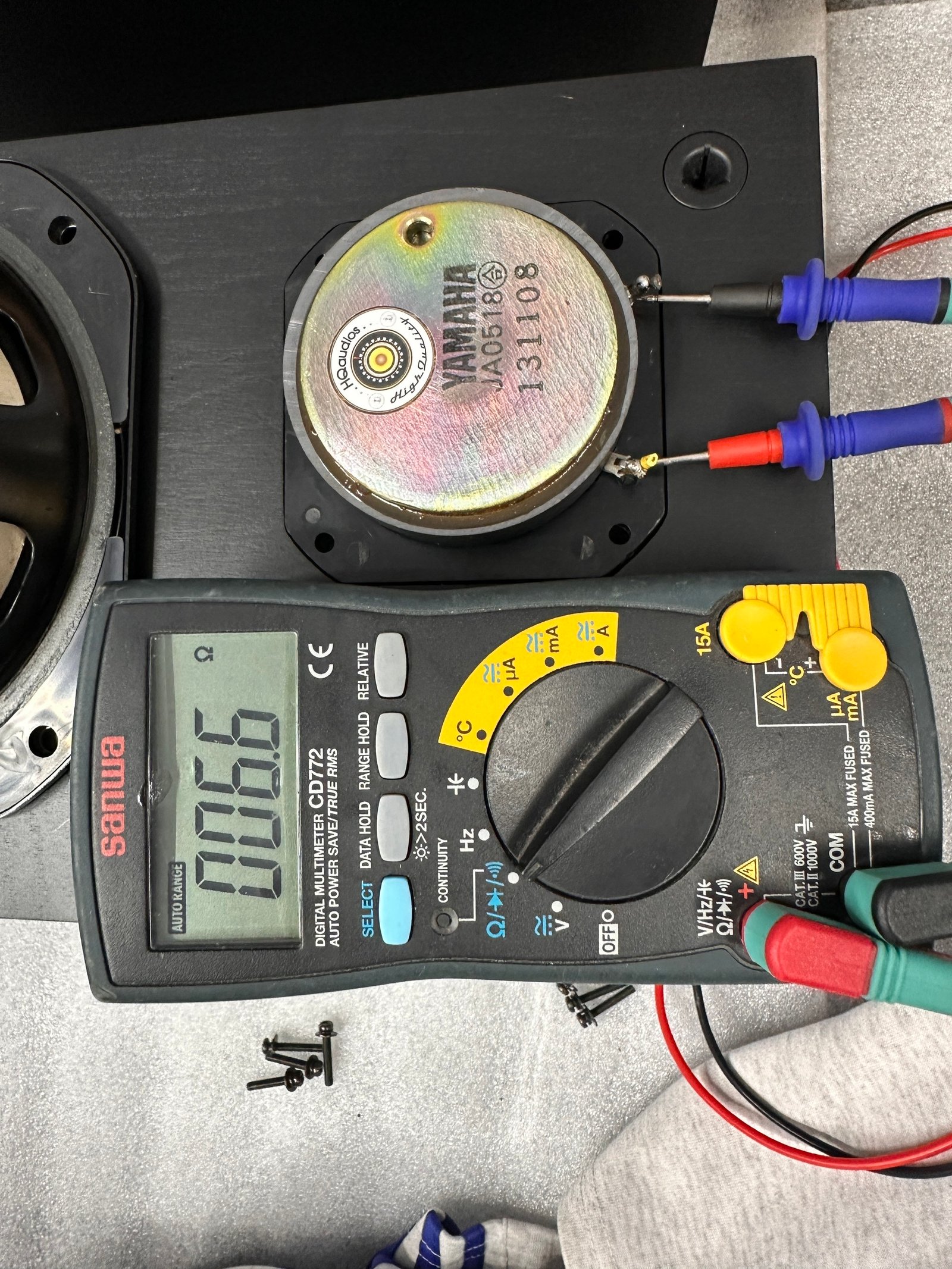

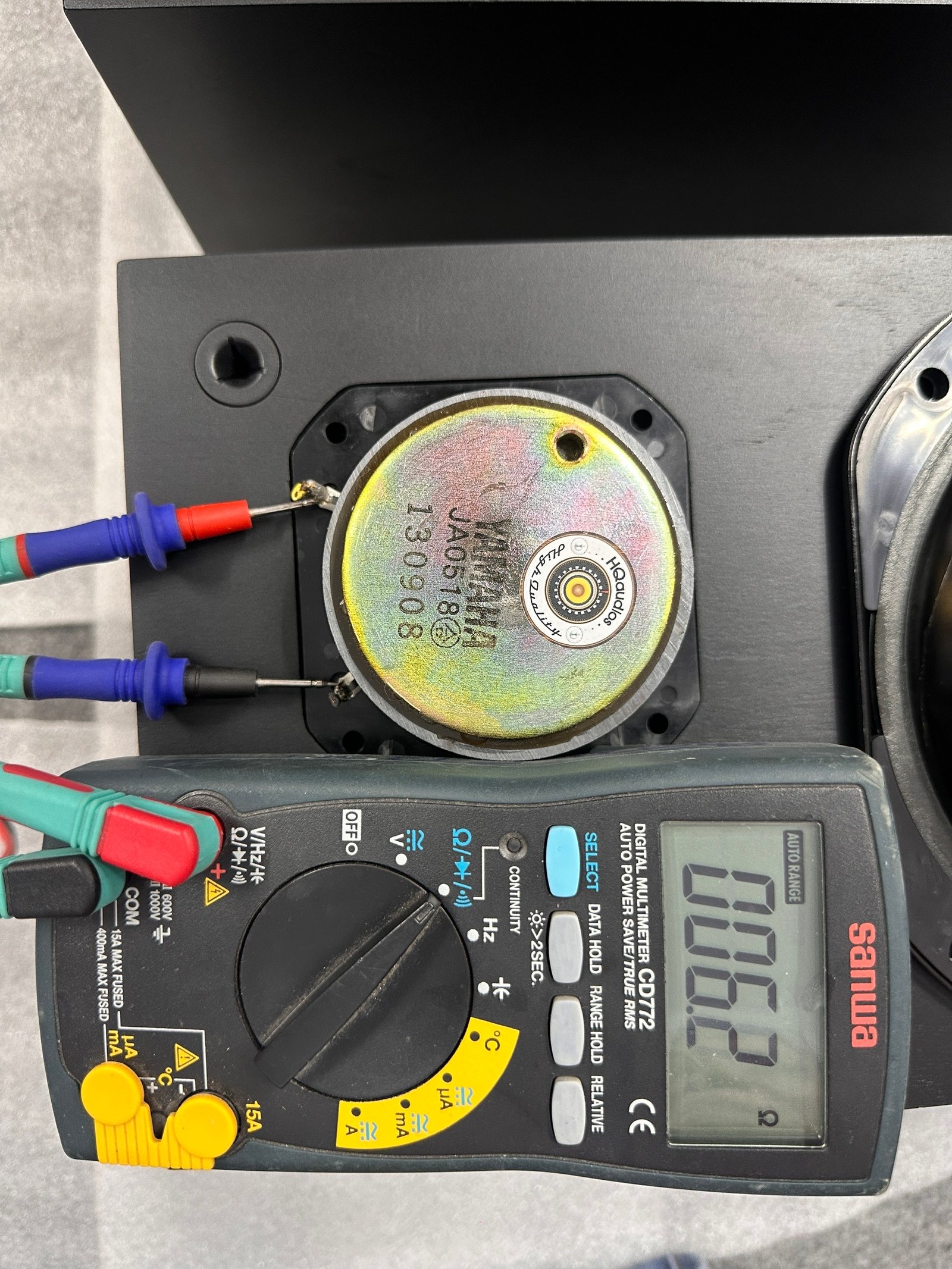

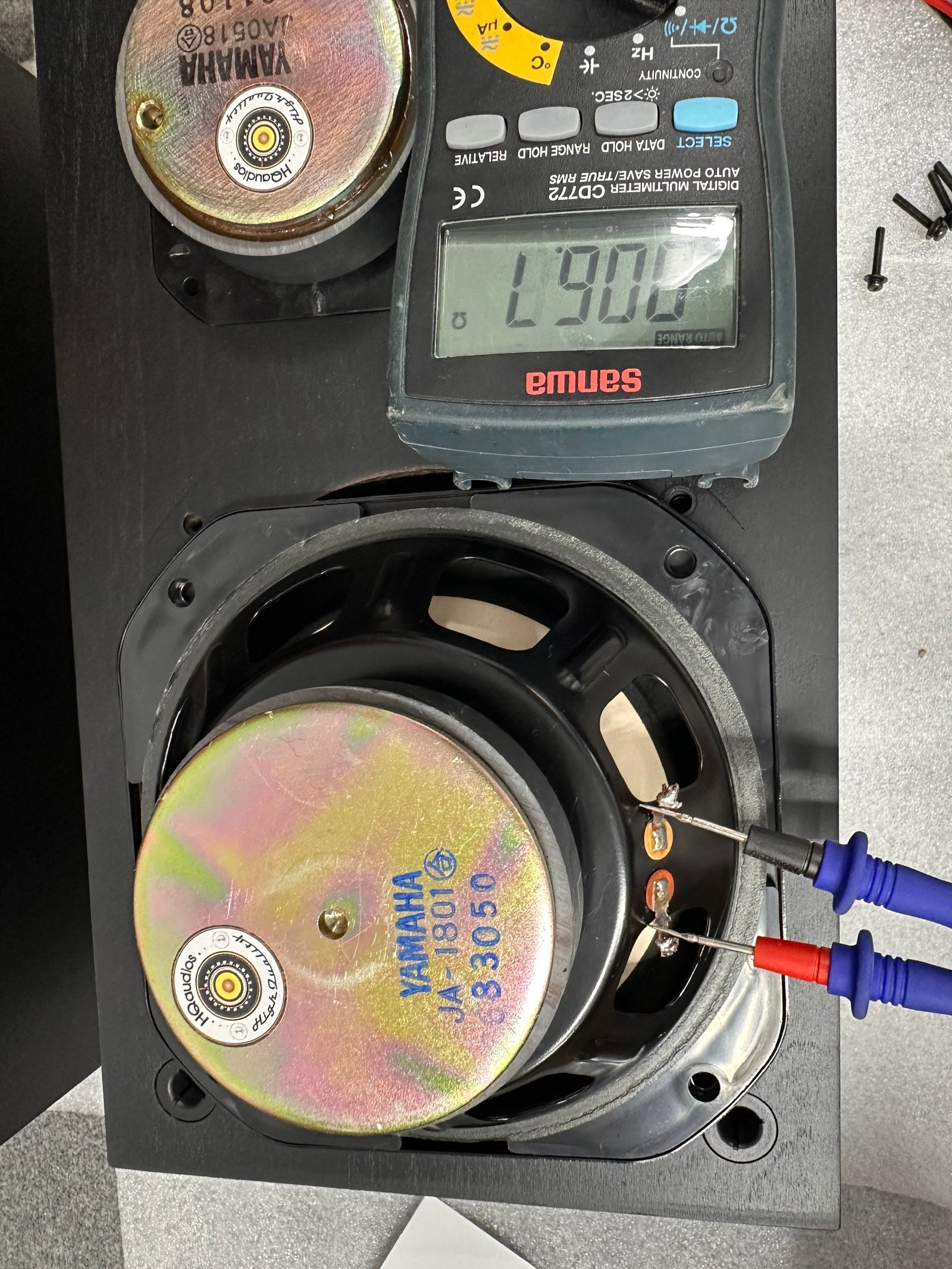

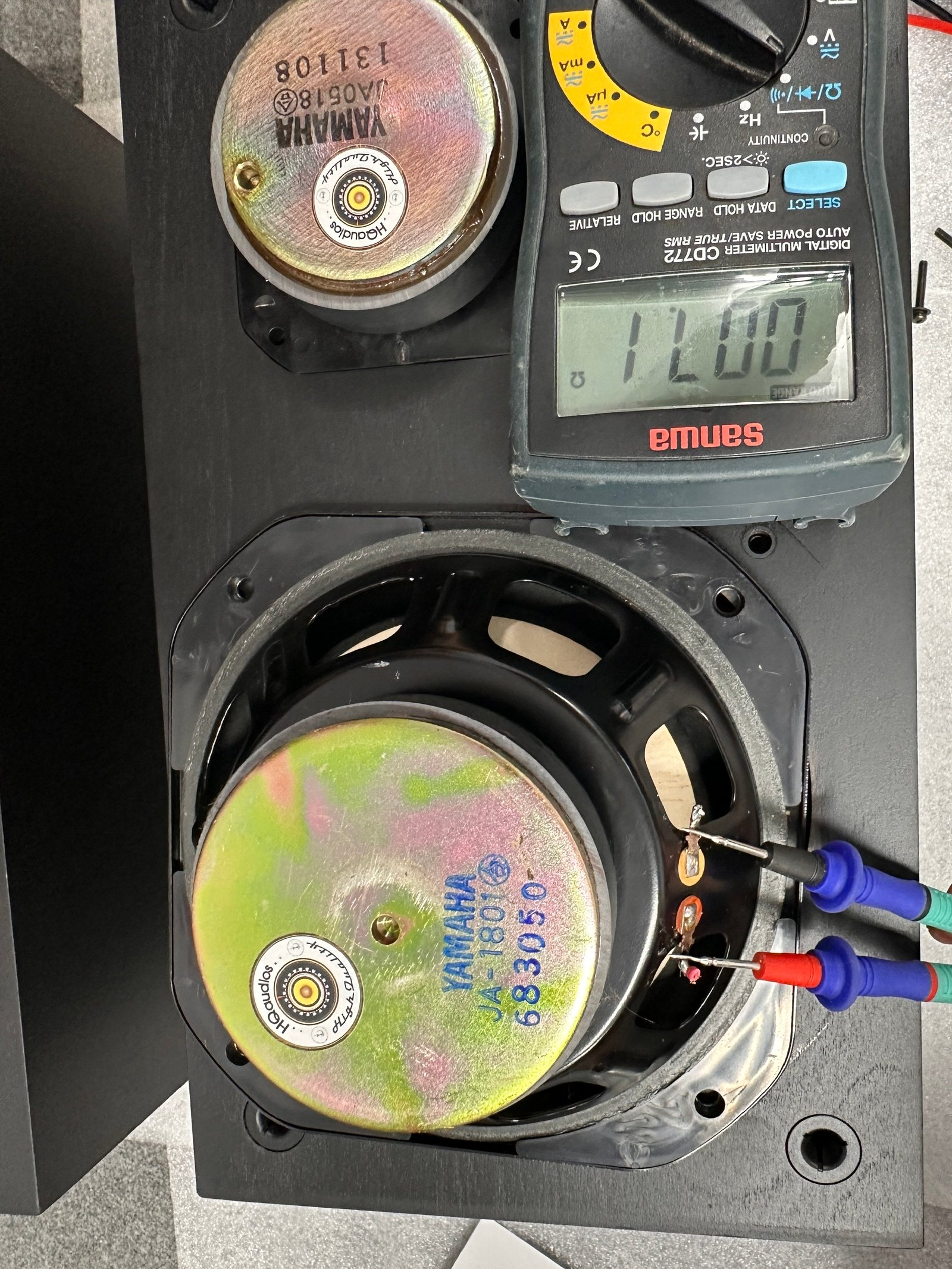

Each cabinet, cone, surround, and spider was checked for originality and for glue joints that had loosened or shifted with age. Every driver was tested by hand for voice-coil rub – a scratching noise or a stiff, binding cone indicates a shifted or heat-damaged voice coil. The DC resistance of every driver was checked against its nominal impedance. The crossover networks were examined for bulging or leaking capacitors, each capacitor was measured against its original value (within 10% tolerance), and the wiring and terminals were inspected.
The inspection results were used to determine the work required for this specific pair.

During Restoration
Based on the inspection results, this NS-10M pair was serviced according to HQaudios’ technical standards while preserving its original engineering and voicing.
Drivers: All drivers retain their original cones and diaphragms, which are in good condition.
Cleaning & Detailing: The drivers, crossover boards and terminals were cleaned, and the cabinets and grilles were cleaned and detailed.

After Restoration / Final Testing
Once service was completed, the pair underwent comprehensive testing under real operating conditions.
Phase Check: Driver polarity was verified using a phase-reversal check to ensure both speakers play in correct phase.
Listening Test: The pair underwent an extended real-world listening test with a wide range of music to confirm output from both drivers of each speaker and a balanced stereo image.
Final QC: Only after completing HQaudios’ service and testing process was the pair approved and prepared for its next owner.

CONDITION

Technical Condition

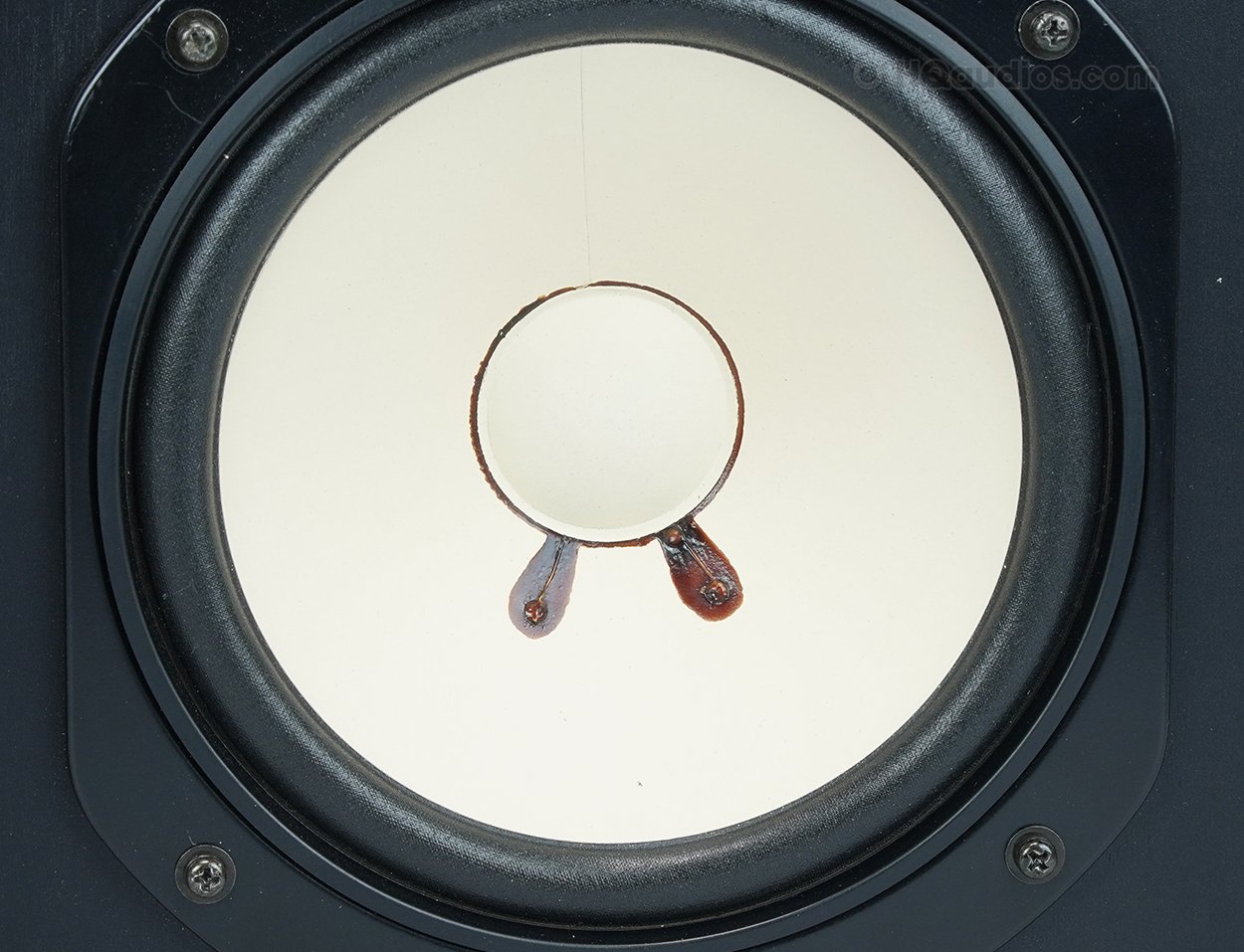

Woofers: 18 cm woofers working on both speakers
Tweeters: Soft-dome tweeters working on both speakers
Drivers: Checked for voice-coil rub and DC resistance
Crossovers: Inspected; capacitors measured against original values
Terminals: Push-type terminals cleaned and checked
Phase: Polarity checked on both speakers

Cosmetic Condition

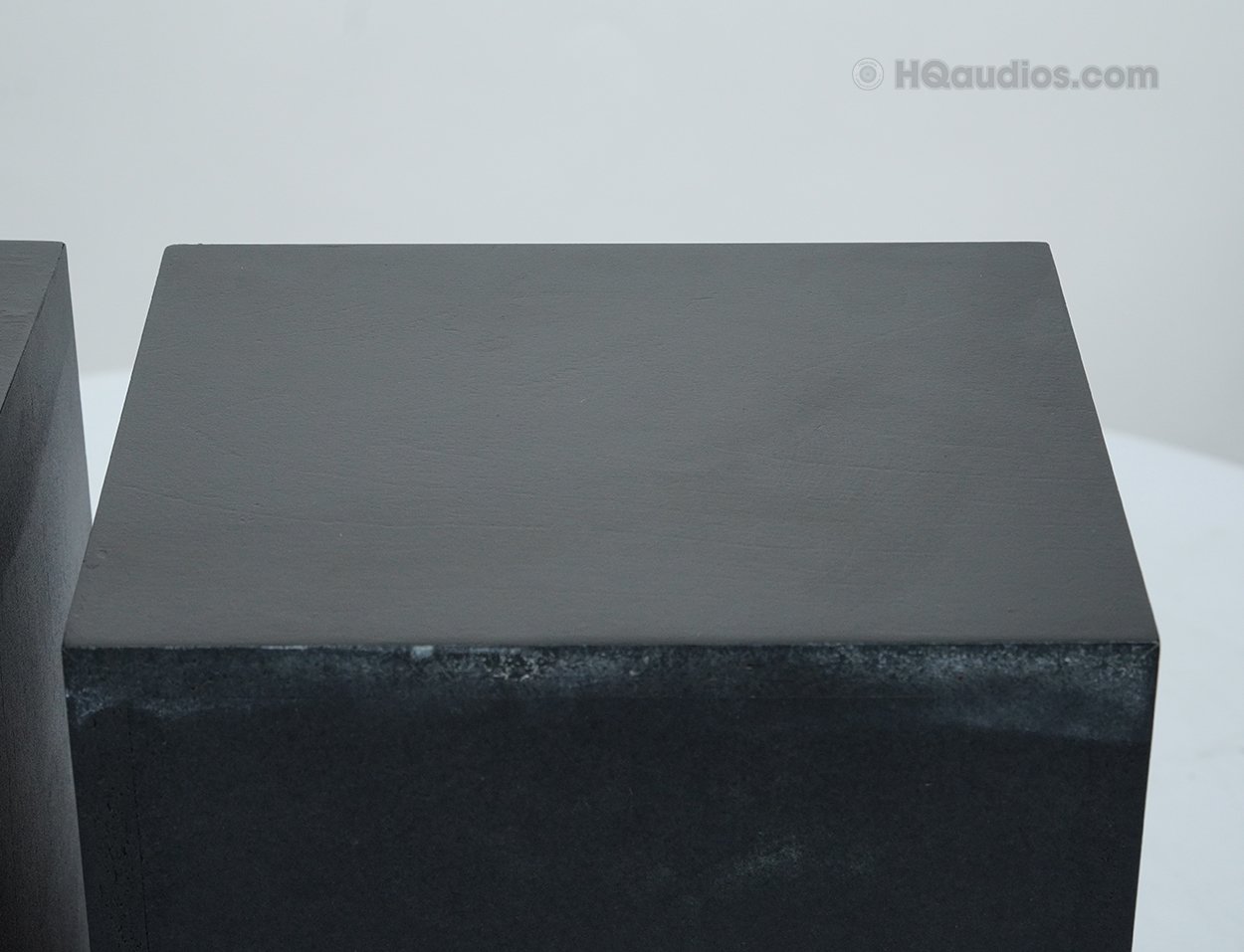

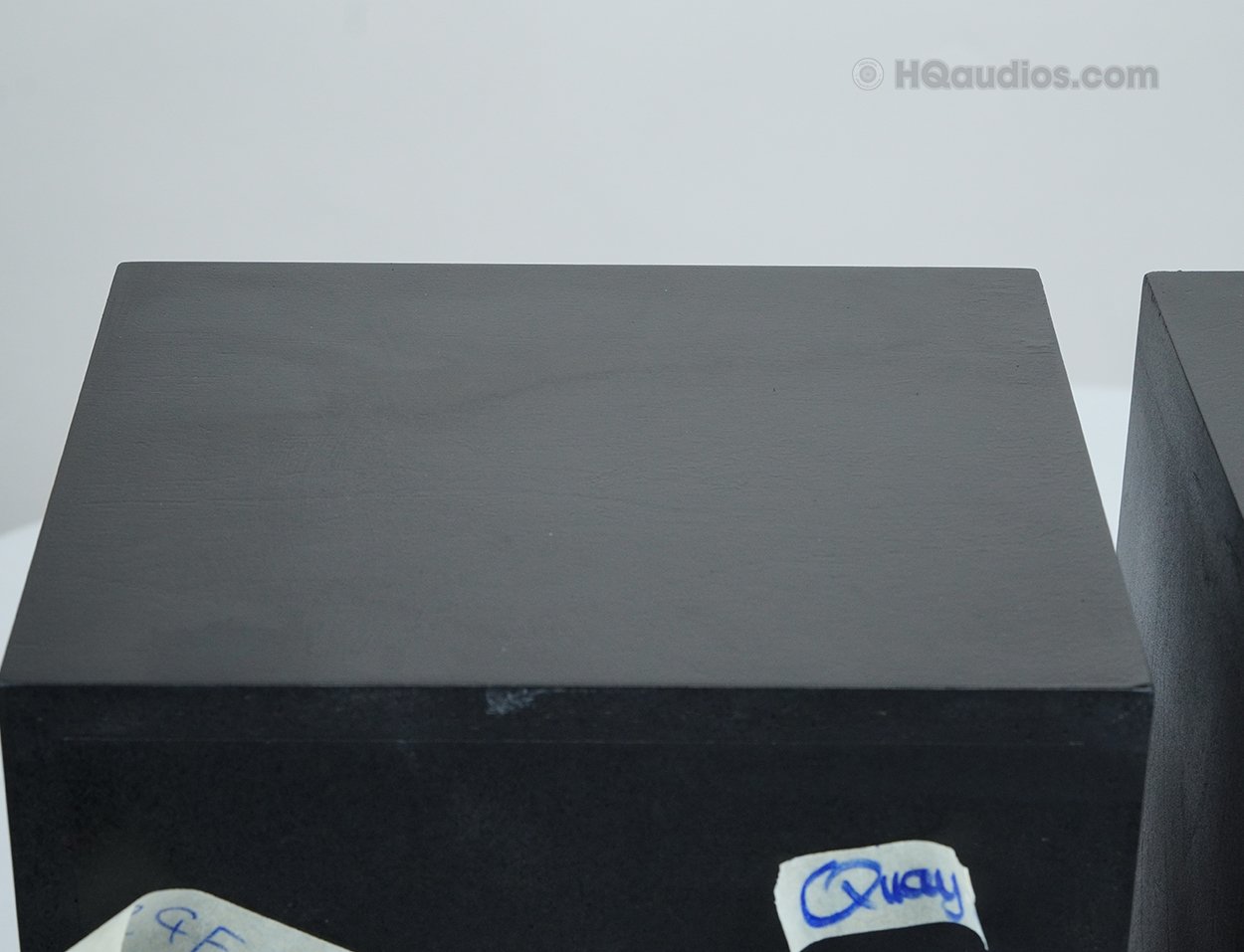

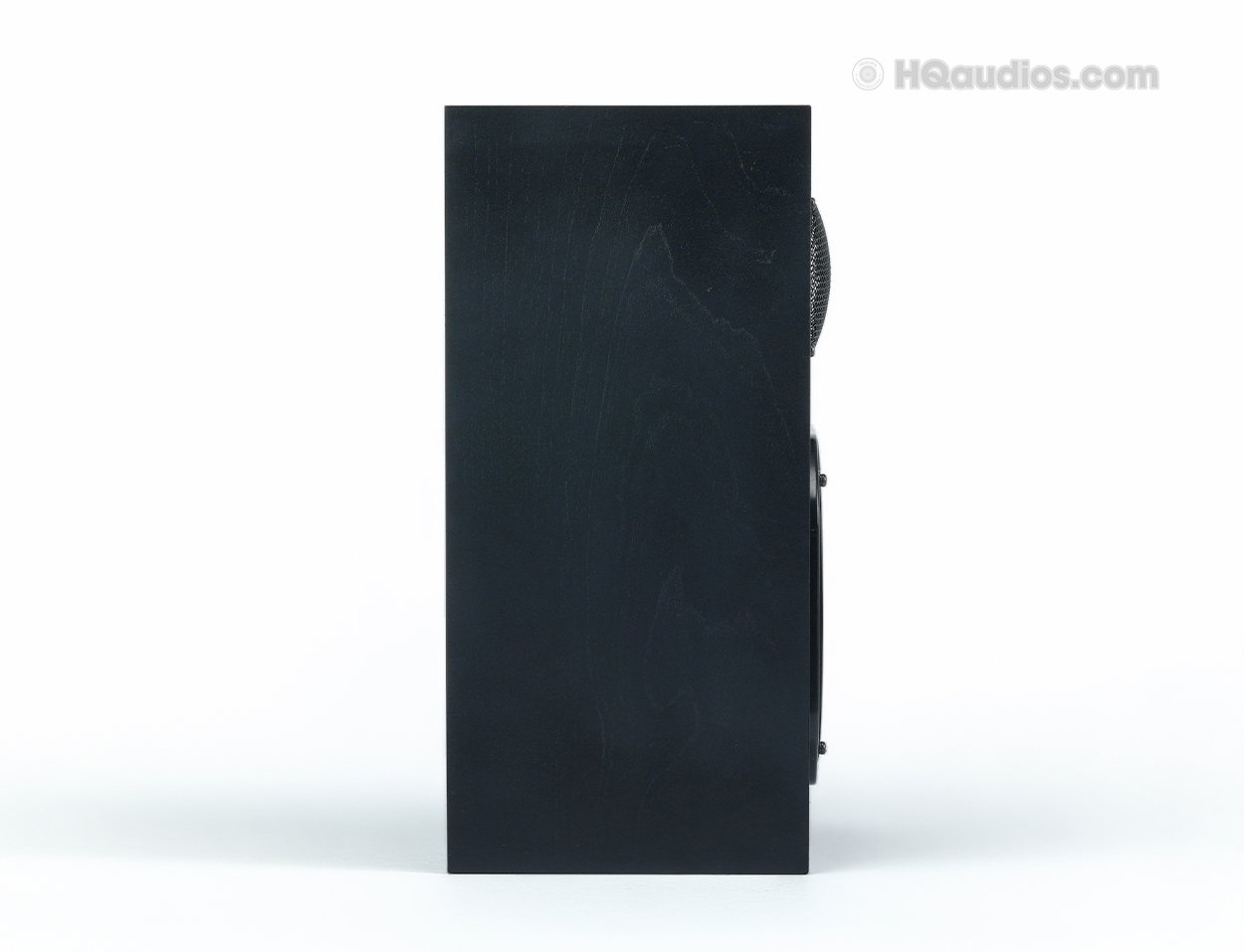

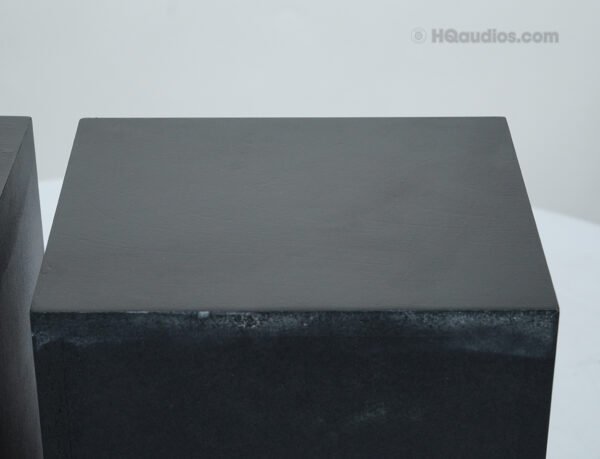

Cabinets: Black cabinets with normal age-related marks and edge wear

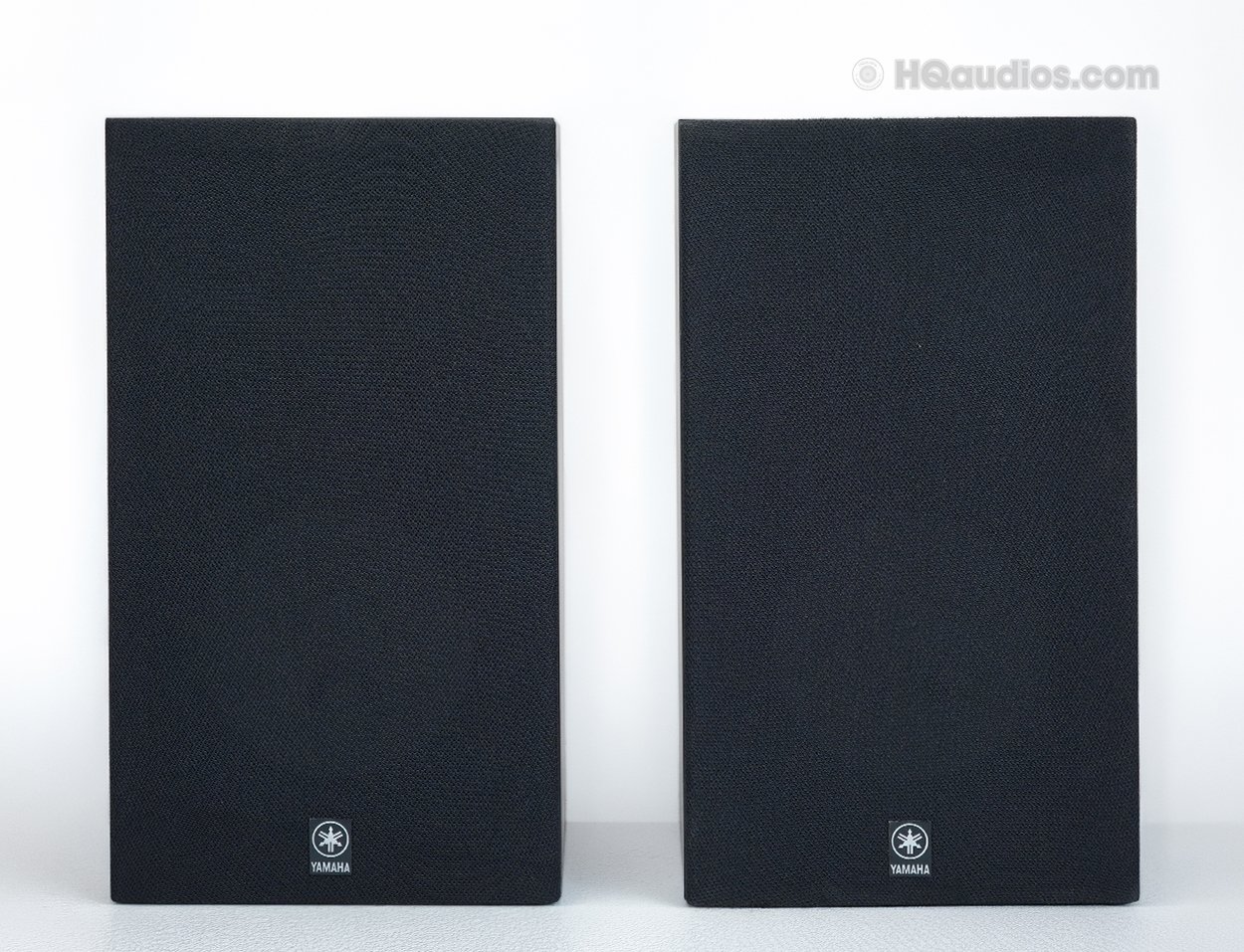

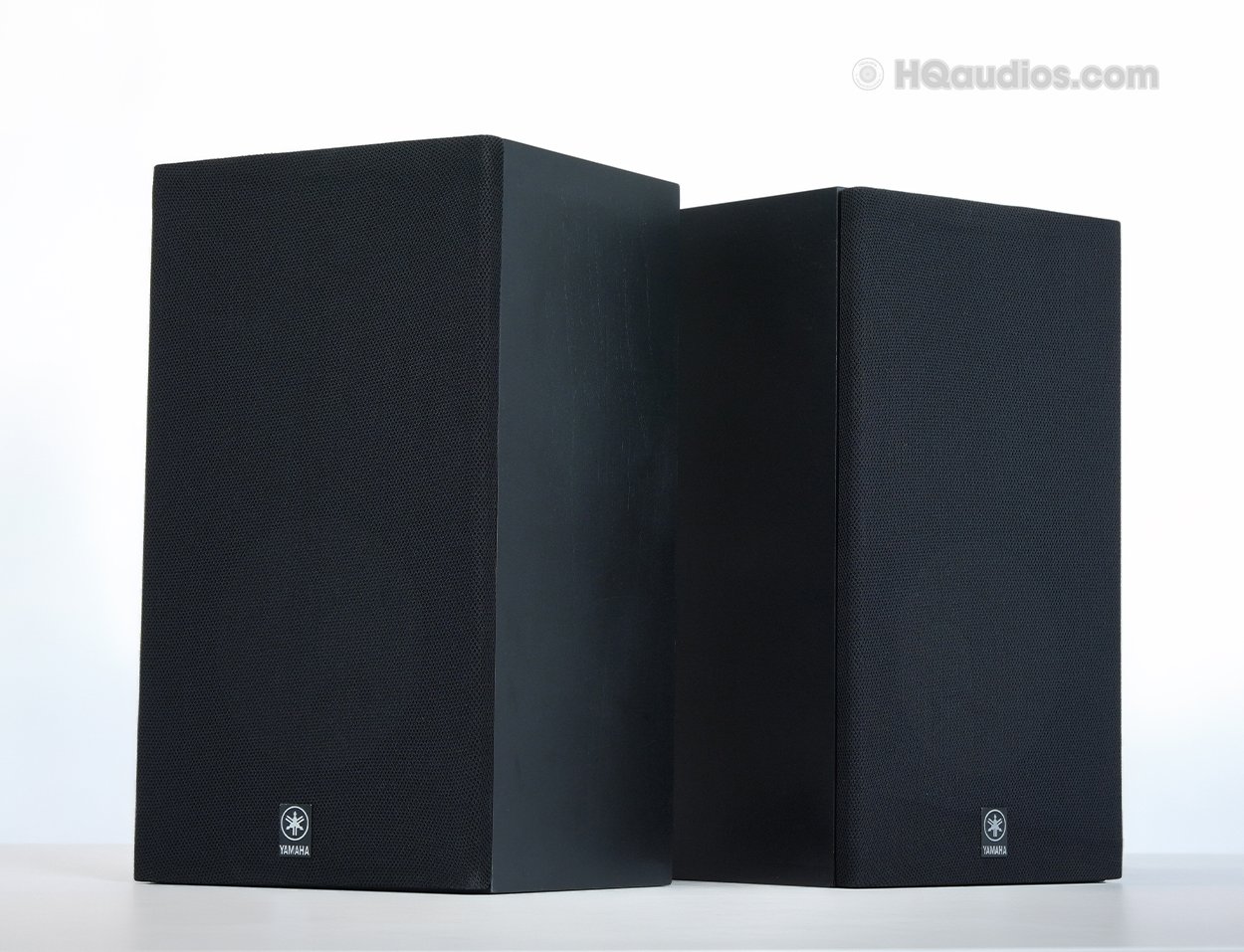

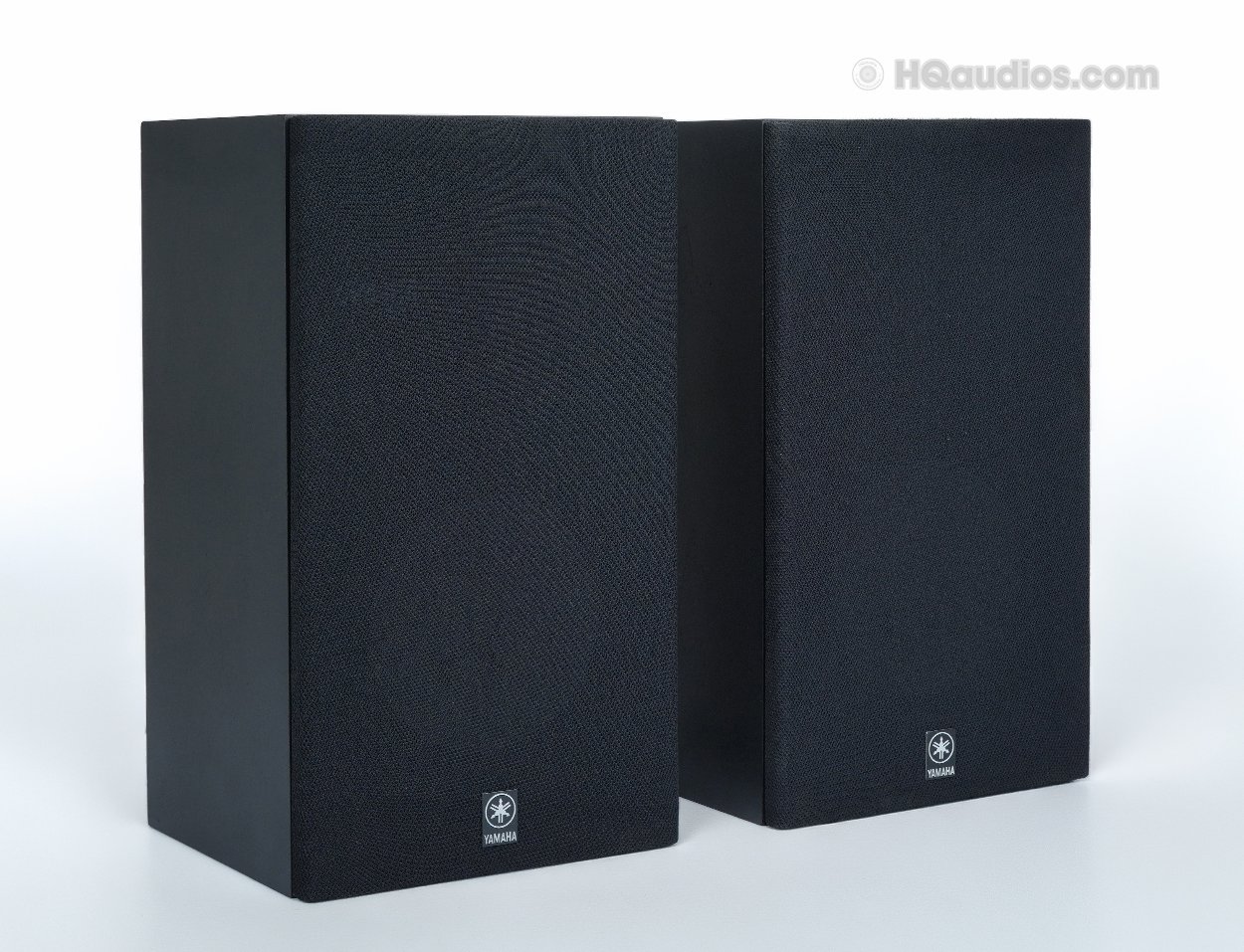

Grilles: Removable front grilles included

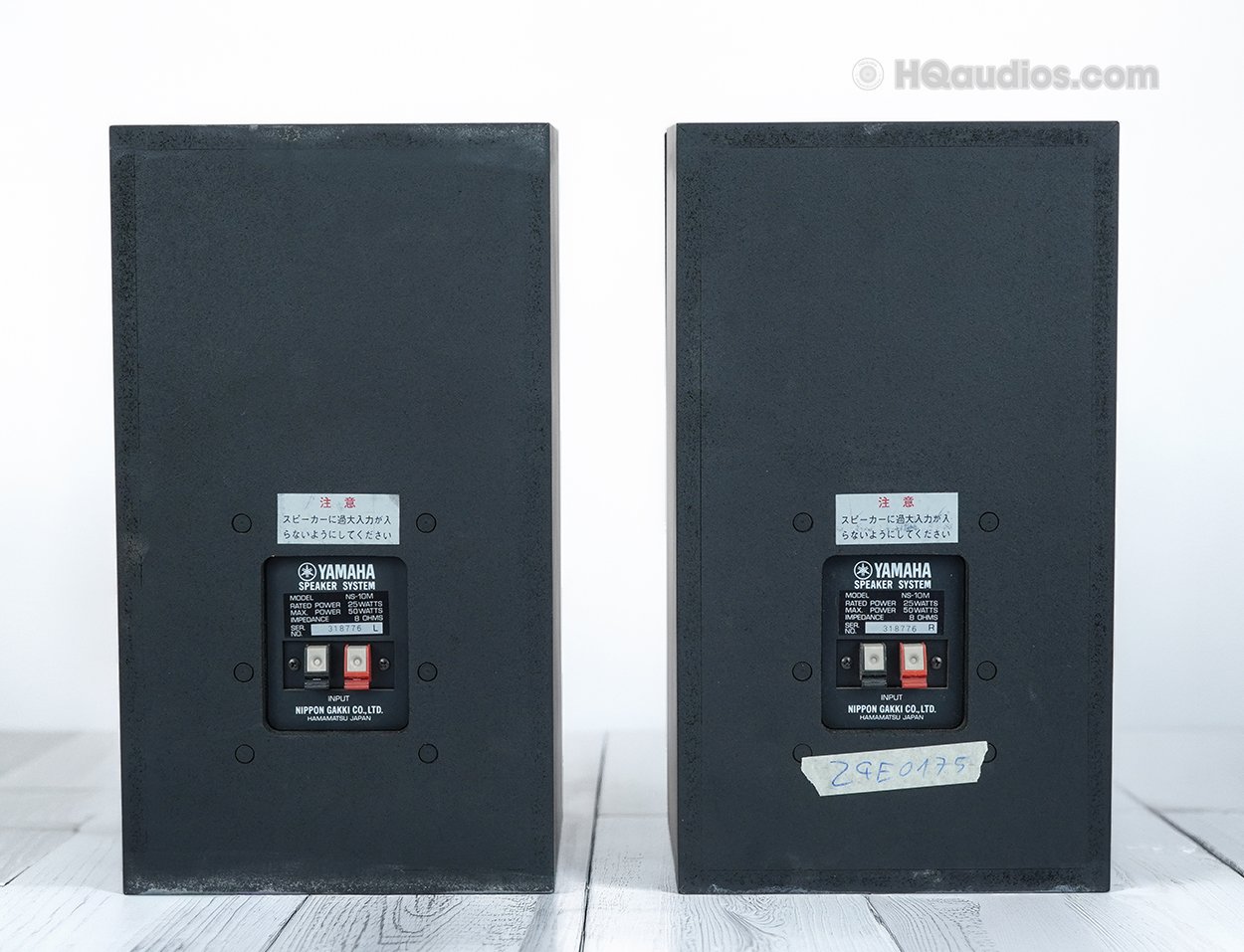

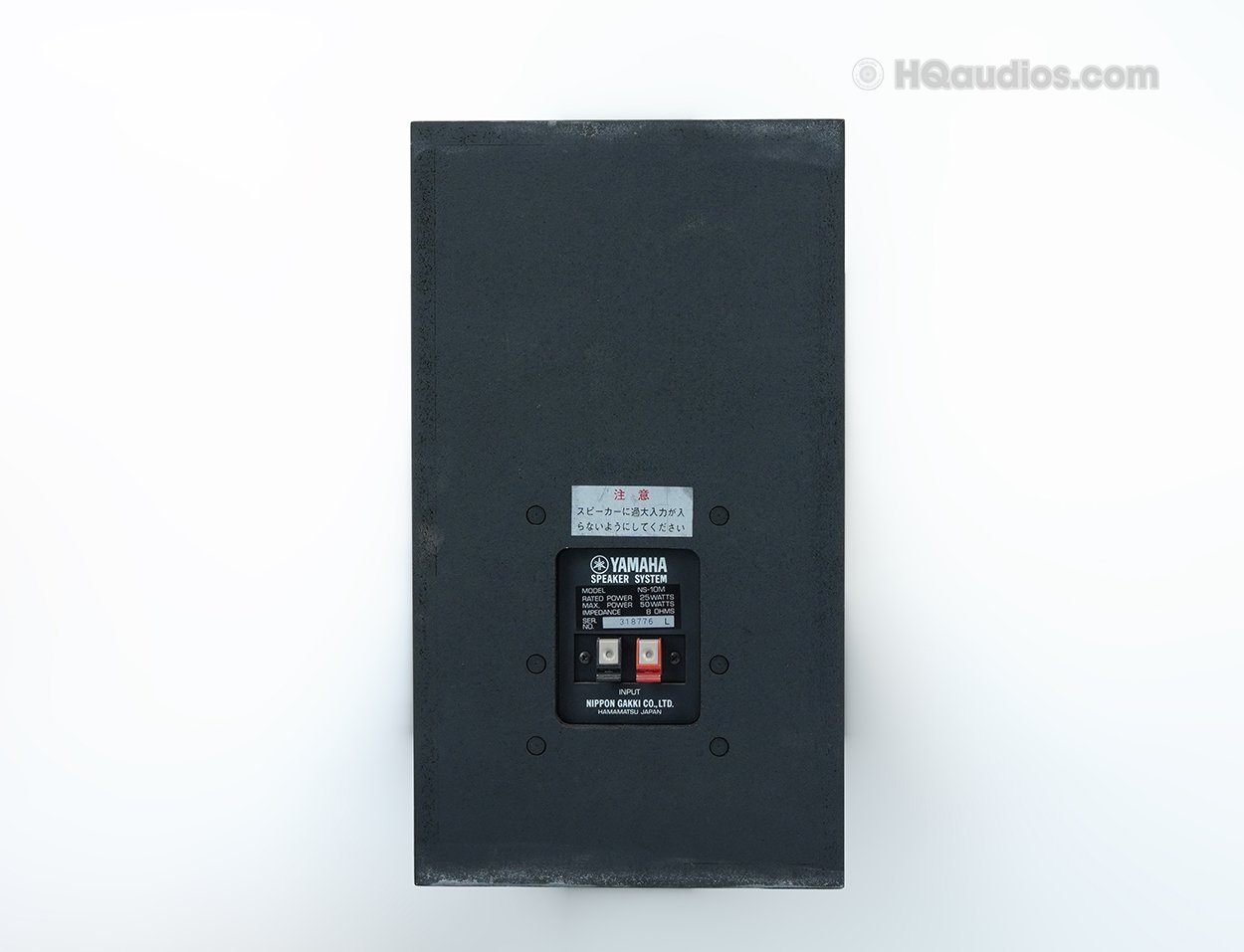

Rear Panels: Original Yamaha rear labels and push terminals
Overall Presentation: A clean vintage pair with normal signs of age. Please review all photos for exact cosmetic details.

Inspected
Cleaned & Detailed
Phase Checked
Final Listening Test Completed

SPECIFICATIONS
Brand: Yamaha
Model: NS-10M (original version)
Type: 2-Way Bookshelf Monitor
Year Introduced: circa 1978
Enclosure: Sealed (acoustic suspension)
Woofer: 18 cm (approx. 7 in) white paper cone

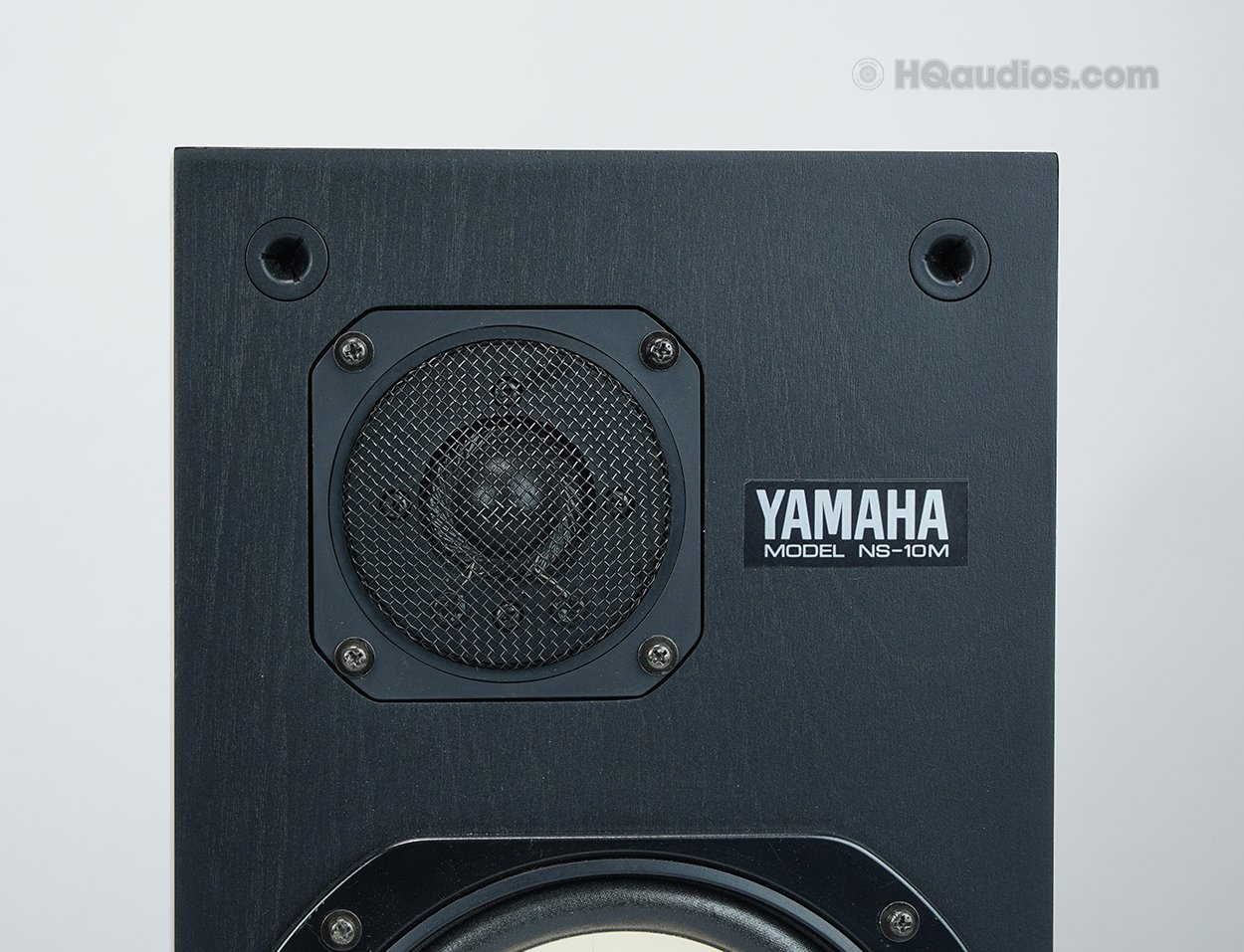

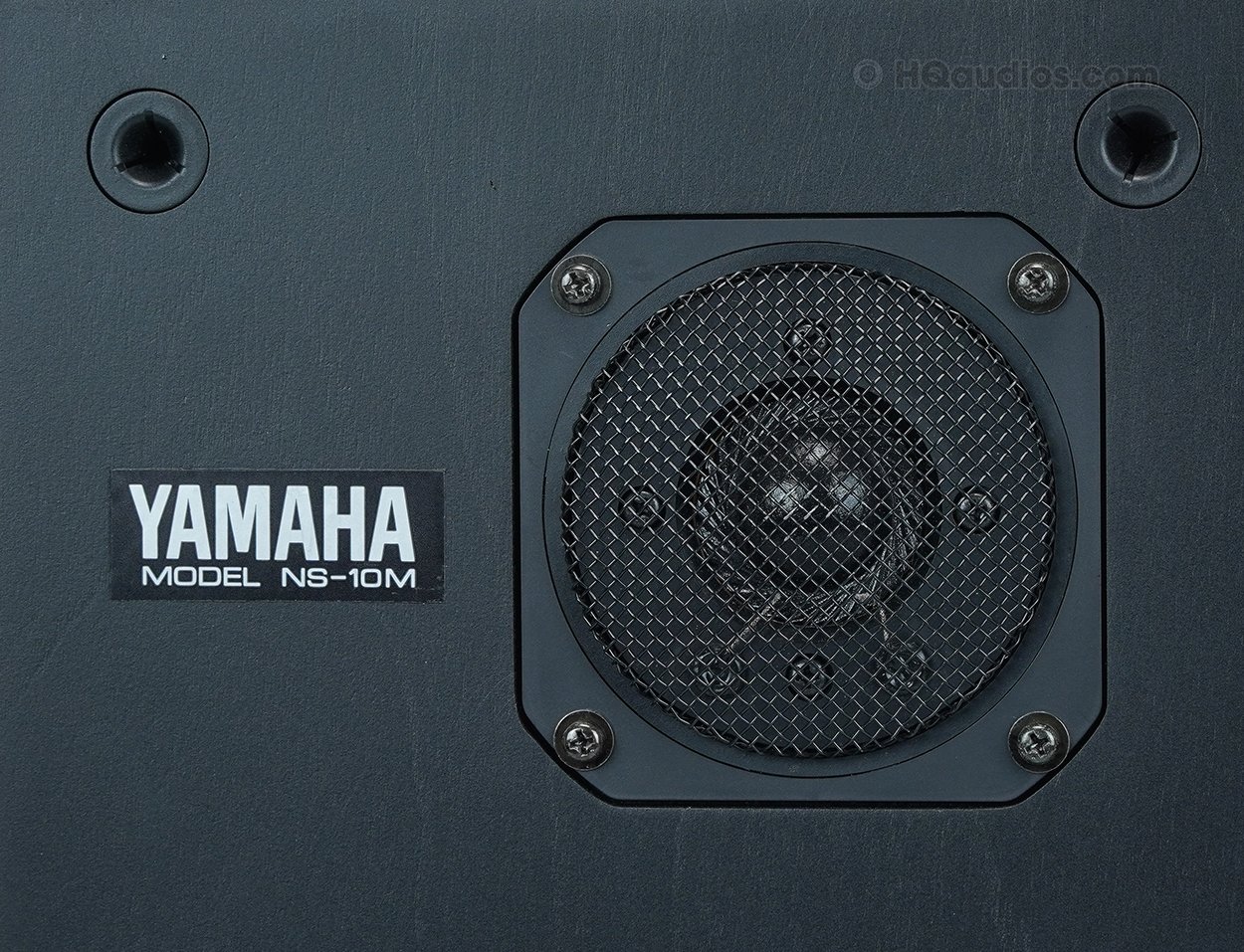

Tweeter: 3.5 cm (approx. 1.4 in) soft dome
Crossover: 2 kHz, 12 dB/octave
Frequency Response: 60 Hz – 20 kHz
Sensitivity: 90 dB/W/m
Nominal Impedance: 8 ohms
Power Rating: 25 W rated / 50 W maximum (per rear label)
Dimensions (each): approx. 8.5 W x 15 H x 7.8 D in
Weight (each): approx. 13.2 lbs
Country of Origin: Japan

WHAT IS INCLUDED
2 Yamaha NS-10M speakers (one pair)
2 front grilles
Only the items specifically listed above are included. Stands, cables and other equipment shown in the photos are not included.

SHIPPING & PACKAGING
Your vintage audio equipment will be professionally packed by HQaudios using protective materials appropriate for its size, weight, and construction. Large or heavy items may be palletized and shipped by freight when required for safer transportation.
HQaudios Professional Shipping and Packaging
Please contact us before purchase for the most current availability information.

1-YEAR WARRANTY & CUSTOMER SUPPORT
Your purchase is backed by our 1-Year HQaudios Seller Warranty (this is an HQaudios warranty, not a Yamaha manufacturer warranty). Our team provides support before and after your purchase. If you have questions about setup, operation, compatibility, or your order, please contact HQaudios for assistance.
