Yamaha NS-10MX Matched Monitor Pair (103372 A/B) – Professionally Restored – 1-Year Warranty

Original price was: $1,299.Current price is: $999.

-

  • Matched pair of Yamaha NS-10MX monitors – serials 103372 A / 103372 B
  • 18 cm white-cone woofer and 3.5 cm soft-dome tweeter, magnetically shielded
  • 60 W nominal / 120 W music input power, 8 ohms
  • Inspected, cleaned and tested by HQaudios
  • Backed by our 1-Year HQaudios Seller Warranty

1 in stock

SKU: 12LC0025 Categories: ,

Yamaha NS-10MX Monitor Speaker Pair – Matched Serials 103372 A / B
Professionally Restored by HQaudios – Inspected & Tested – Backed by Our 1-Year Warranty

KEY HIGHLIGHTS

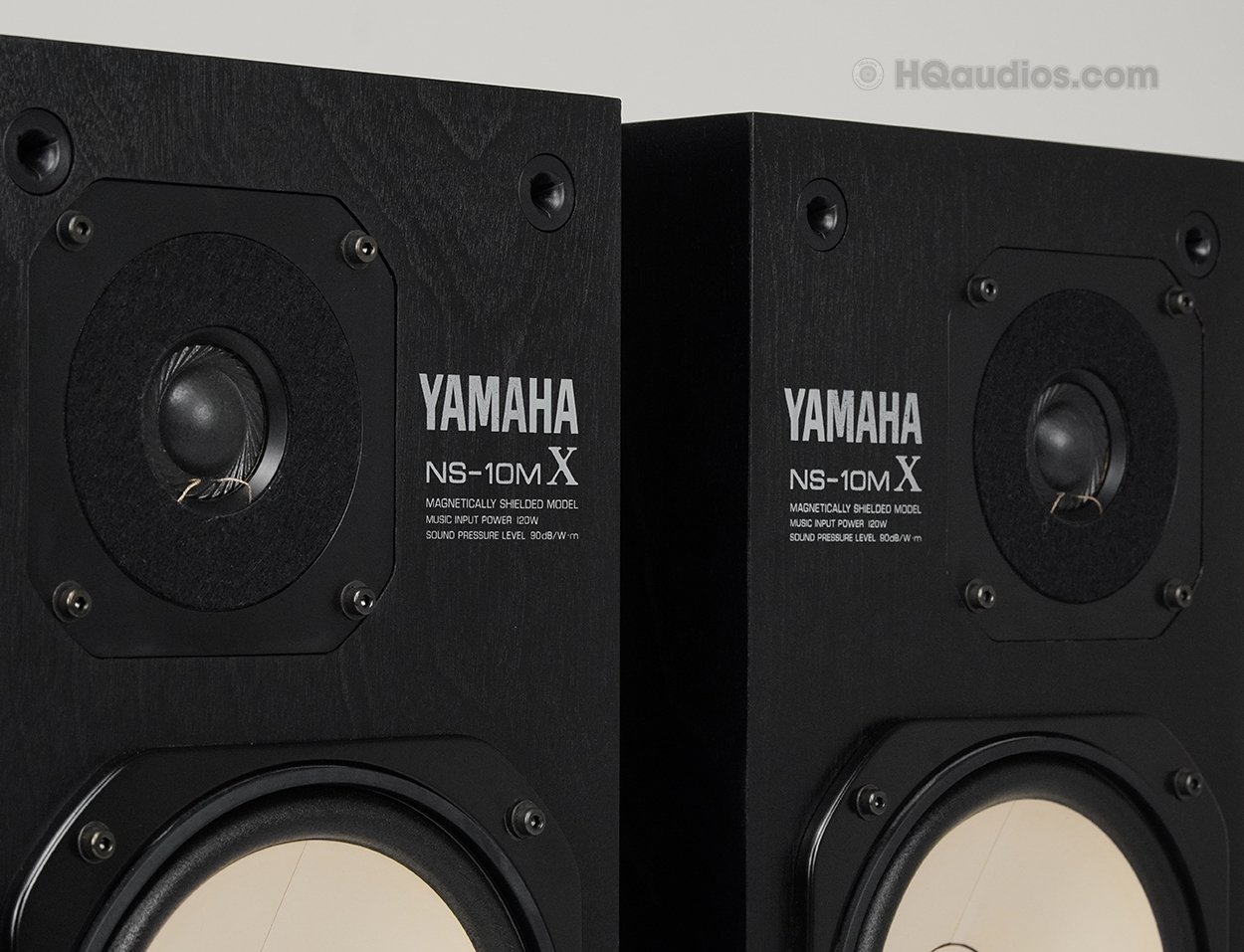

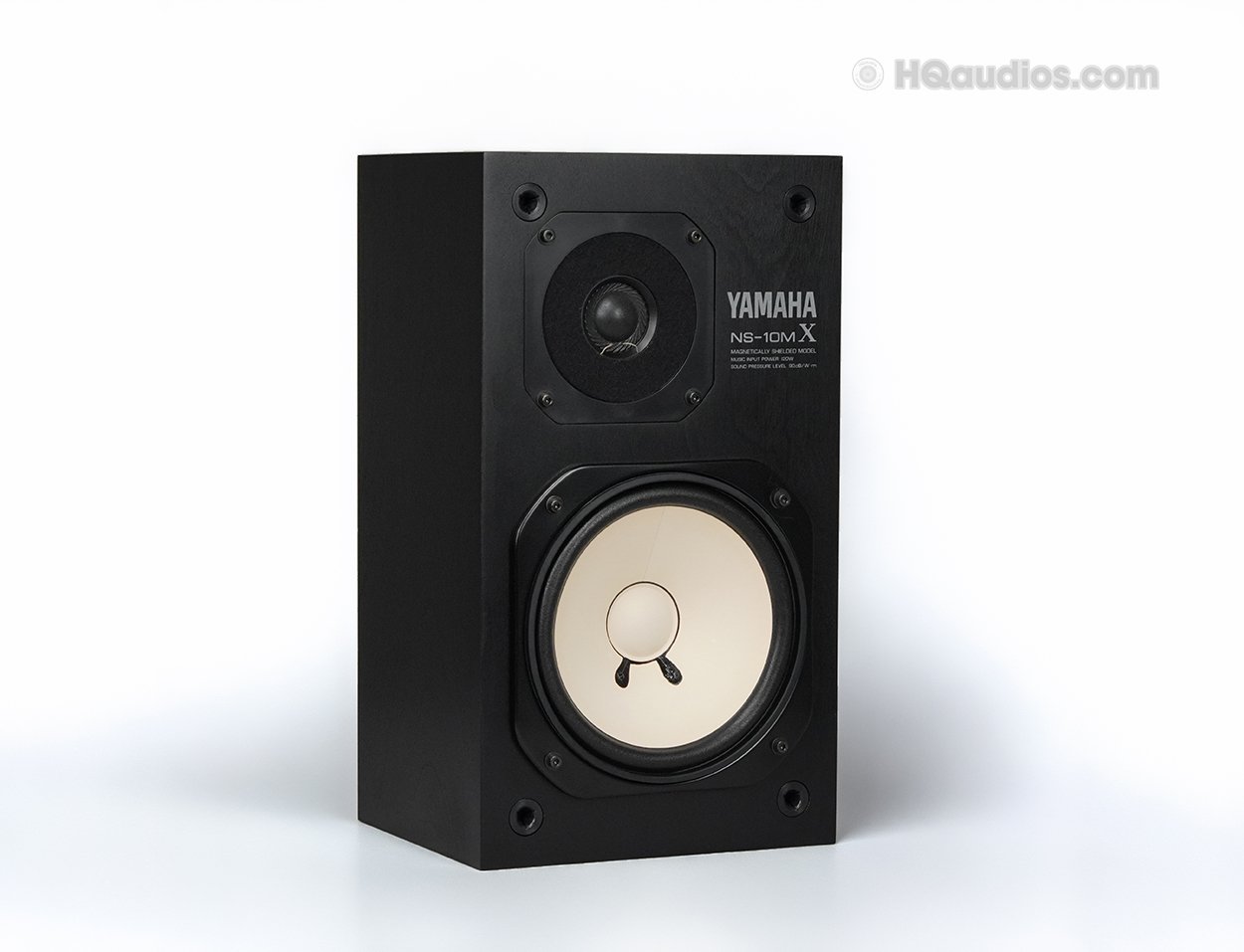

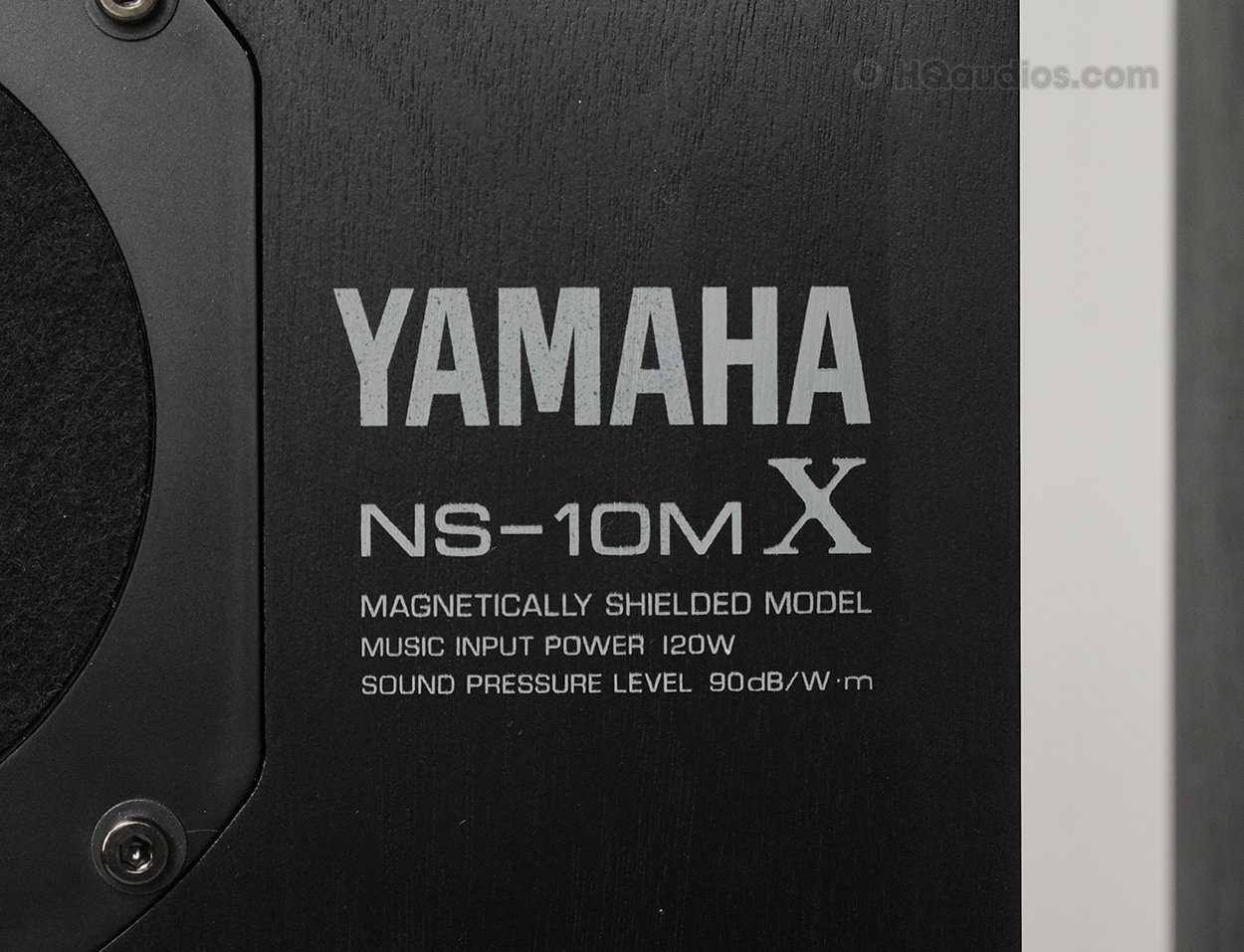

Yamaha NS-10MX – magnetically shielded 2-way sealed monitor from the NS-10 family
18 cm (approx. 7″) white-cone woofer and 3.5 cm (approx. 1.4″) soft-dome tweeter
Matched pair – serial numbers 103372 A and 103372 B
60 W nominal / 120 W music input power, 8 ohms
Inspected and tested by HQaudios – every driver checked for voice-coil rub and DC resistance
Backed by our 1-Year HQaudios Seller Warranty

PRODUCT OVERVIEW

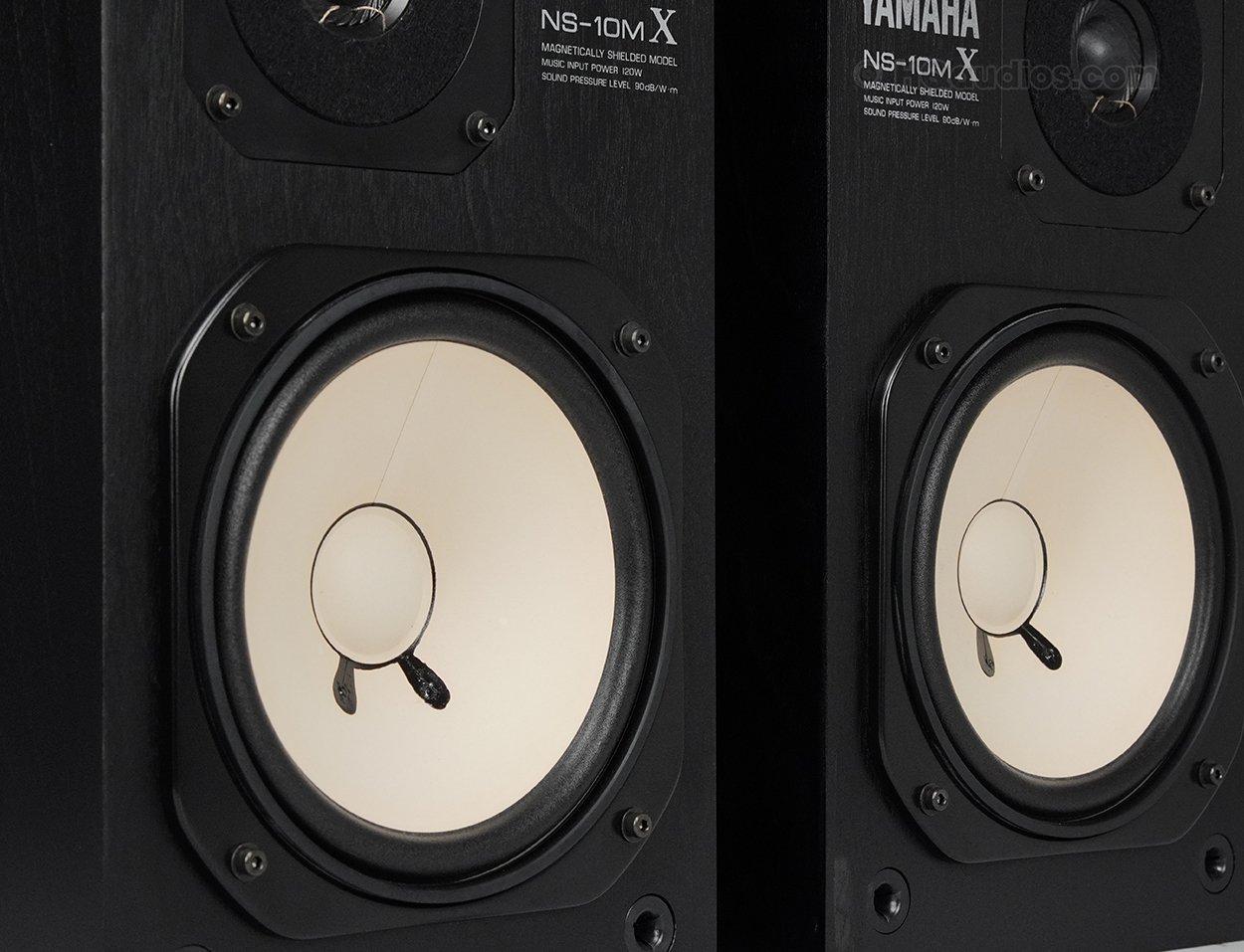

The Yamaha NS-10MX is a magnetically shielded member of Yamaha’s NS-10 family – a compact sealed 2-way design with an 18 cm white-cone woofer and a 3.5 cm soft-dome tweeter crossed over at 2 kHz, rated at 60 W nominal and 120 W music input power.

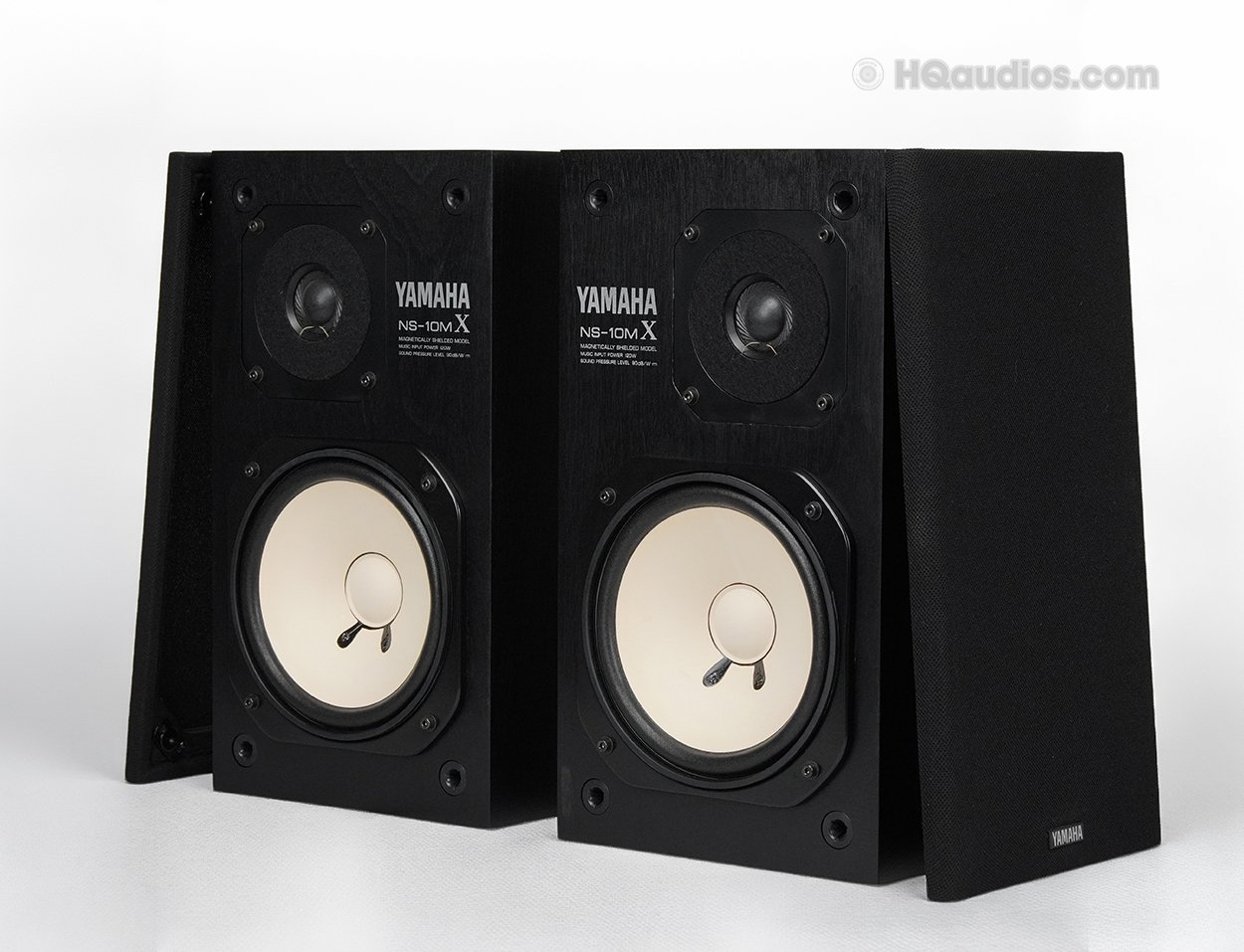

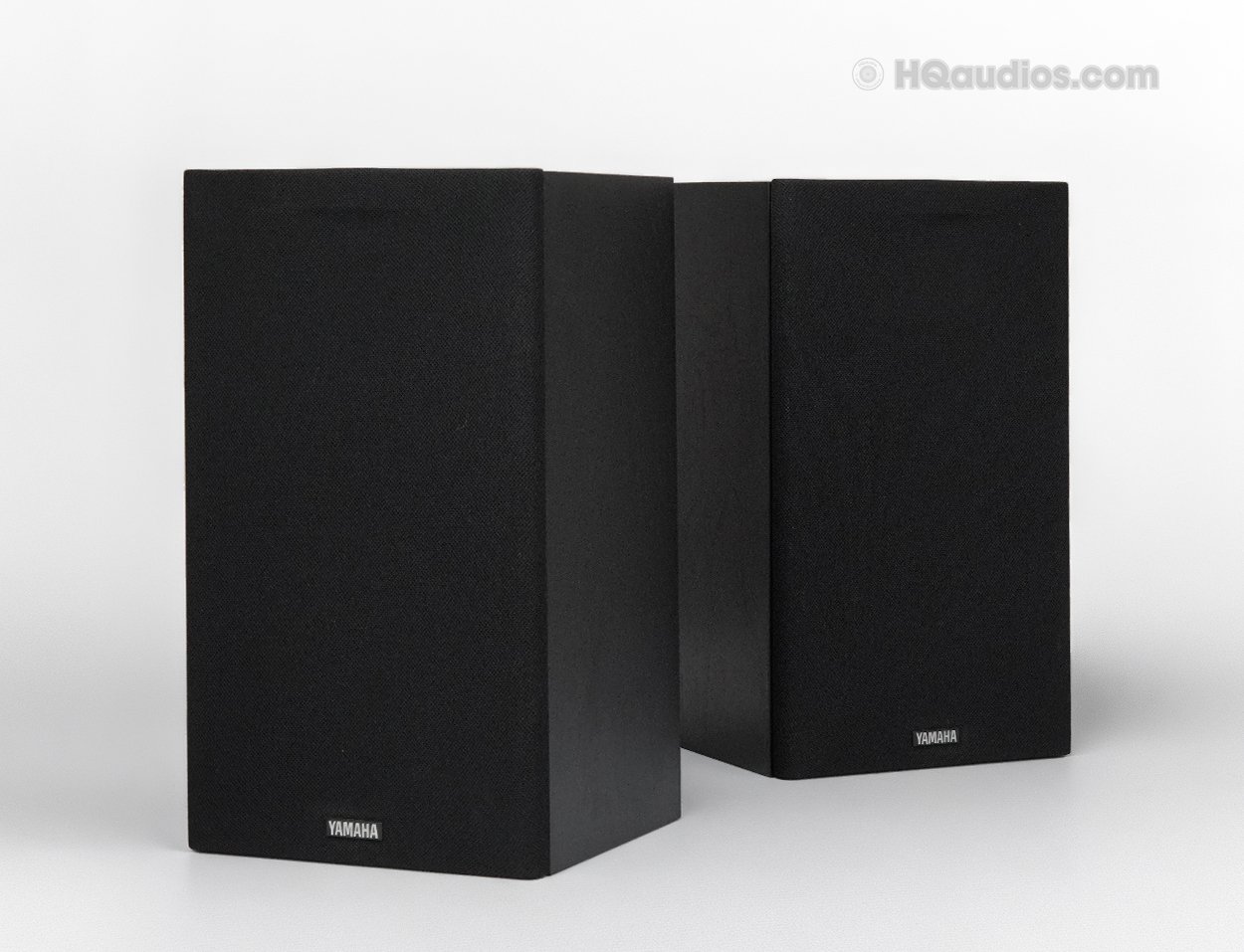

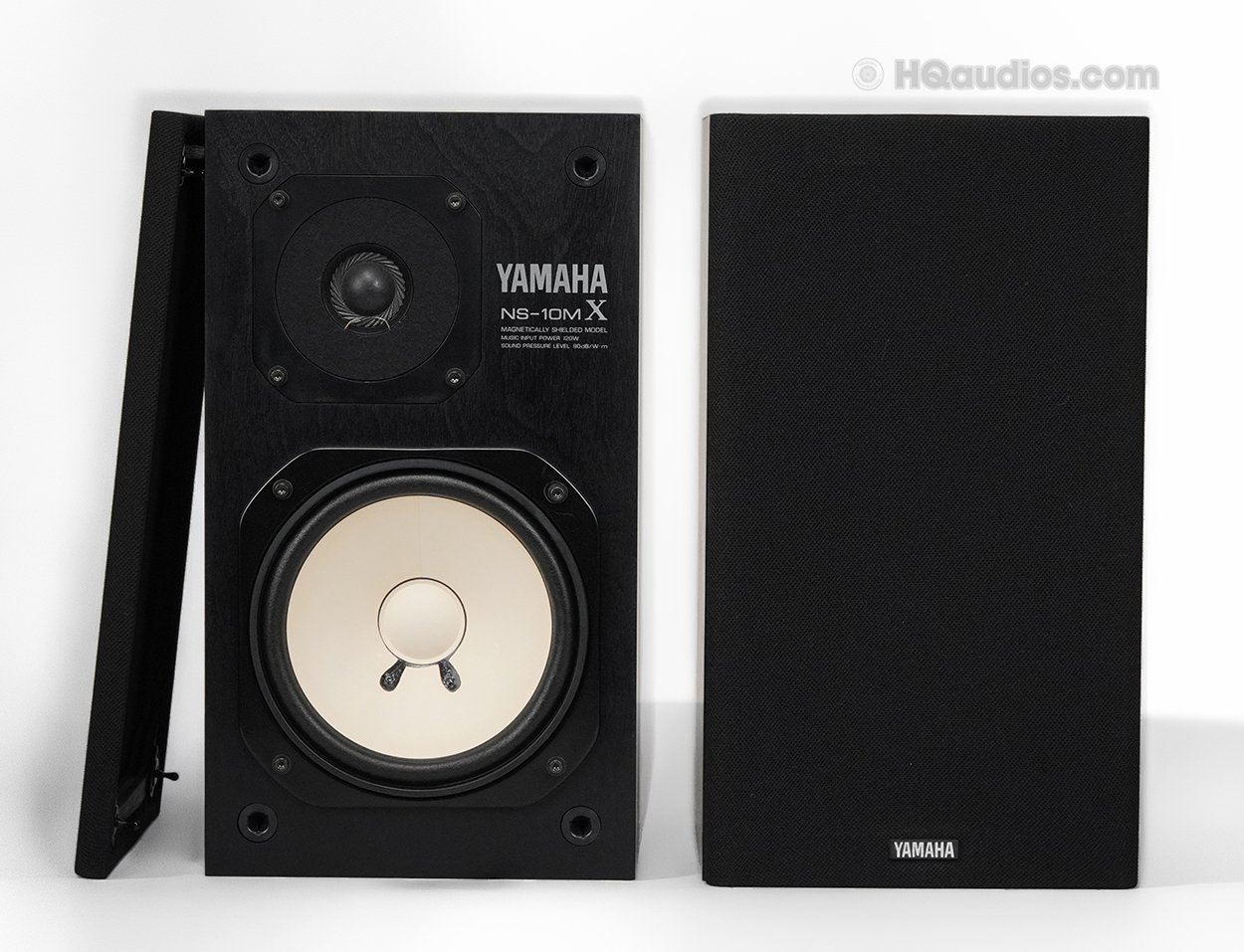

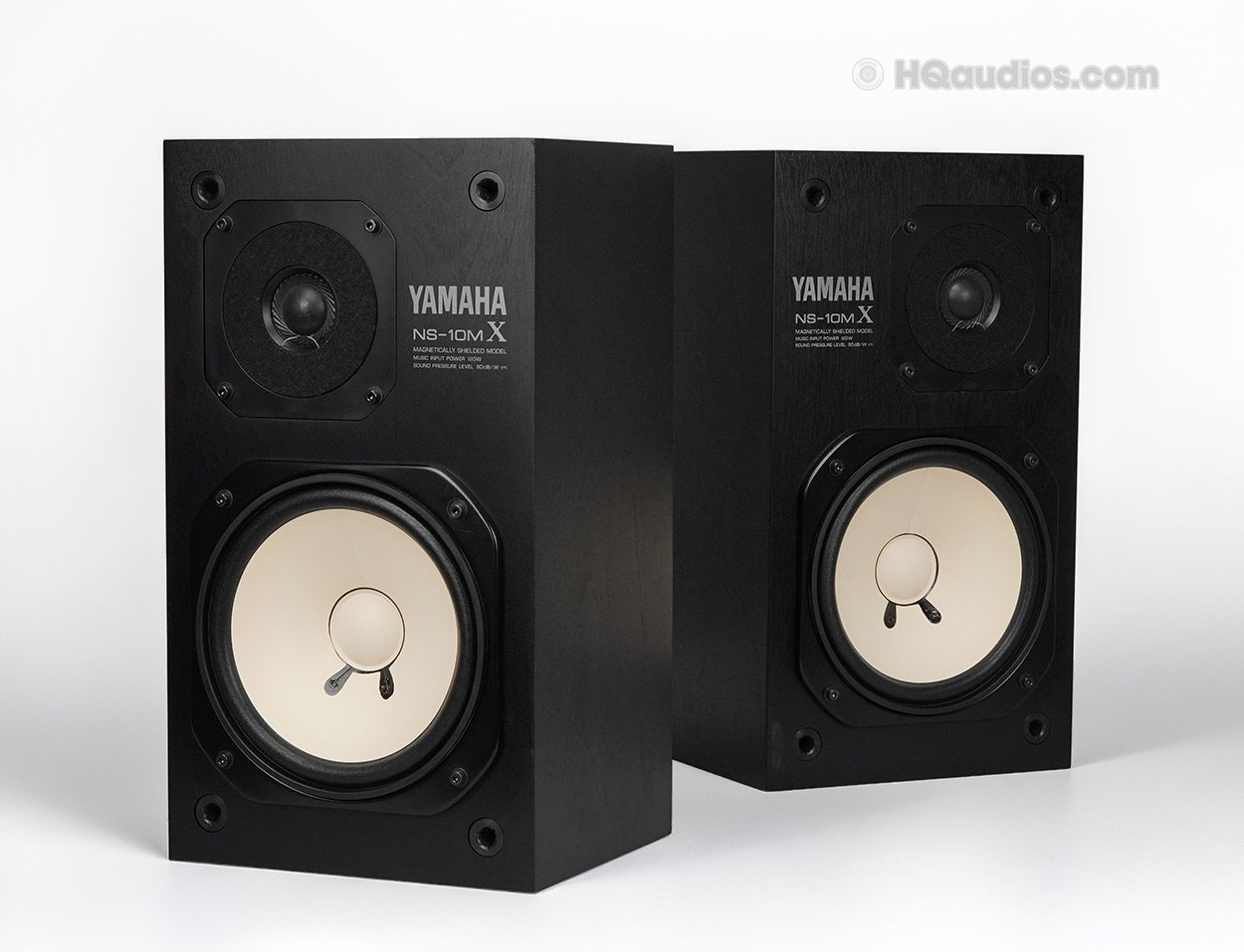

This is a matched pair carrying serial numbers 103372 A and 103372 B, with black cabinets and both front grilles.
It has been inspected, cleaned and tested by HQaudios. The photos show the actual pair you will receive.


HQAUDIOS RESTORATION & TESTING

Before Restoration
This Yamaha NS-10MX pair was carefully inspected upon arrival to evaluate its mechanical, electrical, and cosmetic condition.

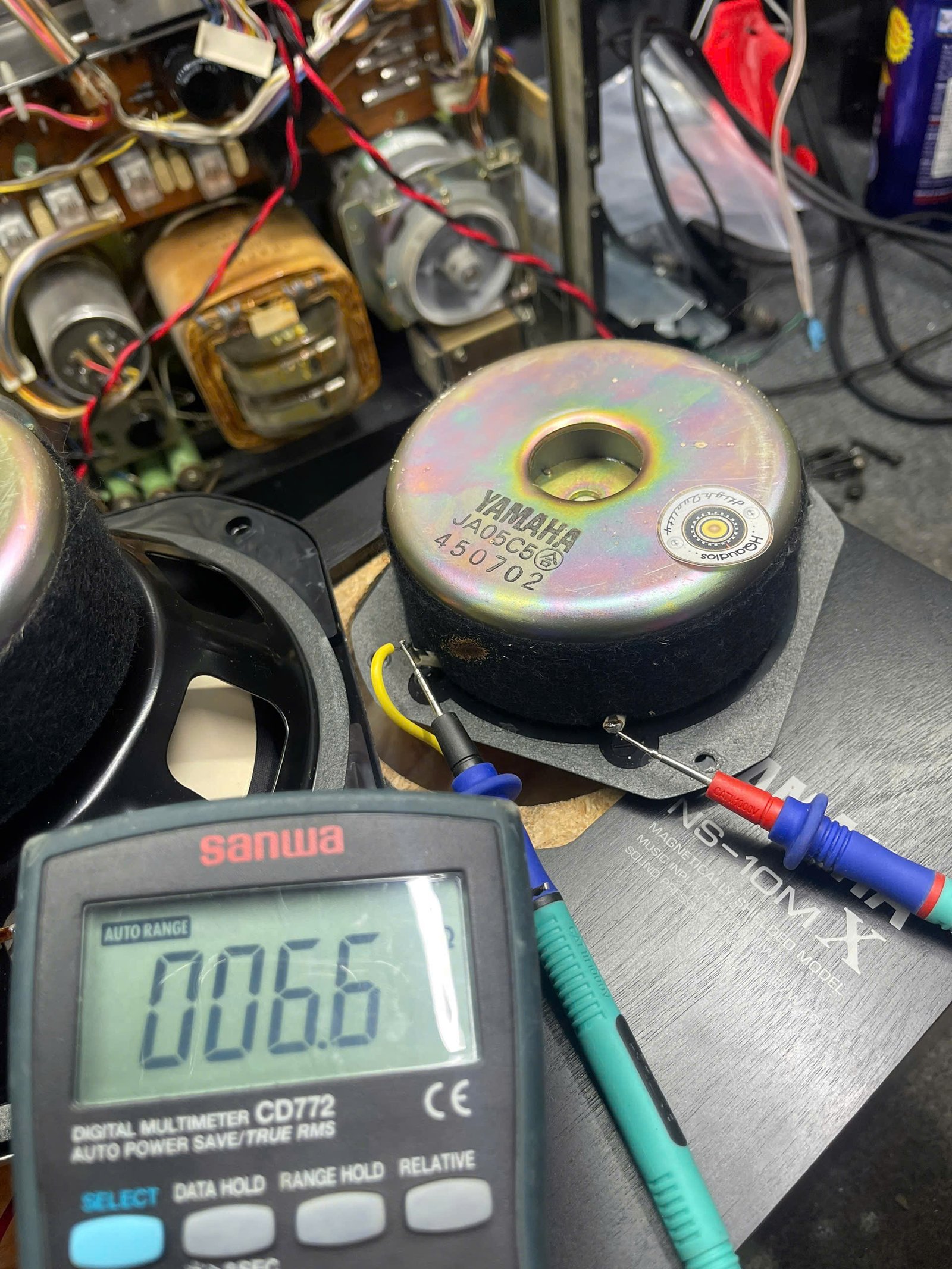

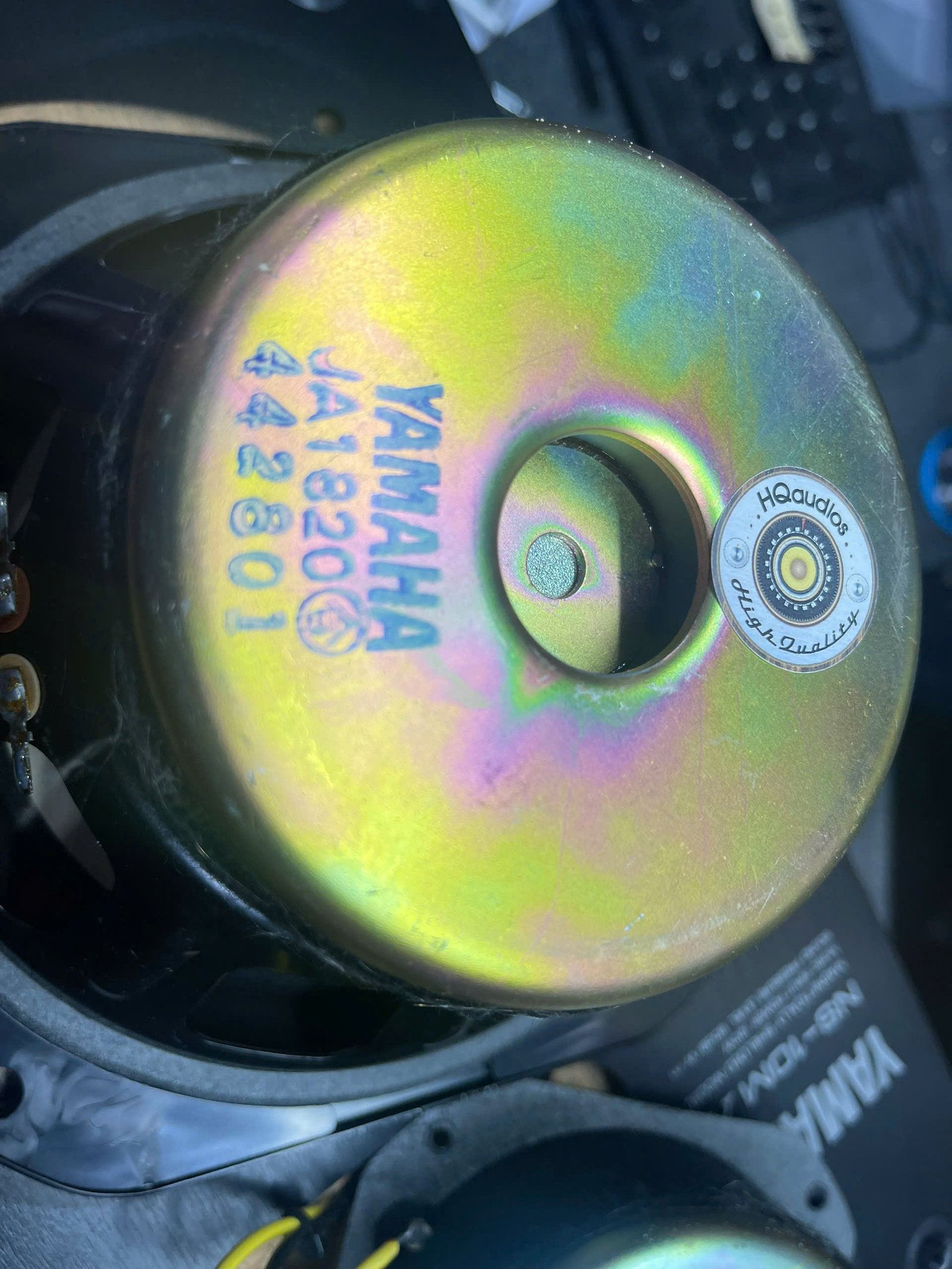

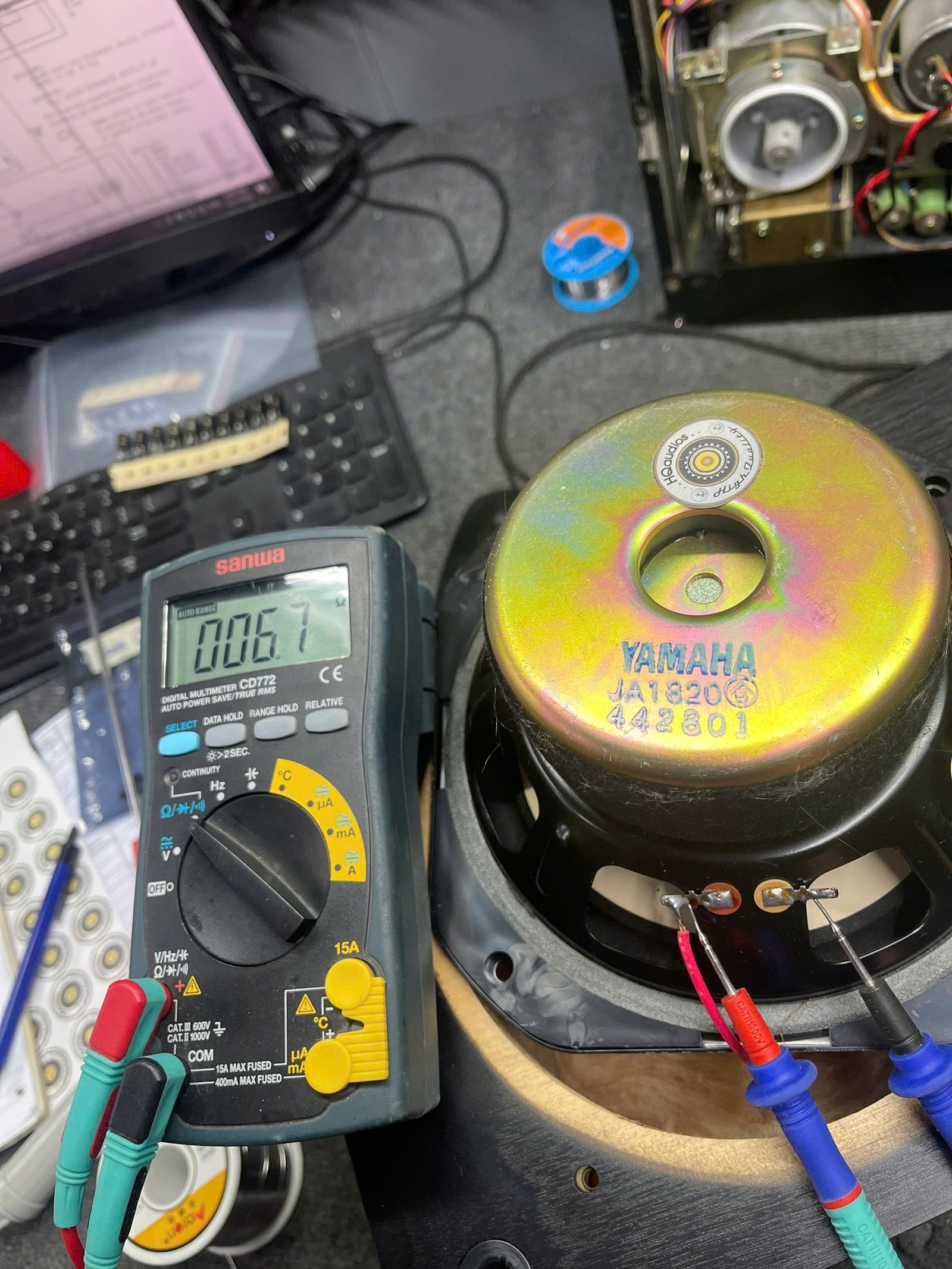

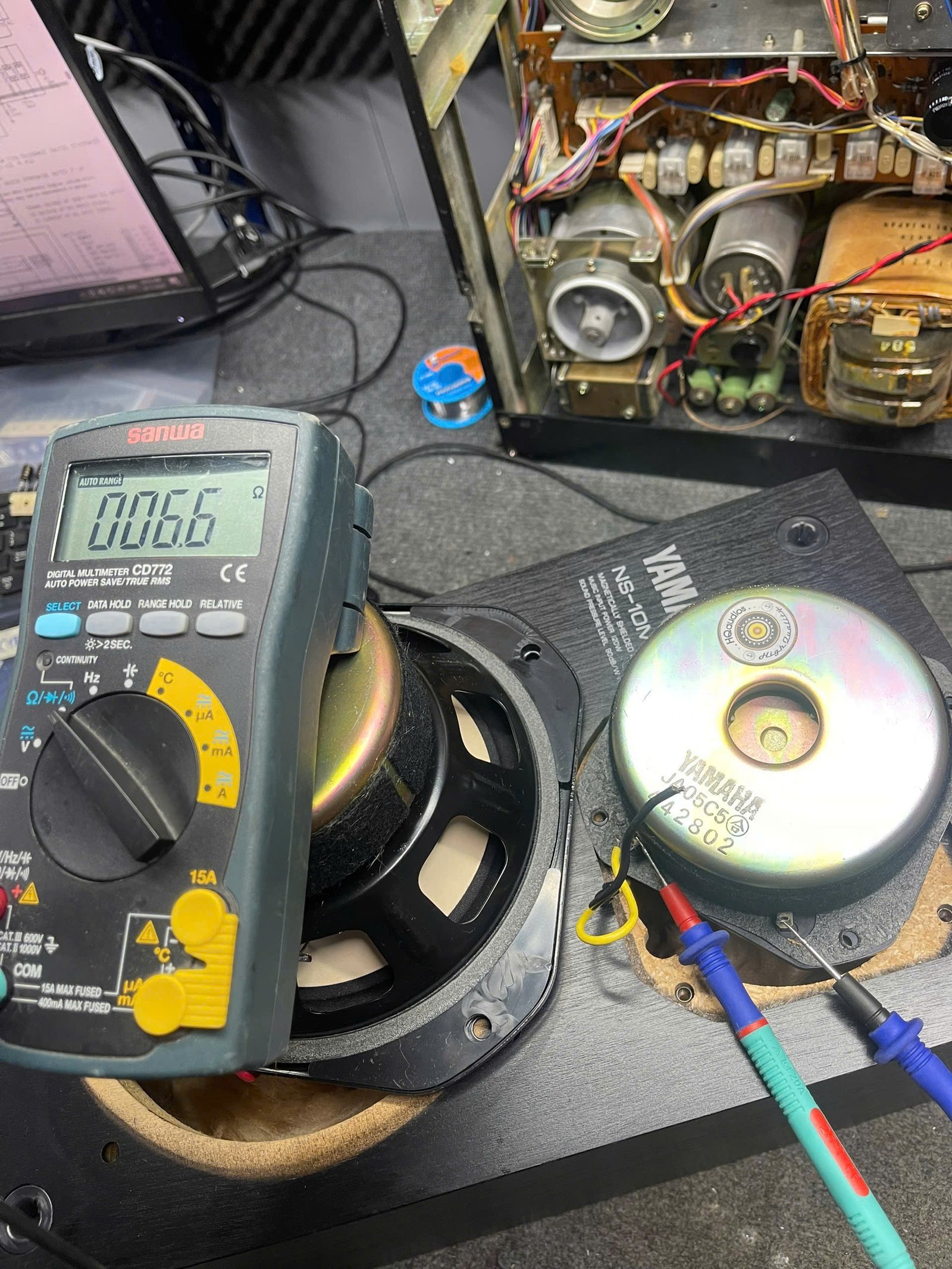

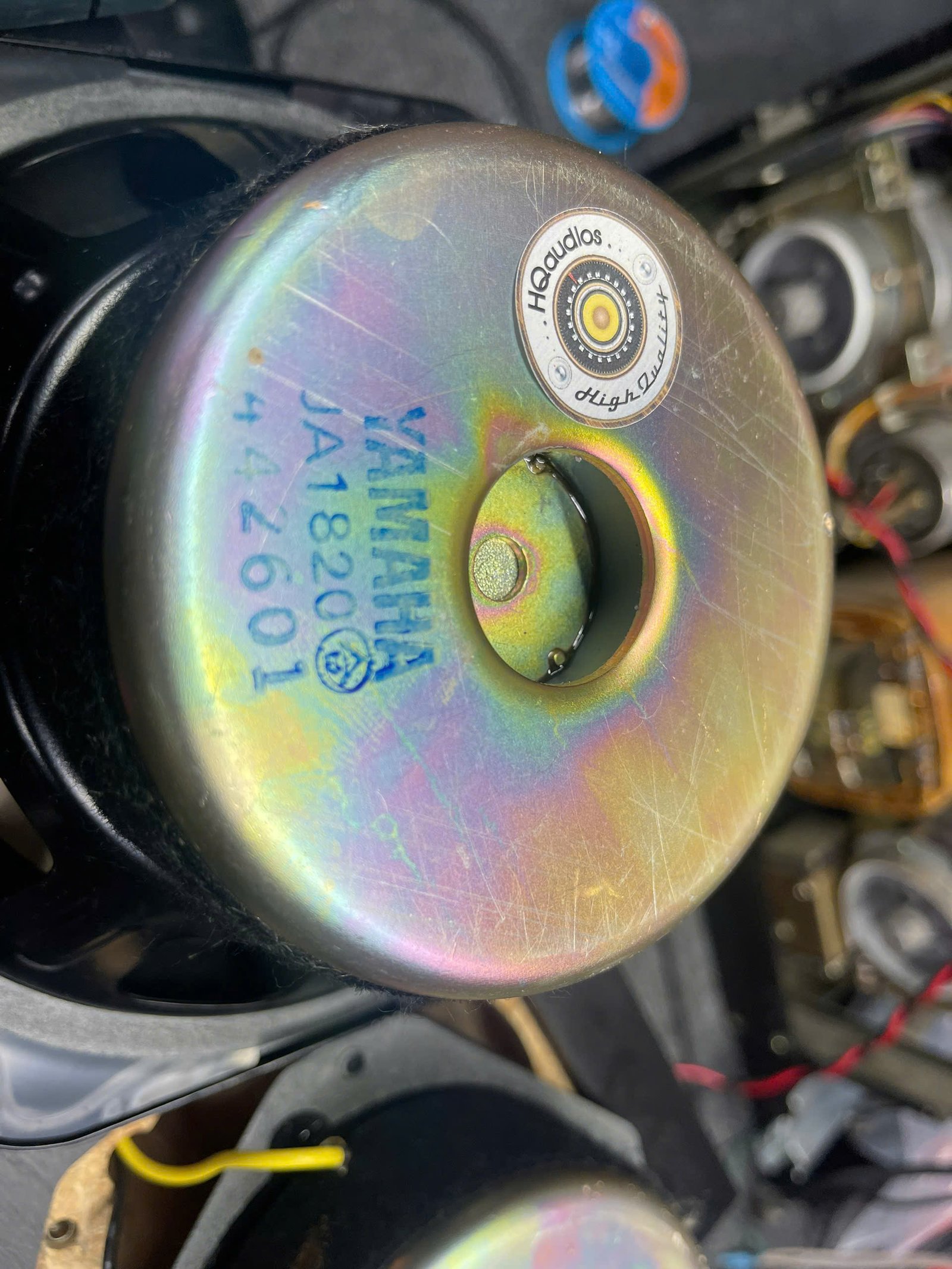

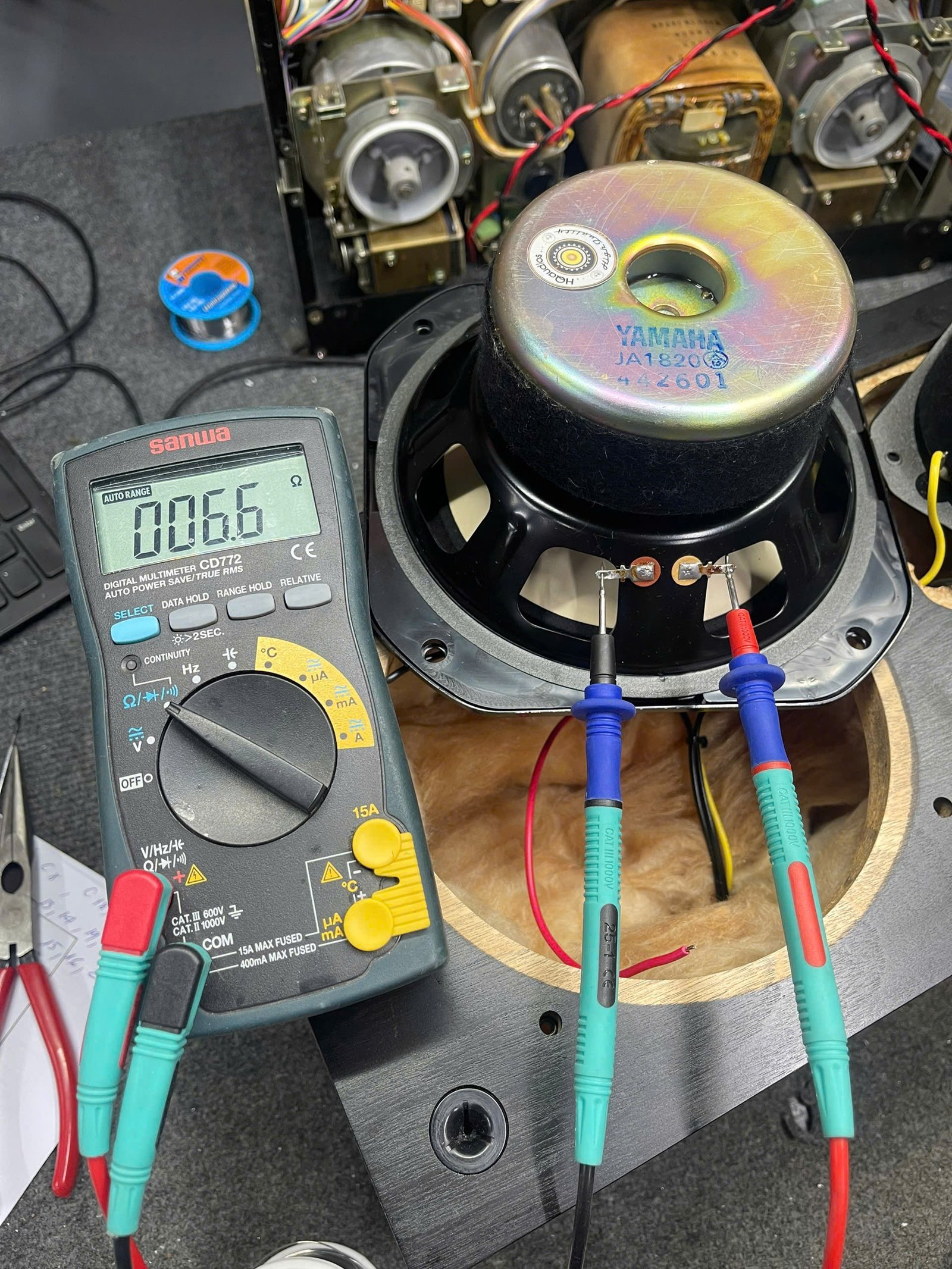

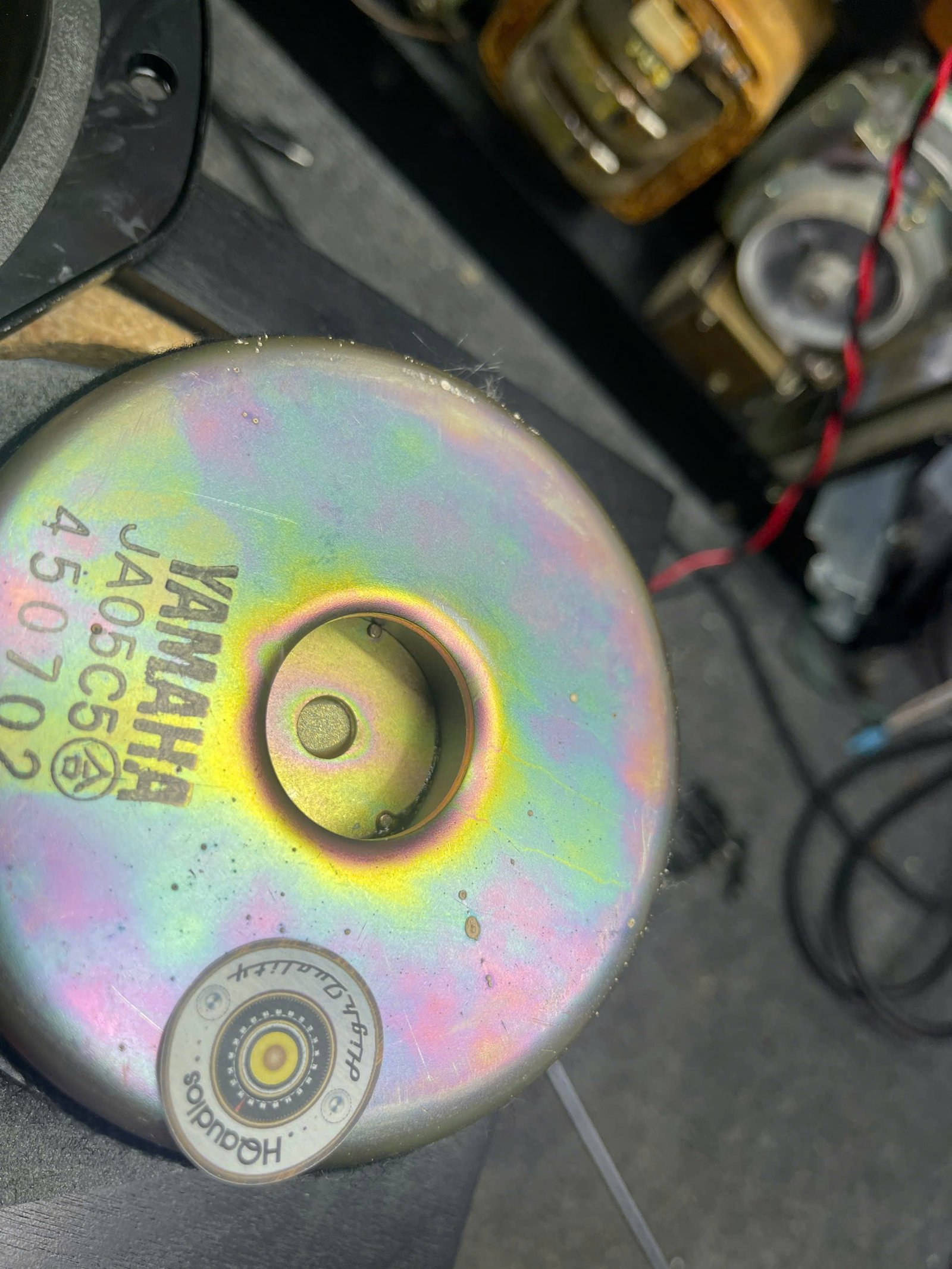

Each cabinet, cone, surround, and spider was checked for originality and for glue joints that had loosened or shifted with age. Every driver was tested by hand for voice-coil rub – a scratching noise or a stiff, binding cone indicates a shifted or heat-damaged voice coil. The DC resistance of every driver was checked against its nominal impedance. The crossover networks were examined for bulging or leaking capacitors, each capacitor was measured against its original value (within 10% tolerance), and the wiring and terminals were inspected.
The inspection results were used to determine the work required for this specific pair.

During Restoration
Based on the inspection results, this NS-10MX pair was serviced according to HQaudios’ technical standards while preserving its original engineering and voicing.

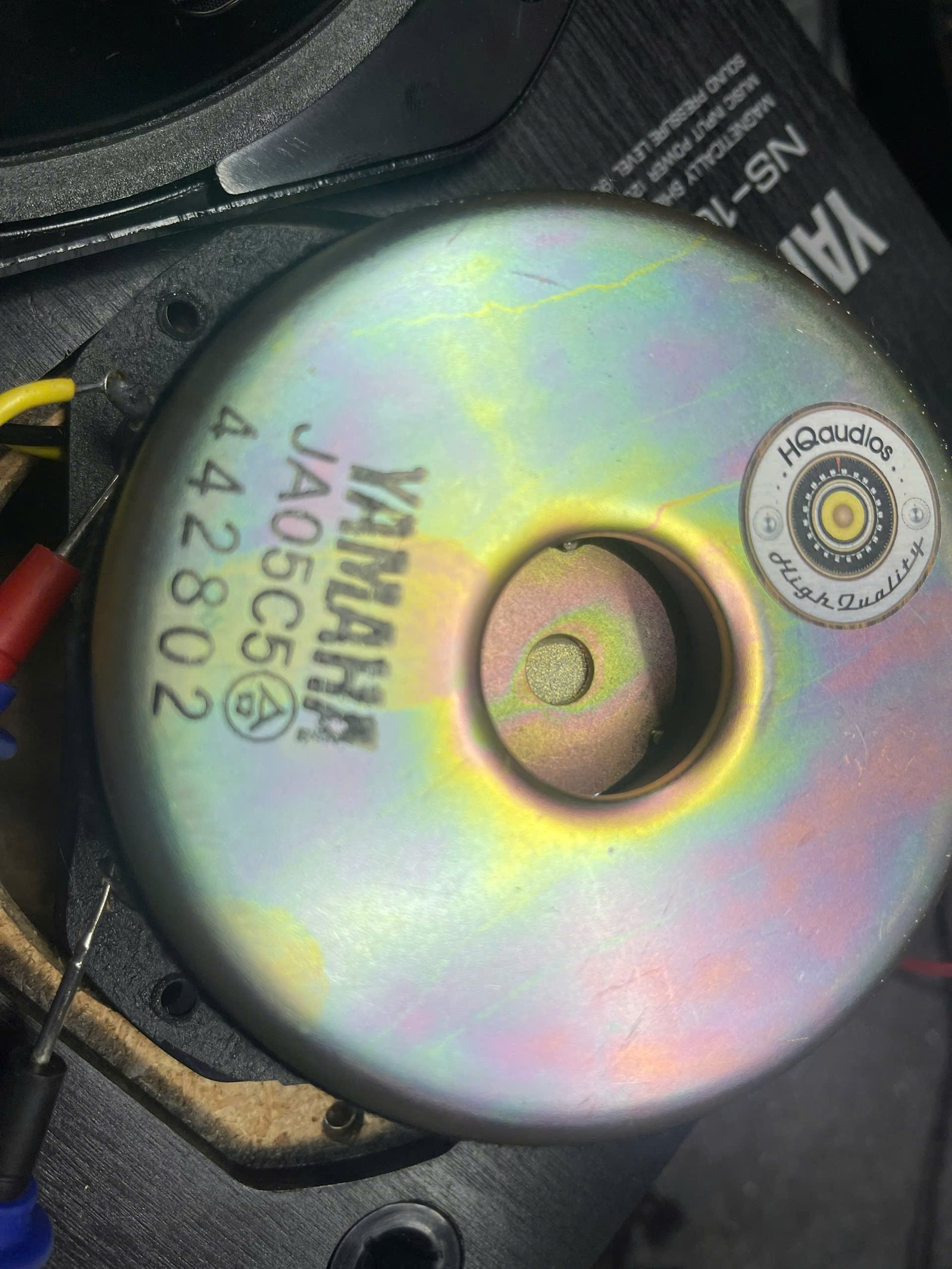

Drivers: All drivers retain their original cones and diaphragms, which are in good condition.
Cleaning & Detailing: The drivers, crossover boards and terminals were cleaned, and the cabinets and grilles were cleaned and detailed.

After Restoration / Final Testing
Once service was completed, the pair underwent comprehensive testing under real operating conditions.
Phase Check: Driver polarity was verified using a phase-reversal check to ensure both speakers play in correct phase.
Listening Test: The pair underwent an extended real-world listening test with a wide range of music to confirm output from both drivers of each speaker and a balanced stereo image.
Final QC: Only after completing HQaudios’ service and testing process was the pair approved and prepared for its next owner.

CONDITION

Technical Condition
Woofers: 18 cm woofers working on both speakers
Tweeters: Soft-dome tweeters working on both speakers
Drivers: Checked for voice-coil rub and DC resistance
Crossovers: Inspected; capacitors measured against original values
Terminals: Push-type terminals cleaned and checked
Phase: Polarity checked on both speakers

Cosmetic Condition

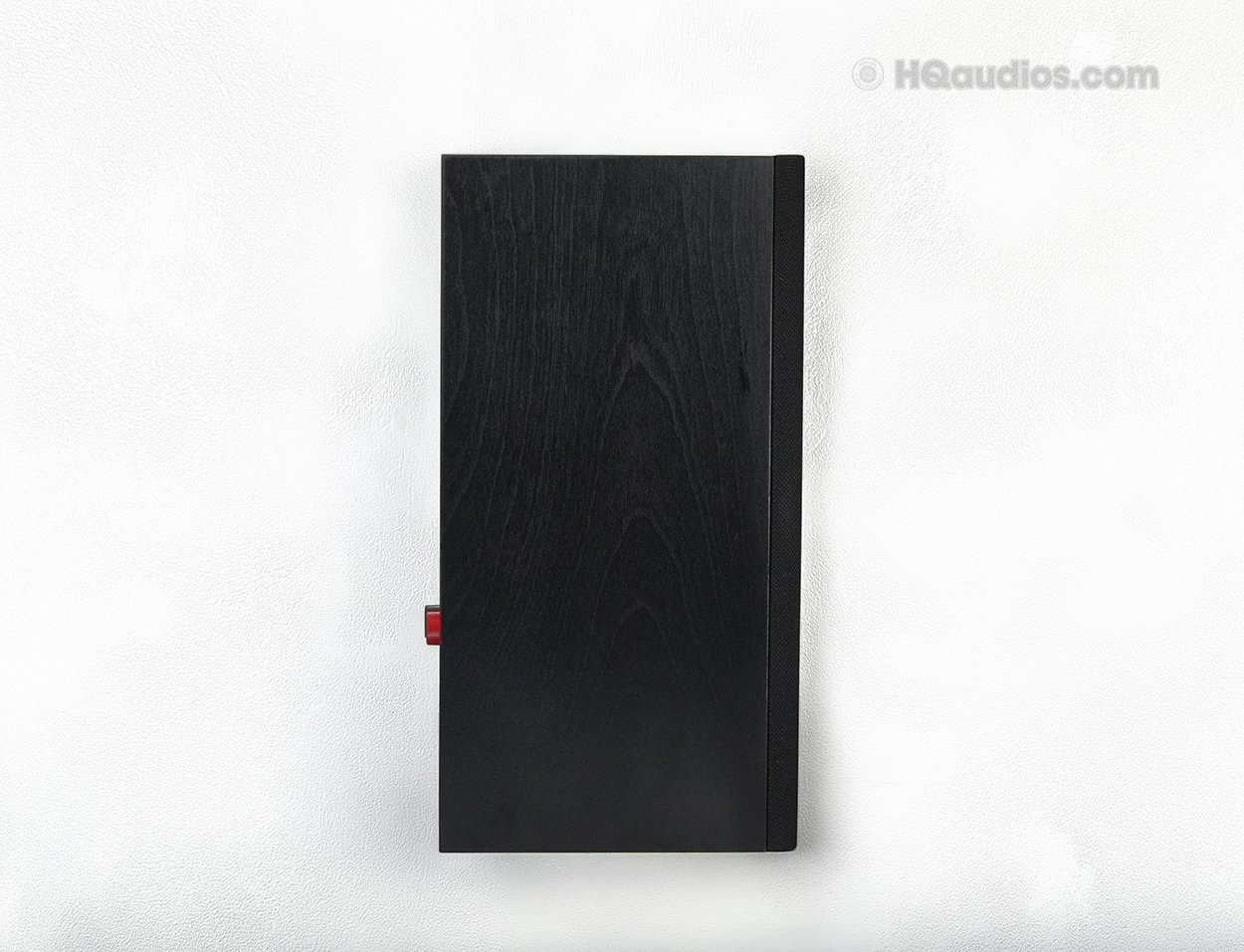

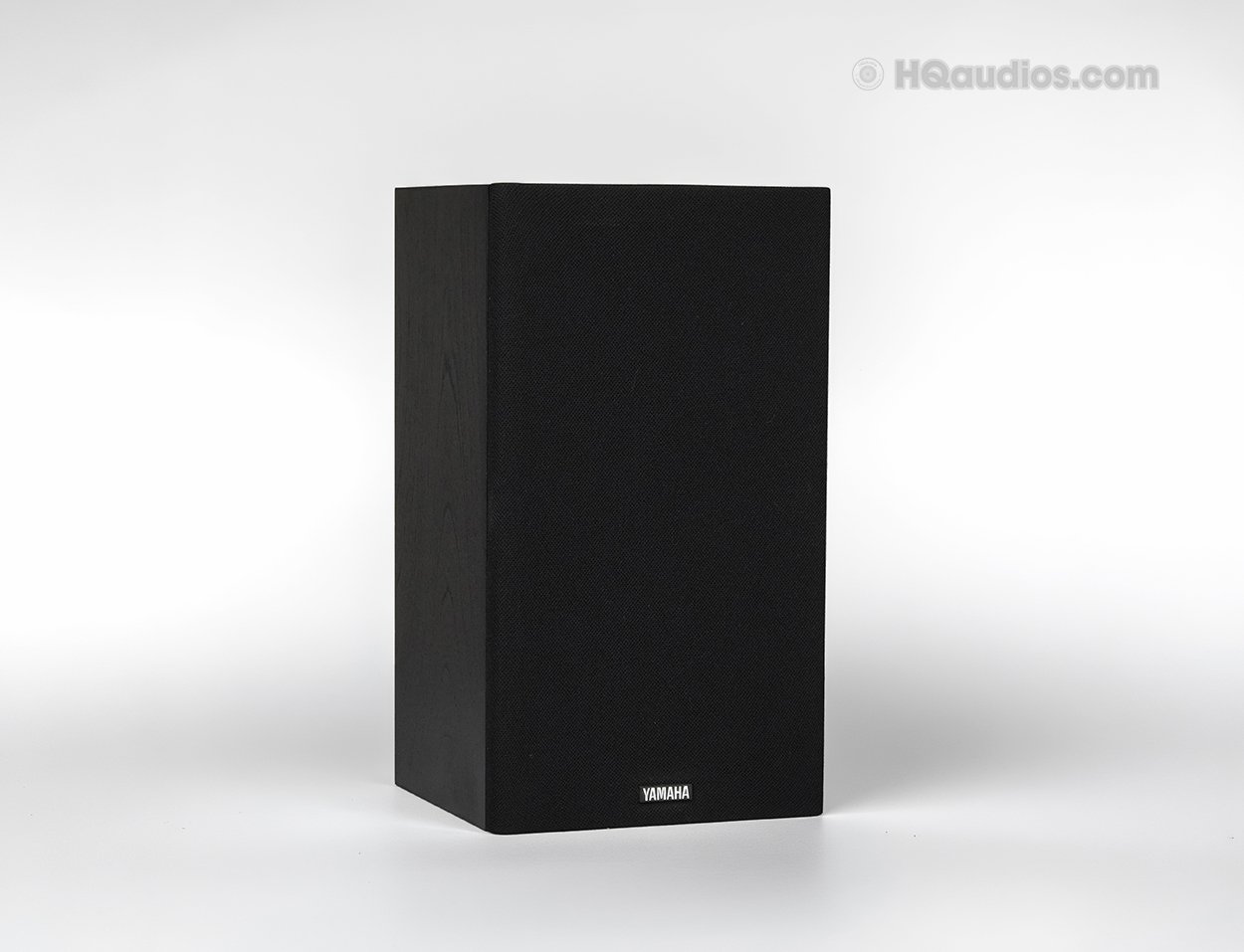

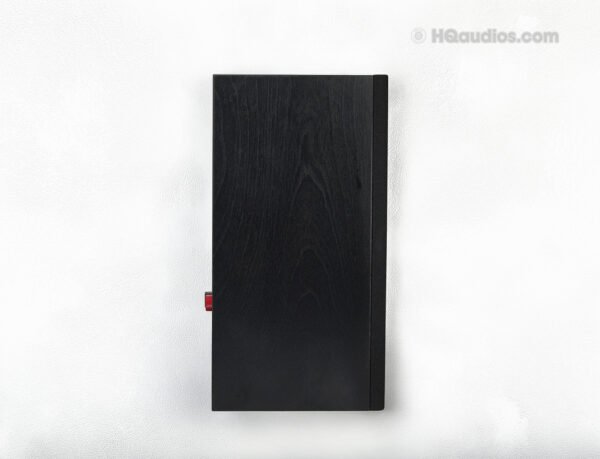

Cabinets: Black cabinets with normal age-related marks and edge wear

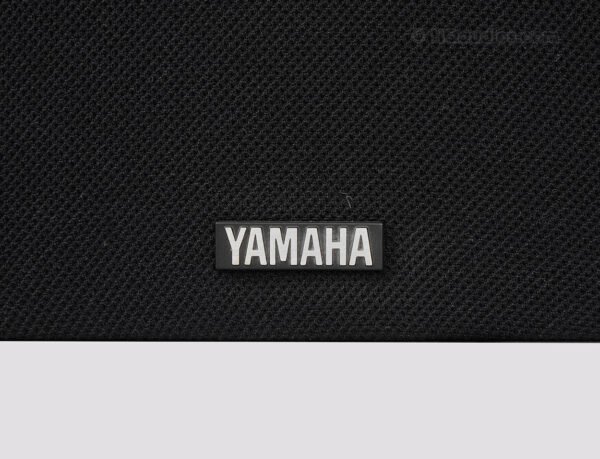

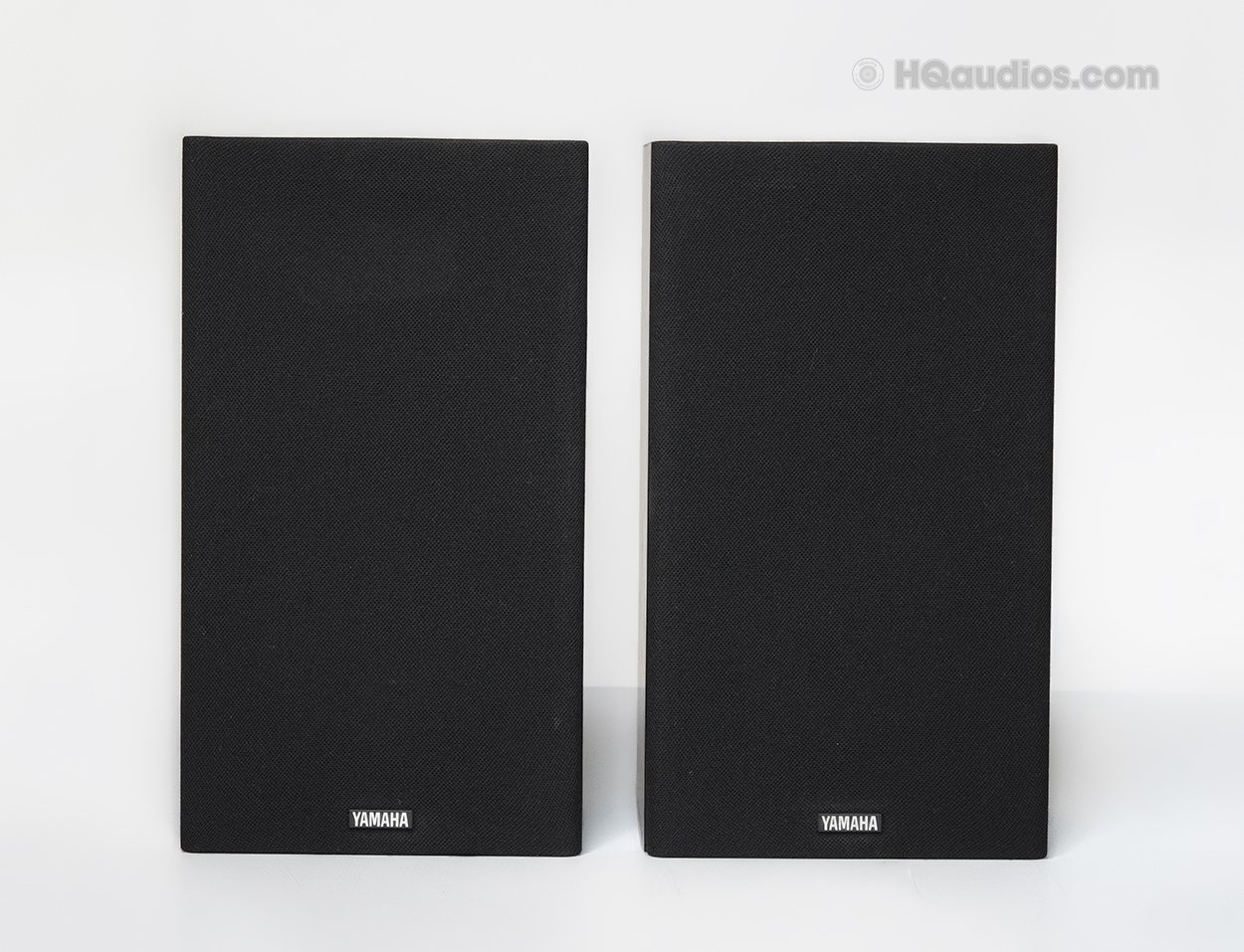

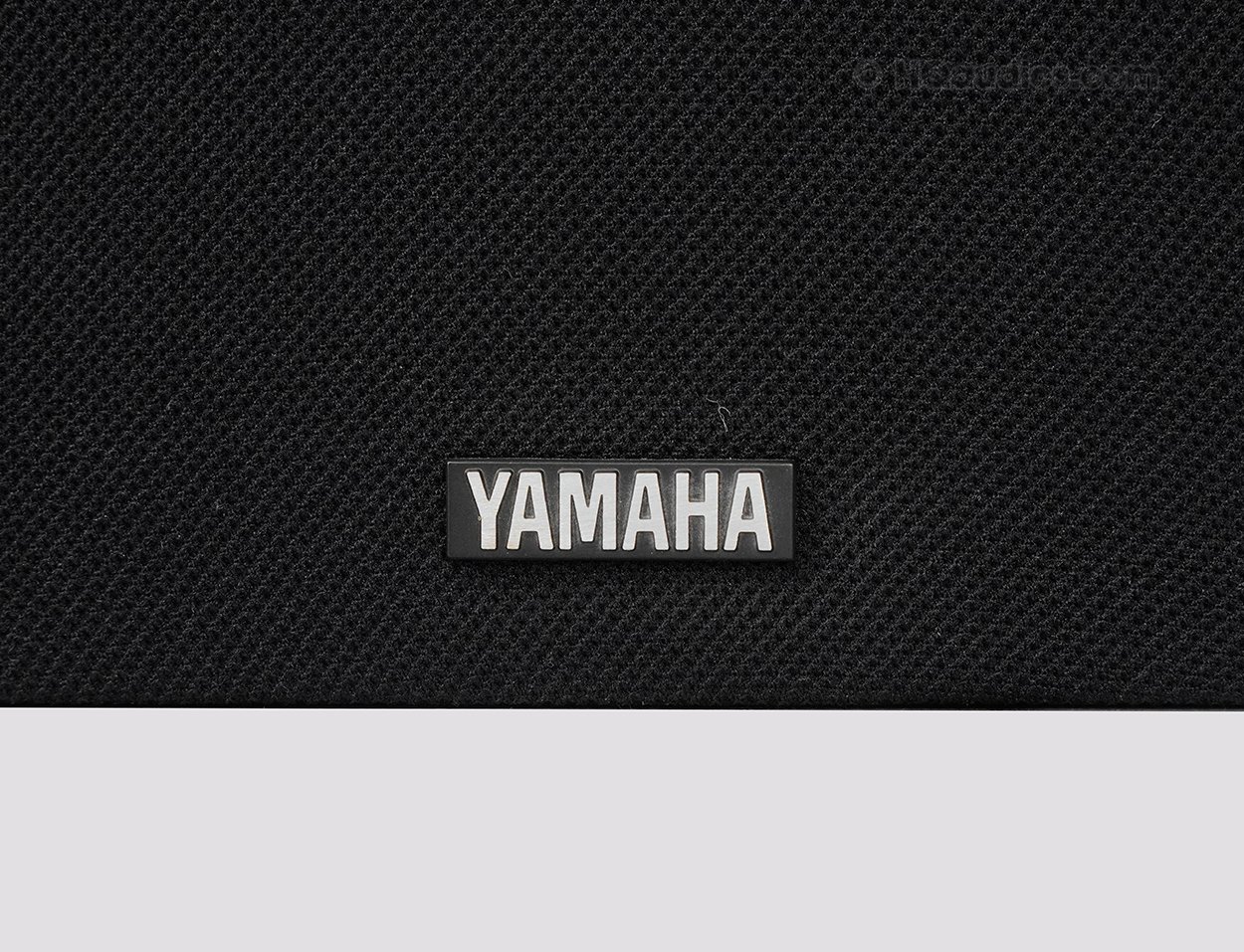

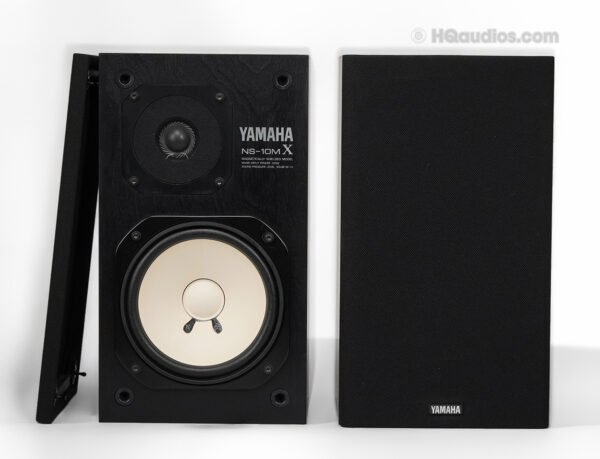

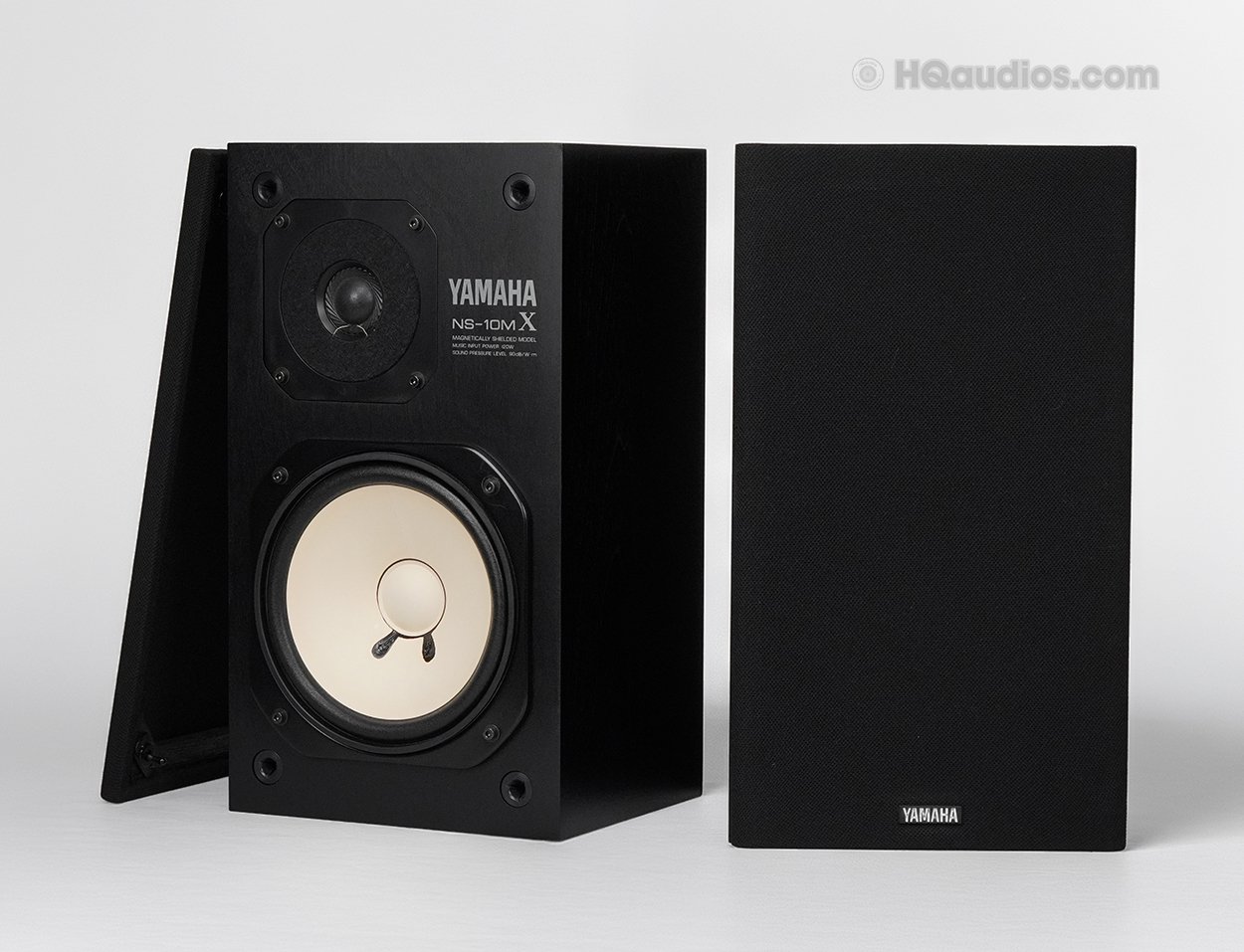

Grilles: Removable front grilles included

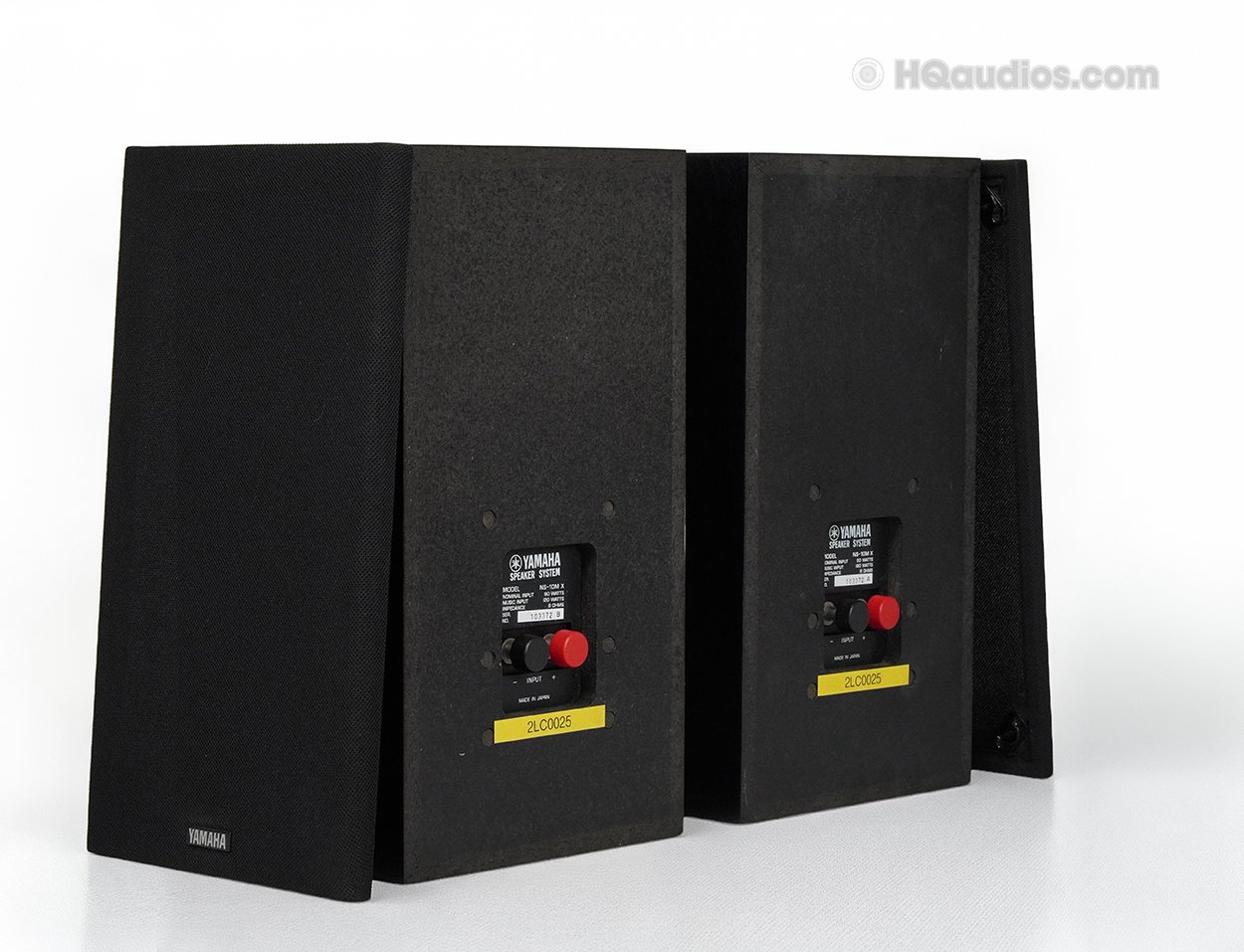

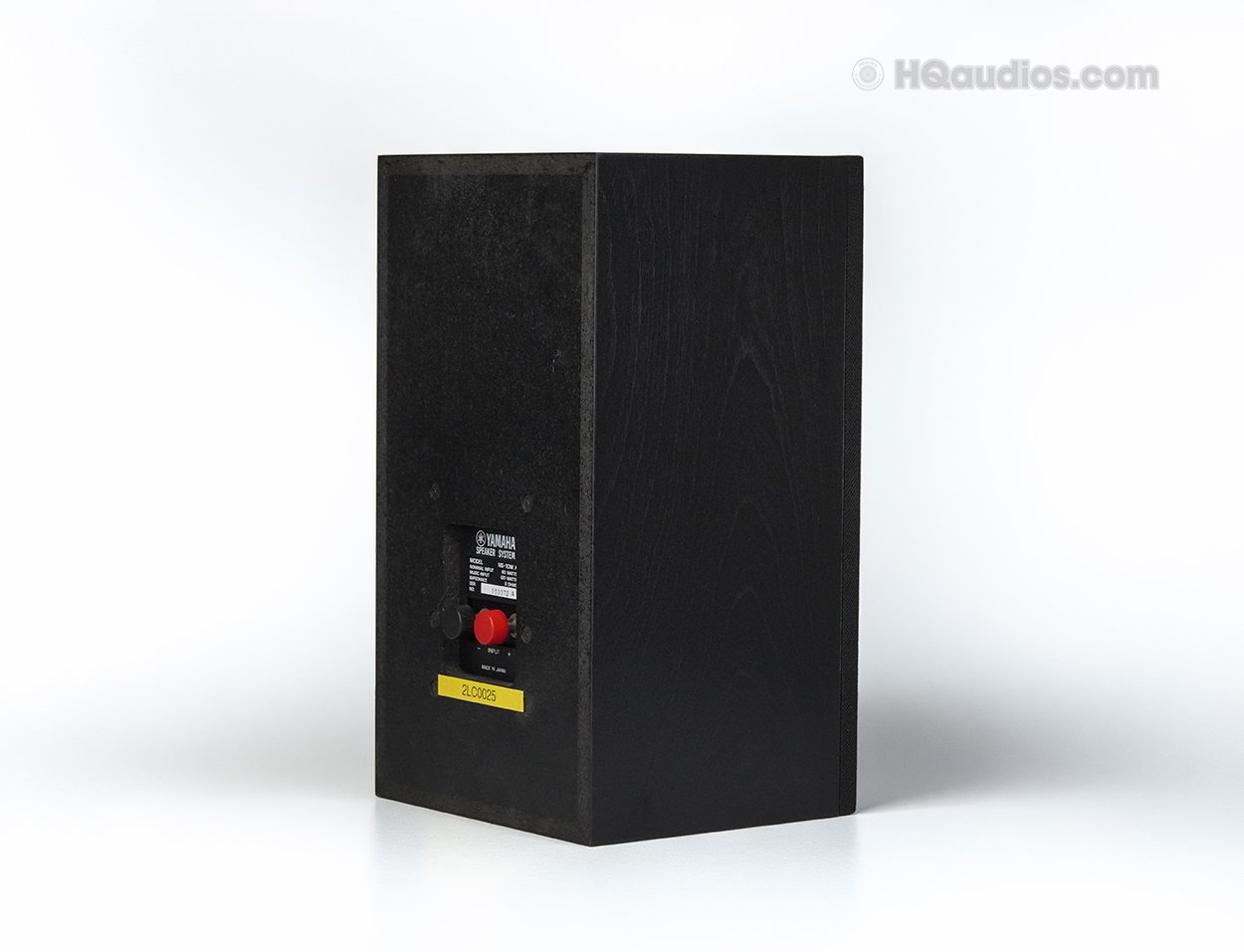

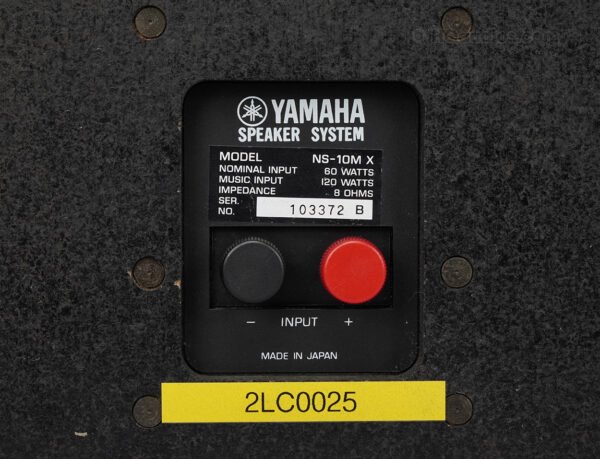

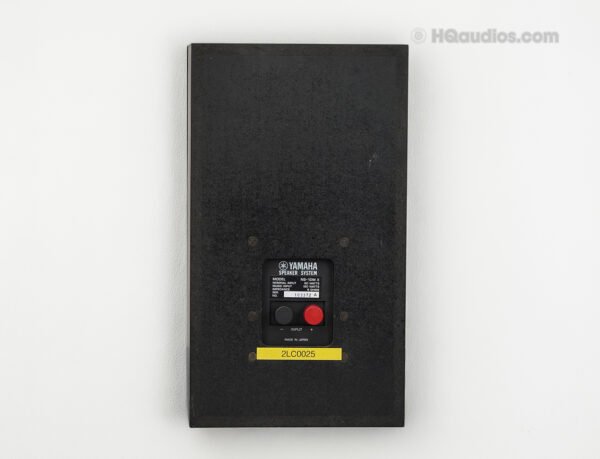

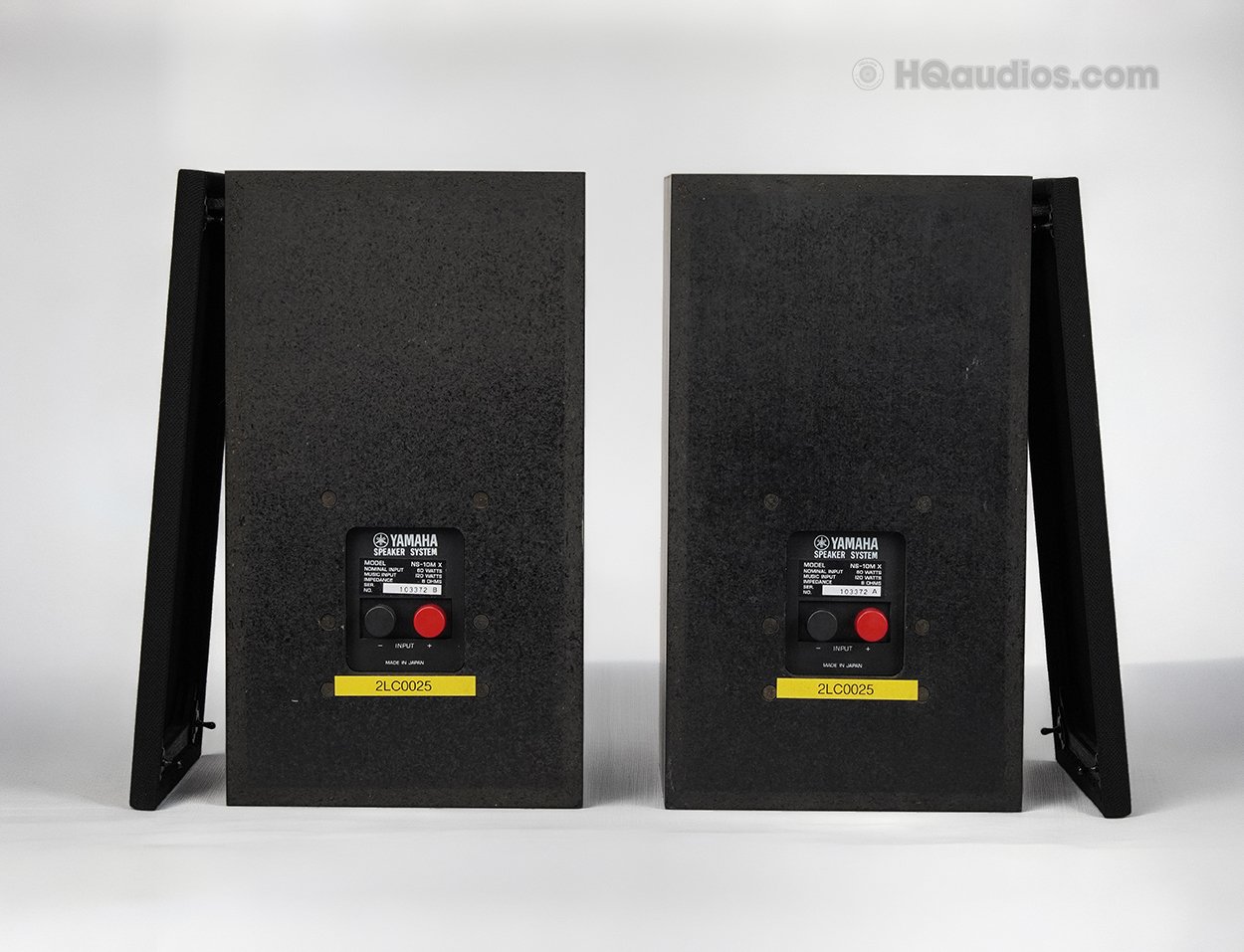

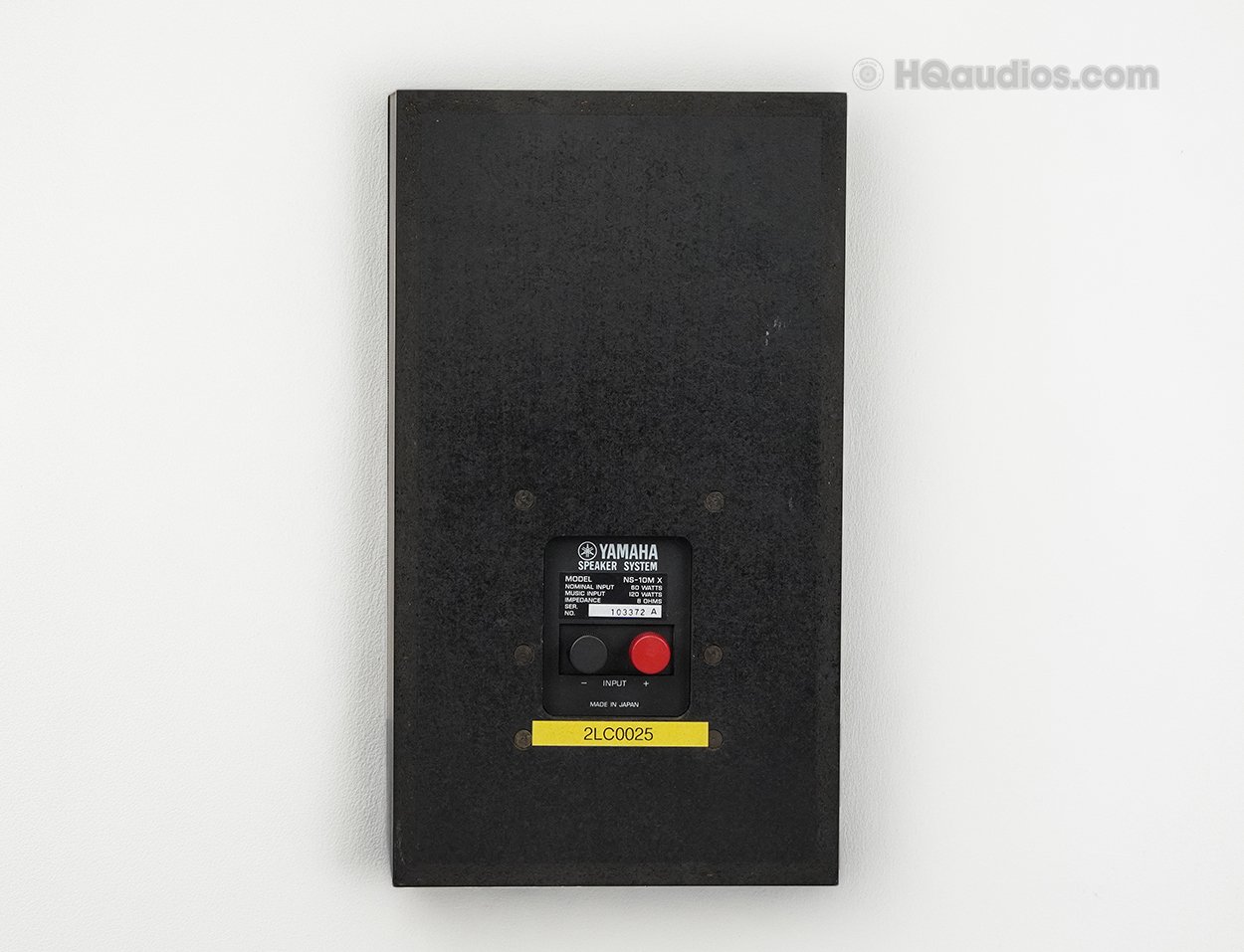

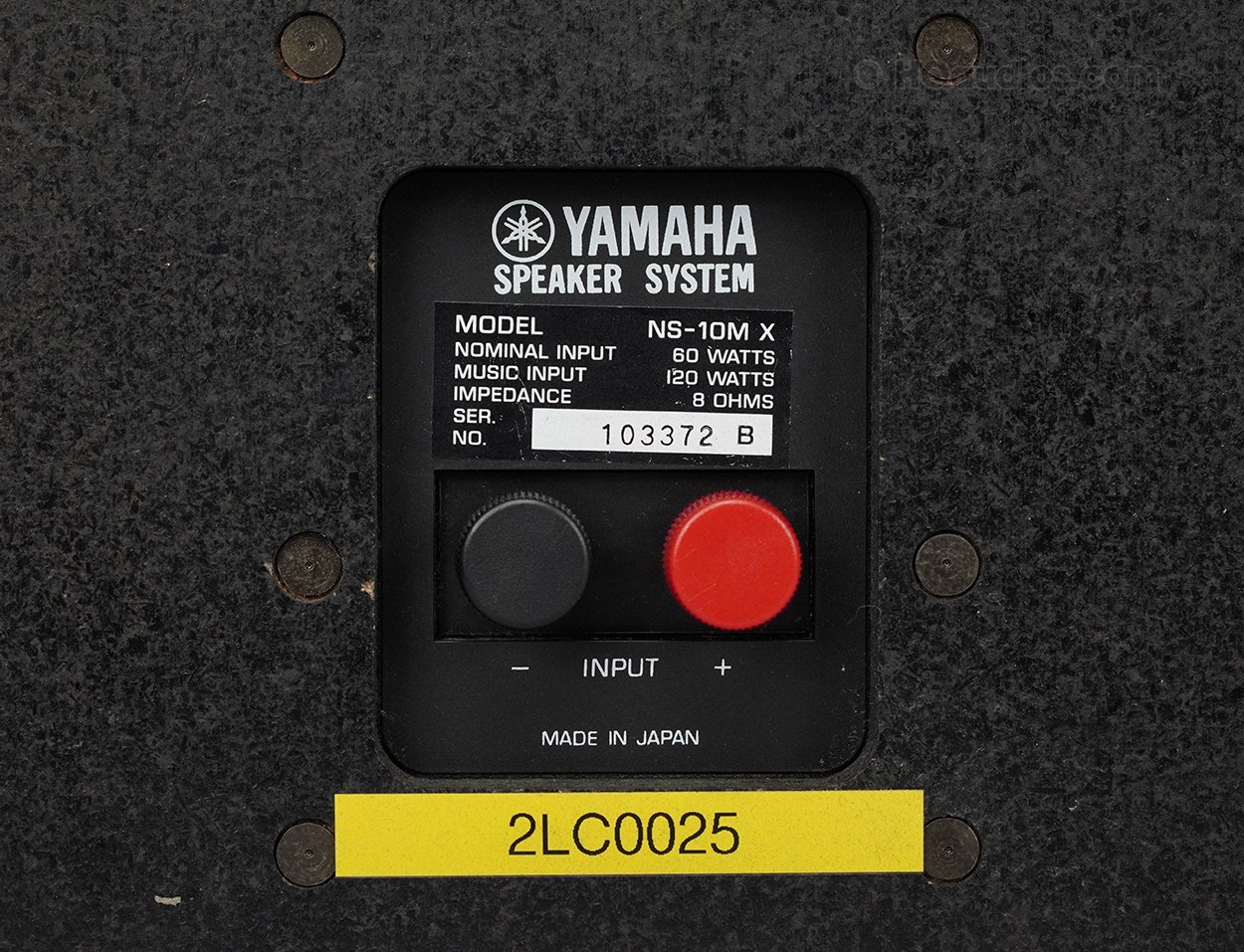

Rear Panels: Original Yamaha rear labels and push terminals
Overall Presentation: A clean vintage pair with normal signs of age. Please review all photos for exact cosmetic details.

Inspected
Cleaned & Detailed
Phase Checked
Final Listening Test Completed

SPECIFICATIONS
Brand: Yamaha
Model: NS-10MX
Type: 2-Way Bookshelf Monitor, magnetically shielded
Serial Numbers: 103372 A / 103372 B
Enclosure: Sealed (acoustic suspension)

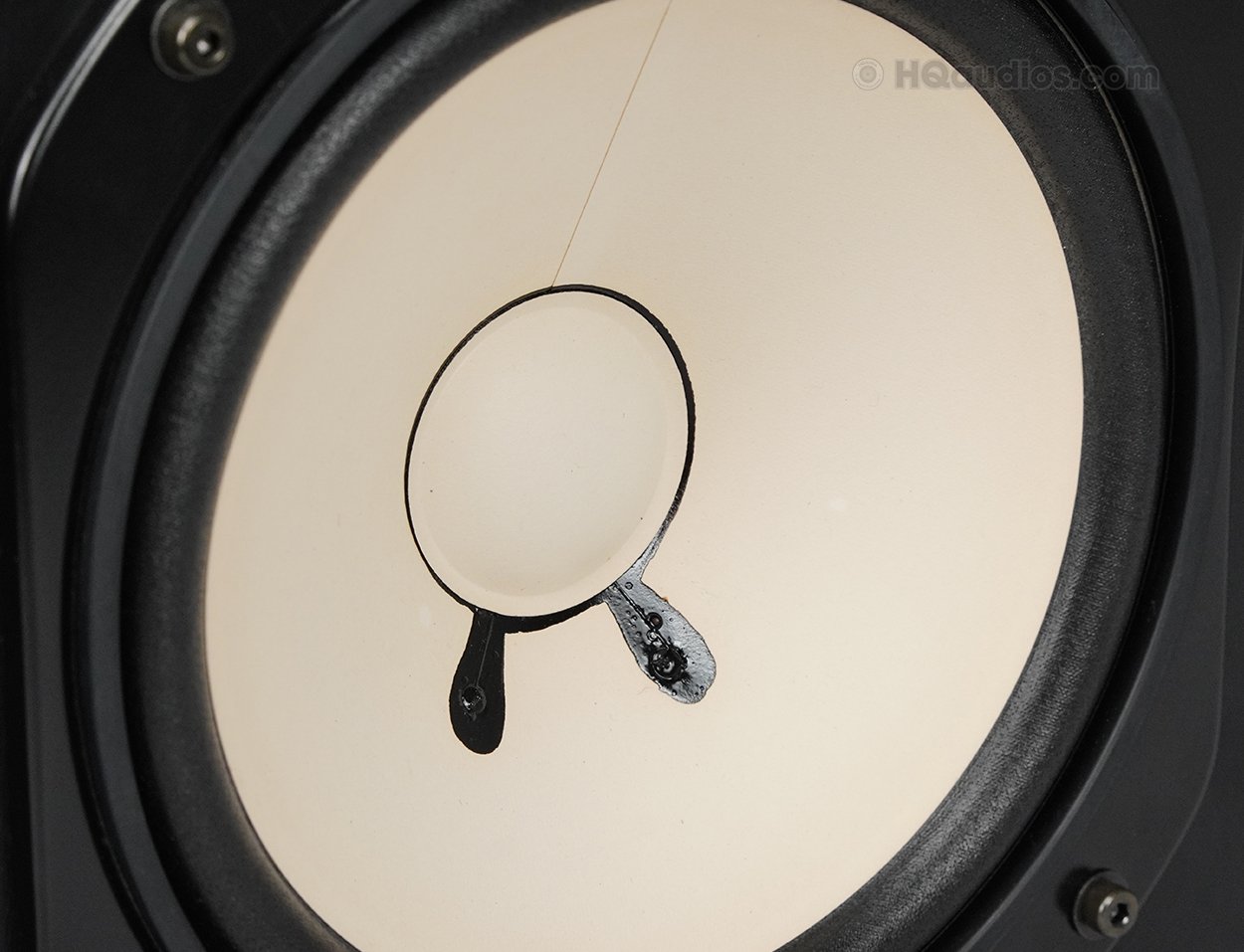

Woofer: 18 cm (approx. 7 in) white cone

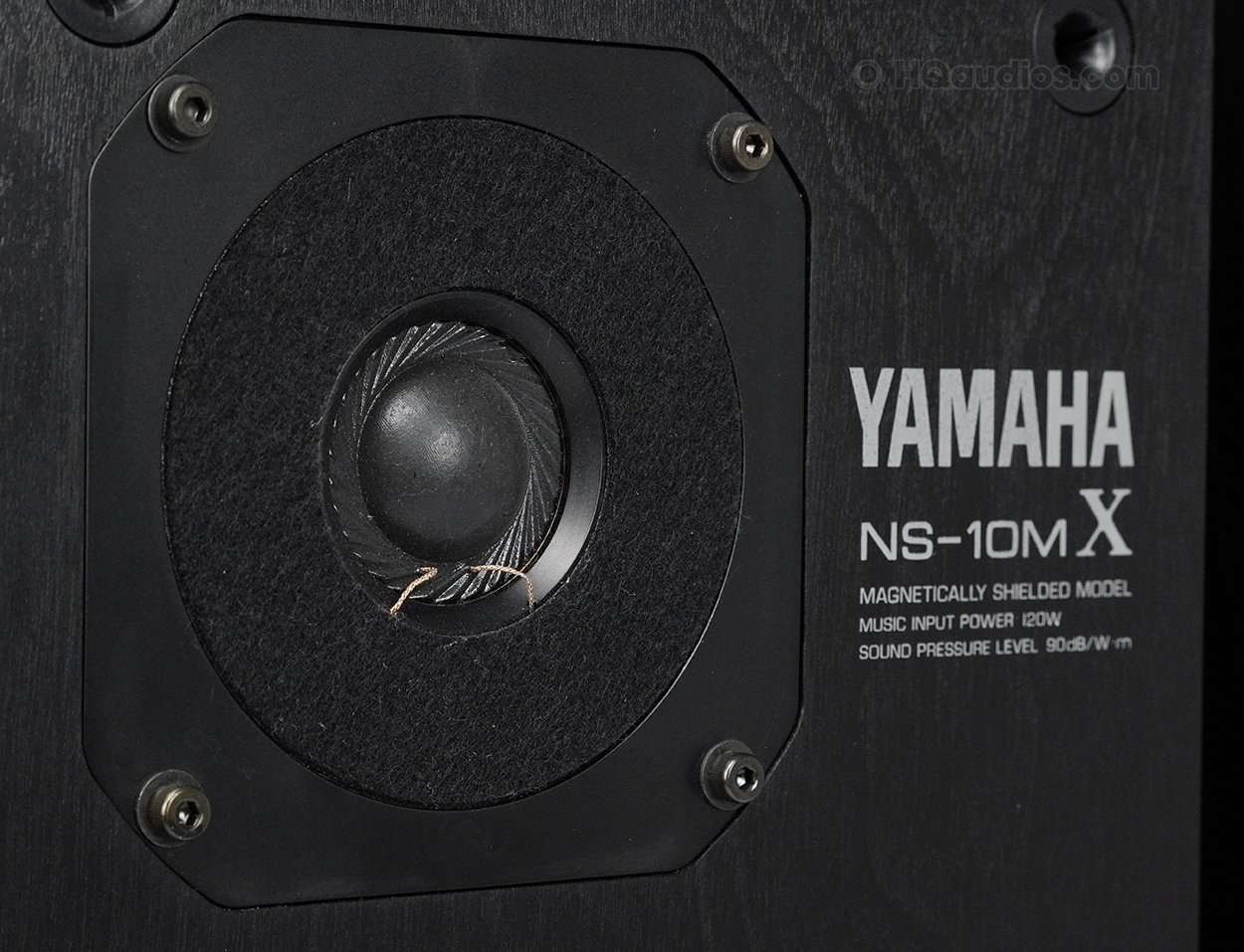

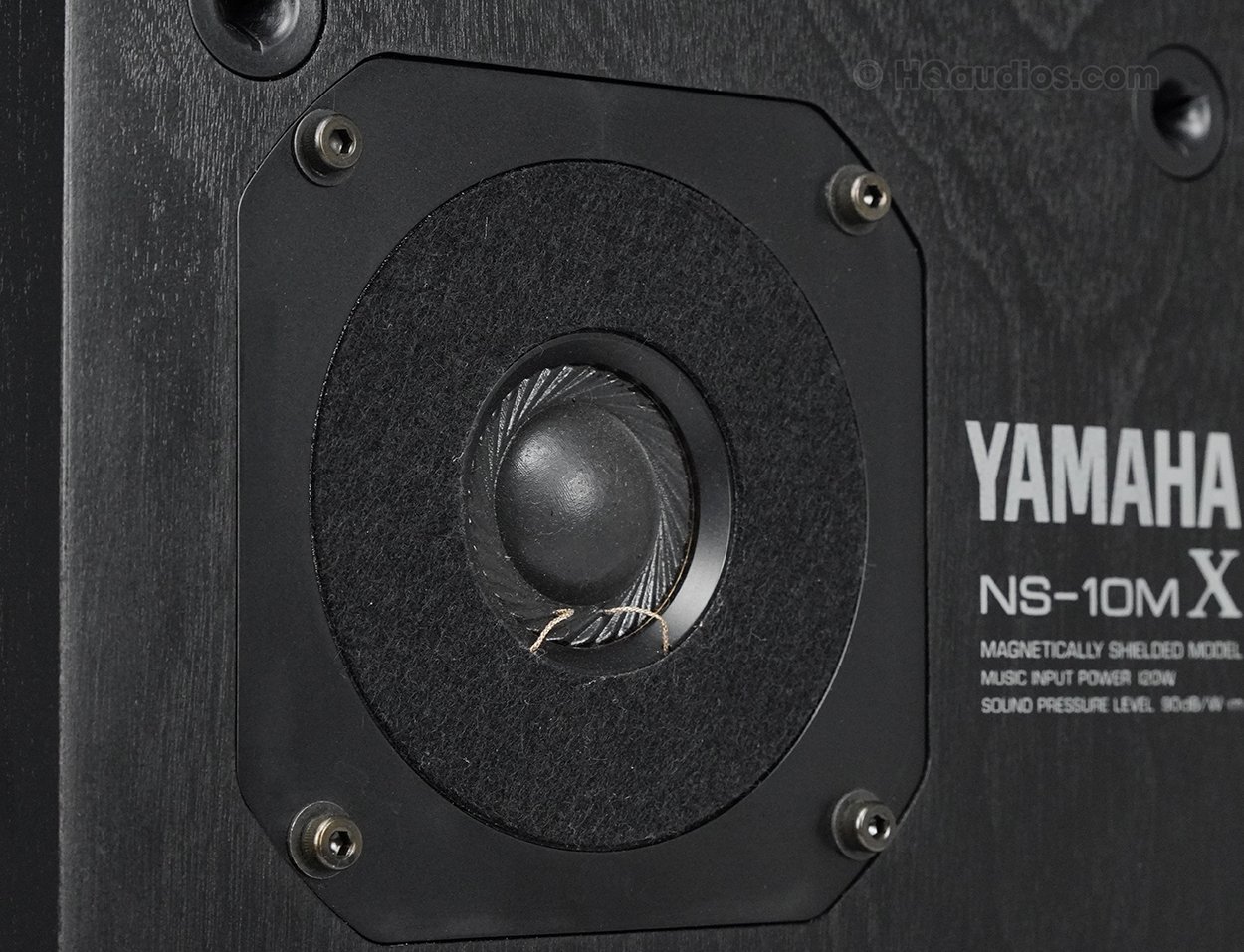

Tweeter: 3.5 cm (approx. 1.4 in) soft dome
Crossover: 2 kHz, 12 dB/octave
Frequency Response: 60 Hz – 20 kHz
Sensitivity: 90 dB/W/m
Nominal Impedance: 8 ohms
Power Rating: 60 W nominal / 120 W music input
Dimensions (each): approx. 8.5 W x 15 H x 7.8 D in
Weight (each): approx. 15.4 lbs (7 kg)
Country of Origin: Japan

WHAT IS INCLUDED
2 Yamaha NS-10MX speakers (one pair)
2 front grilles
Only the items specifically listed above are included. Stands, cables and other equipment shown in the photos are not included.

SHIPPING & PACKAGING
Your vintage audio equipment will be professionally packed by HQaudios using protective materials appropriate for its size, weight, and construction. Large or heavy items may be palletized and shipped by freight when required for safer transportation.
HQaudios Professional Shipping and Packaging
Please contact us before purchase for the most current availability information.

1-YEAR WARRANTY & CUSTOMER SUPPORT
Your purchase is backed by our 1-Year HQaudios Seller Warranty (this is an HQaudios warranty, not a Yamaha manufacturer warranty). Our team provides support before and after your purchase. If you have questions about setup, operation, compatibility, or your order, please contact HQaudios for assistance.
