JBL 4343 Studio Monitor Speaker Pair

Walnut / Blue – 4-Way Professional Monitors – Restored – 1-Year Warranty

Professionally Restored by HQaudios – Fully Tested – Backed by Our 1-Year Warranty.

About This Pair

Offered here is a pair of JBL 4343 four-way professional studio monitors,
a large-format JBL monitor system from the 1970s.

Each cabinet uses a 15-inch JBL 2231A low-frequency driver,

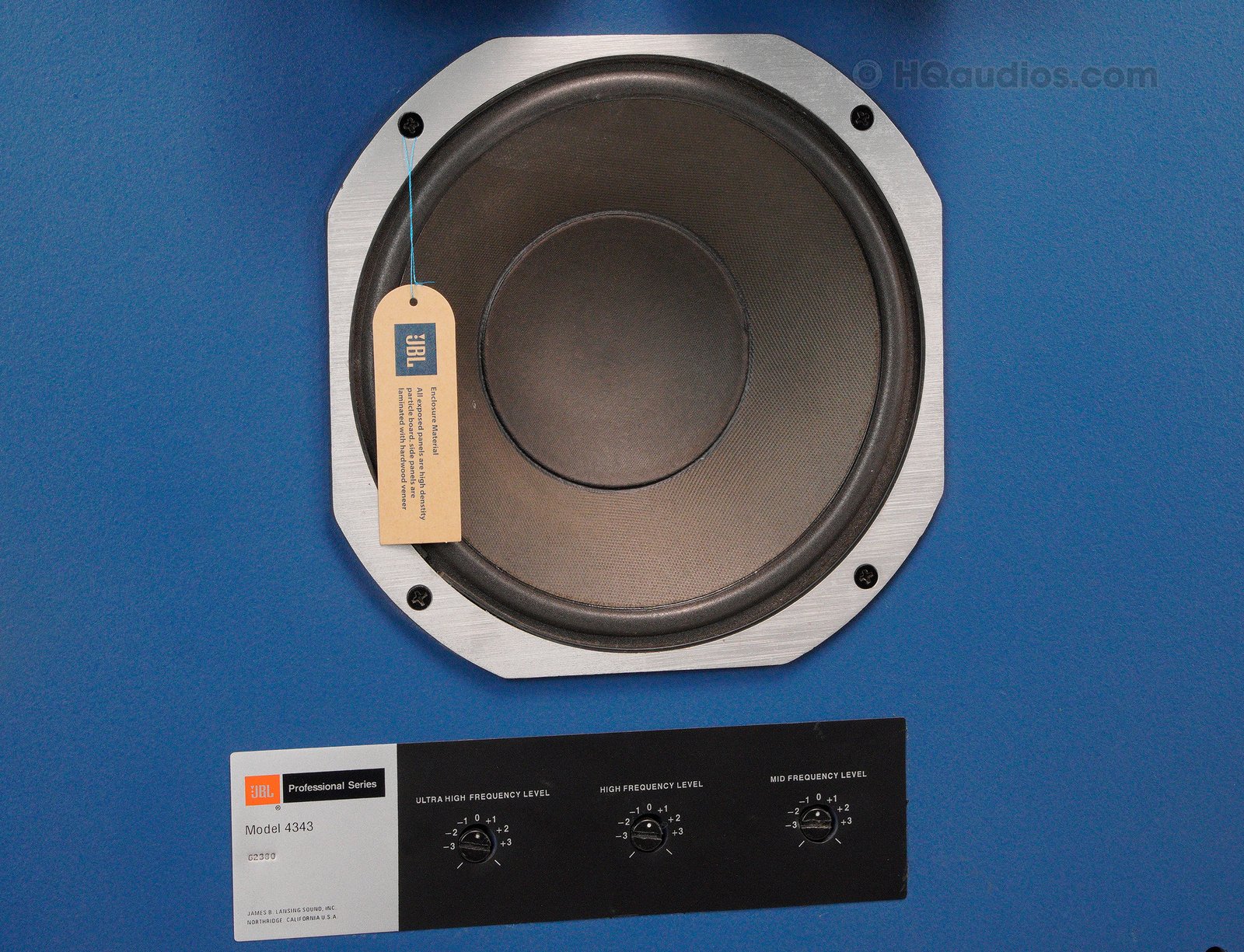

a 10-inch JBL 2121 mid-bass driver,

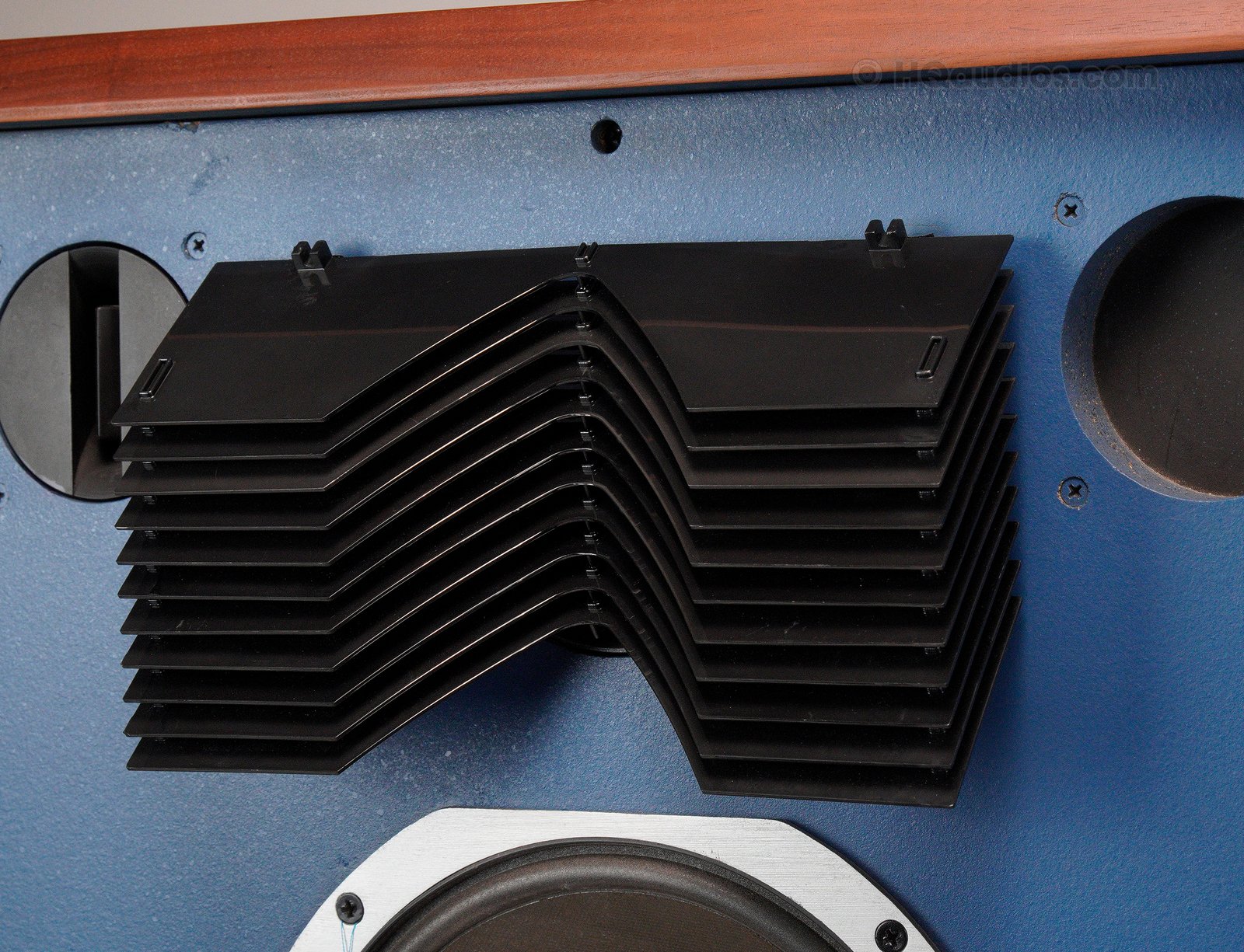

a JBL 2420 compression driver with 2307 horn and 2308 acoustic lens,
and a JBL 2405 ultra-high-frequency slot radiator.

This pair has been professionally restored and tested by HQaudios.

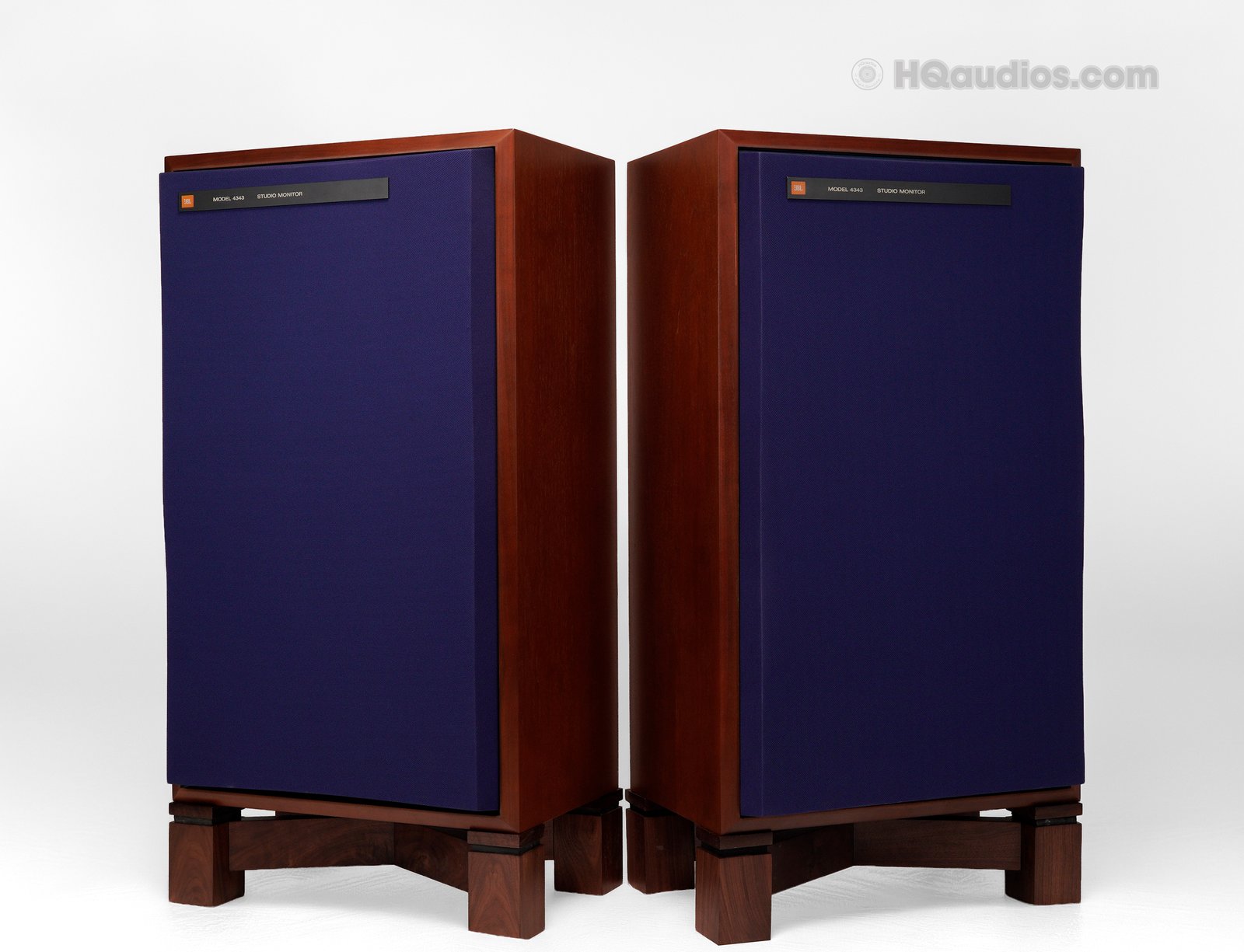

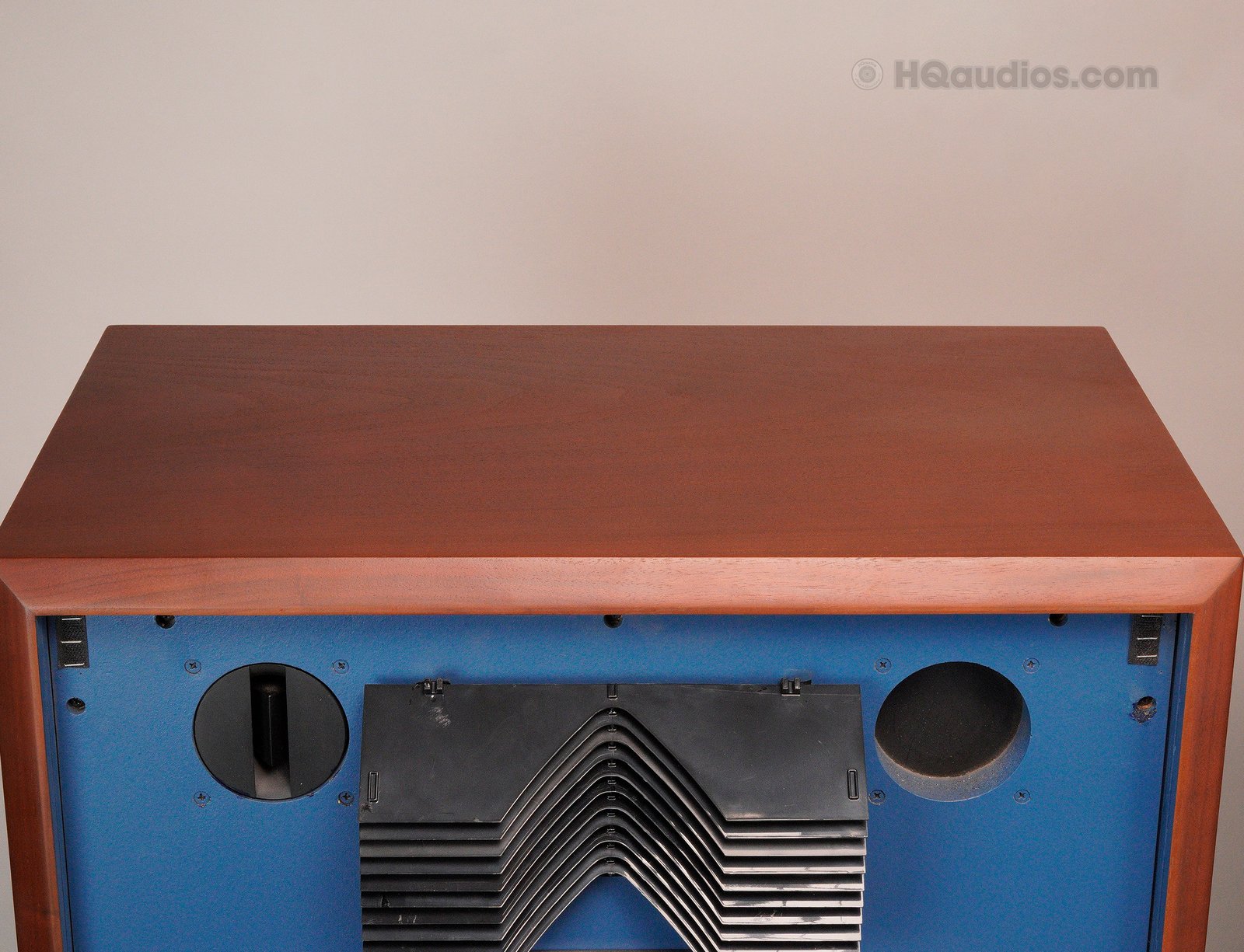

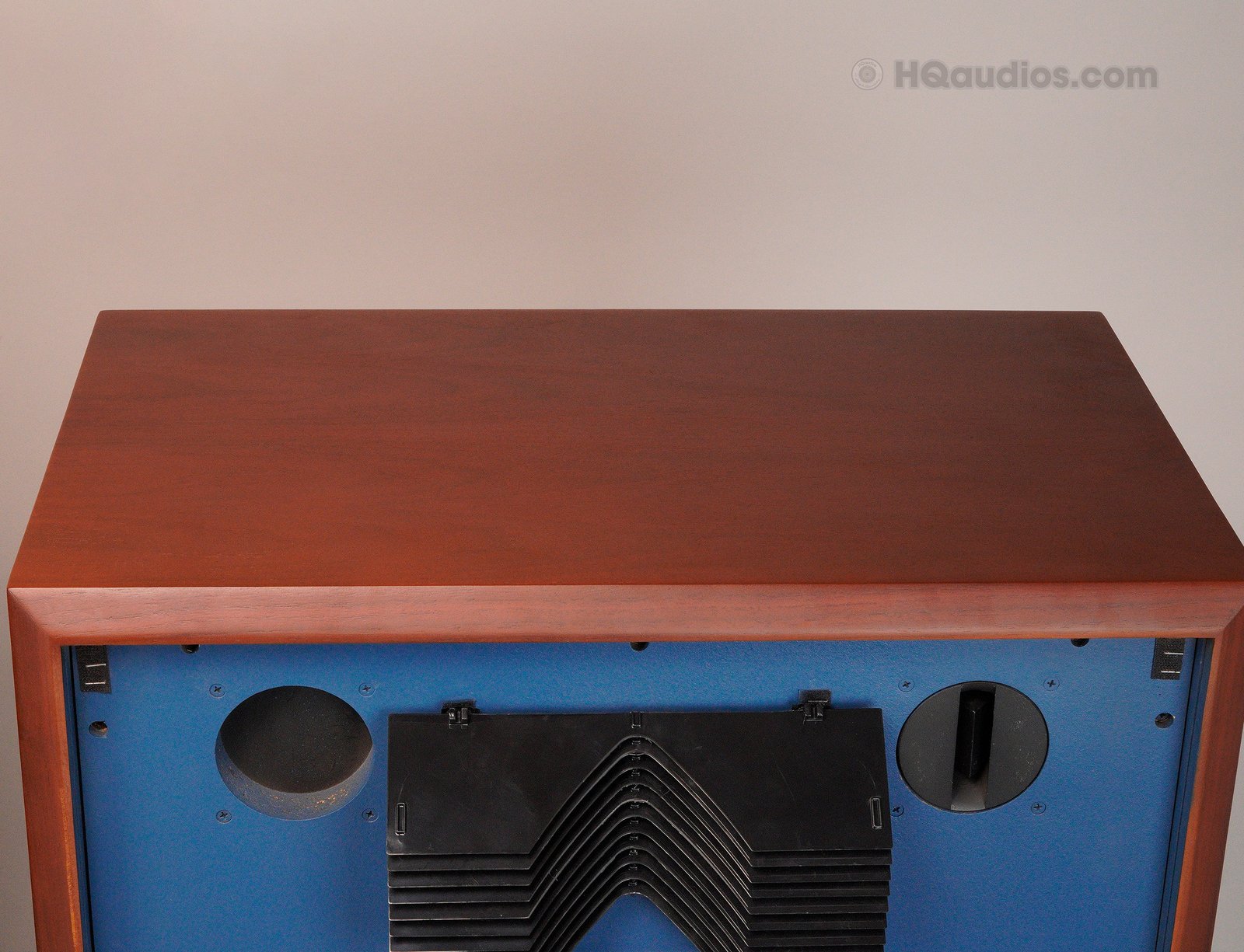

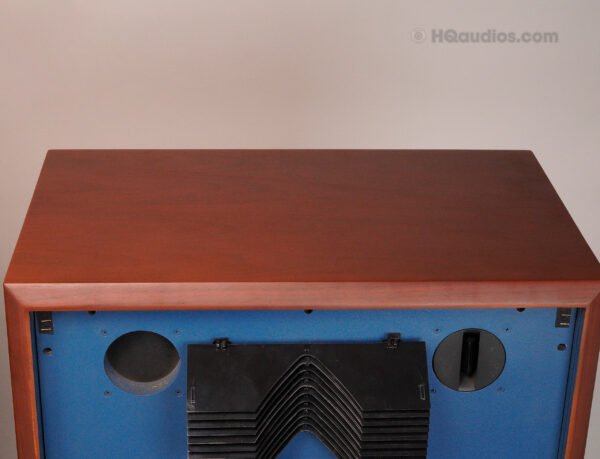

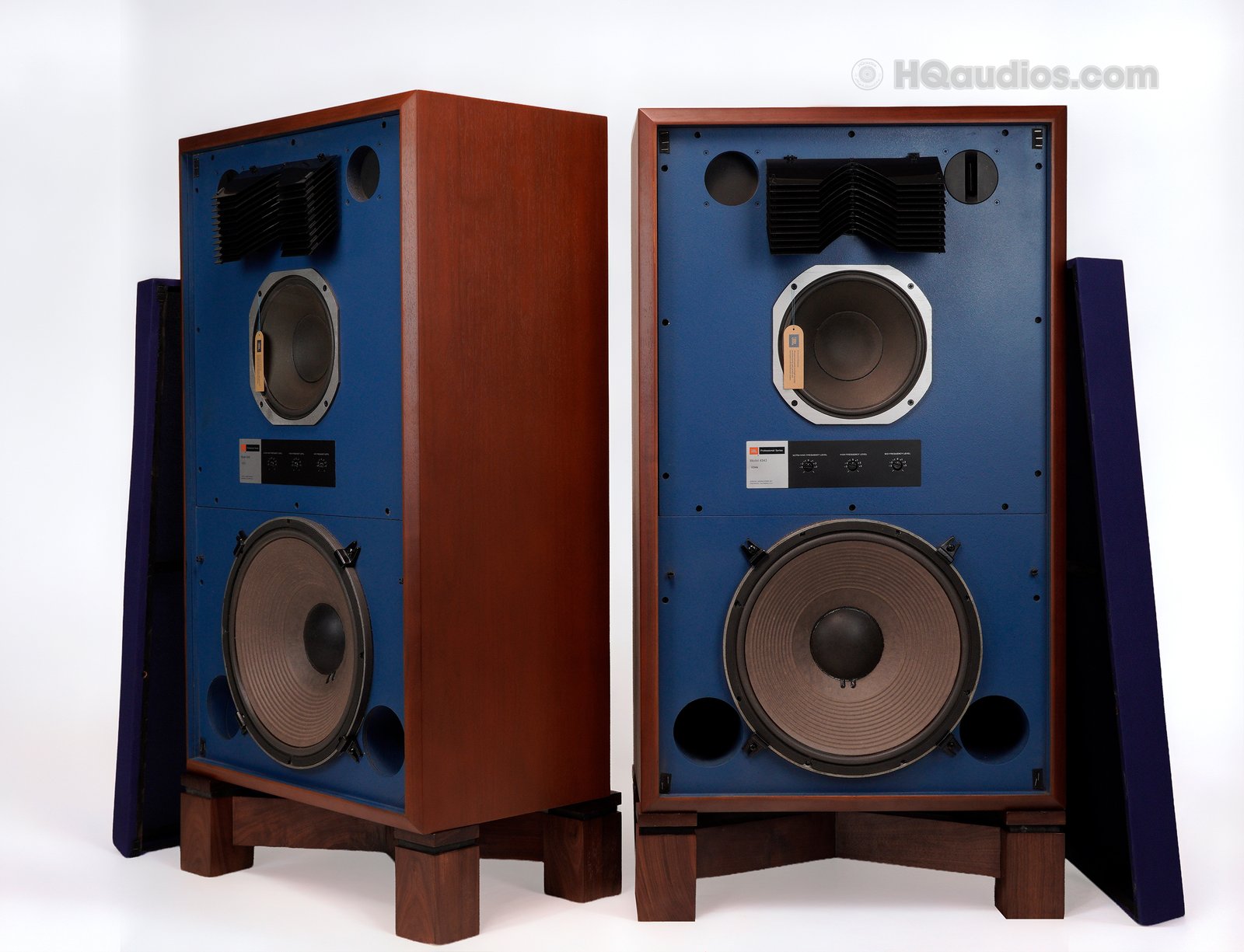

It features Walnut veneer cabinets, classic blue front baffles, and blue grilles as shown in the listing photos.

Video Demo & Sound Test

A sound-demo video of this exact JBL 4343 pair is available on request so you can hear all four driver sections operating before purchase.

Key Highlights

• JBL 4343 4-way professional studio monitor pair
• JBL 2231A – 15-inch low-frequency driver
• JBL 2121 – 10-inch mid-bass driver
• JBL 2420 compression driver with 2307 horn / 2308 acoustic lens
• JBL 2405 ultra-high-frequency slot radiator
• JBL 3143 dividing network
• 300 Hz / 1.25 kHz / 9.5 kHz crossover frequencies
• 8-ohm nominal impedance
• Approx. 93 dB SPL / 1W / 1m sensitivity
• 35 Hz – 20 kHz ±3 dB frequency response
• Passive or external bi-amp operation

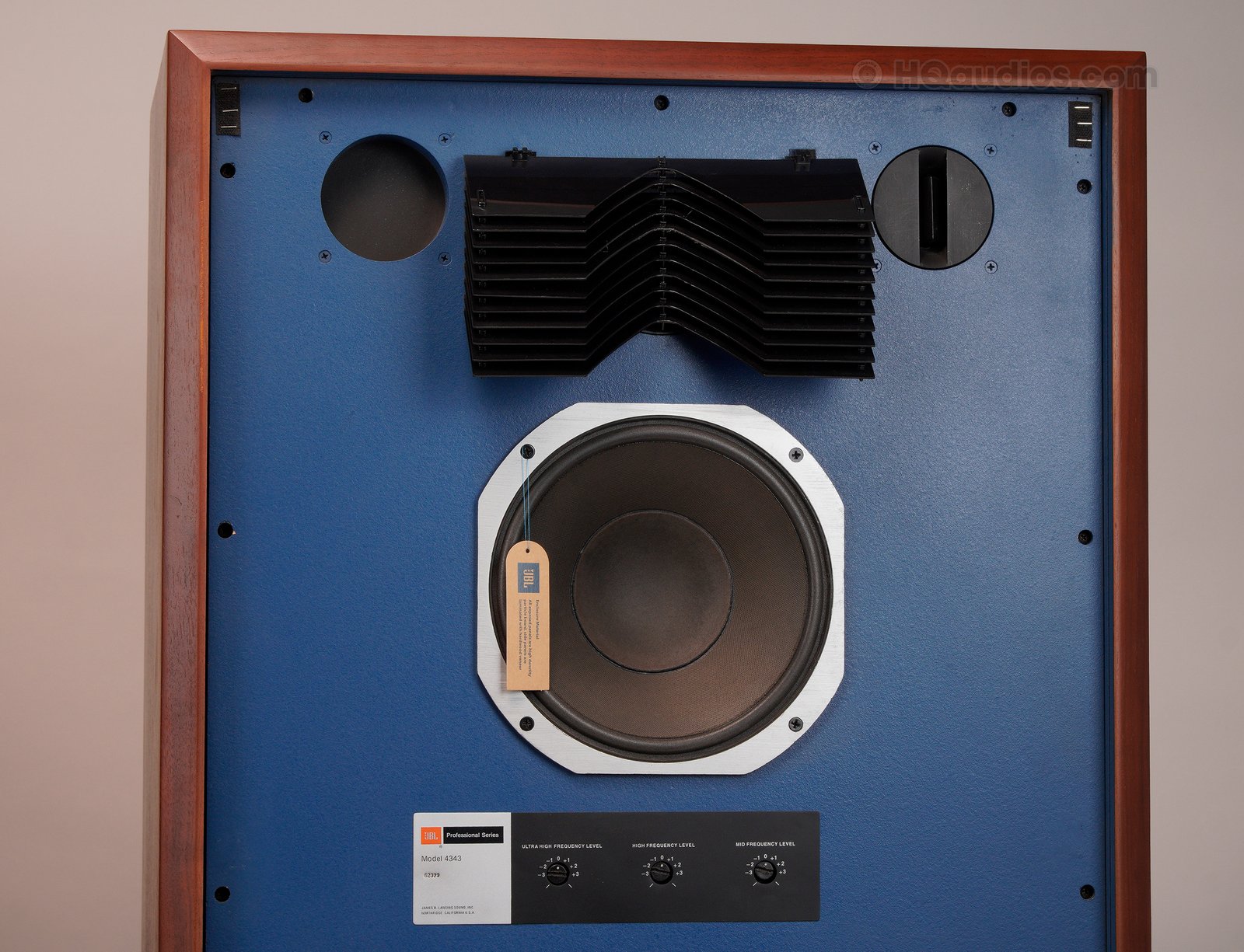

• Front-panel level controls for the upper driver sections
• Walnut veneer cabinets with blue baffles and blue grilles
• Professionally restored and tested by HQaudios
• Wooden display stands shown in the photos are NOT included
• 1-Year HQaudios Technical Warranty

Why This Model Is Notable

The JBL 4343 is a large-format four-way professional monitor with dedicated driver sections for low frequency,
mid-bass, horn-loaded high frequency, and ultra-high frequency reproduction.
Its high sensitivity, substantial enclosure volume, front-panel level controls, and passive / bi-amp capability
make it one of JBL’s distinctive classic studio-monitor designs.

Professional Restoration & Testing

Before Restoration

Initial inspection identified age-related cabinet wear, grille deterioration, worn or damaged mounting hardware,
terminal damage, oxidized controls, and other signs of long-term use and storage.

The cabinets, installed drivers, crossover sections, front level controls, terminals, grilles, labels,
and mounting hardware were inspected to determine the work required for this specific pair.

During Restoration

• Walnut veneer cabinets cleaned and cosmetically restored

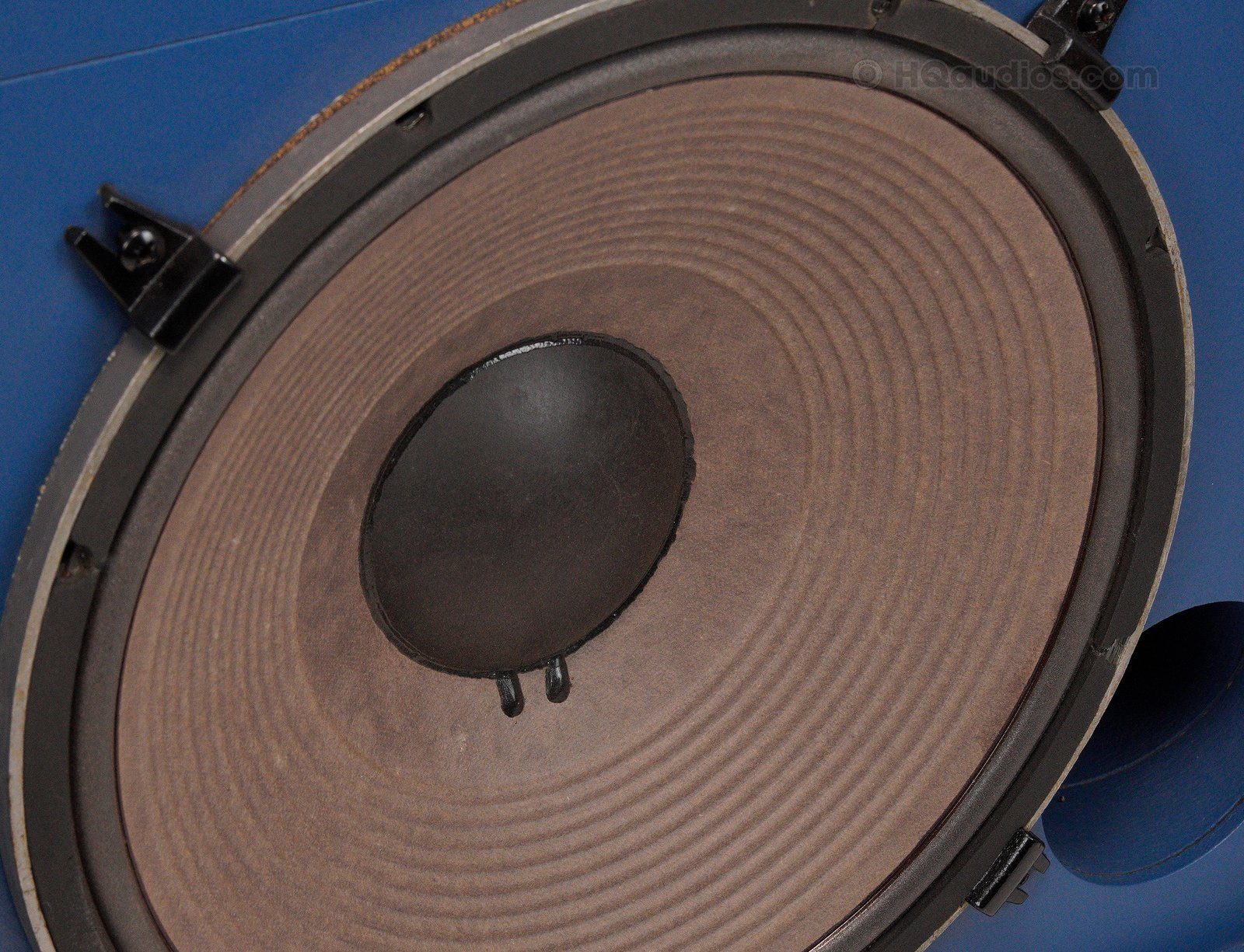

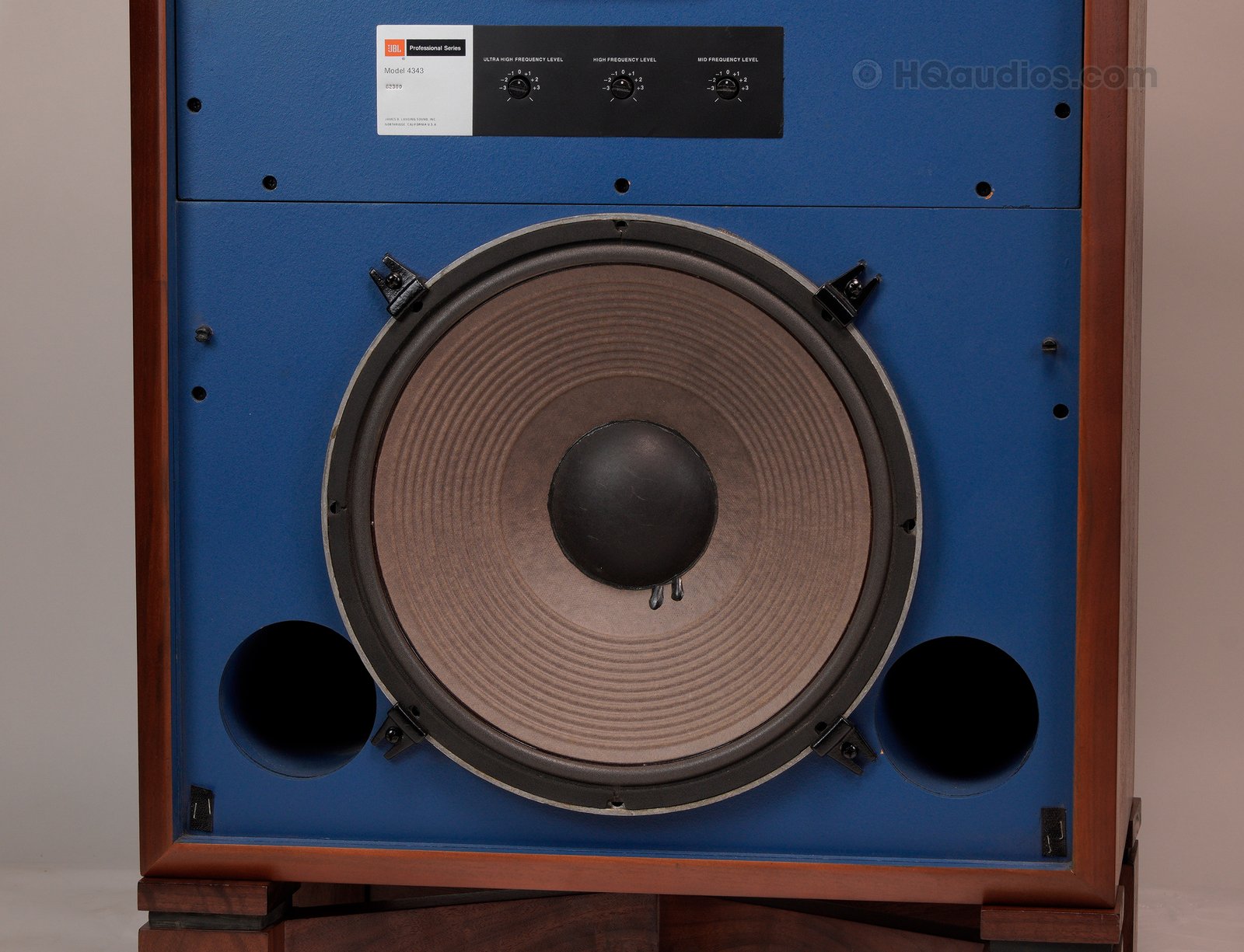

• Woofer surrounds replaced and cones re-centered
• Cones and dust caps carefully cleaned and cosmetically refreshed
• Grille assemblies restored / rebuilt with repaired frames, new blue cloth, and replacement mounting pegs

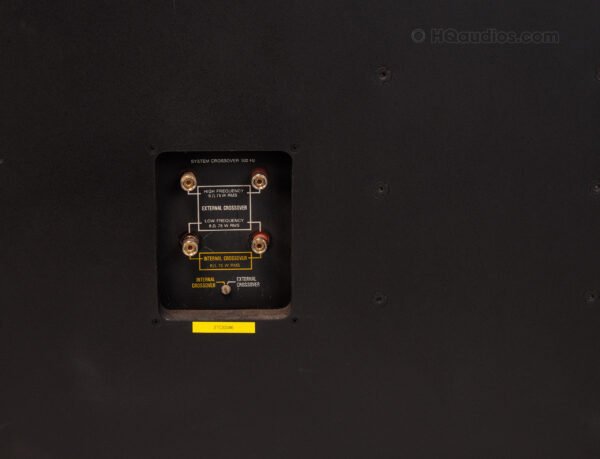

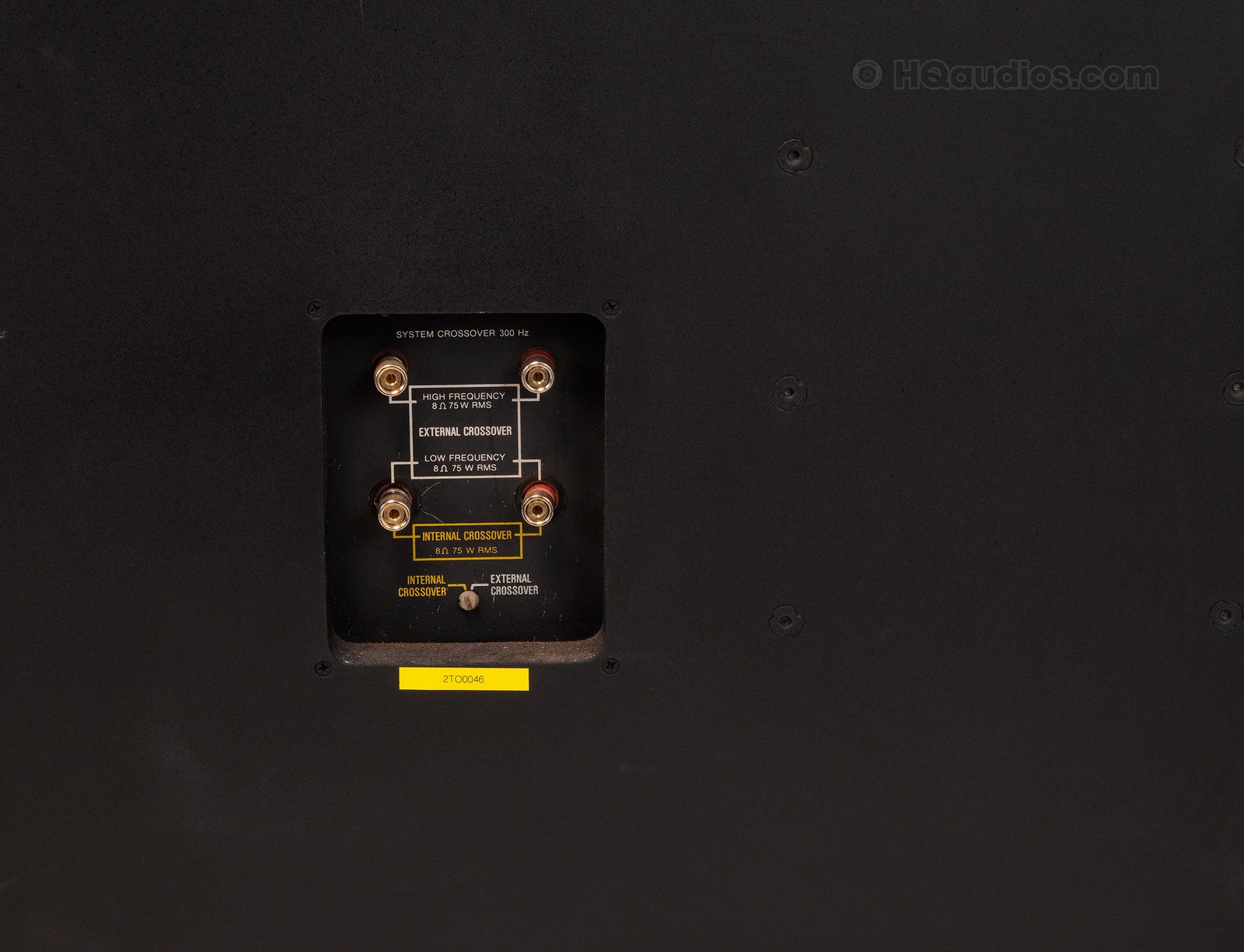

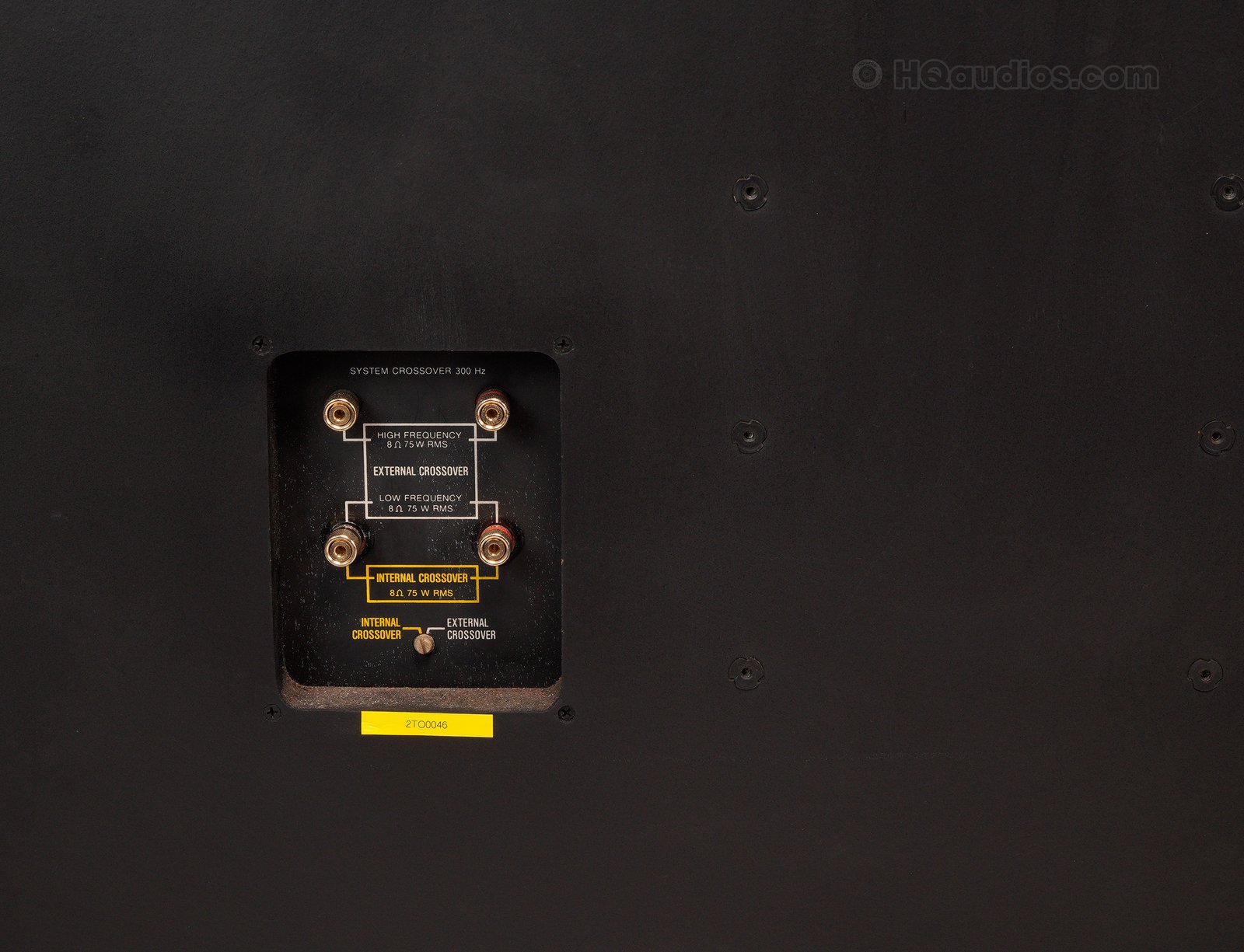

• Damaged rear terminal hardware upgraded to modern binding posts
• Rusted mounting screws and hardware replaced as required

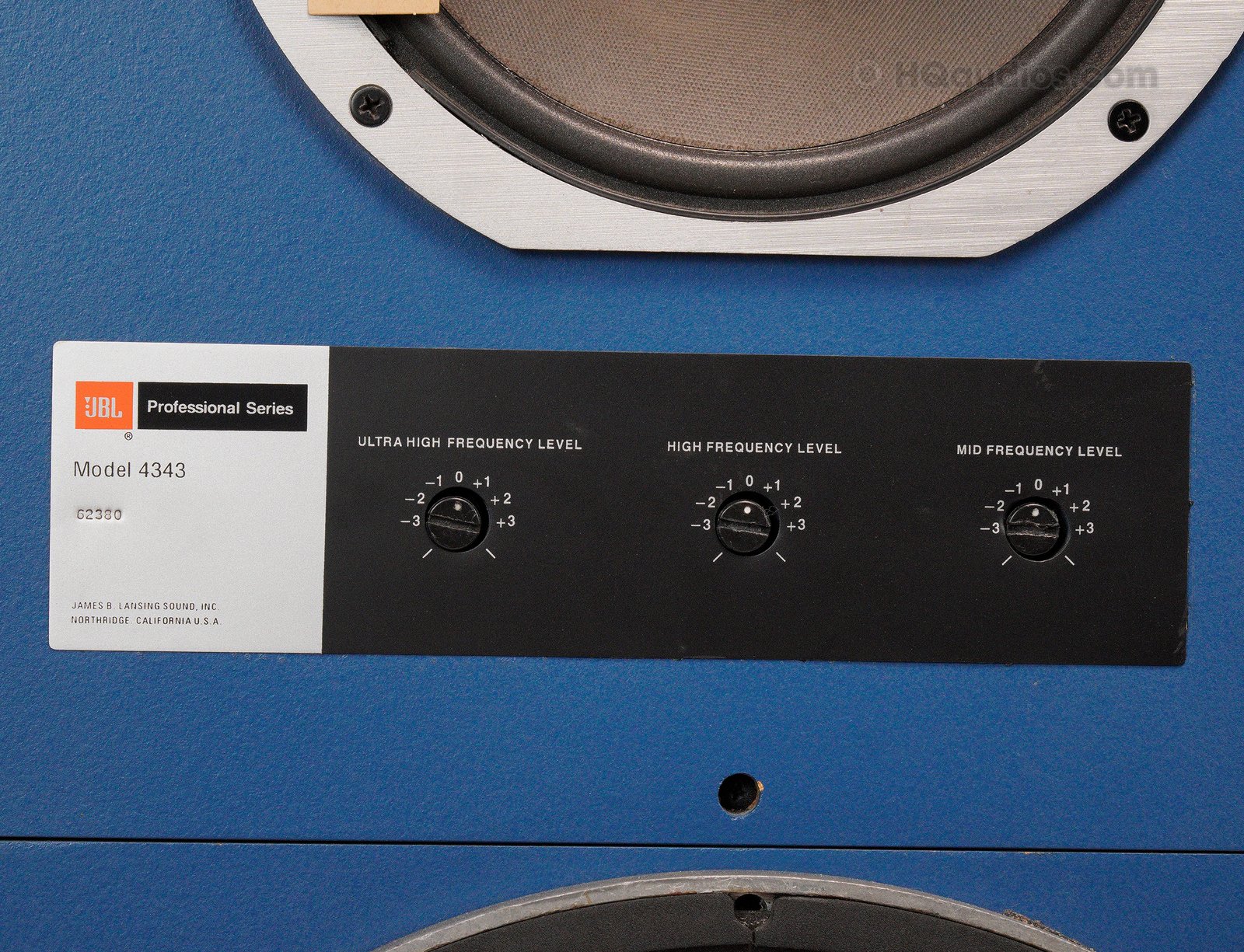

• Front level controls cleaned and treated for smooth, quiet operation
• Reproduction JBL badges / rear labels installed where original pieces were damaged or missing
• Installed driver assemblies, accessible crossover areas, controls, terminals, and cabinet surfaces carefully cleaned and detailed

All original JBL drivers were retained during restoration; their cones and diaphragms are original and in good condition.

Final Testing

• Low-frequency, mid-bass, high-frequency, and ultra-high-frequency sections checked for proper operation
• Front level-control operation verified across the usable range
• Rear terminal and passive / bi-amp switch operation checked
• Driver polarity and left/right consistency verified
• Extended real-world listening test completed

Technical Condition

All four driver sections are operating and the pair has been tested for consistent left/right performance.
The front level controls, rear terminals, and passive / bi-amp switching were checked after service.

Sound Character

The JBL 4343 delivers the large-scale, dynamic presentation associated with JBL’s classic professional monitors.
The 2231A provides deep, controlled bass, the 2121 adds strong mid-bass definition,
the horn-loaded 2420 provides presence and projection, and the 2405 extends the upper frequencies.
With approximately 93 dB sensitivity, the 4343 offers strong transient response and substantial output capability.

Cosmetic Condition

This JBL 4343 pair presents in Very Good to Excellent restored vintage cosmetic condition.
The Walnut veneer cabinets, blue baffles, and restored blue grilles show well overall, with light age-related wear remaining as shown in the listing photos.

• Cabinets: Walnut veneer with a warm, even appearance and light vintage wear as shown
• Front Baffles: Classic blue JBL monitor finish
• Grilles: Restored / rebuilt assemblies with repaired frames, new blue cloth, and replacement mounting pegs
• Drivers: Original JBL drivers retained, cleaned, and serviced

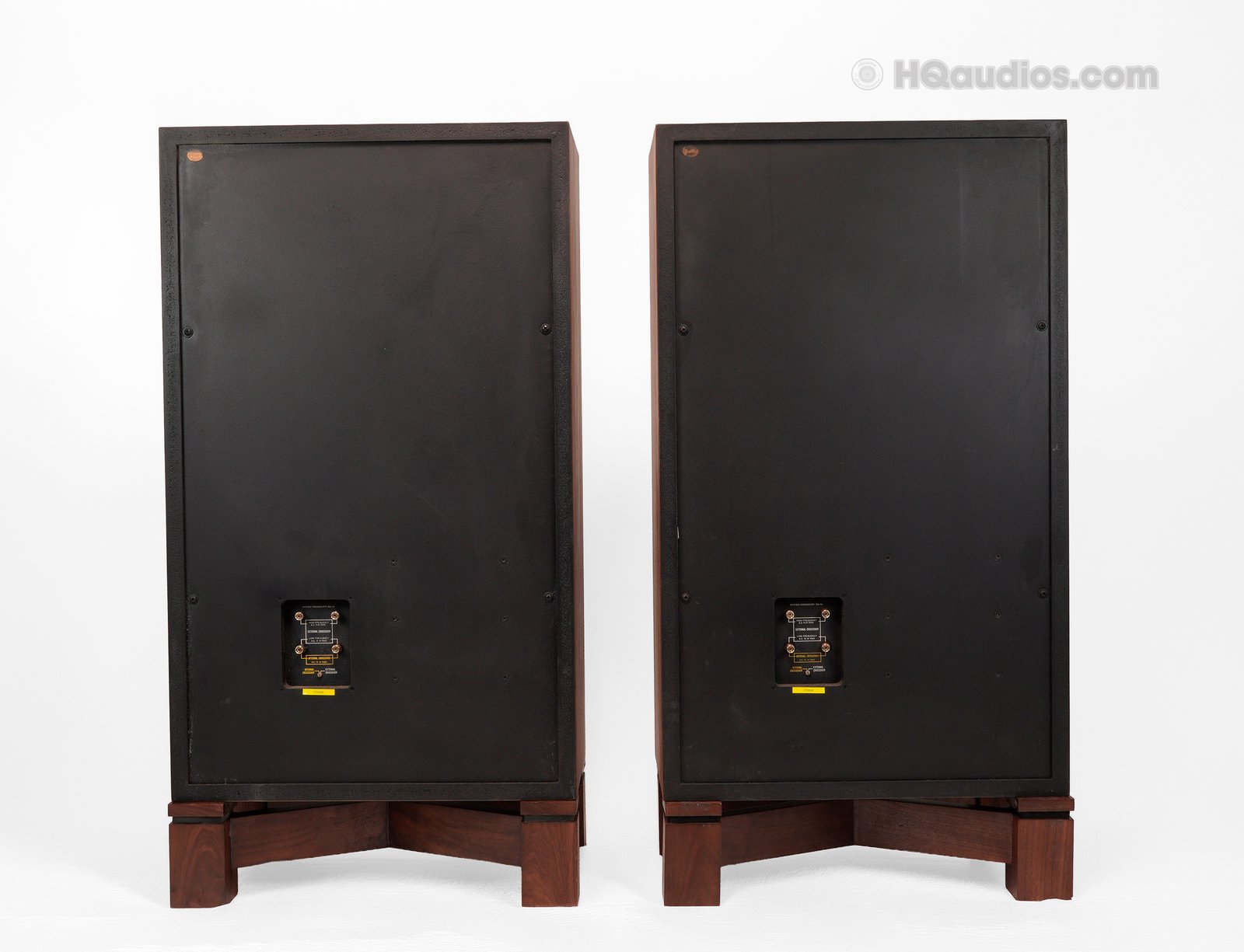

• Rear Panels: Passive / bi-amp switching present; upgraded binding posts installed
• Badges / Labels: Reproduction pieces used where original items were damaged or missing
• Stands: Wooden display stands shown in the listing photos are not included

Please review all listing photos carefully, as they show the actual pair and form an important part of the cosmetic description.

Specifications

What’s Included

• 1 Pair (2) JBL 4343 Studio Monitor Speakers
• Restored Blue Front Grilles

Wooden display stands shown in the photos are not included.
Only items clearly shown in the photos or specifically listed above are included.

Suggested Pairing

The JBL 4343 is an 8-ohm, high-sensitivity system that benefits from clean amplification with good headroom and low-frequency control.
For bi-amp operation, verify the rear crossover-switch position and use the correct external crossover configuration before connecting amplifiers.

Contact us for amplifier and complete-system matching.
Package pricing may be available when purchasing compatible components together.

Professional Freight Packing & Shipping

Each JBL 4343 weighs approximately 174 lbs / 79 kg before packing, so this pair requires reinforced freight preparation.

Each cabinet will be individually protected around the Walnut veneer, blue baffle, woofer, mid-bass driver,
horn / acoustic-lens assembly, UHF radiator, grilles, level controls, corners, and rear terminals.
The pair will be secured for palletized freight, with custom crating used when required by destination and carrier service.

1-Year HQaudios Technical Warranty

This JBL 4343 pair is backed by our 1-Year HQaudios Technical Warranty
for qualifying functional issues under normal intended use and related to the restoration work performed by HQaudios.

Warranty does not cover misuse, incorrect wiring, improper bi-amp configuration, amplifier clipping,
physical damage, unauthorized repair, cosmetic wear, or operation outside the manufacturer’s intended specifications.
