Pioneer CT-F9191 Vintage Stereo Cassette Deck (Restored) – Professionally Restored – Fully Tested – 1-Year Warranty

Original price was: $1,920.Current price is: $1,599.

-

Professionally Restored by HQaudios – Fully Tested – Backed by Our 1-Year Warranty.

1 in stock

SKU: 15PAE1105 Category:

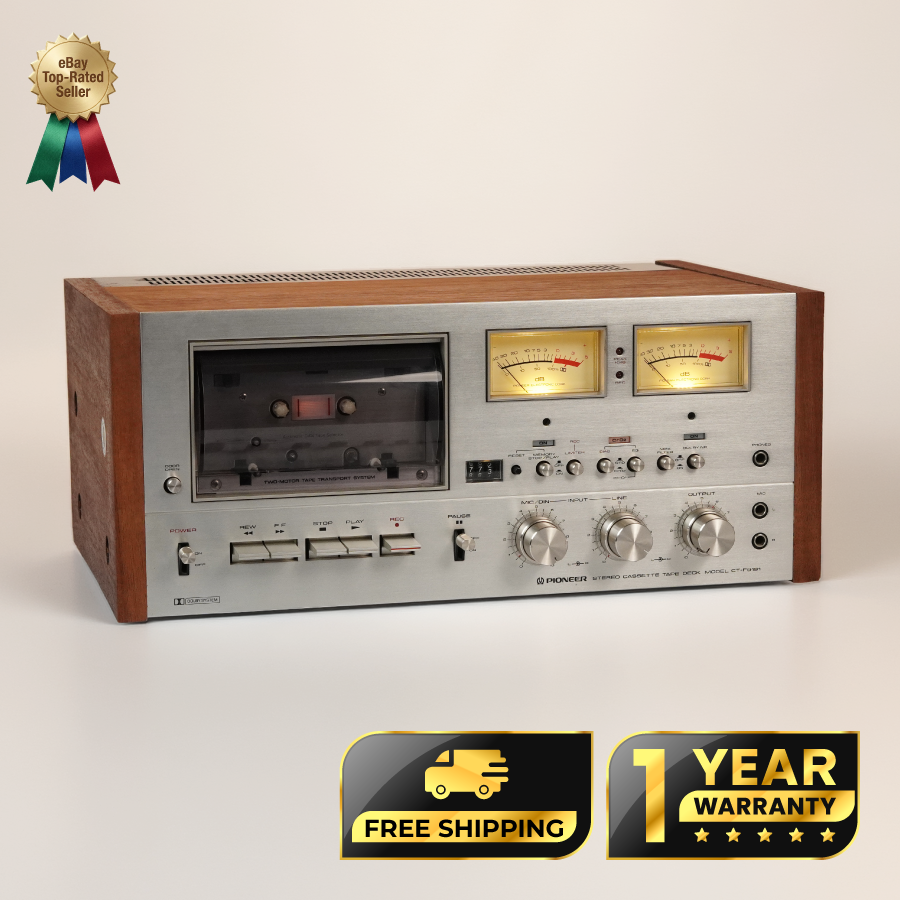

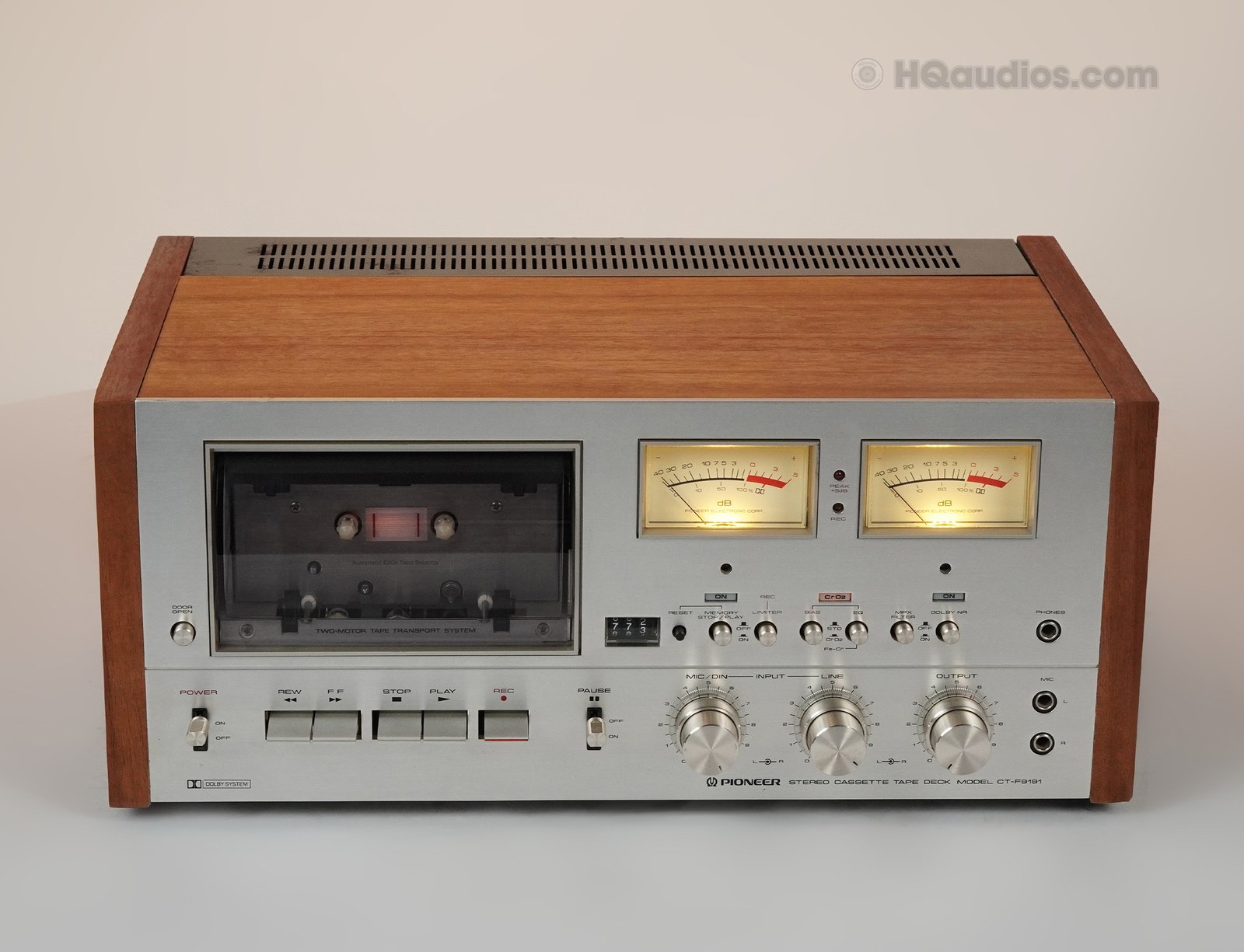

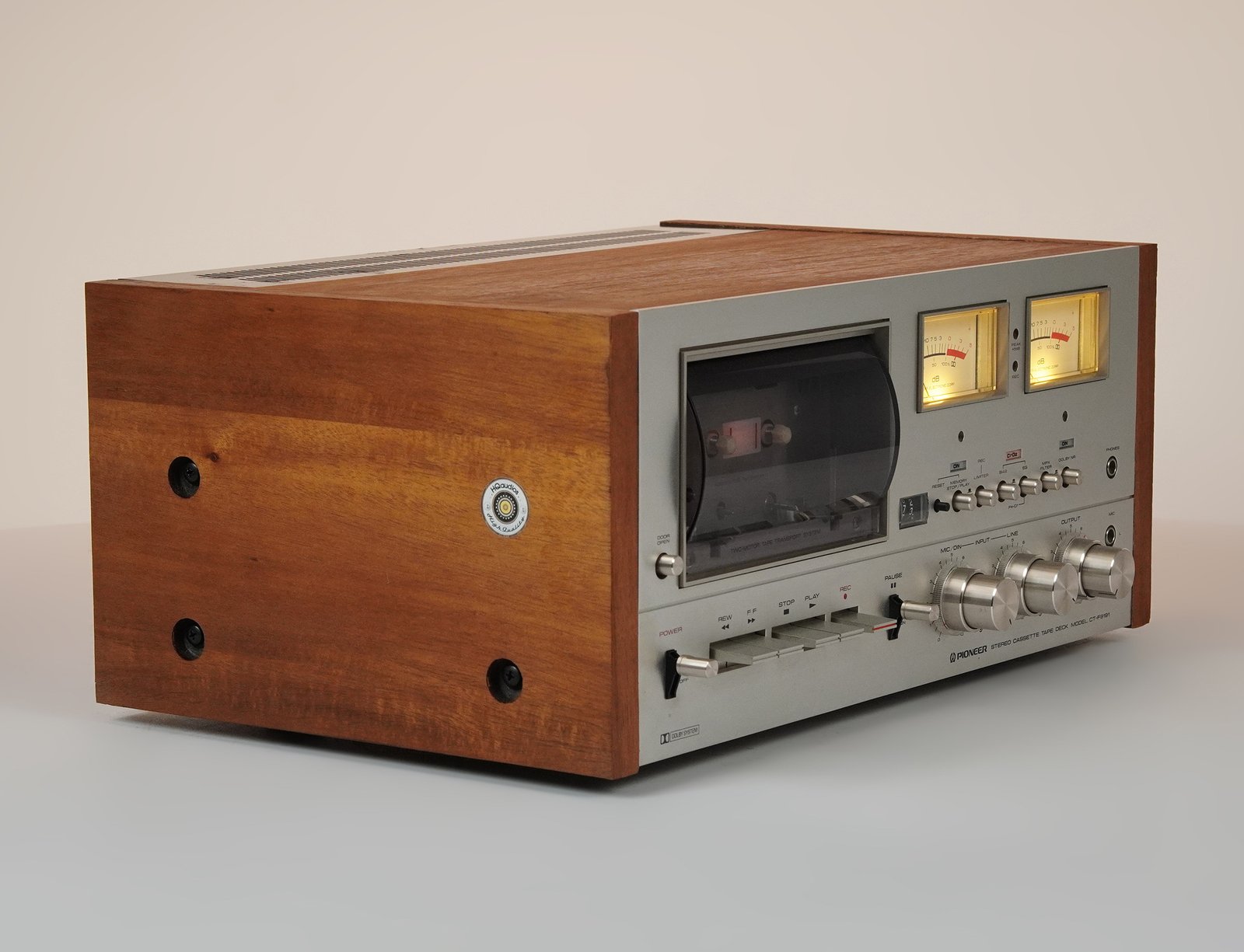

Pioneer CT-F9191 Vintage Stereo Cassette Deck
Professionally Restored by HQaudios – Inspected & Tested – Backed by Our 1-Year Warranty

KEY HIGHLIGHTS
Pioneer CT-F9191 Front-Loading Stereo Cassette Deck

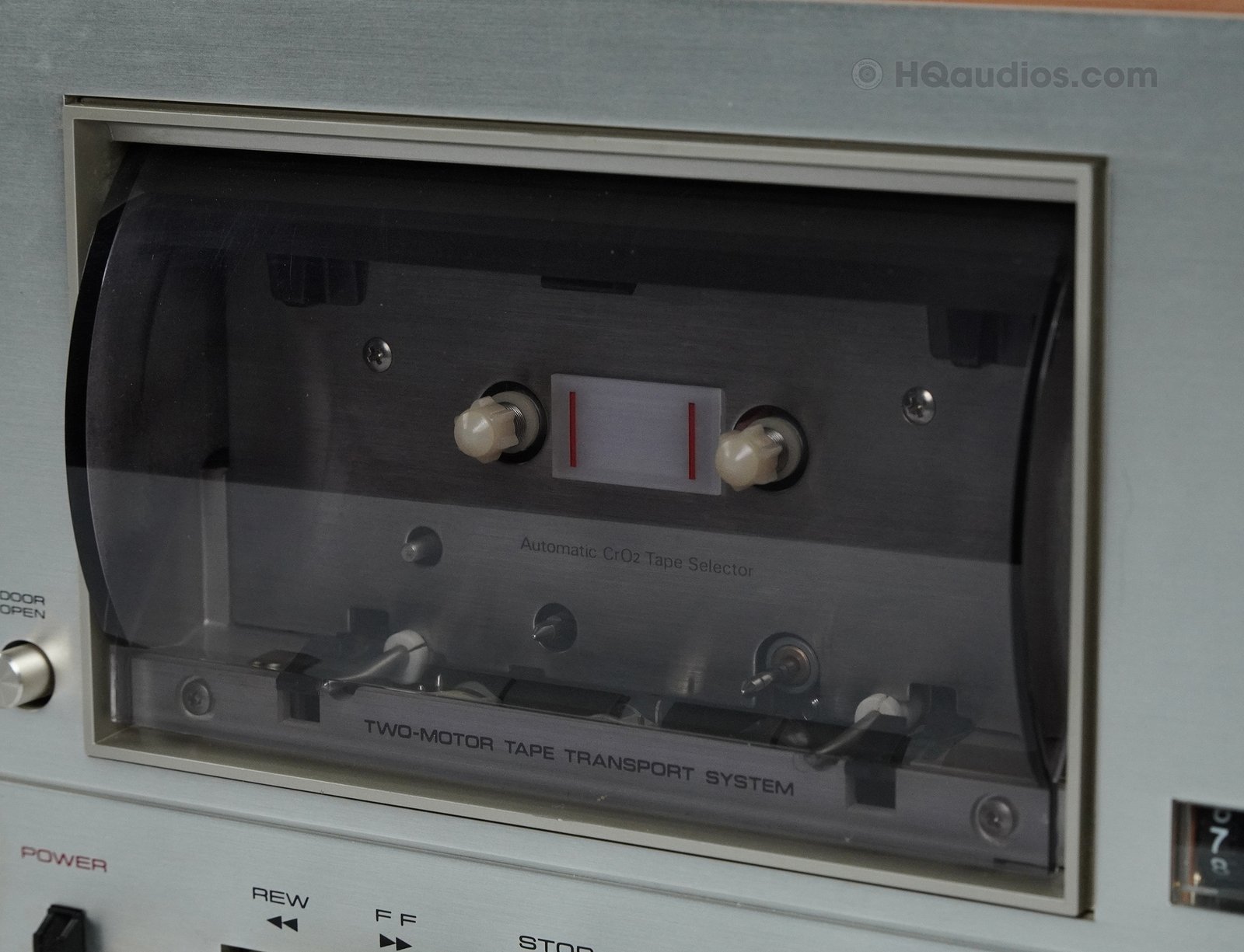

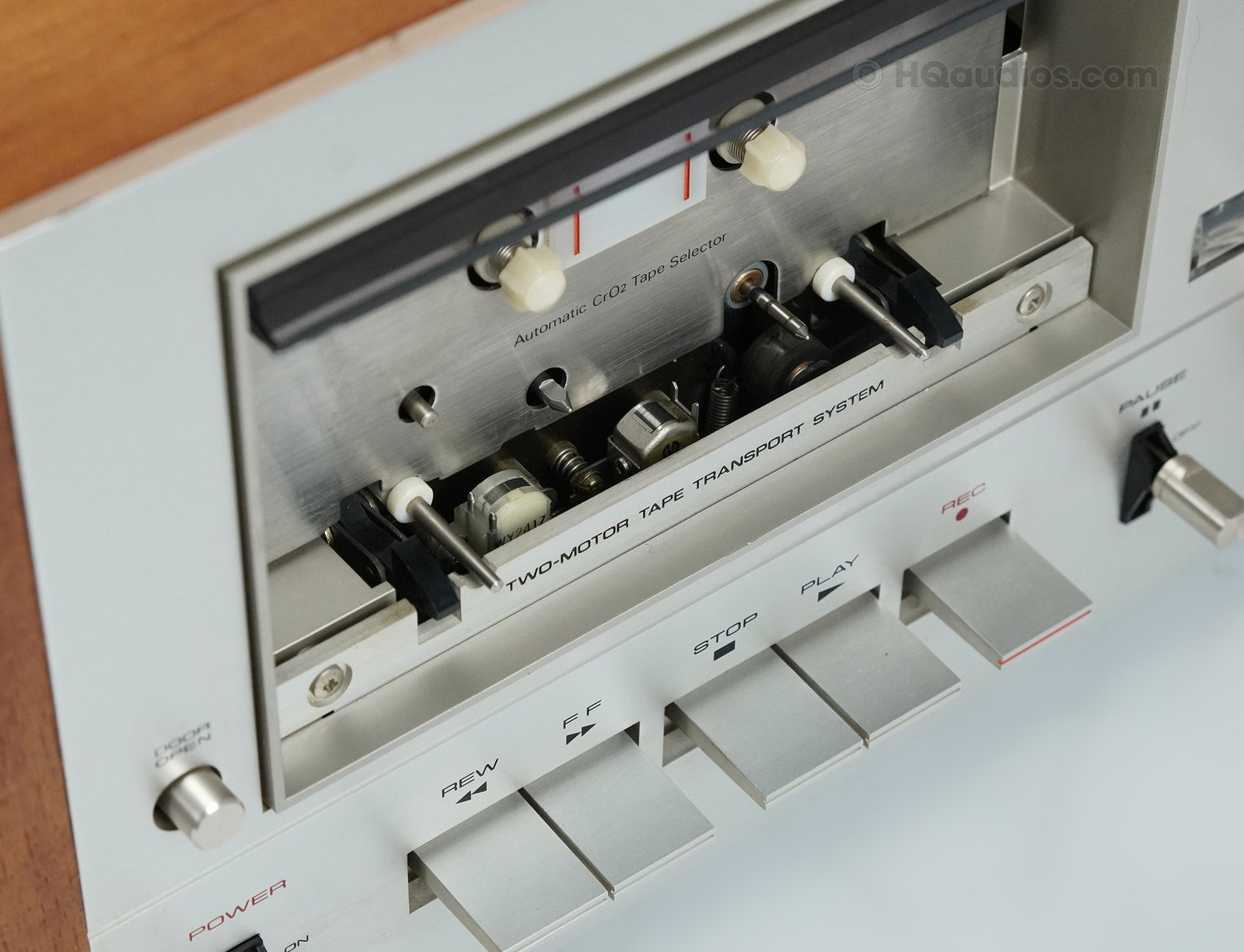

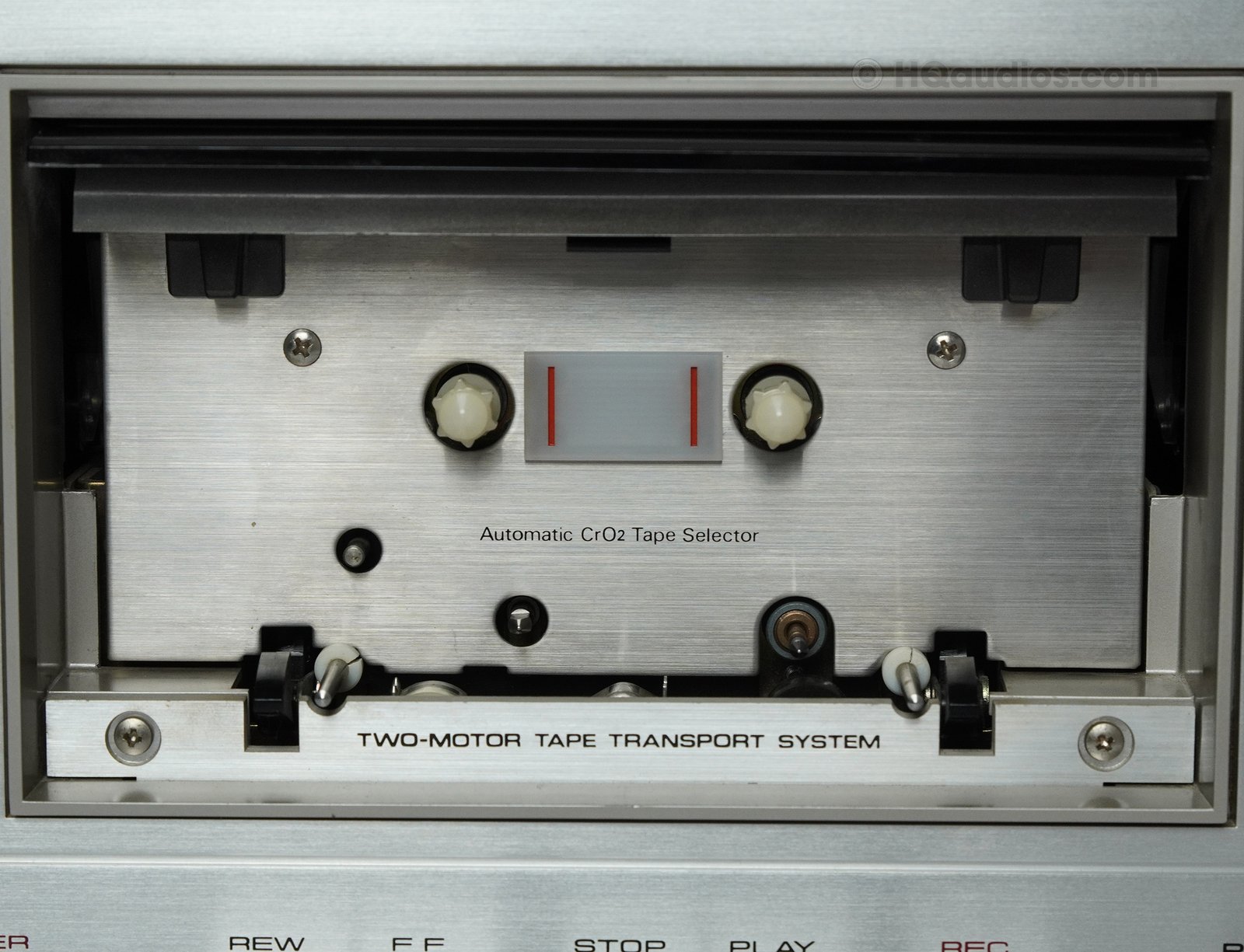

Two-Motor Transport with Solenoid-Operated Controls
Ferrite Solid Record/Playback Head and Ferrite Erase Head
Built-In Dolby B Noise Reduction
Standard, Chrome and Ferrichrome Tape Settings

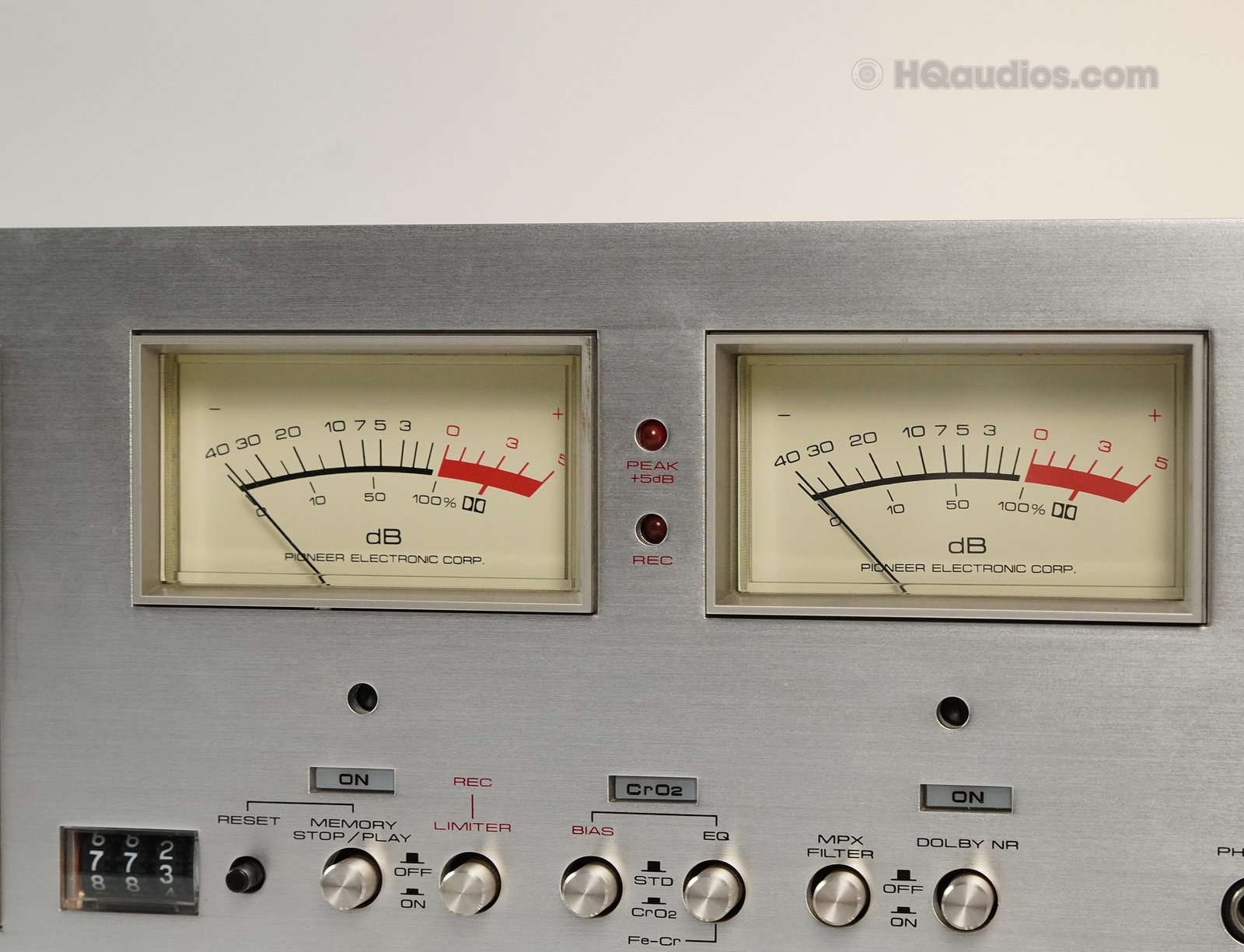

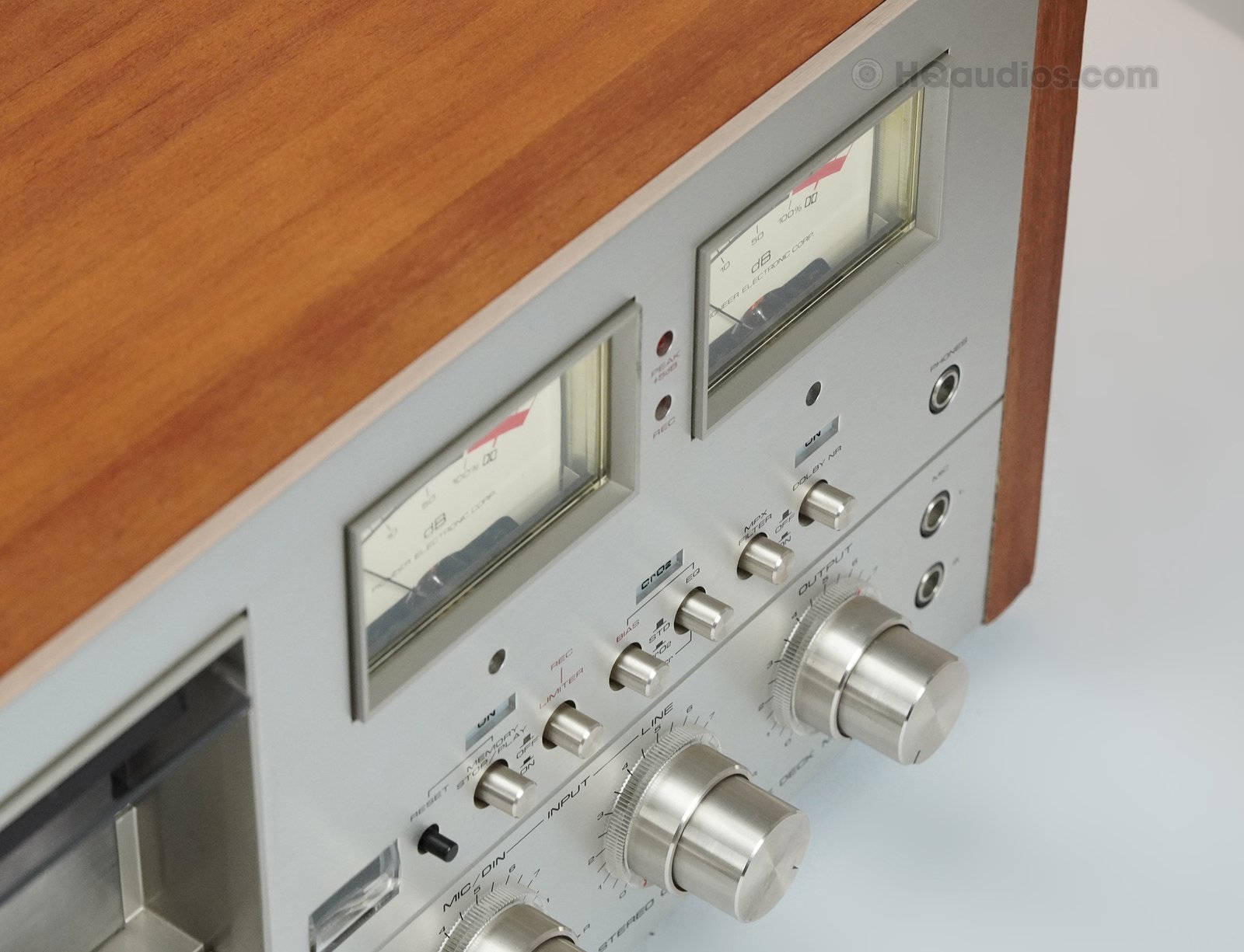

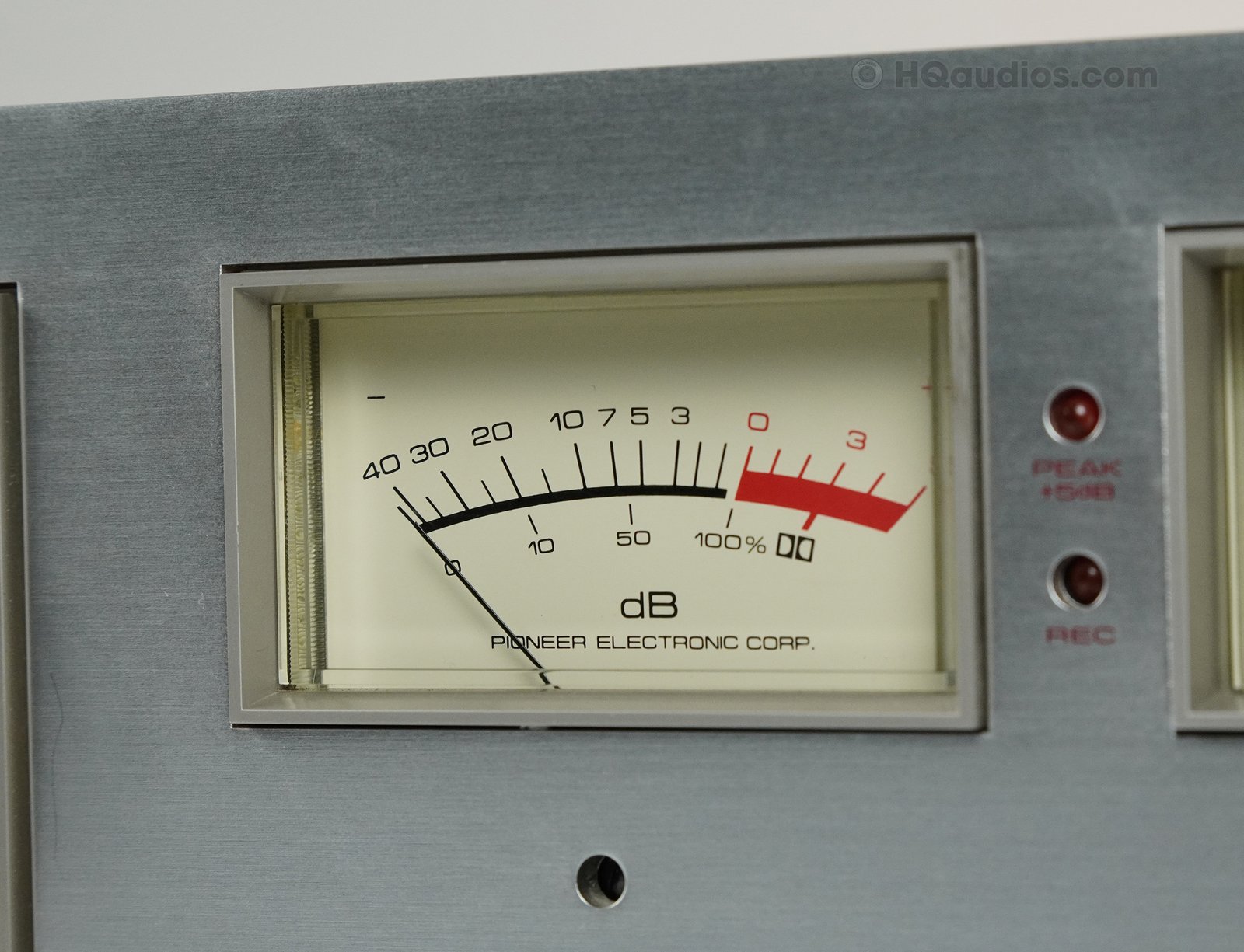

Dual Level Meters, Peak Indicator and Memory Rewind
Technical Inspection, Repair and Servicing by HQaudios
Cosmetic Refurbishment Completed by HQaudios
Backed by Our 1-Year HQaudios Seller Warranty

PRODUCT OVERVIEW
The Pioneer CT-F9191 is a vintage front-loading stereo cassette deck featuring a two-motor transport, solenoid-operated controls, a Ferrite Solid record/playback head and built-in Dolby B noise reduction.
Designed for enthusiasts of analog tape playback and recording, the CT-F9191 offers adjustable tape bias and equalization settings, dual recording level meters, a peak level indicator, memory rewind and microphone/line mixing capability.
This example has completed HQaudios’ technical inspection, repair and servicing process, followed by a recorded technical quality-control stage and separate cosmetic refurbishment.

HQAUDIOS RESTORATION & TESTING

Before Restoration
We received this Pioneer CT-F9191 for technical inspection and refurbishment. The deck entered our service process for evaluation before repair and cosmetic finishing.

During Restoration

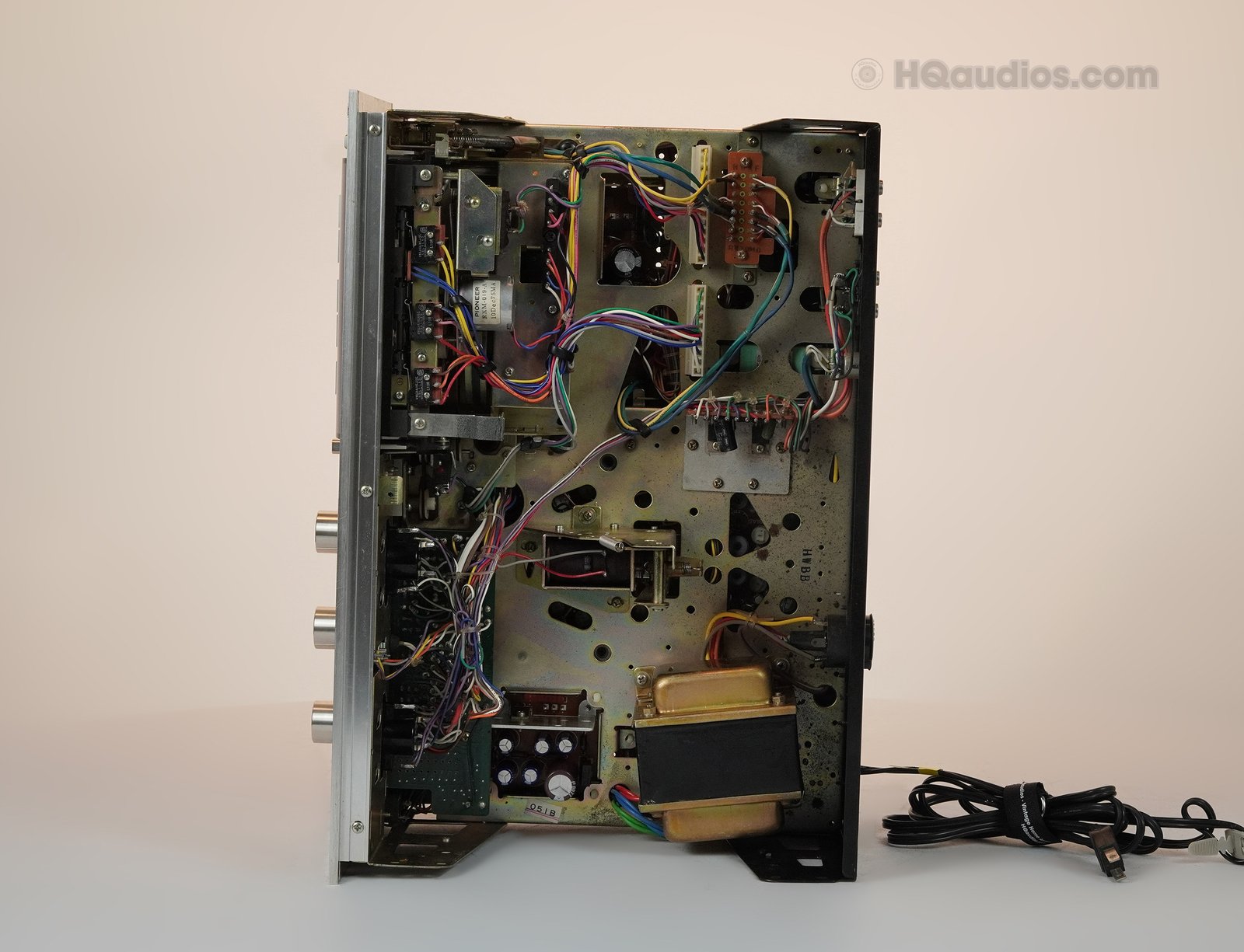

Technical Inspection:
Our technicians completed a technical inspection of the cassette deck before servicing.
Transport Mechanism:

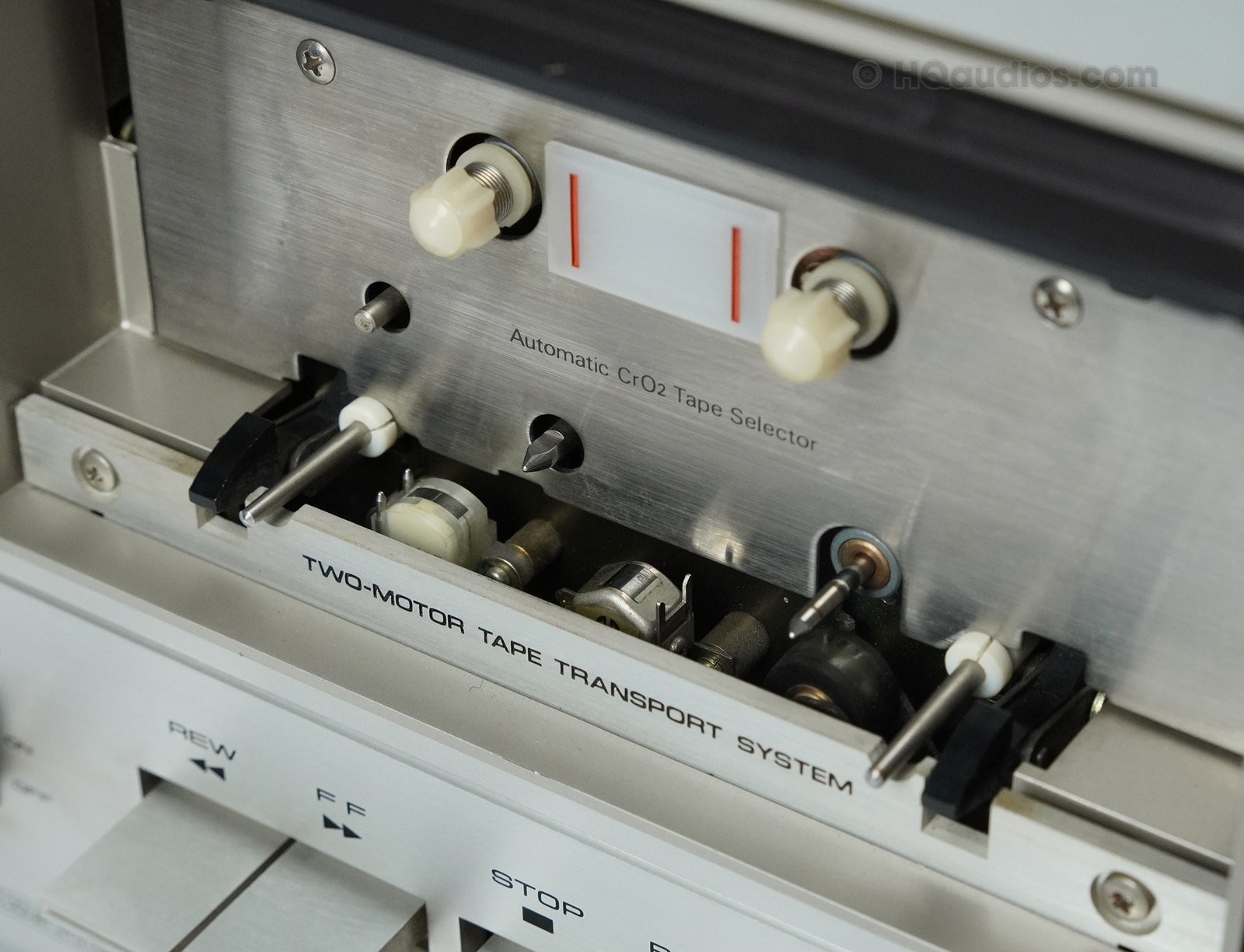

Our technical review included the cassette transport, belt-drive components, idler mechanism, capstan and pinch roller.
Playback & Recording:
Our functional testing scope included playback, recording, fast-forward, rewind and left/right audio-channel operation.
Tape Heads:
Our technicians included the record/playback and erase head assemblies in the technical inspection and servicing review.

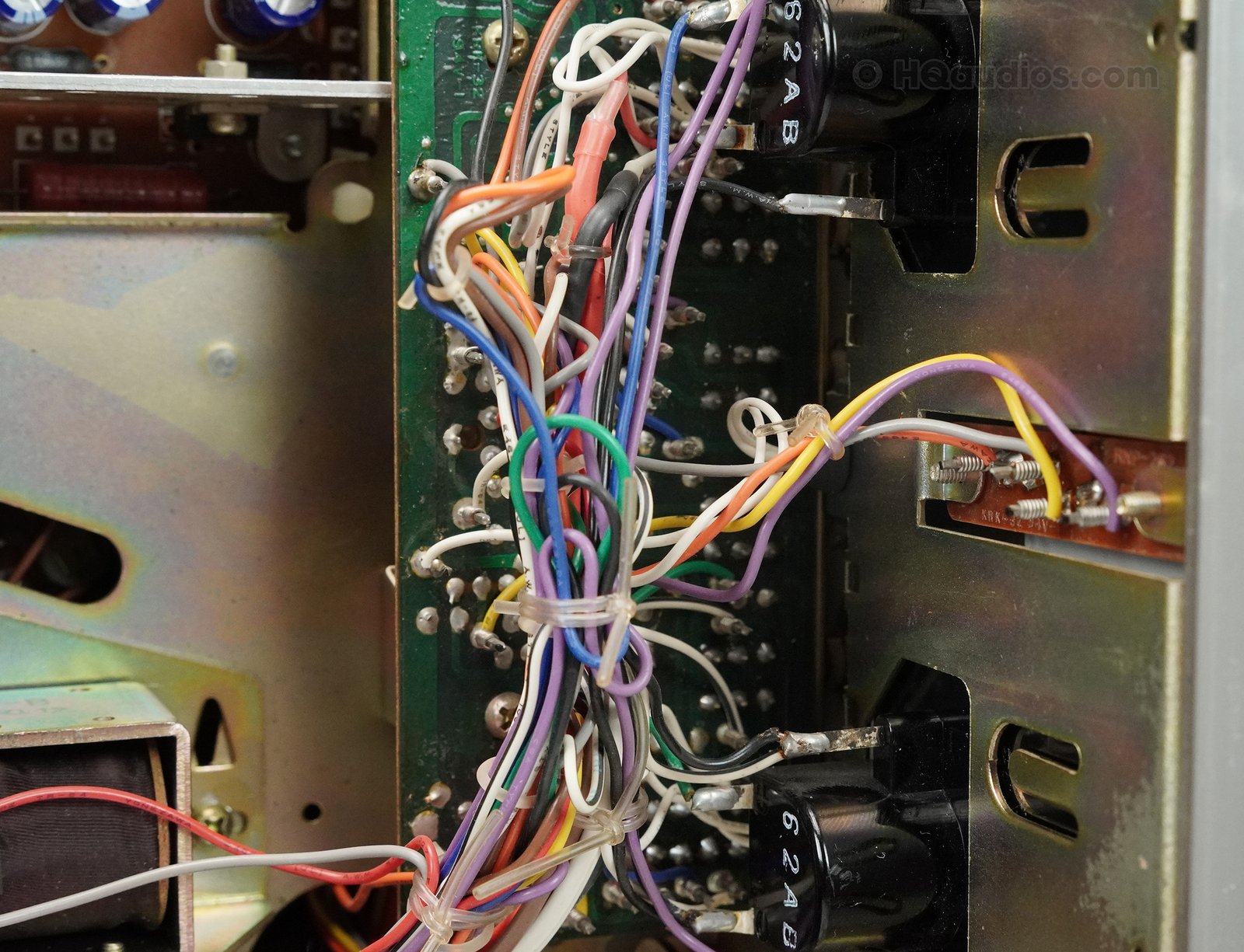

Electronic Circuitry:
The electronic components and audio signal circuitry were included in our technical assessment and repair process.
Repair & Servicing:
Our technicians completed a dedicated repair and servicing stage.
Cosmetic Refurbishment:
Our team completed a separate exterior refurbishment stage.

After Restoration / Testing
Technical Quality Control:
The deck completed a recorded technical quality-control stage following the repair and servicing process.
Cosmetic Finishing:
The exterior refurbishment stage was completed separately.

CONDITION
Technical Condition
The deck has undergone technical inspection and repair covering the cassette transport, tape heads and electronic circuitry. Playback, recording, fast-forward, rewind and stereo-channel operation were included in the functional testing process.
Cosmetic Condition
The deck has undergone exterior cosmetic refurbishment. Please review the actual product photographs for details of the front panel, controls, cabinet surfaces and visible finish.
QC Summary
The technical quality-control stage was completed following repair and servicing.

SPECIFICATIONS
Brand: Pioneer
Model: CT-F9191
Type: Front-Loading Stereo Cassette Deck
Track System: 4-Track, 2-Channel Stereo
Heads: 2 Heads – 1 Ferrite Solid Record/Playback Head and 1 Ferrite Erase Head
Motors: 2 Motors – 1 Electronically Controlled DC Tape Drive Motor and 1 DC Torque Fast-Wind Motor

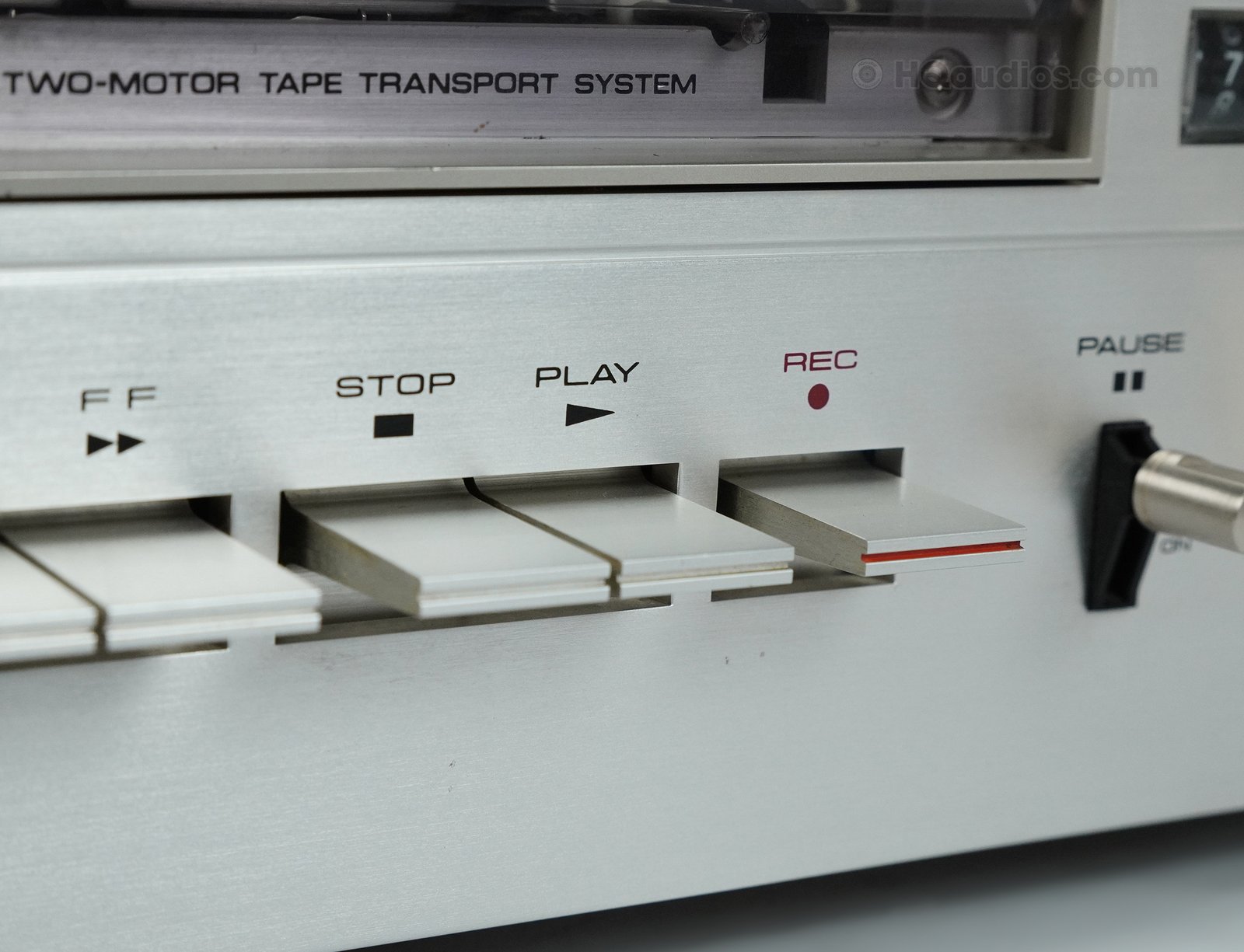

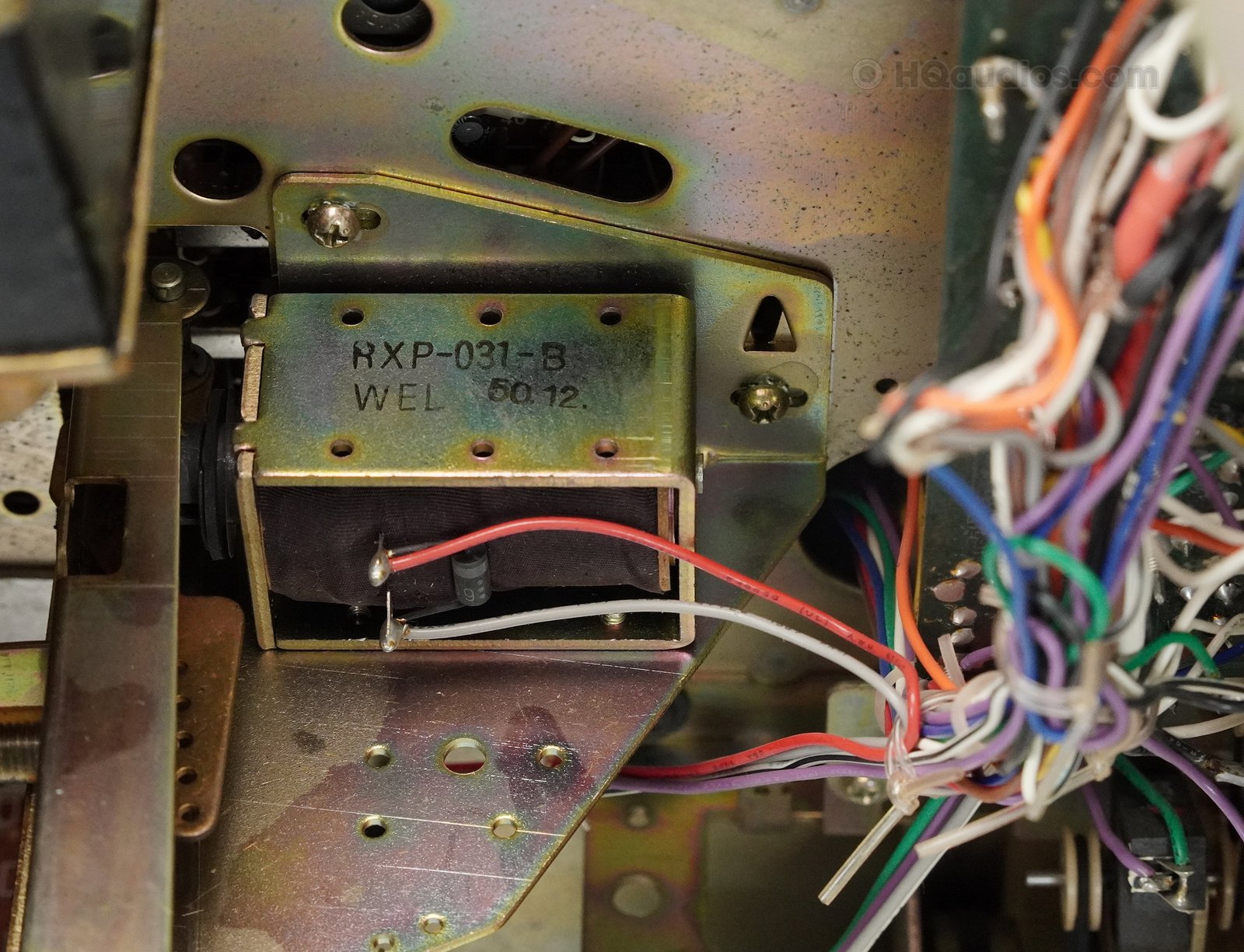

Transport Control: Solenoid-Operated, Direct-Mode Switching
Tape Speed: 1-7/8 ips (4.8 cm/s)

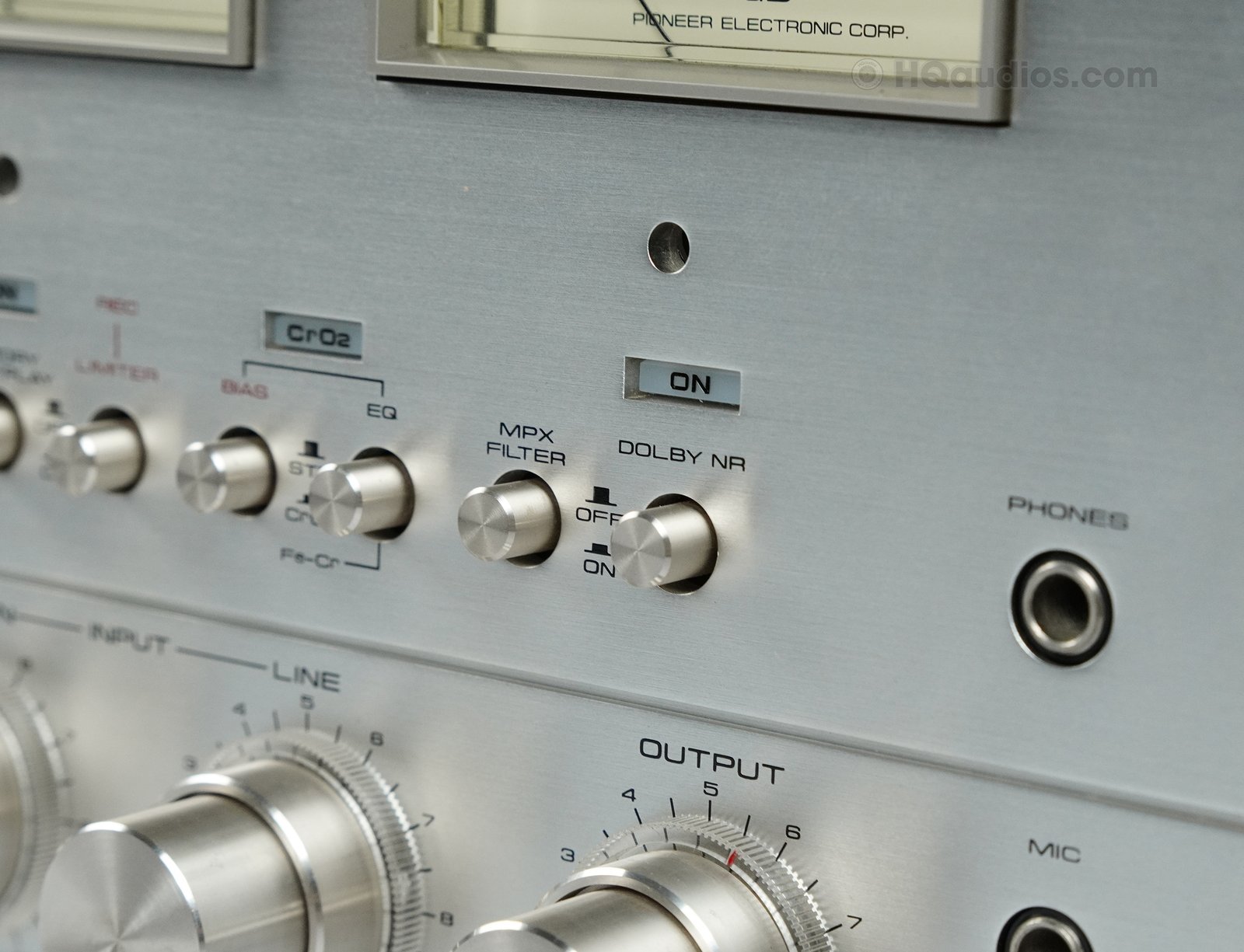

Tape Types: Standard/LH (Type I), Chromium Dioxide (CrO2) and Ferrichrome (FeCr) via Bias/EQ Selection
Noise Reduction: Dolby B
Wow & Flutter: No More Than 0.07% WRMS
Frequency Response – Standard/LH Tape: 25 Hz – 16 kHz (35 Hz – 13 kHz +/-3 dB)
Frequency Response – CrO2 Tape: 20 Hz – 17 kHz (30 Hz – 14 kHz +/-3 dB)
Signal-to-Noise Ratio: More Than 52 dB (Dolby Off); More Than 62 dB (Dolby On, Above 5 kHz, Standard/LH Tape)
Harmonic Distortion: No More Than 1.7% at 0 dB
Fast-Wind Time: Approximately 65 Seconds for a C-60 Cassette

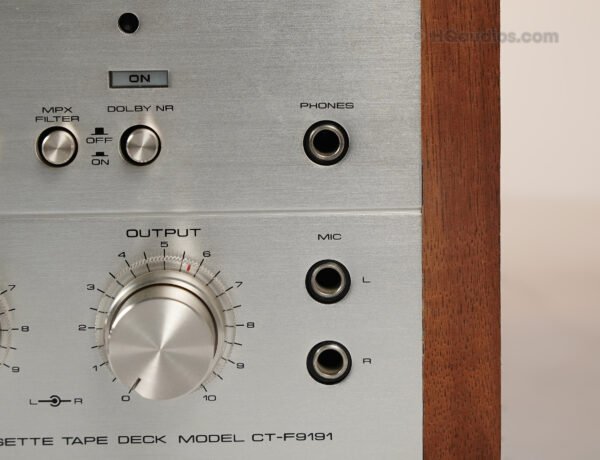

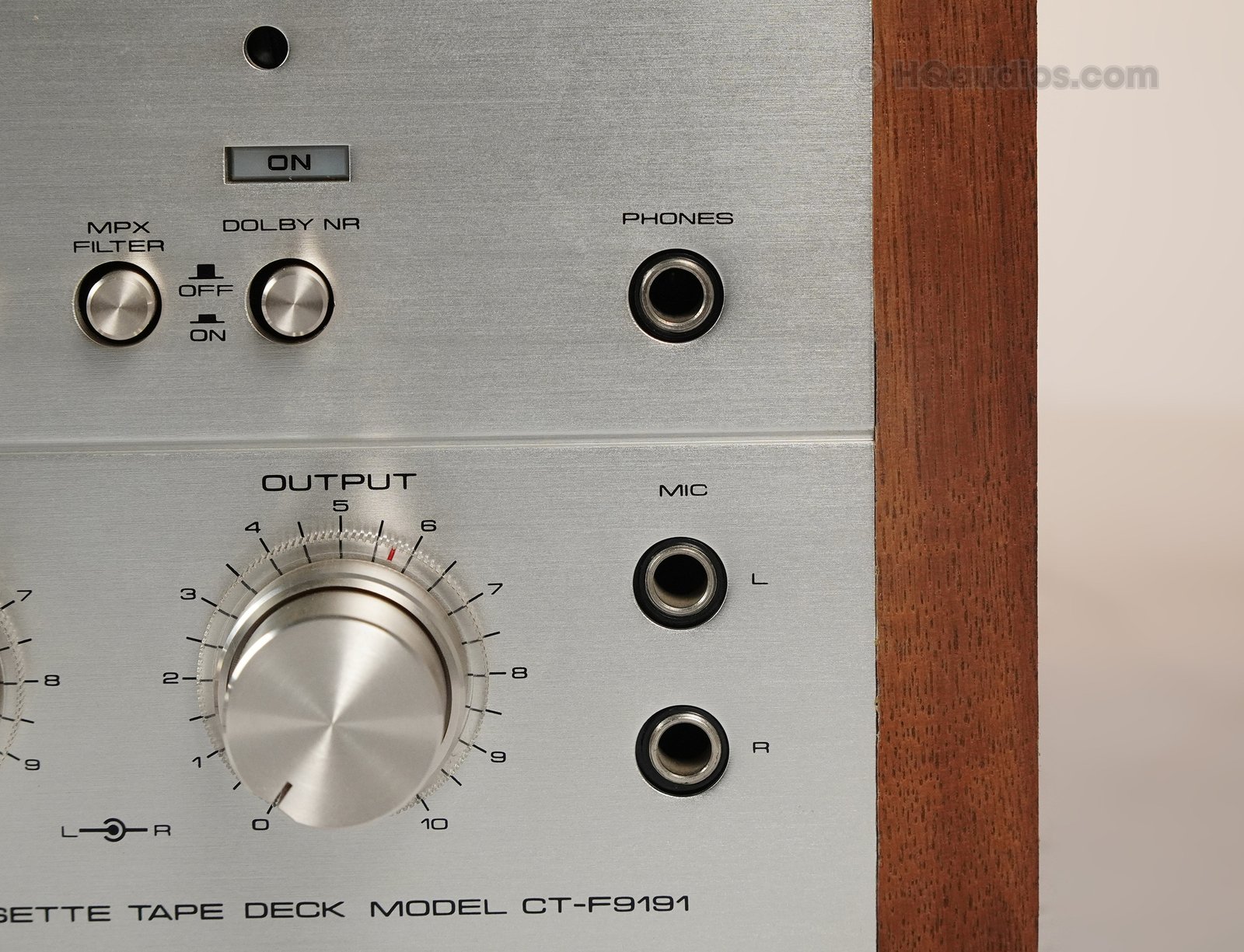

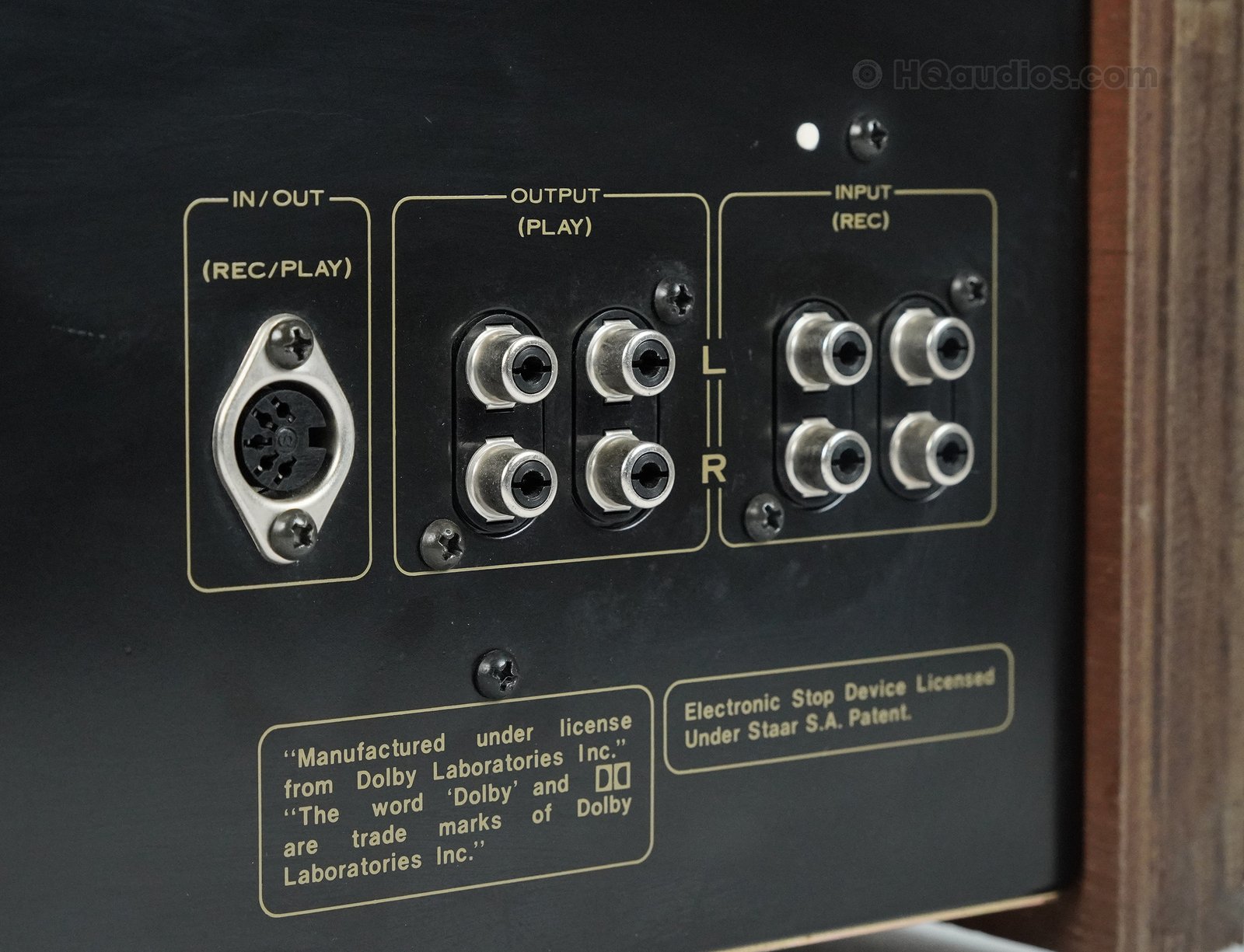

Inputs: Stereo Line Inputs, Microphone Inputs and DIN Record/Playback Connection
Outputs: Stereo Line Outputs and Headphone Output

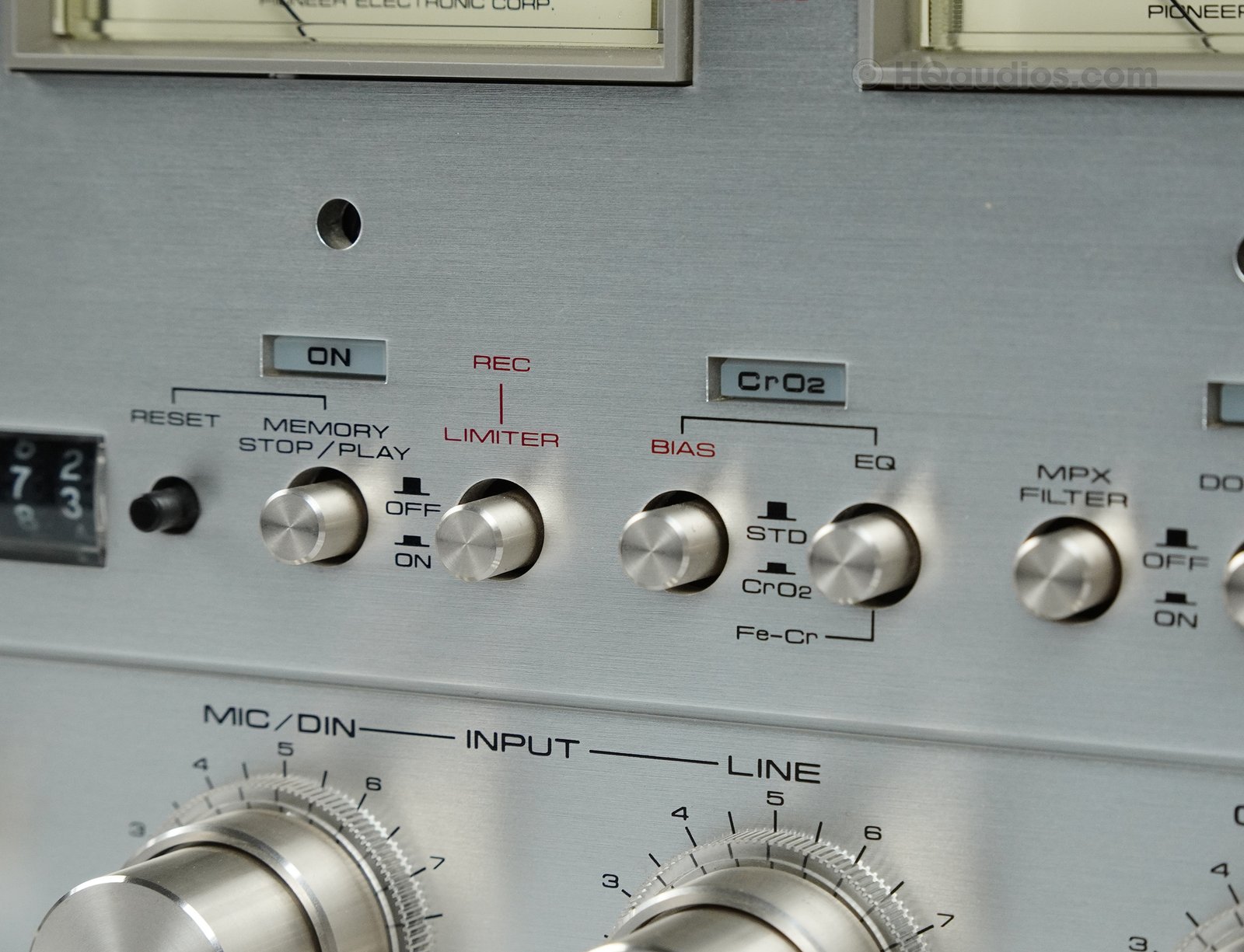

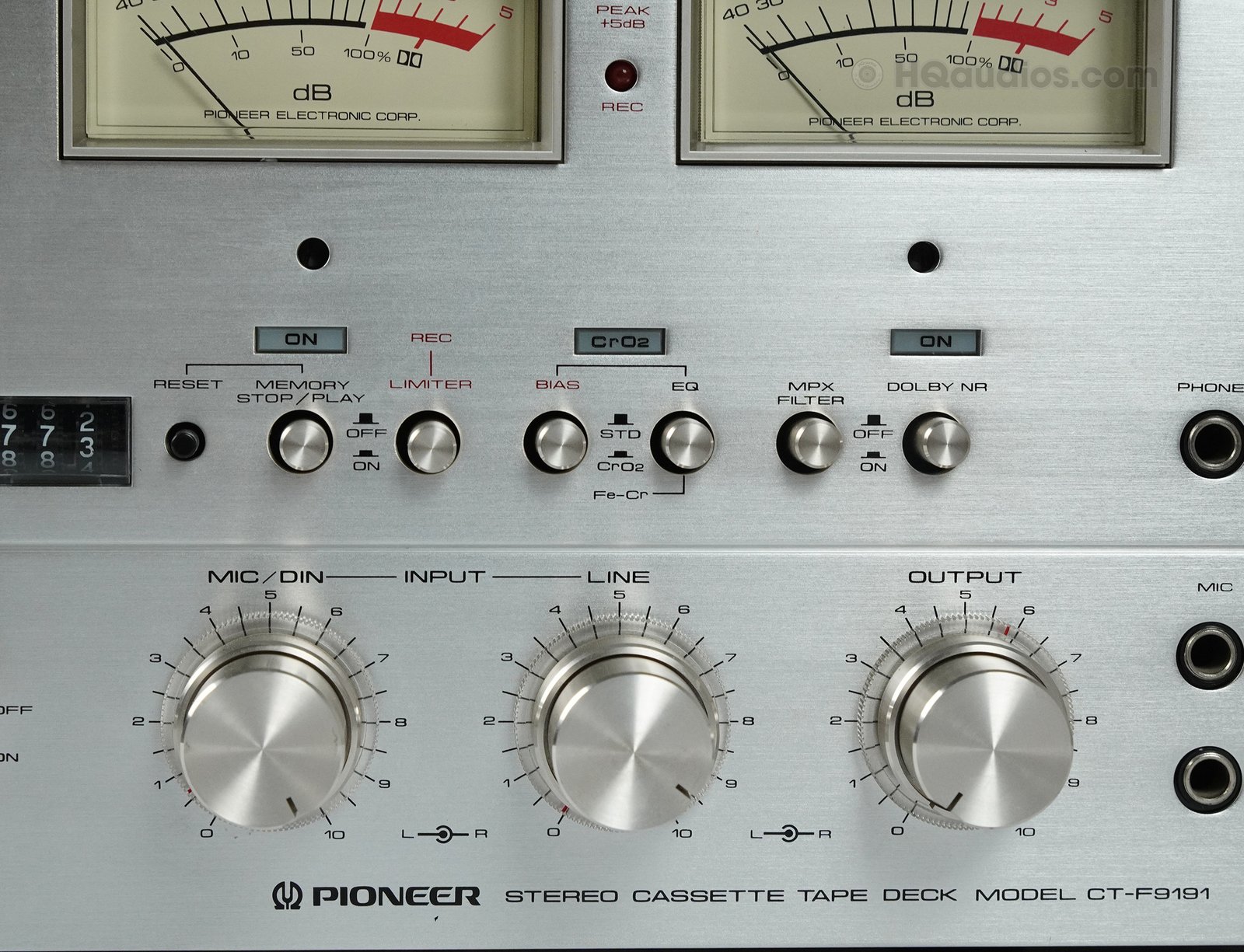

Additional Features: Memory Rewind, MPX Filter, Recording Limiter, Microphone/Line Mixing, Peak Level Indicator, Wide-Scale Recording Level Meters and Illuminated Cassette Compartment
Maximum Factory Power Consumption: 53 W
Dimensions (W x H x D): 17.9 x 7.9 x 12.4 in
Net Weight: 29.0 lbs

WHAT IS INCLUDED
1 x Pioneer CT-F9191 Stereo Cassette Deck
Only the item specifically listed above is included.
