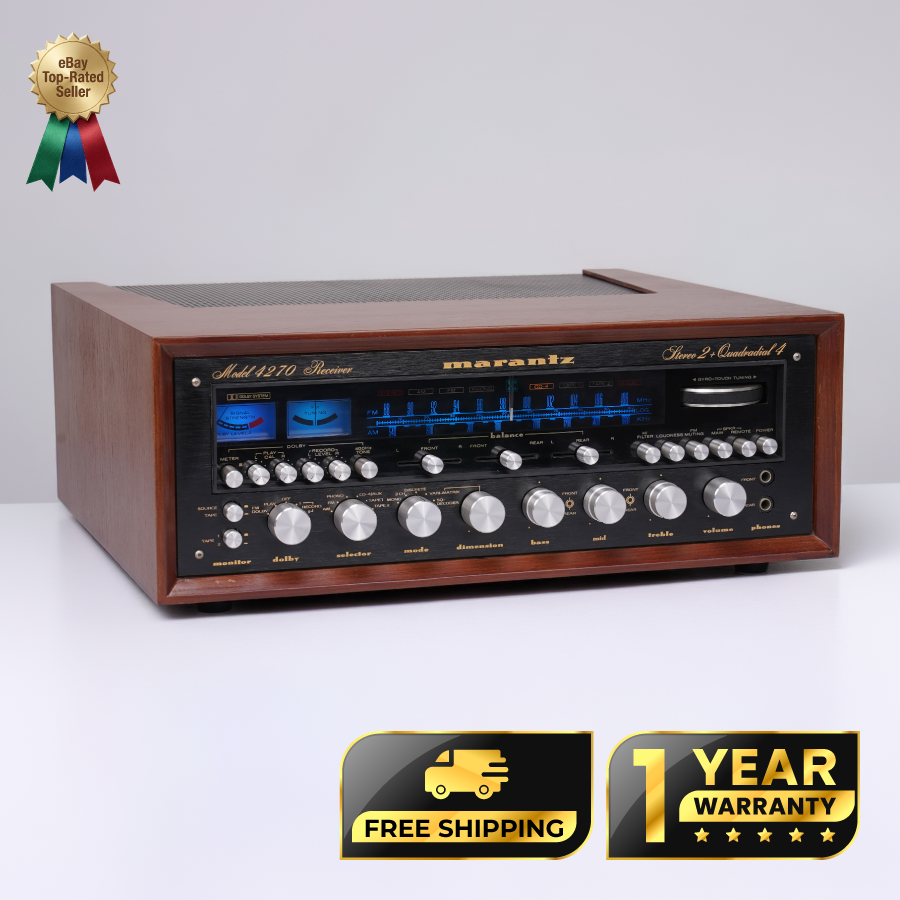

Marantz 4270 – Custom Black – Free WC-22 Wood Case – Restored – 1-Year Warranty

Marantz 4270 Stereo 2 + Quadradial 4 AM/FM receiver

Bridged stereo amplification using the front speaker outputs

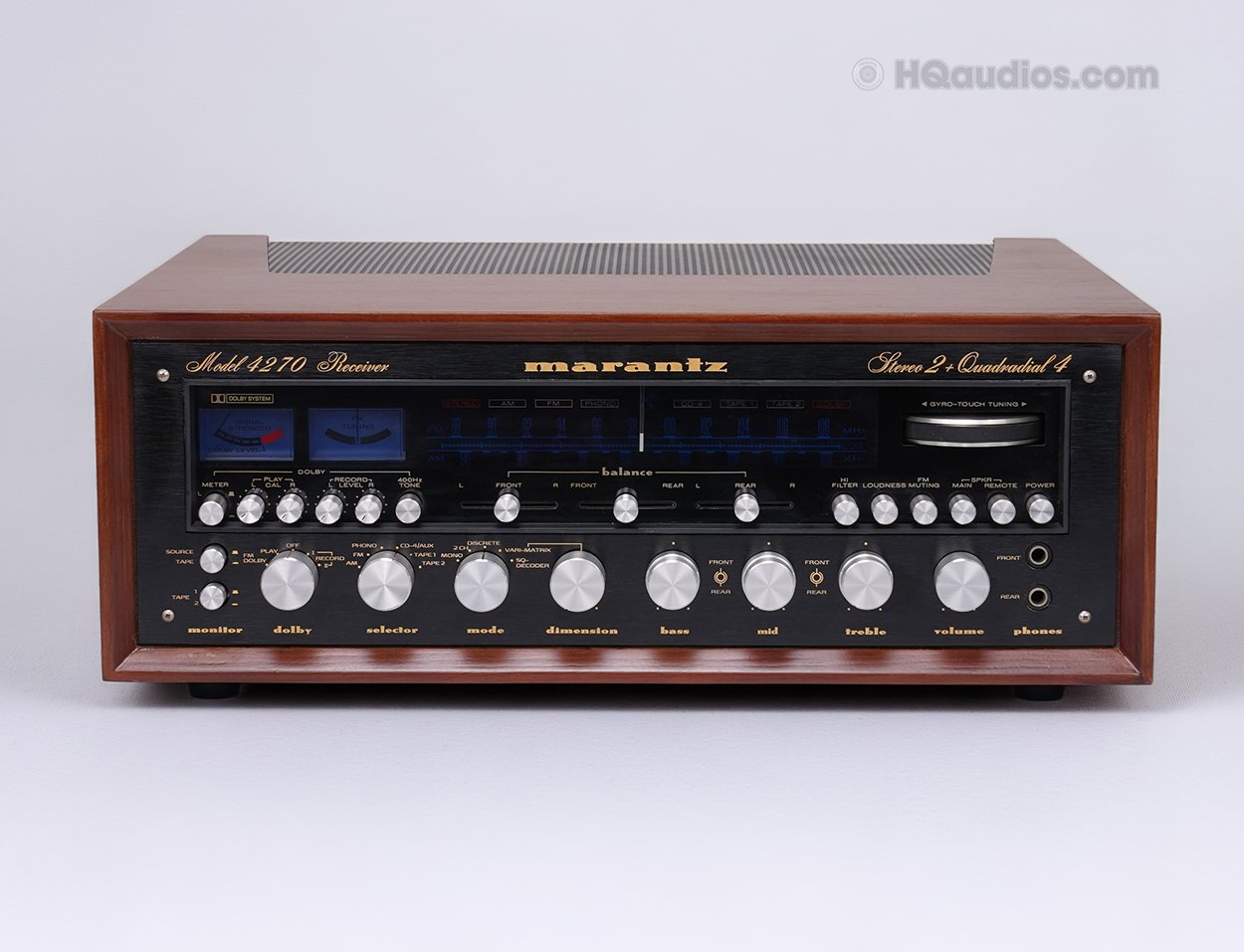

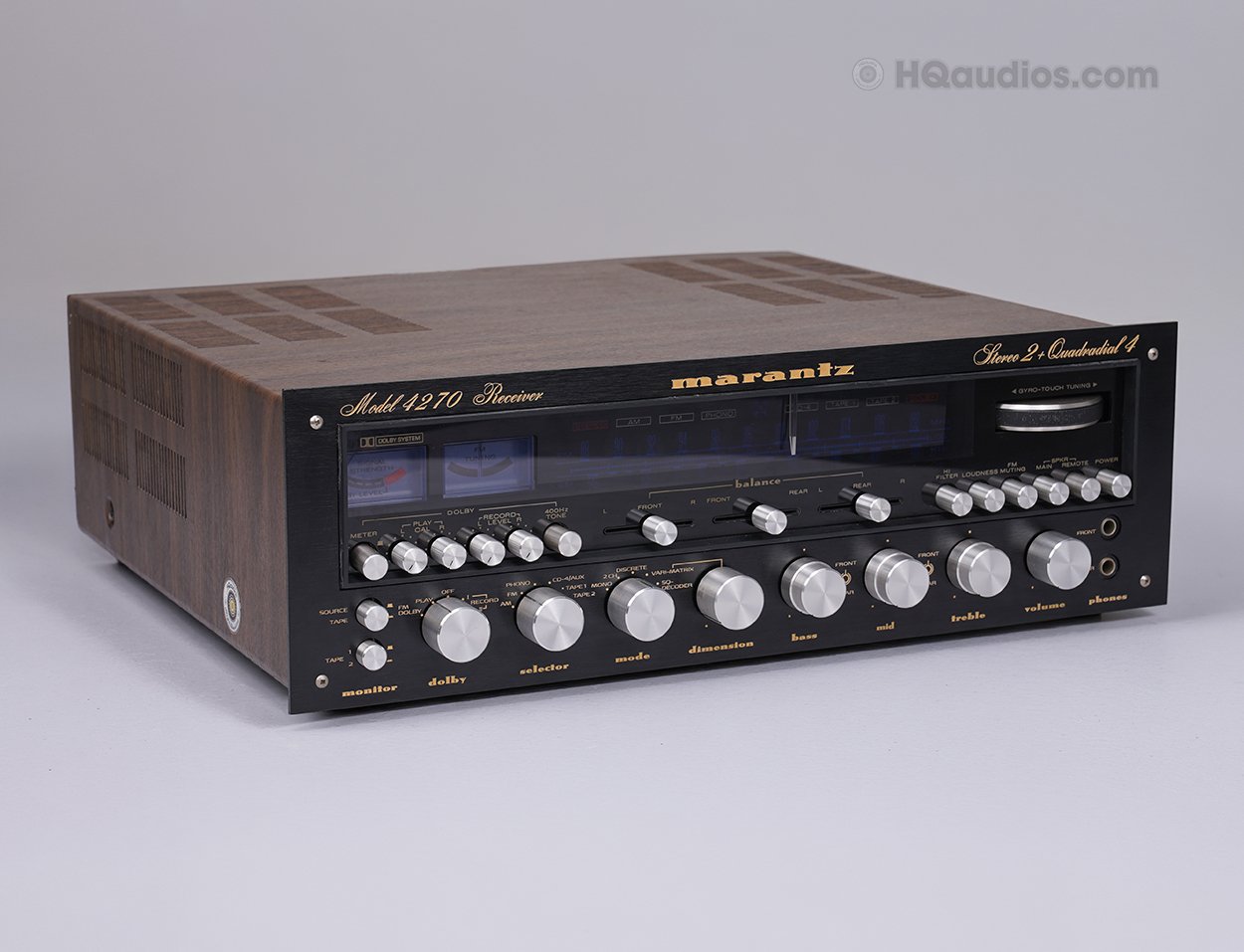

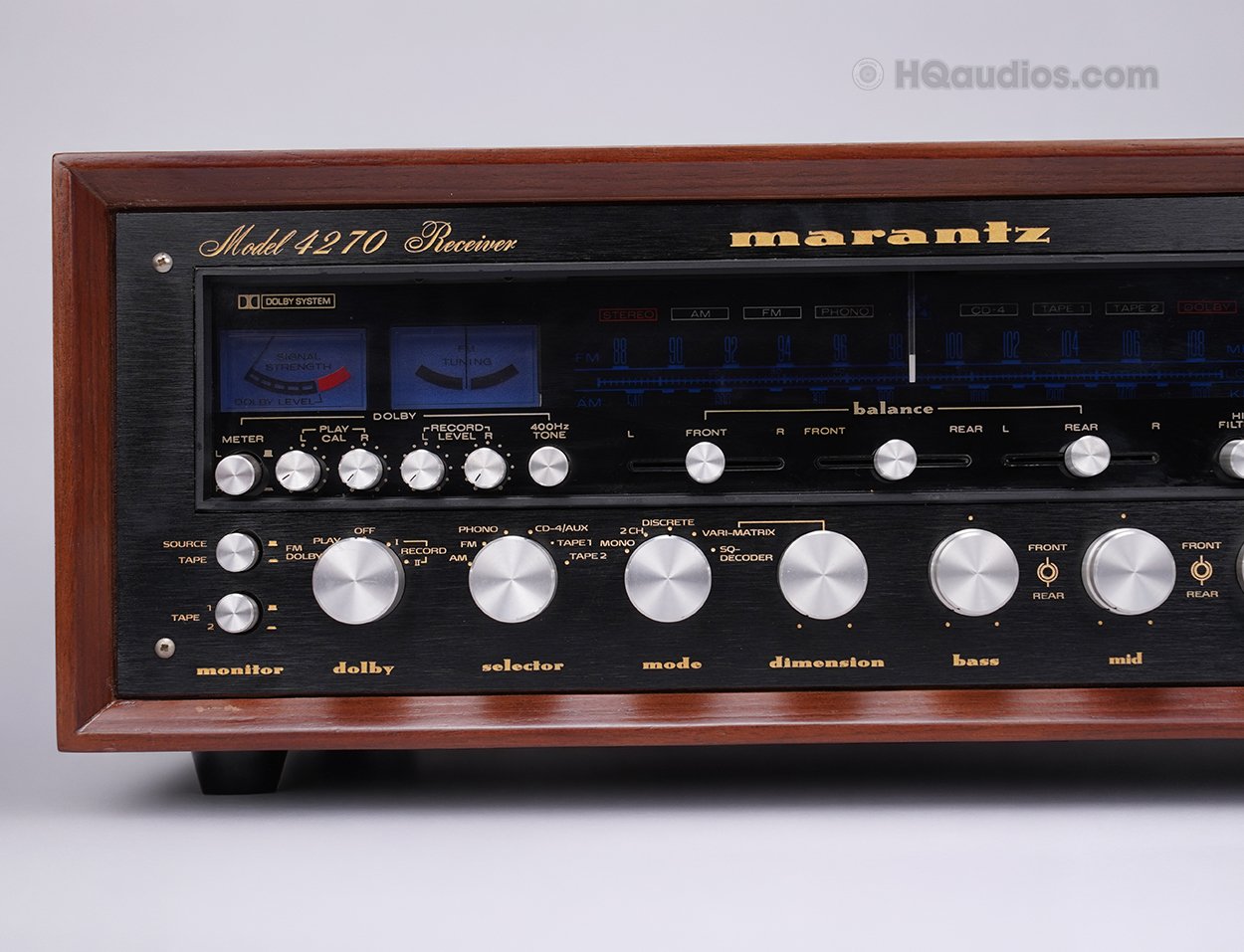

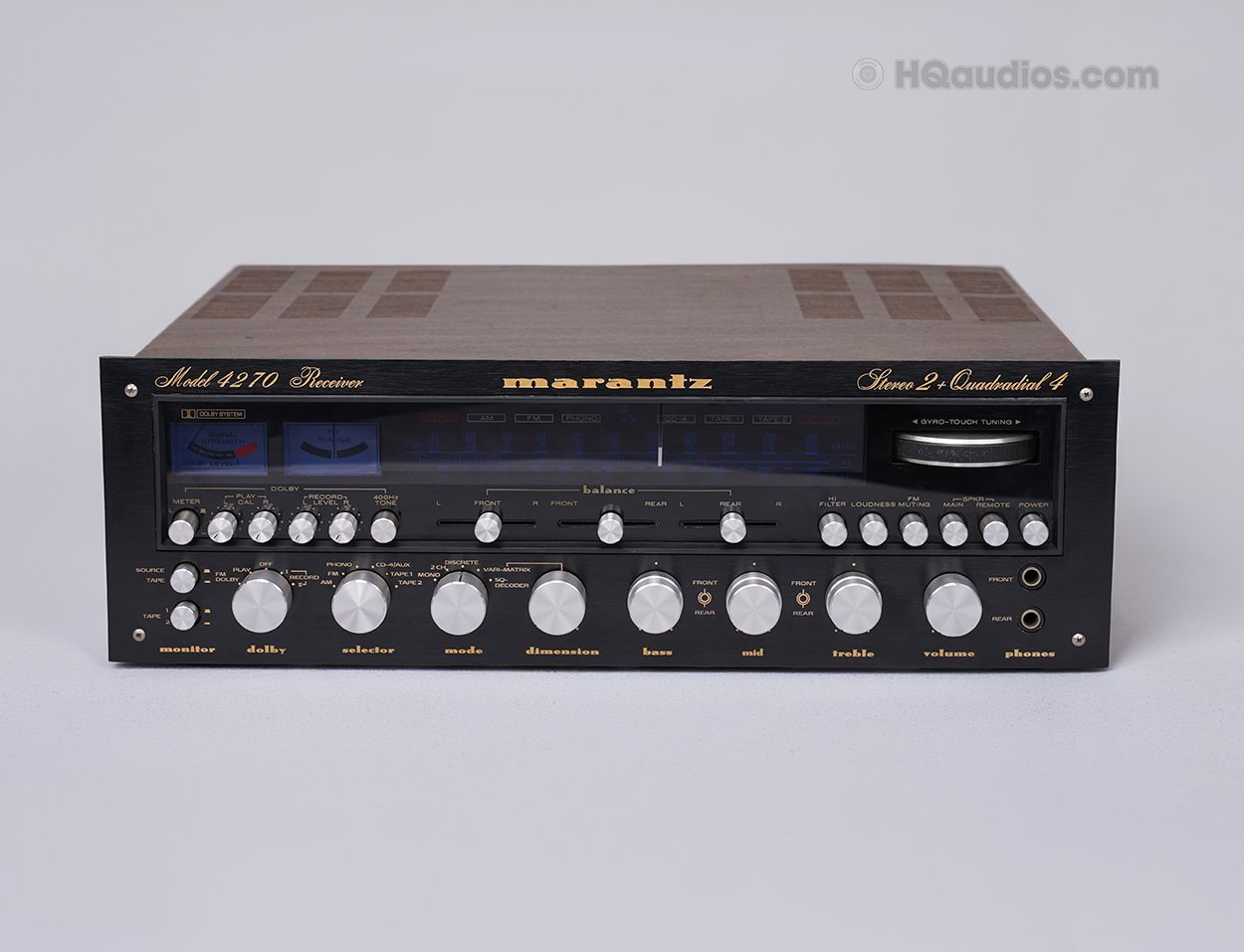

Custom black faceplate with gold-colored lettering and silver controls

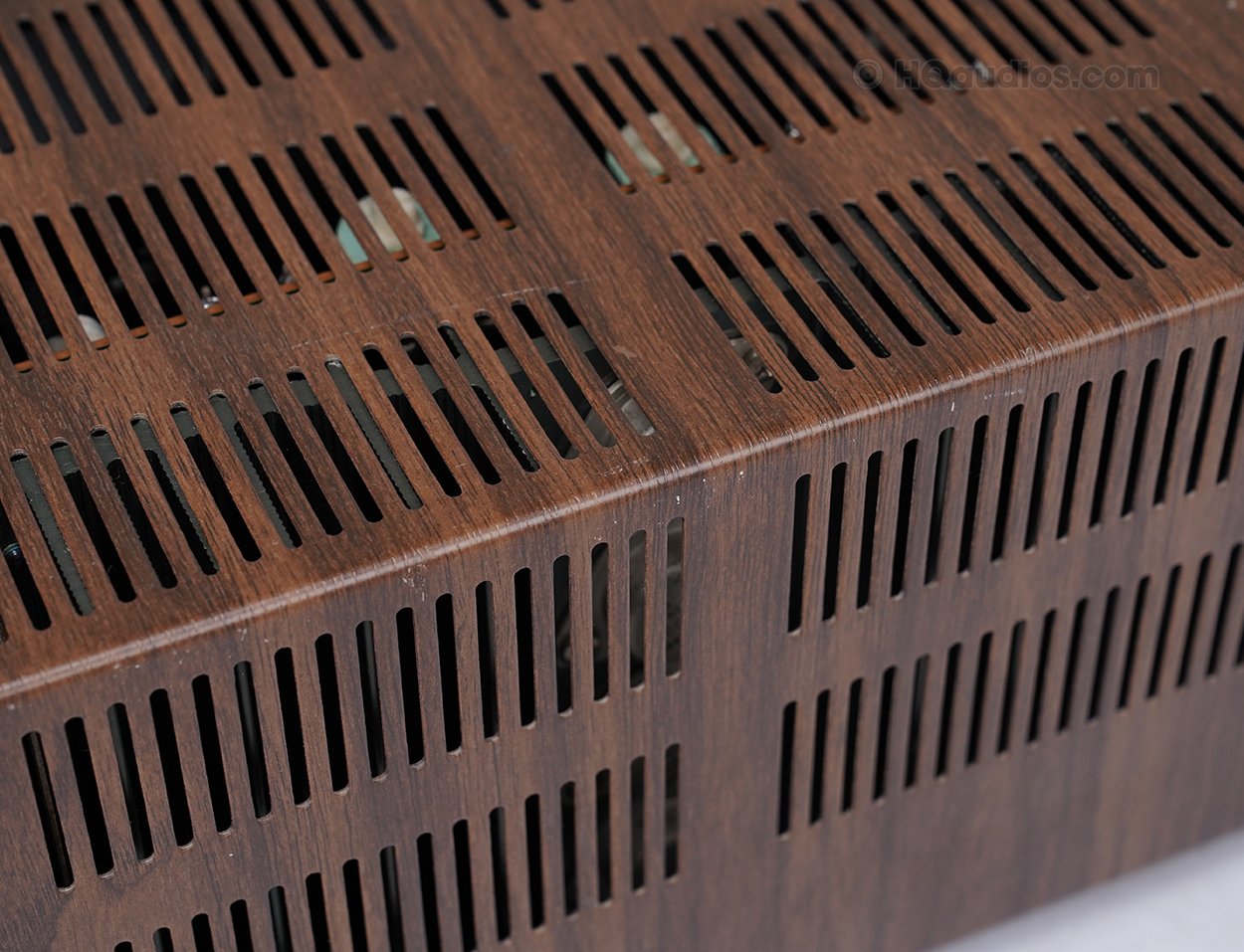

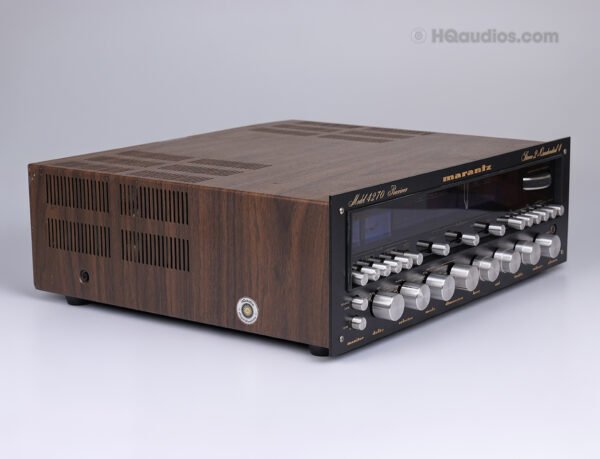

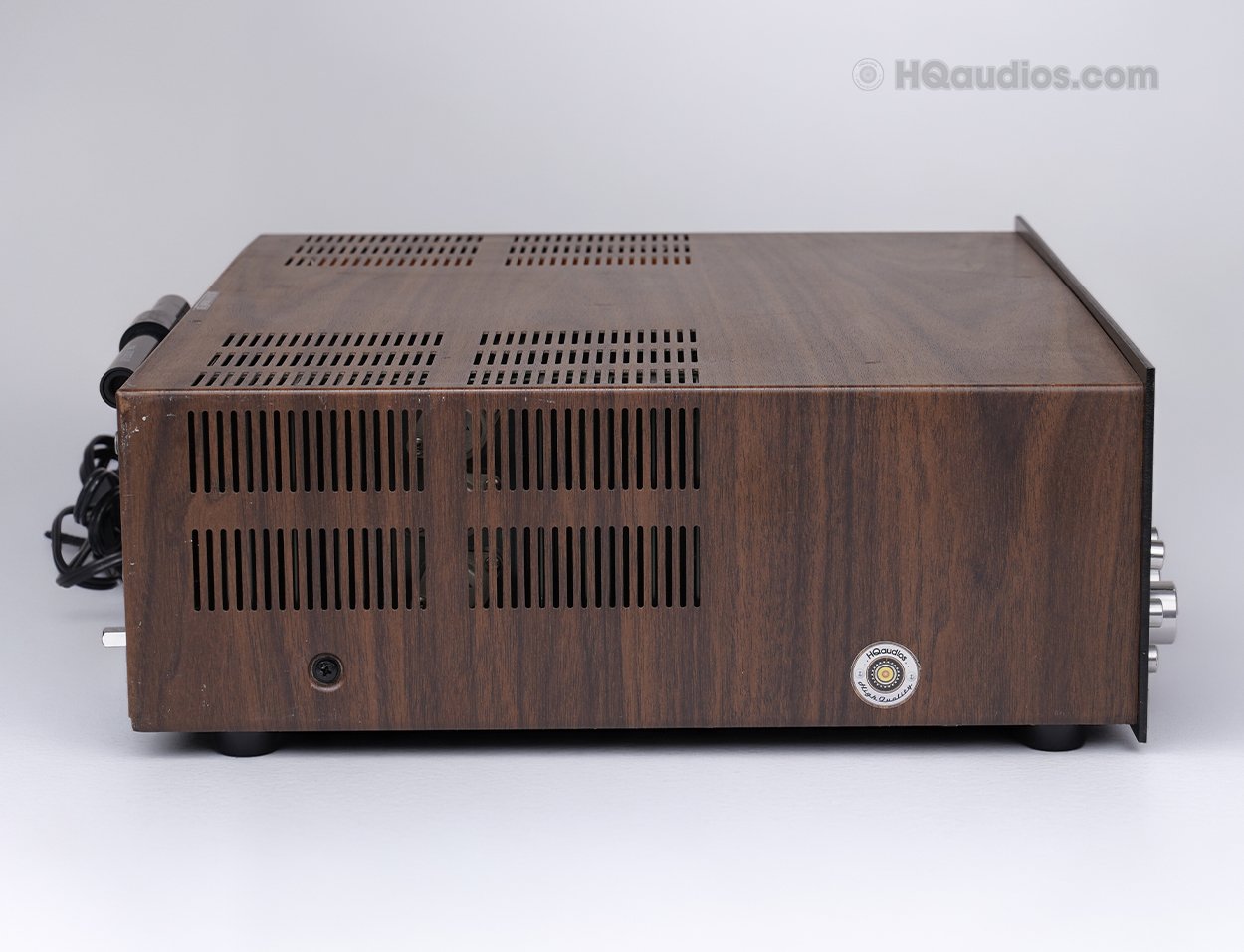

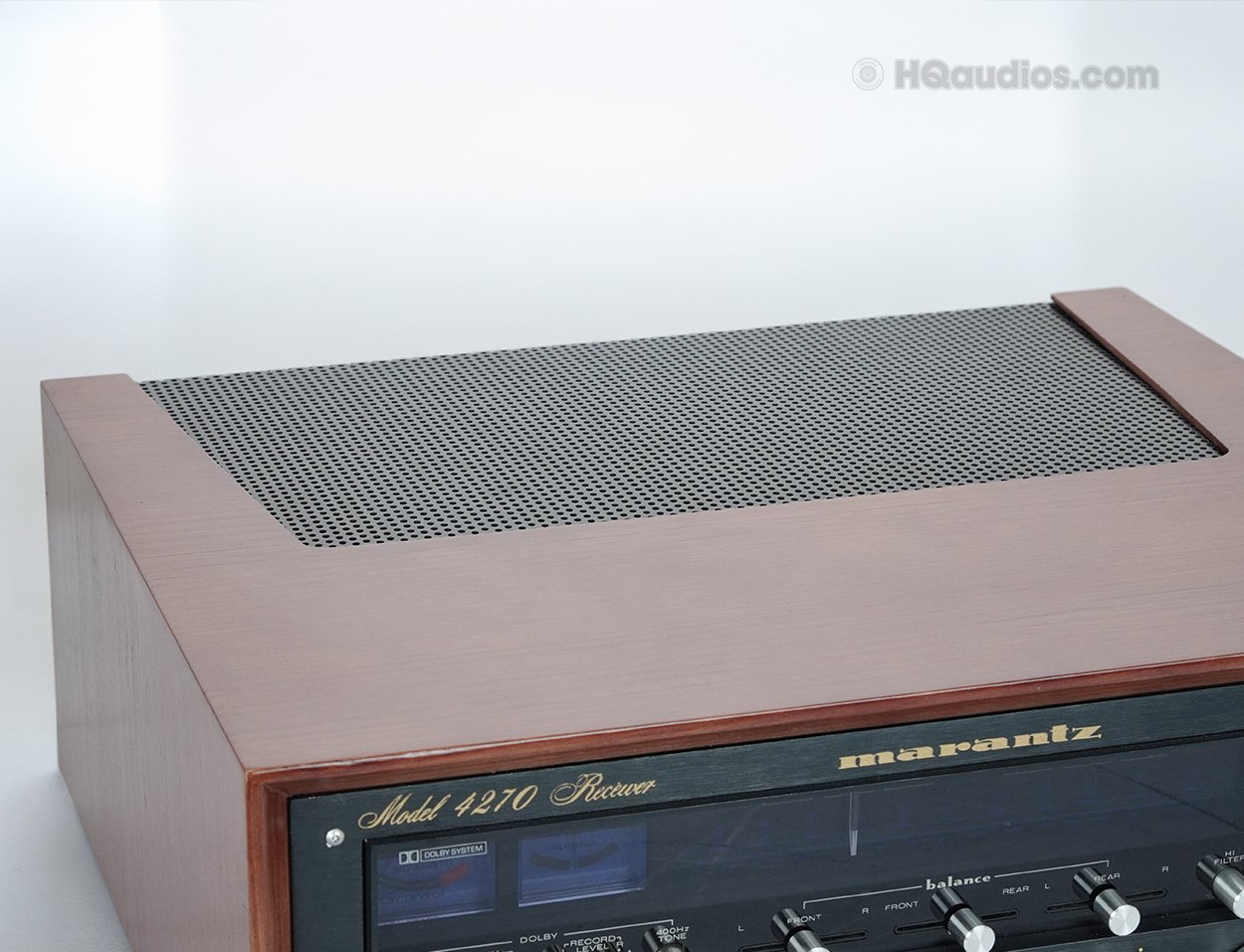

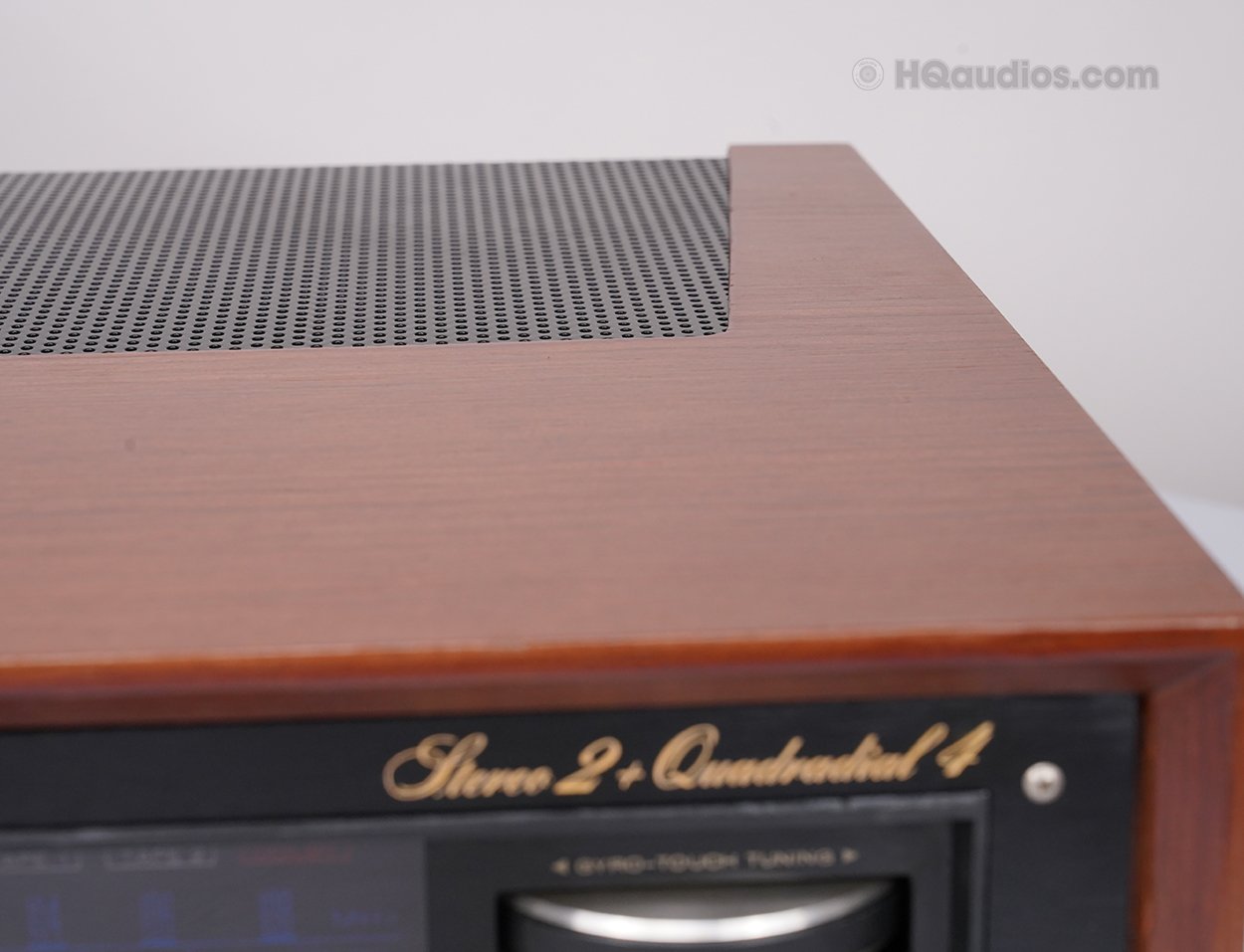

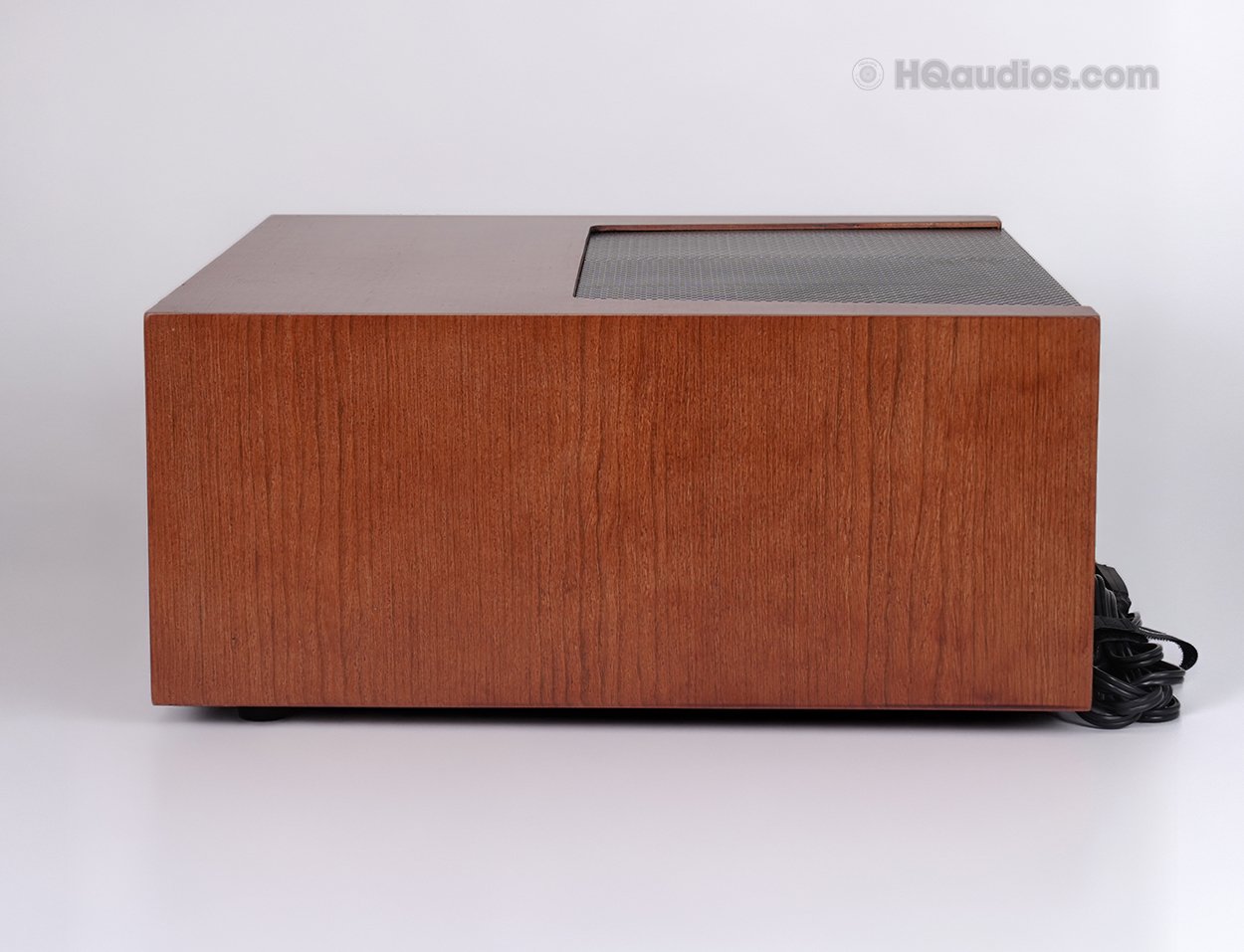

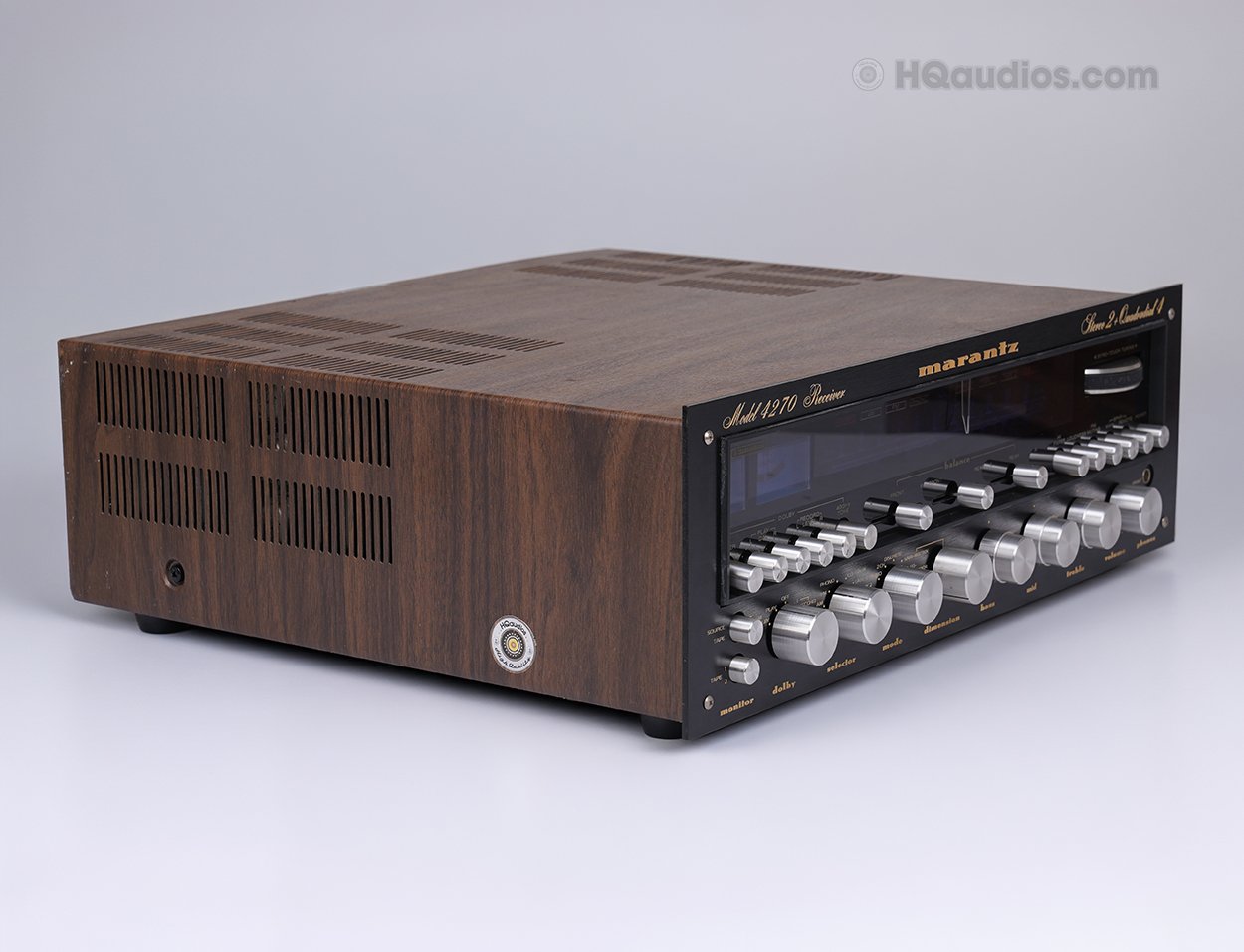

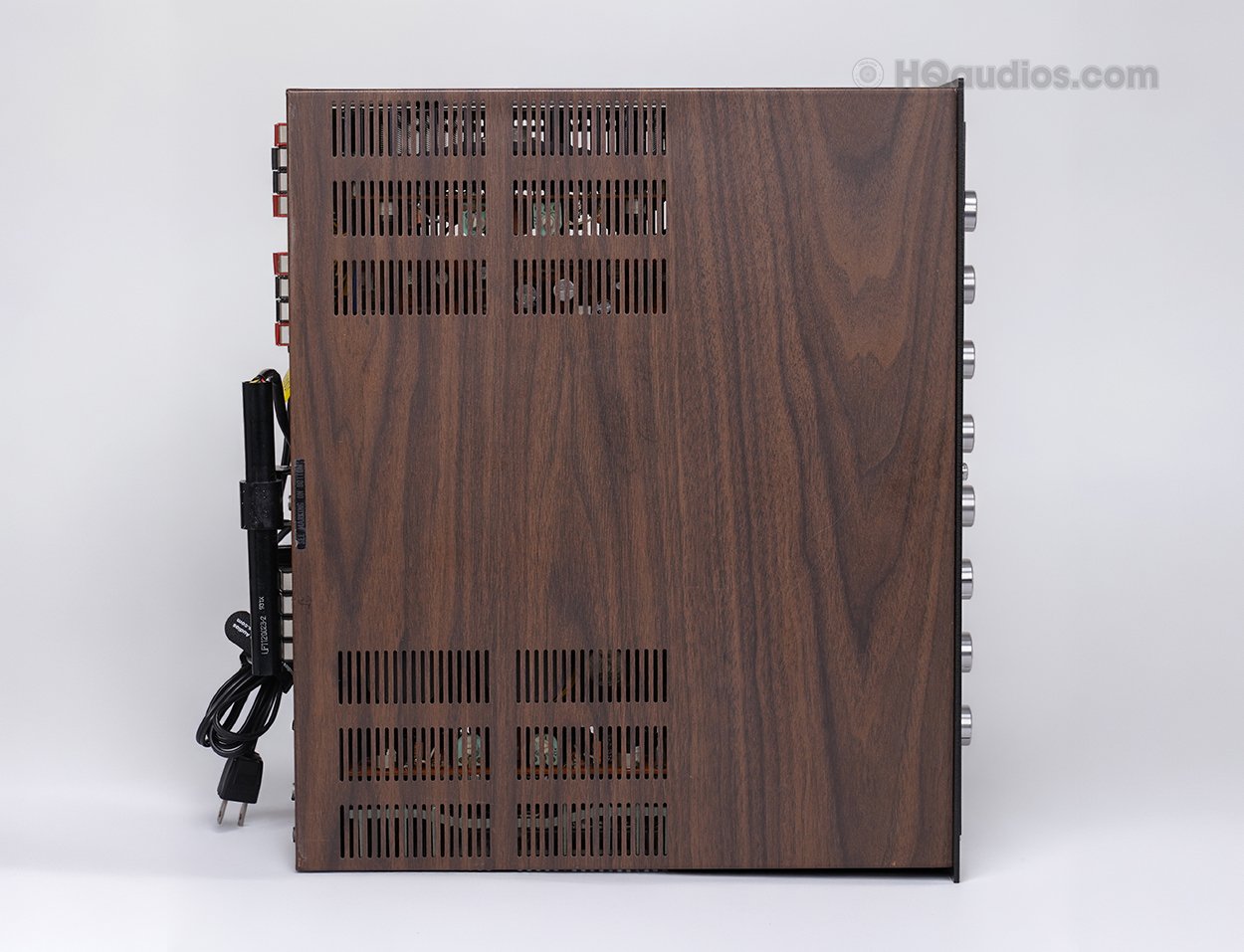

Wood case included, as shown in the actual photographs

Built-in Dolby noise-reduction circuitry and Vari-Matrix processing

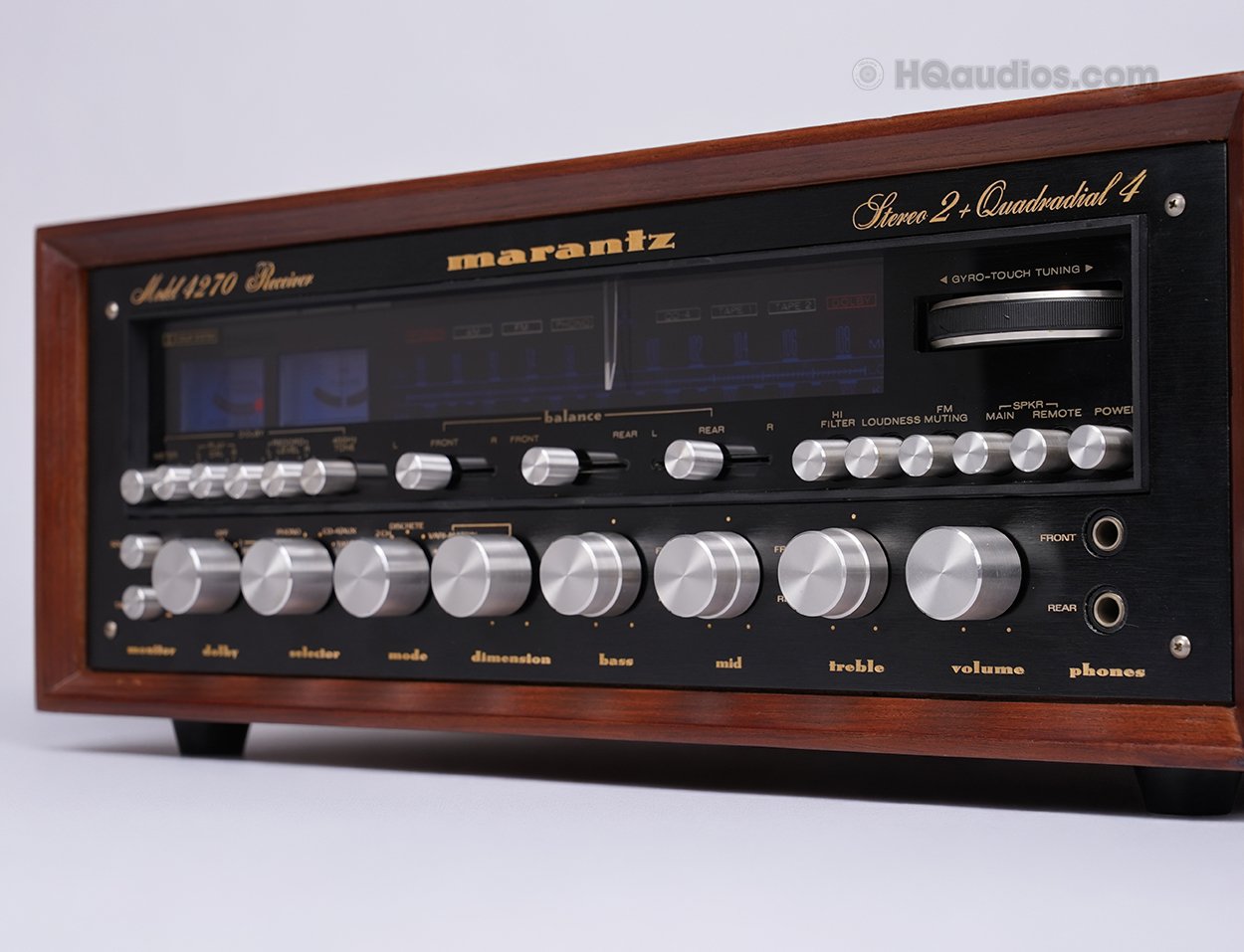

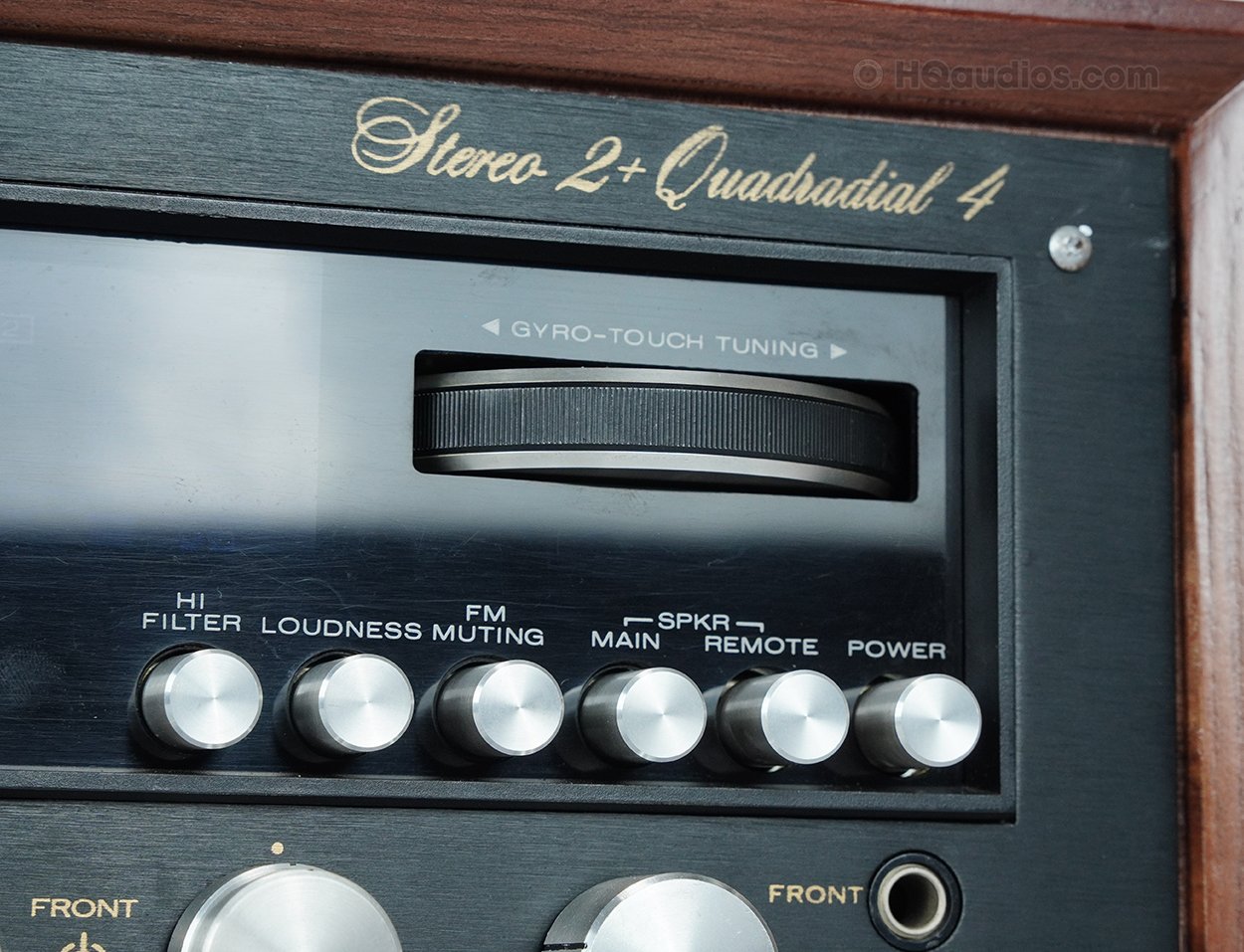

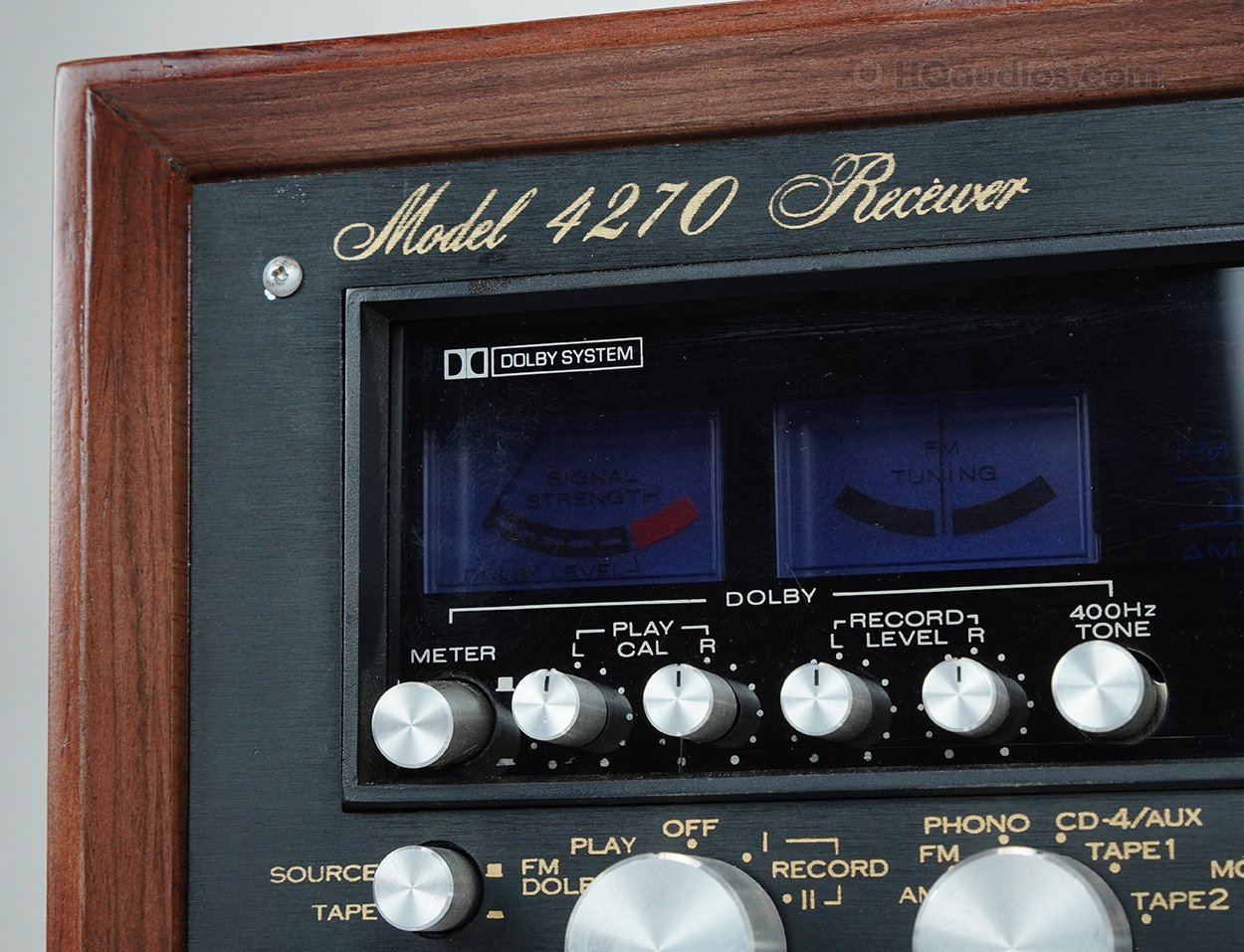

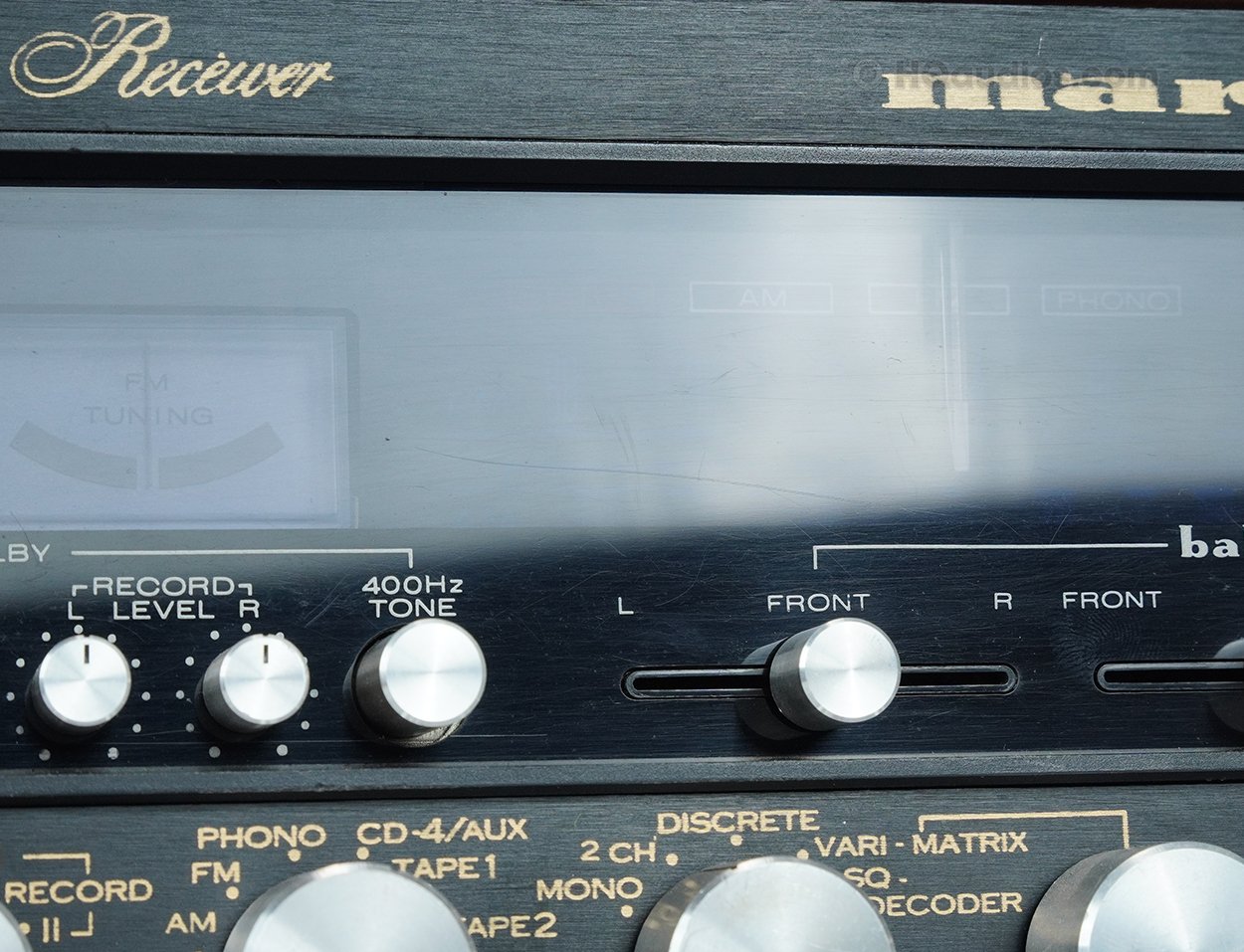

Classic Gyro-Touch tuning with blue-illuminated dial and analog meters

Dedicated bass, midrange and treble tone controls

Rear-panel Power Mode selection for stereo and quadraphonic operation

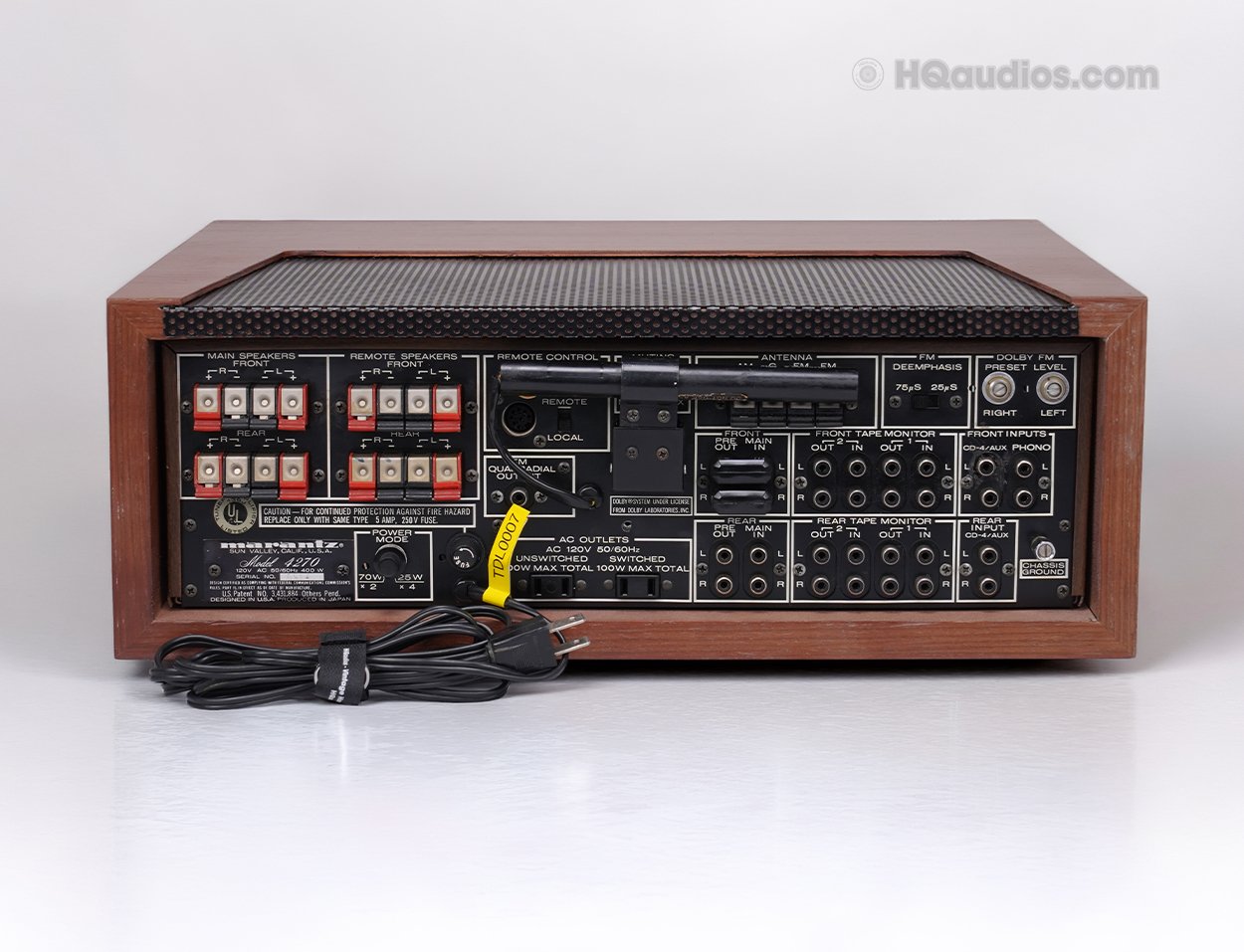

Separate FRONT and REAR PRE OUT / MAIN IN connections

120V AC, 50/60Hz – U.S. mains compatible

Technical service and cosmetic detailing by HQaudios

Backed by our 1-Year HQaudios Warranty

Before Restoration

When this Marantz 4270 entered our workshop, our technicians inspected its electrical, mechanical and cosmetic condition before service.

The inspection covered the power-supply and amplifier sections, accessible signal connections, front-panel controls, the tuner, Gyro-Touch tuning mechanism, dial illumination, and the stereo/quadraphonic operating arrangement.

Aging electronic components and lighting assemblies were also evaluated. The custom black faceplate, dial window, silver controls and wooden case were examined for cosmetic wear.

Technical Condition

Stereo Amplifier: The front-channel amplifier system was evaluated following technical service. Left and right stereo playback was checked through music reproduction.

Quadraphonic Configuration: The receiver retains its original four-channel amplifier architecture, rear Power Mode selector and separate front/rear connections. Correct PRE OUT / MAIN IN jumper connections are required for normal four-channel operation.

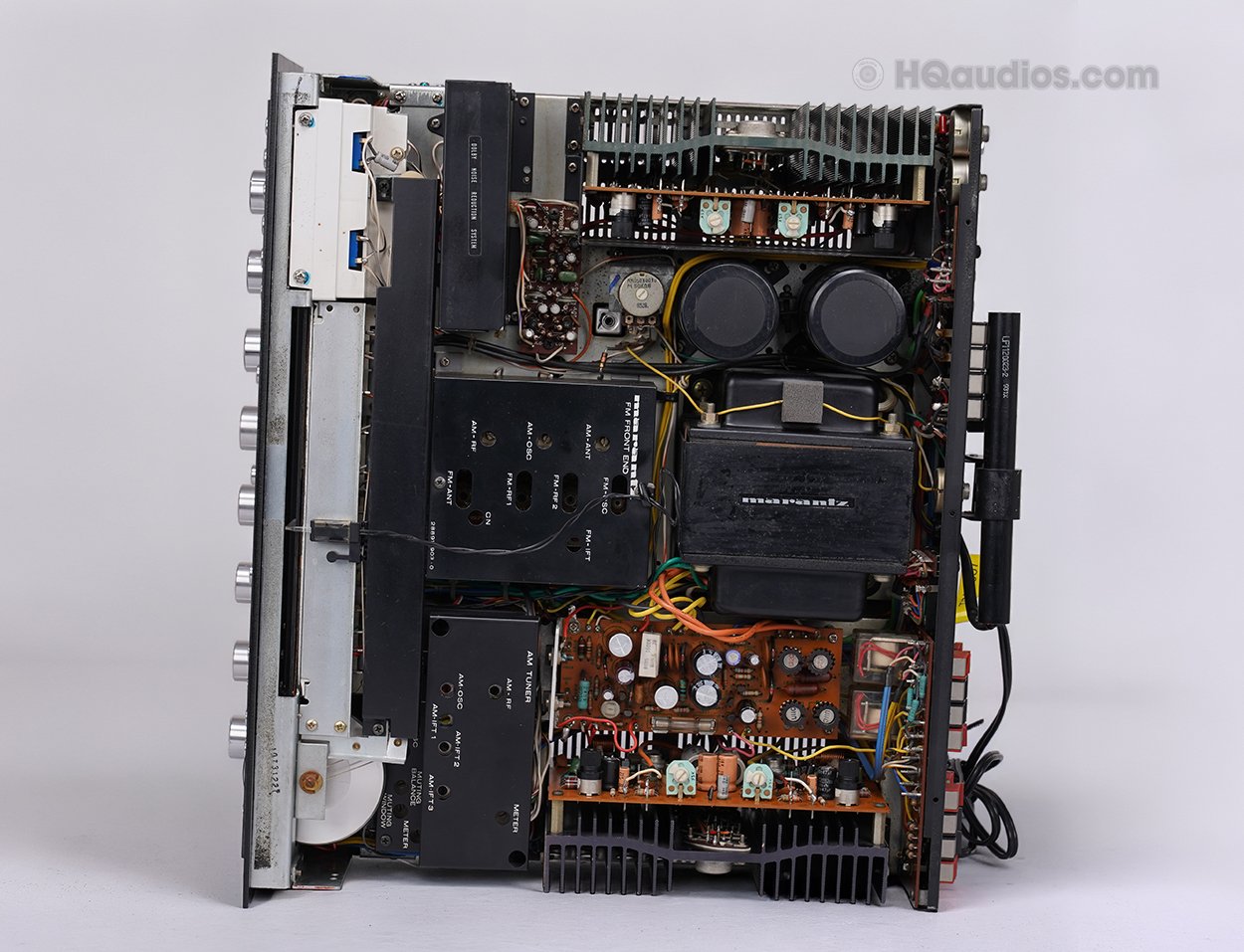

Power Supply & Electronic Sections: The power-supply and amplifier assemblies received inspection and service attention, followed by stereo playback evaluation.

Controls & Switches: The front-panel controls were included in the service process and assessed during operating checks.

Gyro-Touch Tuning: The tuning mechanism, dial and analog meter assemblies were examined during service, retaining the traditional Marantz control layout.

Dolby & Vari-Matrix: The original Dolby and Vari-Matrix circuitry and associated controls remain installed in the receiver.

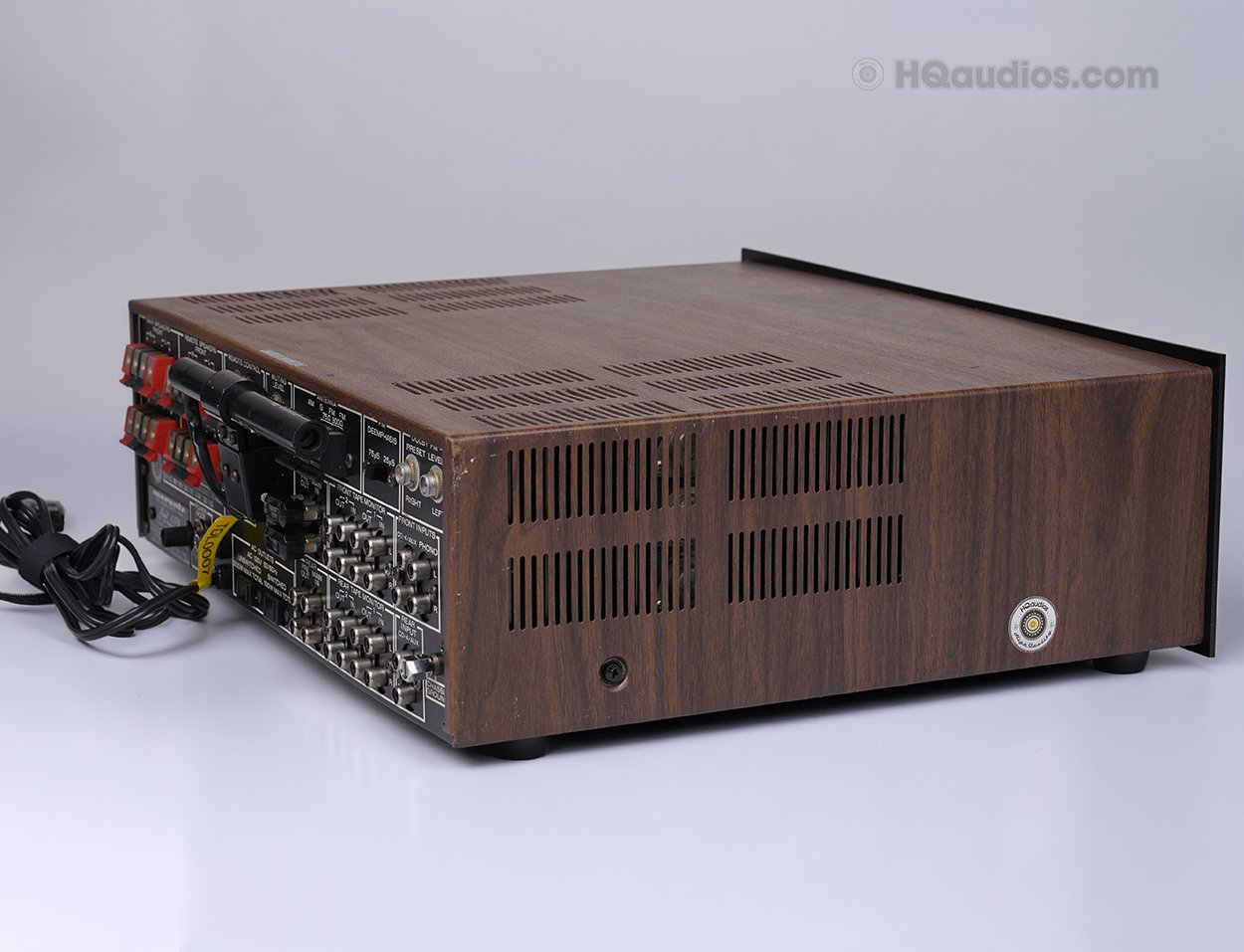

Rear Signal Connections: The receiver retains separate FRONT and REAR PRE OUT / MAIN IN connectors for its original operating configurations.

AC Power: Factory-rated for 120V AC, 50/60Hz operation, compatible with U.S. mains power.

Stereo Mode – 70W x 2: The amplifier operates in bridged stereo configuration. Connect speakers rated at 8 ohms or higher to the FRONT speaker terminals only.

Quadraphonic Mode – 25W x 4: The receiver provides separate front and rear amplifier channels for a correctly connected four-speaker system.

Power Mode Selection: Always turn the receiver OFF before changing the rear-panel POWER MODE switch.

Bridged Stereo Connections: Speaker outputs are not common-ground in bridged mode. Do not use speaker selectors or accessories that connect speaker negative terminals together.

PRE OUT / MAIN IN Connections: Proper jumper links or compatible external signal routing are required between the corresponding preamplifier and power-amplifier connections for normal operation.

Vari-Matrix: The built-in circuitry provides synthesized four-channel playback. This receiver is not represented as including an optional dedicated SQ decoder.

Brand: Marantz

Model: 4270

Type: Stereo 2 + Quadradial 4 AM/FM Receiver

Era: Mid-1970s

Made In: Japan

Stereo Power Output: 70 W x 2 into 8 Ohms

Quadraphonic Power Output: 25 W x 4 into 8 Ohms

Stereo Configuration: BTL / Bridged Amplifier

Stereo THD: 0.3%

Damping Factor: 45

Frequency Response: 20 Hz – 20 kHz (±1 dB at 1W output)

Phono Input: 2.2 mV / 47 kOhms

Line Input Sensitivity: 150 mV / 100 kOhms

Audio Inputs: Phono, AUX, Tape 1, Tape 2, Four-Channel Inputs

Signal Connections: FRONT and REAR PRE OUT / MAIN IN

Tone Controls: Bass, Midrange, Treble

Bass: +/-10 dB at 50 Hz

Midrange: +/-10 dB at 700 Hz

Treble: +/-10 dB at 15 kHz

Processing: Dolby Noise Reduction / Vari-Matrix

Tuning: Gyro-Touch AM/FM

FM Sensitivity: 2.2 microvolts

AC Power: 120V AC / 50-60Hz

Power Consumption: 400 Watts (rear-panel rating)

Factory Chassis Dimensions: Approx. 17.33 W x 5.39 H x 14.38 D inches

Factory Chassis Weight: Approx. 40.2 lbs / 18.2 kg, excluding wood case

Finish: Custom Black Faceplate / Silver Controls

Wood Case: Included

SHIPPING & PACKAGING

Your Marantz 4270 will be professionally packed by HQaudios using protective materials appropriate for its substantial weight, delicate dial glass, custom faceplate and vintage construction.

The front glass, controls, knobs, switches and wooden case will receive protective cushioning, with reinforcement around the receiver’s corners and vulnerable surfaces.

The receiver will be securely positioned inside a reinforced shipping carton, with additional protective boxing when needed for safer transportation.

1-YEAR WARRANTY & CUSTOMER SUPPORT

Your purchase is backed by our 1-Year HQaudios Warranty. Our team provides support before and after your purchase. If you have questions about setup, Stereo/Quad operation, speaker connections, compatibility or your order, please contact HQaudios for assistance.
