JBL L36 Decade 3-Way Bookshelf Speaker – Restored – 1-Year Warranty

$1,599

-

  • • JBL L36 Decade / Decade 36 vintage speaker pair
    • 3-way, 3-driver bass-reflex / ducted-port design
    • 10-inch low-frequency driver
    • 5-inch dedicated midrange driver
    • 1.4-inch high-frequency direct radiator
    • Crossover frequencies: 1,500 Hz / 6,000 Hz
    • Nominal impedance: 8 Ohms
    • Power capacity: 50 Watts Continuous Program
    • Presence and Brilliance front-panel level controls
    • Professionally inspected, serviced, and tested by HQaudios
    • Real-world music playback test completed
    • 1-Year HQaudios Warranty

1 in stock

SKU: 15QUS0220 Category:

JBL L36 Decade 3-Way Bookshelf Speaker Pair
Professionally Serviced & Fully Tested – 1-Year Warranty
Professionally Serviced, Inspected & Fully Tested by HQaudios – Backed by Our 1-Year Warranty.

About This Pair

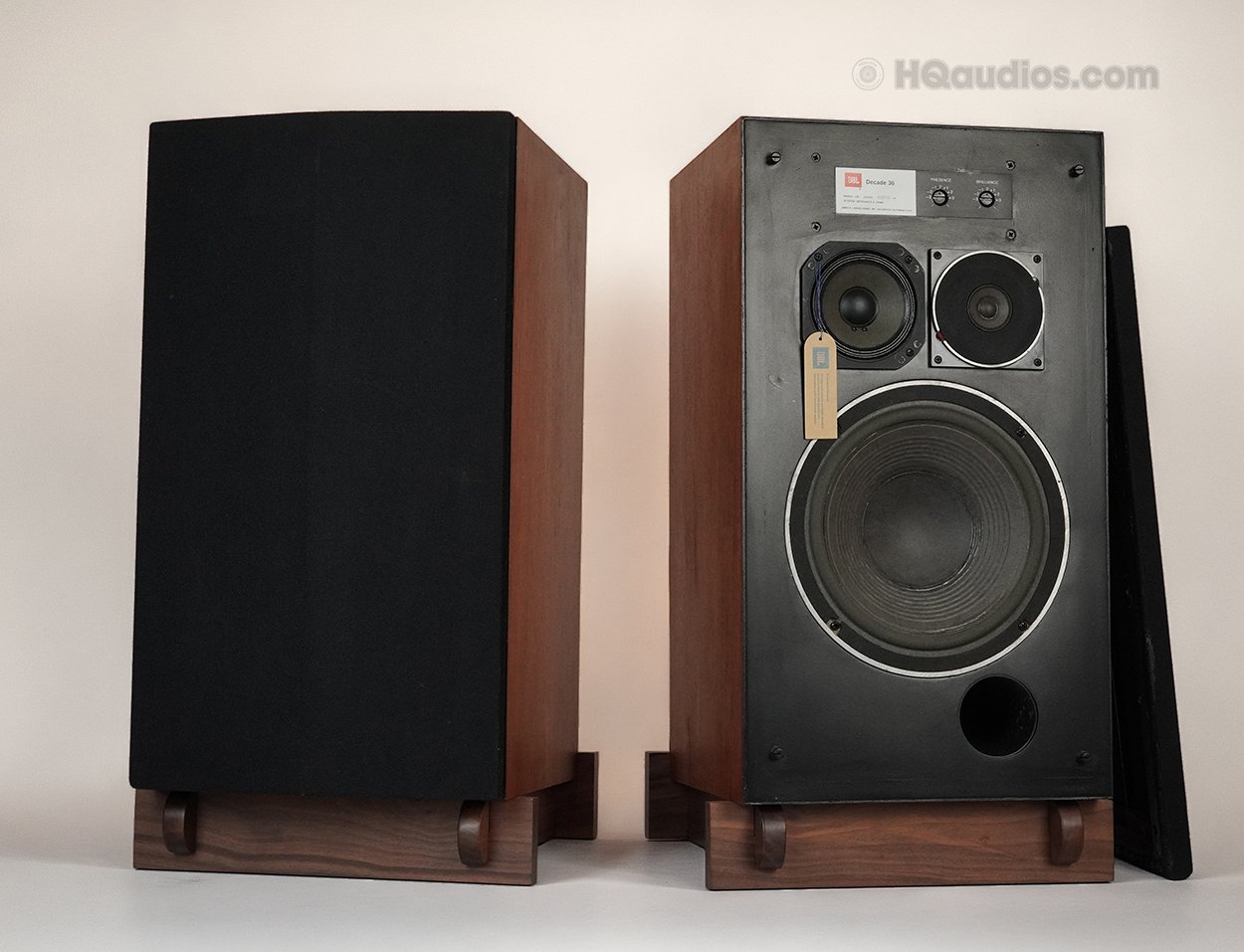

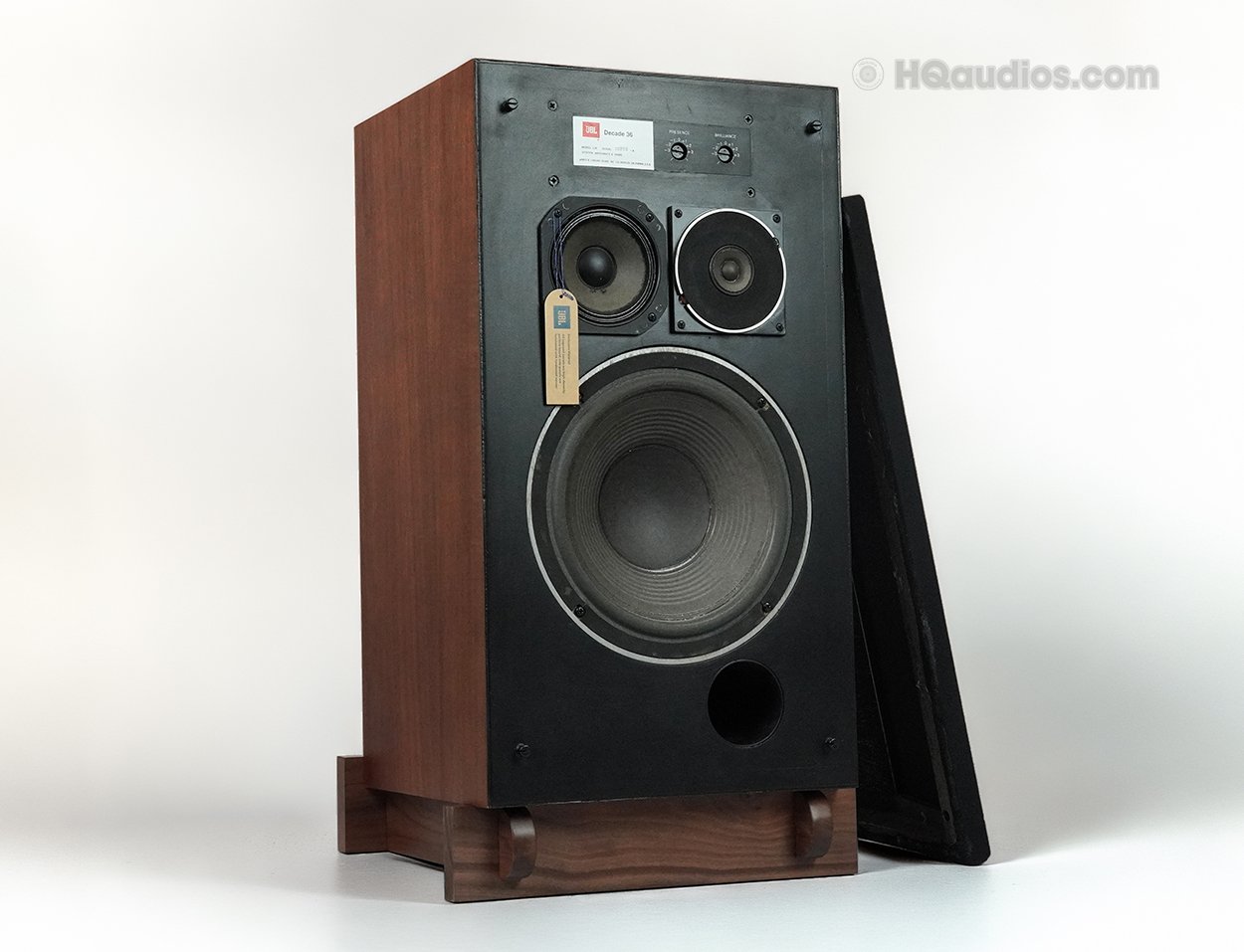

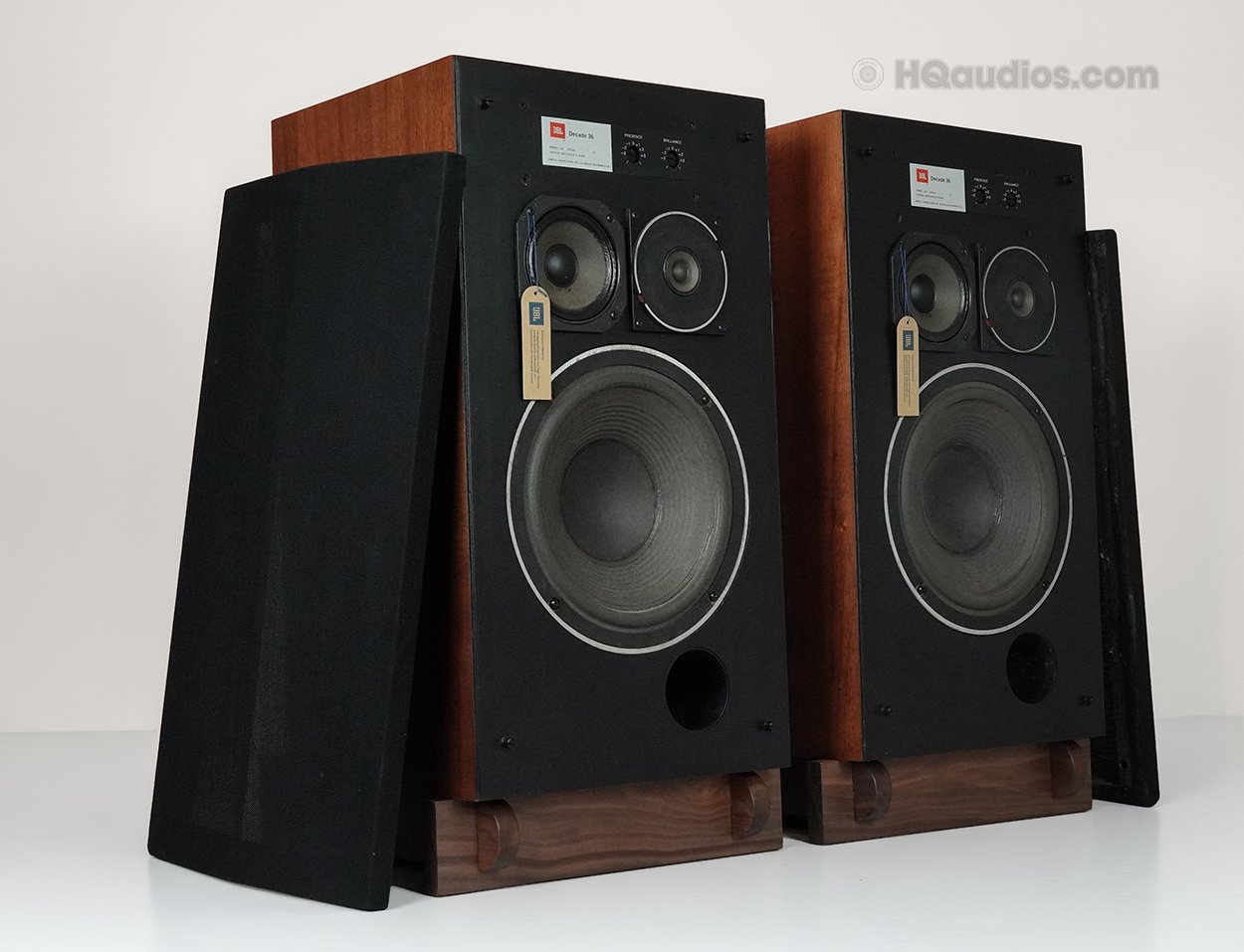

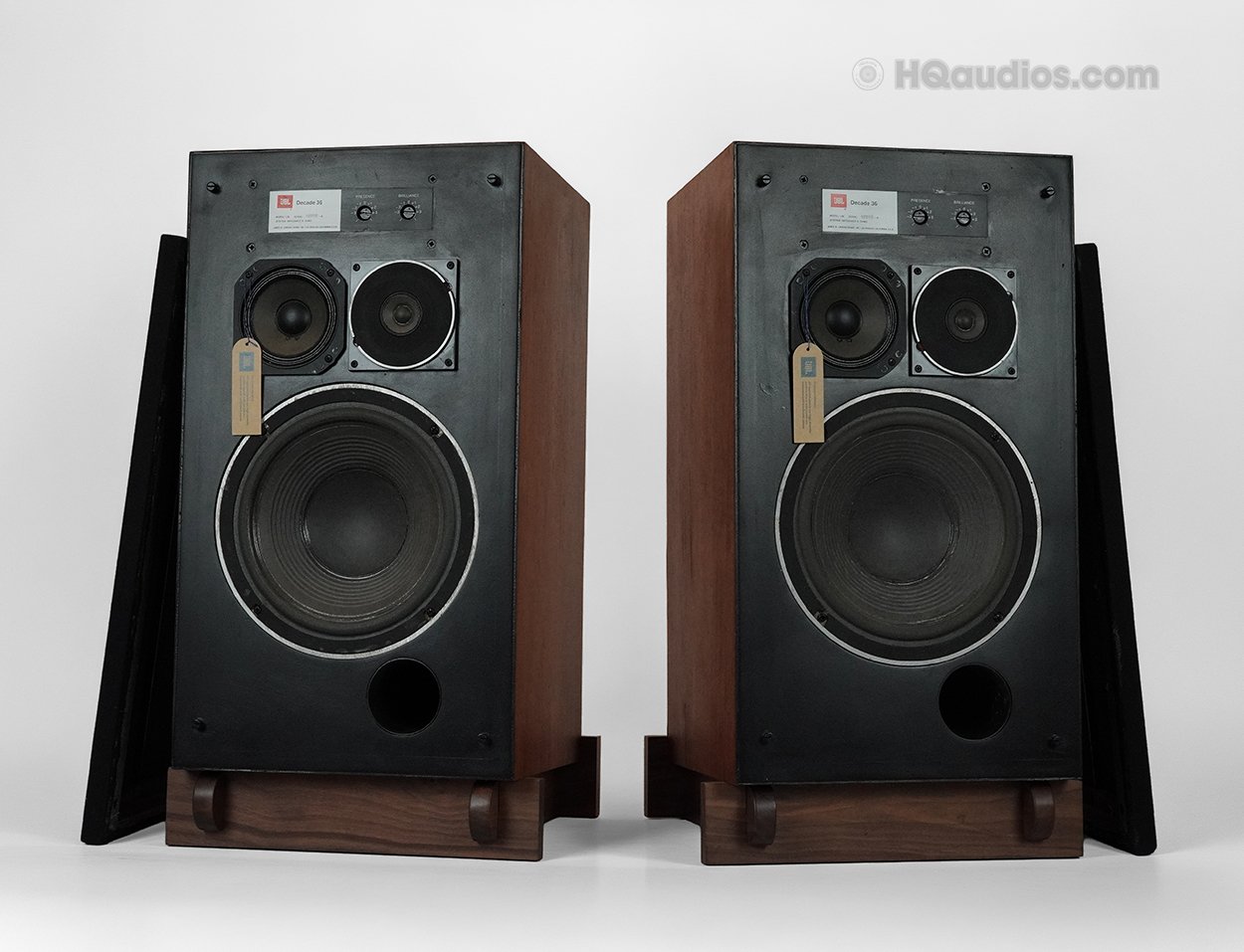

Offered here is a pair of JBL L36 Decade three-way vintage loudspeakers, professionally inspected, serviced, and tested by HQaudios.
The L36 Decade is a three-way, three-driver bass-reflex / ducted-port bookshelf loudspeaker from JBL’s classic 1970s home-audio era.

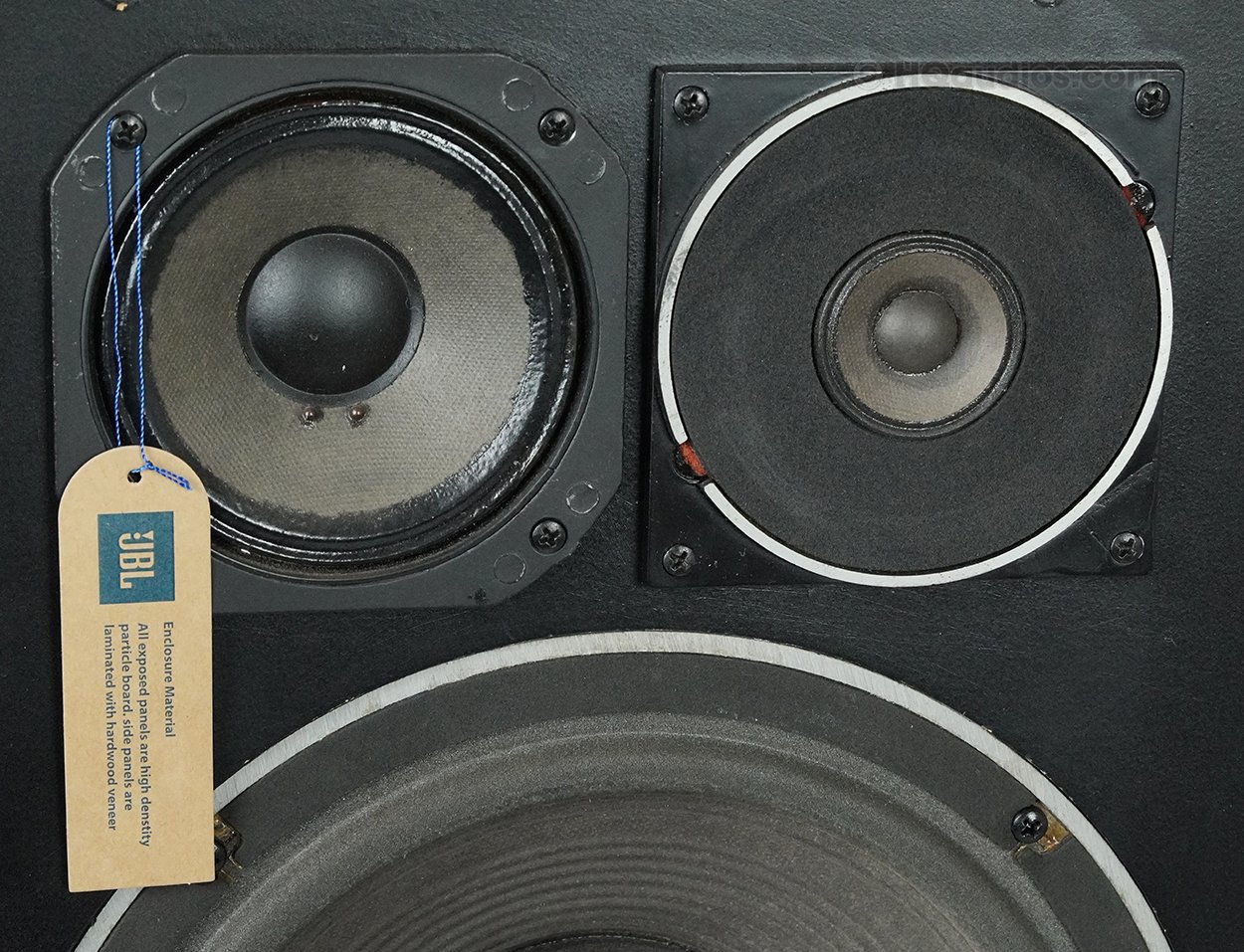

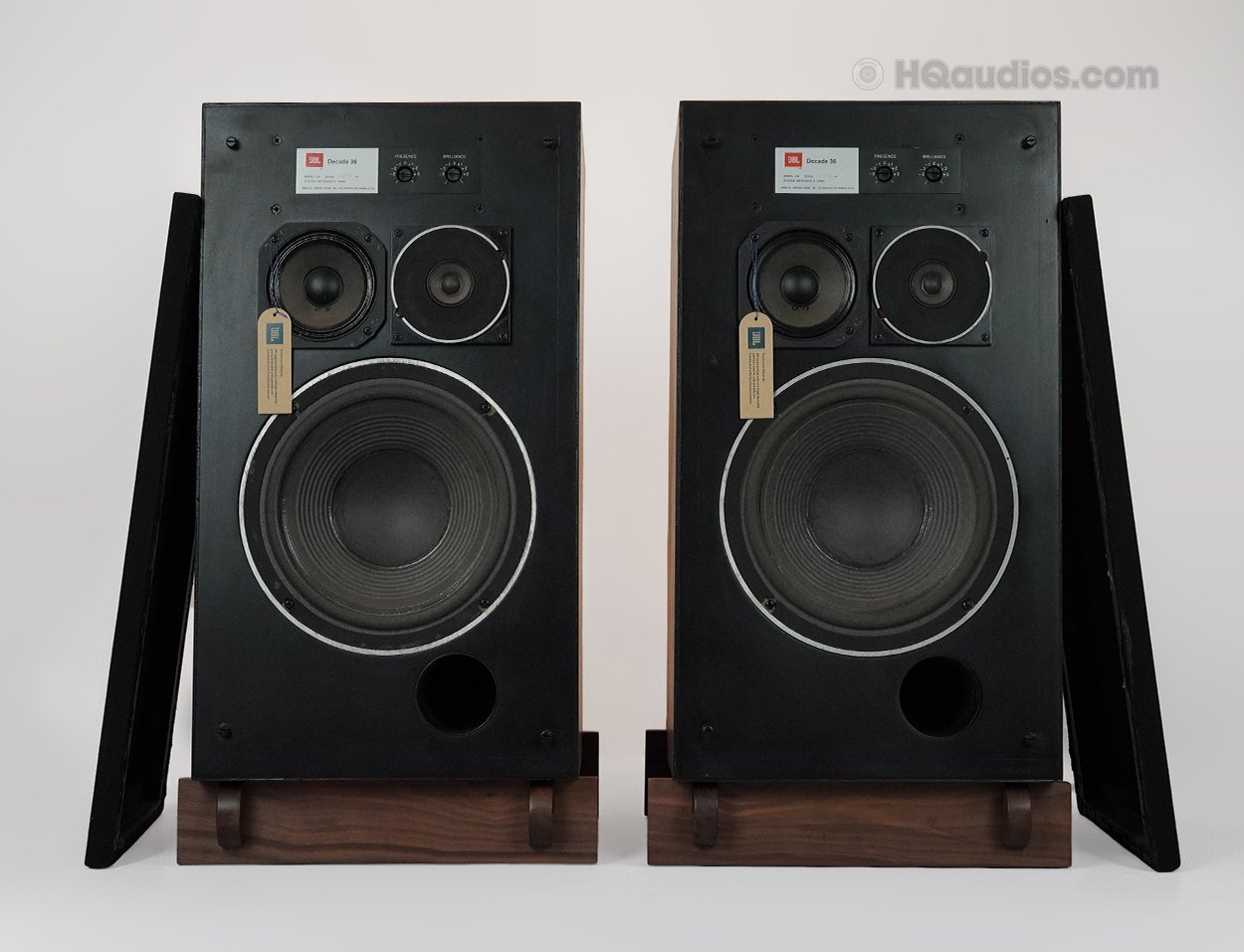

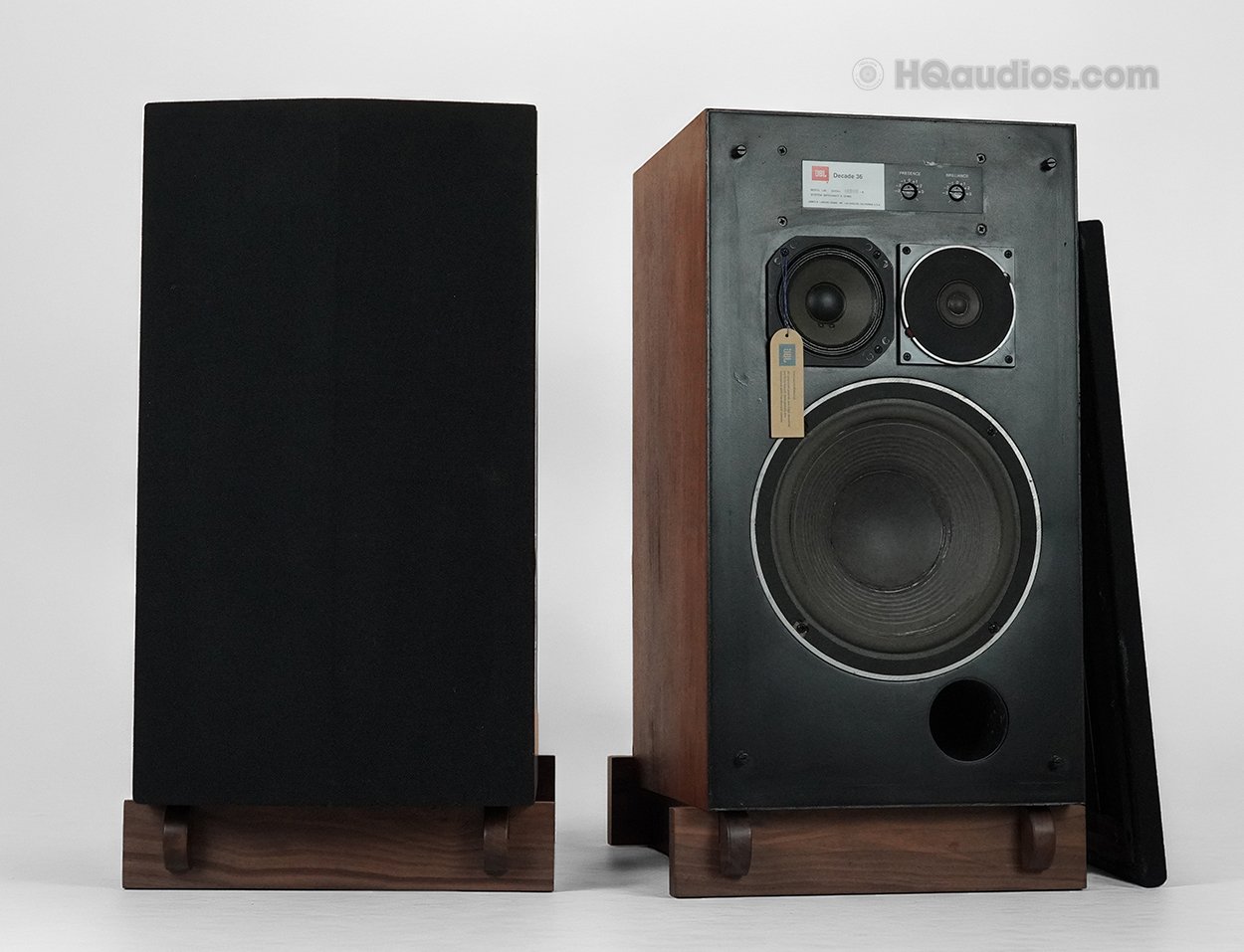

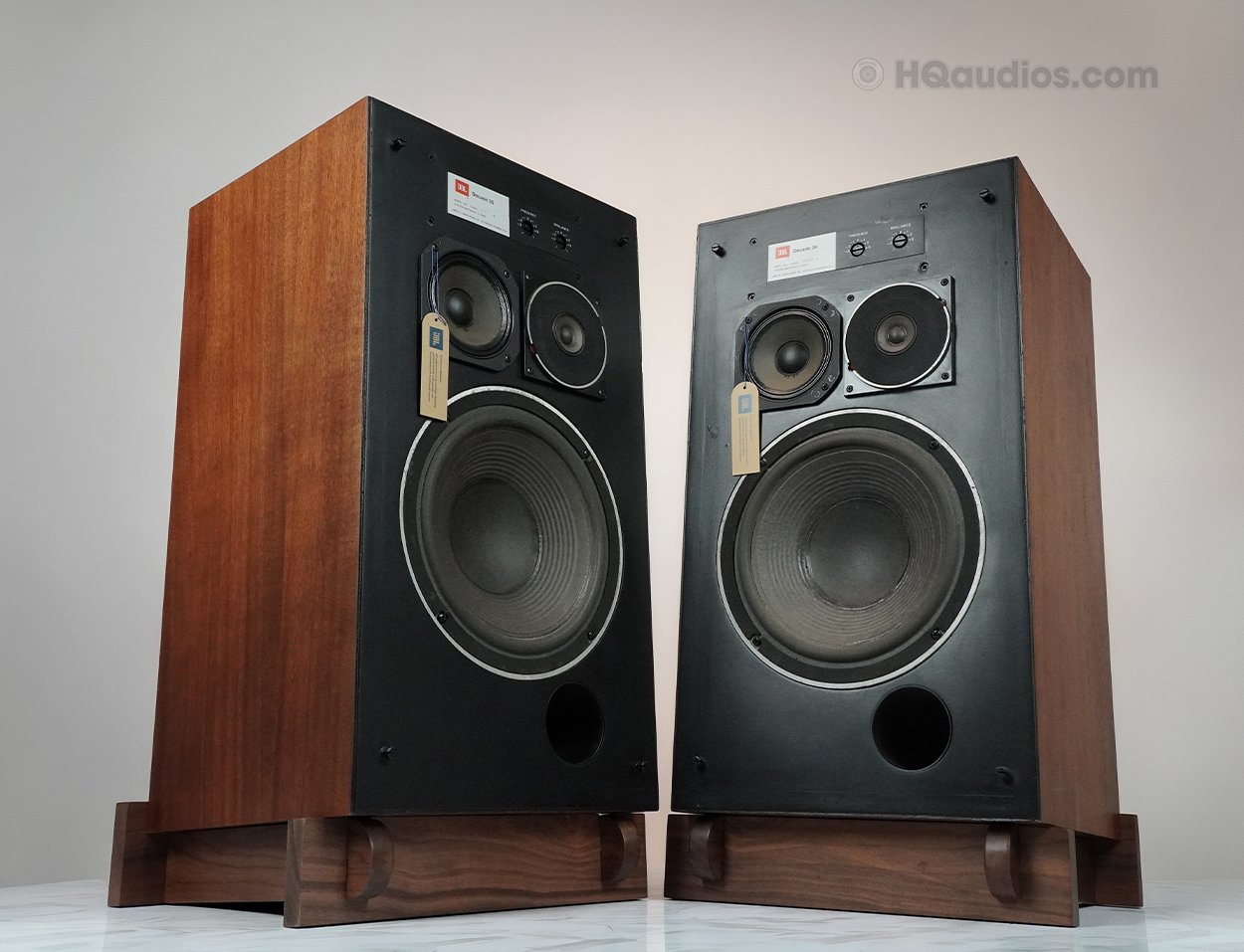

Its factory design combines a 10-inch low-frequency driver, dedicated 5-inch midrange driver, and 1.4-inch high-frequency direct radiator, together with front-panel Presence and Brilliance controls for adjustment of the midrange and high-frequency sections.
This pair has been inspected and tested under real listening conditions by HQaudios before sale.
The speakers are backed by our 1-Year HQaudios Warranty.

Key Highlights
• JBL L36 Decade / Decade 36 vintage speaker pair
• 3-way, 3-driver bass-reflex / ducted-port design
• 10-inch low-frequency driver
• 5-inch dedicated midrange driver
• 1.4-inch high-frequency direct radiator
• Crossover frequencies: 1,500 Hz / 6,000 Hz
• Nominal impedance: 8 Ohms
• Power capacity: 50 Watts Continuous Program
• Presence and Brilliance front-panel level controls
• Professionally inspected, serviced, and tested by HQaudios
• Real-world music playback test completed
• 1-Year HQaudios Warranty

Why the JBL L36 Decade Is Notable
The L36 Decade comes from JBL’s classic 1970s home-loudspeaker lineup and uses a true three-way configuration with dedicated drivers for the low-, mid-, and high-frequency ranges.
A dedicated midrange driver handles the important vocal and instrumental region, while the 10-inch low-frequency driver provides the bass foundation and the high-frequency driver covers the upper range.
JBL also provided separate Presence and Brilliance controls, allowing the midrange and high-frequency balance to be adjusted for room placement and listening preference.
For buyers building a classic vintage system, the L36 is a natural match for many receivers and integrated amplifiers from the same era.

HQaudios Service & Testing

Inspection & Service
This pair was professionally inspected and serviced by HQaudios according to its actual condition.
All installed drivers were checked for proper operation.
Because a complete component-by-component service record has not been provided with this listing draft, no claim is being made that the crossover networks were fully recapped, or that the drivers were reconed, refoamed, replaced, or completely rebuilt.

Final Testing
• Both speakers checked for proper operation
• Installed drivers checked for output
• Left and right speaker playback evaluated
• Pair tested with music under real listening conditions
• Final functional check completed before sale

Technical Condition
This JBL L36 Decade pair has been professionally inspected and tested by HQaudios.
All installed drivers were checked for proper operation, and the pair was evaluated under normal music playback conditions.
JBL produced more than one L36-era configuration. The factory specifications below describe the original L36 Decade design; the installed driver model numbers on this actual pair should be confirmed from driver markings before they are represented as factory-original components.

L36 vs. Later L36 Configuration
Original JBL L36 Decade factory configuration:
• JBL 125A Woofer
• JBL LE5-6 Midrange
• JBL LE25-2 High-Frequency Driver
• JBL N36 Network
Later configuration:
• JBL 125A Woofer
• JBL LE5-6 Midrange
• JBL LE25-4 High-Frequency Driver
• JBL N36 Network

Cosmetic Condition
This is a vintage pair of JBL loudspeakers and normal signs of age and previous use may remain.
Please review the listing photographs carefully for the exact condition of:

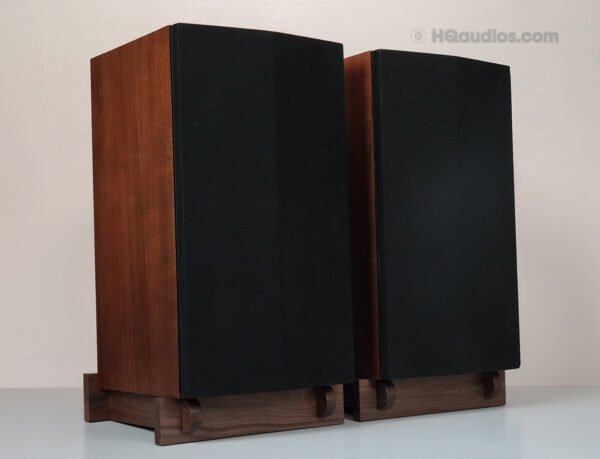

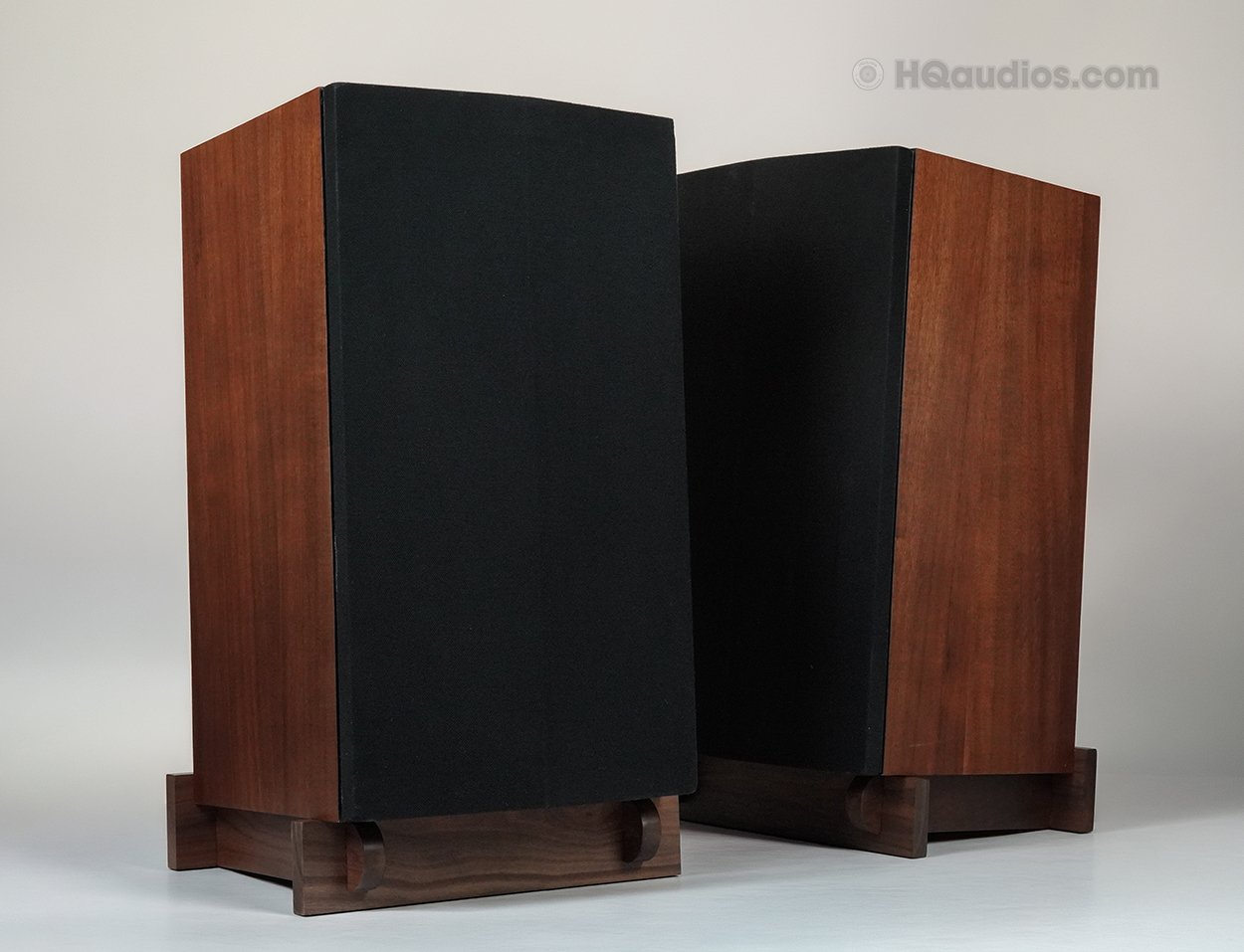

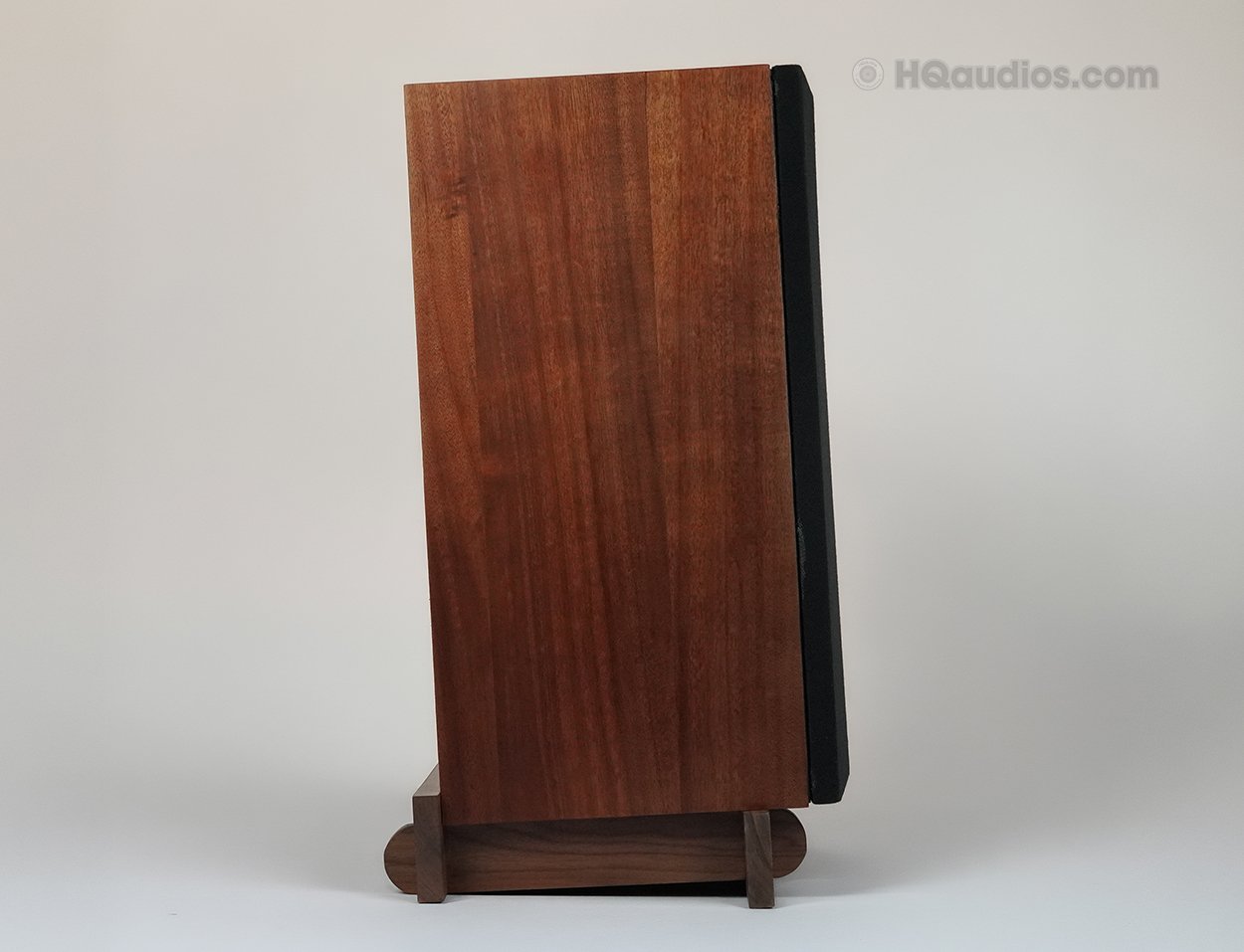

• Cabinet surfaces and veneer
• Corners and edges
• Front baffles

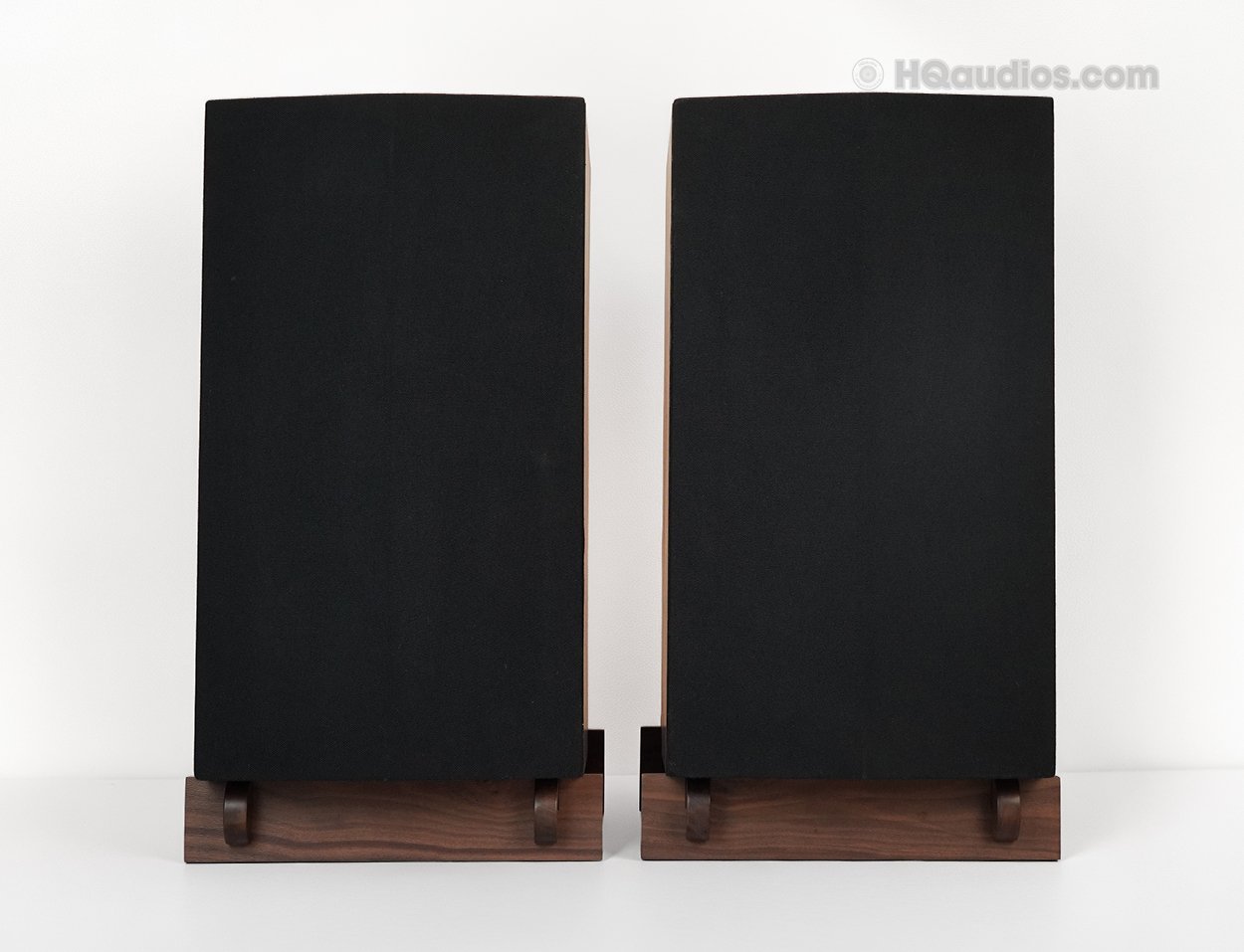

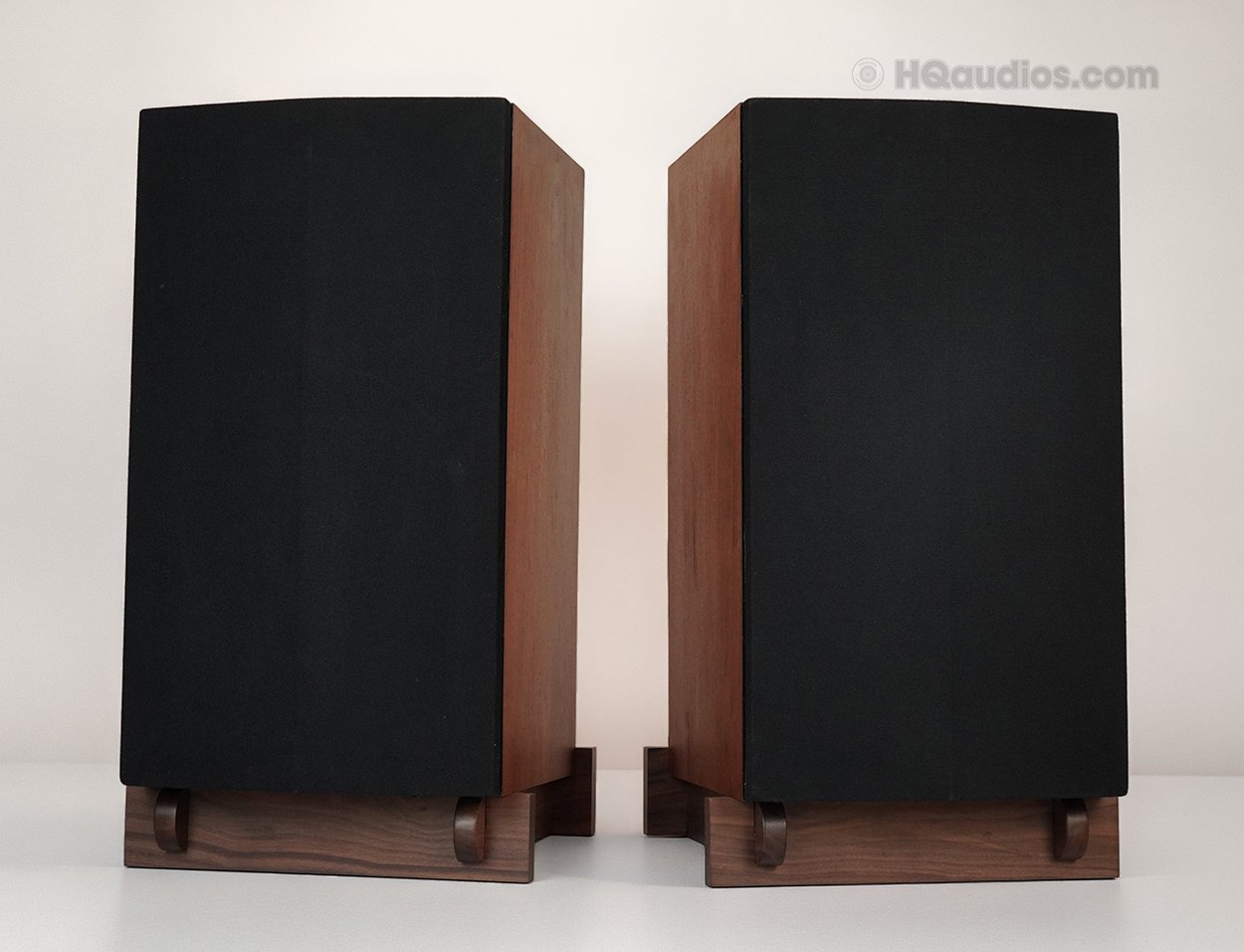

• Grille cloths
• JBL badges

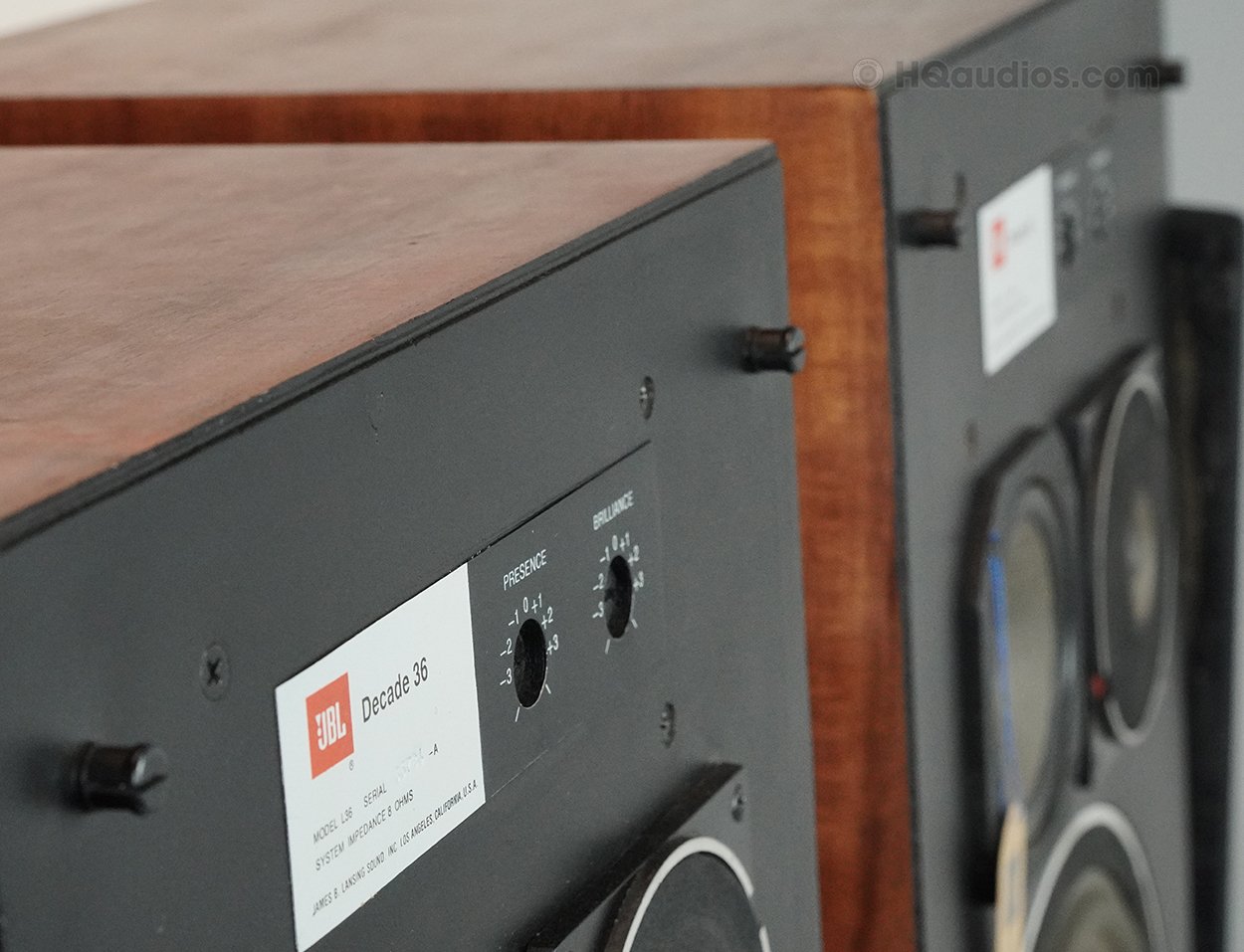

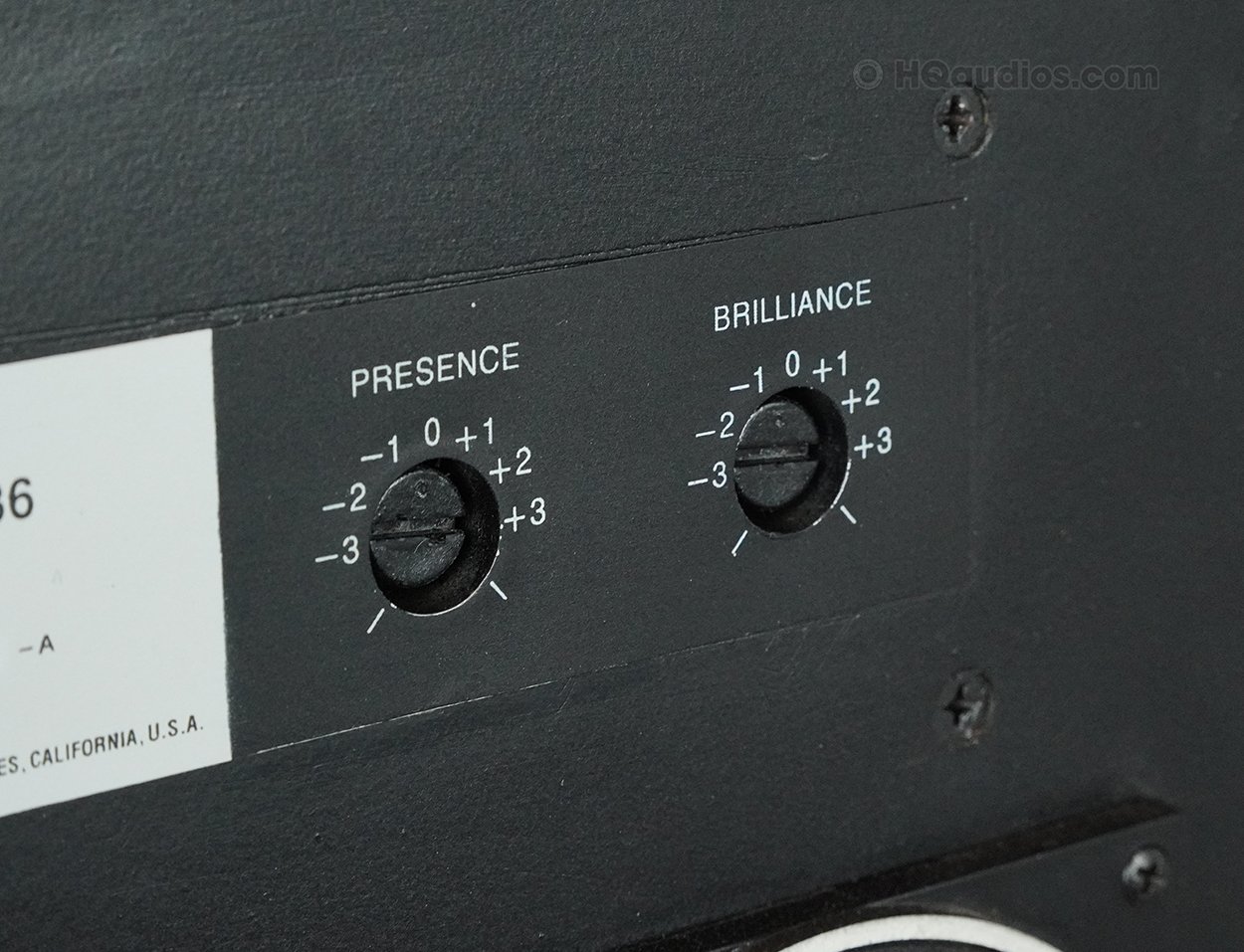

• Presence and Brilliance controls

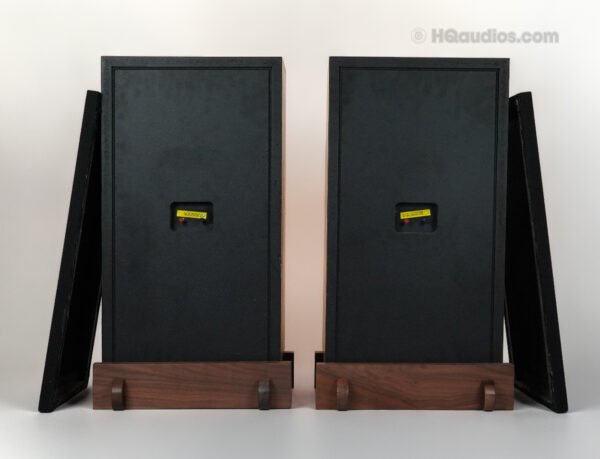

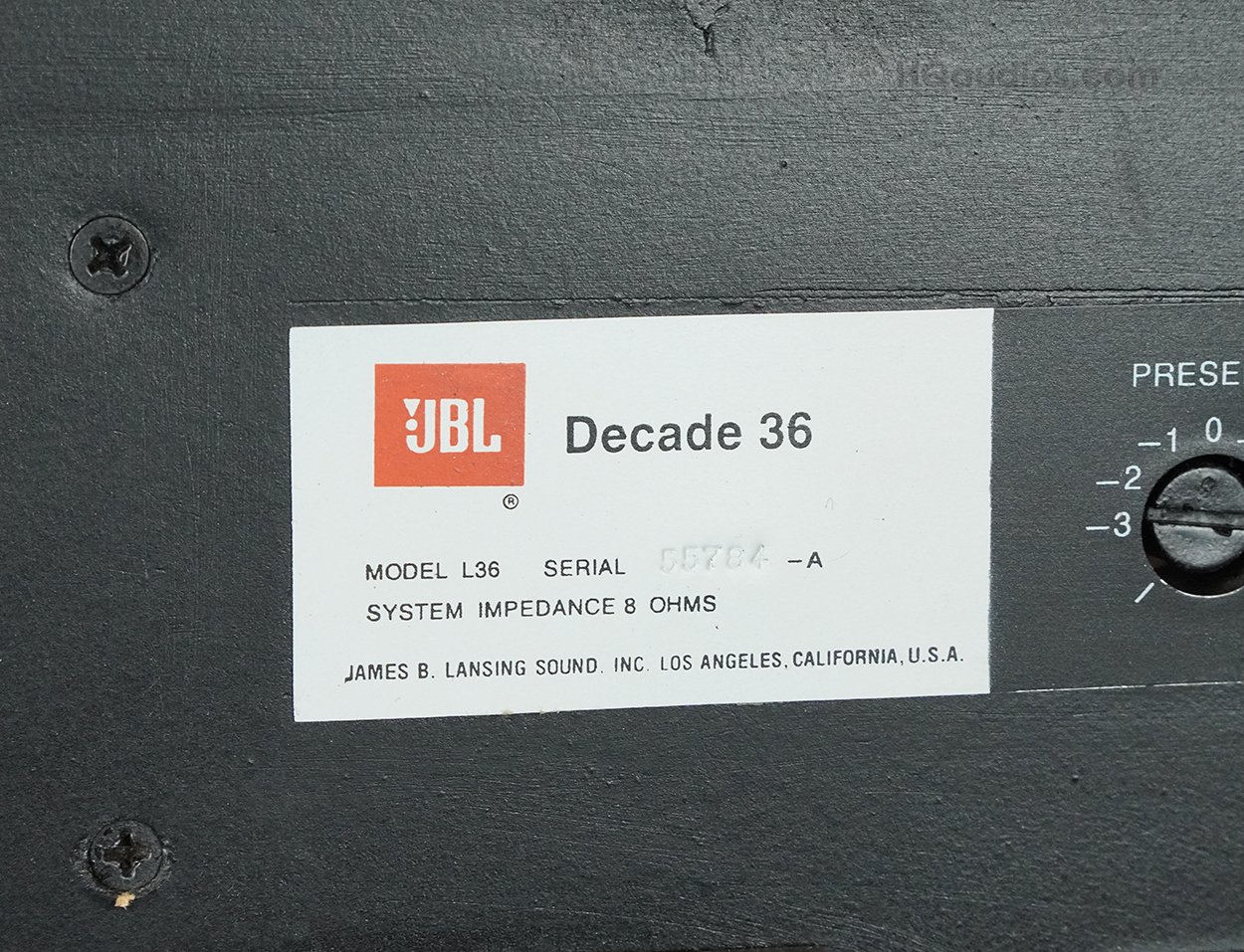

• Rear labels

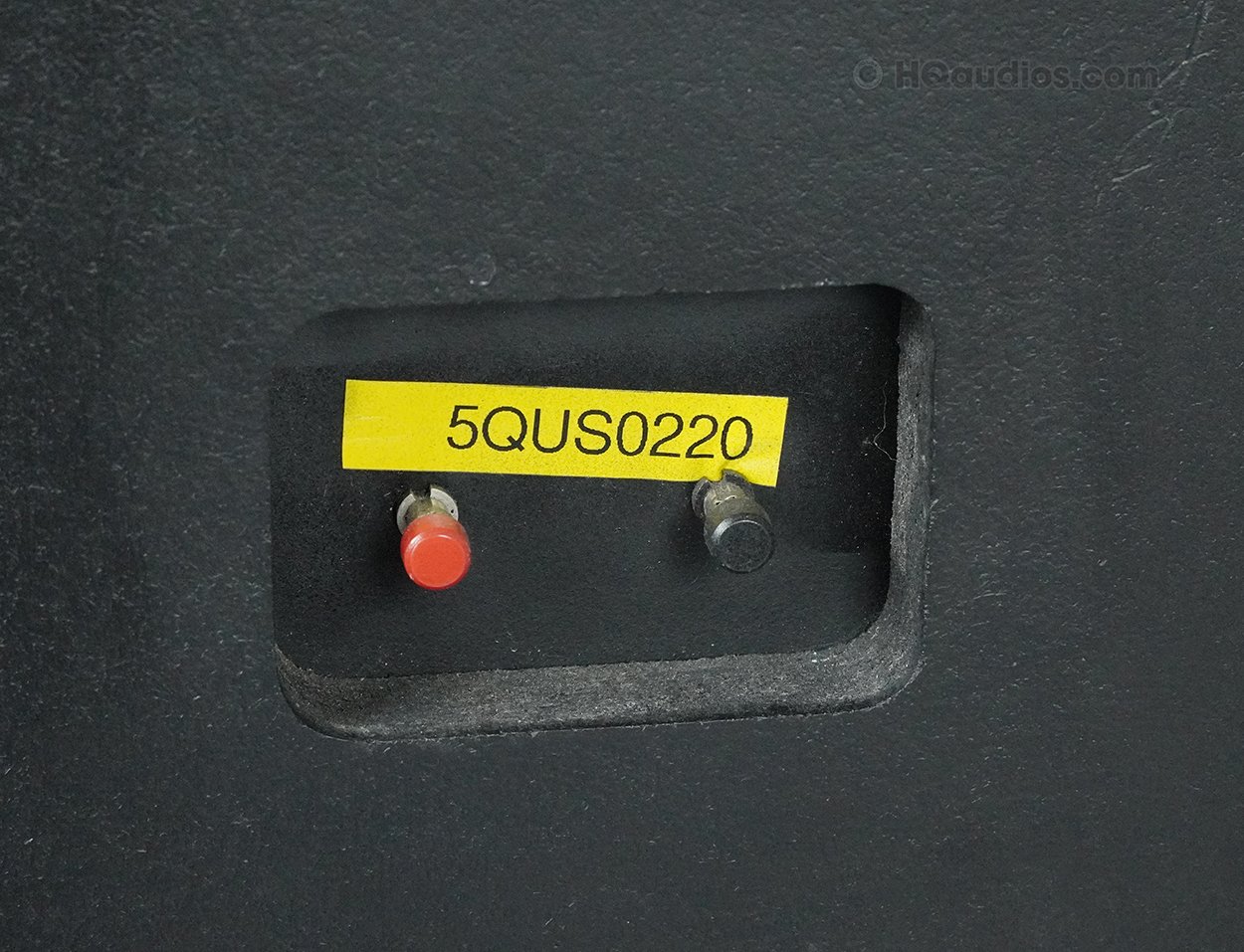

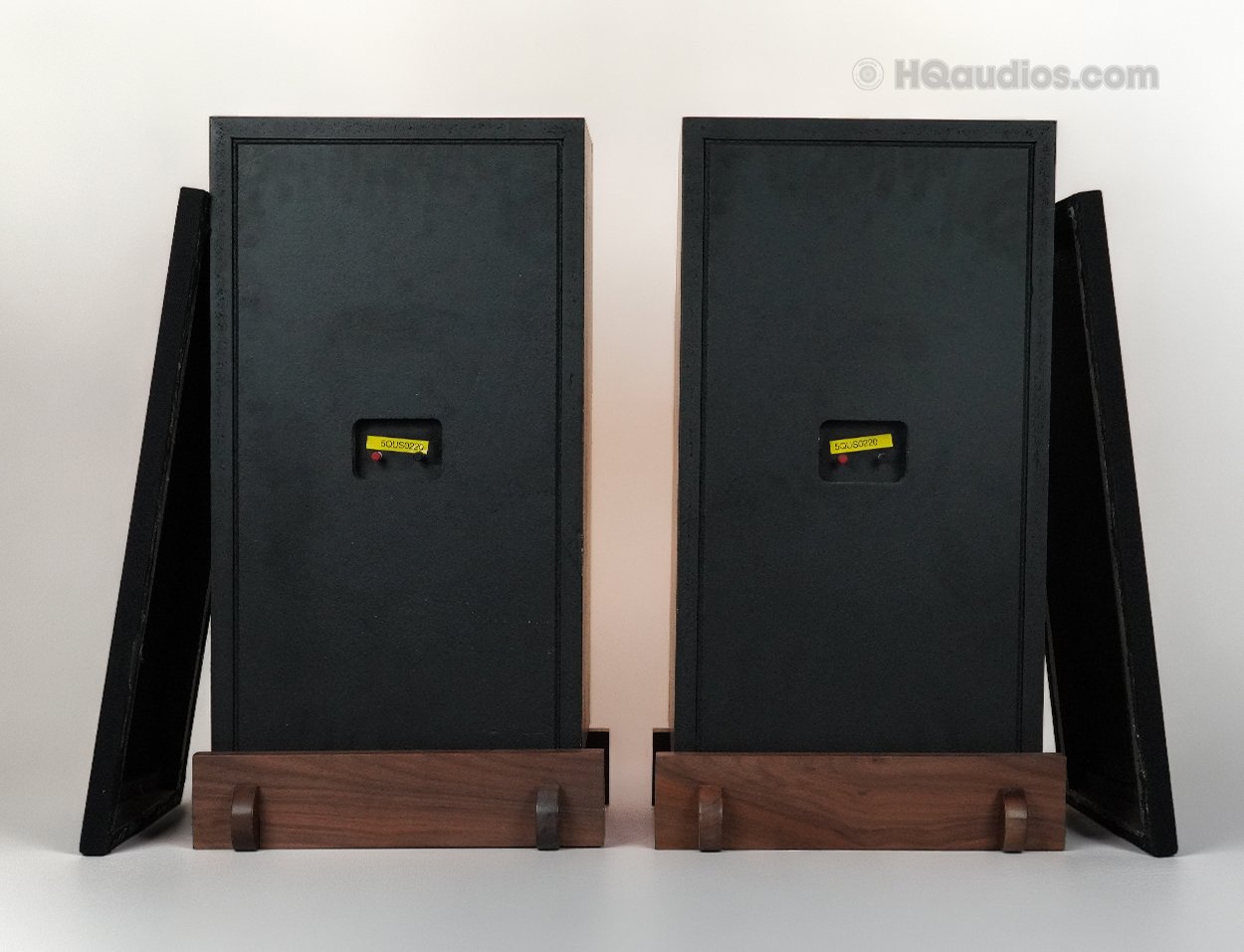

• Speaker terminals
JBL factory literature specifies a Natural Oak finish for the L36 Decade.
No claim is being made here that the finish on this actual pair remains factory-original. Any refinishing or finish change should be disclosed separately if applicable.

Factory Specifications – JBL L36 Decade
SpecificationJBL Factory Specification
BrandJBL
ModelL36 Decade / Decade 36
Type3-Way, 3-Driver Bass-Reflex / Ducted-Port Bookshelf Loudspeaker

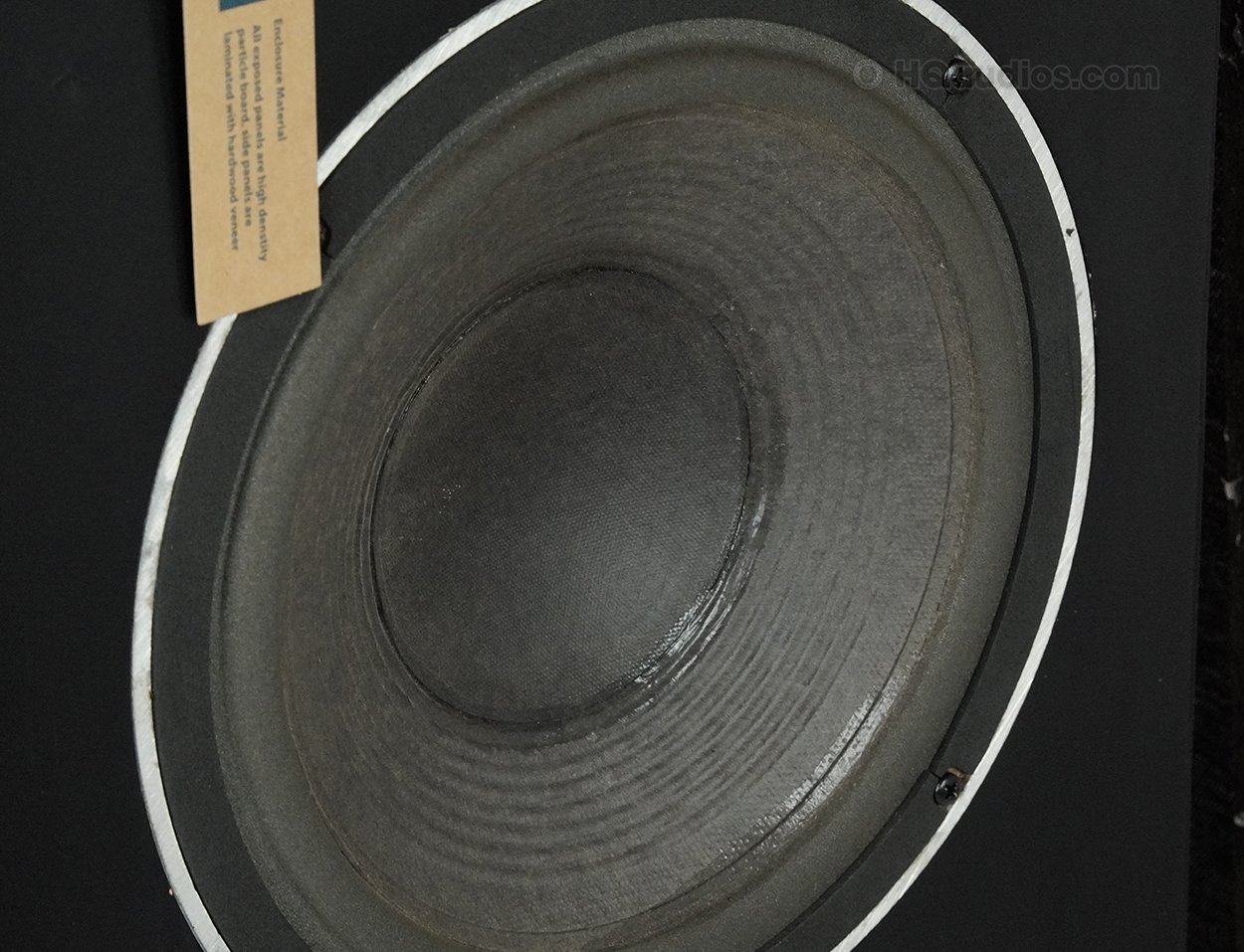

Factory Woofer10 in / 25 cm JBL 125A
Factory Midrange5 in / 13 cm JBL LE5-6
Factory High Frequency1.4 in / 3.6 cm JBL LE25-2
Crossover NetworkJBL N36
Crossover Frequencies1,500 Hz / 6,000 Hz
Nominal Impedance8 Ohms
Power Capacity50 Watts Continuous Program
System Sensitivity76 dB SPL @ 1 W / 15 ft – Original JBL Rating
Frequency ResponseNot Specified in Original JBL Literature
Dispersion90° Horizontal × 90° Vertical
Level ControlsPresence / Midrange & Brilliance / High Frequency
Factory FinishNatural Oak
Original Grille OptionsOrange / Blue / Brown Stretch Fabric
Dimensions13.5 W × 24 H × 13.625 D in
Shipping Weight45 lb / 20 kg each
Country of ManufactureUSA
EraMid-1970s

Important Specification Notes
We use the original JBL factory specifications for the L36 Decade. JBL did not publish a conventional frequency-response figure for this model. The original sensitivity rating is 76 dB SPL @ 1 W / 15 ft, which should not be compared directly with modern 1W/1m sensitivity ratings.

Sound & Listening Character
The JBL L36 Decade is well suited to listeners who enjoy the lively and dynamic presentation associated with classic 1970s JBL loudspeakers.
The 10-inch low-frequency section provides satisfying bass weight and punch, while the dedicated midrange gives vocals, guitars, horns, piano, and other midband material an immediate and engaging presentation.
The high-frequency section adds articulation and energy, while the Presence and Brilliance controls allow the balance to be adjusted for the room and system.
This model is particularly well suited to:
• Classic rock
• Blues
• Jazz
• Vocals
• Acoustic music
• Vintage receiver and vinyl-based systems

Suggested Amplification
The JBL L36 is an 8-ohm passive loudspeaker system and can be paired with a wide range of properly operating vintage and modern amplifiers.
It is a natural match for classic stereo receivers and integrated amplifiers with clean, stable output. Moderate-power tube amplification may also be used within appropriate listening levels.
Avoid sustained amplifier clipping or excessive drive levels.

What’s Included
• 1 Pair of JBL L36 Decade Loudspeakers
Only items clearly shown in the listing photographs or specifically stated above are included.

Professional Packing & Shipping
Each speaker will be individually protected for shipment.
• Cabinet surfaces protected
• Veneer edges and cabinet corners reinforced
• Front drivers protected from impact
• Grille areas protected as applicable
• Front level controls protected
• Rear labels and terminals protected
• Dense cushioning and reinforced outer packaging used for safe transit

1-Year HQaudios Warranty
This JBL L36 Decade pair is backed by our 1-Year HQaudios Warranty covering proper functional operation under normal home use.
The warranty does not cover misuse, physical damage, unauthorized repair or modification, incorrect speaker wiring, sustained amplifier clipping, overdriving, moisture exposure, or damage caused by use outside normal intended operating conditions.
HQaudios also provides after-sale support for speaker connection, amplifier matching, placement, level-control adjustment, and basic troubleshooting.

HQaudios – Vintage Audio Restored with Care.
Professionally Serviced – Fully Tested – Carefully Packed – 1-Year Warranty.
