JBL C45 S8 LE15A 15″ Pair of Vintage Speakers – PRO RESTORED – 1-Year Warranty

Professionally Restored by HQaudios – Backed by Our 1-Year Warranty.

Overview

The JBL C45 S8 belongs to a period when premium loudspeakers were designed not only as acoustic instruments, but as permanent pieces of the listening room.

Behind the restrained furniture-grade exterior is a historically important JBL large-format system. The C45 S8 cabinet identification remains present, while the newly documented internal labels show that this specific pair is currently fitted with JBL LE15A 15-inch woofers, JBL LE85 8-ohm compression drivers coupled to H91 horns, and JBL 075 8-ohm high-frequency radiators. The installed network architecture remains centered on the JBL LX5 / N7000 arrangement shown in the product photos.

That combination gives the C45 S8 a character very different from conventional domestic loudspeakers. The system was built around efficiency, dynamic ease, horn-loaded presence, and the ability to reproduce music with physical scale without demanding extreme amplifier power.

This particular pair is identified on the rear badges as C45 S8 and carries closely matched cabinet serial numbers 10101 and 10103. The surviving James B. Lansing Sound identification plates, together with the individual component labels and serial numbers, provide valuable evidence of the system’s history and the component configuration now installed in the cabinets.

The speakers have been professionally restored and serviced by HQaudios based on their actual condition. Attention was given to the woofer surround issue noted during diagnosis, the individual driver sections, the grille assemblies, cabinet presentation, and final left-to-right operation.

At this level, the C45 S8 is not simply a vintage speaker purchase. It is a reference-class vintage JBL system whose significance comes from the cabinet identity, the period component architecture, the documented driver labels, the condition of the pair, and the experience of living with a large-format JBL system from one of the company’s most important eras.

Key Highlights

• Authentic pair of JBL C45 S8 vintage loudspeakers
• Closely matched serial numbers 10101 and 10103
• Original James B. Lansing Sound identification plates
• C45 S8 cabinet identification with documented period JBL component evolution
• JBL LE15A 15-inch low-frequency drivers – 8 ohms
• JBL LE85 8-ohm compression drivers
• JBL H91 horn assemblies
• JBL 075 8-ohm high-frequency radiators
• JBL LX5 and N7000 network architecture
• Individual component labels and serial numbers documented for both speakers

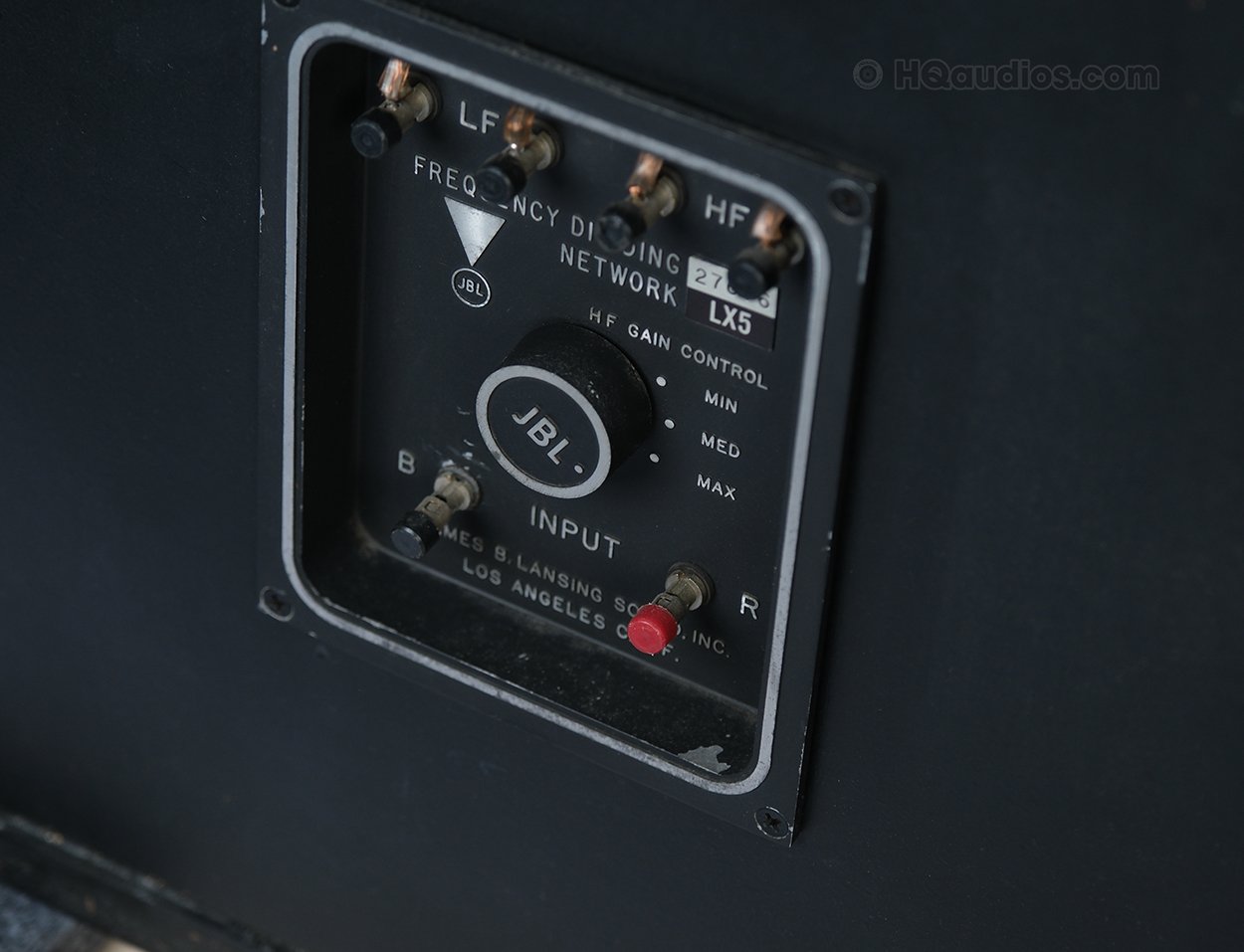

• Rear high-frequency level controls
• Large furniture-grade wood cabinets
• Woofer surround condition professionally addressed
• Bass, mid/high horn, and treble sections individually evaluated
• Grille-frame and foam condition serviced
• Original cabinet color and vintage presentation carefully preserved
• Left and right speaker performance compared after service
• Extended listening evaluation before sale
• Backed by our 1-Year HQaudios Warranty

Basic Specifications

Component Identification & Period Evolution

One of the most interesting details of this particular JBL C45 S8 pair is that the cabinet identification and the individual driver labels document different layers of the system’s history.

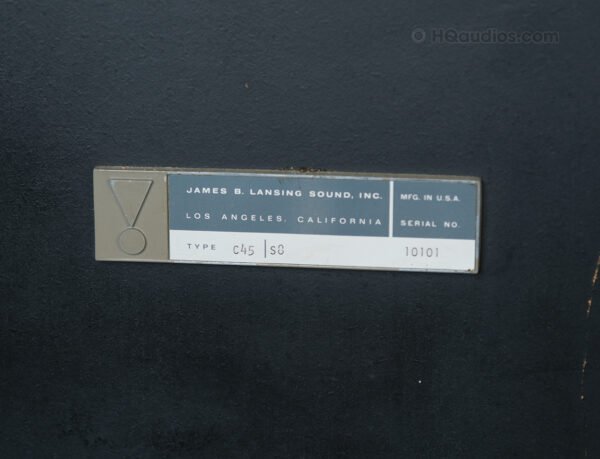

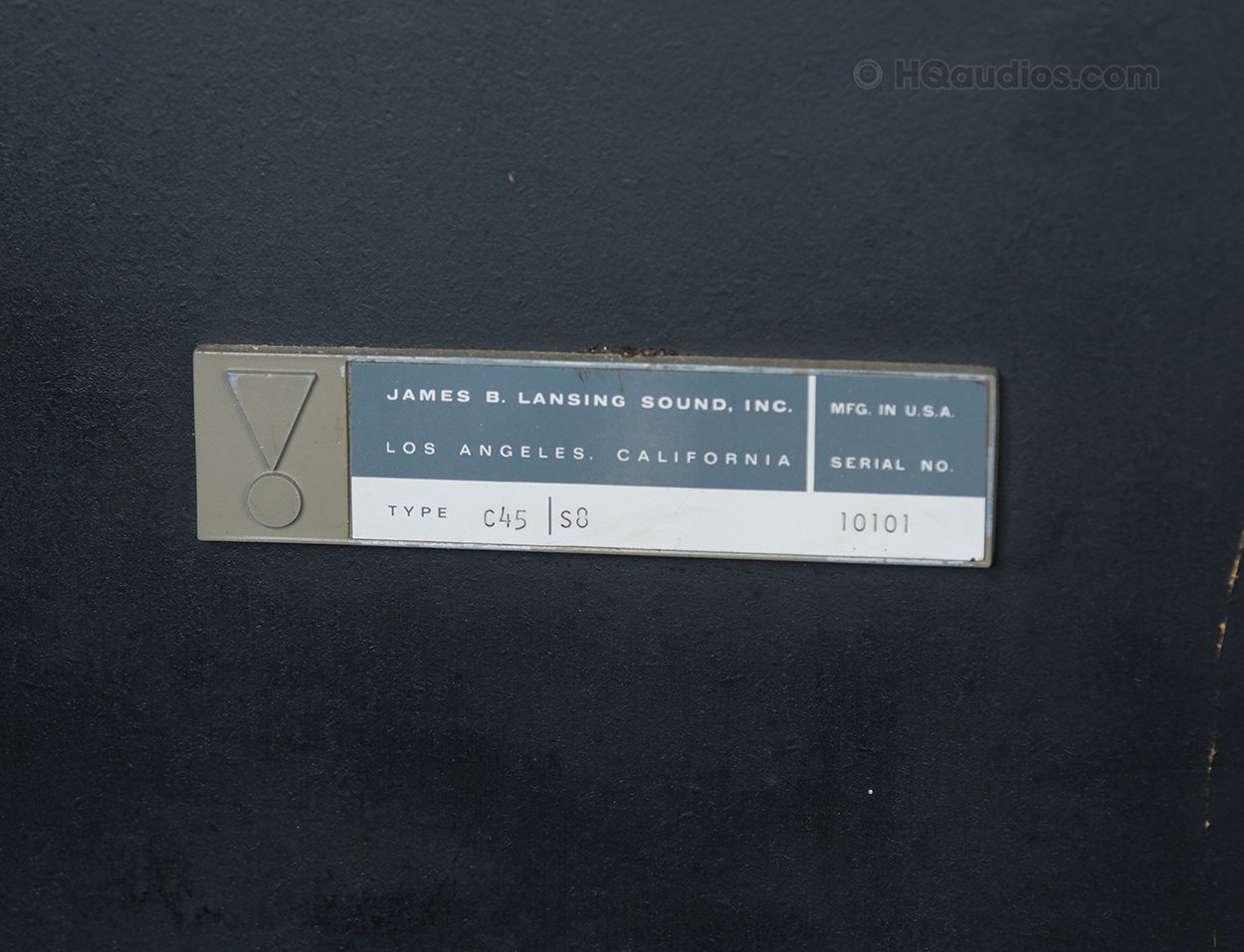

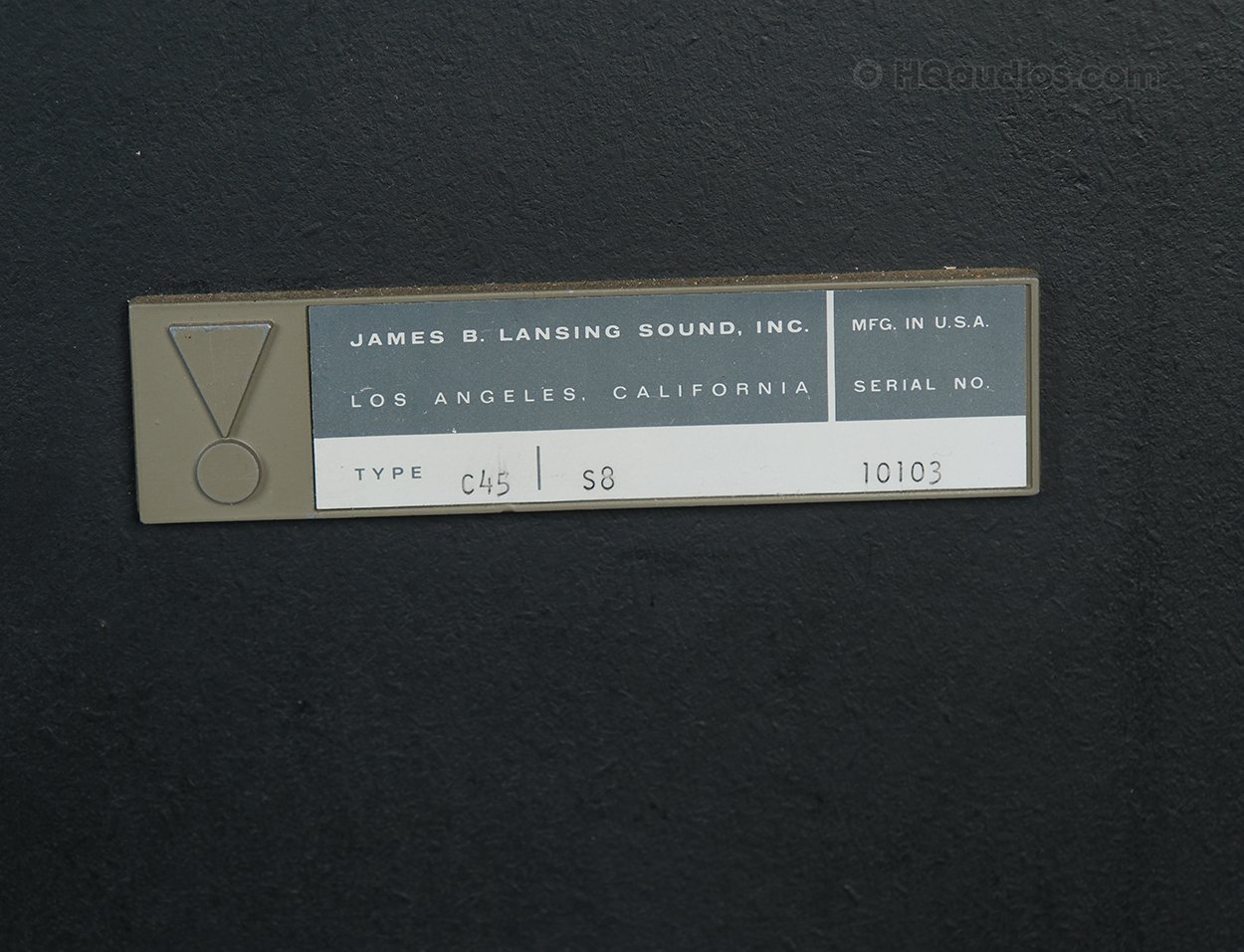

The rear cabinet badges remain marked C45 S8, with closely matched cabinet serial numbers 10101 and 10103. JBL offered the C45 / Flair enclosure with multiple component packages during its production life. In period system charts, the catalog S8 package is associated with an LE15A woofer, 375 compression driver, HL93 horn, 075 high-frequency radiator, and LX5 / N7000 networks, while the S7 architecture used the LE15A with an LE85 / H91 mid-high section.

The newly documented labels on this pair show that the speakers are currently fitted with LE15A 8-ohm woofers, LE85 8-ohm compression drivers, H91 horns, and 075 8-ohm high-frequency radiators. In other words, the cabinets retain their C45 S8 identity while the installed mid/high driver complement differs from the catalog S8 package and incorporates the LE85 / H91 architecture associated with other period JBL systems.

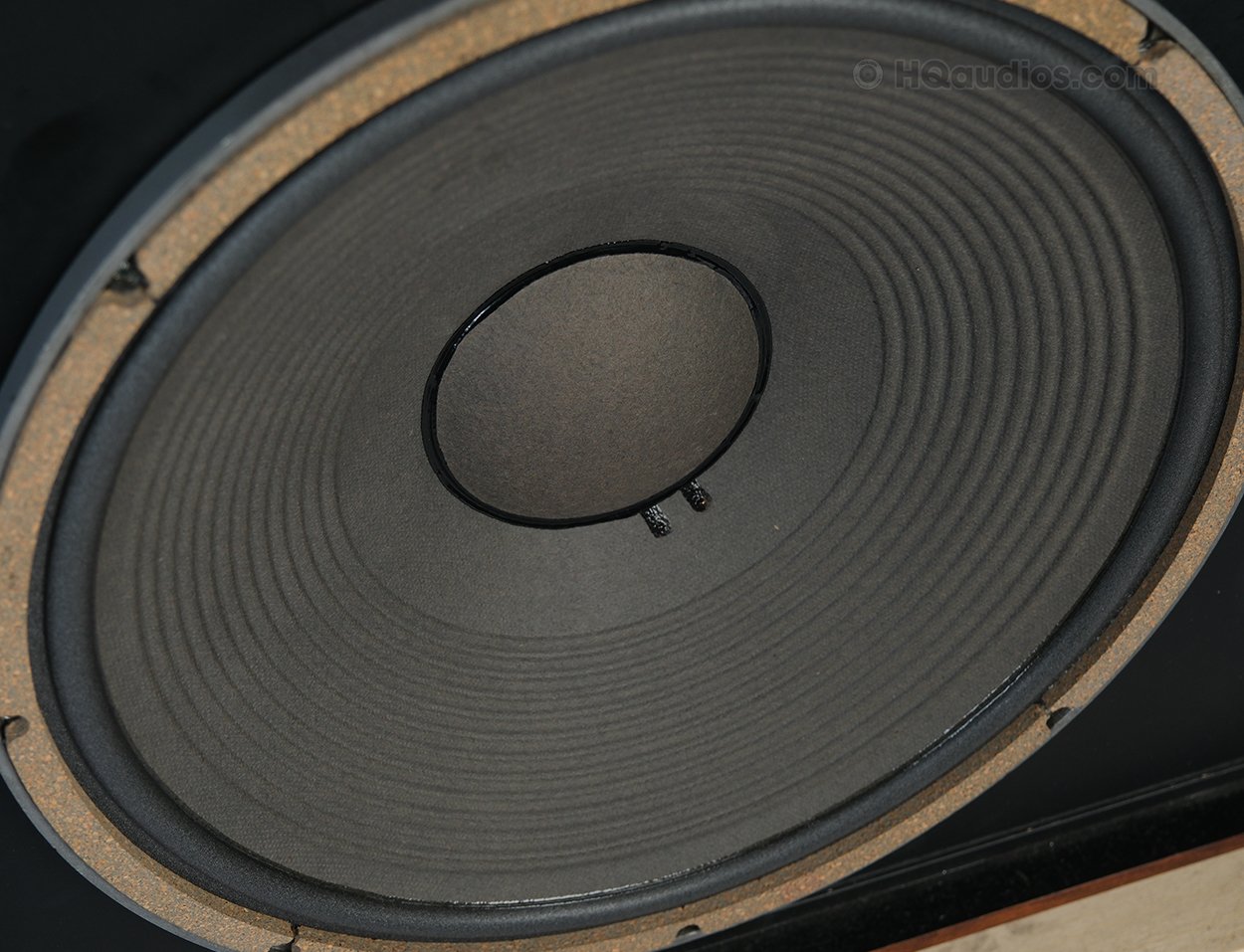

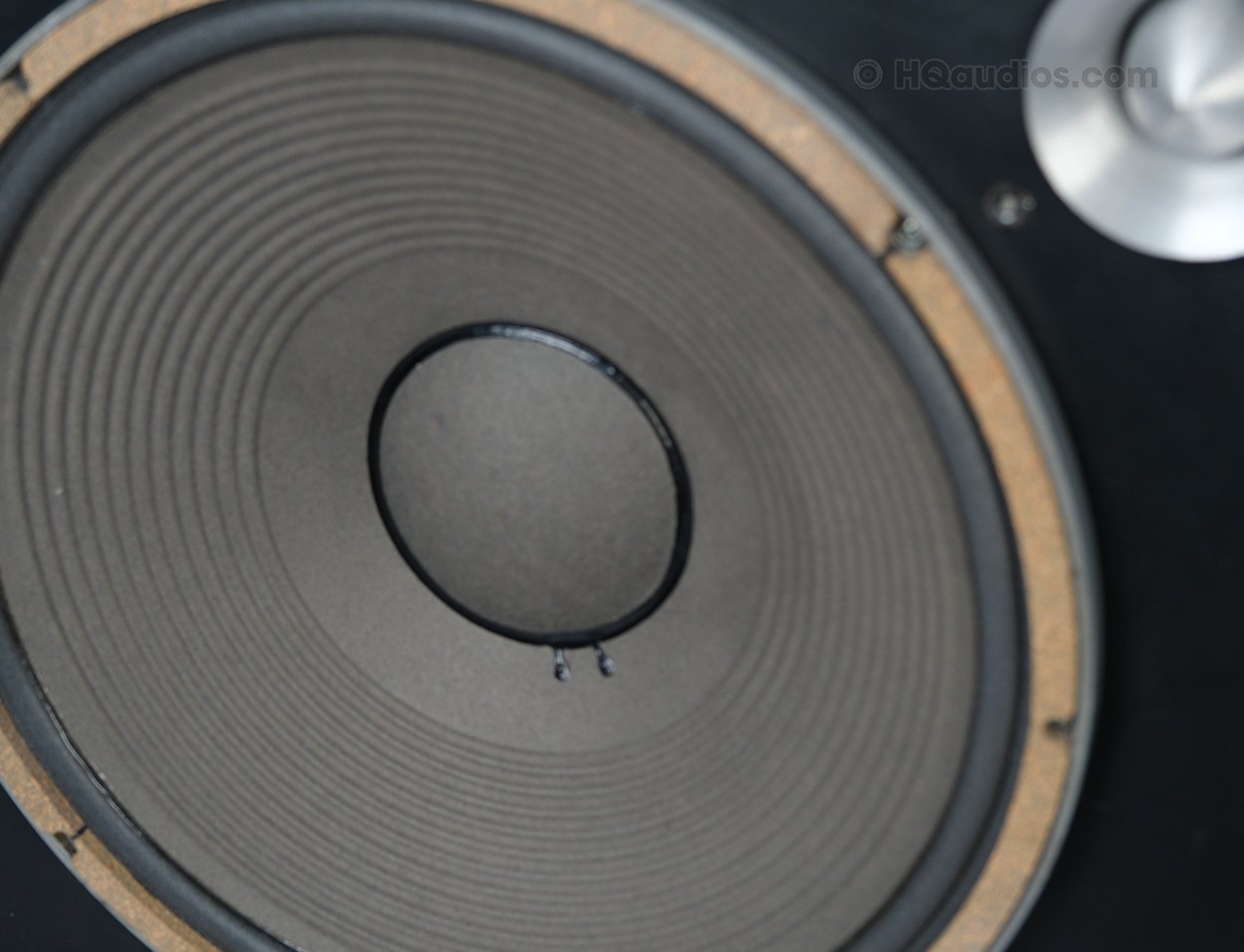

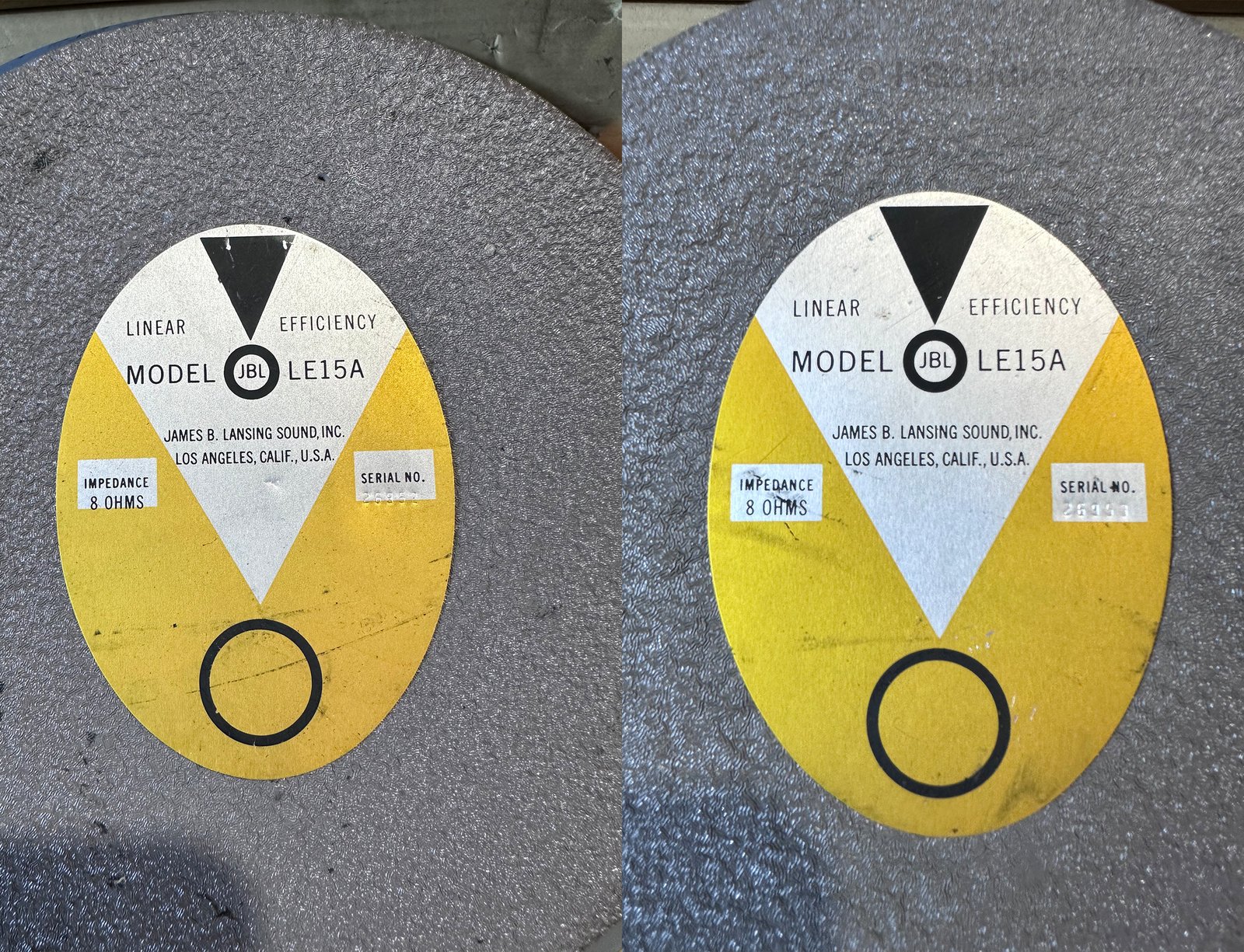

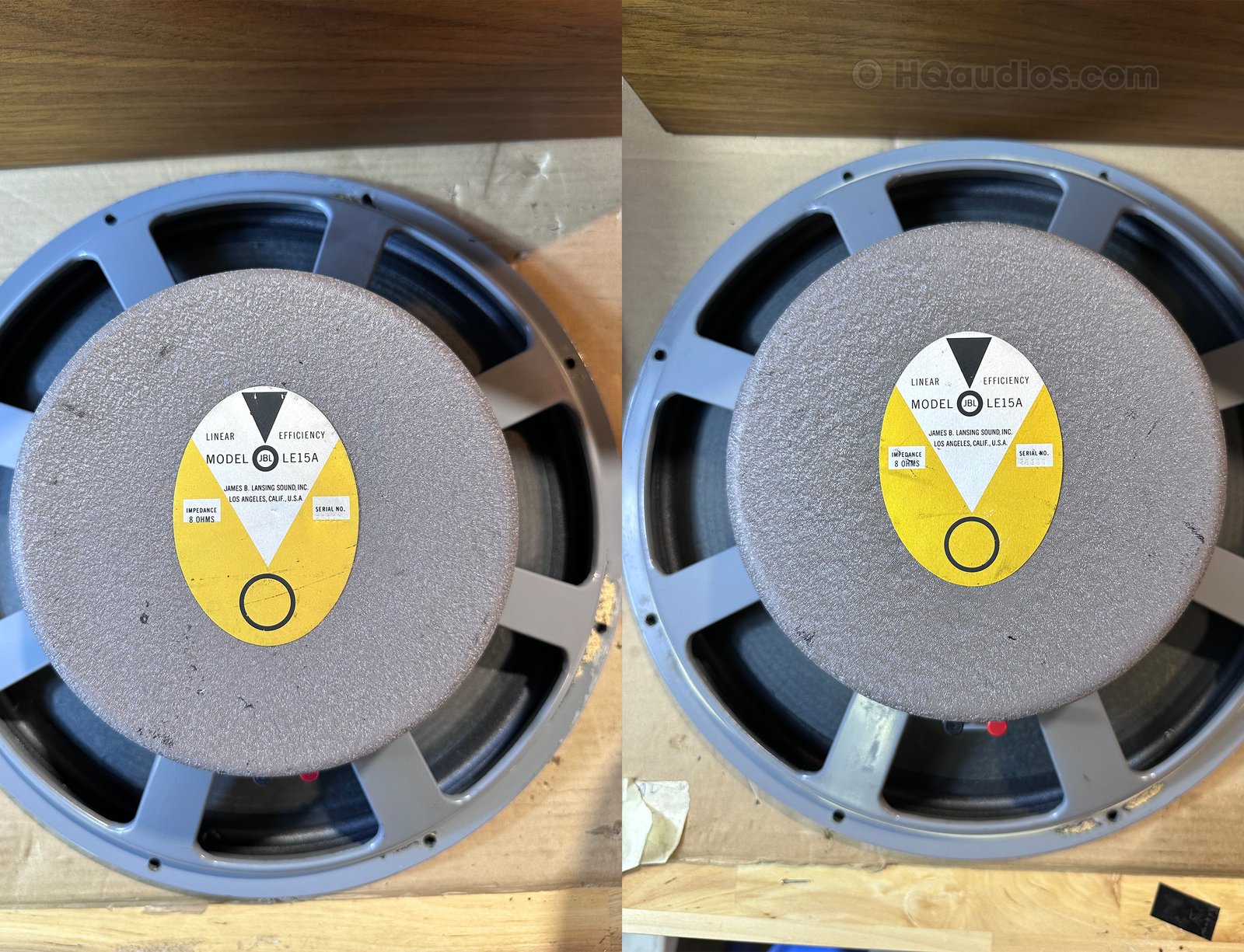

Woofer – JBL LE15A

Both cabinets are fitted with JBL LE15A 15-inch low-frequency drivers rated at 8 ohms. The labels show serial numbers approximately 25957 and 26143. The LE15A remained in JBL production through multiple revisions, and the 8-ohm labeling is consistent with later production versions of the driver rather than the earliest 16-ohm examples.

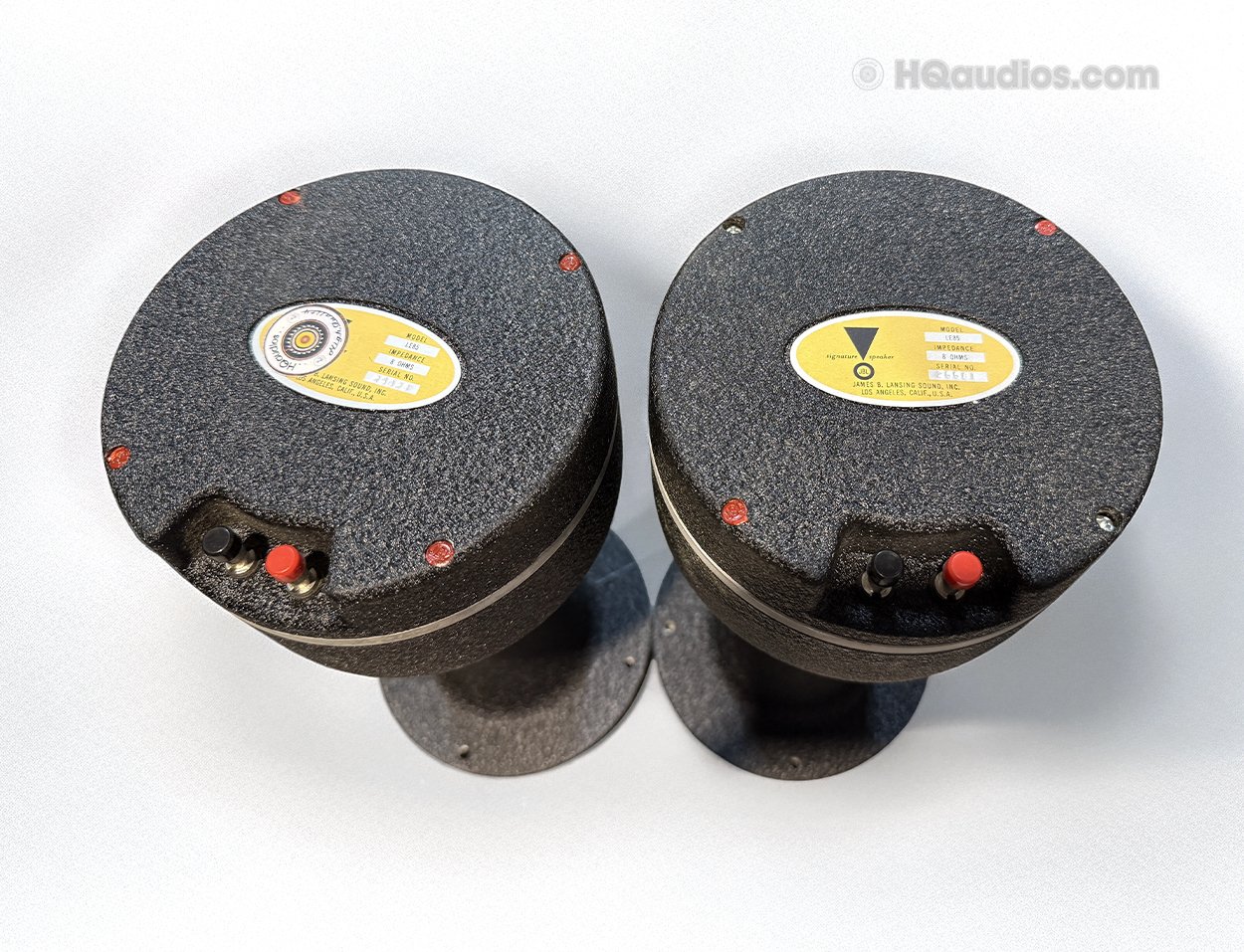

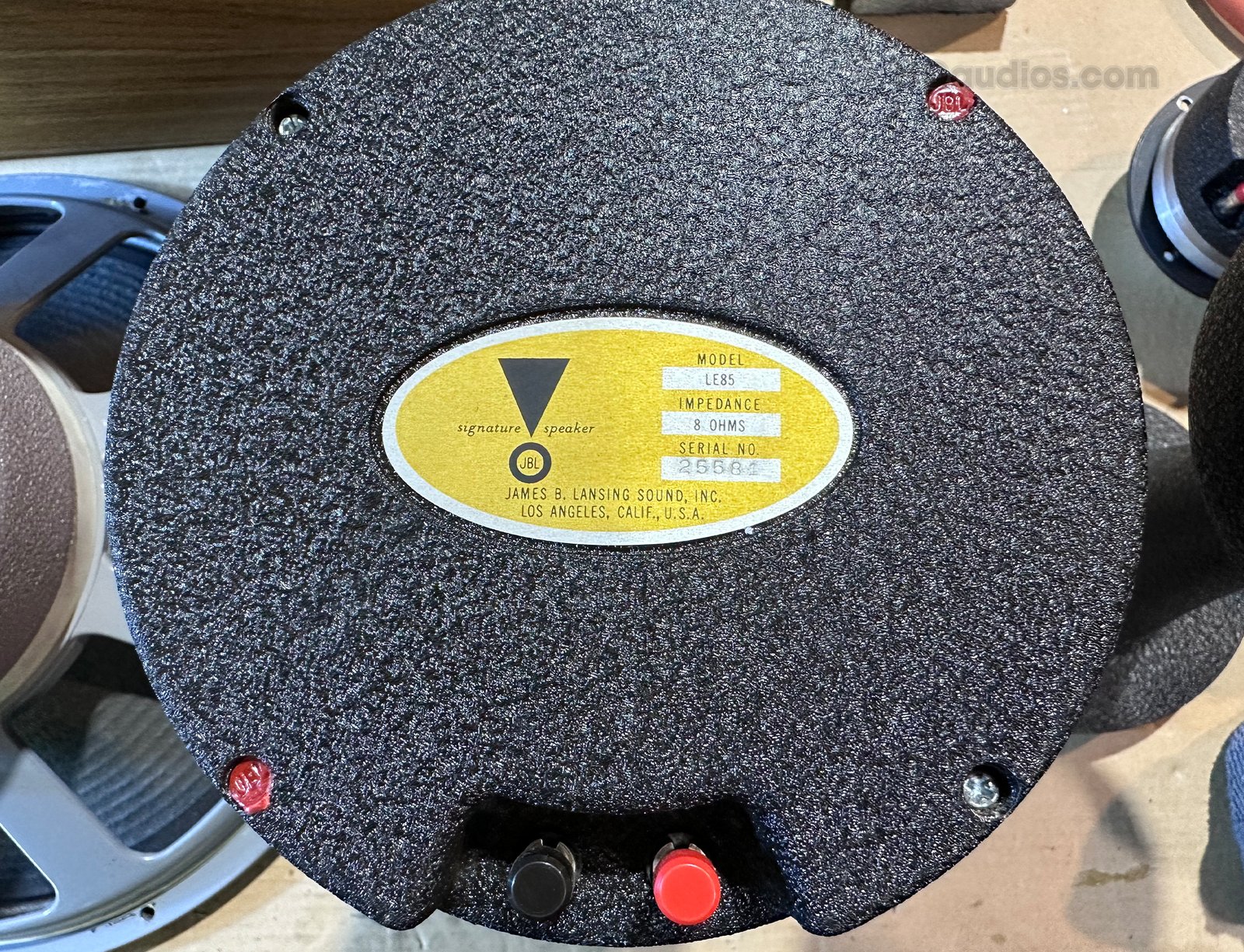

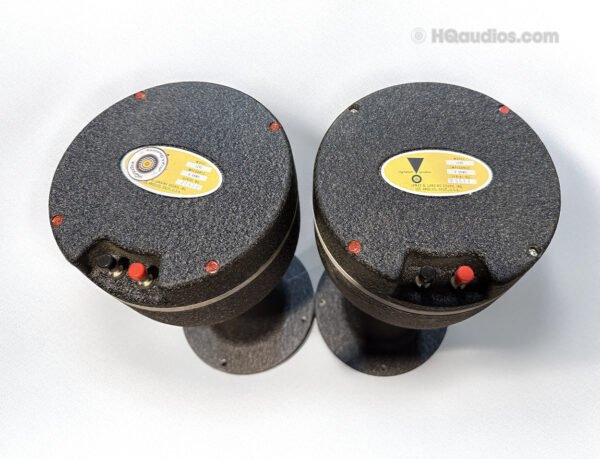

Midrange / Compression Driver – JBL LE85

The mid/high compression-driver section uses JBL LE85 8-ohm drivers, with serial numbers 25821 and 25583. This is an important distinction from the 375 compression driver specified in the catalog S8 package.

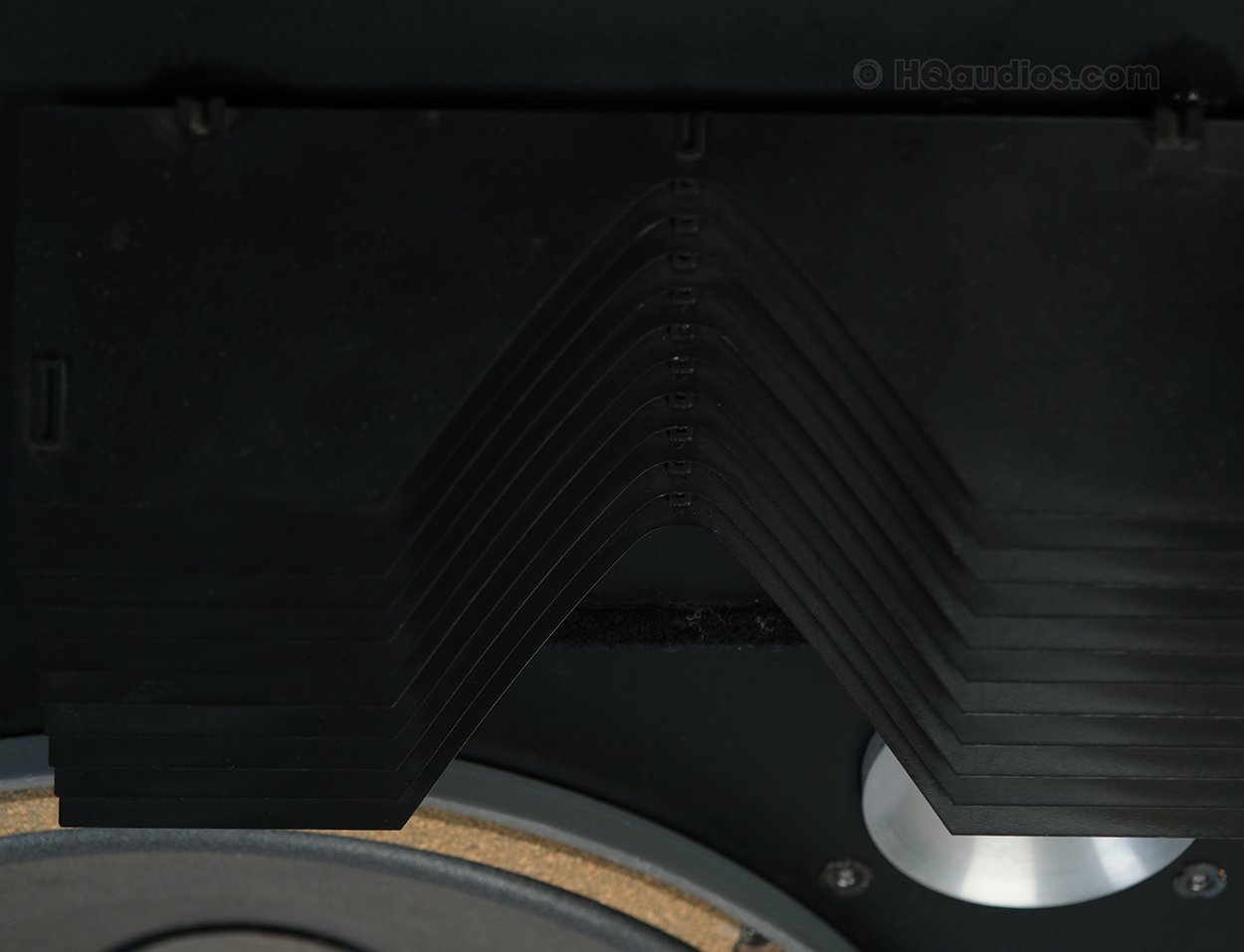

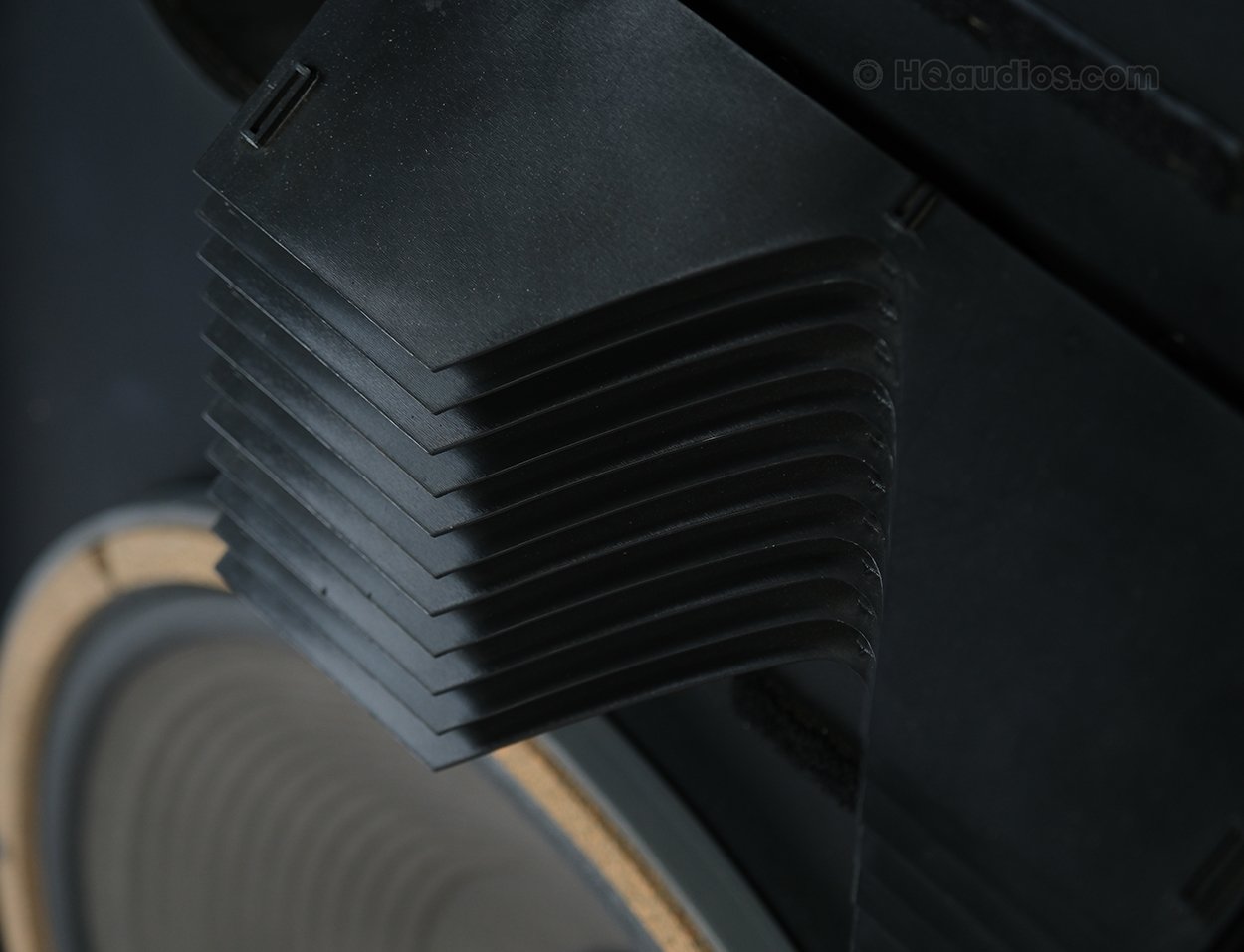

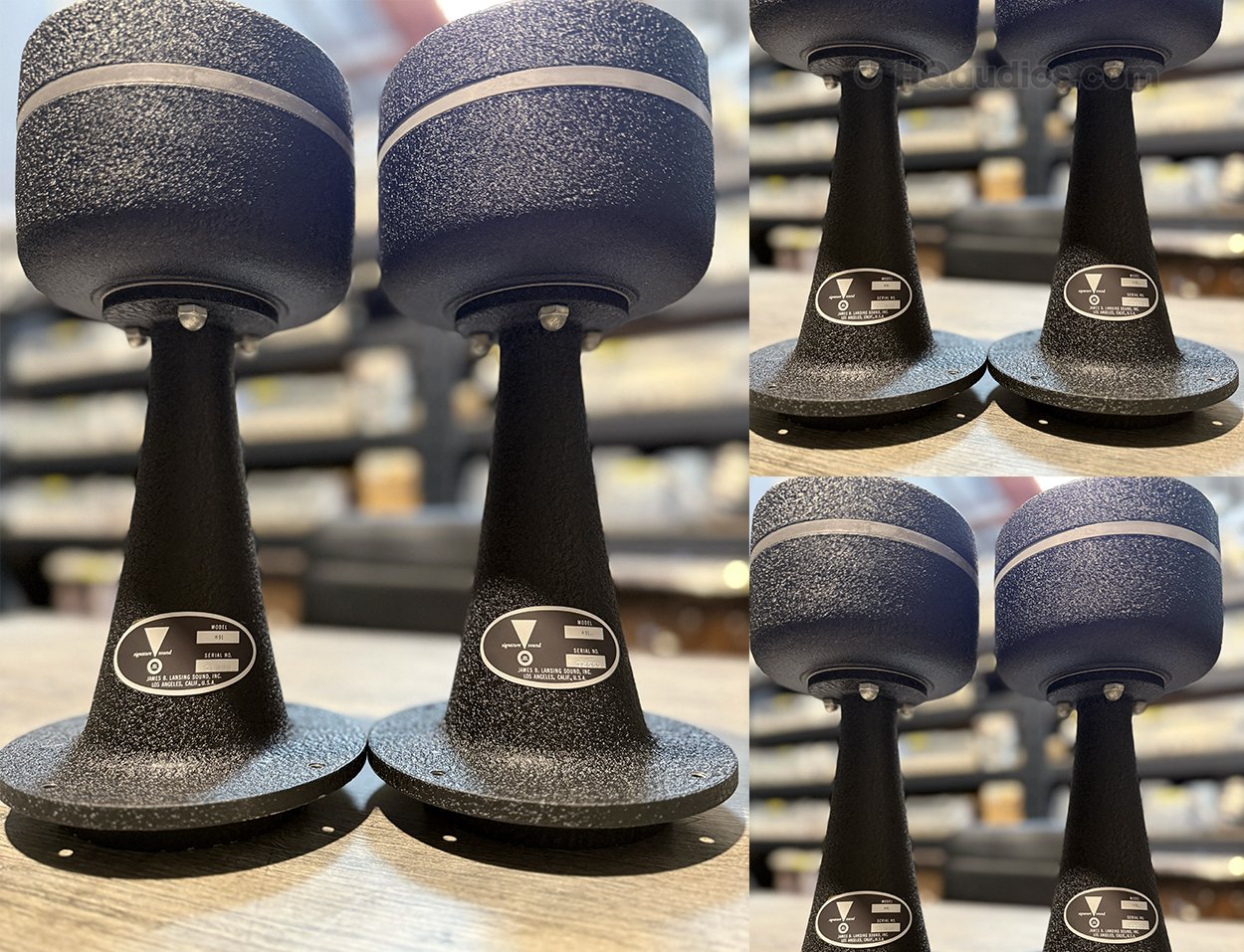

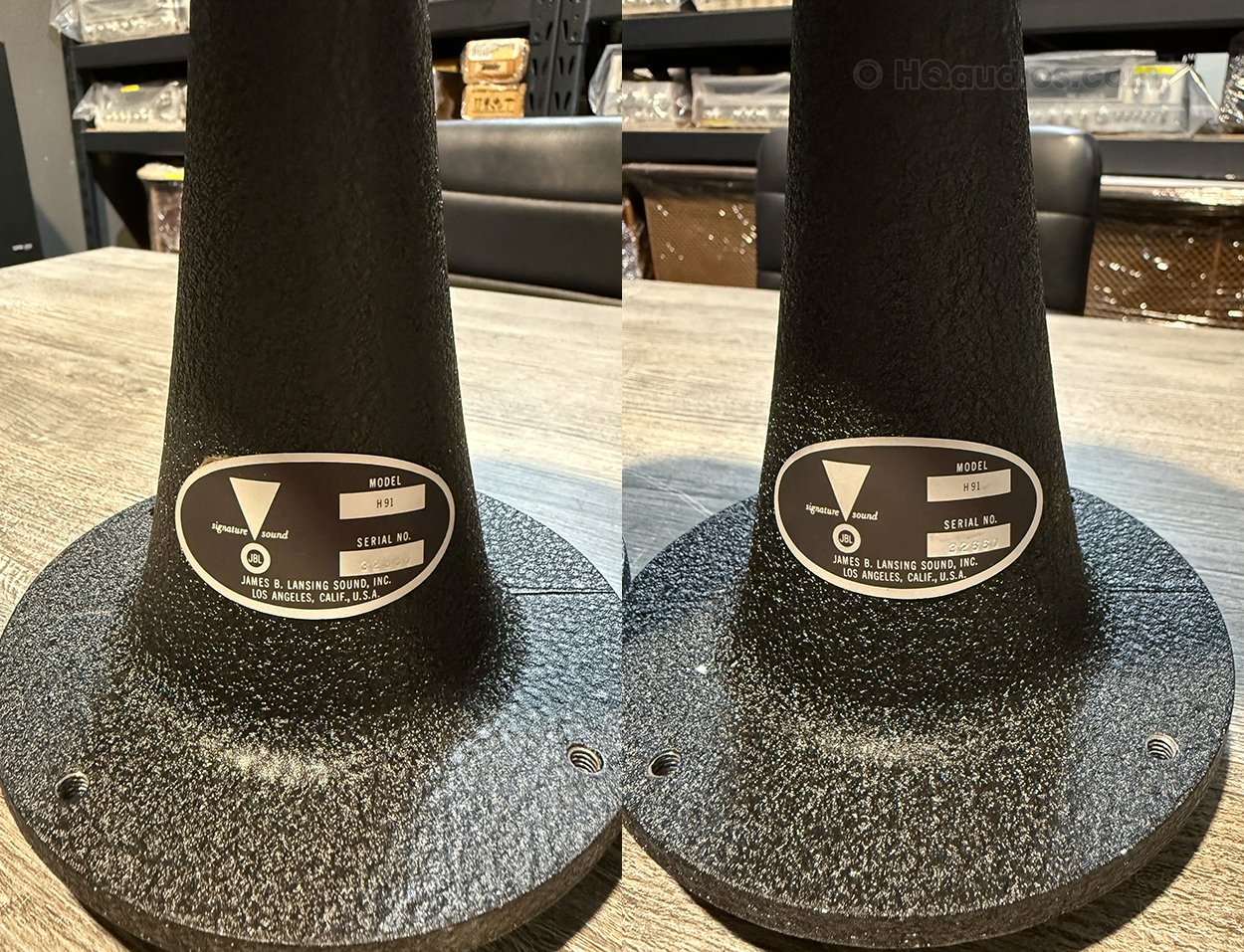

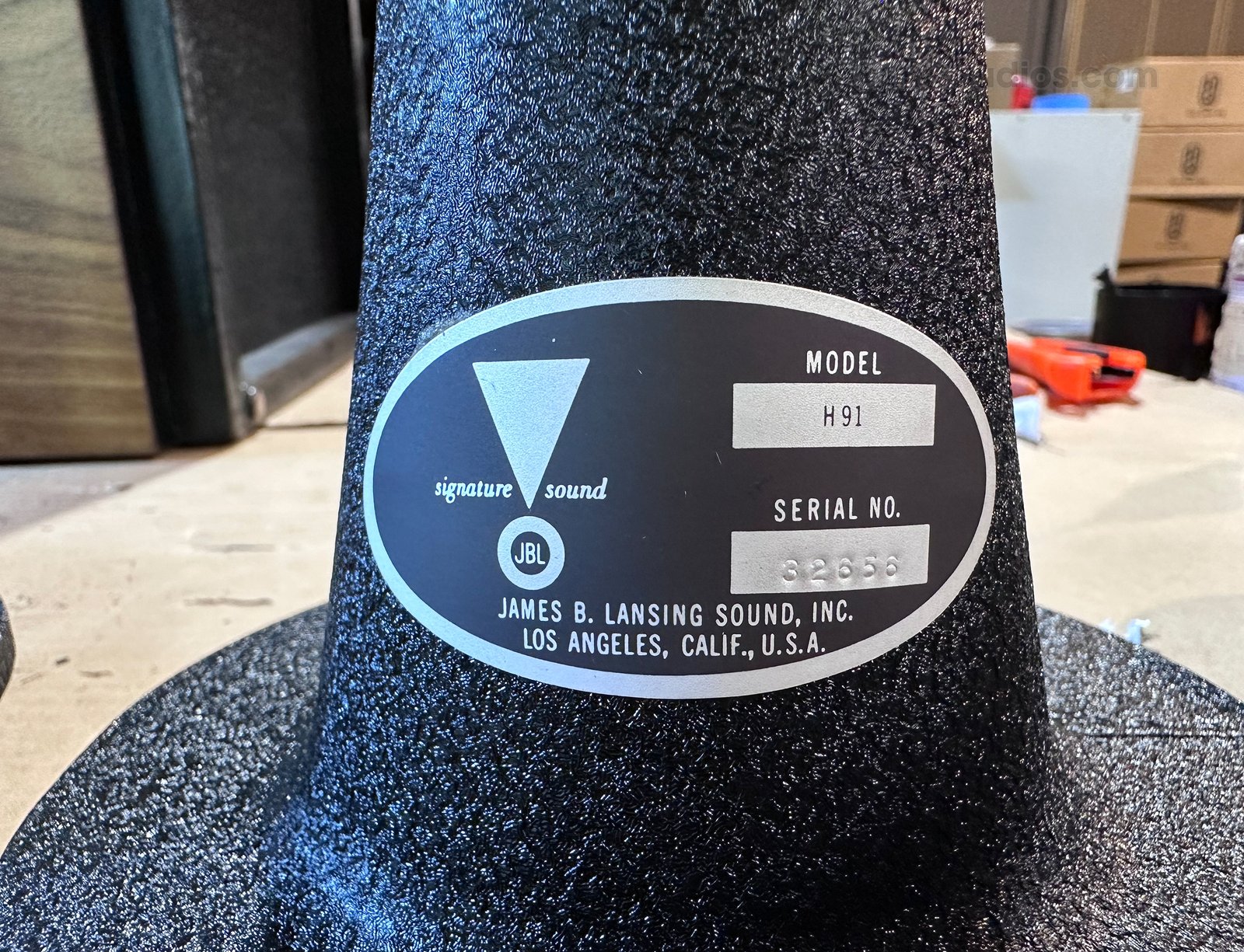

Horn – JBL H91

The LE85 compression drivers are coupled to JBL H91 horn assemblies, carrying closely spaced serial numbers 32656 and 32660.

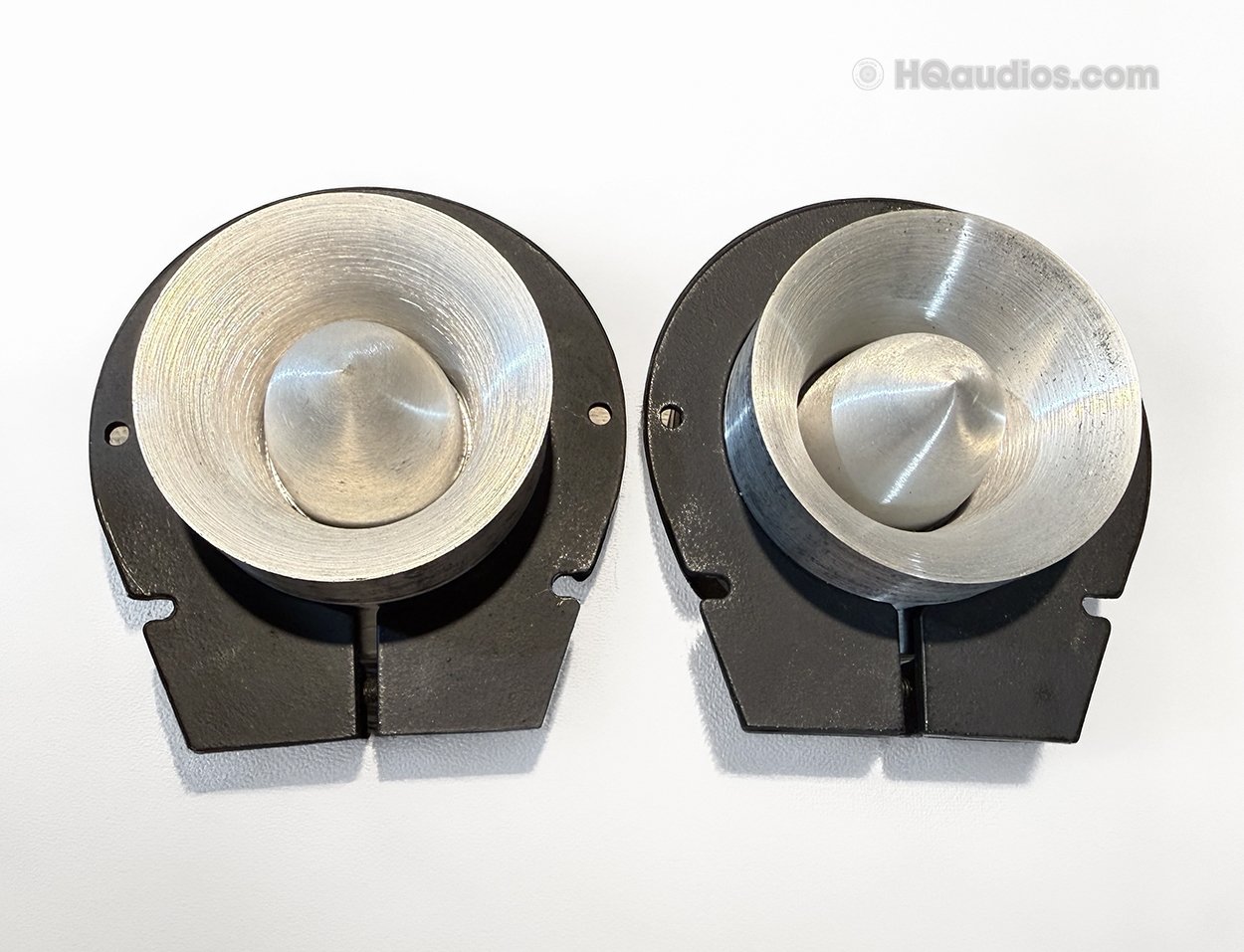

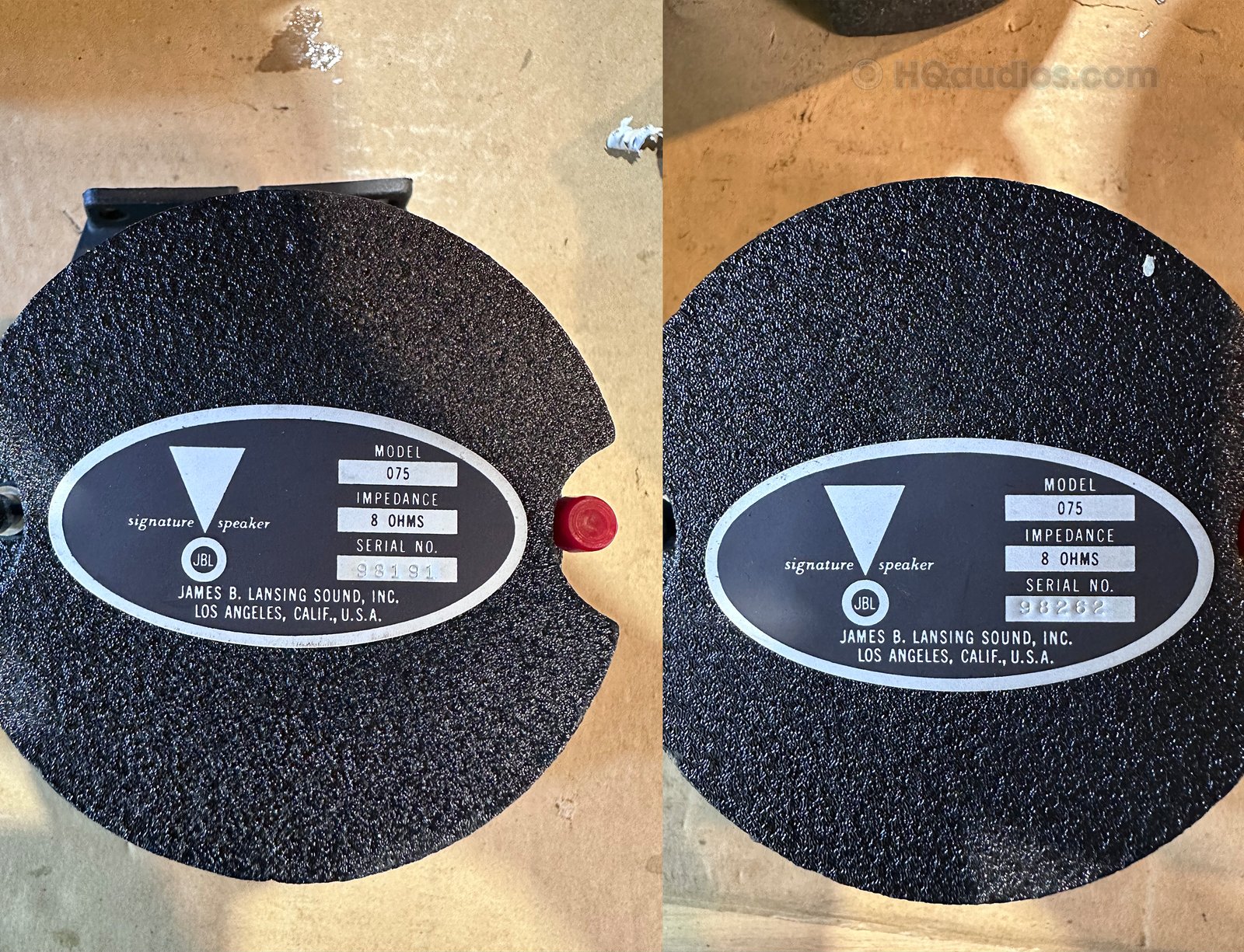

Treble – JBL 075

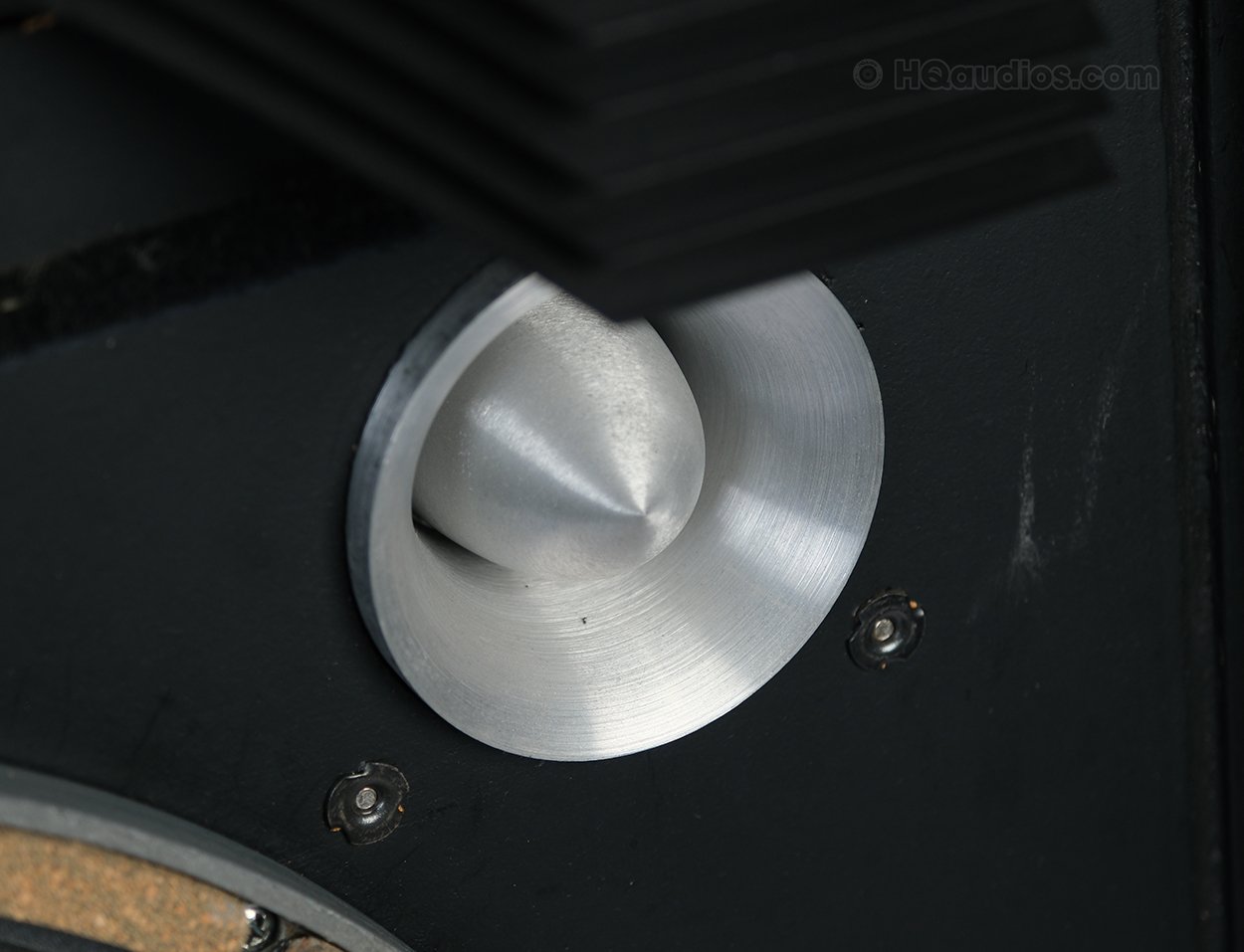

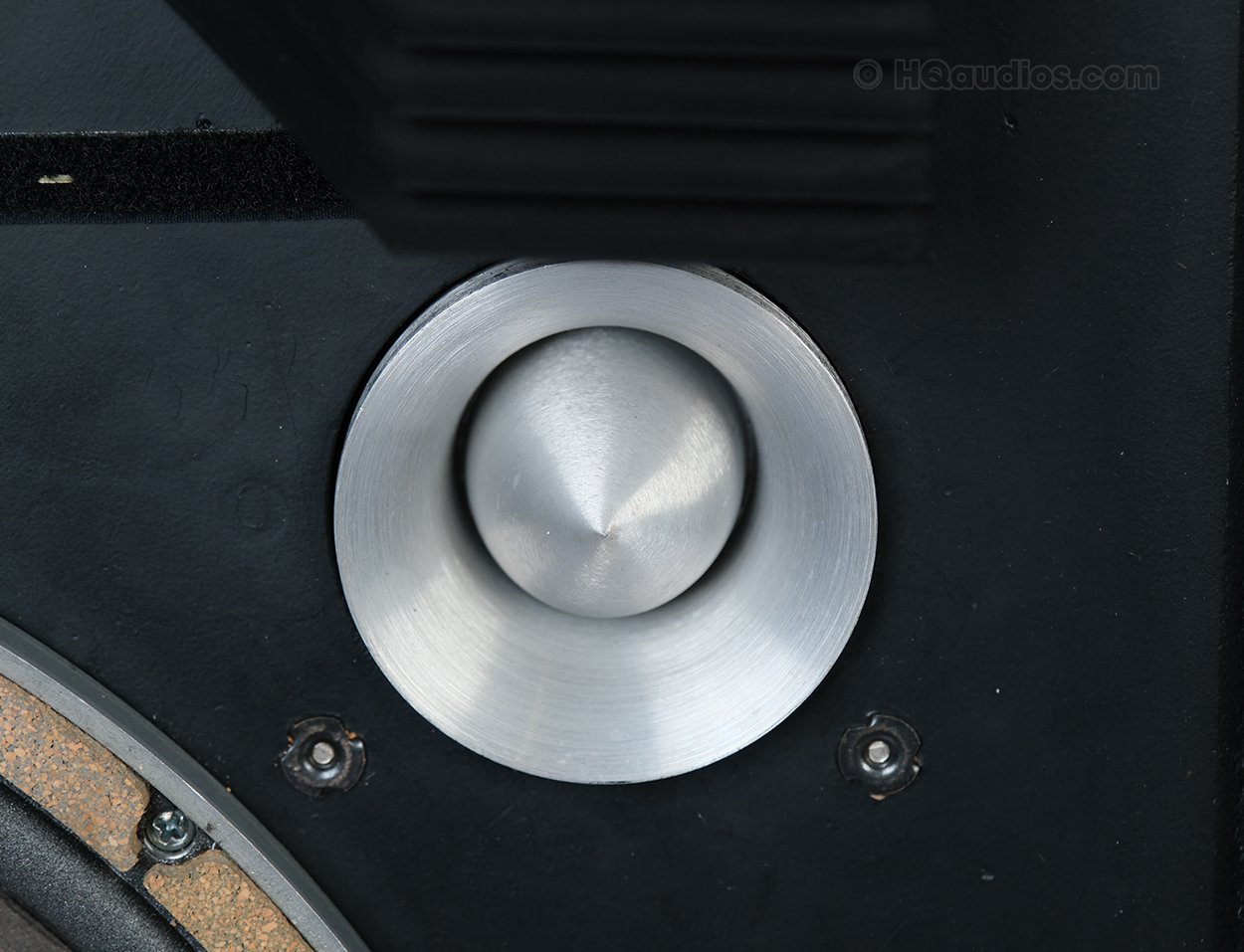

The ultra-high-frequency section uses JBL 075 8-ohm high-frequency radiators, with serial numbers 98191 and 98262. Their closely grouped serial numbers support the presentation of the pair as a well-matched set of period JBL components.

Serial Number Summary

These serial numbers are presented as identification details for the installed components. They should not be interpreted as exact manufacturing date codes.

Sound Character

The C45 S8 delivers music with the kind of scale and immediacy that comes naturally from large-format, high-efficiency JBL components.

The LE15A handles the lower registers with weight and speed rather than exaggerated heaviness. Bass lines feel substantial, but the presentation remains responsive enough to preserve the attack of drums, acoustic bass, and electric bass guitar.

The LE85 compression driver is central to the personality of the S8 system. Coupled to the H91 horn, it brings vocals, brass, piano, strings, and percussion into the room with remarkable presence. Instead of sounding distant or restrained, the midrange has a physical quality that gives recordings a stronger sense of scale and live energy.

The 075 high-frequency radiator adds the upper-frequency extension and transient definition associated with classic JBL systems. Properly balanced through the N7000 network and rear level control, it contributes air and sparkle without taking attention away from the tonal body of the LE85 and LE15A.

This combination is particularly compelling with jazz, classic rock, orchestral recordings, acoustic instruments, soul, blues, and high-quality analog sources. The speakers are capable of producing convincing listening levels with comparatively modest amplifier power, yet they continue to reward improvements in source quality, amplification, and system setup.

The defining quality is effortlessness. The C45 S8 can sound large without sounding strained, dynamic without becoming mechanical, and immediate without sacrificing the sense of texture that makes vintage JBL horn systems so distinctive.

HQaudios Restoration & Testing Process

Before Restoration

• Both JBL C45 S8 speaker systems underwent a detailed visual, mechanical, electrical, and acoustic inspection before any service work began.
• Each JBL LE15A 15-inch woofer was inspected for cone condition, surround condition, spider behavior, voice-coil movement, centering, rubbing, and mechanical freedom.
• Woofer DC resistance / Ohm readings were recorded individually and compared between the left and right speakers to identify abnormal resistance, open circuits, or significant imbalance.
• The woofer surround condition was identified as requiring attention during the initial inspection.
• Both JBL LE85 8-ohm compression drivers were checked individually for continuity, output consistency, diaphragm behavior, and left/right level matching.
• Both JBL H91 horn assemblies were inspected for secure mounting, physical condition, and proper coupling to the LE85 drivers.
• Both JBL 075 8-ohm high-frequency radiators were checked individually for continuity and treble output.

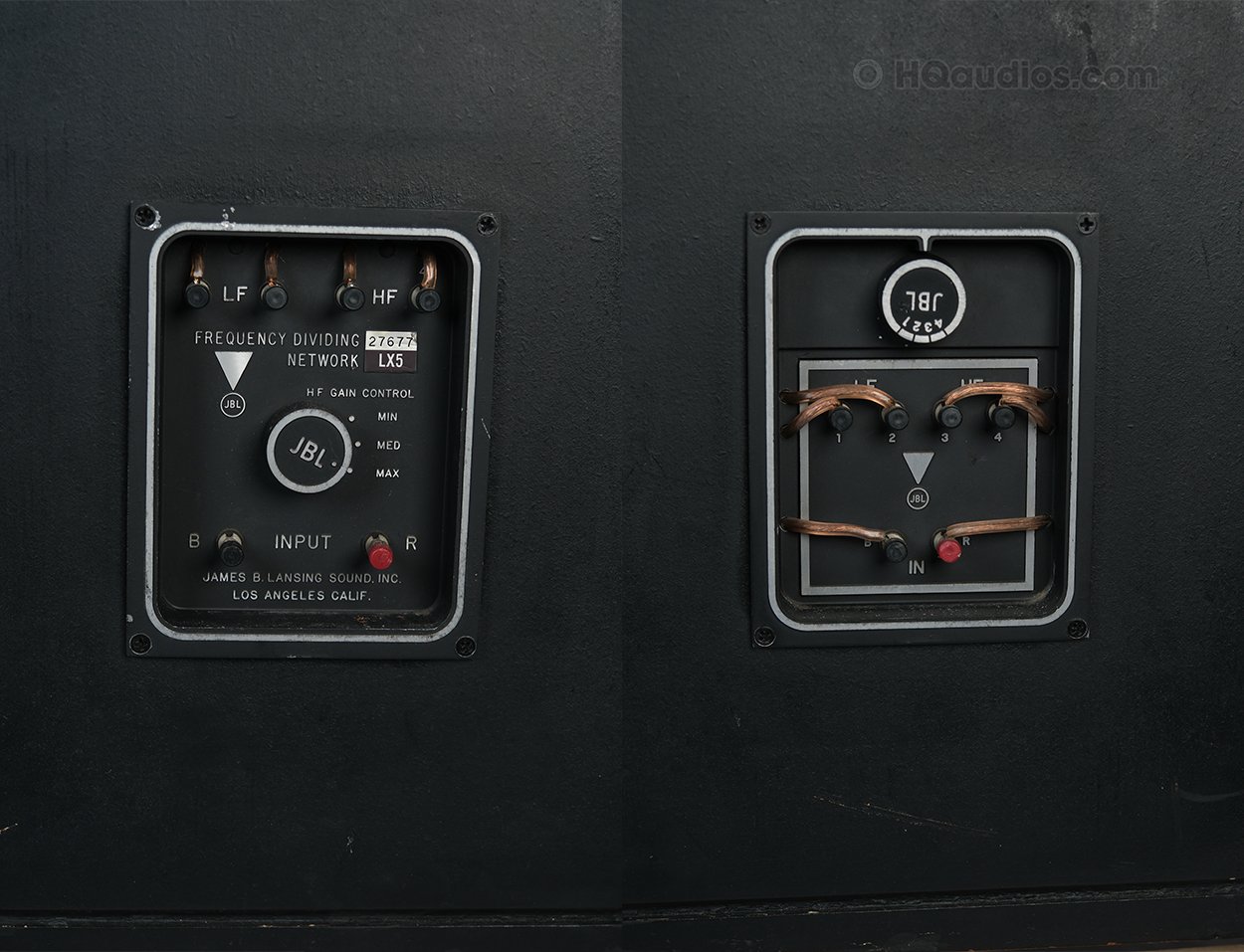

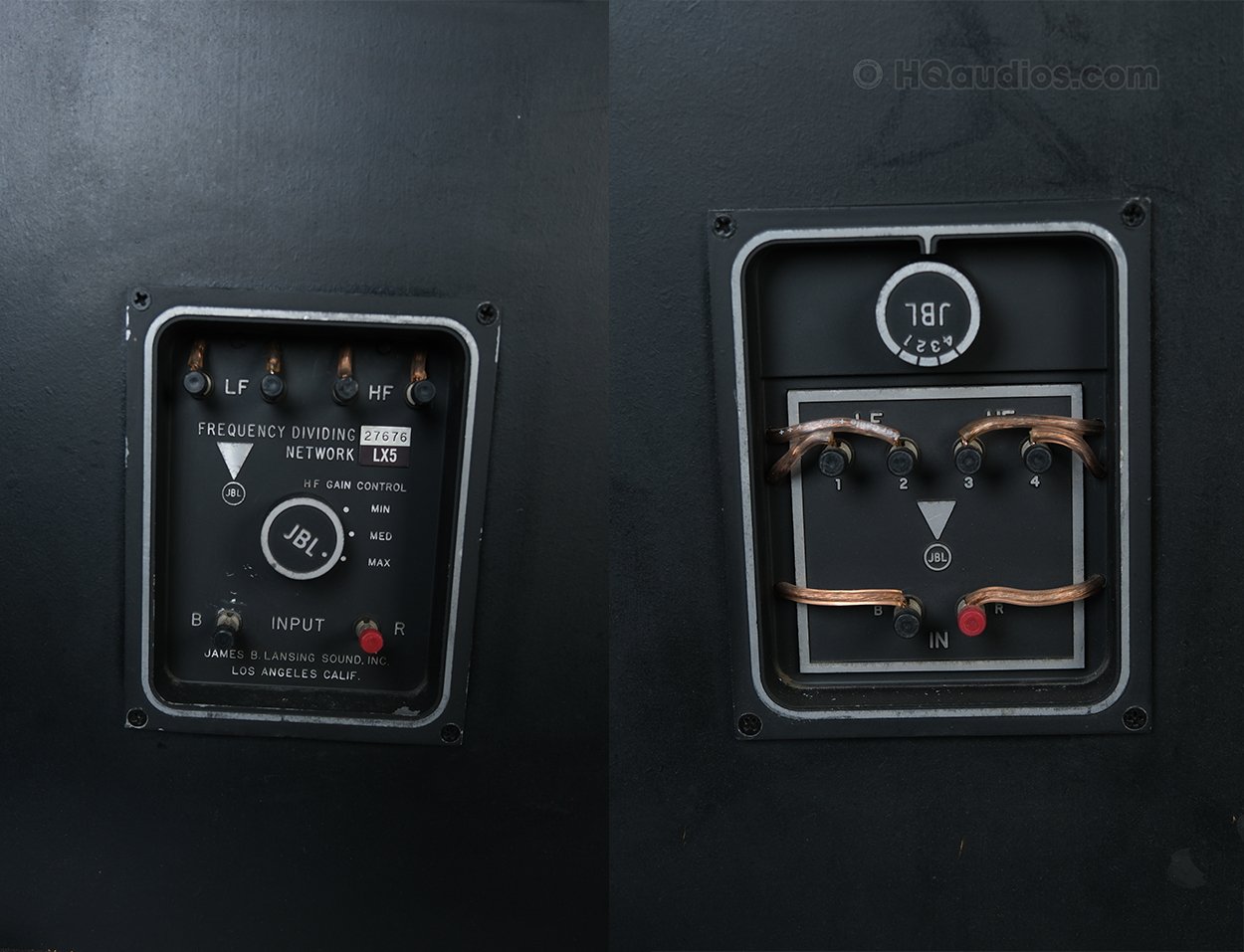

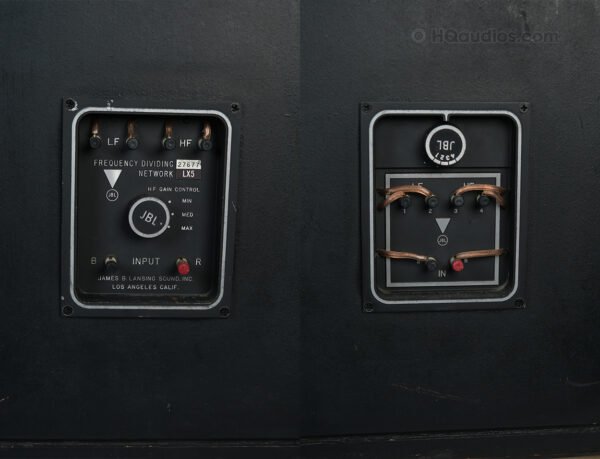

• The LX5 / N7000 network assemblies were inspected for component aging, connection quality, oxidation, loose terminals, and visible heat or mechanical damage.
• Rear HF level controls, input terminals, internal wiring, solder joints, and driver connections were inspected.
• Cabinet structure, internal mounting points, grille-frame construction, deteriorated grille foam, and overall enclosure integrity were evaluated.
• Left/right component condition was compared before restoration so service decisions could be made based on the actual condition of each speaker.

During Restoration

• The affected LE15A woofer surround condition was professionally serviced.
• During woofer service, the cone, surround, spider, voice-coil movement, and mounting condition were checked again to confirm smooth mechanical travel and proper alignment.
• Woofer mounting hardware and electrical connections were inspected and secured before reinstallation.
• The LE85 compression-driver sections were rechecked for stable electrical continuity and consistent acoustic output.
• The LE85-to-H91 mounting interfaces were inspected to ensure secure mechanical coupling and proper installation.
• The 075 high-frequency sections were inspected and rechecked for consistent operation.
• The LX5 / N7000 network assemblies were examined for age-related component deterioration and connection reliability.
• Rear terminals, network-panel connections, HF level controls, and accessible electrical contact surfaces were cleaned and inspected.
• Oxidized or contaminated electrical contact areas were cleaned to improve reliable signal transfer.
• Internal wiring and accessible solder joints were checked for continuity, secure connection, and physical stability.
• Driver polarity and wiring paths were verified during reassembly.
• Damaged grille-frame areas were repaired, and deteriorated grille foam and related materials were serviced.
• Cabinet surfaces were carefully cleaned while preserving the existing wood color and vintage finish.
• The speakers were then reassembled carefully, with attention to driver mounting, wiring position, cabinet integrity, and grille fit.

After Restoration

• Both LE15A woofers were tested individually for clean low-frequency output, stable mechanical operation, and absence of unwanted rubbing or abnormal noise.
• Woofer DC resistance / Ohm readings were rechecked and compared between the two speakers after service.
• Both LE85 compression drivers were tested individually for stable mid/high-frequency output and left/right consistency.
• Both 075 high-frequency radiators were verified for proper treble output.
• The complete LE15A → LE85/H91 → 075 frequency structure was evaluated using full-range program material.
• The LX5 / N7000 networks were checked for proper integration between the woofer, compression-driver, and high-frequency sections.
• HF level-control operation was checked across its usable adjustment range.
• Left/right speaker output was compared for tonal consistency, image stability, and overall level matching.
• Driver polarity and phase relationship were checked to confirm correct acoustic integration.
• Cabinets, grille frames, and driver mounting areas were checked during playback for unwanted resonance, vibration, or mechanical noise.
• The pair underwent extended real-world listening evaluation through a complete high-quality stereo system.
• Final approval focused on driver operation, left-to-right balance, crossover integration, dynamics, tonal continuity, mechanical stability, and reliable real-world playback.

Cosmetic Condition

The visual appeal of this pair comes from contrast.

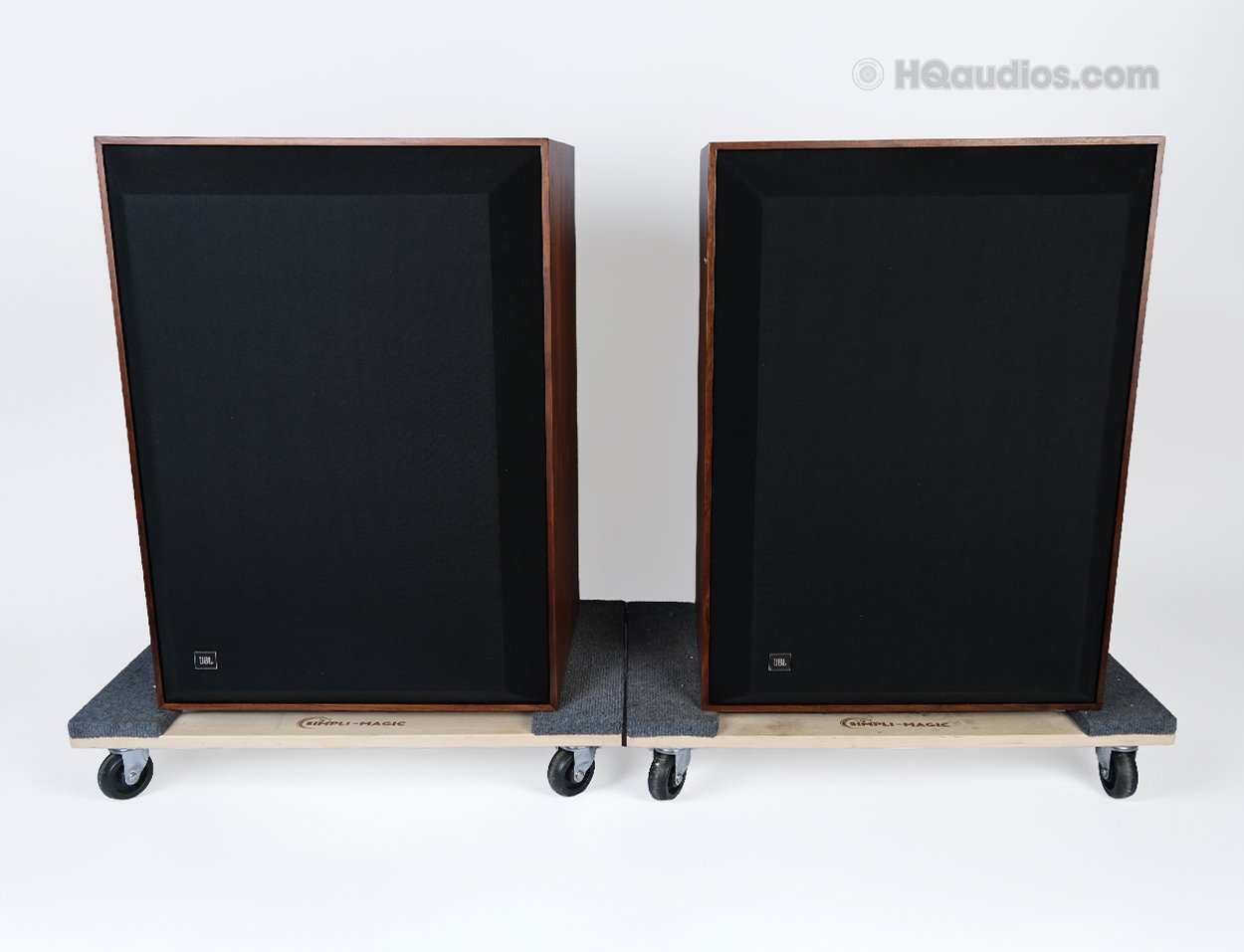

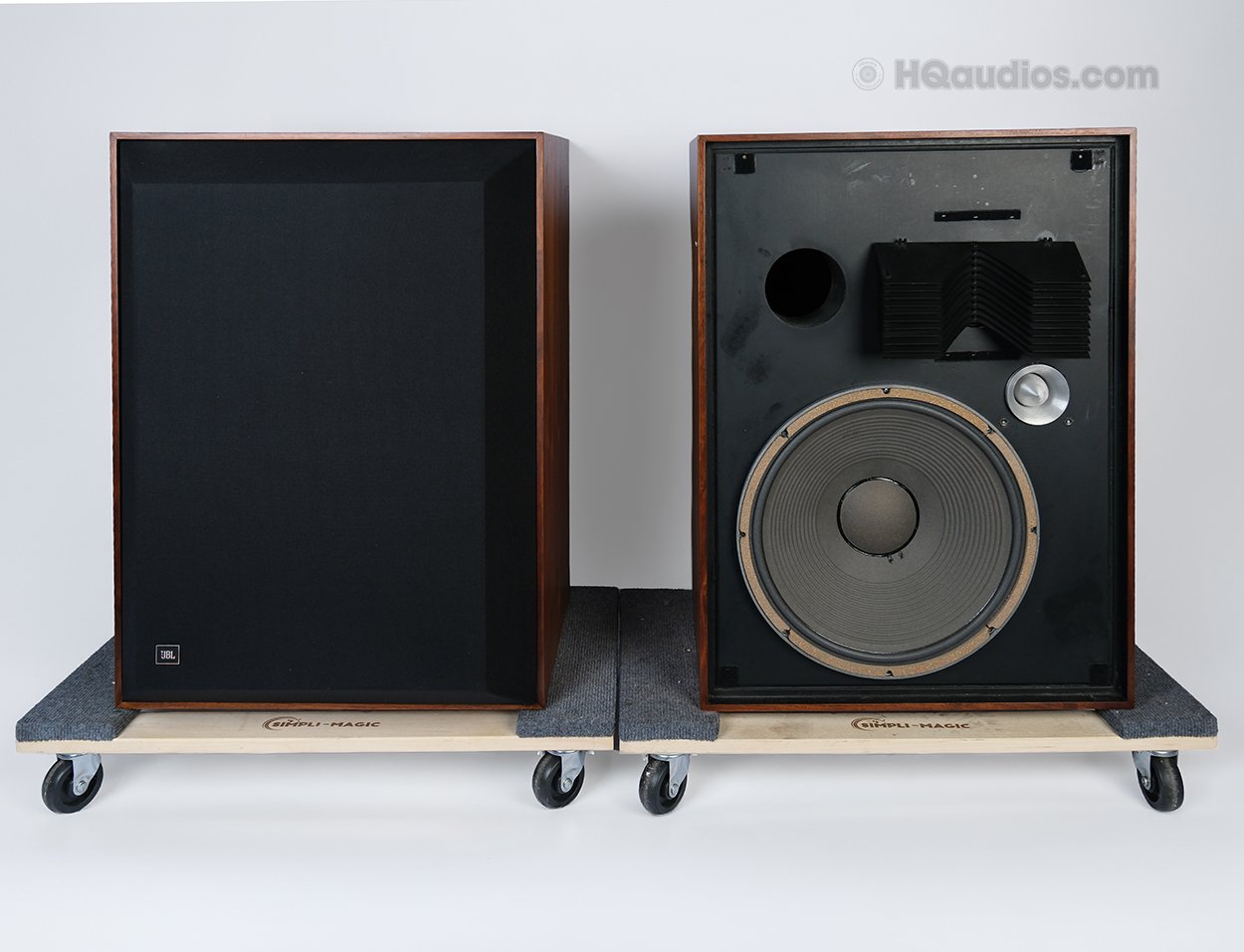

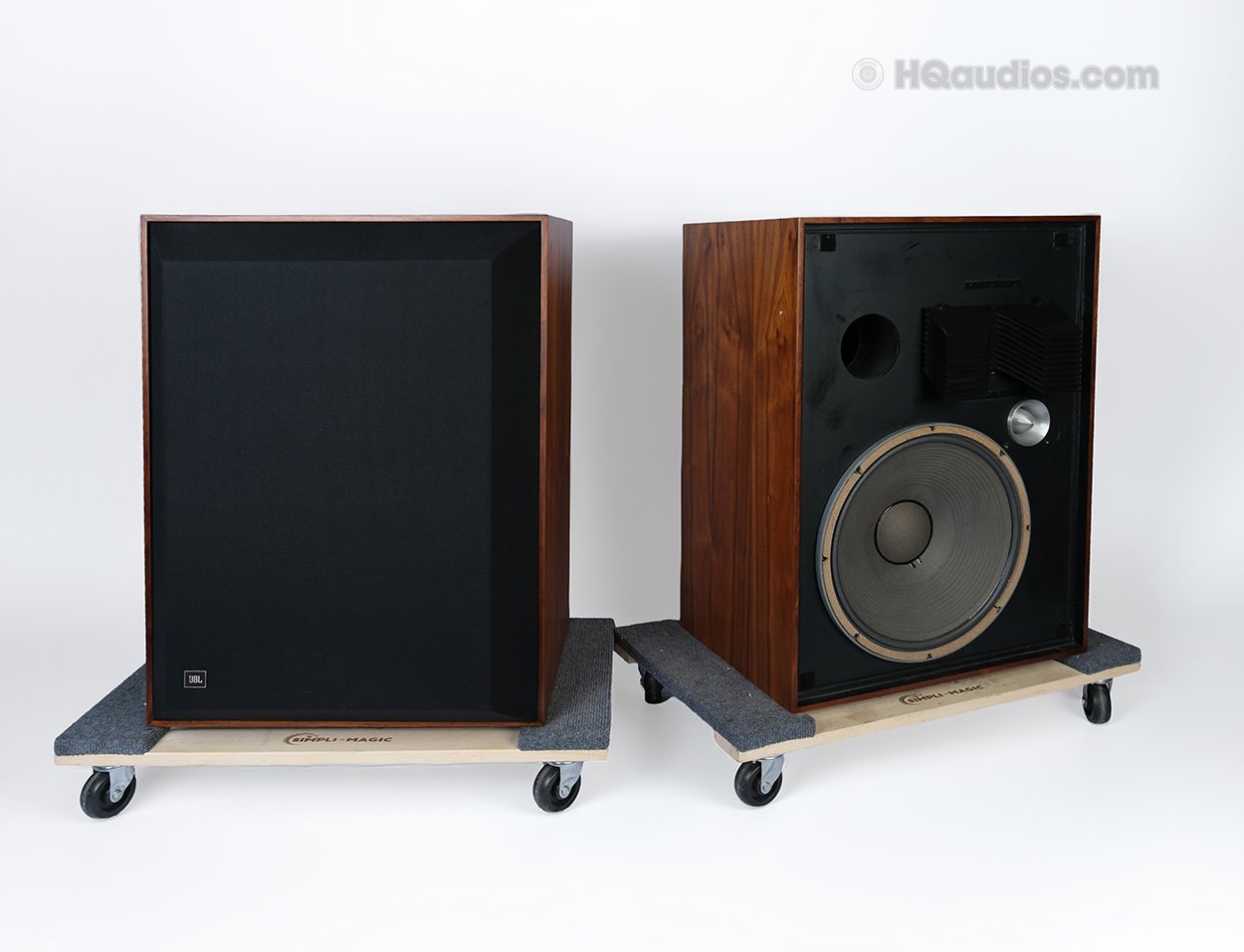

With the grilles installed, the C45 S8 presents as a restrained piece of mid-century furniture: broad wood panels, clean proportions, and a dark sculpted grille that allows the speakers to sit naturally in a dedicated listening room.

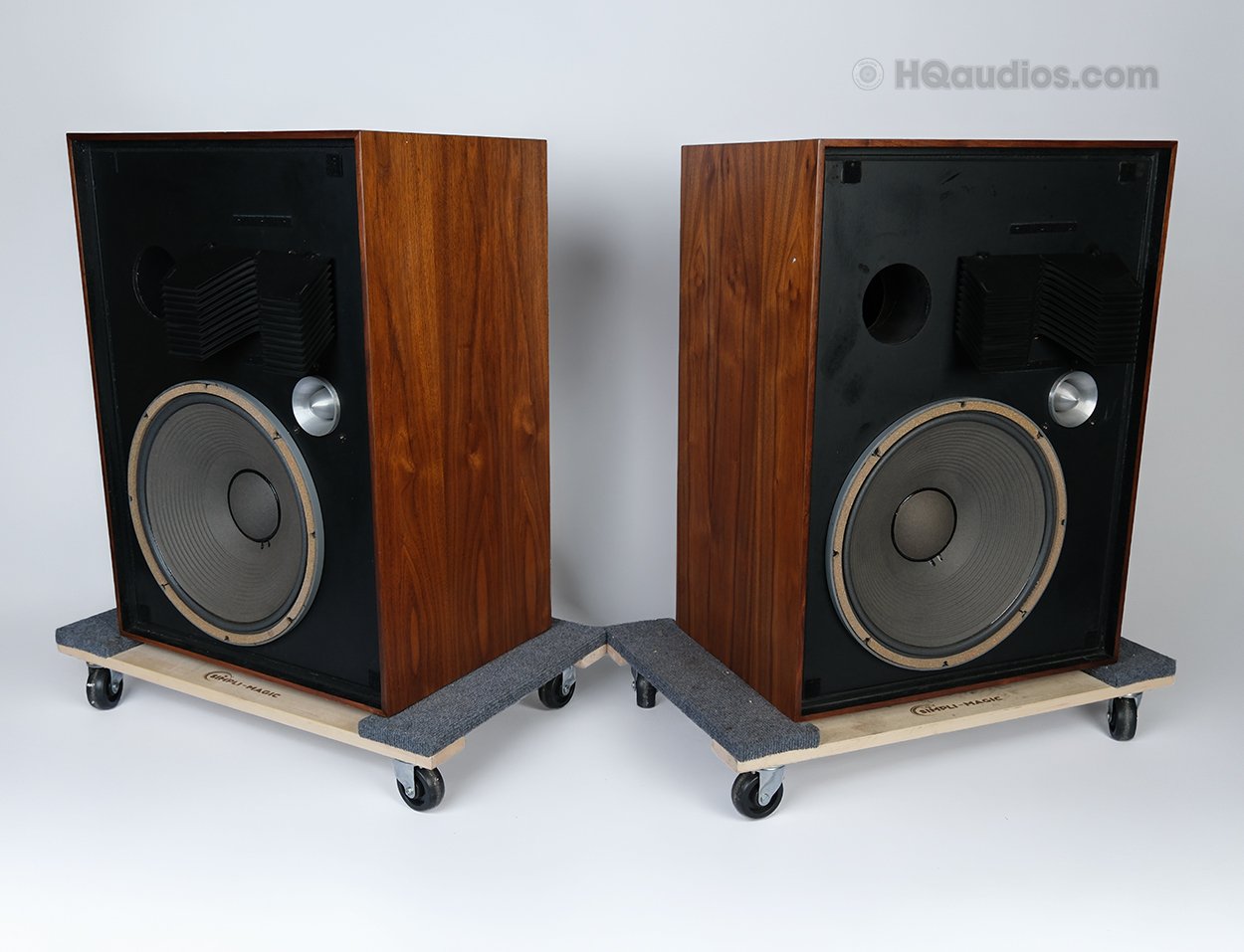

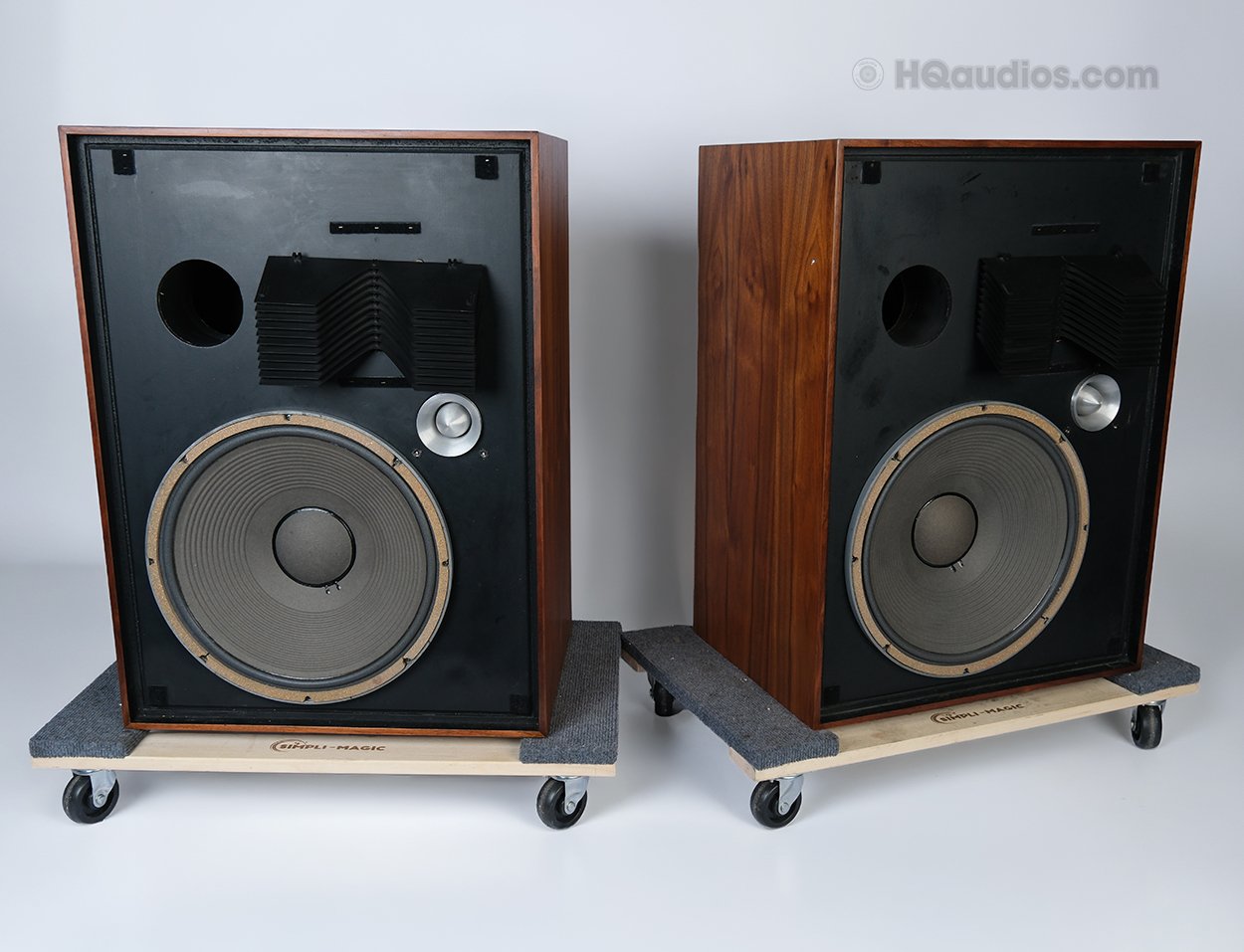

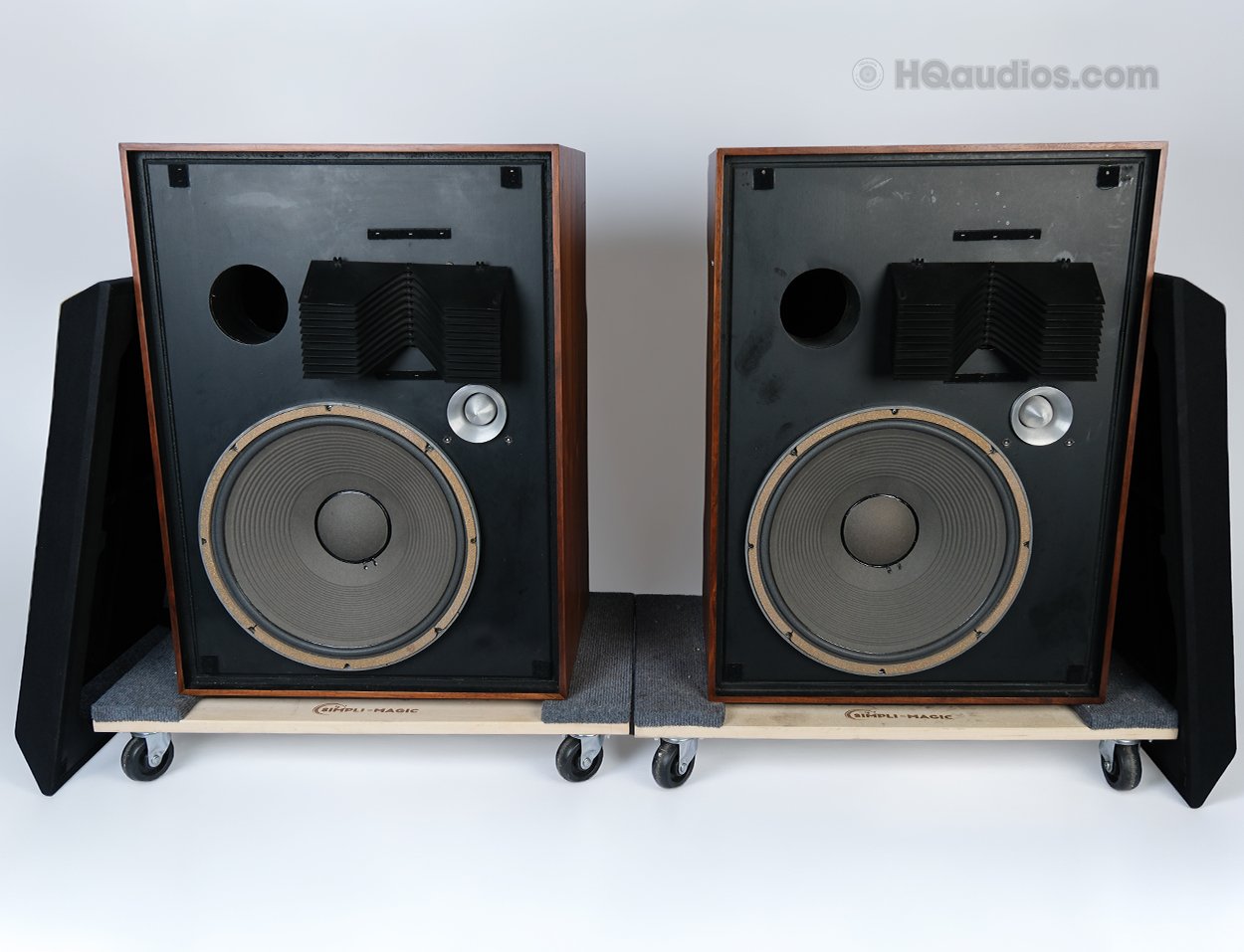

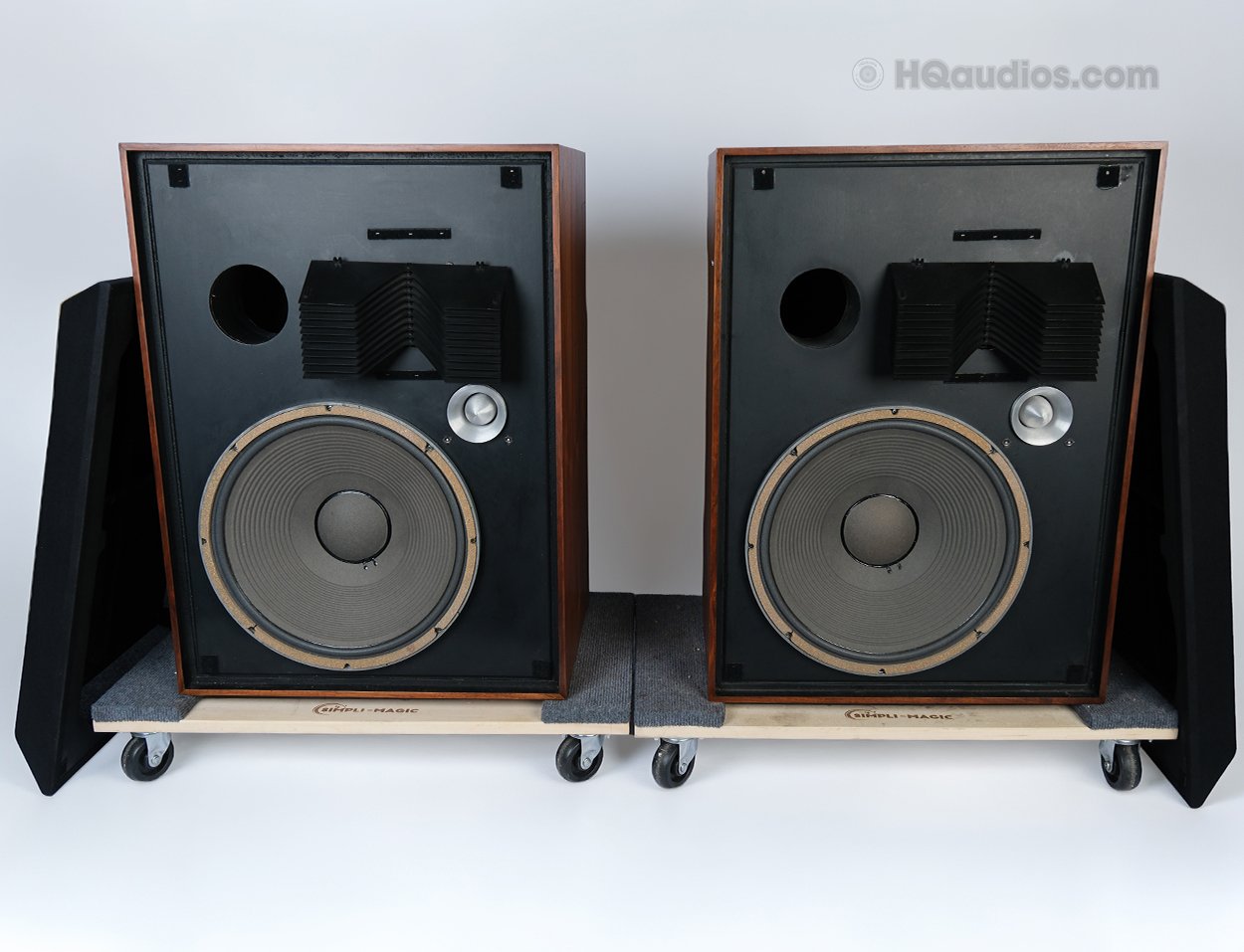

Remove the grilles and the engineering becomes visible. The large LE15A woofer, H91 horn and LE85 compression-driver system, and polished 075 high-frequency radiator give the front baffle a completely different personality. The speaker changes from understated furniture to unmistakable classic JBL.

The cabinets present beautifully overall and retain the natural variation and light signs of age expected from authentic vintage woodwork. The restoration approach favored preservation rather than aggressive refinishing, allowing the existing wood tone and period character to remain intact.

The grille assemblies have also received attention, including repair to damaged frame areas and service to deteriorated foam

Please review all product photos carefully for the exact condition of the veneer, cabinet edges, grilles, drivers, horns, rear network panels, controls, terminals, badges, and serial numbers.

What Is Included

• One pair of JBL C45 S8 vintage speakers
• Installed JBL LE15A low-frequency drivers
• Installed JBL LE85 8-ohm compression-driver assemblies
• Installed JBL H91 horn assemblies
• Installed JBL 075 8-ohm high-frequency radiators
• Installed JBL LX5 / N7000 network assemblies shown in the product photos
• Grille assemblies shown in the product photos
• 1-Year HQaudios Warranty

Speaker stands, amplifiers, preamplifiers, source components, cables, decorative accessories, and other equipment shown for system reference are not included unless specifically stated.

Suggested Pairing

The C45 S8 is a high-efficiency large-format JBL system. It does not need extreme amplifier power to create convincing scale. What matters more is the quality of the electronics, low noise, tonal refinement, and the ability to preserve the speed and texture of the LE85 and 075 while maintaining control over the LE15A.

McIntosh Reference Tube System

McIntosh C22 Preamplifier + MC275 Power Amplifier
The MC275 offers ample usable power for a high-efficiency JBL system while bringing the smoothness and tonal density that can complement the immediacy of the LE85 horn driver. The C22 adds a refined analog front end appropriate for a system built around turntables, tape machines, and other classic sources.

Marantz Reference Tube System

Marantz Model 7 Preamplifier + Model 8B Power Amplifier
This combination favors refinement, texture, and dimensionality rather than sheer output. The 8B’s composed presentation works naturally with the speed and projection of the JBL horn system, making it especially attractive for jazz, vocals, chamber music, acoustic recordings, and high-quality vinyl playback.

Sansui Tube System

Sansui AU-111 Integrated Amplifier
The AU-111 brings warmth and texture while retaining enough immediacy to preserve the dynamic character of the C45 S8. It also creates a visually coherent period system for listeners who value tactile operation and classic craftsmanship.

McIntosh Solid-State System

McIntosh C28 Preamplifier + MC2105 Power Amplifier
For larger rooms or listeners who want greater bass authority, this pairing provides excellent control over the LE15A while retaining a smooth enough presentation to work comfortably with the high-efficiency horn and 075 radiator.

Luxman Classic System

Luxman CL35 Tube Preamplifier + MQ60-Series Tube Power Amplifier
Luxman tube electronics can give the C45 S8 a slightly more relaxed and textural presentation, favoring dimensional vocals, acoustic timbre, and long listening sessions while retaining the speed and presence of the JBL system.

Recommended Analog Sources

• Thorens TD-124
• Garrard 301 / 401
• Technics SP-10
• Marantz 6300
• Revox B77
• Technics RS-1500-Series Reel-to-Reel Deck

A quiet source chain, properly configured phono stage, and careful speaker placement will allow the C45 S8 to reveal considerably more of its dynamics, tonal texture, and spatial scale.

Trade-In Welcome

HQaudios may accept selected premium vintage audio equipment as a trade-in toward your purchase.

For a system at the level of the JBL C45 S8, we welcome inquiries involving high-quality receivers, tube amplifiers, preamplifiers, power amplifiers, JBL components, Altec systems, McIntosh equipment, Marantz separates, turntables, reel-to-reel decks, and other collectible audio equipment.

Combo Discount

Save $100 when purchasing this pair together with an eligible restored vintage audio component from HQaudios.

For customers building a complete reference-level vintage system, we can also assist with amplifier selection, analog source matching, speaker placement, and component integration.

Video Test Available

A detailed operating and sound demonstration may be available upon request.

• Individual left and right speaker playback
• LE15A woofer operation
• LE85 compression-driver output
• 075 high-frequency output
• HF level-control operation
• Left-to-right balance comparison
• Full-range music playback
• Close-up views of the drivers, networks, cabinets, and identification plates

Shipping

The JBL C45 S8 contains heavy vintage Alnico components, large wood cabinets, and delicate horn-driver assemblies. Shipping therefore requires significantly more preparation than an ordinary pair of speakers.

Each cabinet will be protected individually, with particular attention given to the wood veneer, cabinet corners, grille frames, LE15A woofer, H91 horn area, 075 radiator, rear network panels, and input terminals.

• Protective cabinet wrapping
• Dedicated grille protection
• Front-baffle and driver protection
• Reinforced cabinet-corner protection
• Dense custom cushioning
• Heavy-duty individual cartons
• Structural support appropriate for the weight of the internal components
• Reinforced outer packaging
• Secure strapping and handling labels
• Tracking and insurance where available
• Freight or specialized shipping when appropriate

Local pickup may also be available by appointment in Garden Grove, California.

1-Year HQaudios Warranty

This pair is backed by our 1-Year HQaudios Warranty covering proper functional operation under normal residential use and the service work performed by HQaudios.

The warranty does not cover misuse, excessive amplifier power, amplifier failure or clipping, physical damage, unauthorized driver or network modification, improper installation, cosmetic wear, or damage occurring after delivery.

Please contact HQaudios first if an operating concern develops so our team can review the system and provide appropriate support.

Returns & Buyer Support

Please inspect both speakers and all packaging promptly after delivery.

Contact HQaudios before attempting driver removal, network modification, horn disassembly, cabinet work, or return shipment.

We can assist with:

• Tube and solid-state amplifier matching
• Speaker placement
• HF level-control adjustment
• Room positioning
• Source-component matching
• Turntable integration
• Reel-to-reel integration
• Speaker-cable connection
• General system setup

Returned equipment must be securely packed and handled according to the return instructions provided by HQaudios.

Important Vintage Audio Note

The JBL C45 S8 is a vintage loudspeaker system whose cabinet identification and installed component labels should both be considered when evaluating this specific pair.

The installed LE15A, LE85, H91, 075, LX5, and N7000 components should be treated with appropriate care. Avoid excessive amplifier clipping, uncontrolled high-frequency energy, unnecessary network modification, or driver disassembly.

Because the system is highly efficient, extreme amplifier power is not the goal. Quiet electronics, appropriate gain structure, tonal refinement, and system compatibility are more important than chasing maximum wattage.

Vintage wood cabinets, grilles, metal components, drivers, and identification plates may retain cosmetic characteristics associated with their age and history. Those characteristics are part of the authenticity of the pair.

Please review all product photographs and the complete description before purchase.

Why Buy From HQaudios?

A JBL C45 S8 should not be approached as ordinary used loudspeakers. The value of a pair like this comes from the complete system: the cabinets, the component configuration, the condition of the rare JBL drivers, the networks, the restoration work, the left-to-right consistency, the cosmetic presentation, and the confidence that the speakers have been carefully evaluated before entering another collection.

• Authentic C45 S8 identification
• Closely matched serial numbers
• Documented C45 S8 cabinet identity with period JBL component configuration
• LE15A woofer inspection and surround service
• LE85 compression-driver operation checked
• 075 high-frequency operation checked
• Driver resistance and operating condition evaluated during diagnosis
• LX5 / N7000 network and rear-control assemblies inspected
• Grille-frame and foam restoration work
• Existing cabinet color and vintage finish carefully preserved
• Left and right speaker comparison after service
• Extended real-world listening evaluation
• Protective packaging appropriate for rare, heavy vintage loudspeakers
• Premium system-matching assistance
• 1-Year HQaudios Warranty
• Ongoing buyer support after delivery

The C45 S8 represents a chapter of JBL history when premium domestic loudspeaker enclosures could be configured with different JBL component packages. The surviving cabinet badges and individual driver labels make the history of this particular pair especially interesting.

That combination of craftsmanship, scale, efficiency, and physical presence is what gives this pair its significance today.
