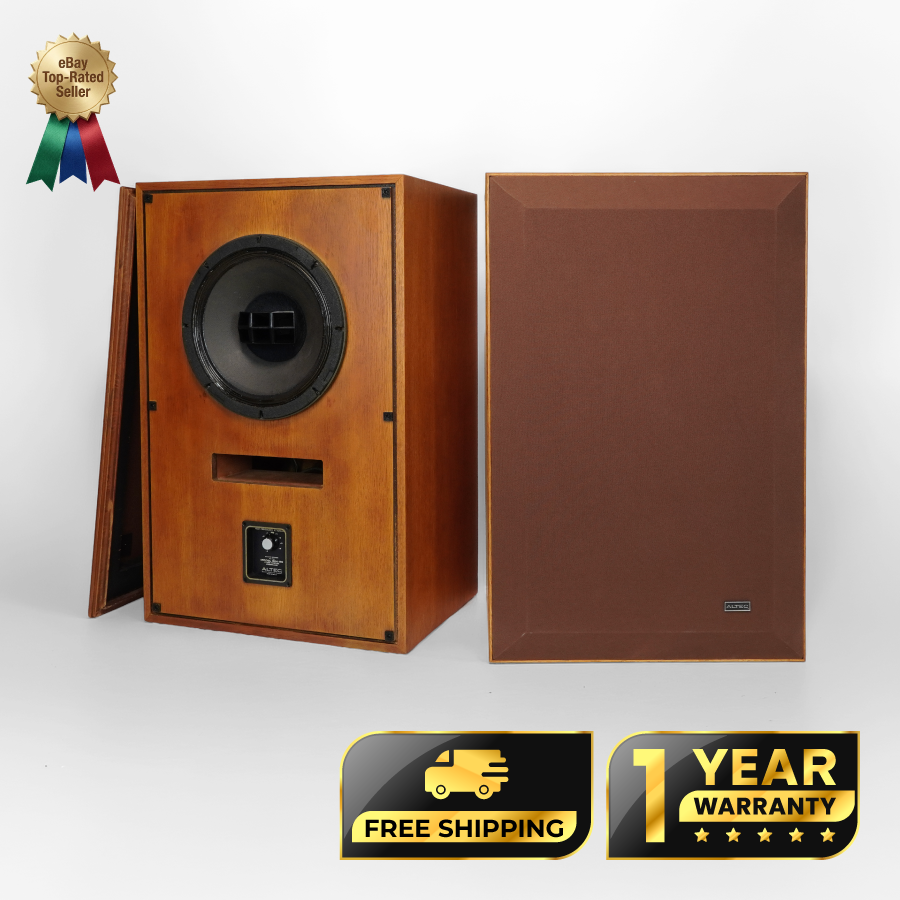

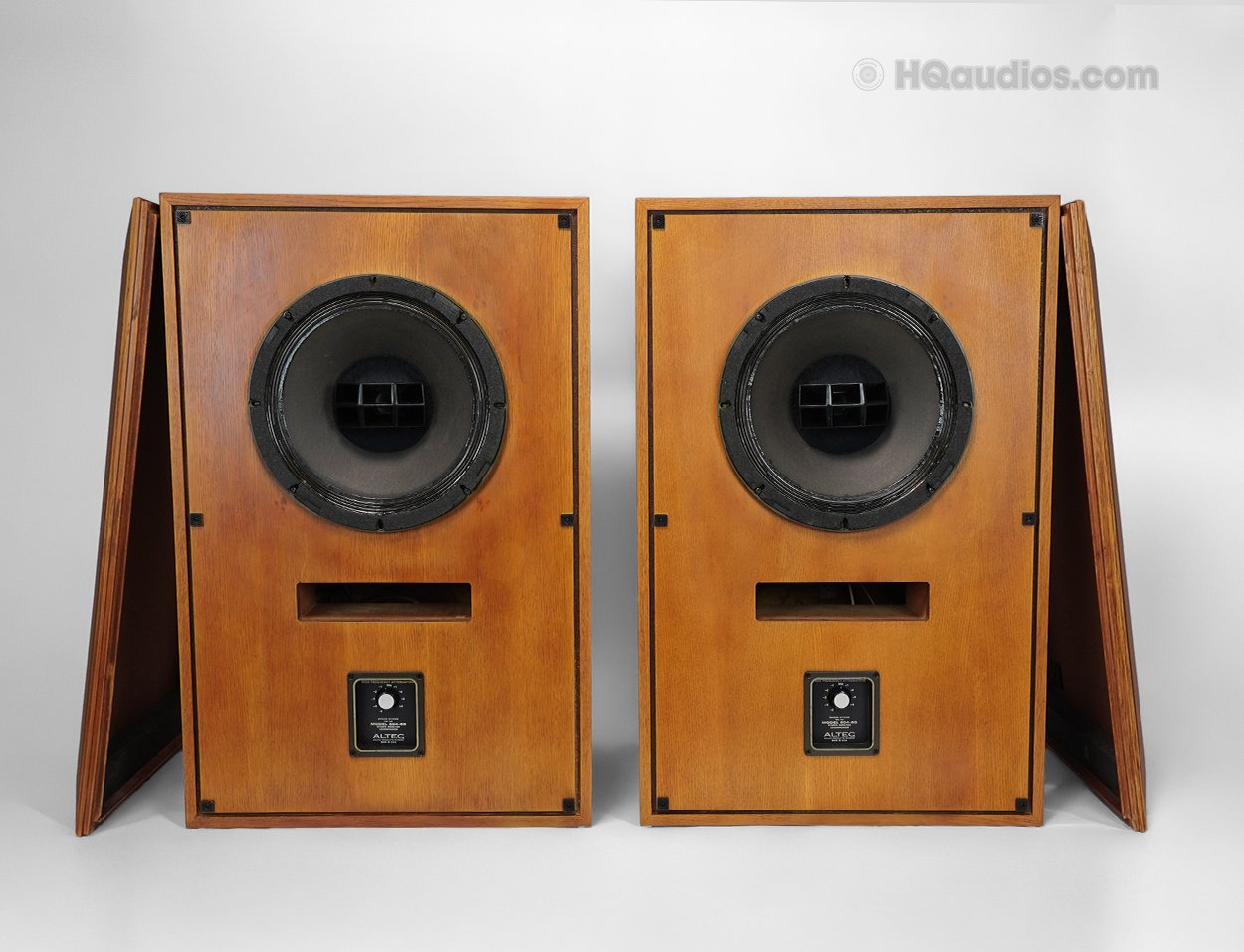

Altec Lansing Model 17 Speakers – 15″ 604-8G Duplex Coaxial (Pair) – Serviced – 1-Year Warranty

Original price was: $9,999.Current price is: $7,999.

-

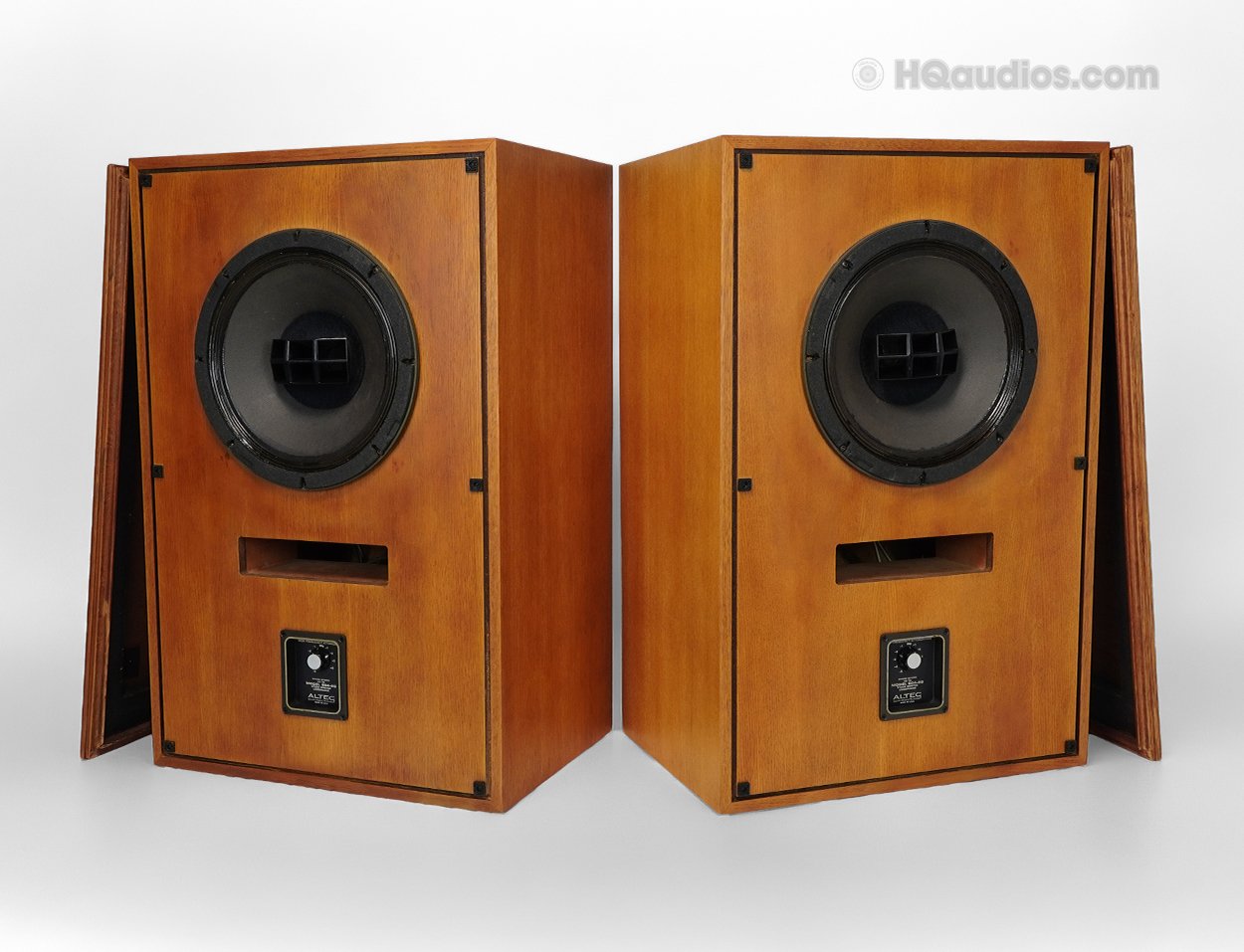

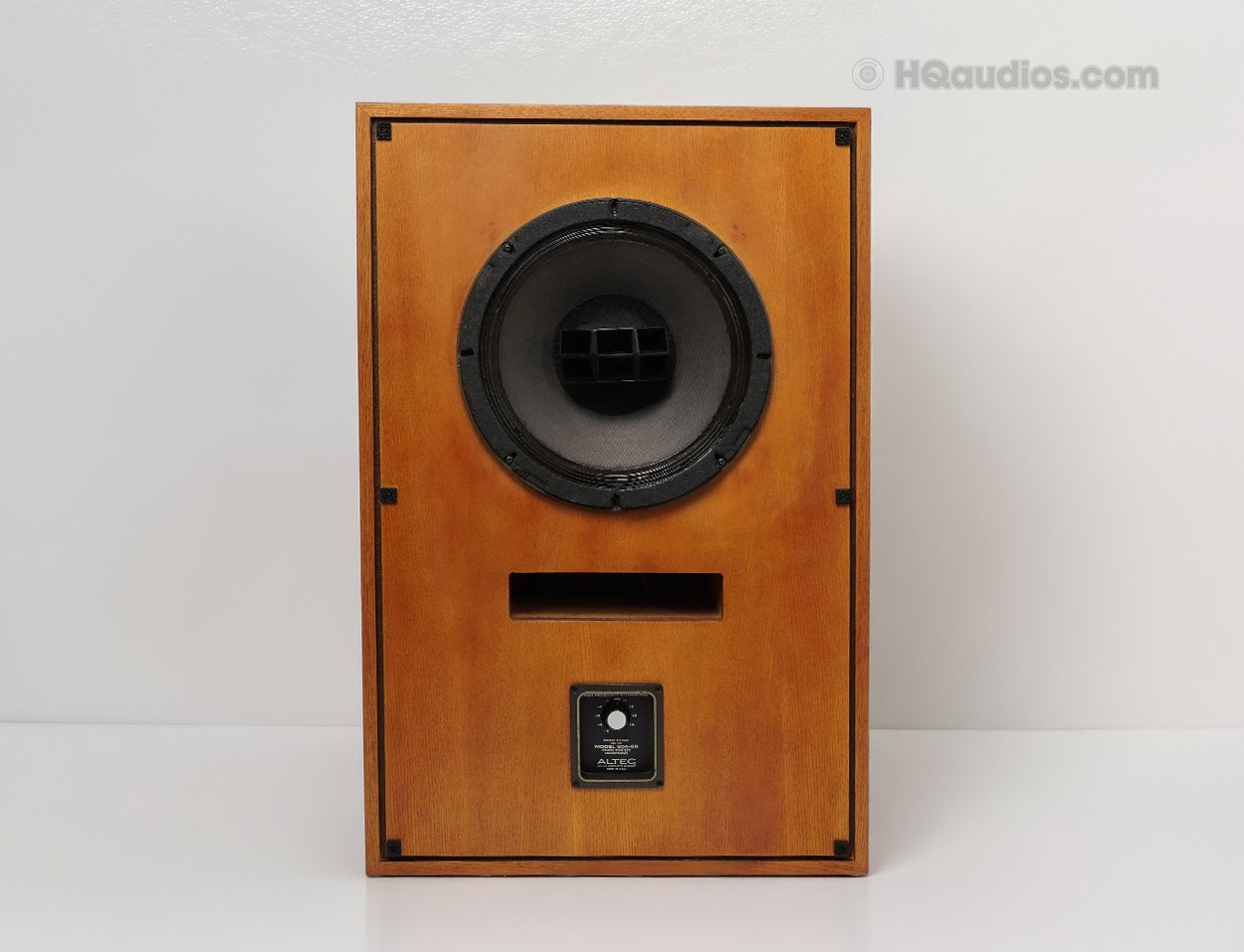

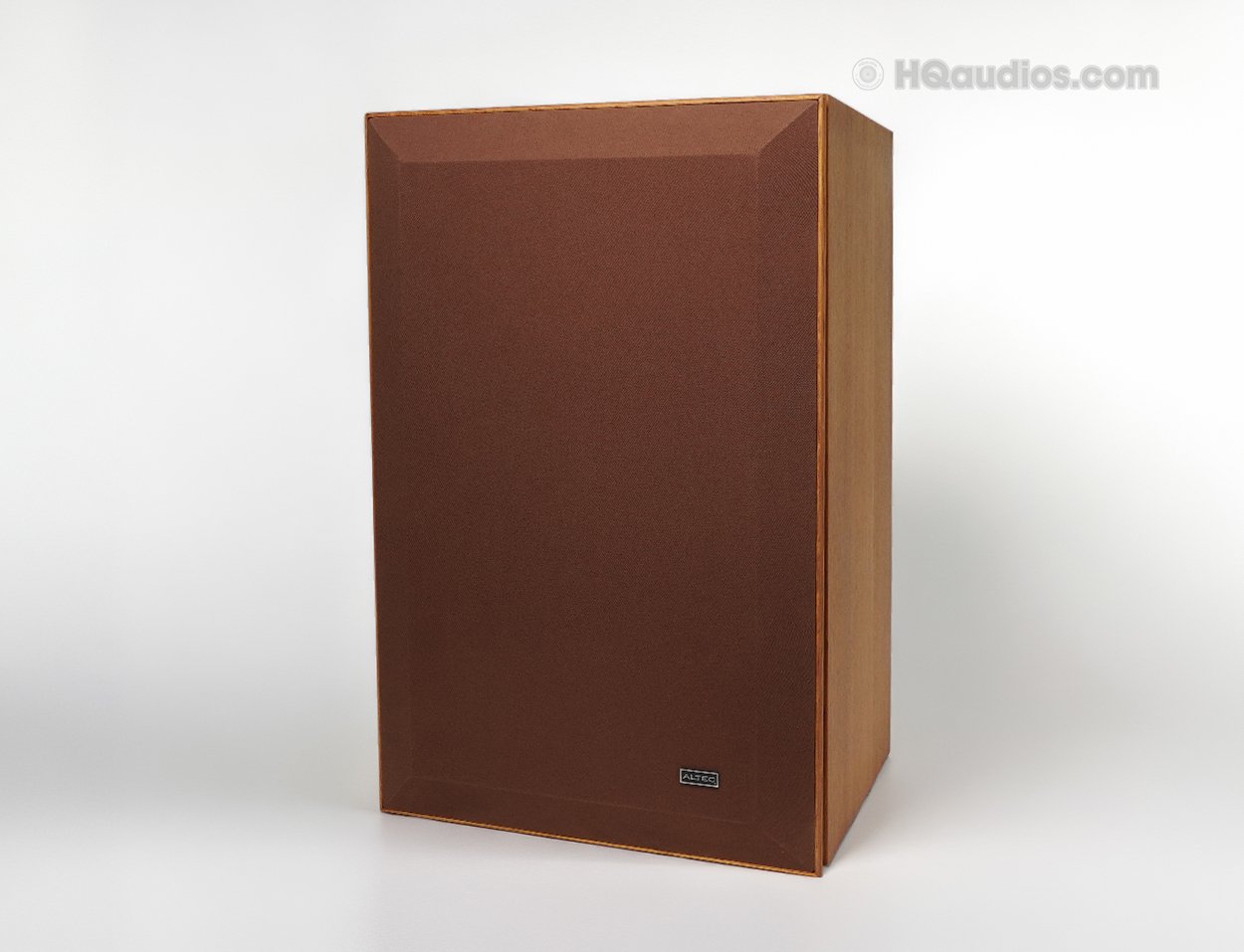

  • One pair of Altec Lansing Model 17 vented floor-standing speakers

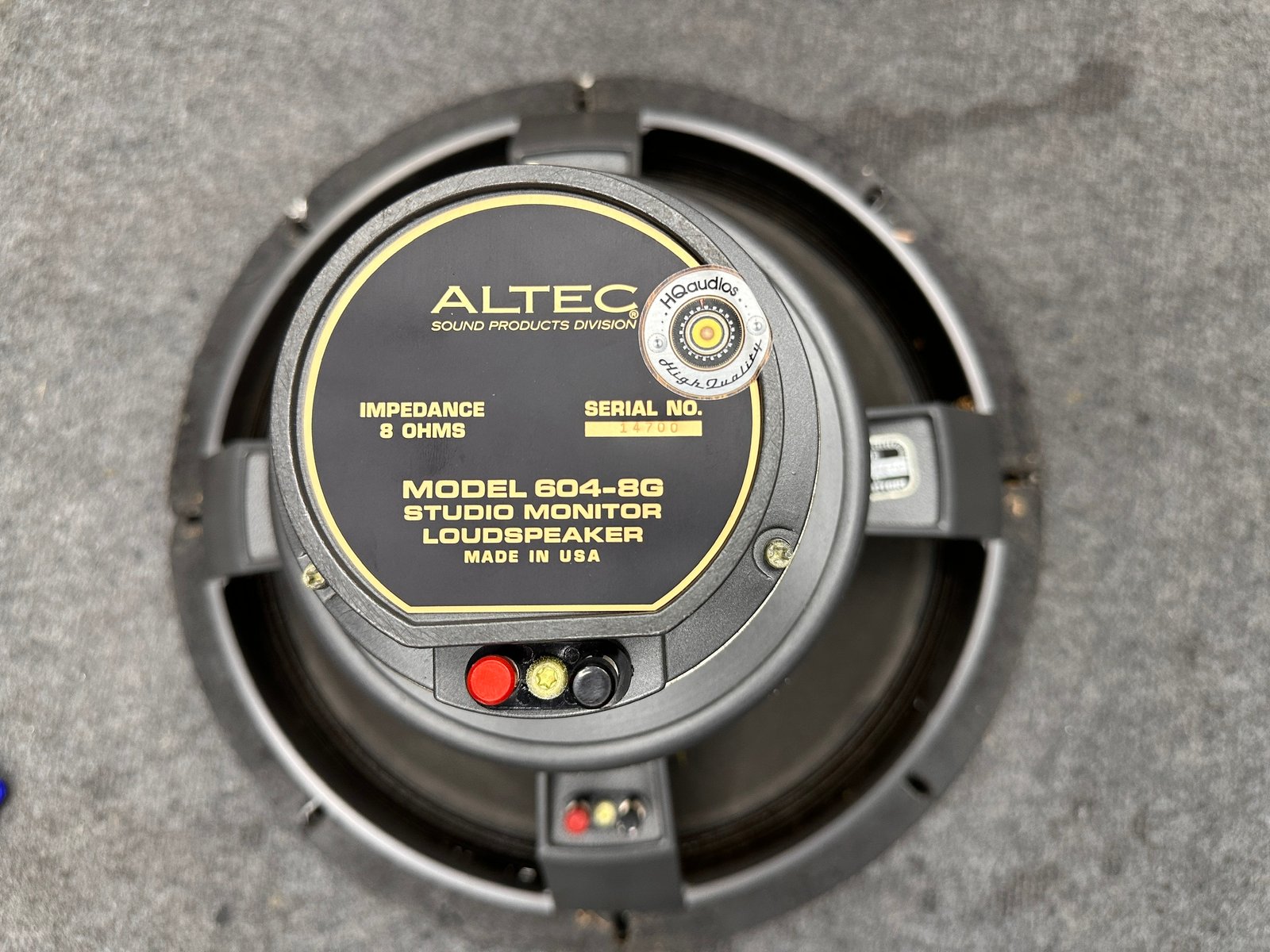

  • 15-inch Altec 604-8G Duplex coaxial driver in each cabinet
  • High efficiency (about 100 dB SPL) – easy to drive
  • Inspected, cleaned and tested by HQaudios
  • Normal age-related cosmetic wear – please review the actual photos
  • Backed by our 1-Year HQaudios Seller Warranty

1 in stock

SKU: 12LK0001 Categories: , ,

ALTEC LANSING MODEL SEVENTEEN 604-8G COAXIAL SPEAKER PAIR
Professionally Restored by HQaudios – Inspected & Tested – Backed by Our 1-Year Warranty

KEY HIGHLIGHTS

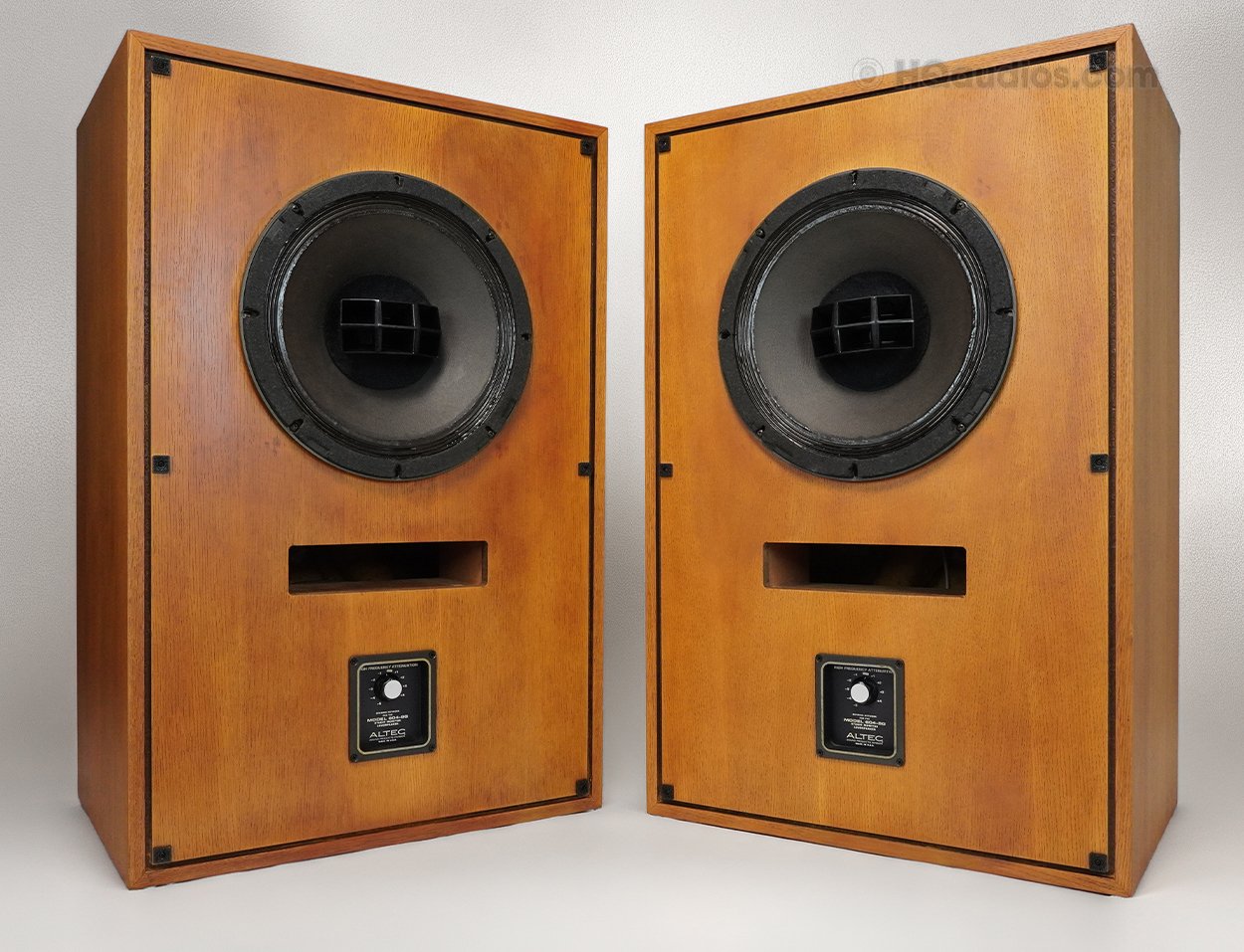

Altec Model Seventeen: Classic two-way loudspeaker system designed around the 604-8G Duplex driver.

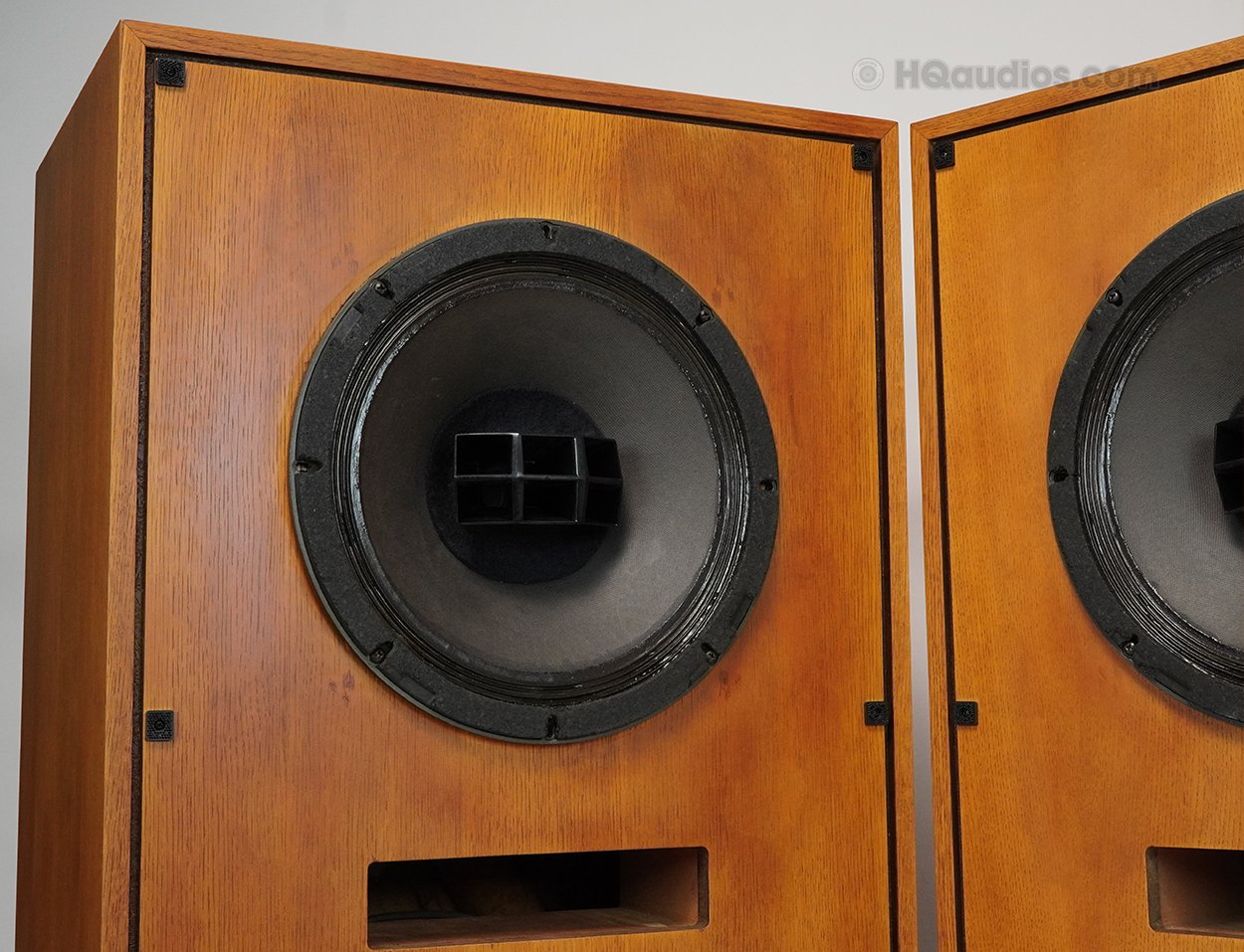

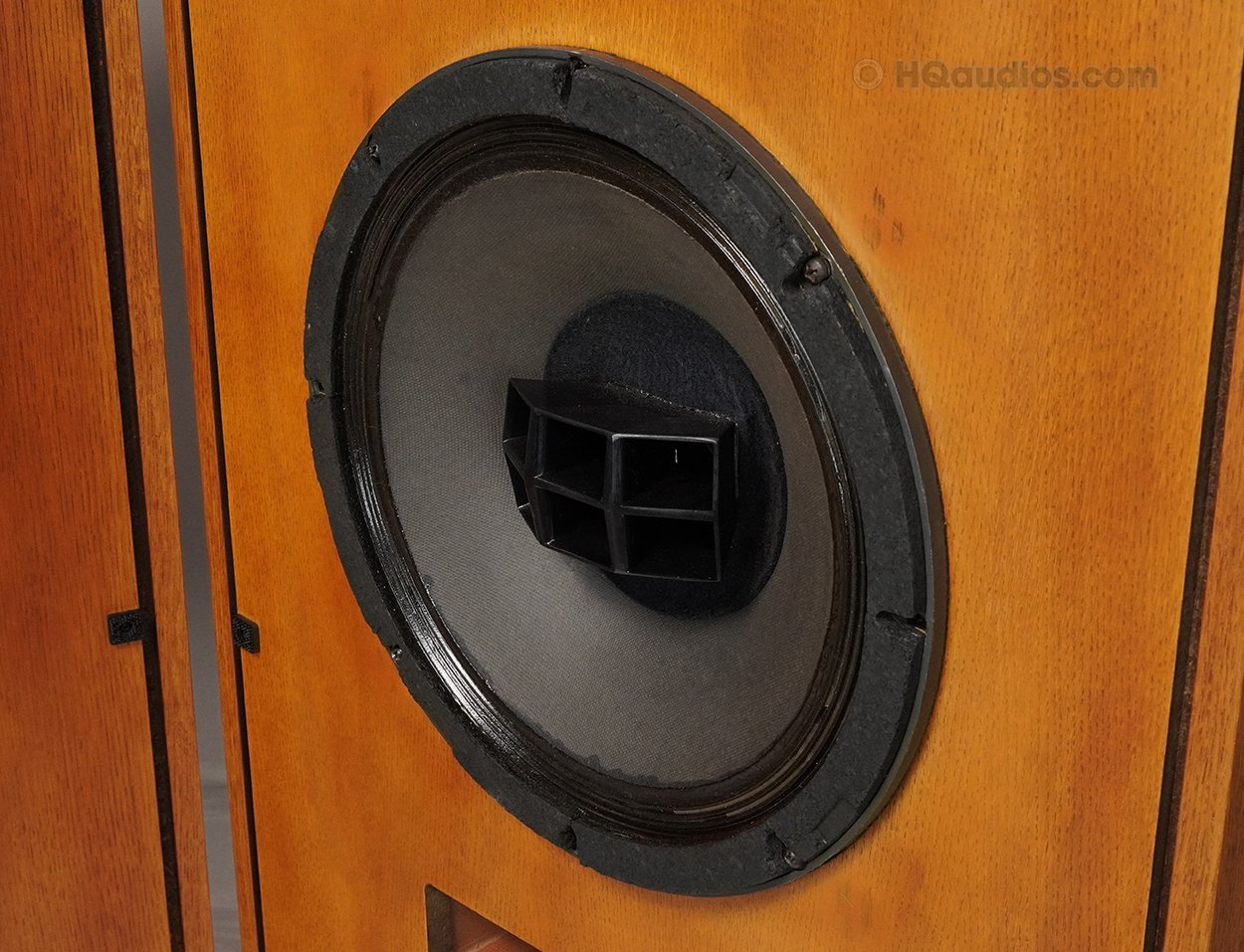

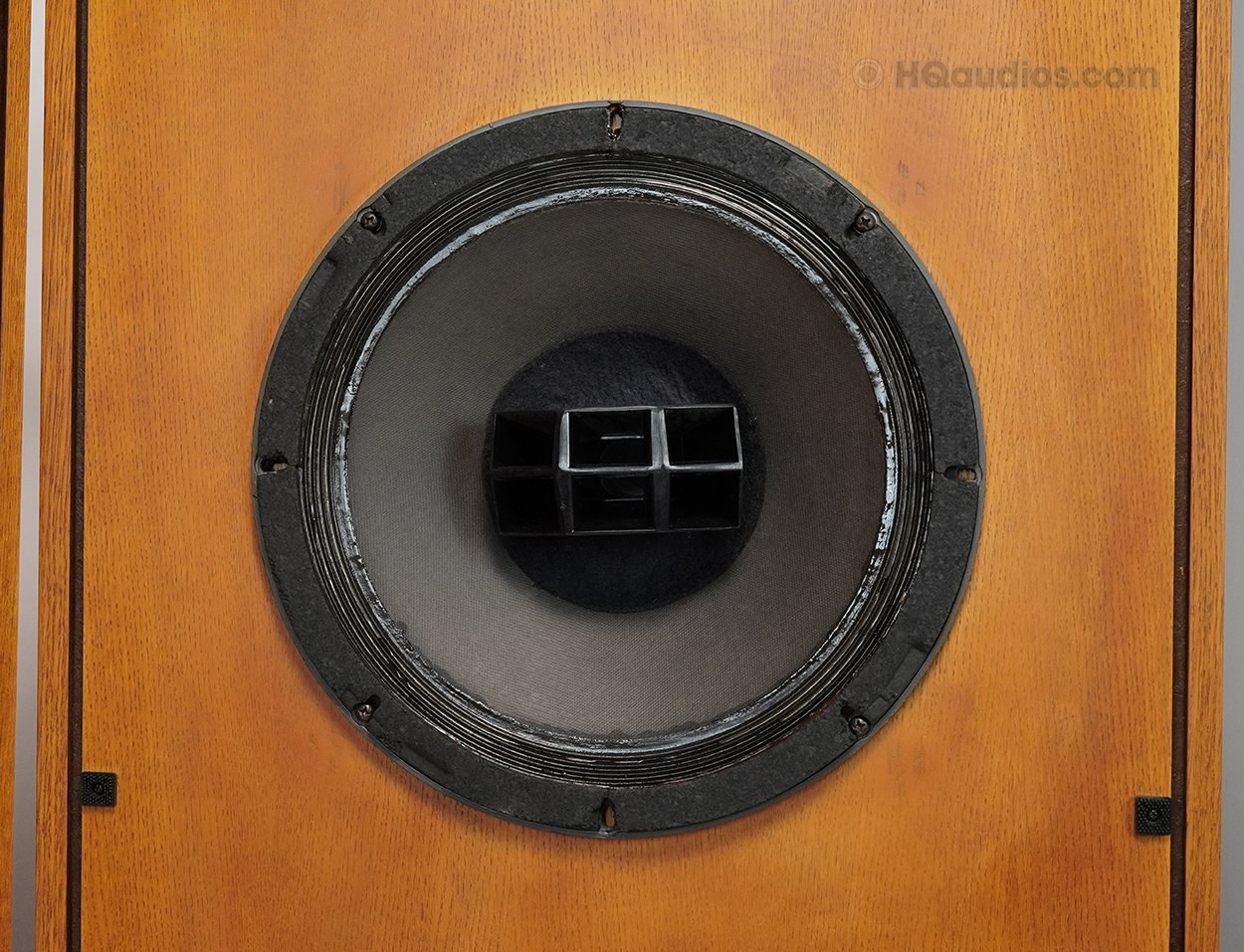

15-Inch Coaxial Design: Low-frequency cone driver with coaxially mounted high-frequency compression driver and sectoral horn.
High-Efficiency System: Factory-rated 100 dB SPL sensitivity under Altec’s specified measurement conditions.
Professional Crossover Service: Capacitors measuring more than 5% outside nominal capacitance were replaced with suitable new components.
Driver & Connection Service: Driver assemblies, internal connections, and speaker terminals were inspected and serviced.
Final Testing: Low- and high-frequency output, crossover operation, polarity, and left/right playback balance were evaluated.
Warranty: Backed by our 1-Year HQaudios Warranty.

PRODUCT OVERVIEW

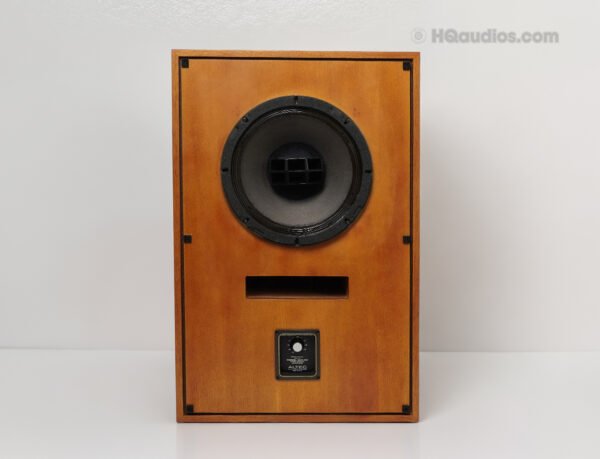

The Altec Lansing Model Seventeen is a classic high-efficiency loudspeaker system featuring the 604-8G Duplex coaxial driver. Its 15-inch low-frequency section shares a common acoustic axis with a horn-loaded high-frequency compression driver, a configuration closely associated with Altec’s professional monitor heritage.

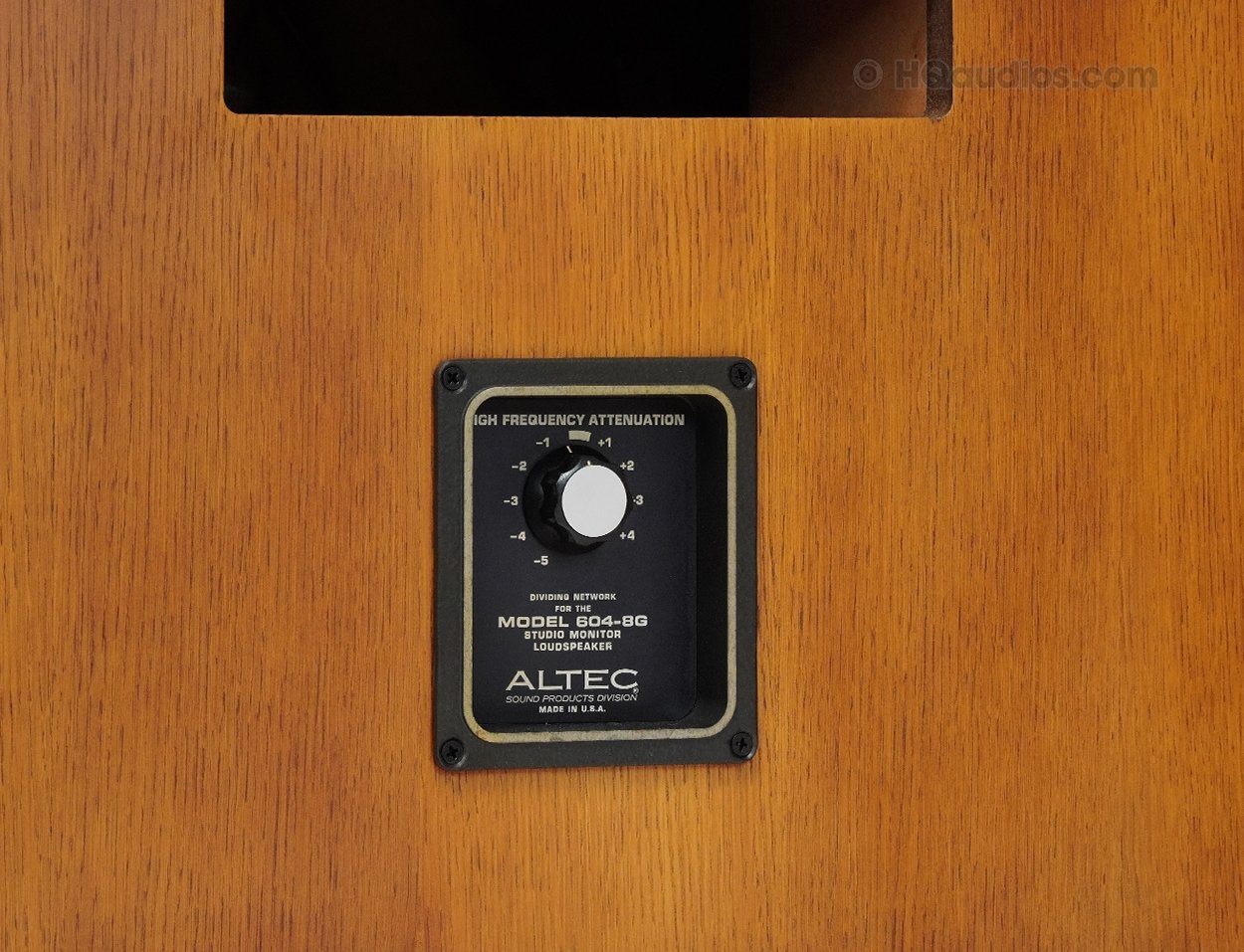

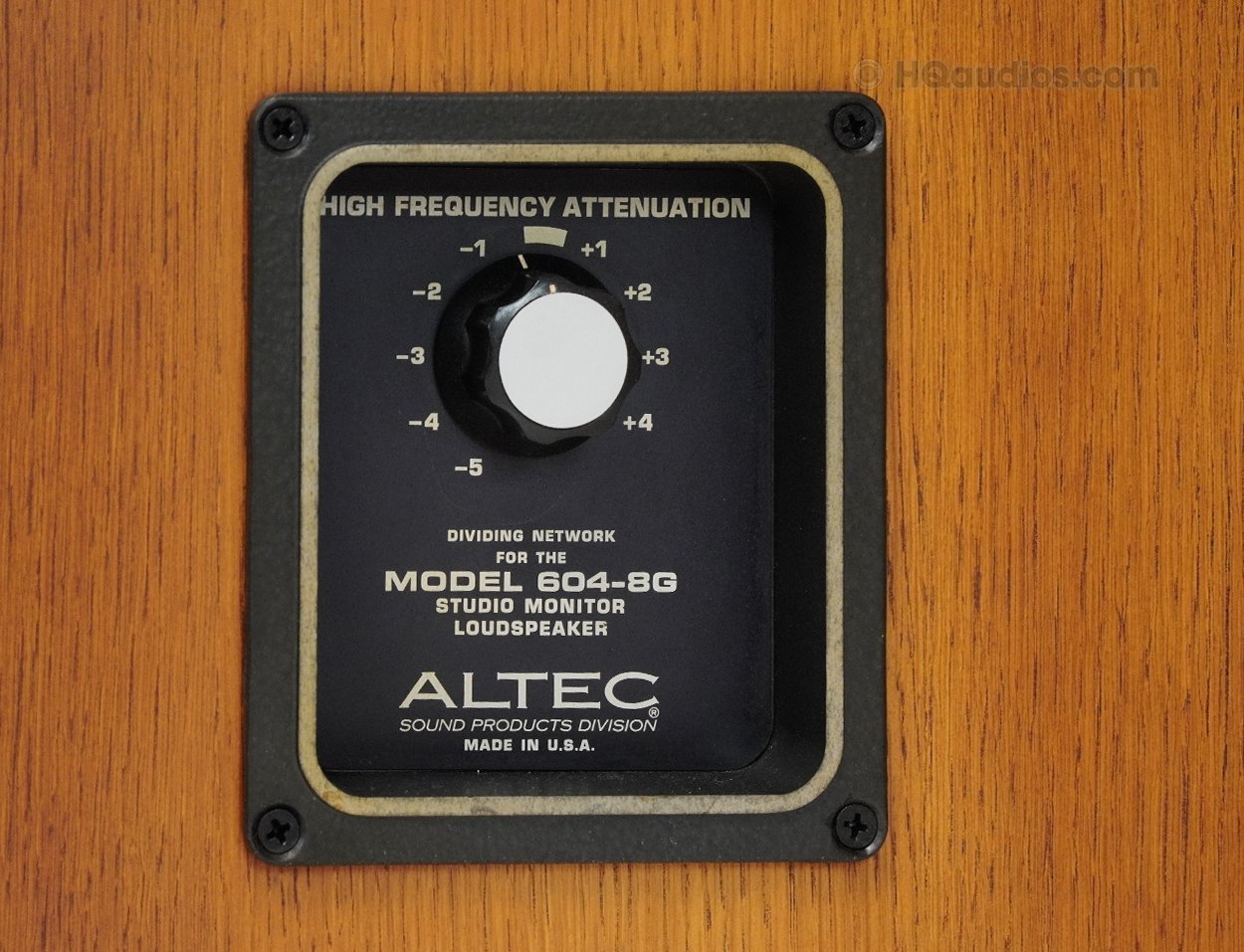

The system incorporates a vented enclosure and an asymmetrical crossover network with a factory crossover frequency of 1,500 Hz. Its coaxial architecture is intended to provide coherent sound reproduction and stable stereo imaging.
HQaudios has serviced this speaker pair with attention to crossover component condition, driver operation, electrical connections, cabinet care, and final playback performance.

HQAUDIOS RESTORATION & TESTING
Before Restoration
Before beginning service, we inspected the speaker pair to assess its electrical and mechanical condition.
Driver Inspection: We examined the low-frequency cones, surrounds, dust caps, high-frequency driver assemblies, and driver mounting points.
Crossover Inspection: We inspected the crossover assemblies, capacitors, resistors, inductors, electrical connections, and component mounting points for age-related deterioration and performance concerns.
Capacitor Evaluation: We measured crossover capacitor values to identify components outside the specified service tolerance.

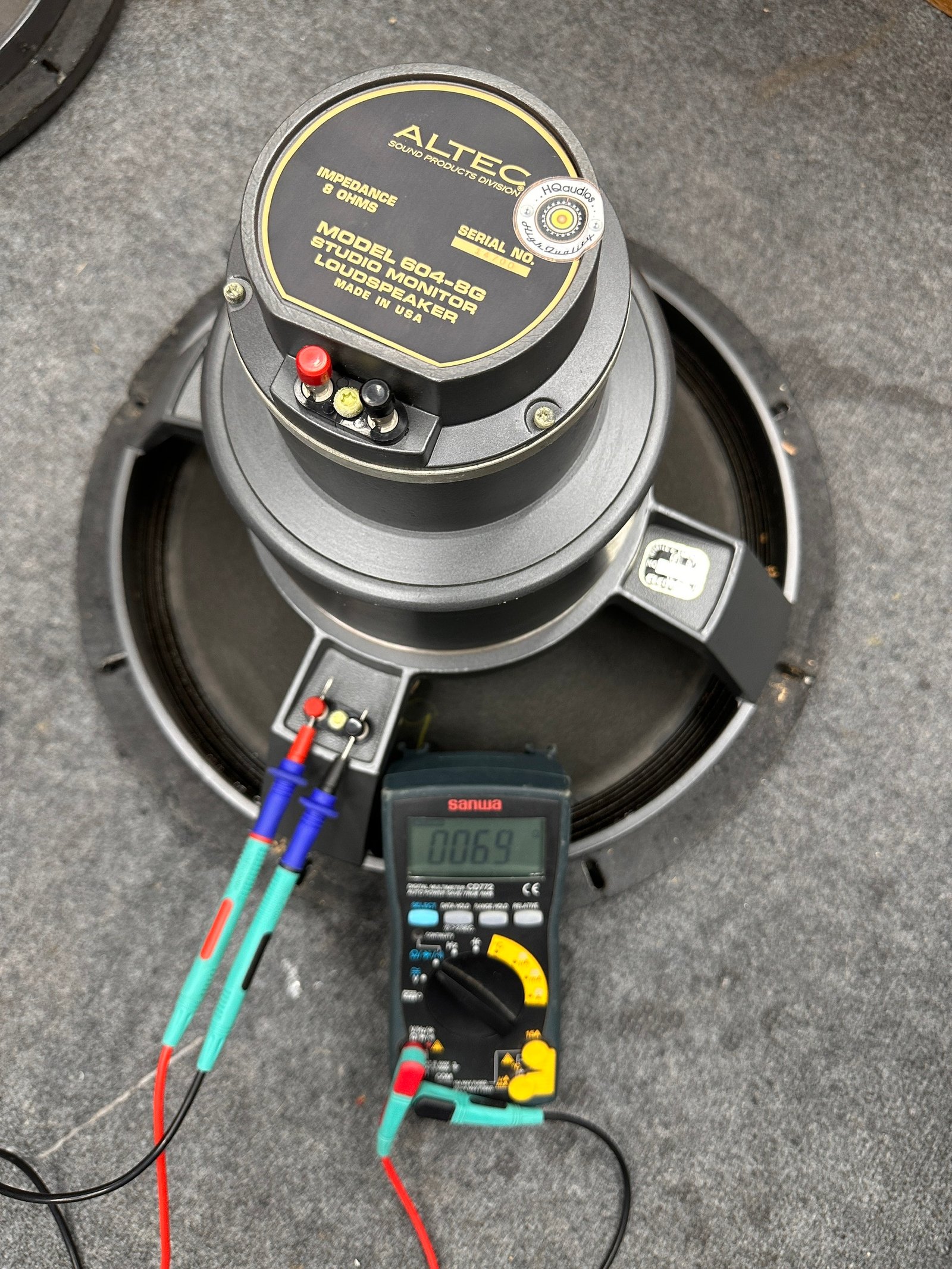

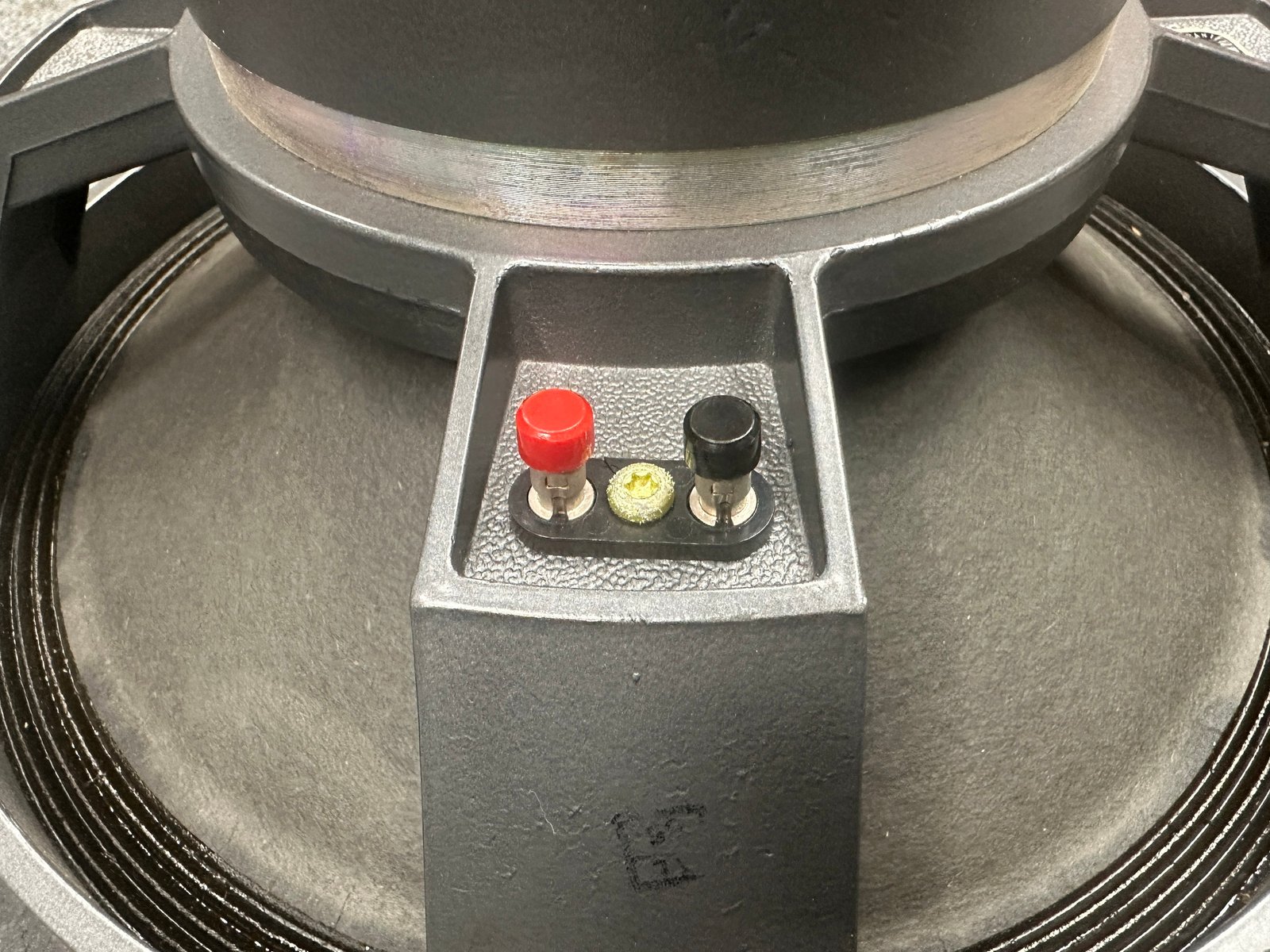

Internal Wiring & Terminals: We inspected the speaker wiring, terminals, solder joints, and electrical contact points.
Cabinet & Grille Inspection: We examined cabinet surfaces, structural joints, driver mounting hardware, and grille assemblies.
During Restoration
Our technicians serviced the speaker assemblies, crossover networks, electrical connections, and exterior components.
Crossover Capacitor Replacement: We measured the crossover capacitors and replaced all capacitors measuring more than 5% outside their nominal capacitance values with suitable new components matched to the circuit requirements.

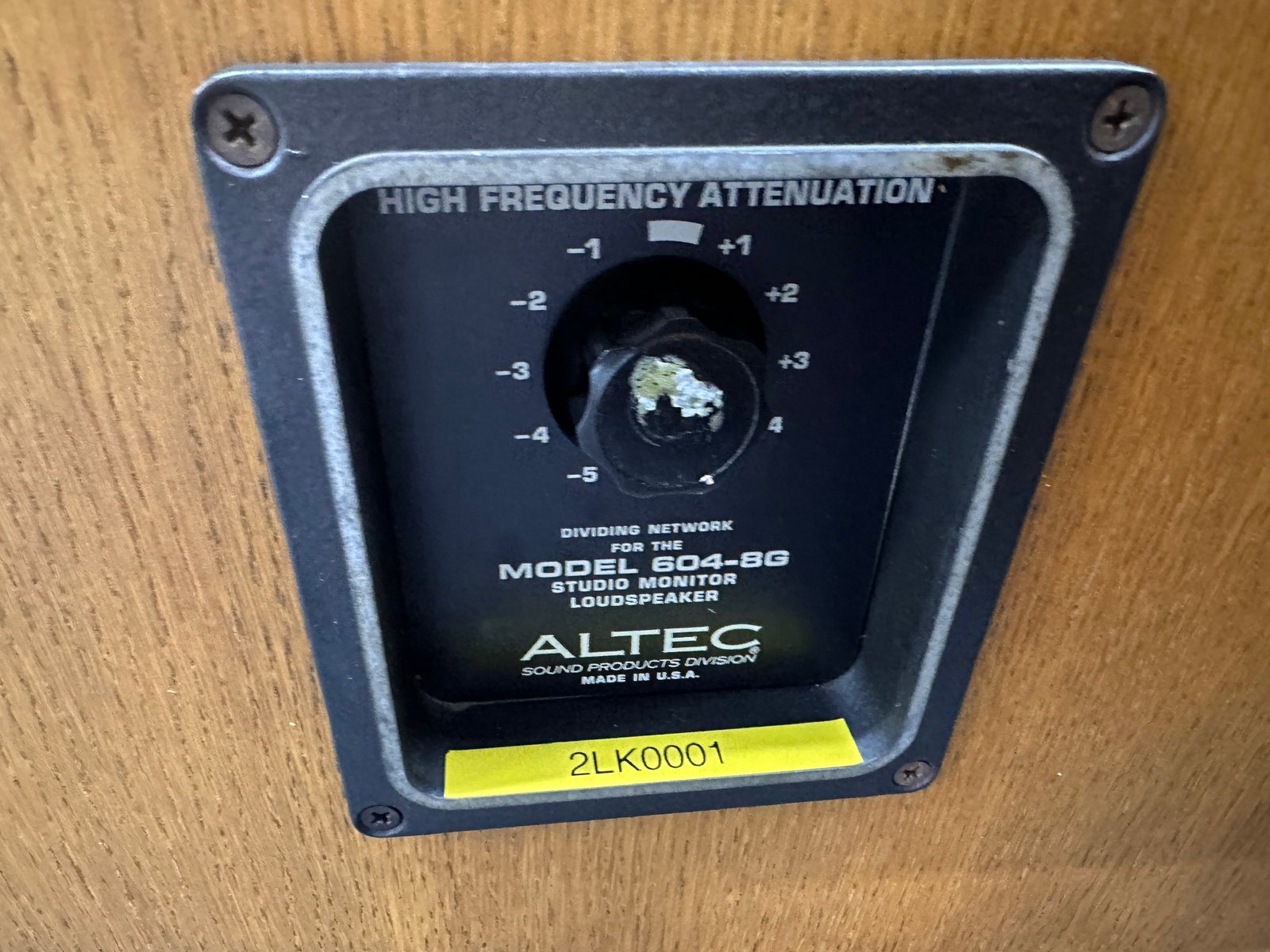

Crossover Network Service: We cleaned and serviced the crossover assemblies, inspected the component connections, and addressed electrical contact points.
Electrical Component Service: We inspected resistors, wiring, terminals, and other crossover components. Components found defective or outside acceptable operating specifications were replaced with suitable parts.

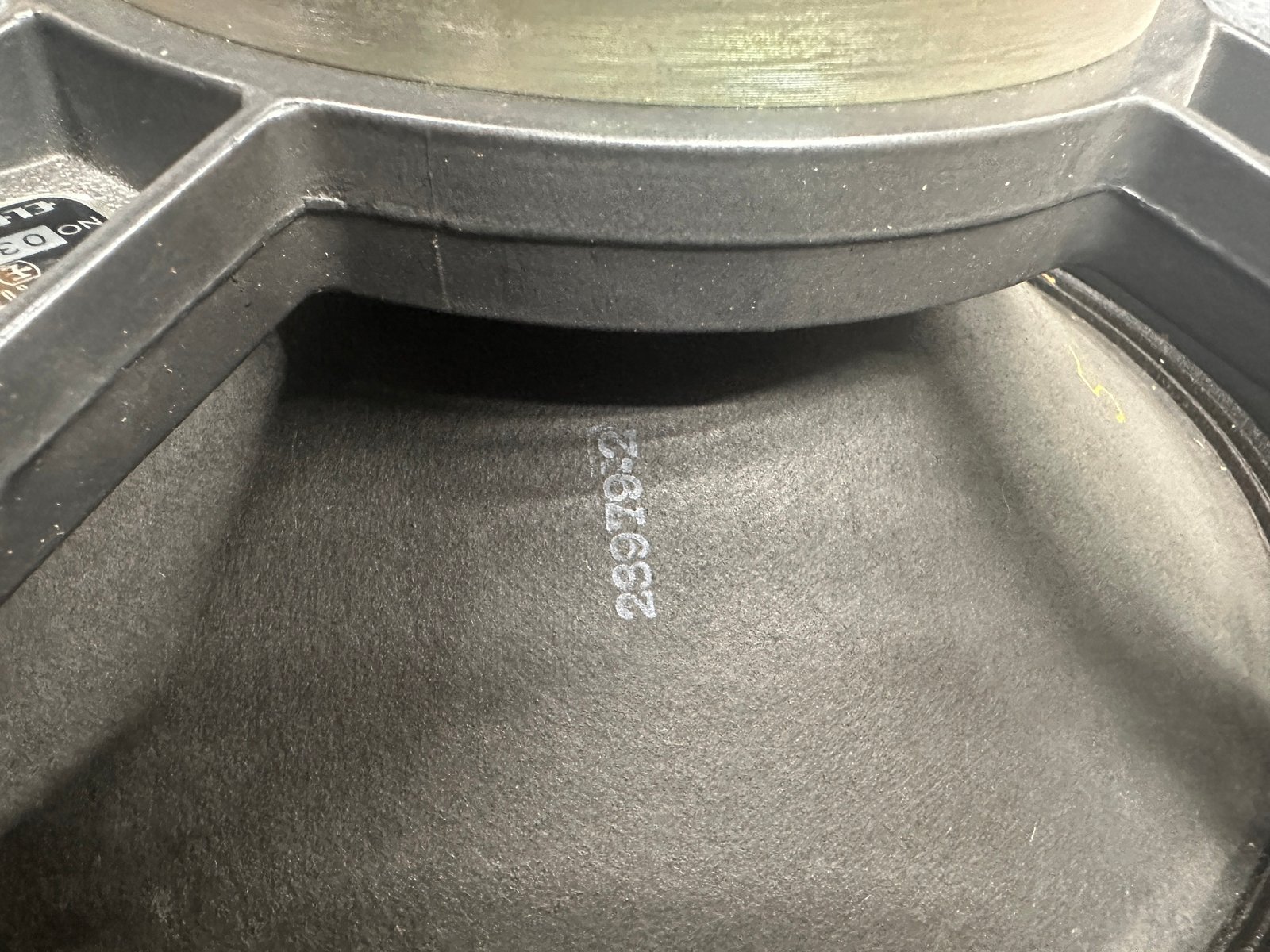

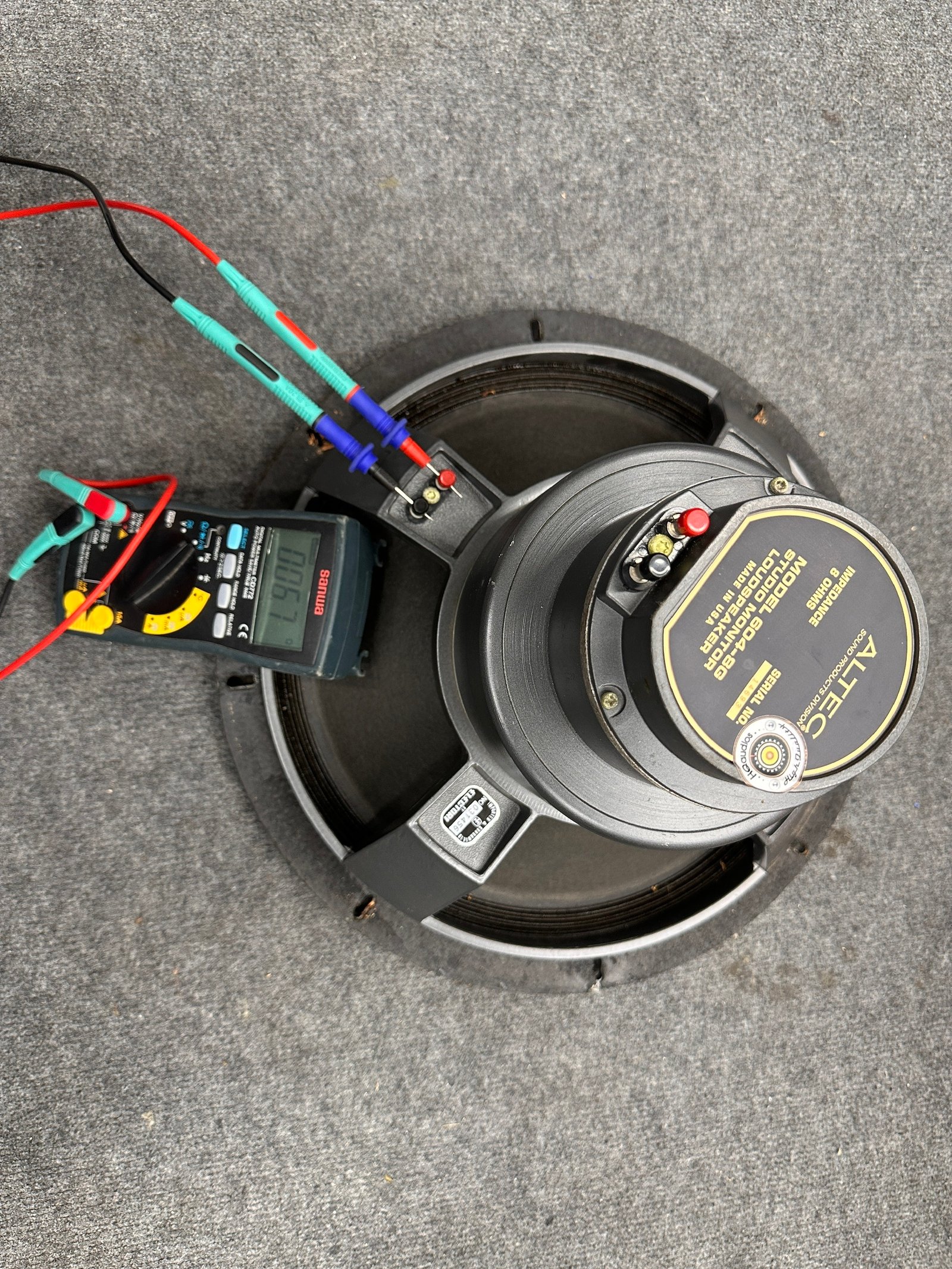

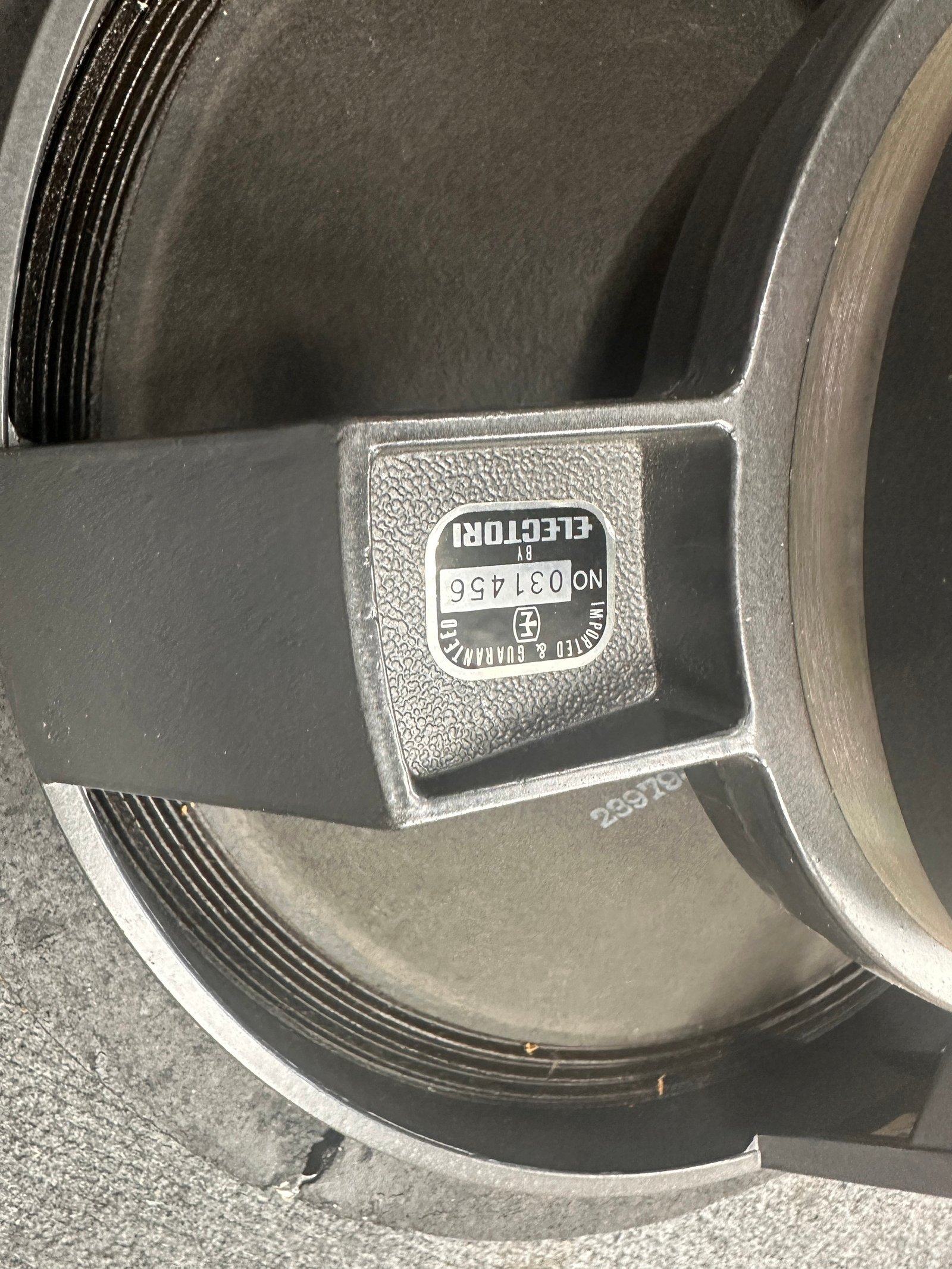

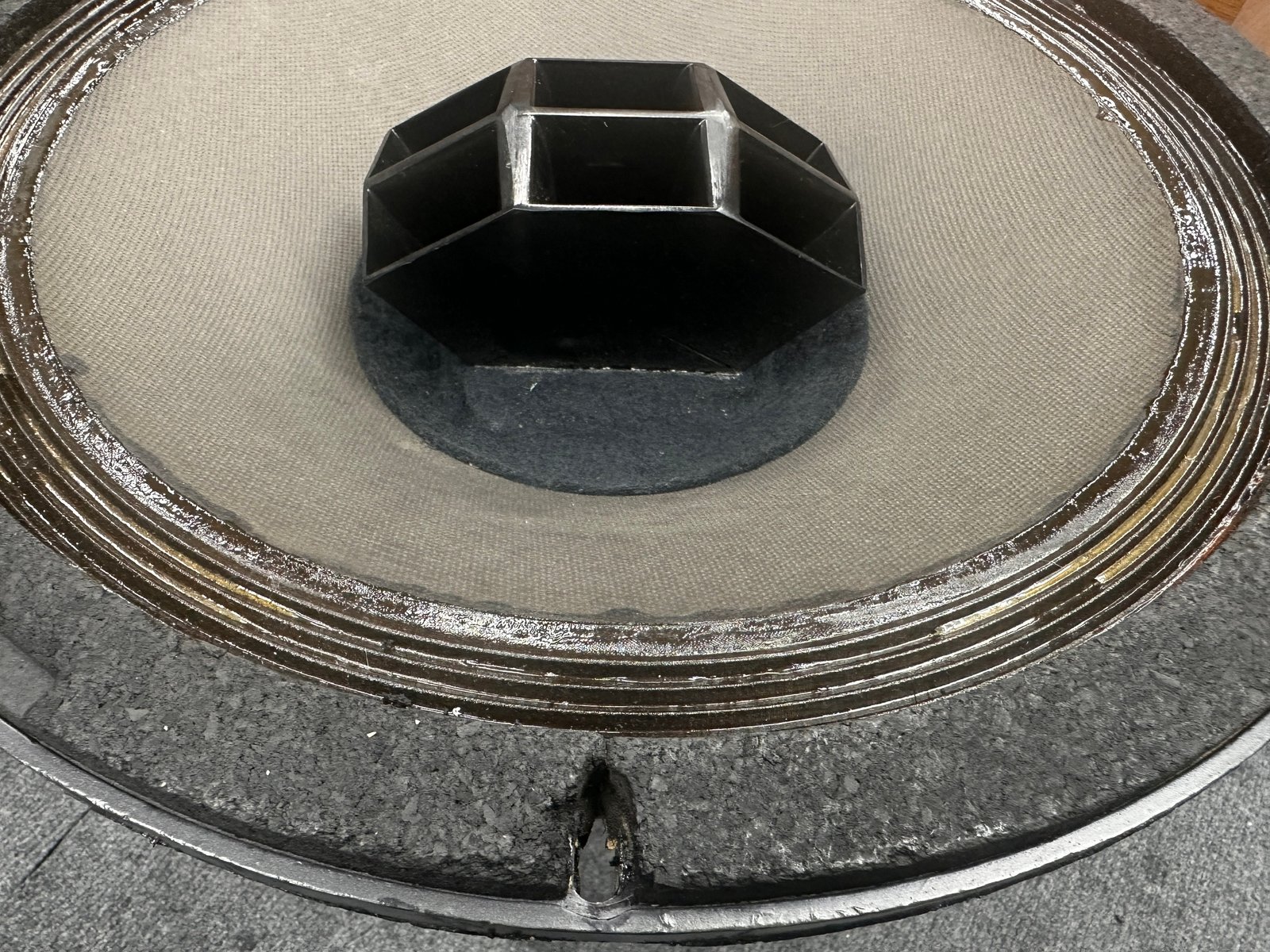

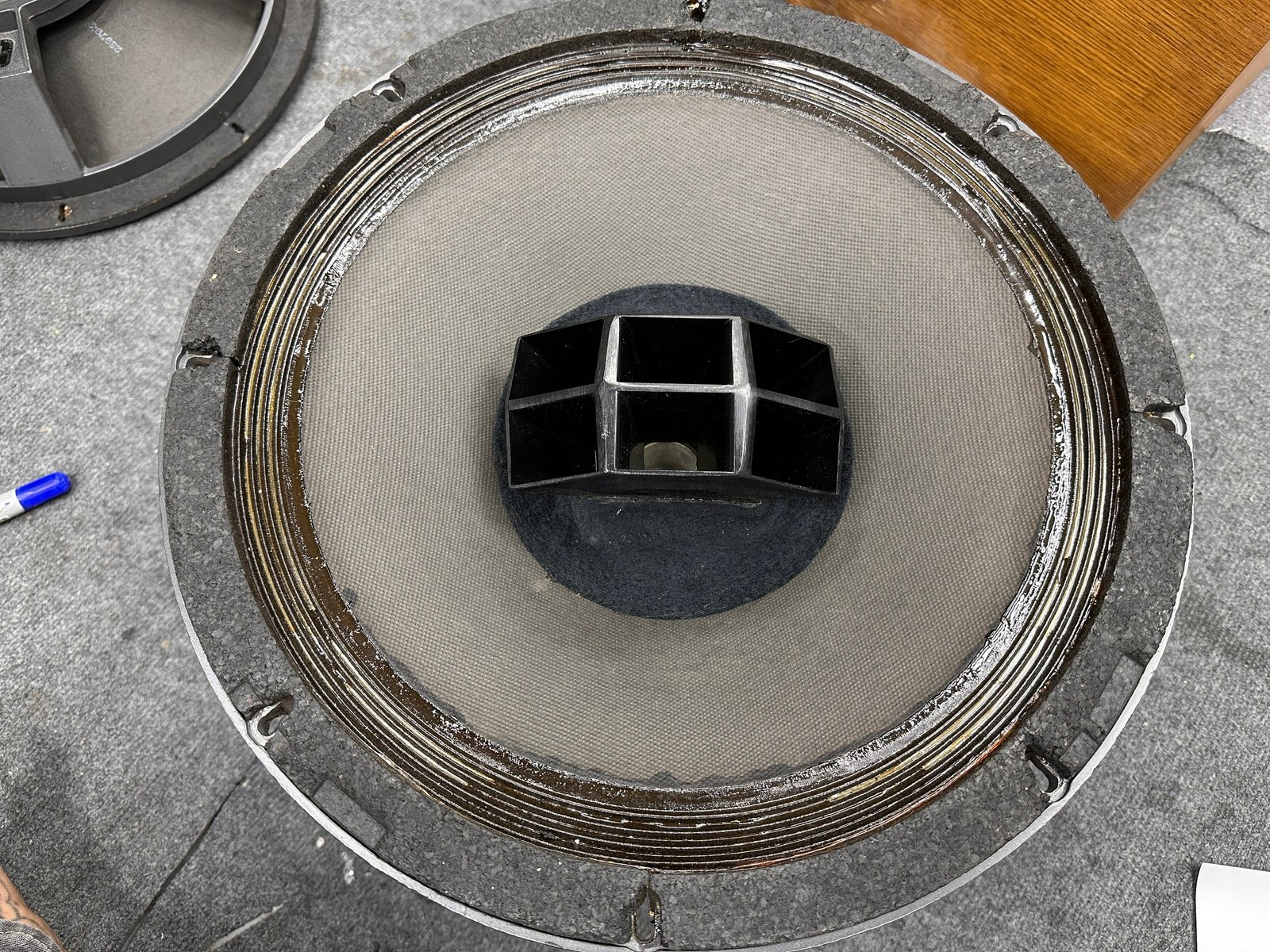

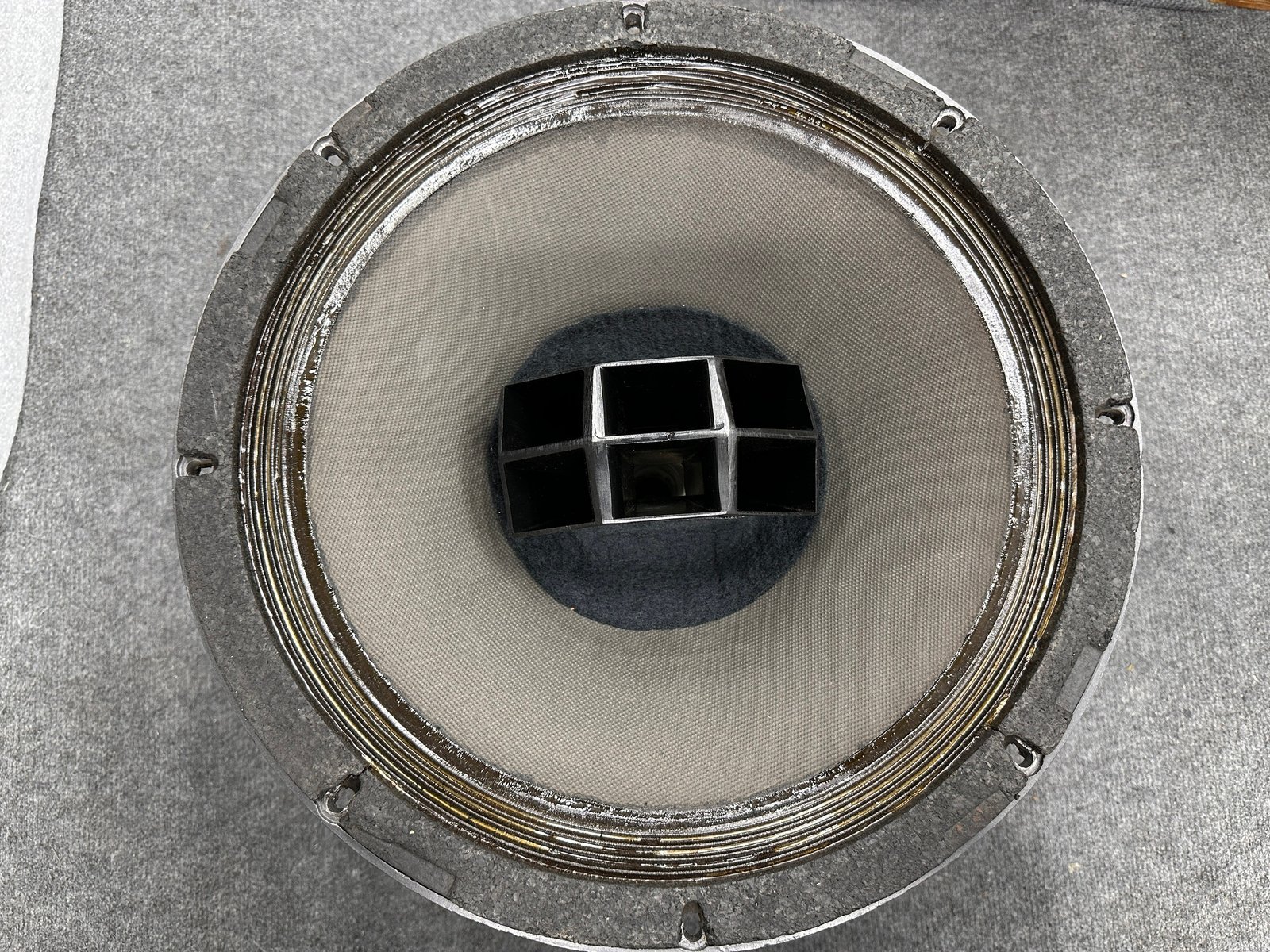

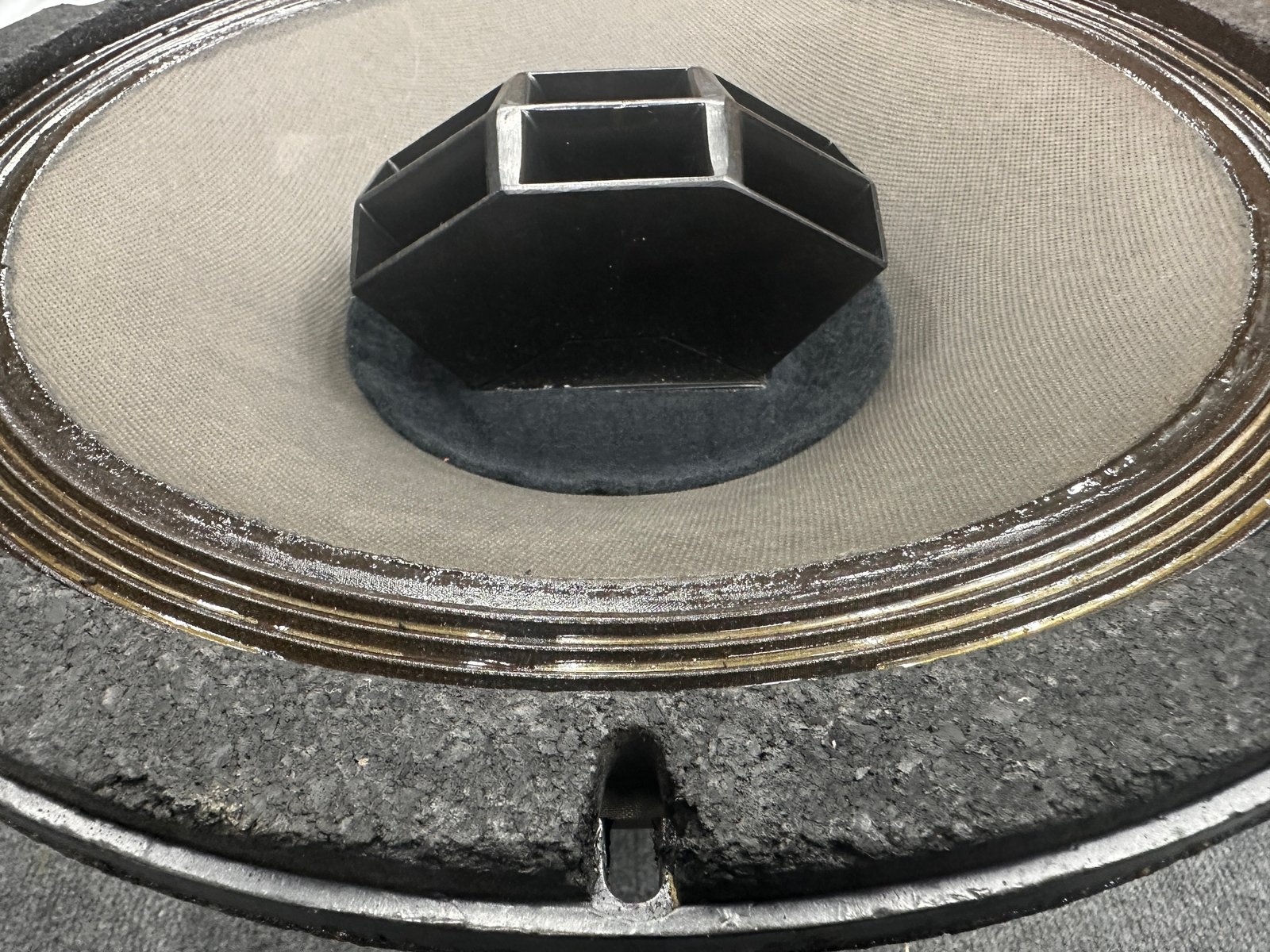

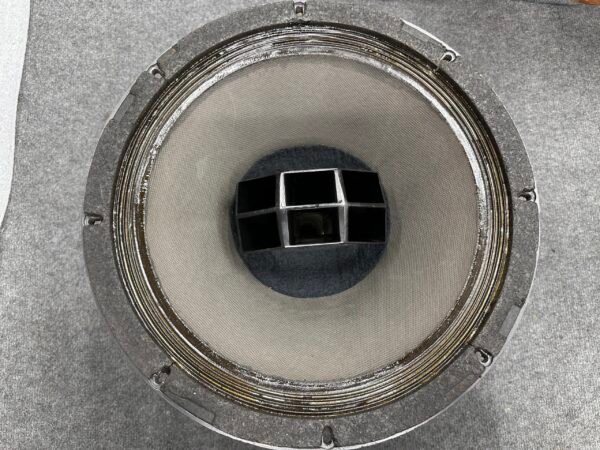

Low-Frequency Driver Service: We inspected and cleaned the 15-inch woofer assemblies, examined cone movement, and checked the condition of the suspension and mounting hardware.

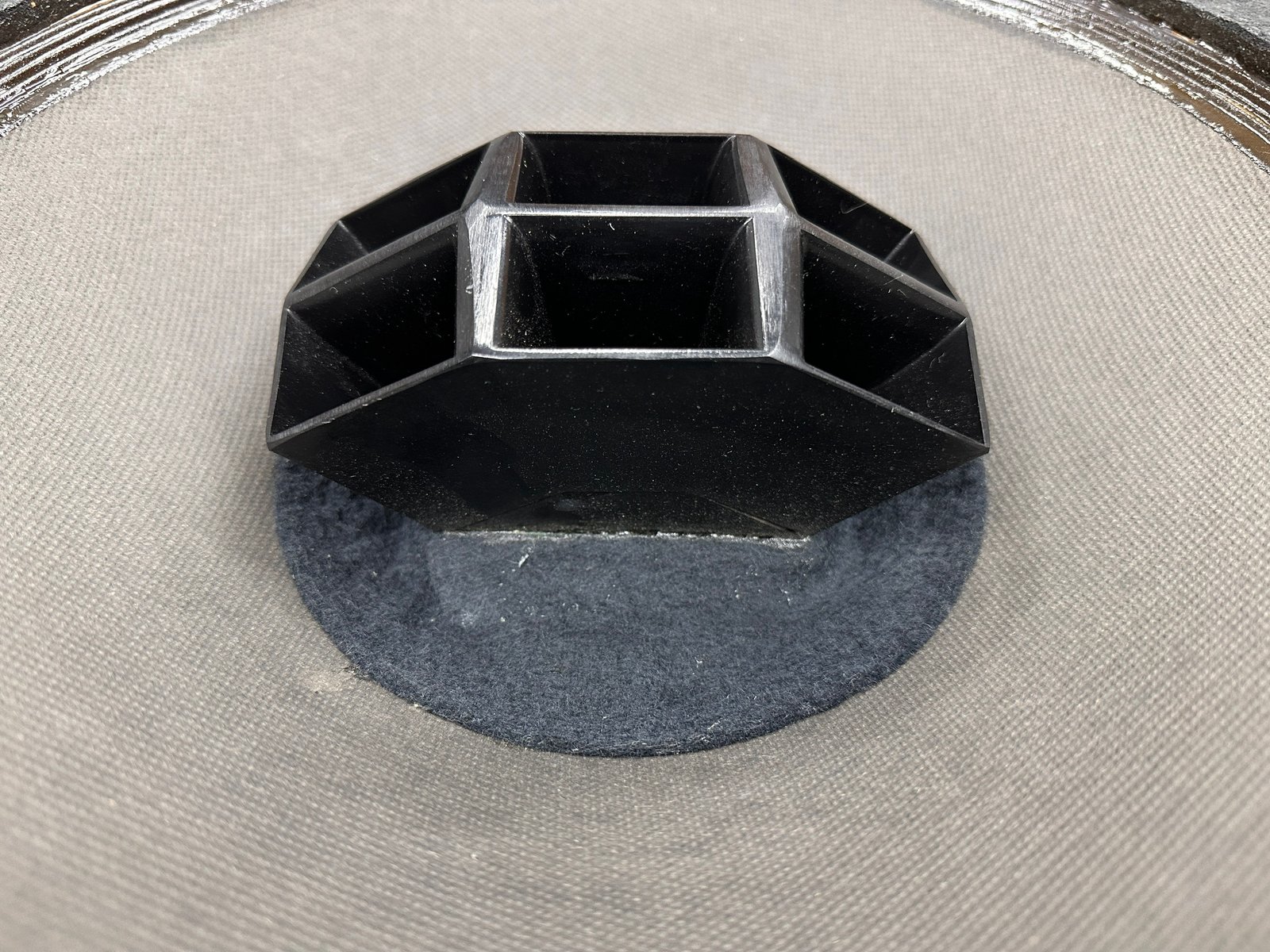

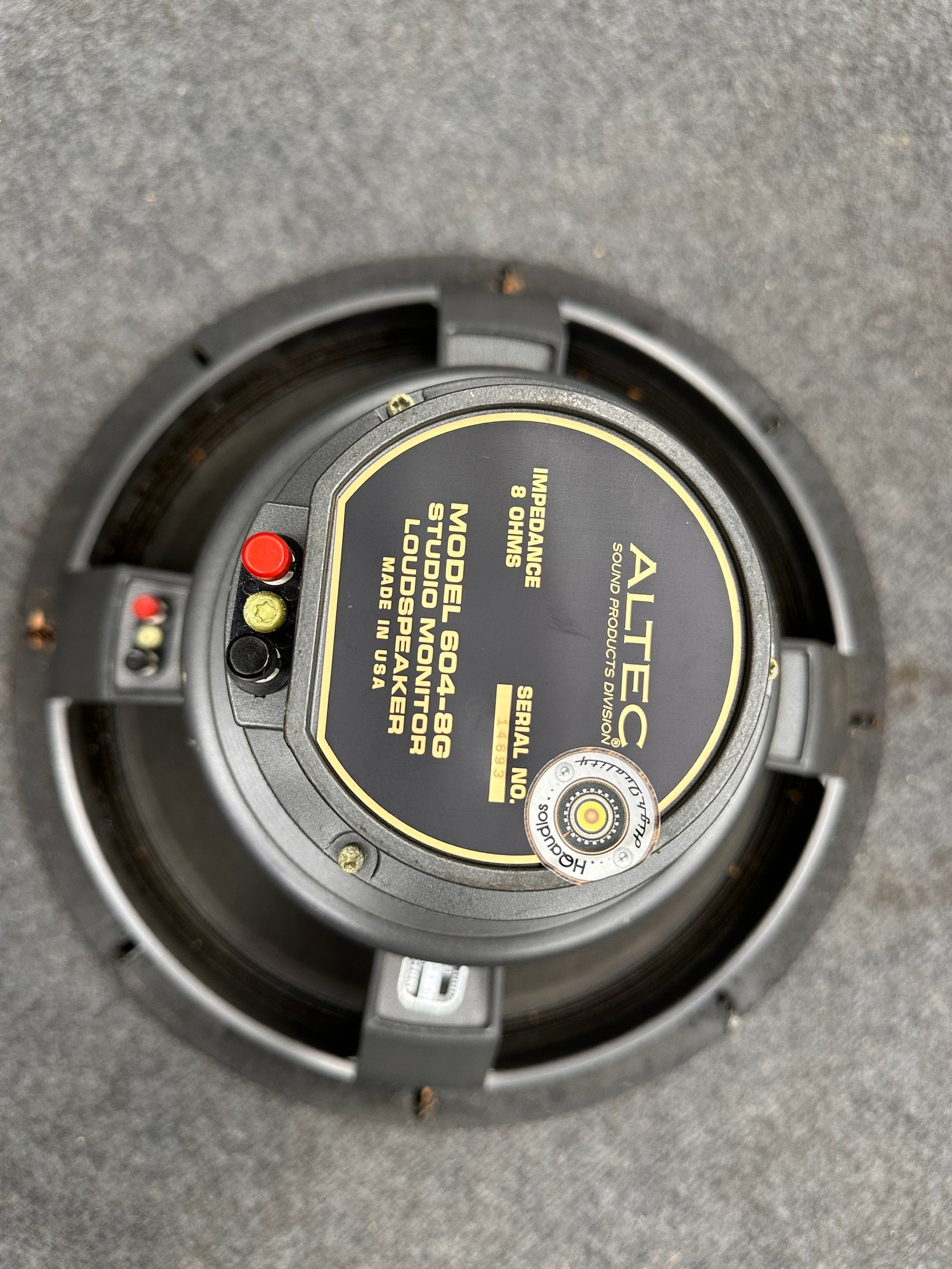

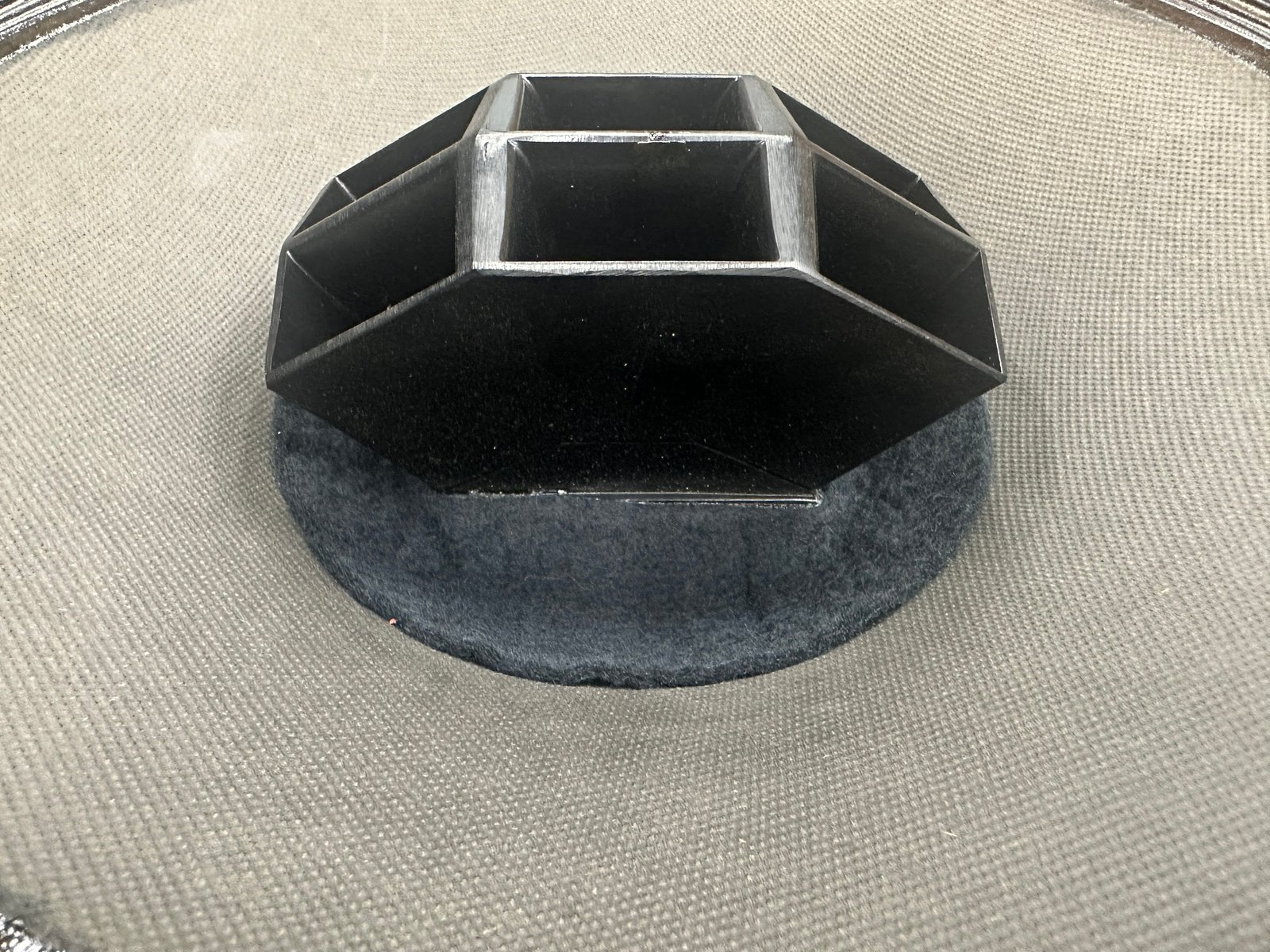

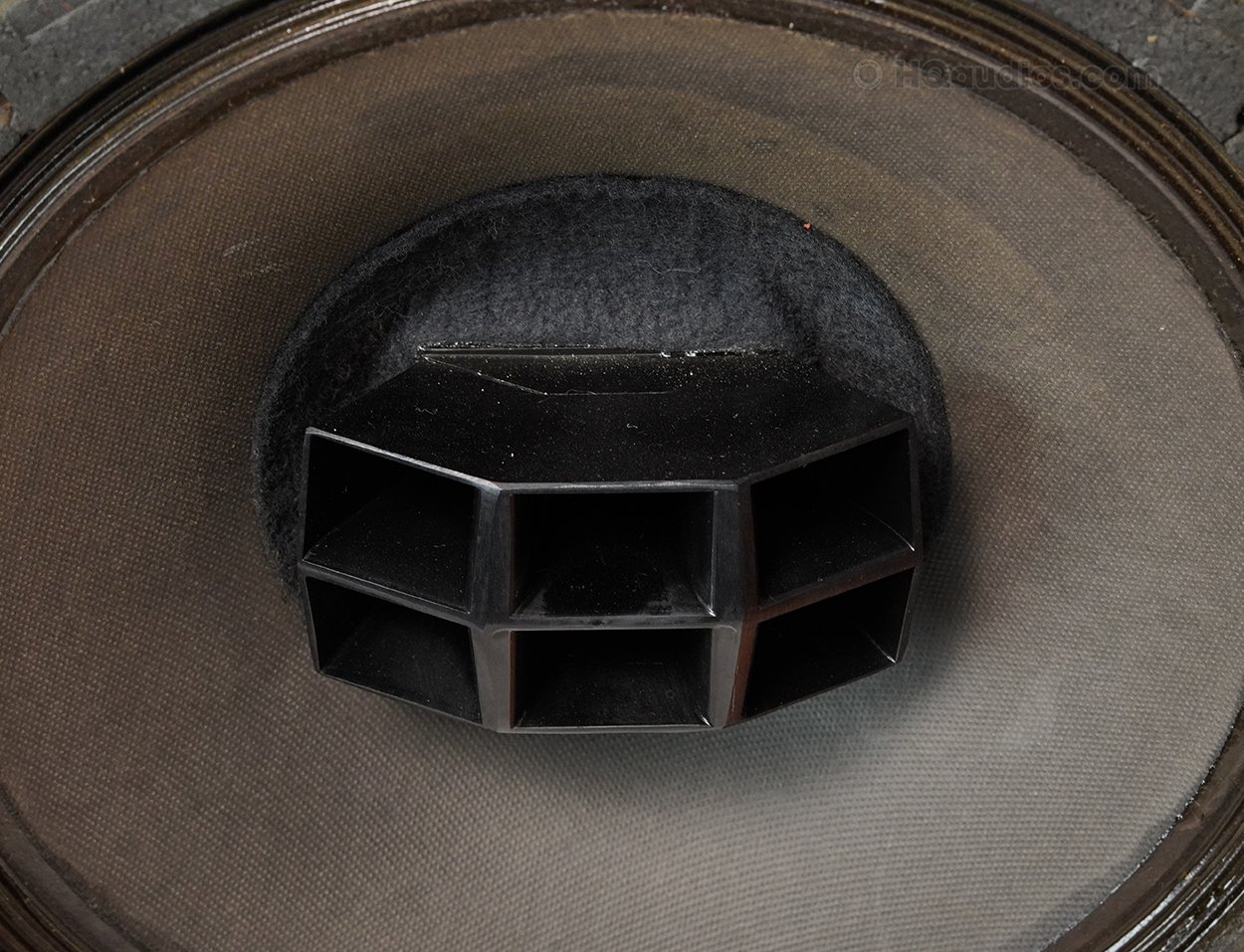

High-Frequency Driver Service: We inspected the coaxial high-frequency sections, horn assemblies, and related electrical connections.
Internal Wiring & Connections: We cleaned and serviced internal wiring connections, terminal contact points, and affected solder joints.
Driver Mounting & Cabinet Inspection: We checked the driver mounting points, fasteners, cabinet structure, and accessible sealing areas.
Cabinet Care: We cleaned and detailed the cabinet surfaces and exterior hardware.
Grille & Exterior Detailing: We cleaned and cared for the grille assemblies, exterior trim, and identification details.

After Restoration / Final Testing
Following service, we conducted functional and listening tests to evaluate the speaker pair’s operating performance.
Low-Frequency Output: Both low-frequency driver sections were evaluated for stable bass reproduction during playback.
High-Frequency Output: Both high-frequency sections were evaluated for clear and consistent output.
Crossover Operation: We checked the operation of the serviced crossover networks following capacitor replacement.
Left / Right Balance: Both speakers were compared during playback to assess overall output consistency and tonal balance.
Polarity & Connections: We checked connection polarity and secure signal continuity.
Listening Evaluation: We evaluated the system with music playback for abnormal noise, distortion, and overall sound quality.
Final Inspection: We completed a final inspection of the driver mounting points, cabinet assemblies, and external connection areas.

CONDITION
Technical Condition
Low-Frequency Drivers: Serviced and evaluated for stable low-frequency output during playback.
High-Frequency Drivers: Inspected and evaluated for consistent high-frequency reproduction.
Crossover Networks: Serviced, with capacitors exceeding the 5% capacitance deviation threshold replaced.
Electrical Connections: Contact points and wiring connections serviced and evaluated during final operation.

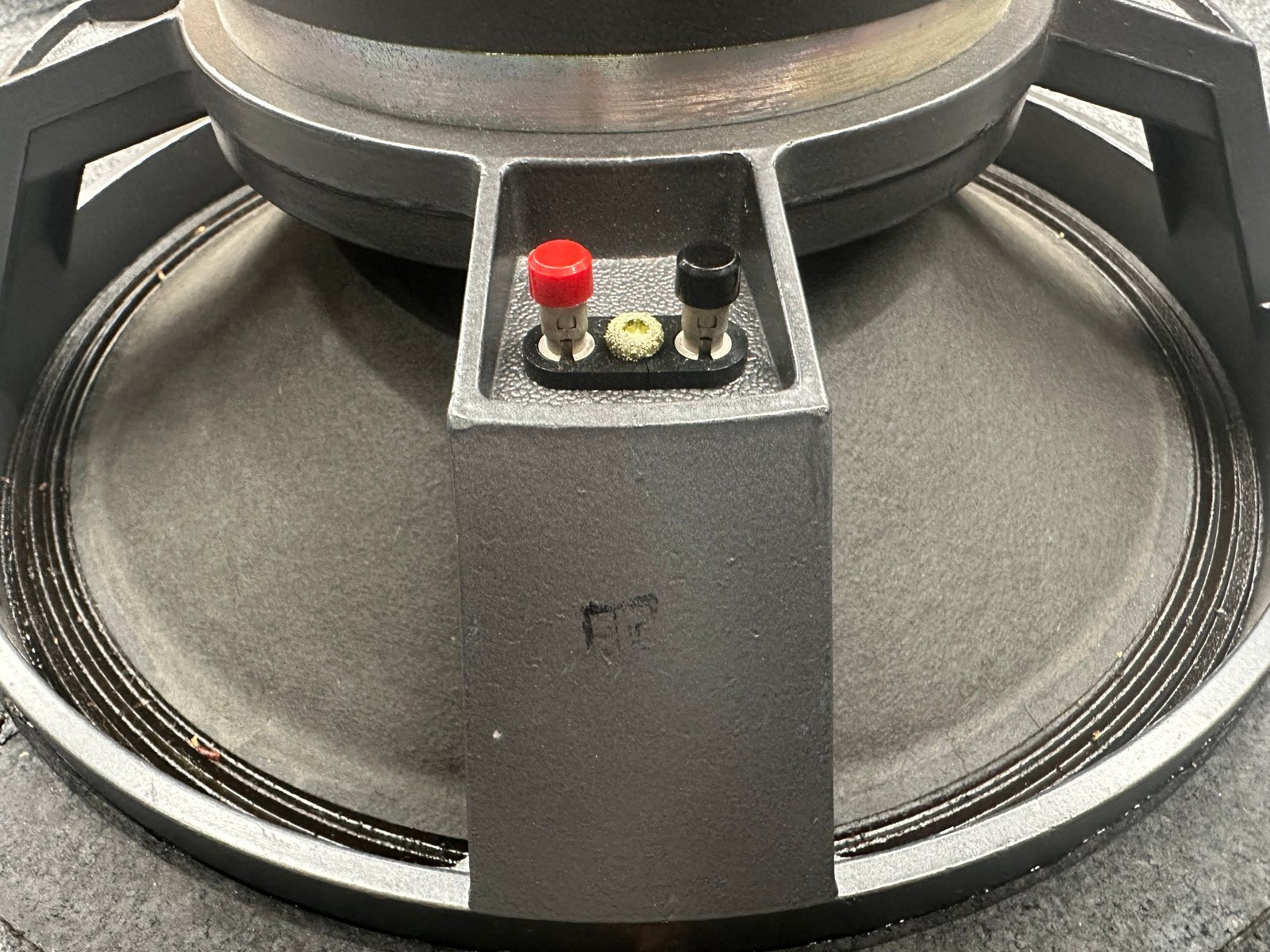

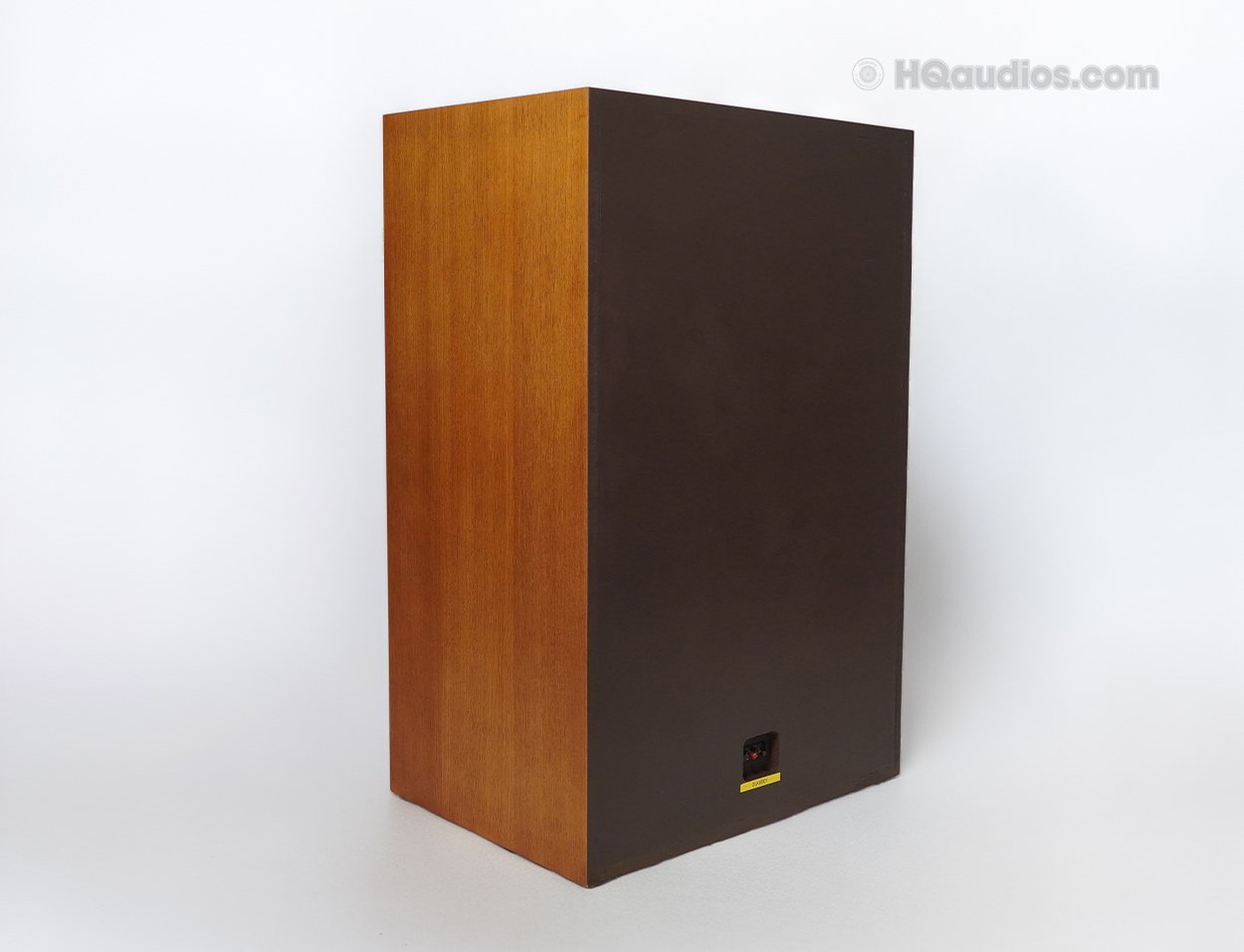

Speaker Terminals: Inspected, cleaned, and evaluated for secure electrical contact.
Left / Right Playback: Both speakers evaluated together for consistent stereo reproduction.
Cosmetic Condition

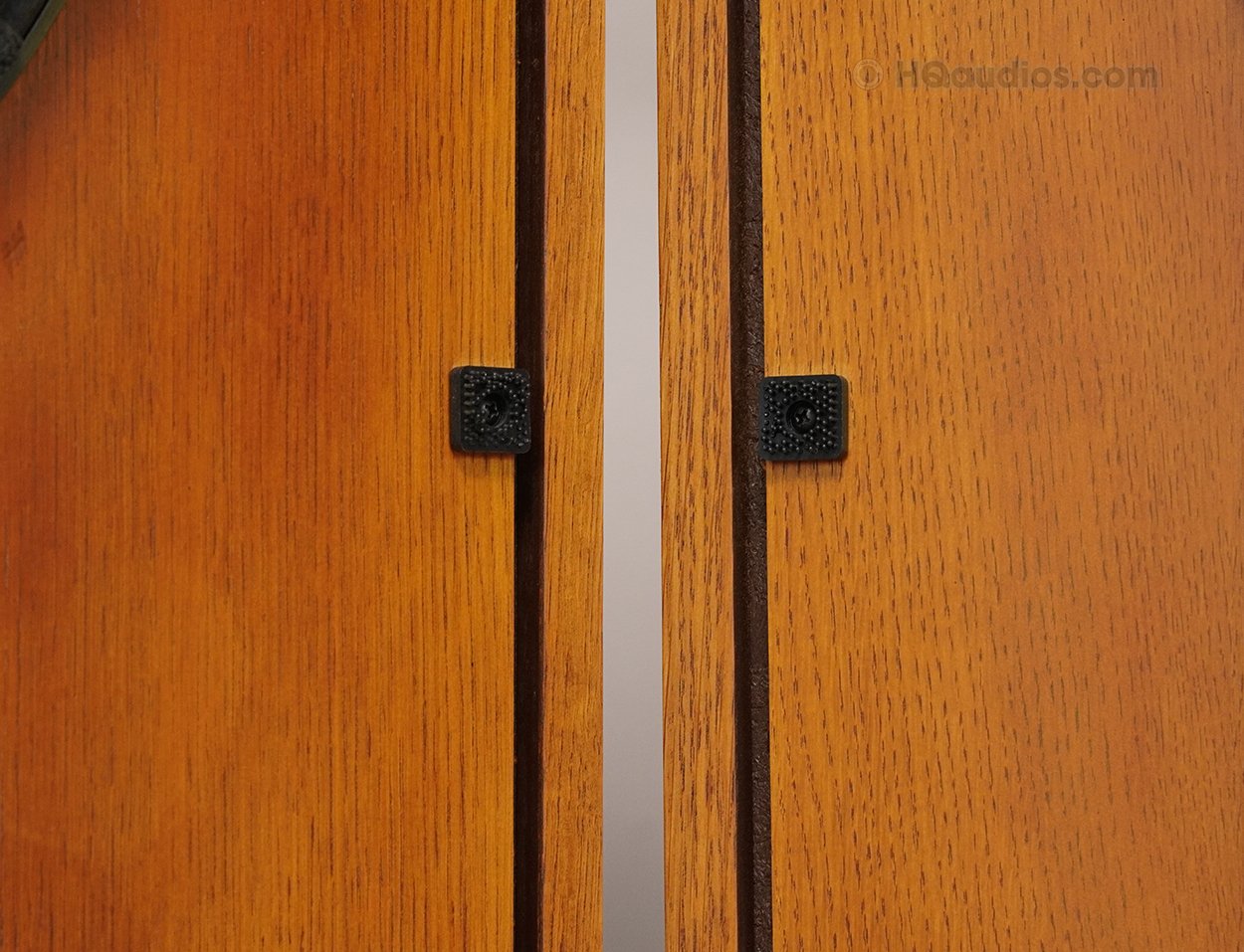

Cabinet Surfaces: Cleaned and detailed during HQaudios service.

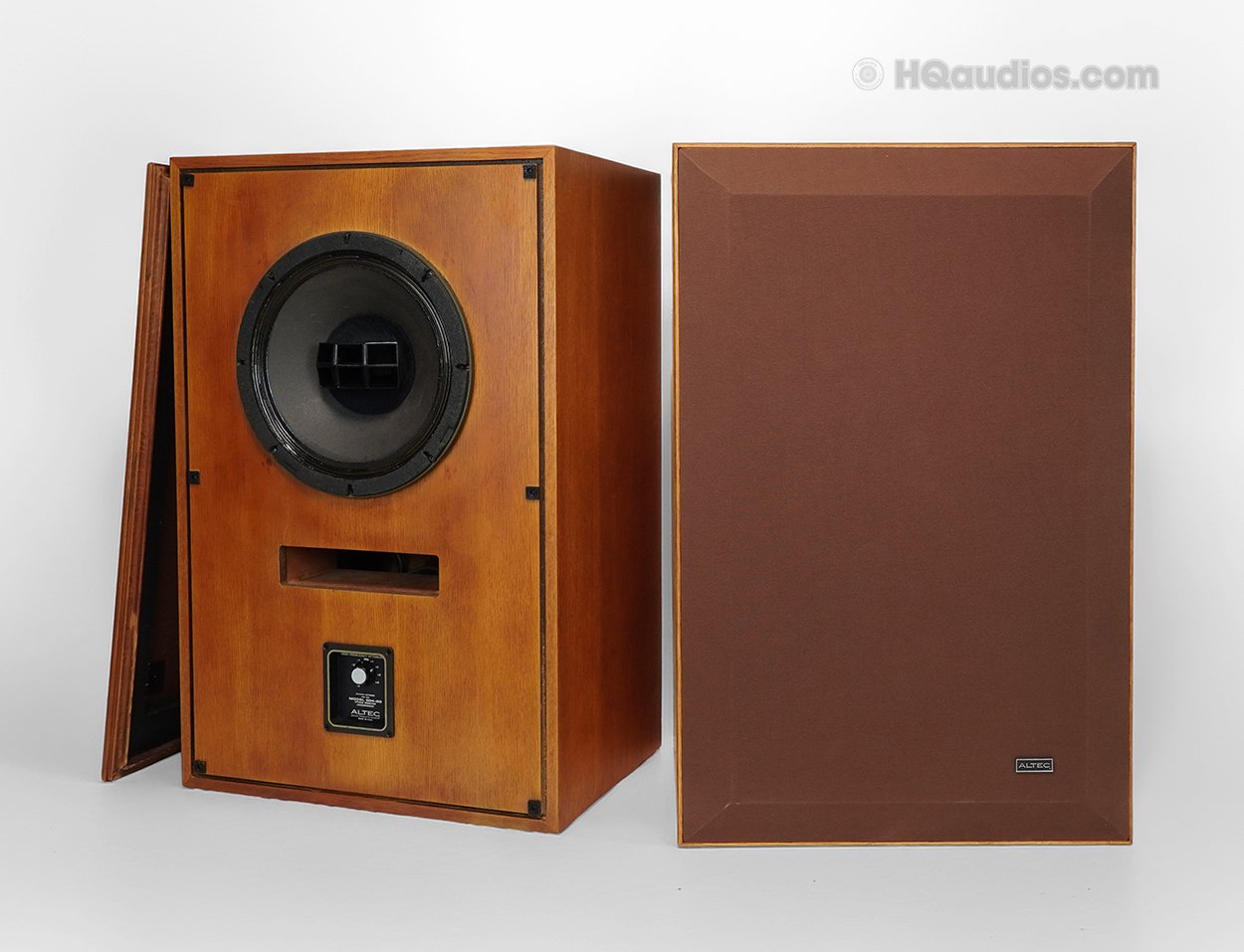

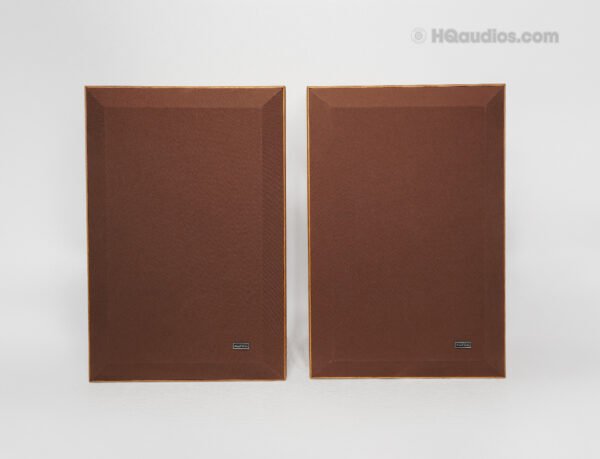

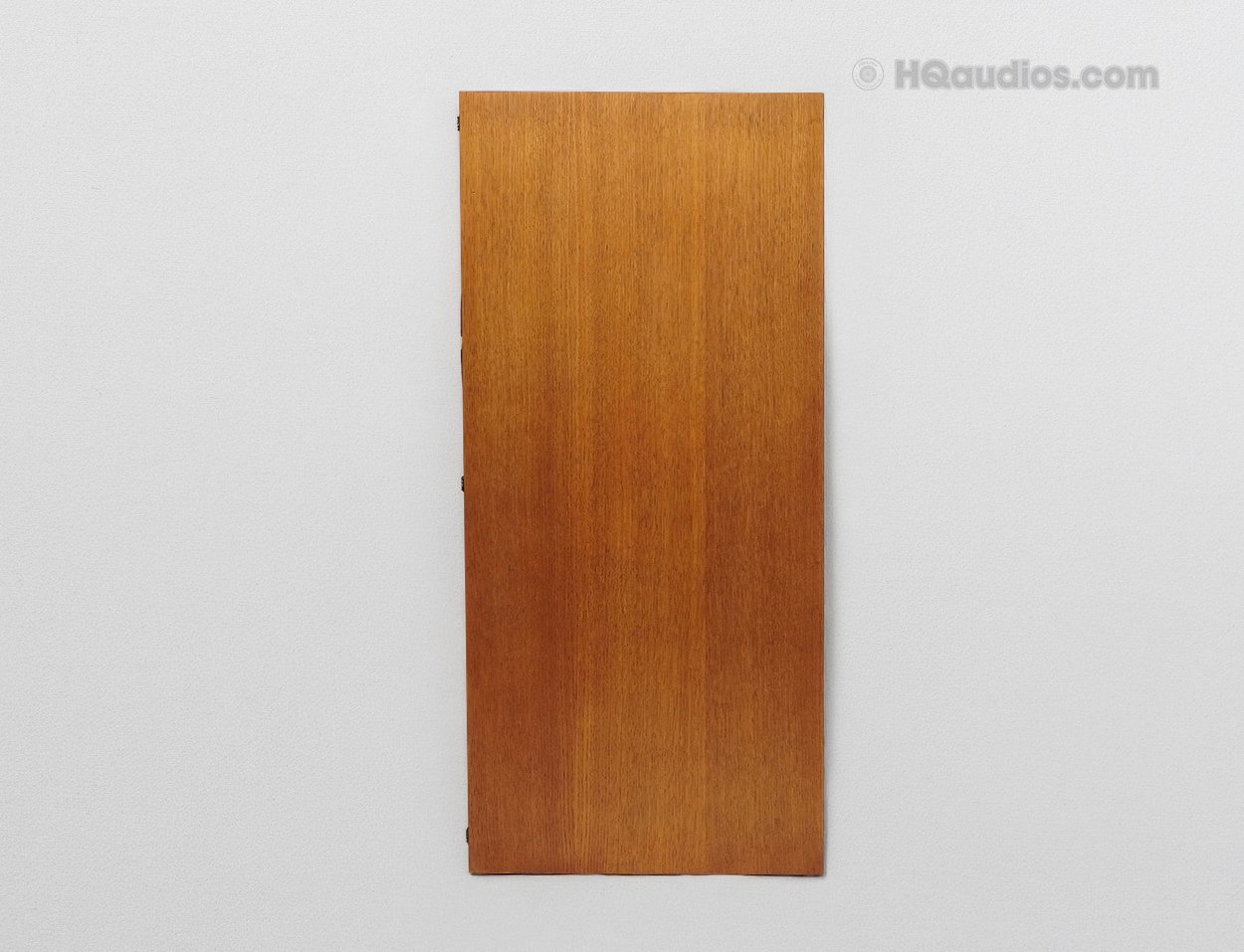

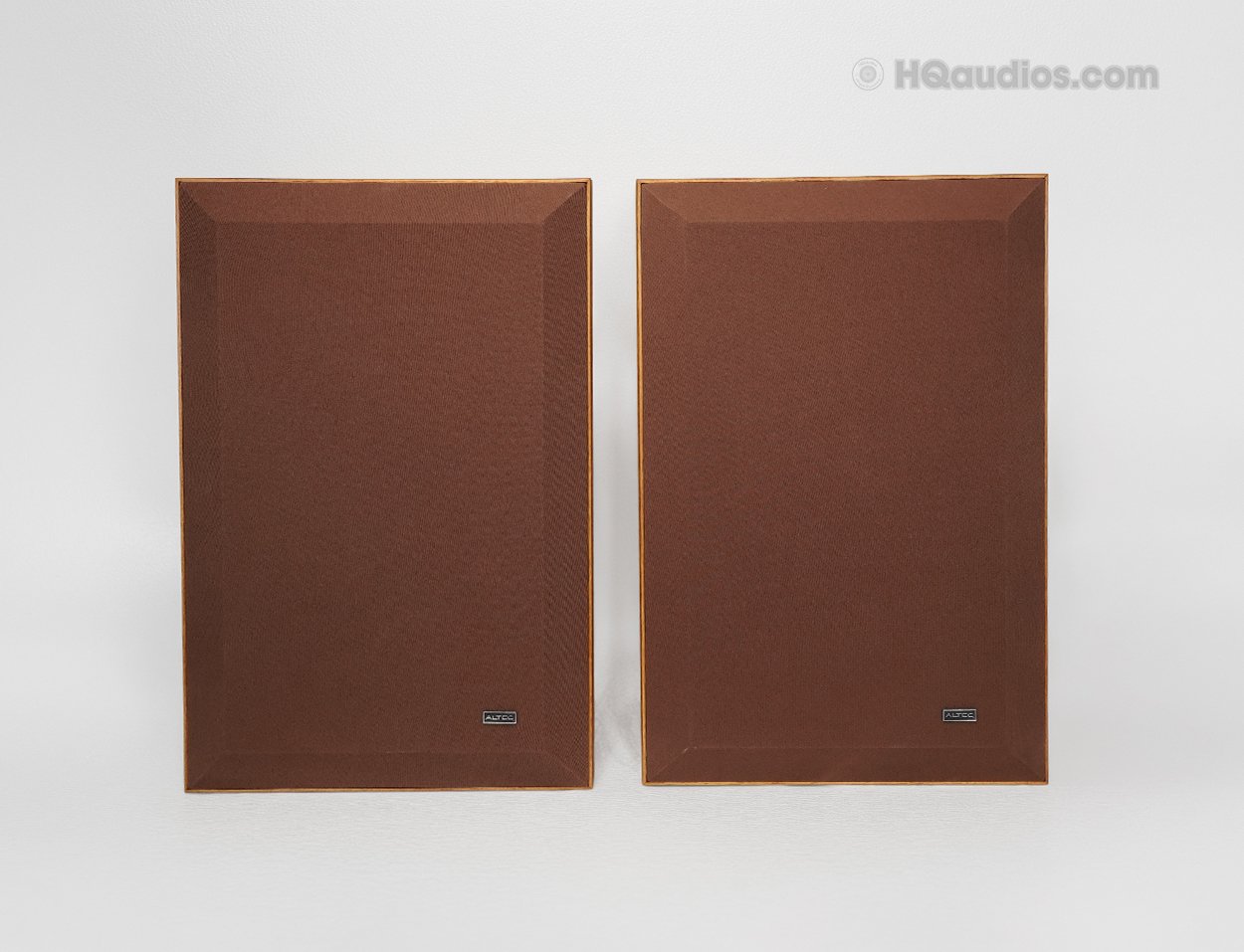

Grille Assemblies: Cleaned and cared for during exterior service.
Driver Mounting & Exterior Hardware: Inspected and cleaned during servicing.
Vintage Appearance: Please review the actual item photographs carefully for the visible surface condition and cosmetic details of the pair.

Crossover Capacitors Serviced & Replaced to the Confirmed 5% Threshold
LF / HF Playback Evaluated
Left / Right Balance Evaluated
Final Listening Evaluation Completed

SPECIFICATIONS
Brand: Altec Lansing
Model: Model Seventeen / Model 17
Type: Two-Way Coaxial Loudspeaker System
Enclosure: Vented
Configuration: Two-Way Coaxial Duplex System
Low-Frequency Driver: 15-inch cone driver
High-Frequency Driver: Coaxially mounted compression driver with sectoral horn
Frequency Response: 30 Hz – 20 kHz
Nominal Impedance: 8 Ohms
Sensitivity: 100 dB SPL at 4 ft / 1 W, Altec specified test conditions
Long-Term Broadband Maximum Power: 65 W, bandwidth-limited pink-noise test
Recommended Amplifier Power Range: 10 – 350 W, factory recommendation
Crossover Frequency: 1,500 Hz
Dimensions: 26.0 W x 40.0 H x 18.0 D in – each speaker
Net Weight: 138.0 lbs – each speaker

WHAT IS INCLUDED
1 Pair of Altec Lansing Model Seventeen Loudspeakers
Only the items specifically listed above are included.

SHIPPING & PACKAGING
Your vintage audio equipment will be professionally packed by HQaudios using protective materials appropriate for its size, weight, and construction. Large or heavy items may be palletized and shipped by freight when required for safer transportation.

HQaudios Professional Shipping and Packaging

Please contact us before purchase for the most current availability information.

1-YEAR WARRANTY & CUSTOMER SUPPORT
Your purchase is backed by our 1-Year HQaudios Warranty. Our team provides support before and after your purchase. If you have questions about setup, operation, compatibility, or your order, please contact HQaudios for assistance.

MORE FROM HQAUDIOS
Need restoration, repair, a custom faceplate or wood case, speaker stands, or a trade-in option? Contact HQaudios for available services and package pricing.

HQaudios Vintage Audio Repair and Restoration

HQaudios Custom Audio Projects
