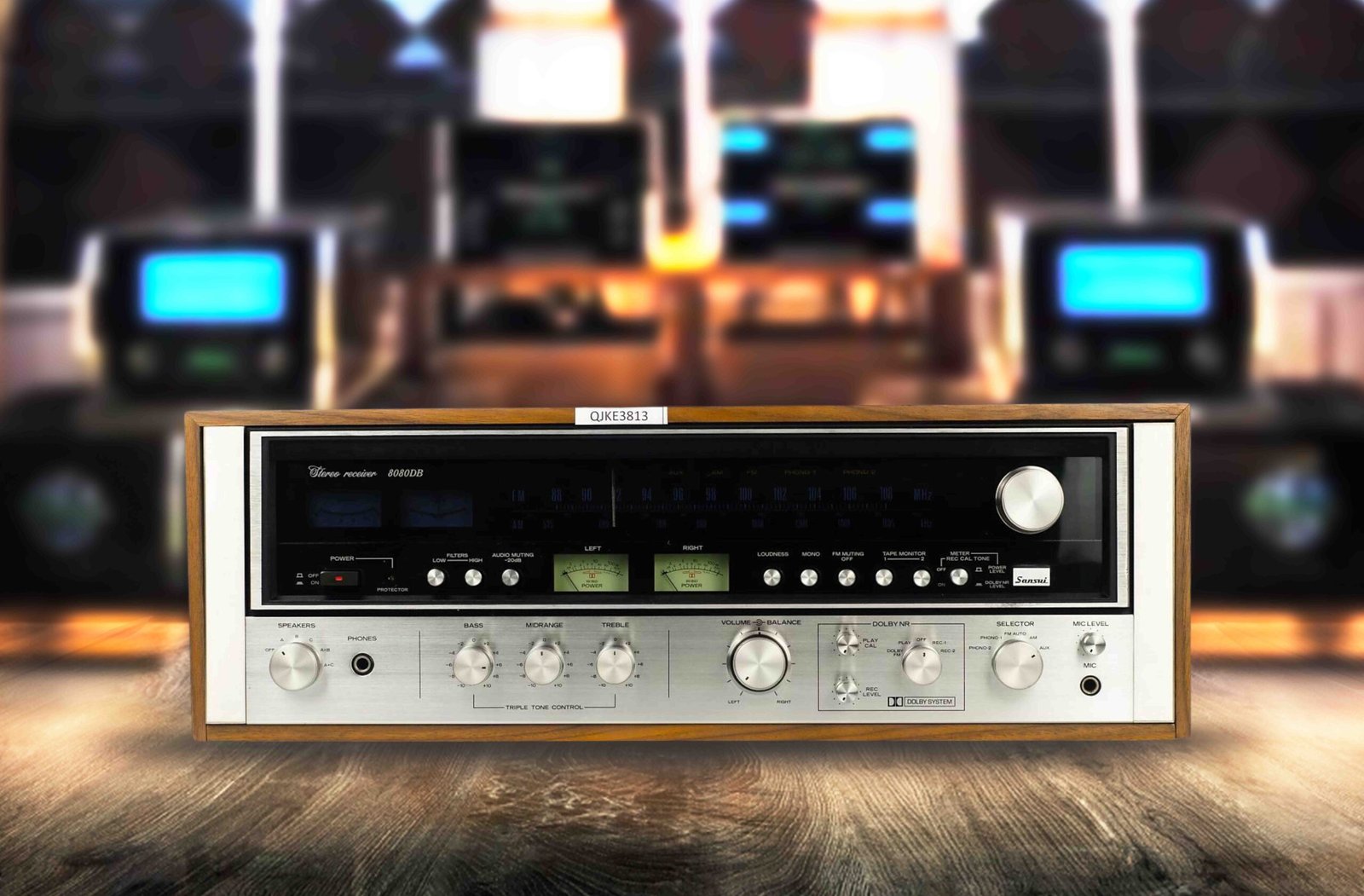

Sansui 8080DB Vintage Receiver

The Sansui 8080DB is revered for its outstanding sound quality and solid build. Known for delivering powerful and clear audio, this receiver was one of Sansui’s top models in the mid-1970s. Audiophiles favor the 8080DB for its smooth analog sound, dynamic range, and durability. Additionally, its DB (Dolby) feature provides noise reduction, making it perfect for vinyl enthusiasts or anyone looking to eliminate background hiss from their audio sources. The unit is also well-regarded for its robust power output, allowing it to drive a variety of speakers with ease.

Sansui 8080DB Video

Key Features of the Sansui 8080DB

• Power Output: 85 watts per channel at 8 ohms
• Dolby Noise Reduction: A key feature that significantly reduces hiss and background noise during FM broadcasts or tape playback
• Inputs & Outputs: Phono input, Aux input, and two tape monitors for connecting various devices
• FM Tuner: Highly sensitive with a large dial and multi-function meters for precise tuning
• Tone Controls: Separate bass, midrange, and treble controls for sound customization
• Loudness Control: Ensures better bass at lower volumes

Technical Specifications

• Power Output: 85 watts per channel into 8 ohms
• Frequency Response: 20Hz to 20kHz
• Total Harmonic Distortion (THD): Less than 0.1% at full output
• Signal-to-Noise Ratio (SNR): 80dB (Phono), 95dB (Aux)
• FM Tuner Sensitivity: 1.5 µV for 30 dB quieting
• Dolby Circuitry: For reducing tape noise and improving overall audio fidelity
• Dimensions: 19.1″ (W) x 7.3″ (H) x 15.5″ (D)
• Weight: 40 lbs

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

We kindly request that all buyers give us the opportunity to address any issues.

Condition:

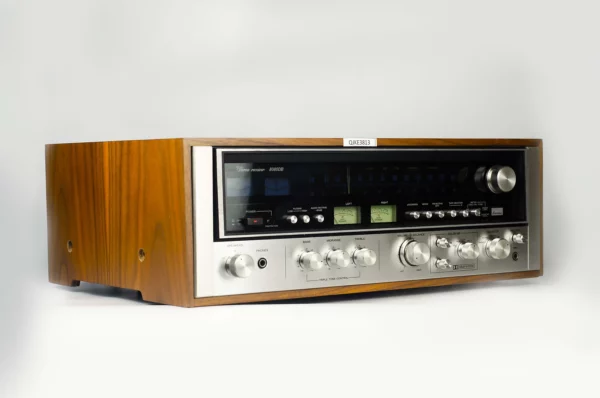

This receiver is in “Very Good” condition, displaying minor signs of use with a bright, clear dial. All knobs, feet, and the attached AM antenna and AC cord are present and intact. Although the manual is missing, it can be found online or we can provide a PDF upon request. Please inspect all photos thoroughly for the actual condition.

Service:

Upon inspection, the unit had scratchy controls, a dim dial, and some distortion in one channel. Therefore, it underwent servicing by our technician. Manufacturer used certain transistors in this model that are known to fail after 40 years, so all of these were replaced. This upgrade resolved the distortion issue. Additionally, several questionable capacitors were replaced.

Testing:

After servicing, the receiver was tested on our bench and performed excellently, delivering a powerful, warm, distortion-free signal characteristic of analog receivers. All inputs, outputs, and features were confirmed operational, and the tuner spins smoothly. Additional testing was conducted, and we can provide specific feature information upon request. This is a remarkable find for the vintage audiophile.

Condition Disclosure:

This item exhibits minor wear consistent with light use, as shown in the provided photos. The listing includes exactly what is pictured; no accessories, test equipment, or media are included.

Thank you for being a valued customer & Thanks for looking!
