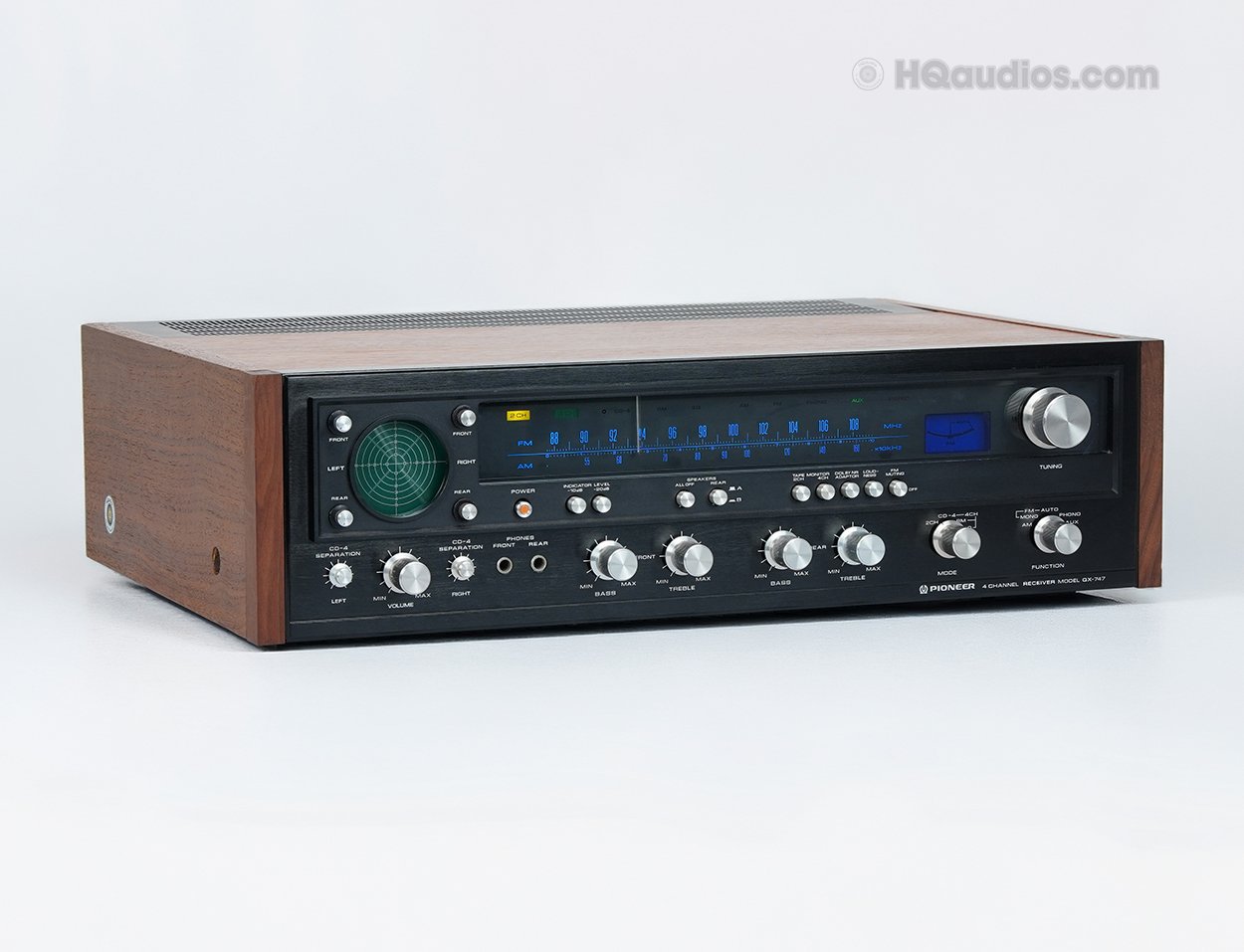

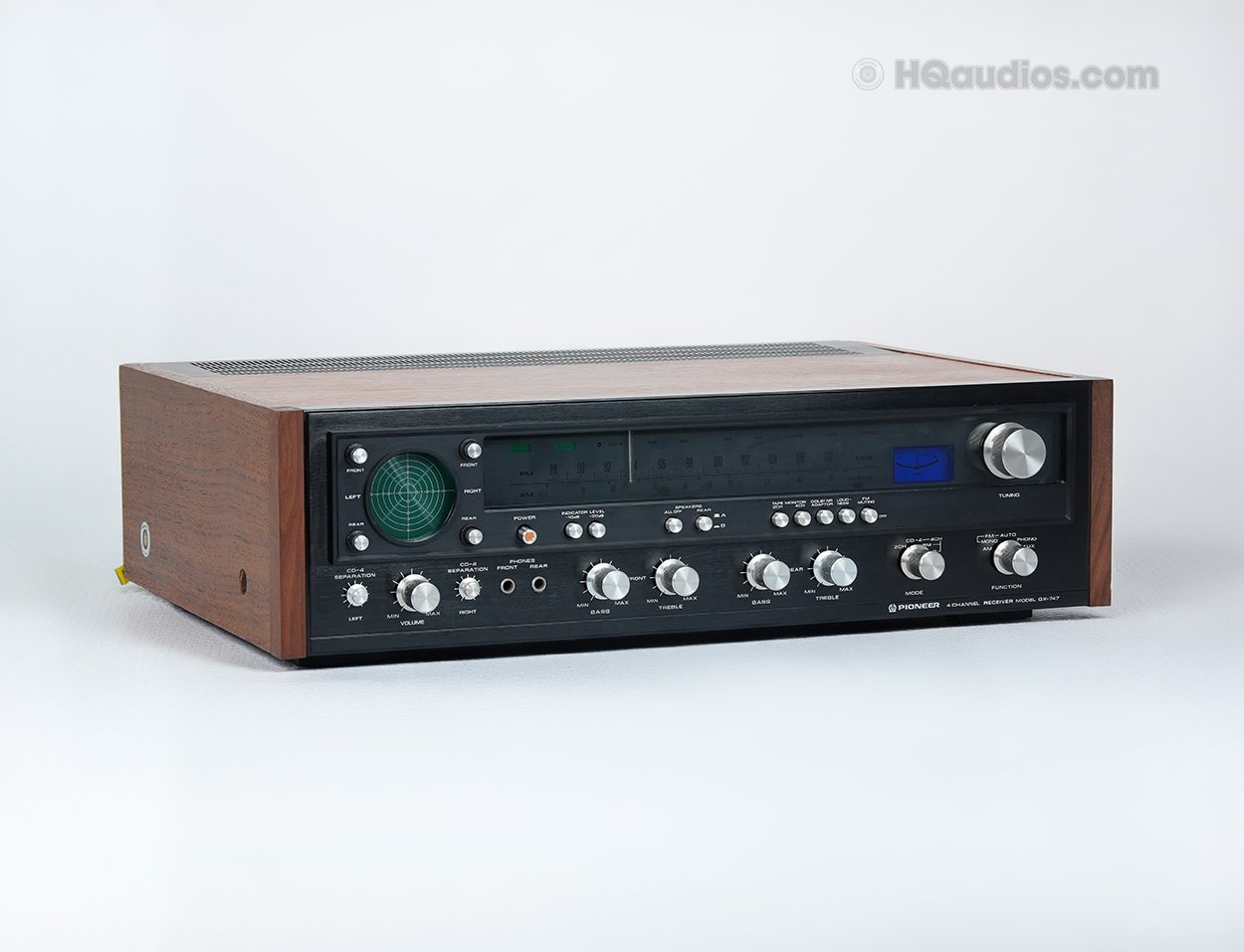

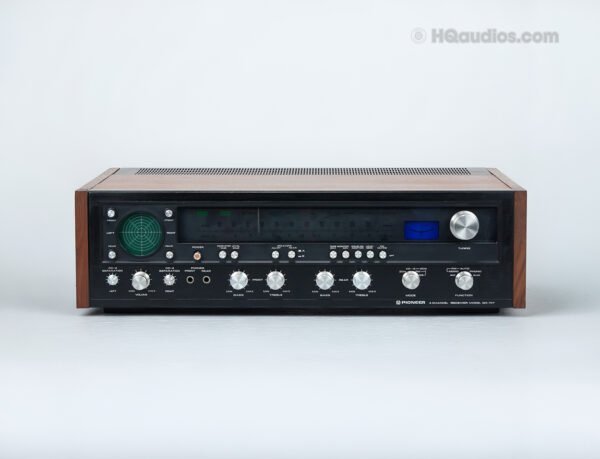

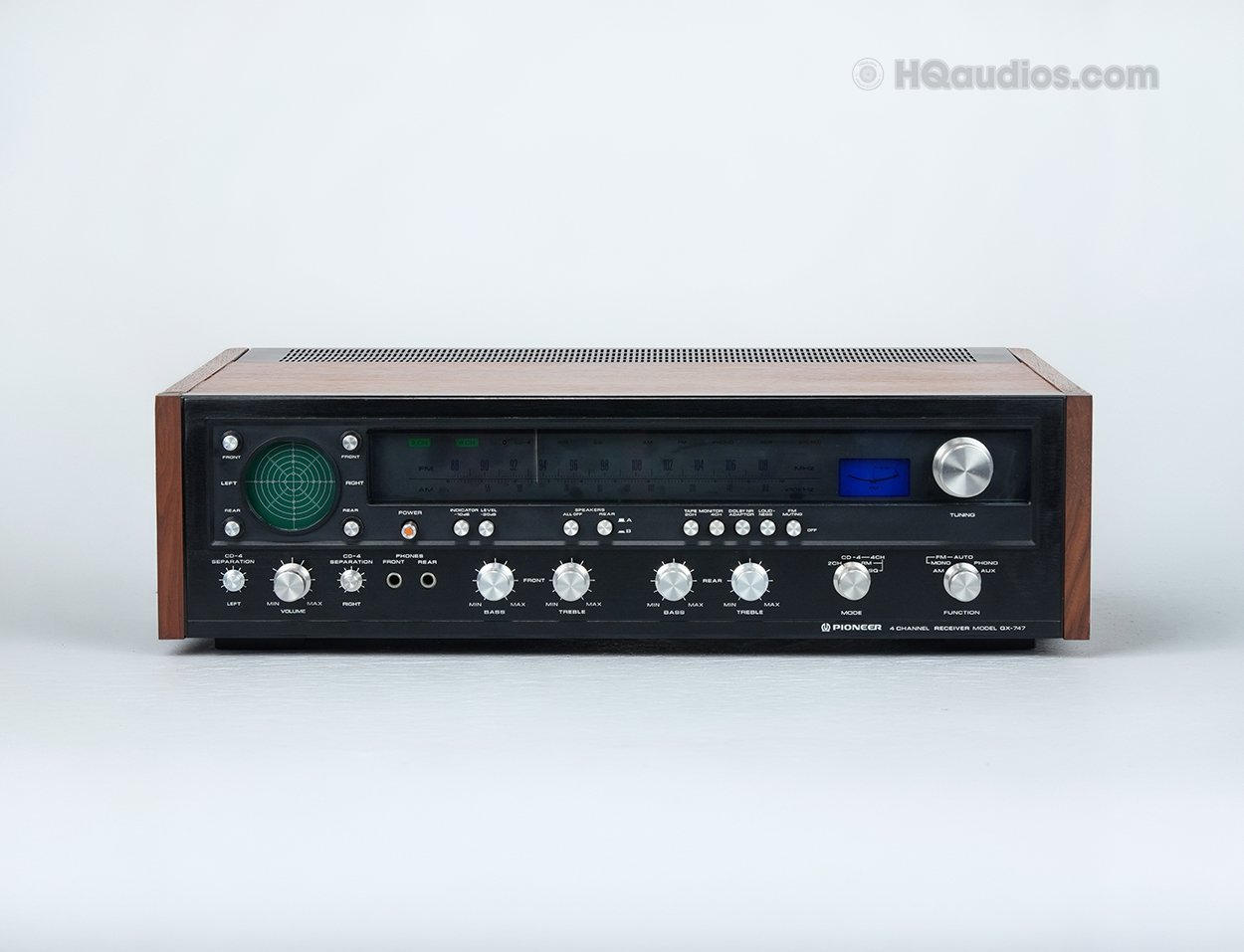

Pioneer QX-747 Quadraphonic Receiver
Professionally Restored by HQaudios – Inspected & Tested – Backed by Our 1-Year Warranty
KEY HIGHLIGHTS
Classic Pioneer four-channel quadraphonic receiver
CD-4, SQ and Regular Matrix quadraphonic systems
Power supply, amplifier and signal-control servicing by HQaudios
Backed by our 1-Year HQaudios Warranty
PRODUCT OVERVIEW
The Pioneer QX-747 is a vintage AM/FM quadraphonic receiver designed for both conventional stereo and four-channel listening. Its quadraphonic systems include CD-4, SQ and Regular Matrix processing.
HQaudios serviced this receiver’s power supply, amplifier circuitry, aging electrical components, operating controls and connections, while cleaning and detailing accessible exterior and internal surfaces.
HQAUDIOS RESTORATION & TESTING
Before Restoration
During assessment, a channel-related fault was noted in the CH2 signal path. The power supply, amplifier stages and associated signal circuitry were examined before the service work.
During Restoration
Capacitor Service: We examined capacitors in the serviced sections and replaced deteriorated or out-of-tolerance components with appropriately rated replacements.
Power Supply: We inspected and serviced the supply circuitry and its associated components.
Amplifier Circuitry: We investigated the CH2 issue and serviced the related amplifier and signal paths.
Controls and Switches: We cleaned and serviced the volume, balance, selector and related controls.

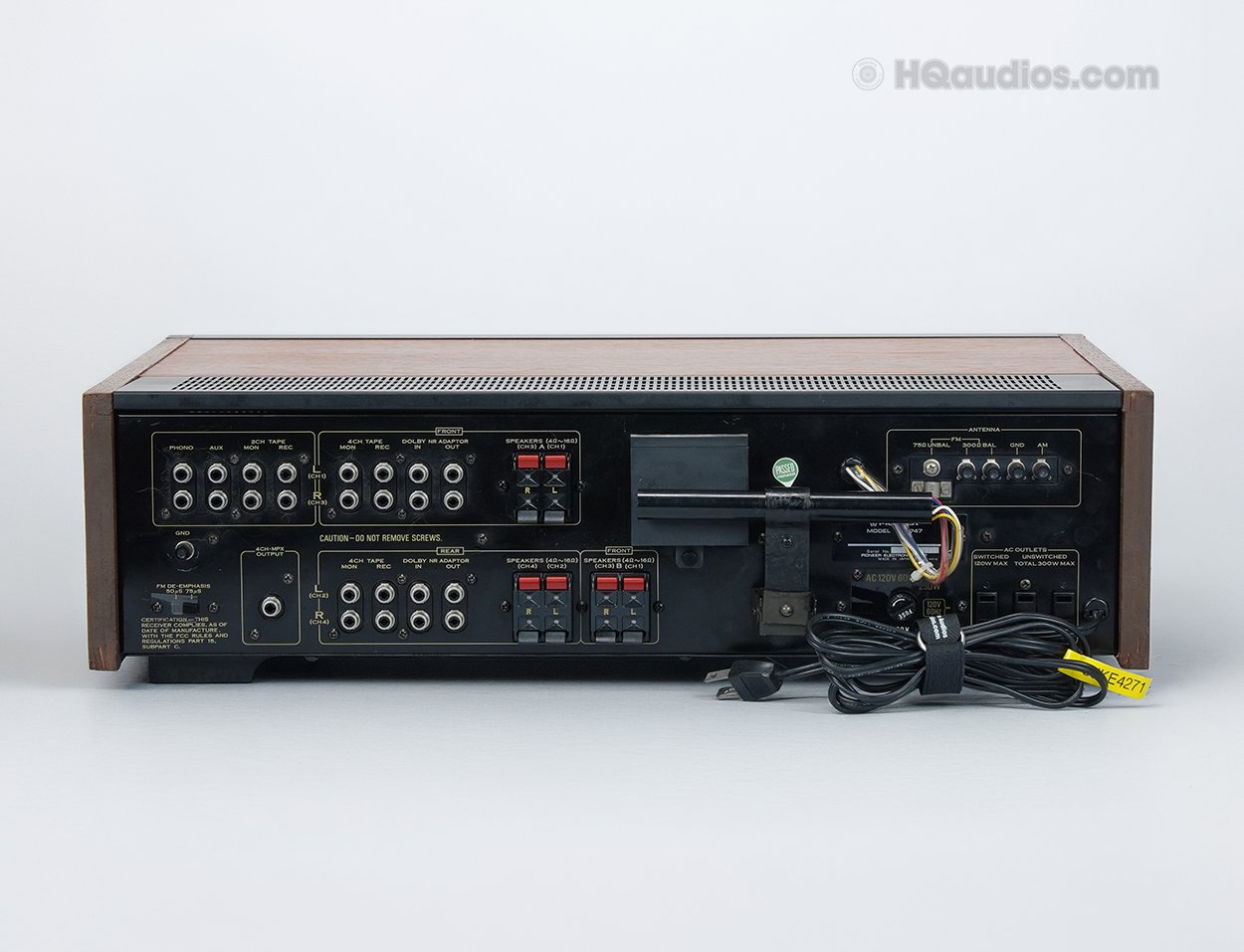

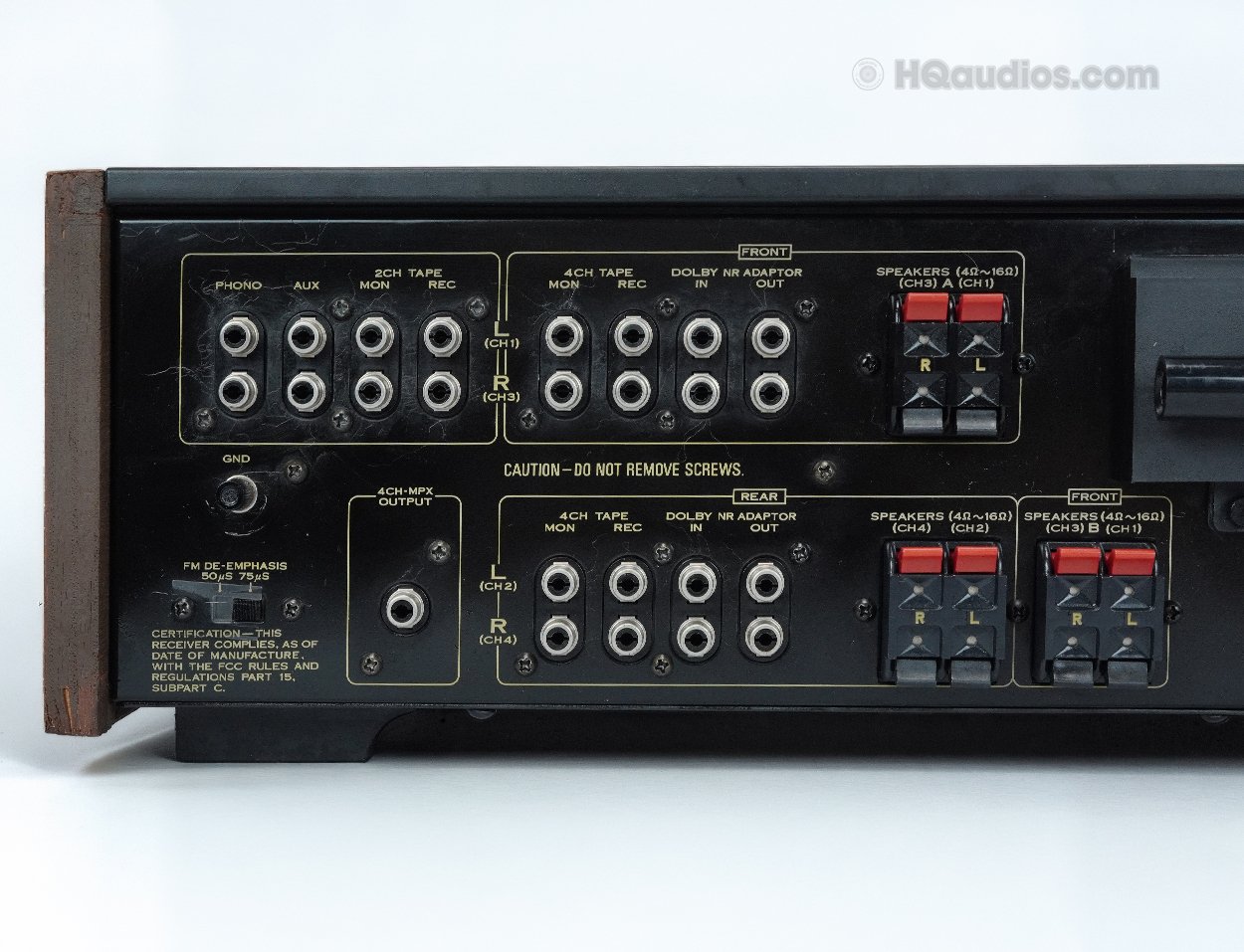

Connections: We inspected and cleaned accessible RCA connections and speaker terminals.
Quadraphonic Controls: We inspected stereo/quadraphonic routing and mode-selection functions.

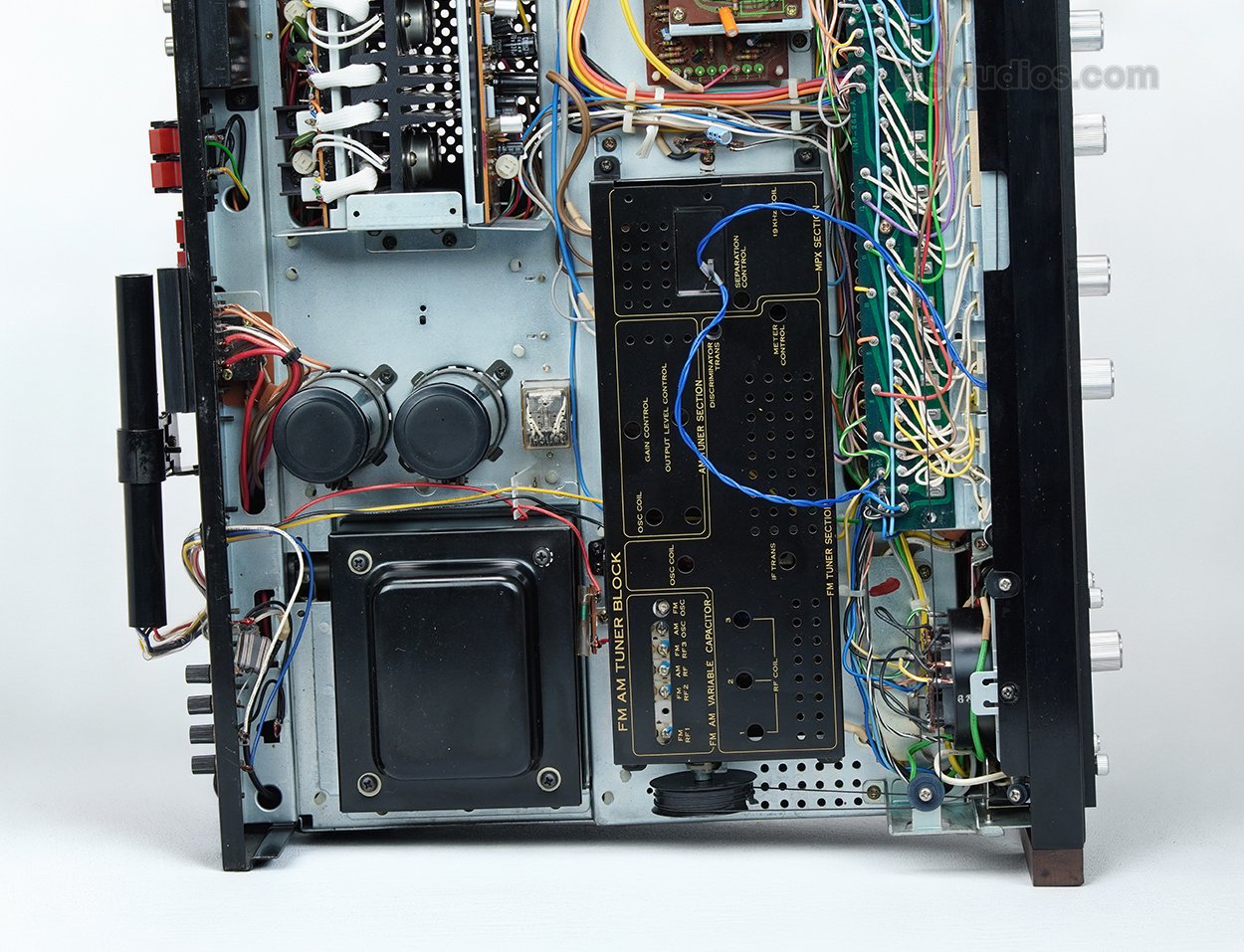

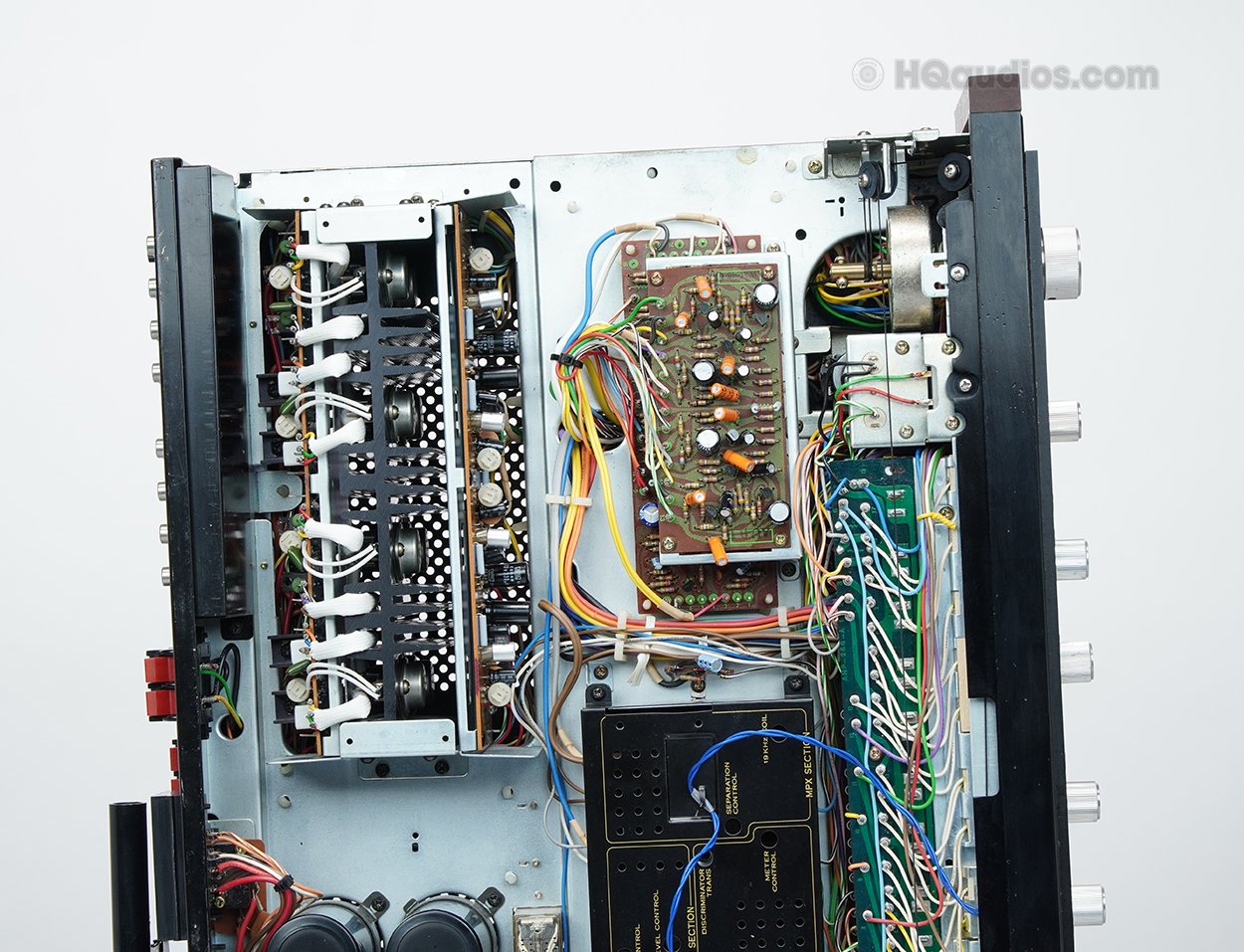

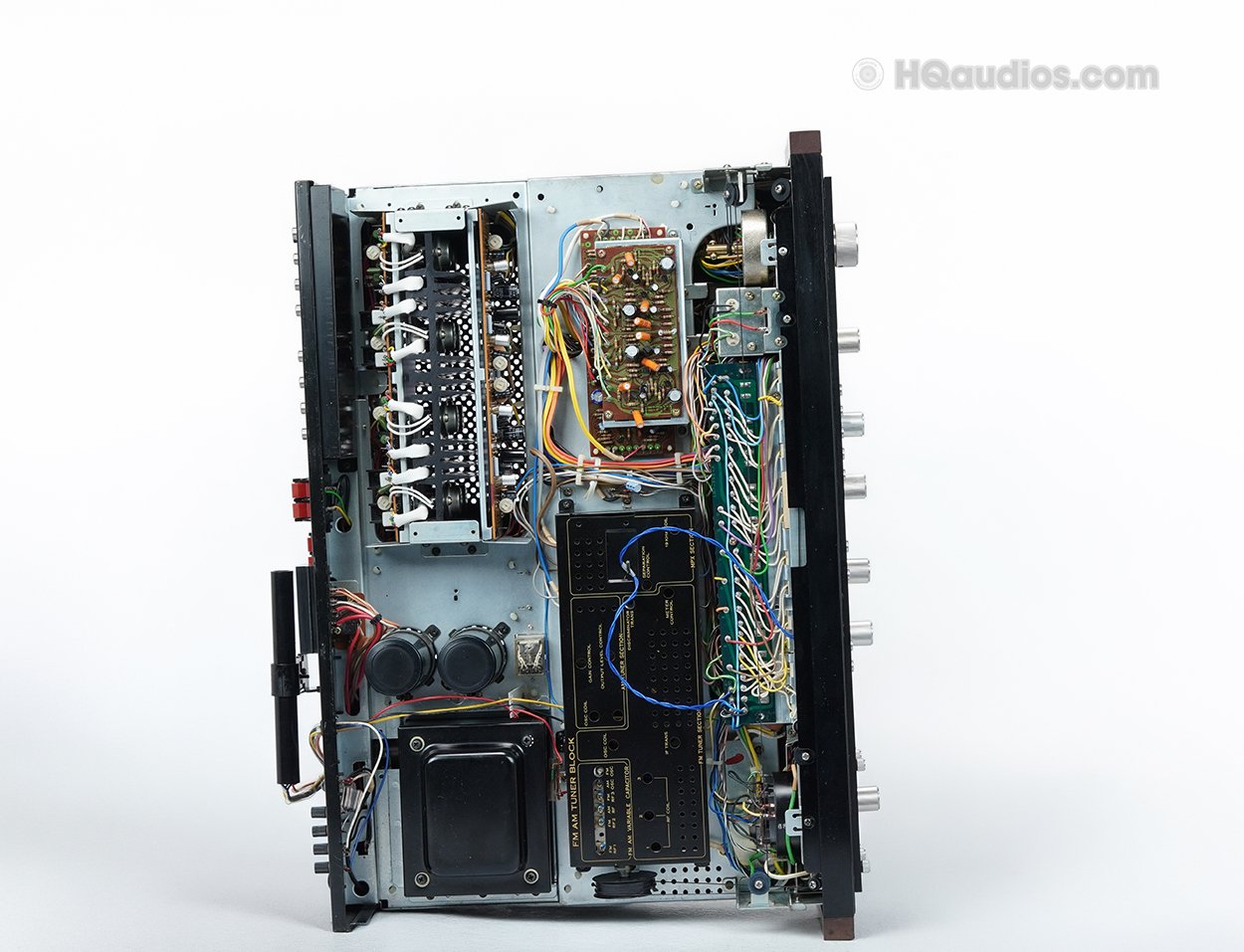

Internal Cleaning: We cleaned accessible chassis, circuit-board and wiring areas.
Exterior Detailing: We cleaned the cabinet, front aluminum panel, knobs, accessible dial surfaces and rear-panel areas.

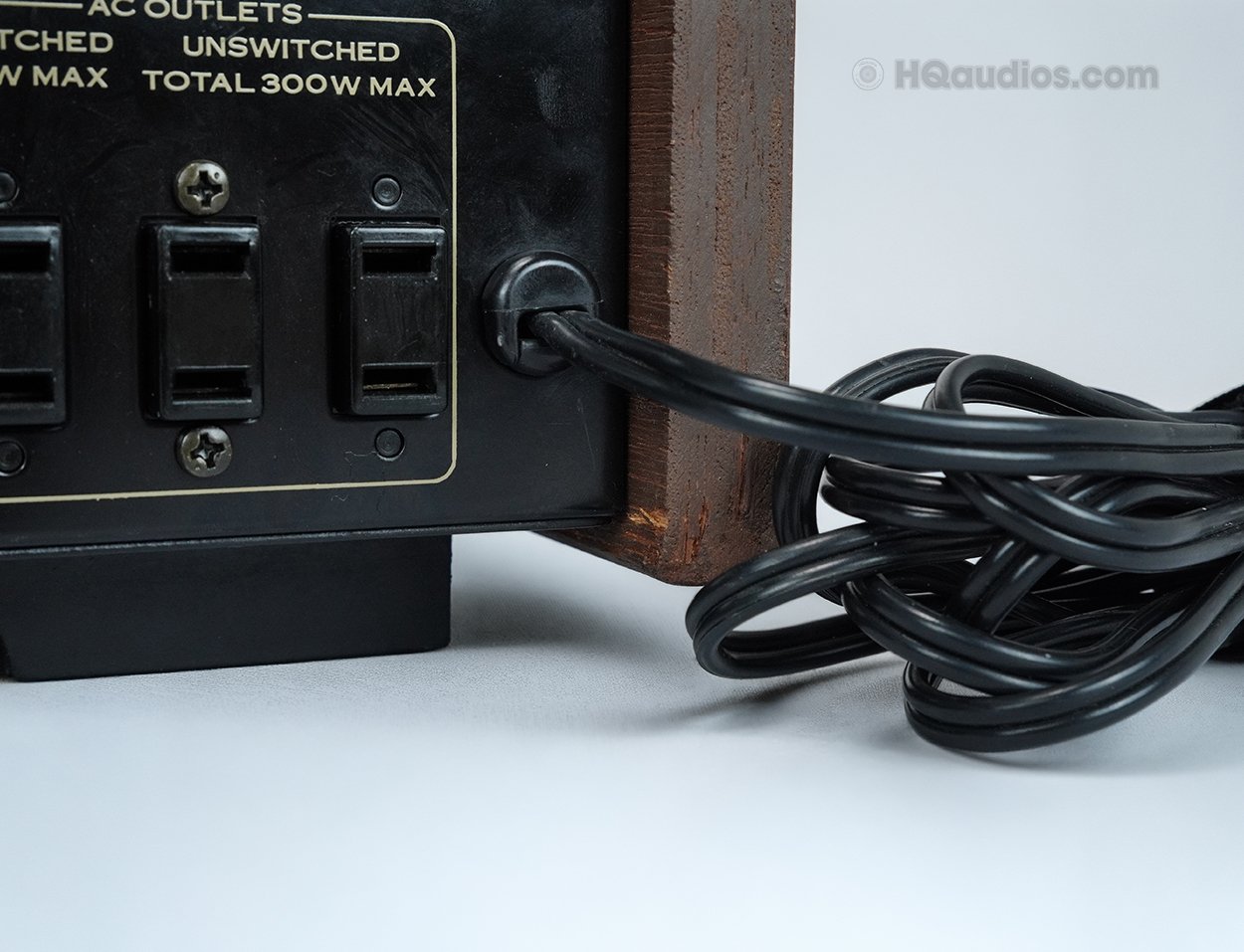

Mechanical Inspection: We checked accessible chassis hardware, ventilation and power-cord condition.
After Restoration / Final Testing
Post-service checks covered the power supply, serviced amplifier stages, source selection, operating controls, rear connections and stereo/quadraphonic signal routing. The receiver was also included in a listening and functional evaluation after service.
CONDITION
Technical Condition
Power Supply: Serviced with attention to filtering and associated circuitry.
Amplifier Section: Serviced following diagnosis of the CH2 signal issue.
Capacitors: Deteriorated and out-of-tolerance components were addressed during service.
Controls: Cleaned and serviced for improved contact and movement.
Connections: Accessible RCA and speaker-terminal contacts cleaned.
Quadraphonic System: Mode switching and signal routing included in post-service functional inspection.
Cosmetic Condition

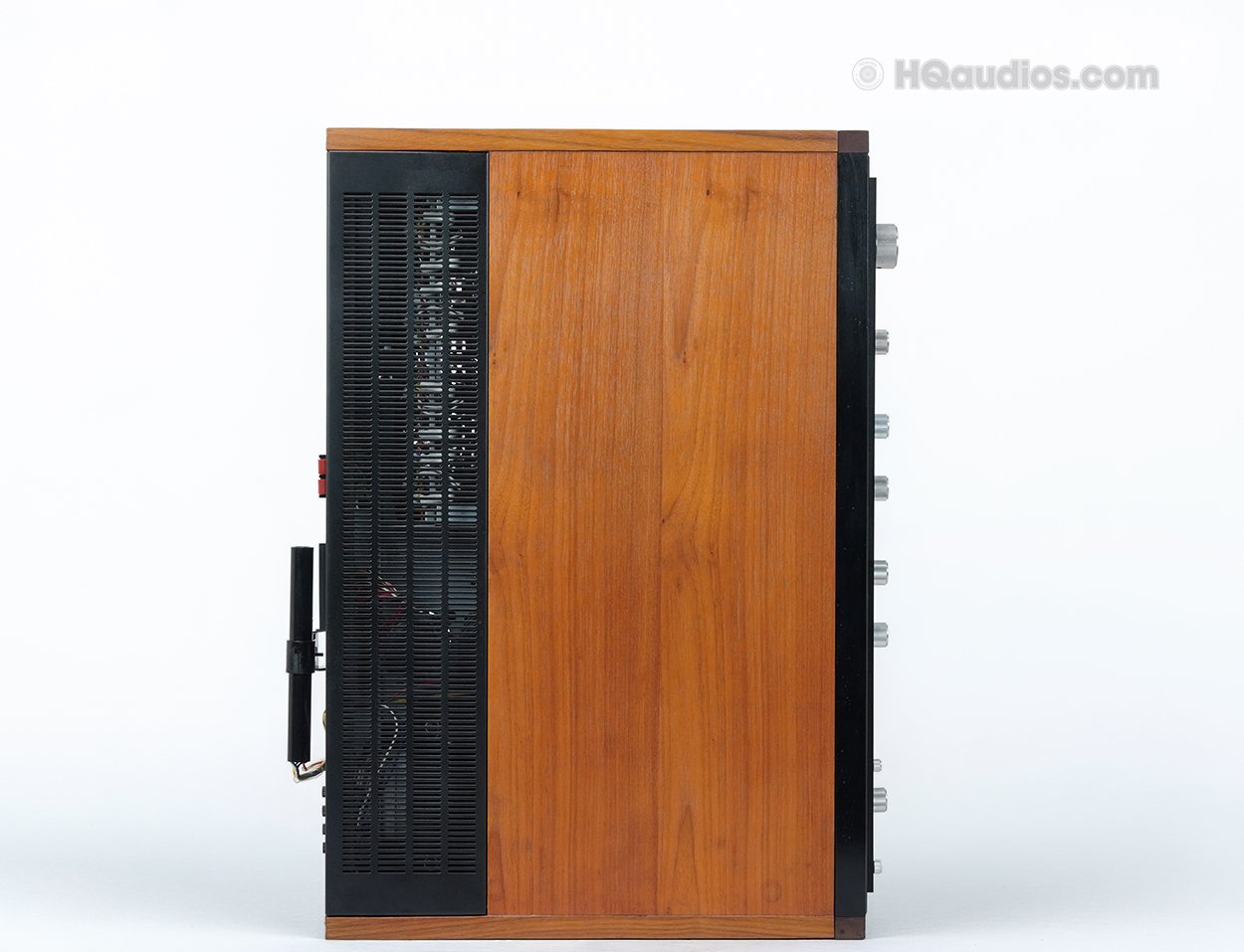

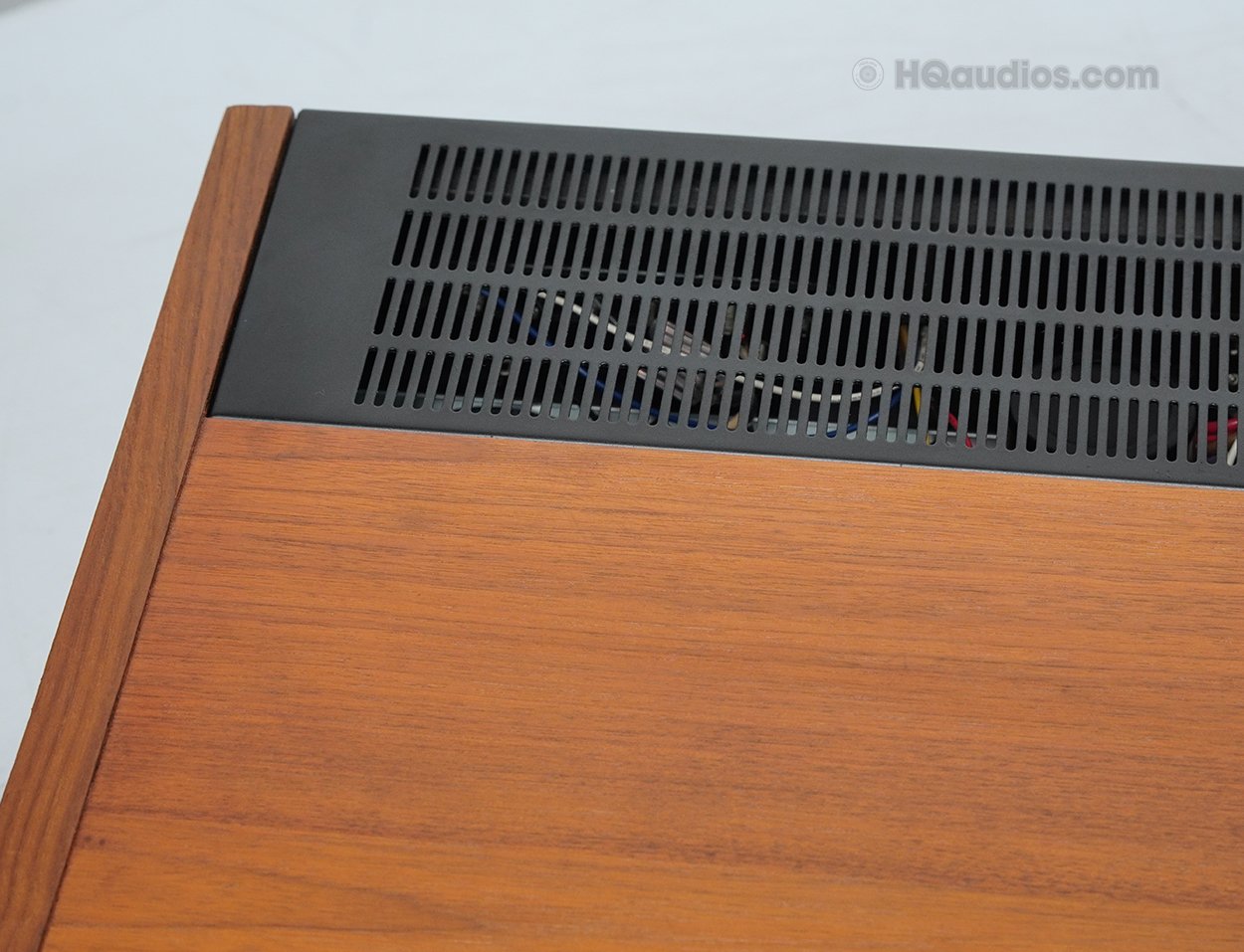

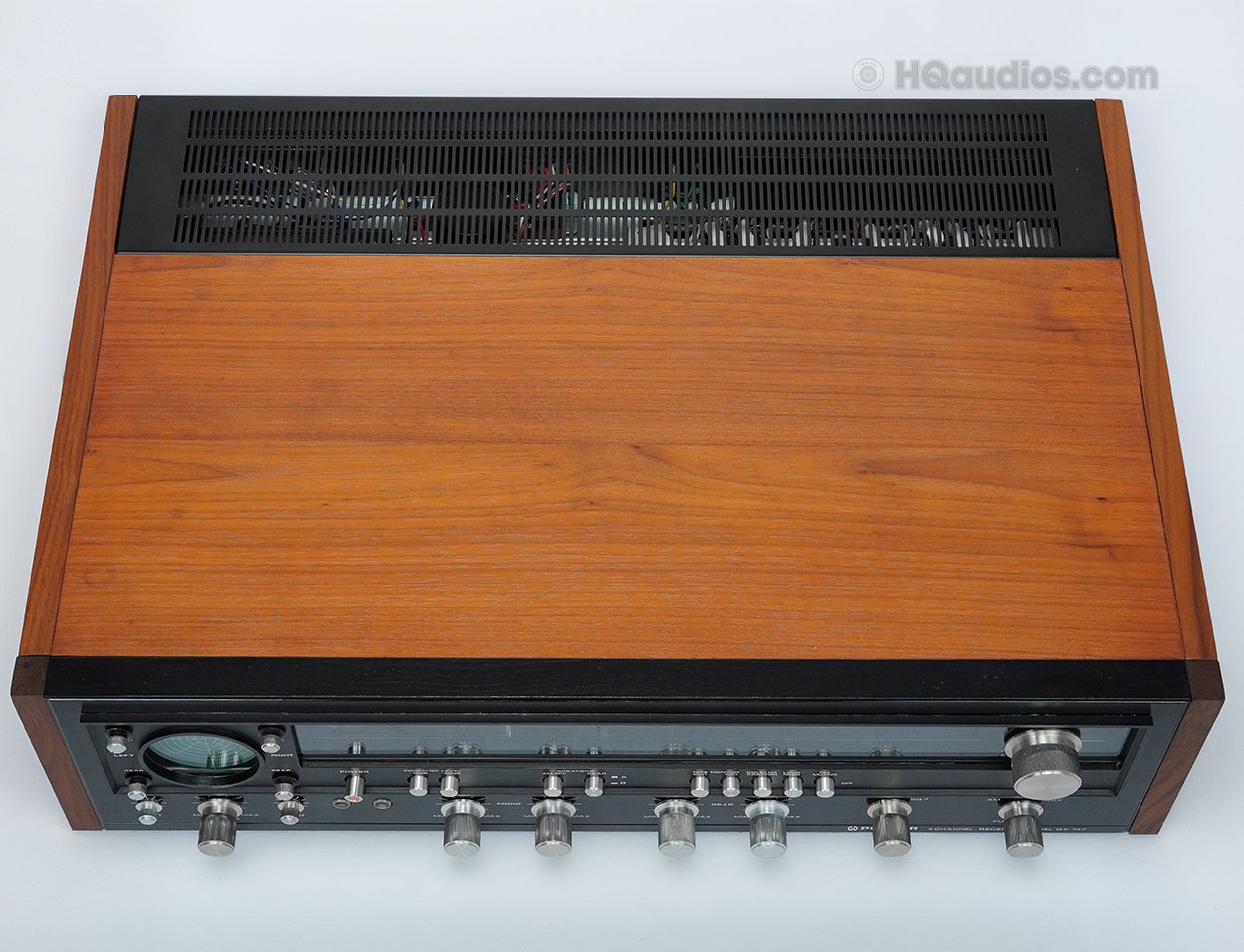

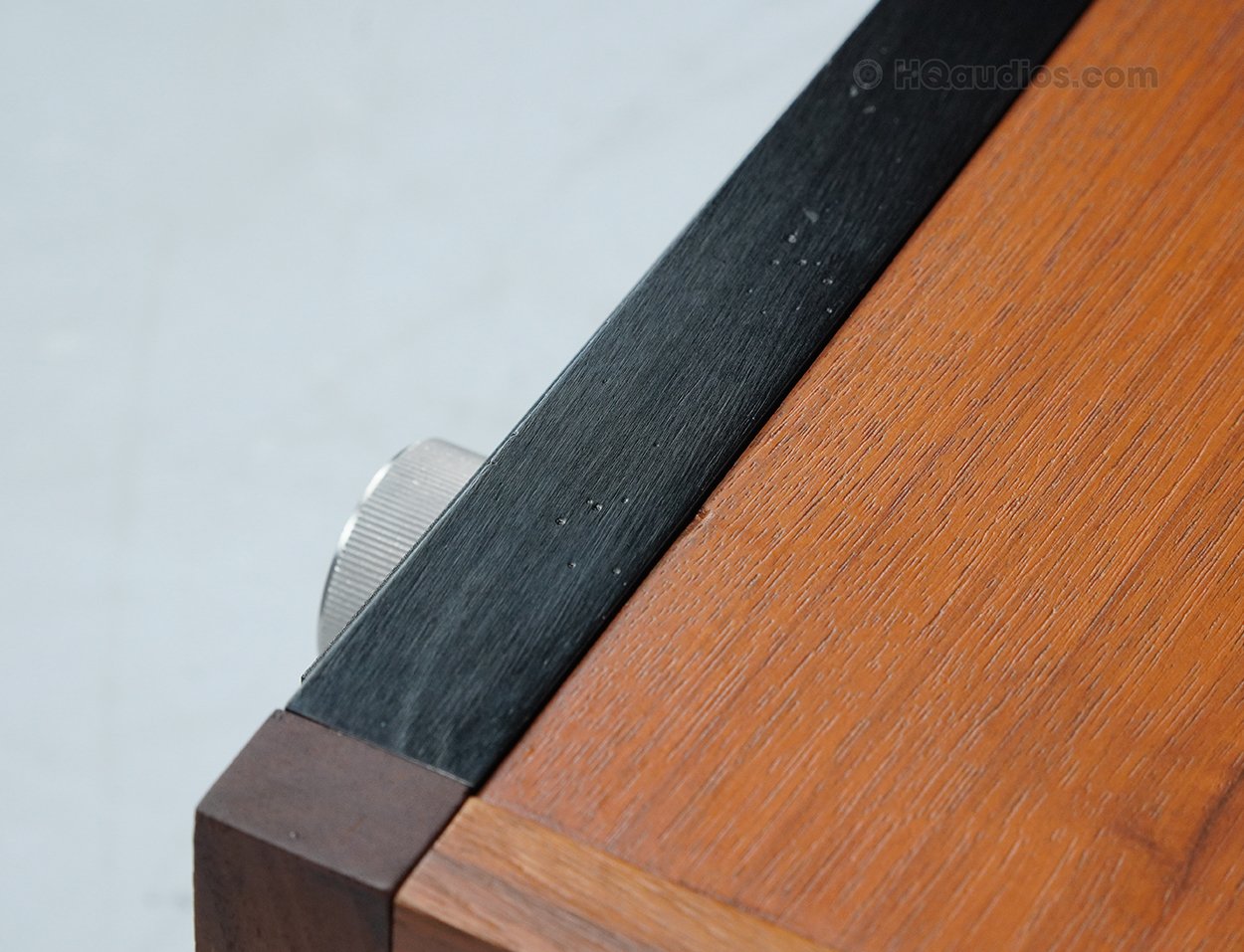

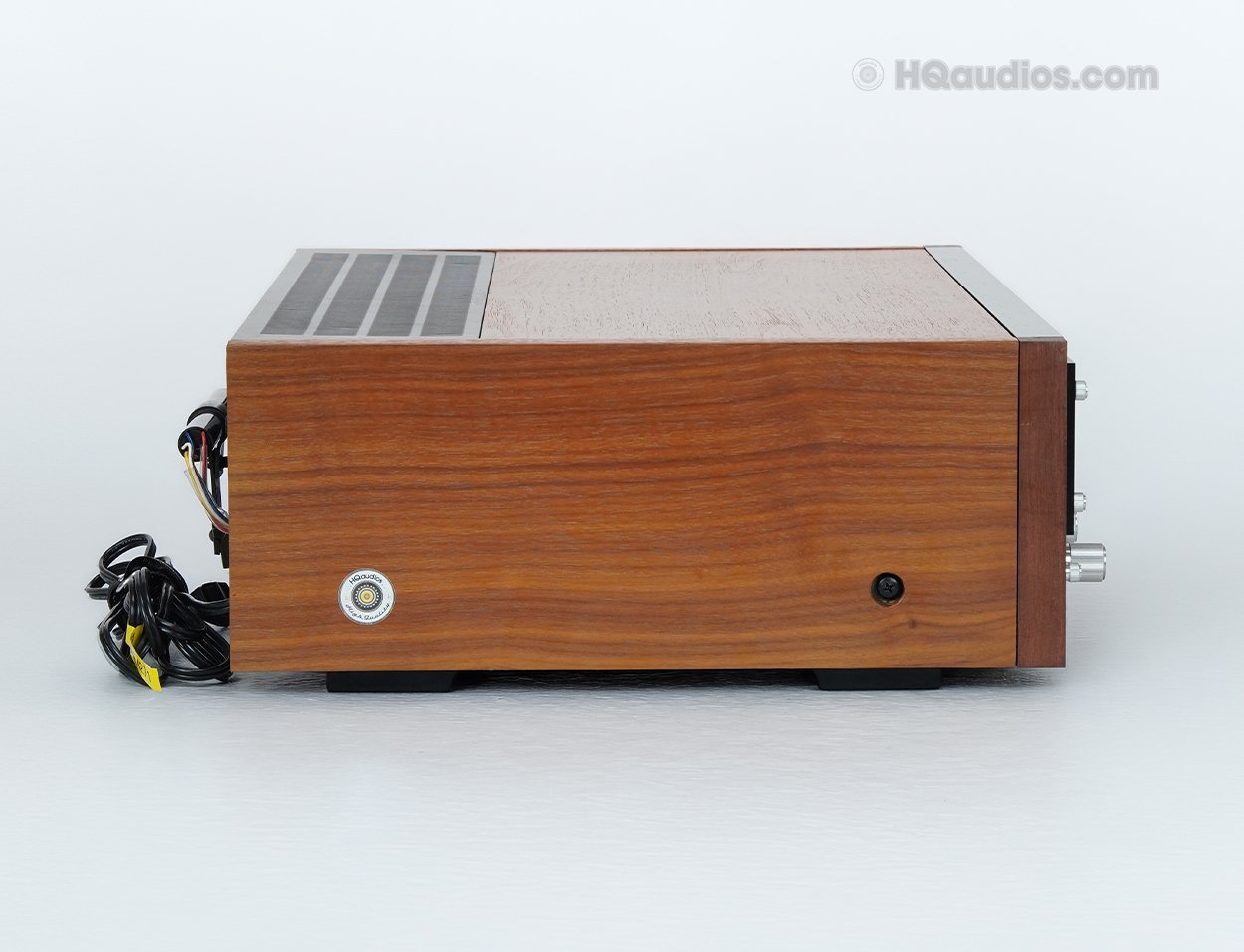

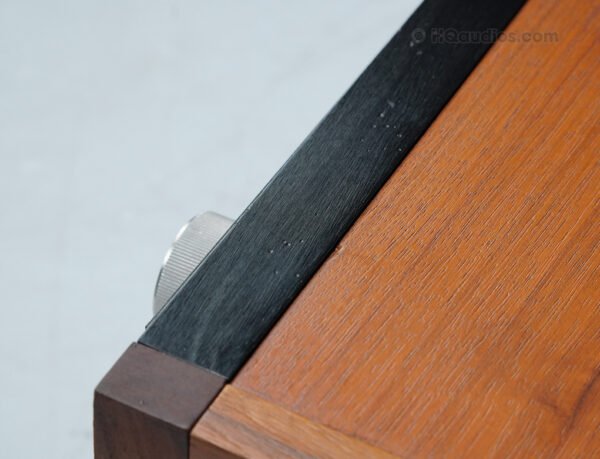

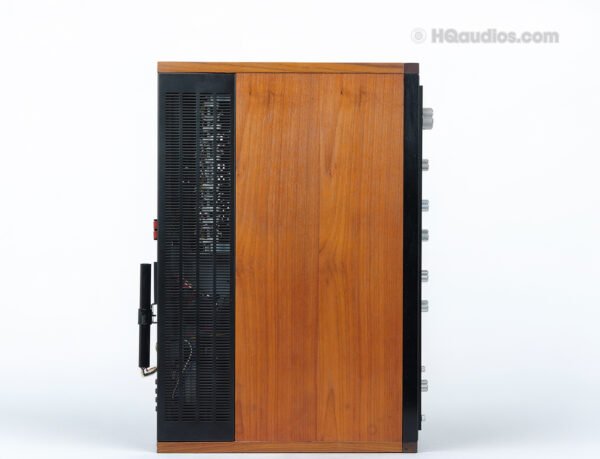

Cabinet: Exterior cabinet cleaned and detailed.

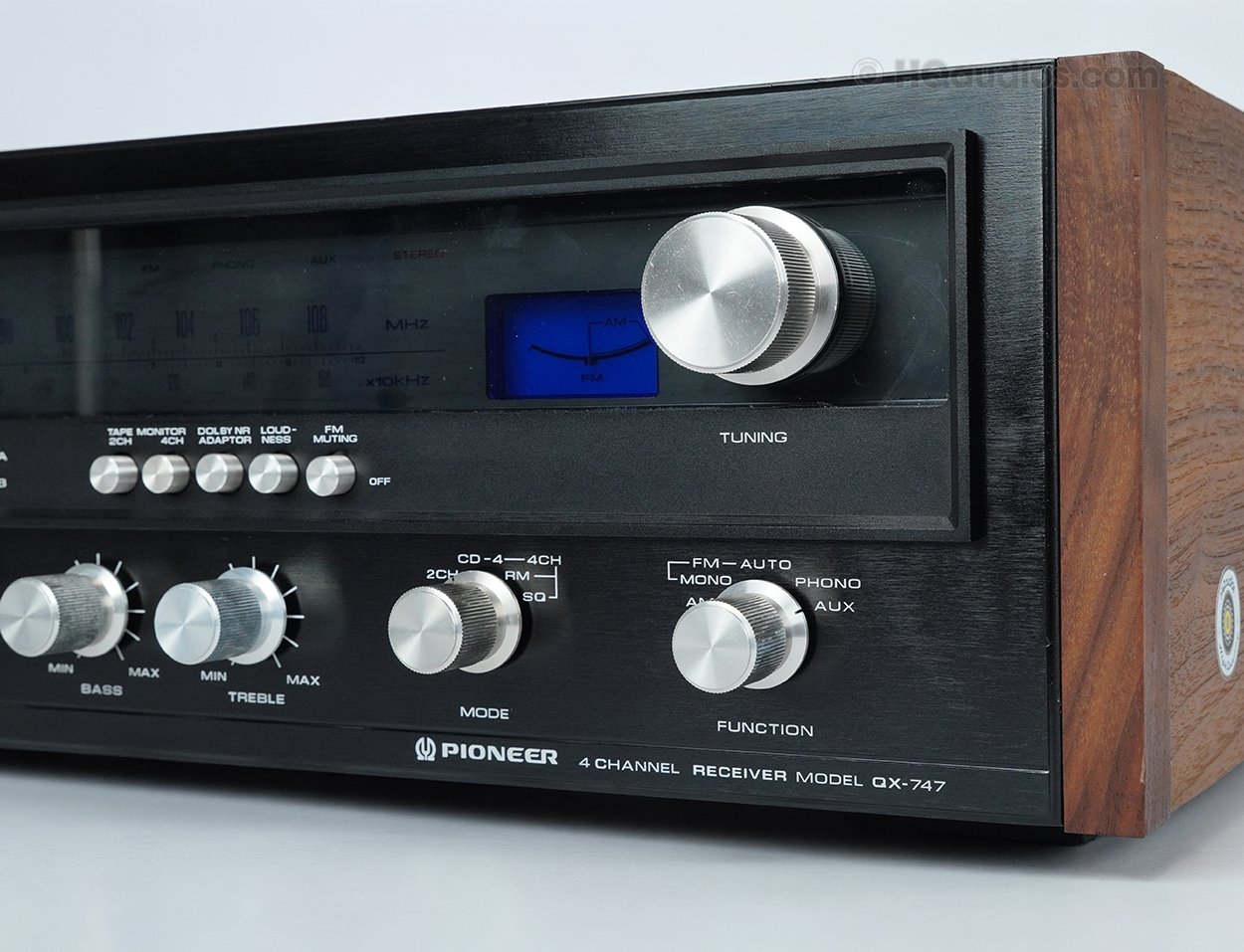

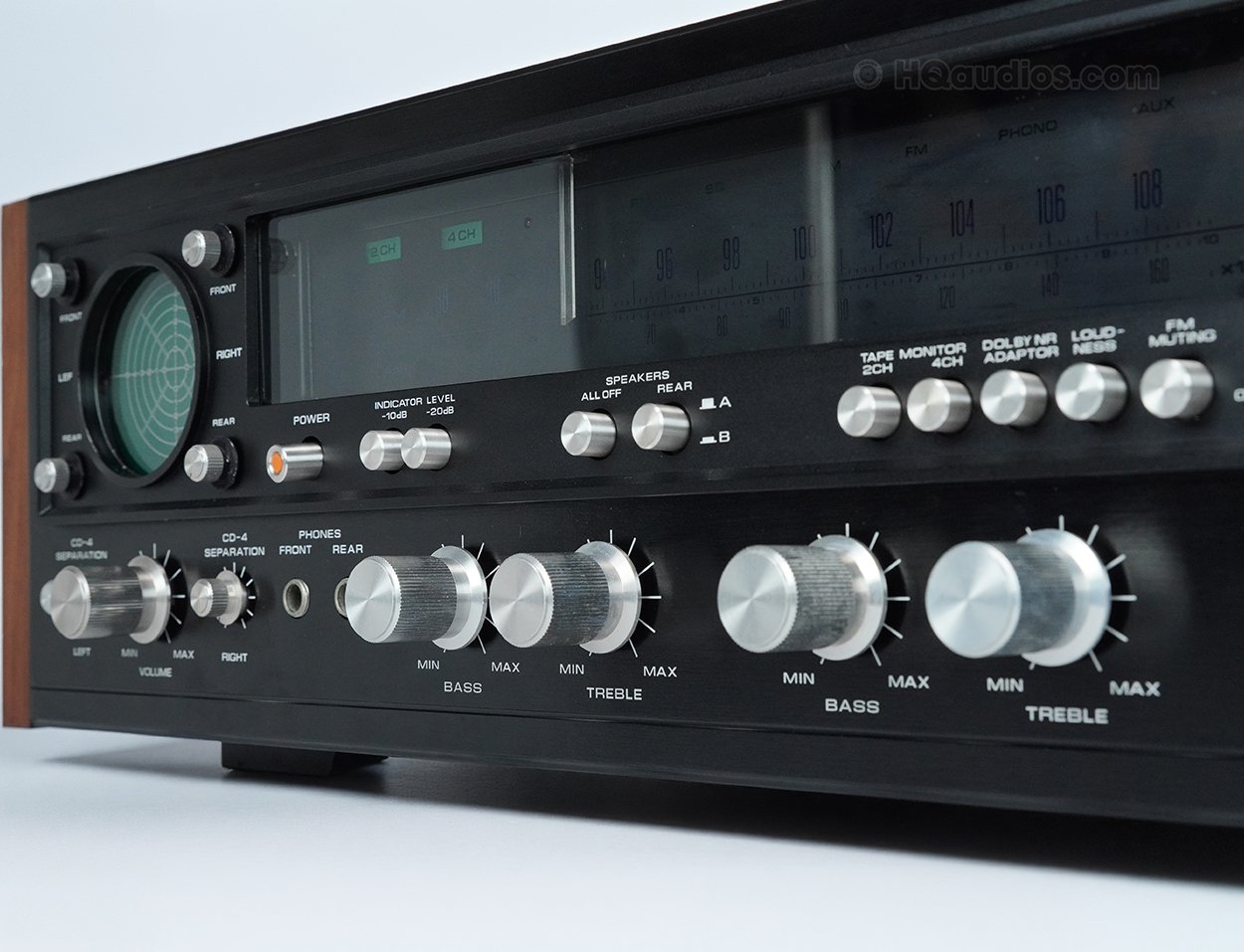

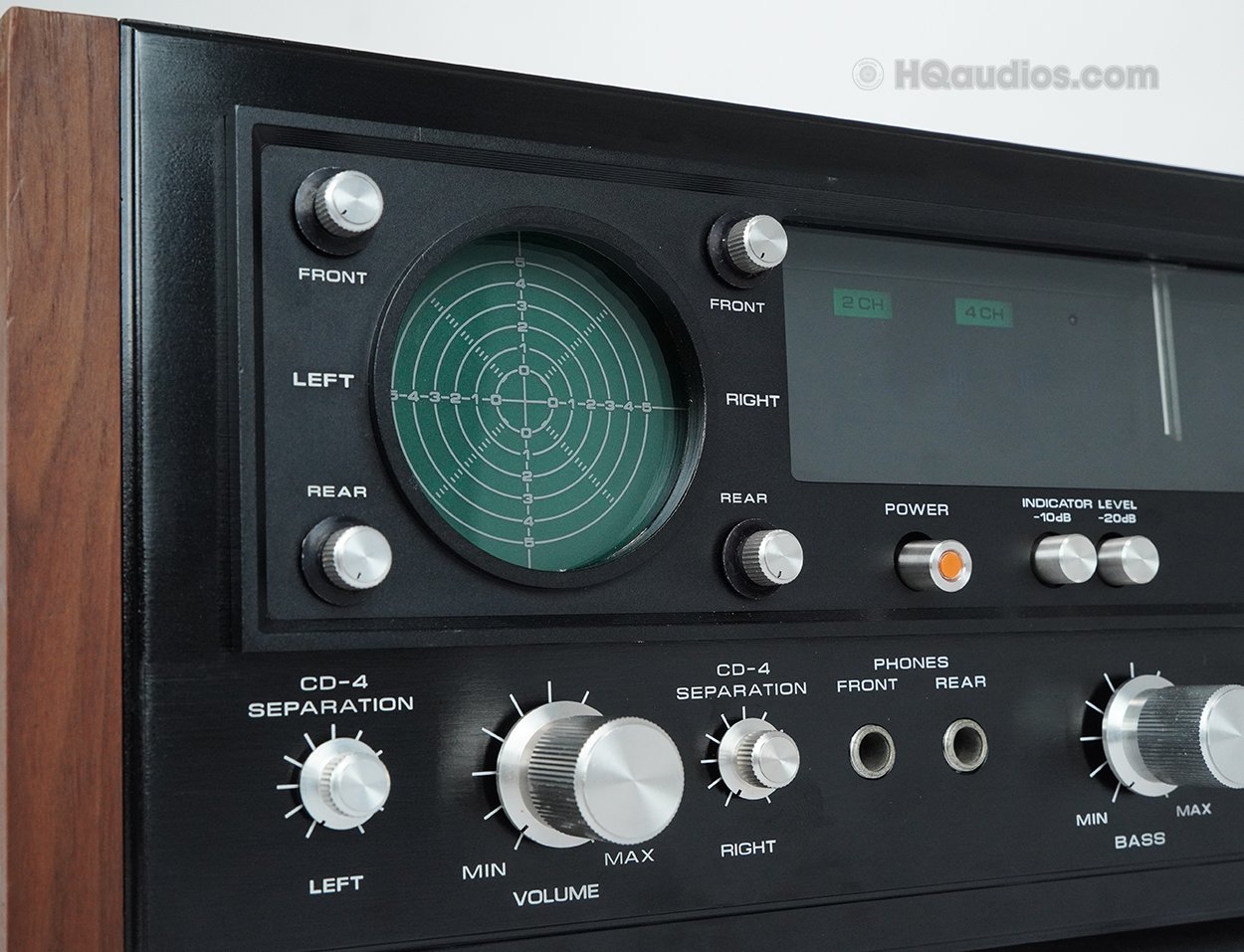

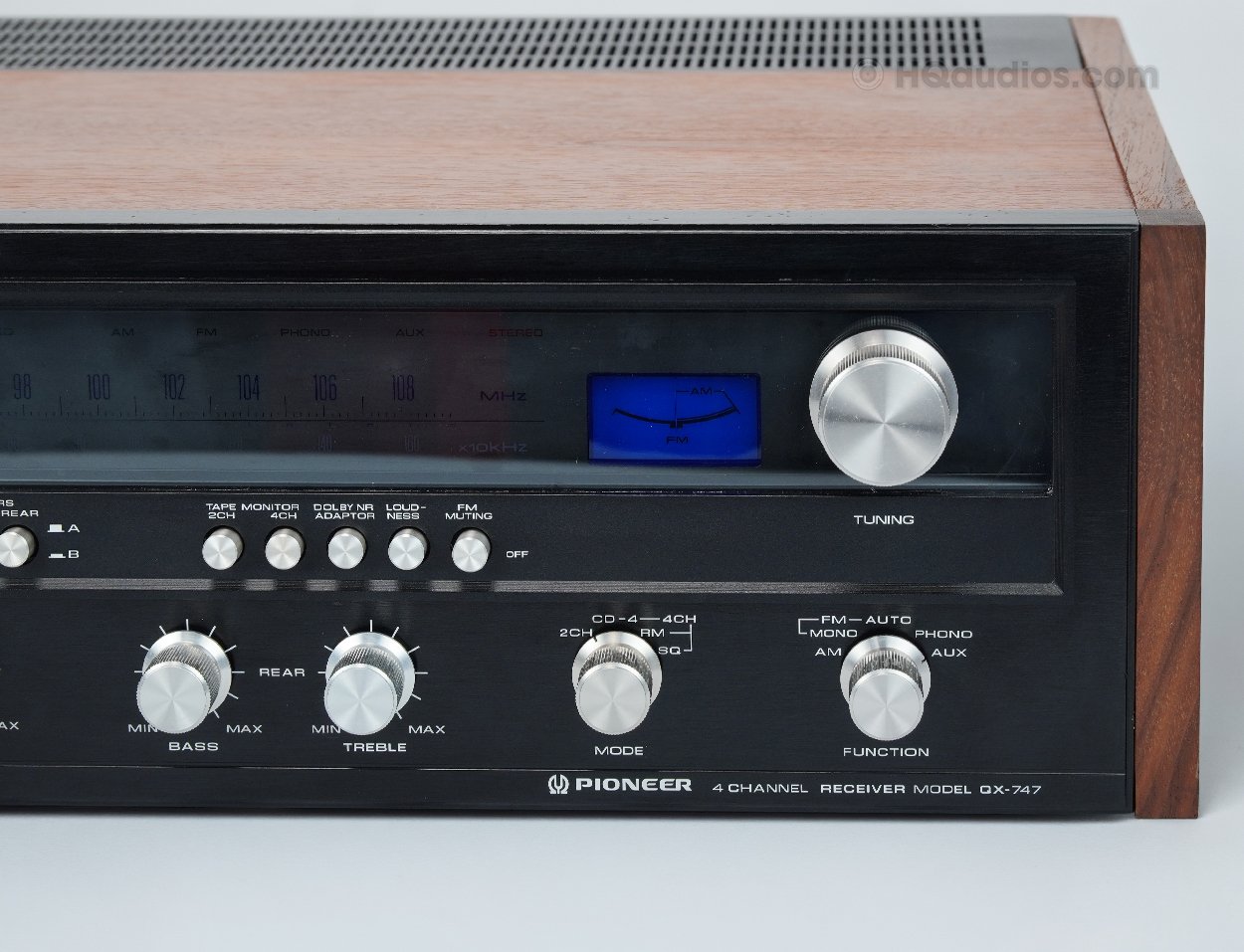

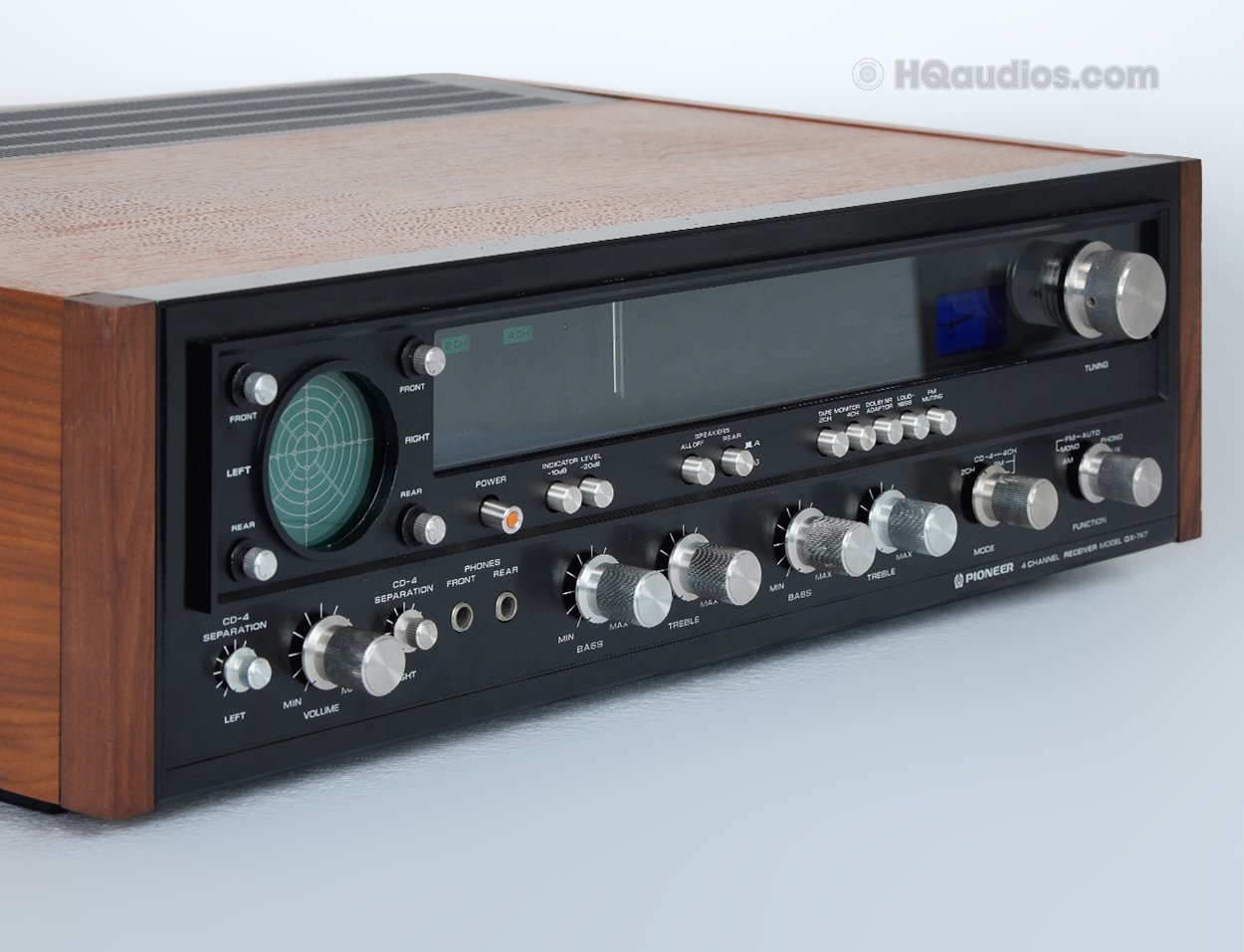

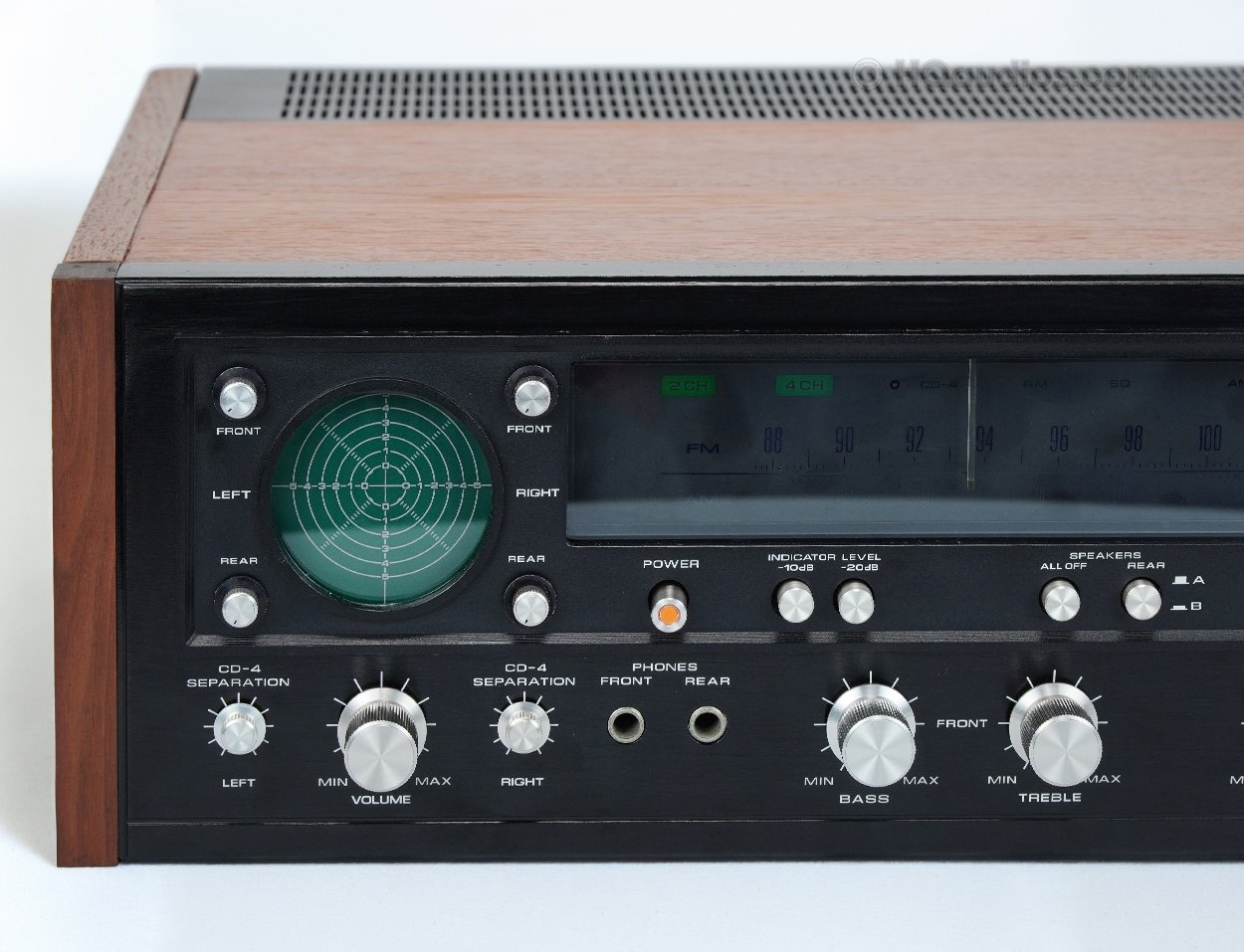

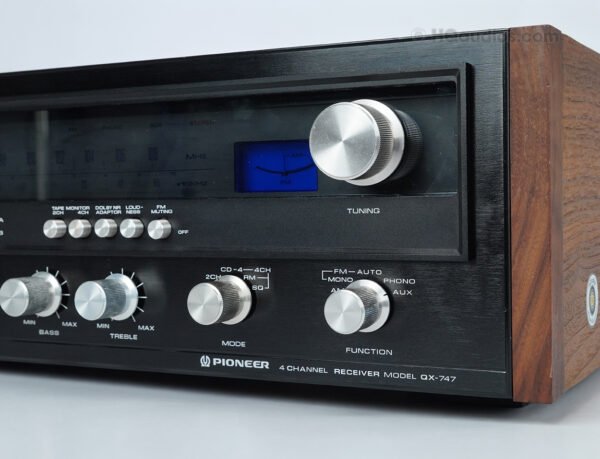

Front Panel: Aluminum faceplate and control knobs cleaned.
Display: Accessible dial and display surfaces cleaned.

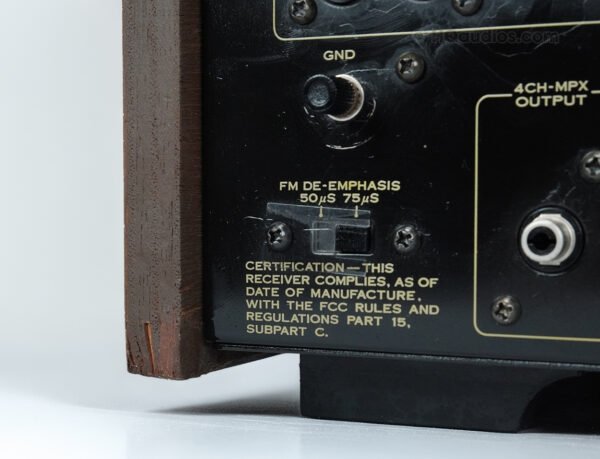

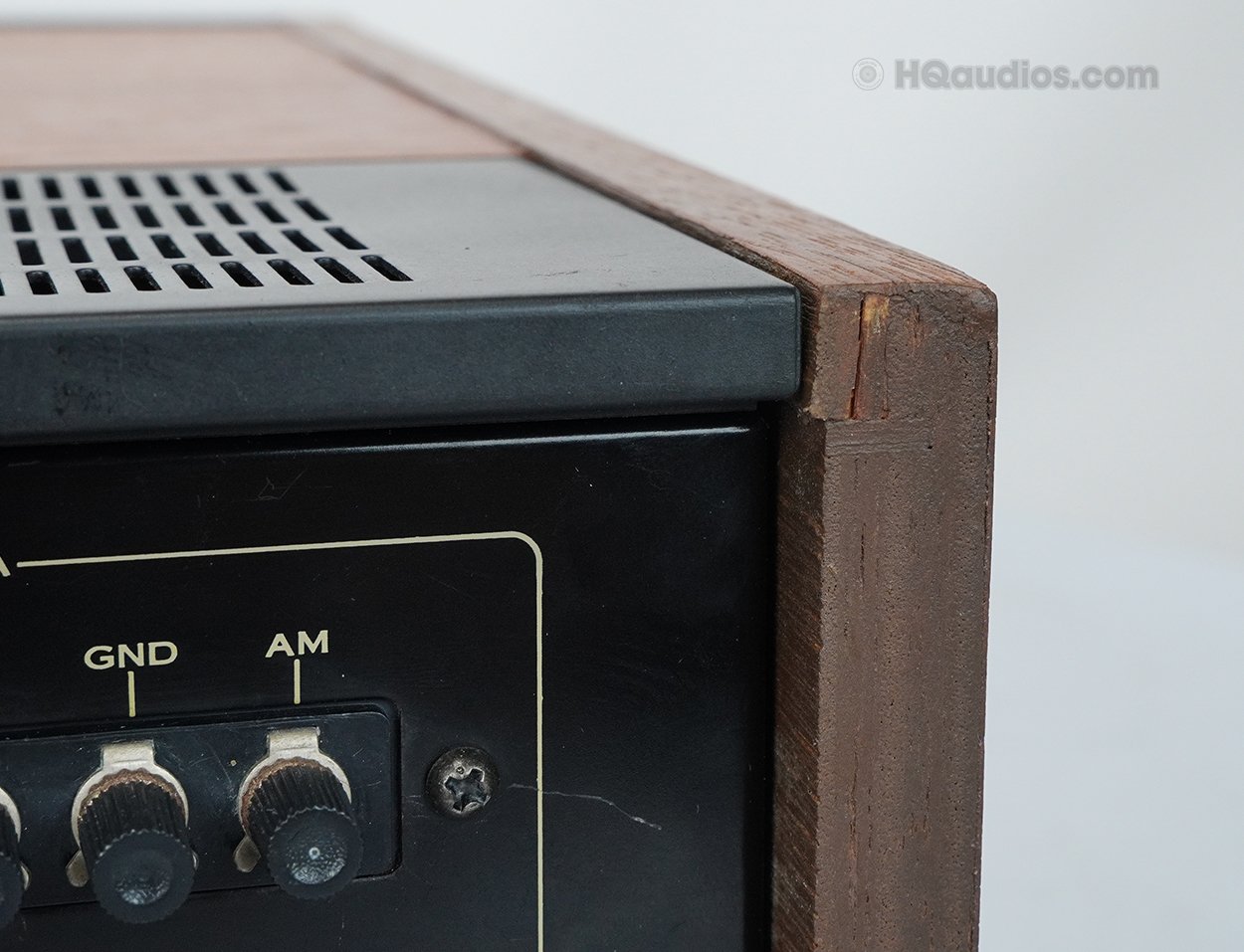

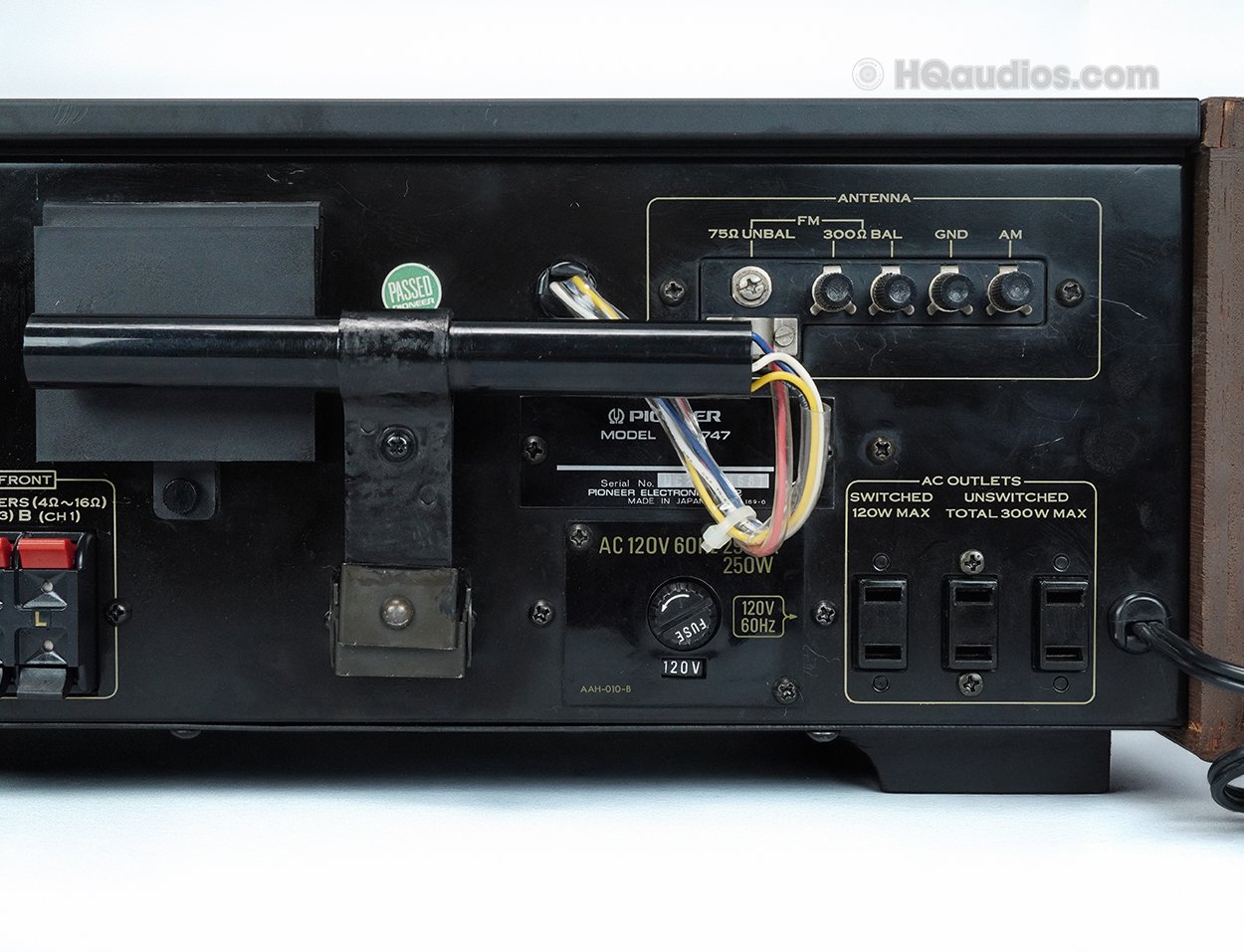

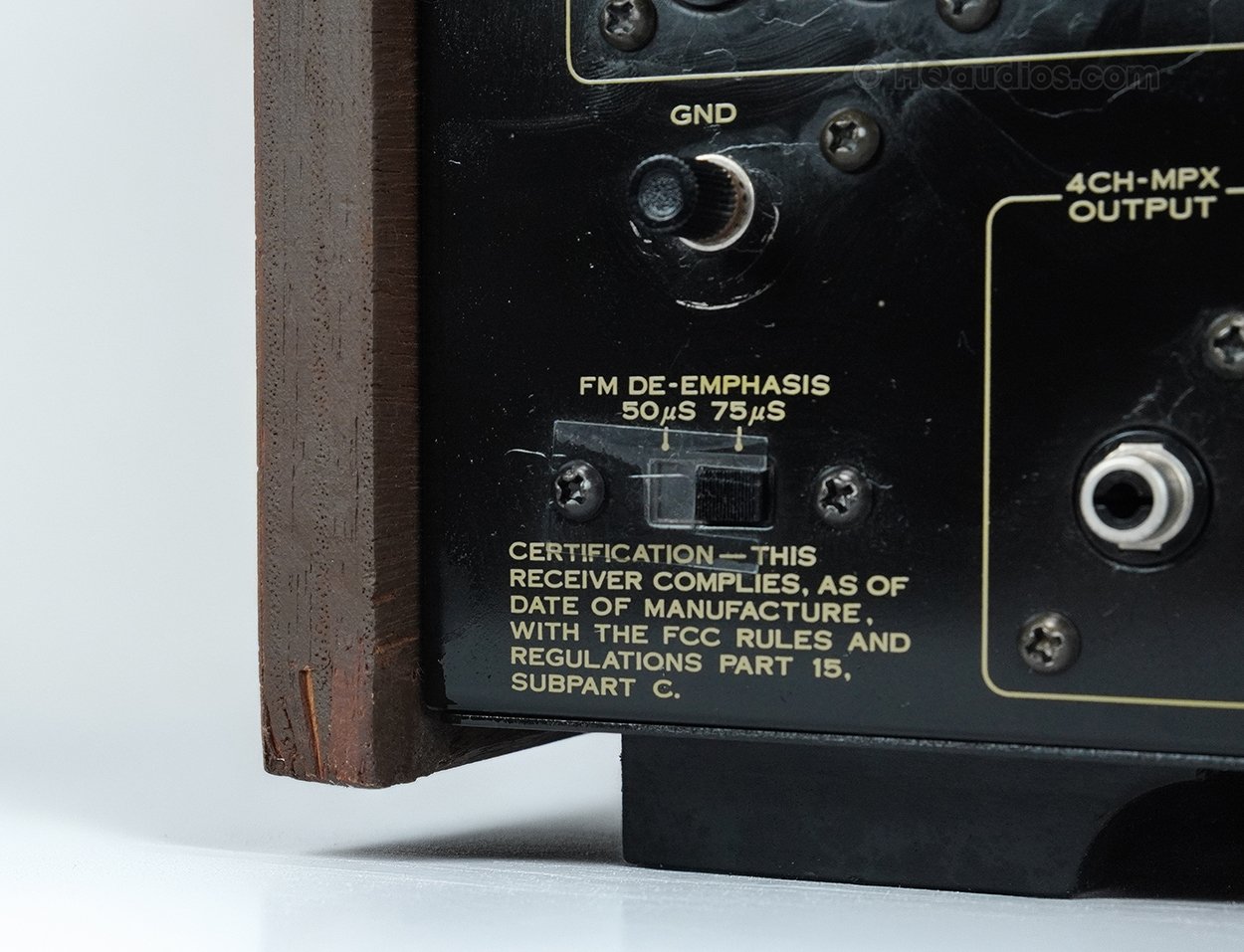

Rear Panel: Accessible areas and connection surfaces cleaned.
Power Supply Serviced • Amplifier Circuitry Serviced • Controls and Connections Serviced
SPECIFICATIONS
Brand: Pioneer
Model: QX-747
Type: Quadraphonic AM/FM Receiver
Channel Configuration: Four-channel quadraphonic / two-channel stereo
Quadraphonic Systems: CD-4, SQ and Regular Matrix
WHAT IS INCLUDED
1 Pioneer QX-747 Quadraphonic Receiver
Only the items specifically listed above are included.
SHIPPING & PACKAGING
Your vintage audio equipment will be professionally packed by HQaudios using protective materials appropriate for its size, weight, and construction. Large or heavy items may be palletized and shipped by freight when required for safer transportation.

Please contact us before purchase for the most current availability information.
1-Year WARRANTY & CUSTOMER SUPPORT
Your purchase is backed by our 1-Year HQaudios Warranty. Our team provides support before and after your purchase. If you have questions about setup, operation, compatibility, or your order, please contact HQaudios for assistance.
MORE FROM HQAUDIOS
Need restoration, repair, a custom faceplate or wood case, speaker stands, or a trade-in option? Contact HQaudios for available services and package pricing.
