Kenwood KR7600 Receiver

$999

-

Specification:

  • Condition: Excellent – Refurbished (professionally serviced, tested, and guaranteed)
  • Model: KR7600
  • Brand: Kenwood
  • Protection Plan: 1 year warranty
  • FREE SUPPORT: MUST BE UTILIZED BEFORE RETURN IS REQUESTED
  • Type: Solid-state stereo receiver
  • Pro packaged, insured and includes tracking.
  • No Boxes, No accessories
  • SKU: TNE0202

Out of stock

SKU: TNE0202 Categories: , , Tags: ,

Specification:

  • Condition: Excellent – Refurbished (professionally serviced, tested, and guaranteed)
  • Model: KR7600
  • Brand: Kenwood
  • Protection Plan: 1 year warranty
  • FREE SUPPORT: MUST BE UTILIZED BEFORE RETURN IS REQUESTED
  • Type: Solid-state stereo receiver
  • Pro packaged, insured and includes tracking.
  • No Boxes, No accessories
  • SKU: TNE0202

Experience the brilliance of vintage audio engineering with the Kenwood KR7600 Receiver, a masterpiece that embodies power, precision, and timeless design. This iconic receiver has been fully restored to deliver flawless performance, ensuring you enjoy the rich, warm sound that made Pioneer a legendary name in the audio world.

Customer Service:  Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.  We are audiophiles as well and love to help out other audiophiles.

TESTING VIDEO

🛒 Buy Now and Rediscover True Hi-Fi Sound!

#KenwoodKR7600 #VintageAudio #RestoredReceiver #AudiophileGear #KenwoodLegend #eBayVintageAudio

Technical Specifications:

The Kenwood KR-7600 is a vintage AM/FM stereo receiver introduced in 1976, known for its robust build and high-quality audio performance. Here are its key specifications:

  • Power Output: 70 watts per channel into 8Ω (stereo).
  • Frequency Response: 20Hz to 50kHz.
  • Total Harmonic Distortion: 0.5%.
  • Damping Factor: 45.
  • Input Sensitivity:
    • Microphone: 1.5mV
    • Moving Magnet (MM) Phono: 2.5mV
    • Line: 150mV
  • Signal-to-Noise Ratio:
    • Microphone: 65dB
    • MM Phono: 70dB
    • Line: 90dB
  • Output: 150mV (line), 30mV (DIN).
  • Speaker Load Impedance: 4Ω to 16Ω.
  • Dimensions: 518 x 151 x 365mm.
  • Weight: 17.3kg.

These specifications highlight the KR-7600’s capability to deliver powerful and clear audio, making it a sought-after model among vintage audio enthusiasts.

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

Condition:

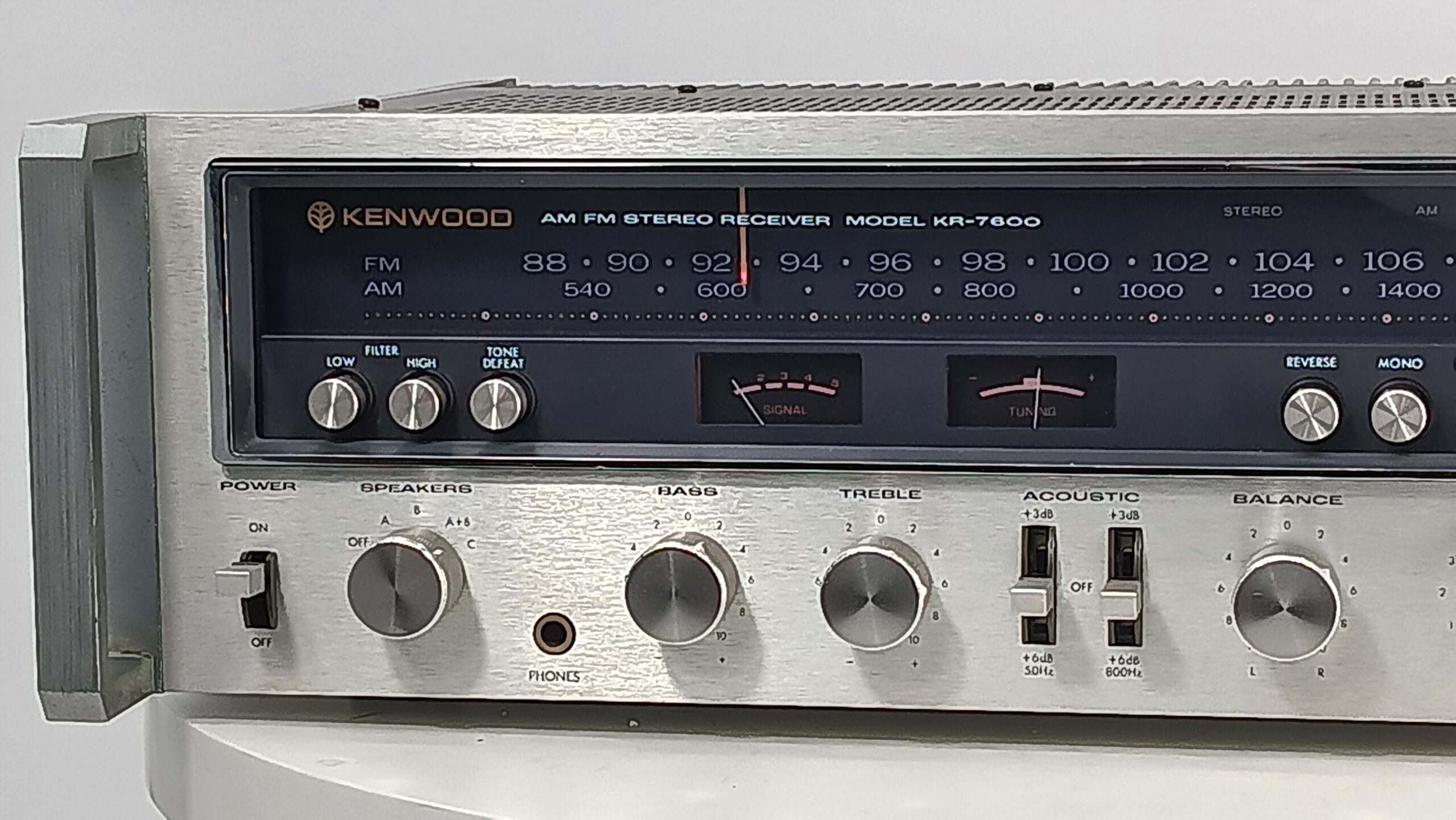

This receiver is in “Excellent” condition, displaying minor signs of use with a bright, clear dial. All knobs, feet, and the attached AM antenna and AC cord are present and intact. Although the manual is missing, it can be found online or we can provide a PDF upon request. Please inspect all photos thoroughly for the actual condition.

Service:

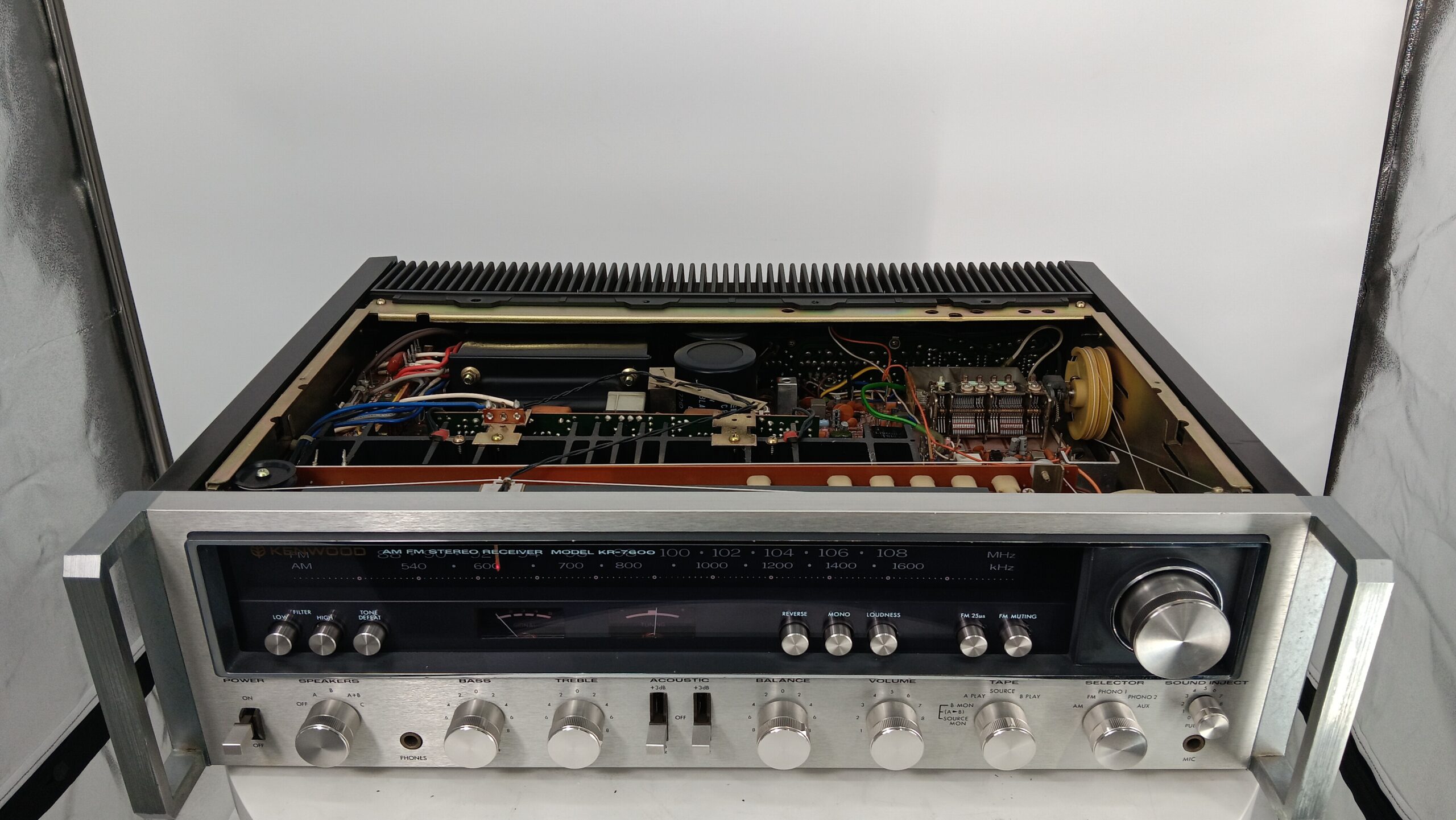

Upon inspection, the unit had scratchy controls, a dim dial, and some distortion in one channel. Therefore, it underwent servicing by our technician. Manufacturer used certain transistors in this model that are known to fail after 40 years, so all of these were replaced. This upgrade resolved the distortion issue. Additionally, several questionable capacitors were replaced.

Testing:

After servicing, the receiver was tested on our bench and performed excellently, delivering a powerful, warm, distortion-free signal characteristic of analog receivers. All inputs, outputs, LED lights upgrade and features were confirmed operational, and the tuner spins smoothly. Additional testing was conducted, and we can provide specific feature information upon request. This is a remarkable find for the vintage audiophile.

Condition Disclosure:

This item exhibits minor wear consistent with light use, as shown in the provided photos. The listing includes exactly what is pictured; no accessories, test equipment, or media are included.

Thank you for being a valued customer & Thanks for looking!
