JBL 4333B Pair Of 15″ Studio Monitor Speakers – Professionally Restored – 1-Year Warranty
$15,999
-
- Authentic JBL 4333B Professional Series Studio Monitor pair
- 3-way, 3-driver bass-reflex design
- 15-inch JBL 2231H low-frequency driver
- JBL 2420 compression driver
- JBL 2312 horn + 2308 acoustic lens
- JBL 2405 ultra-high-frequency transducer
- JBL 3133A internal crossover network
- 800 Hz / 8.5 kHz crossover frequencies
- Switchable internal crossover / external bi-amplification
- 94 dB sensitivity (1 W / 1 m)
- 8-ohm nominal system impedance
- 75-watt maximum input
- 35 Hz – 20 kHz ±3 dB on-axis response
- Front Mid Frequency Level and High Frequency Level controls
- Professionally Restored and Serviced by HQaudios
- Backed by Our 1-Year HQaudios Warranty
1 in stock
JBL 4333B Pair Of 15″ Studio Monitor Speakers – Professionally Restored – 1-Year Warranty
Professionally Restored by HQaudios – Backed by Our 1-Year Warranty.

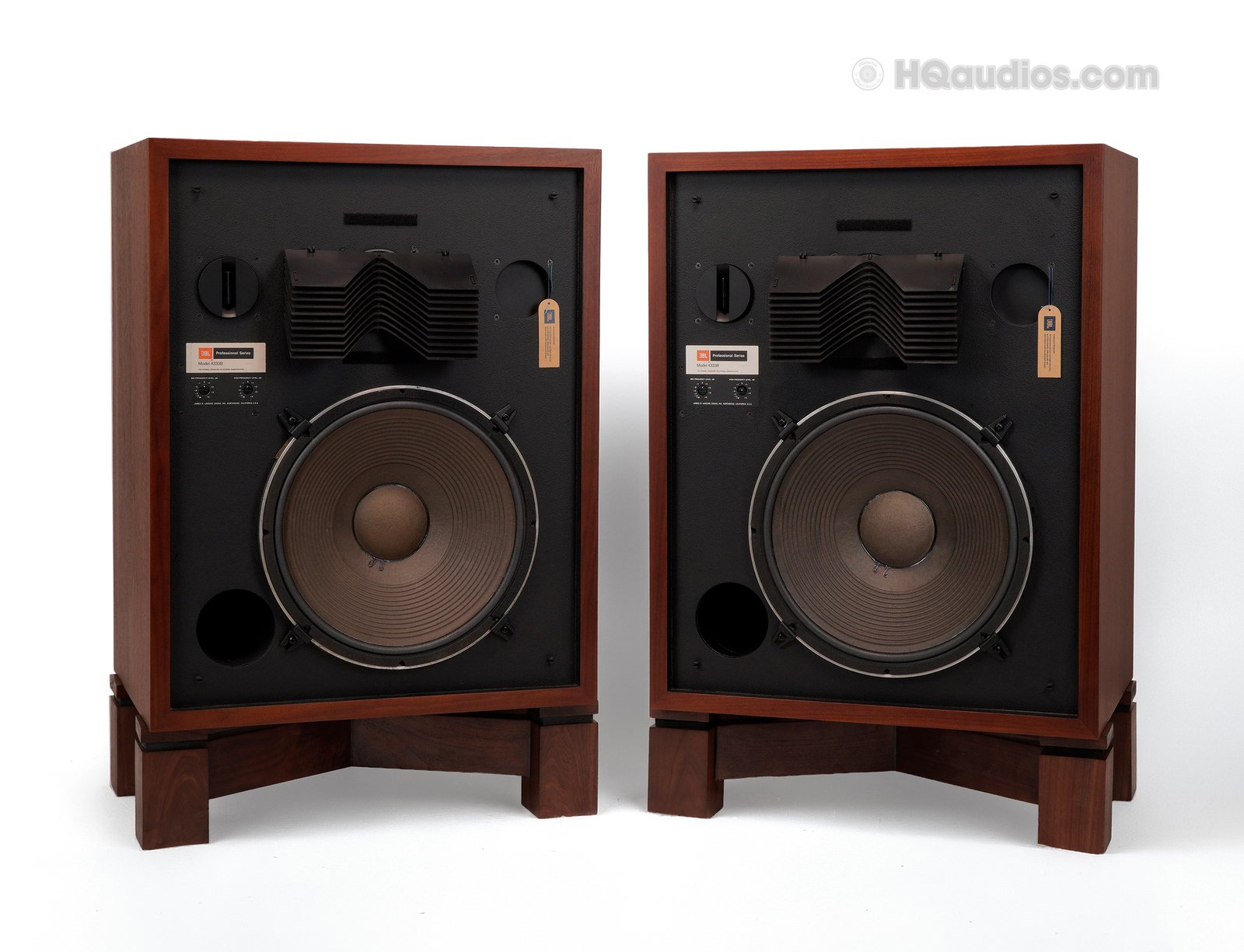

Up for sale is the JBL 4333B Professional Series Studio Monitor, offered here as a matching vintage pair with the classic walnut cabinet and dark blue grille presentation.
The 4333B is a large-format 3-way studio monitor built around the 15-inch JBL 2231H low-frequency driver, a 2420 compression driver coupled to the 2312 horn and 2308 acoustic lens, and the 2405 ultra-high-frequency transducer. The system uses the JBL 3133A network and can operate through its internal passive crossover or with external bi-amplification.
Designed for professional monitoring applications, the 4333B combines high sensitivity, wide bandwidth, strong dynamic capability, and the direct presentation associated with JBL’s classic large-format studio systems.
Key Highlights
- Authentic JBL 4333B Professional Series Studio Monitor pair
- 3-way, 3-driver bass-reflex design
- 15-inch JBL 2231H low-frequency driver
- JBL 2420 compression driver
- JBL 2312 horn + 2308 acoustic lens
- JBL 2405 ultra-high-frequency transducer
- JBL 3133A internal crossover network
- 800 Hz / 8.5 kHz crossover frequencies
- Switchable internal crossover / external bi-amplification
- 94 dB sensitivity (1 W / 1 m)
- 8-ohm nominal system impedance
- 75-watt maximum input
- 35 Hz – 20 kHz ±3 dB on-axis response

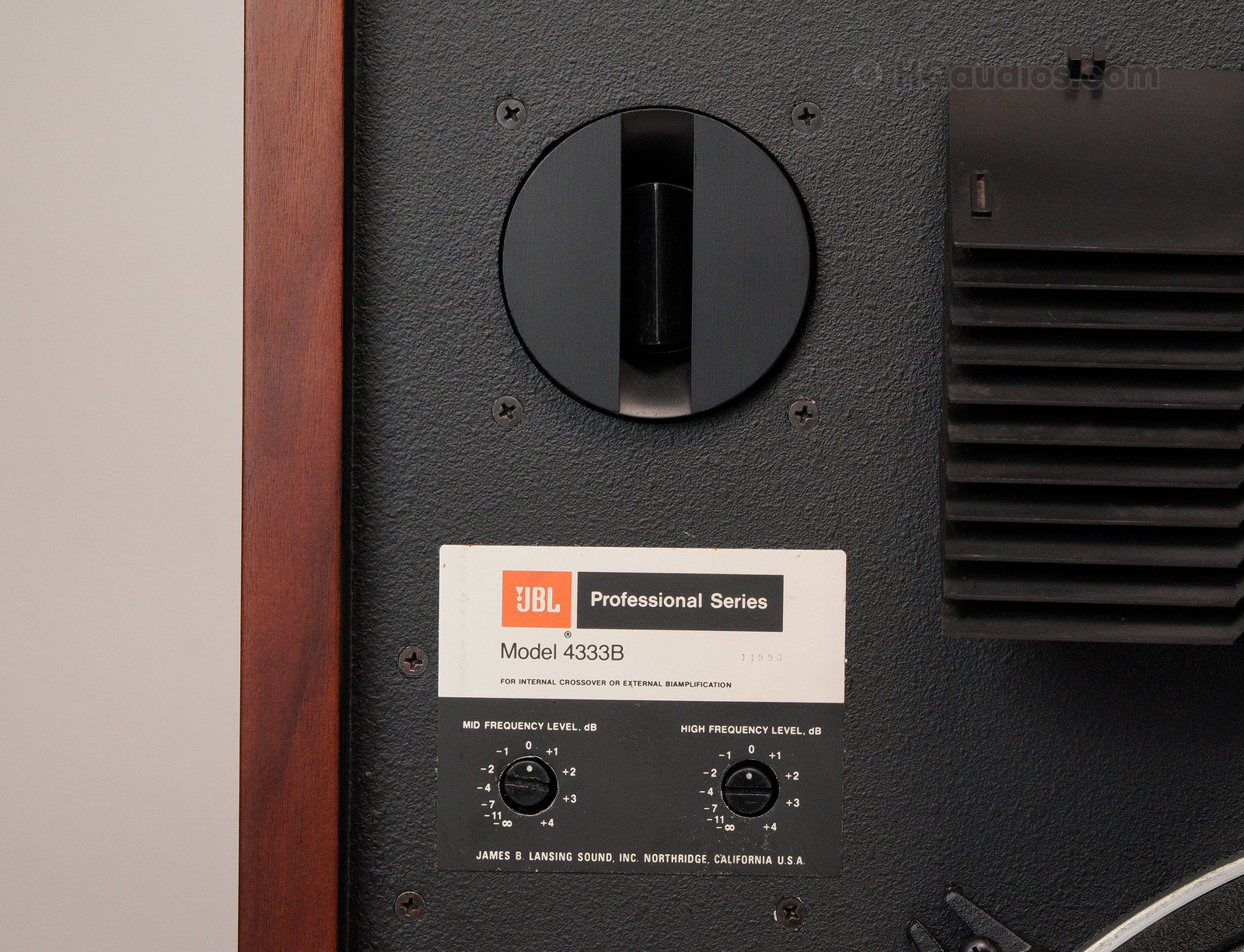

- Front Mid Frequency Level and High Frequency Level controls
- Professionally Restored and Serviced by HQaudios
- Backed by Our 1-Year HQaudios Warranty
Sound Character
The JBL 4333B delivers the scale, immediacy, and dynamic authority expected from a classic large-format JBL studio monitor.
The 15-inch 2231H provides substantial low-frequency weight and impact, while the 2420 compression driver and horn/lens assembly reproduce the critical mid and upper ranges with strong projection and clarity. The 2405 adds dedicated ultra-high-frequency reproduction for additional extension and transient detail.
The result is a presentation that is powerful, open, and highly responsive, making the 4333B particularly engaging with rock, jazz, funk, fusion, vocals, orchestral recordings, and live material.
Cosmetic Condition
This pair is in Excellent vintage cosmetic condition with normal signs of age and previous use.
Please review all photos carefully, as they are part of the description.

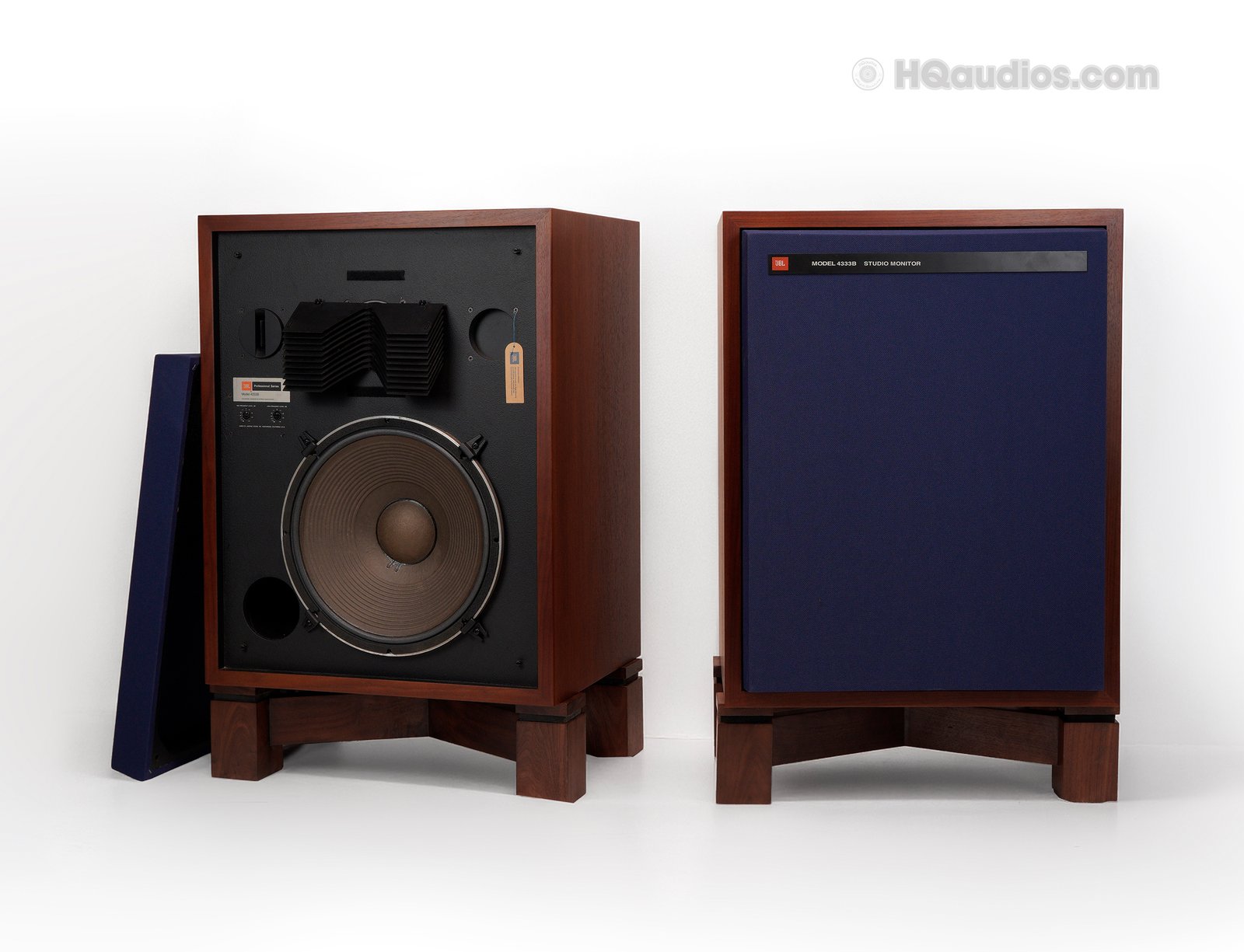

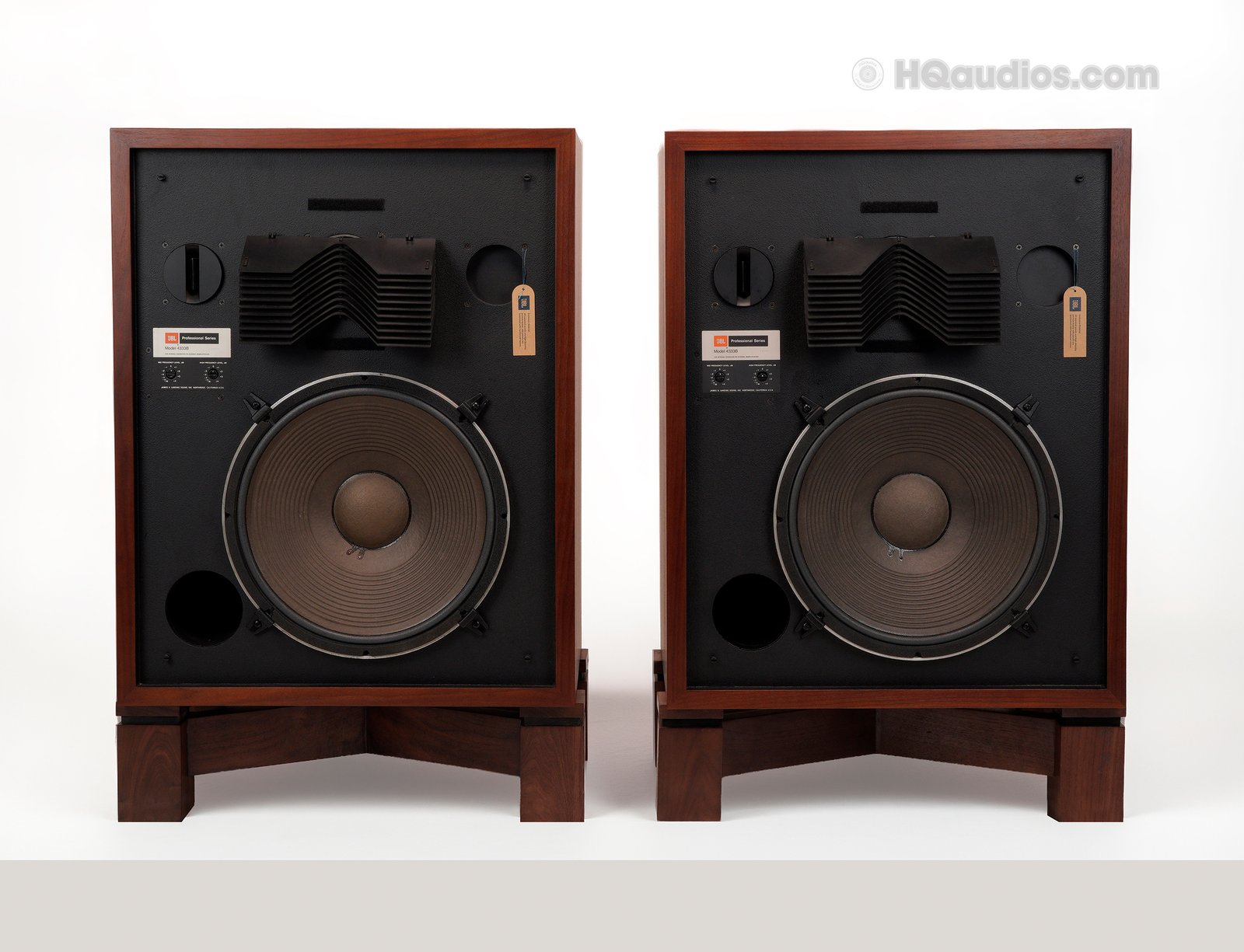

- Front Baffles: Clean classic JBL Professional Series presentation

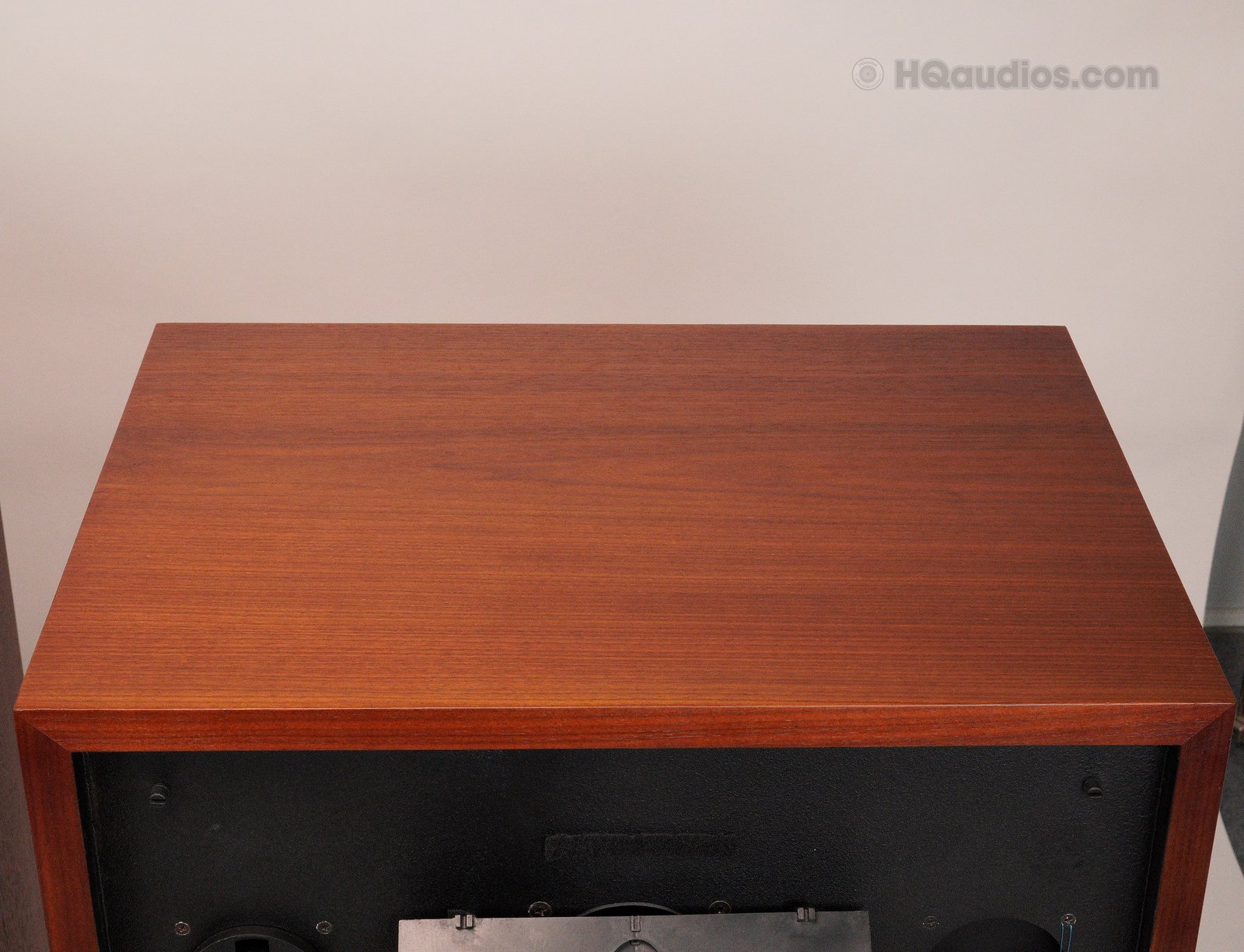

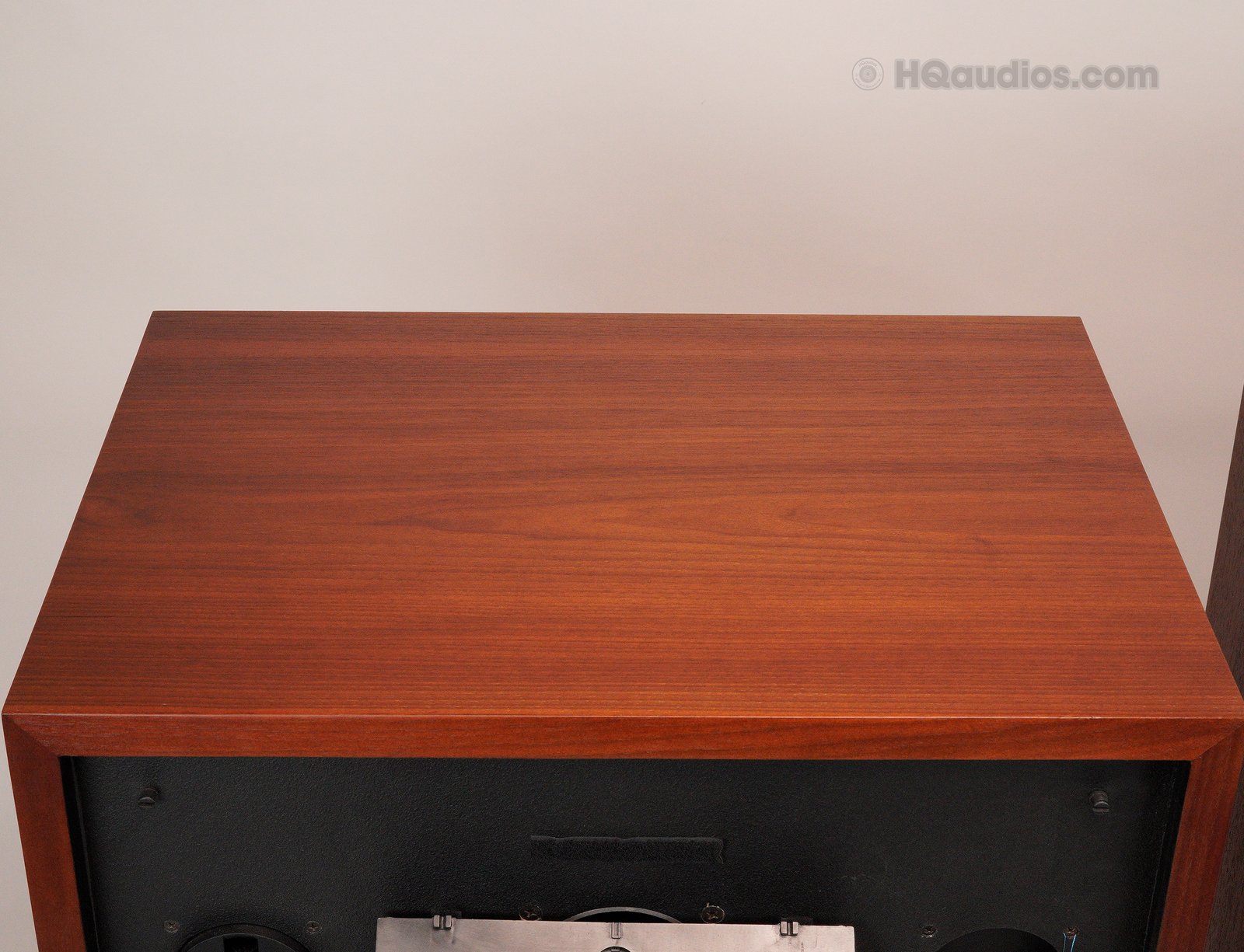

- Cabinet / Veneer: Attractive walnut-finished cabinets with normal vintage character

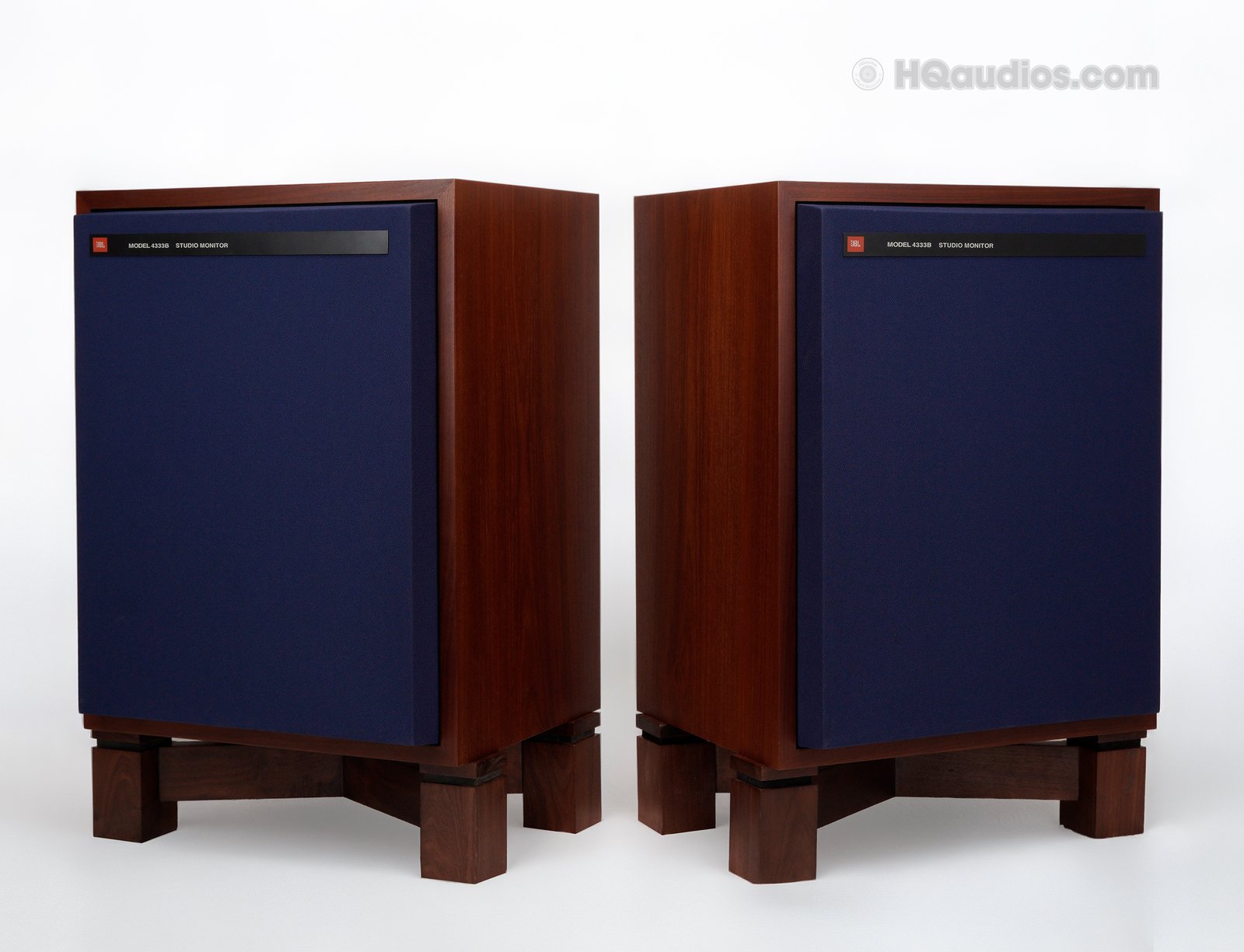

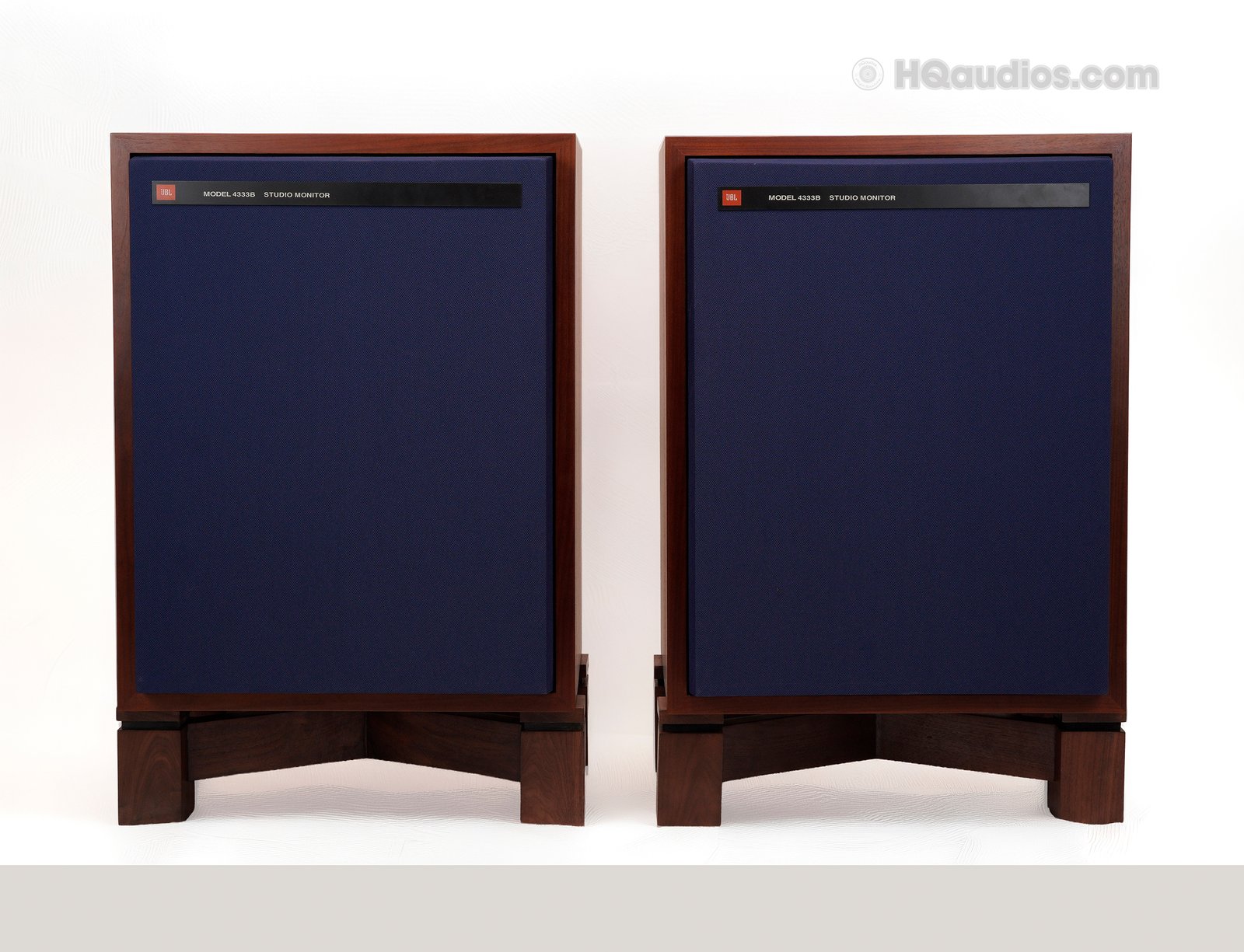

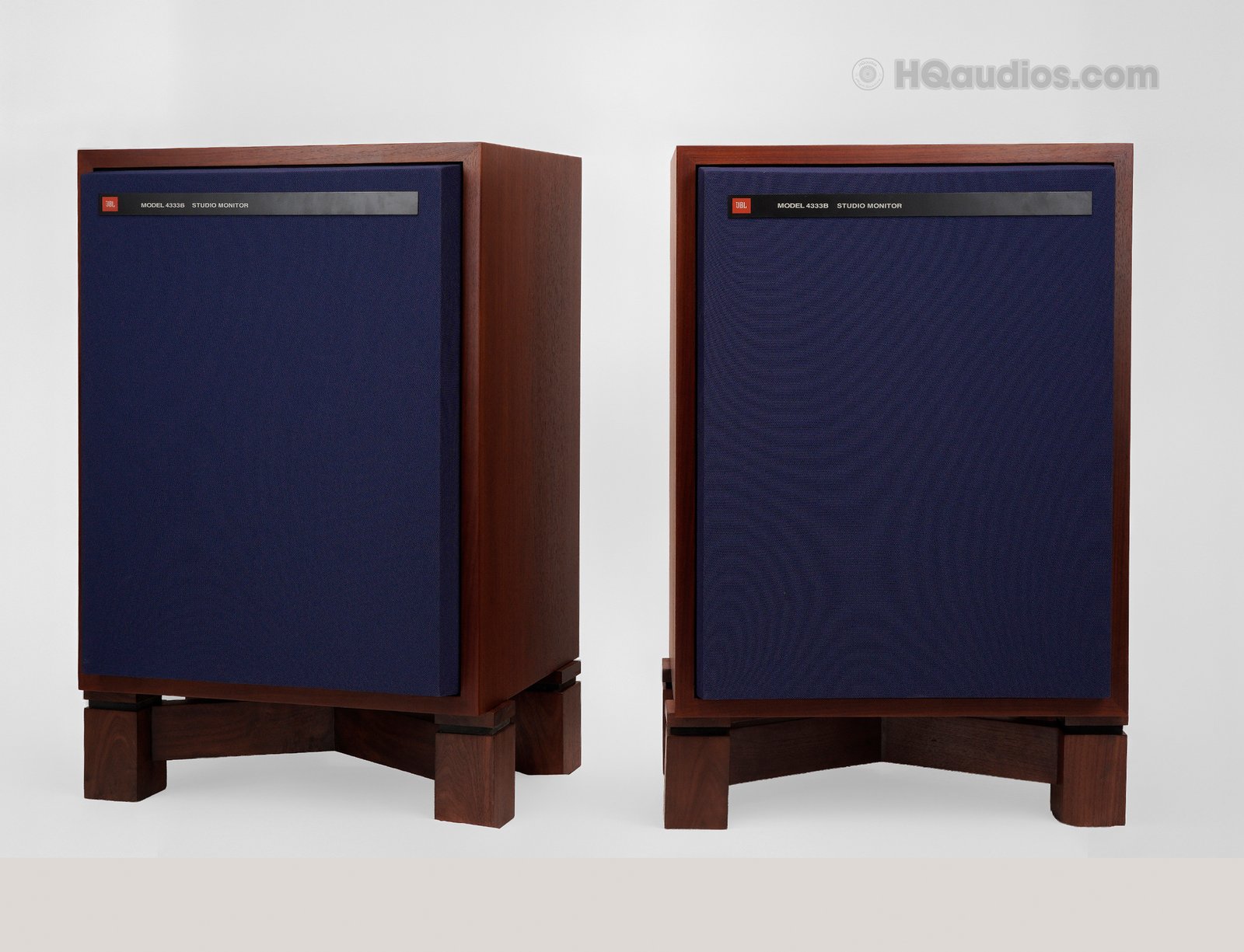

- Grilles: Dark blue grille panels present cleanly overall
- Acoustic Lenses / Drivers: Clean overall presentation with the original large-format monitor layout preserved

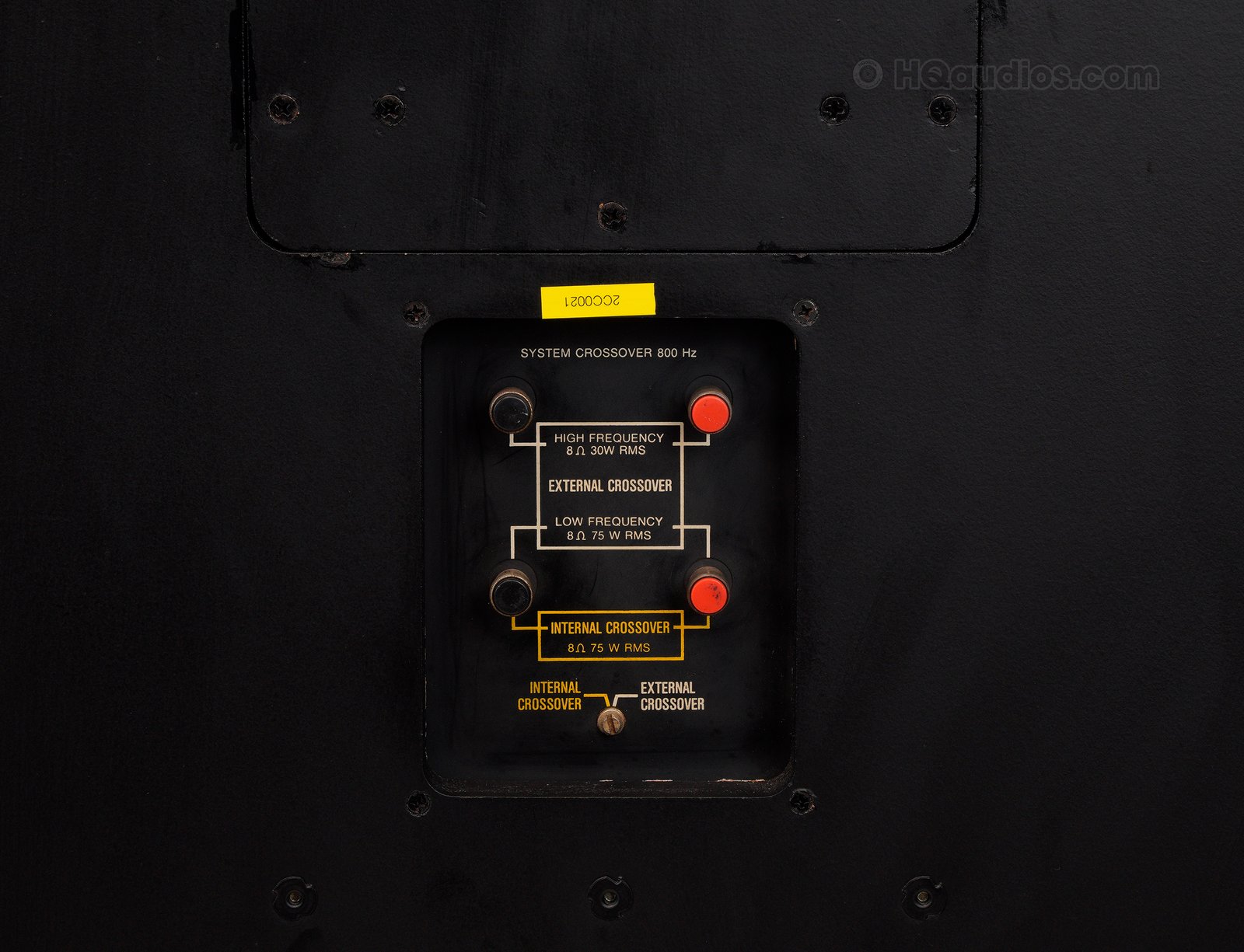

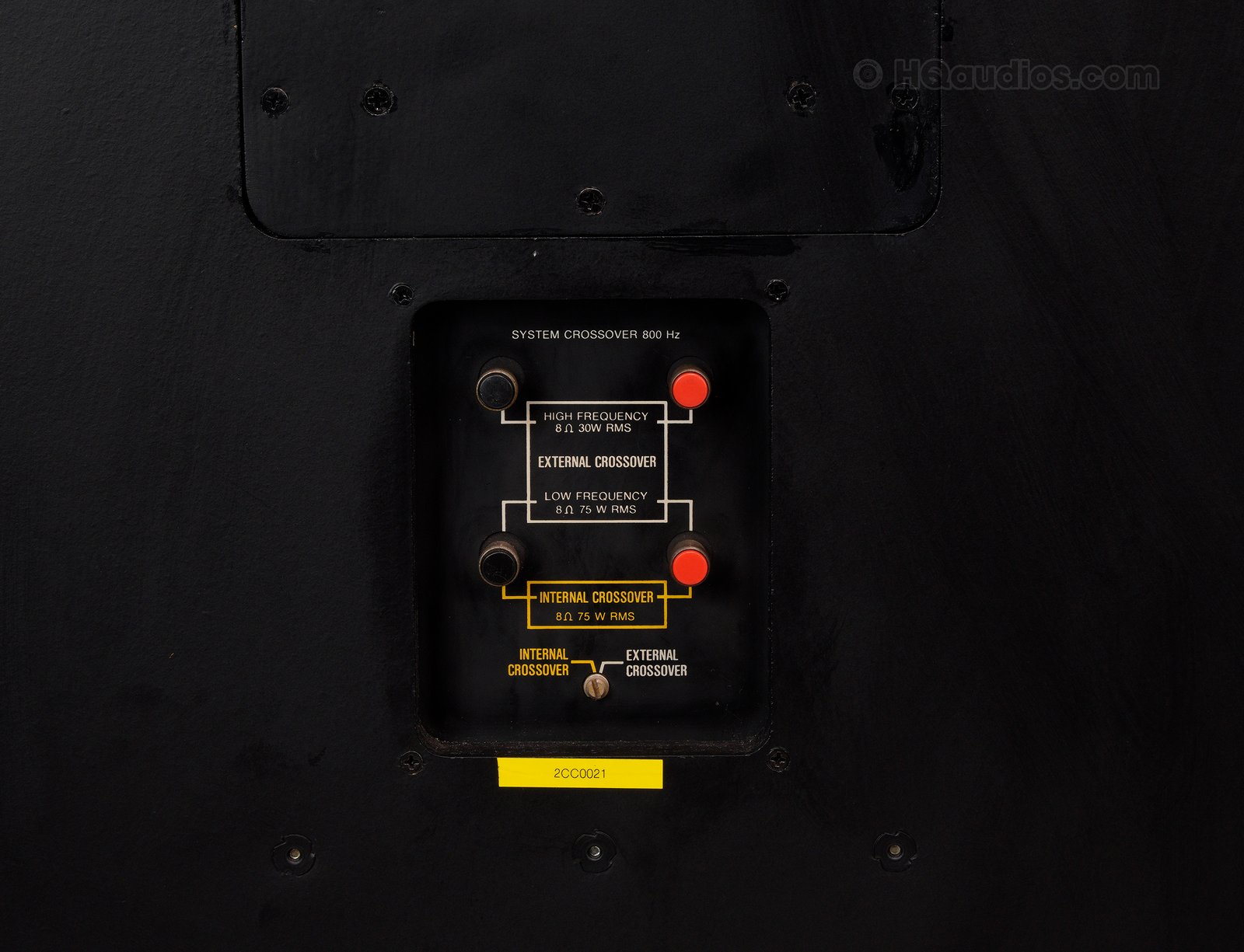

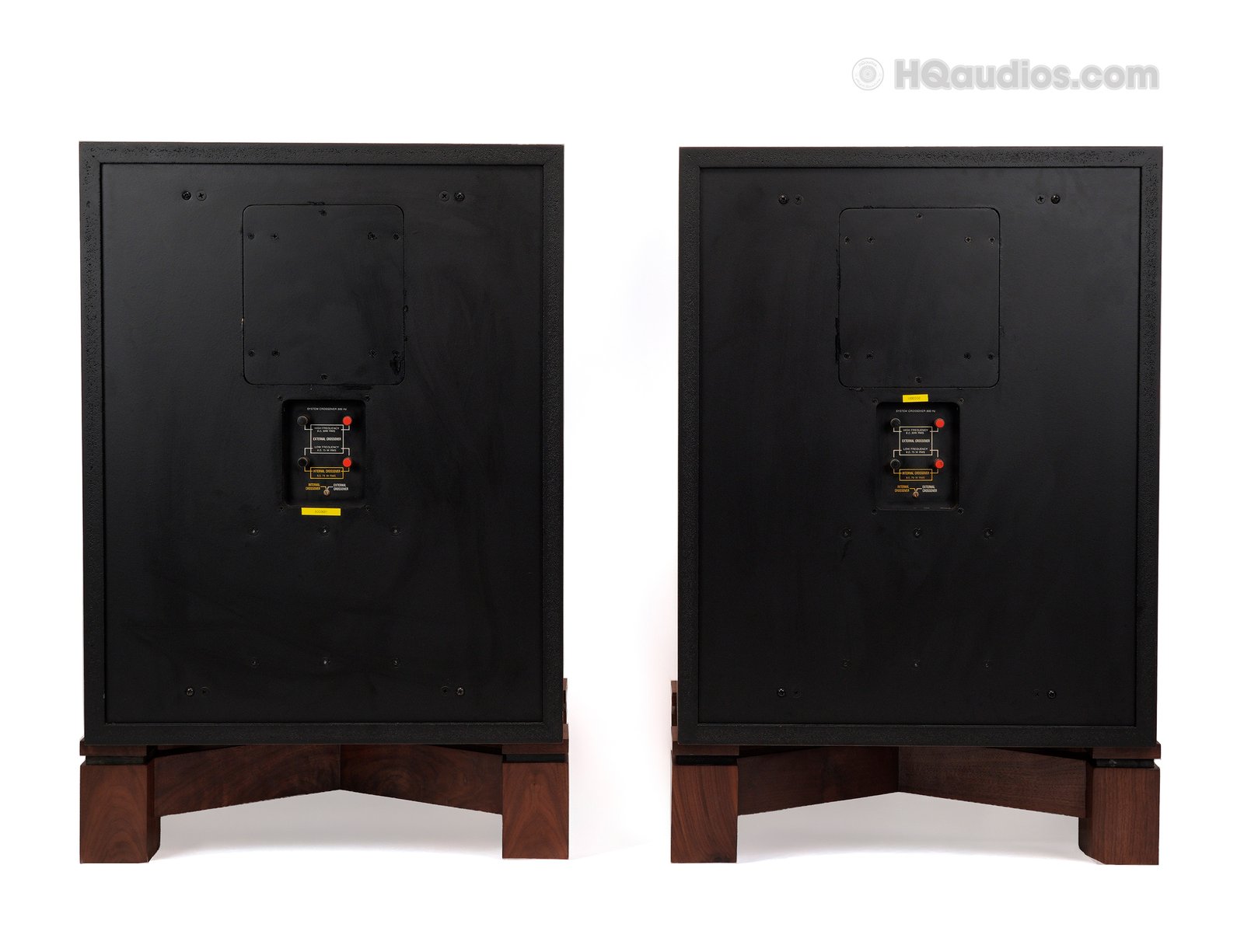

- Rear Panel / Connections: Clean overall condition with internal crossover / external bi-amplification switching clearly marked
HQaudios Restoration & Testing Process
Before Restoration
The JBL 4333B pair was carefully inspected upon arrival to evaluate its overall mechanical, electrical, acoustic, and cosmetic condition.
Particular attention was given to the 2231H woofers, 2420 compression drivers, 2405 ultra-high-frequency transducers, 2312 horns, 2308 acoustic lenses, crossover networks, level controls, terminals, internal wiring, cabinet integrity, bass-reflex ports, and passive / bi-amp switching.
Driver continuity and DC resistance / Ohm readings were checked, and left/right measurements were compared to identify abnormal operation or inconsistencies before service work proceeded.
Crossover components, controls, connections, solder joints, and accessible electrical contact surfaces were also inspected for age-related deterioration, oxidation, or poor connection.
During Restoration
Based on the inspection results, this pair was restored according to HQaudios’ technical standards while preserving the original engineering and operating characteristics of the JBL 4333B.
The drivers, crossover networks, level controls, terminals, internal wiring, cabinets, horns, acoustic lenses, and passive / bi-amplification switching system were inspected and serviced.
Crossover capacitors and other age-sensitive components were evaluated for condition and electrical tolerance. Controls, terminals, and accessible contact surfaces were cleaned, while oxidized or contaminated electrical contact areas were treated to improve reliable connection.
Internal wiring and solder joints were checked for continuity and secure connection. Driver mounting hardware, cabinet structure, ports, horn assemblies, and acoustic lenses were inspected and carefully cleaned. Exterior cabinet surfaces were professionally detailed while preserving the authentic vintage character of the pair.
After Restoration
Once restoration was completed, this pair underwent comprehensive functional testing under real operating conditions.
Individual 2231H woofer operation, 2420 compression-driver output, 2405 ultra-high-frequency output, crossover integration, phase consistency, channel matching, level-control operation, terminals, and passive crossover operation were tested.
Driver DC resistance / Ohm readings were rechecked, and the pair was evaluated for left/right consistency and stable operation.
Finally, the pair underwent extended real-world listening tests to evaluate sound quality, operational stability, stereo balance, imaging, and overall performance.
Only after successfully meeting HQaudios’ restoration and testing standards was the JBL 4333B approved and prepared for its next owner.
Drivers, Horns, Crossovers & Cabinets

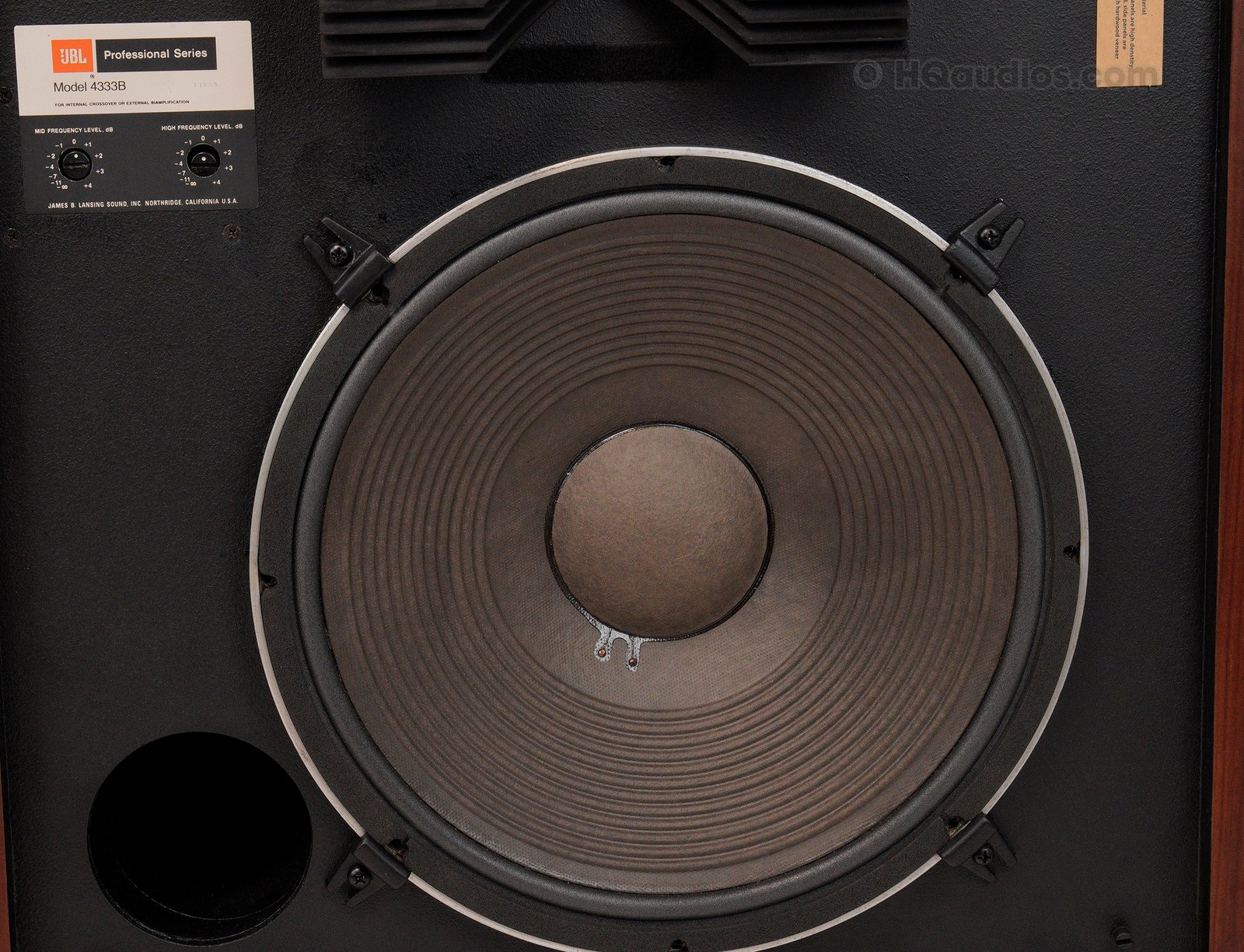

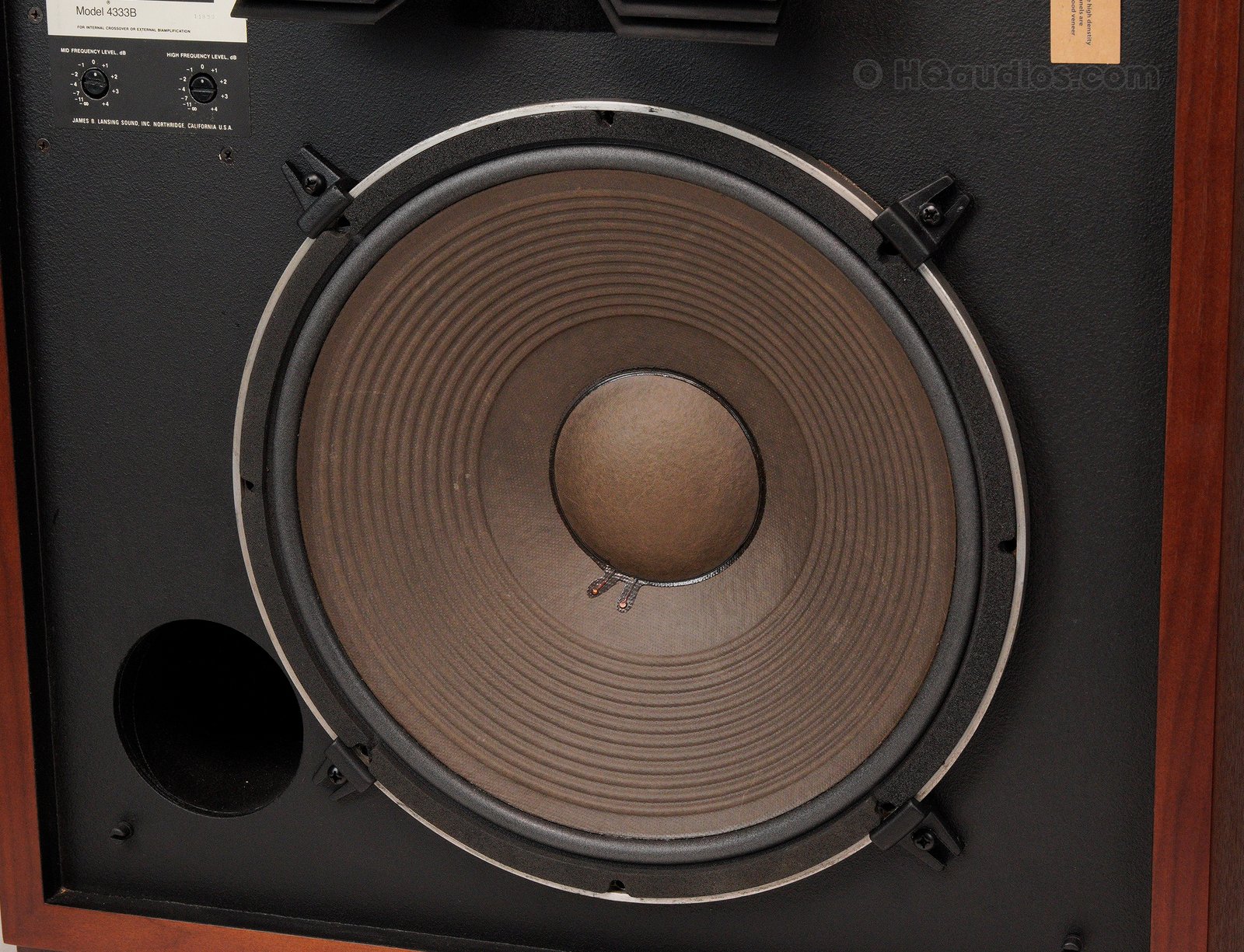

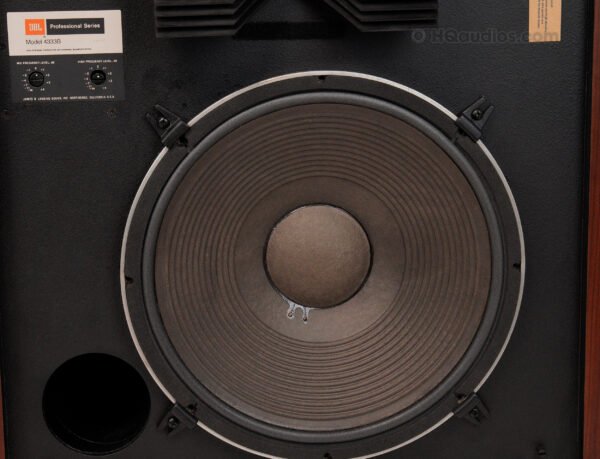

2231H 15-Inch Low-Frequency Driver
The 2231H forms the low-frequency foundation of th
e 4333B, combining a large 15-inch cone with a 4-inch edgewound copper-ribbon voice coil for high sensitivity and strong low-frequency output.

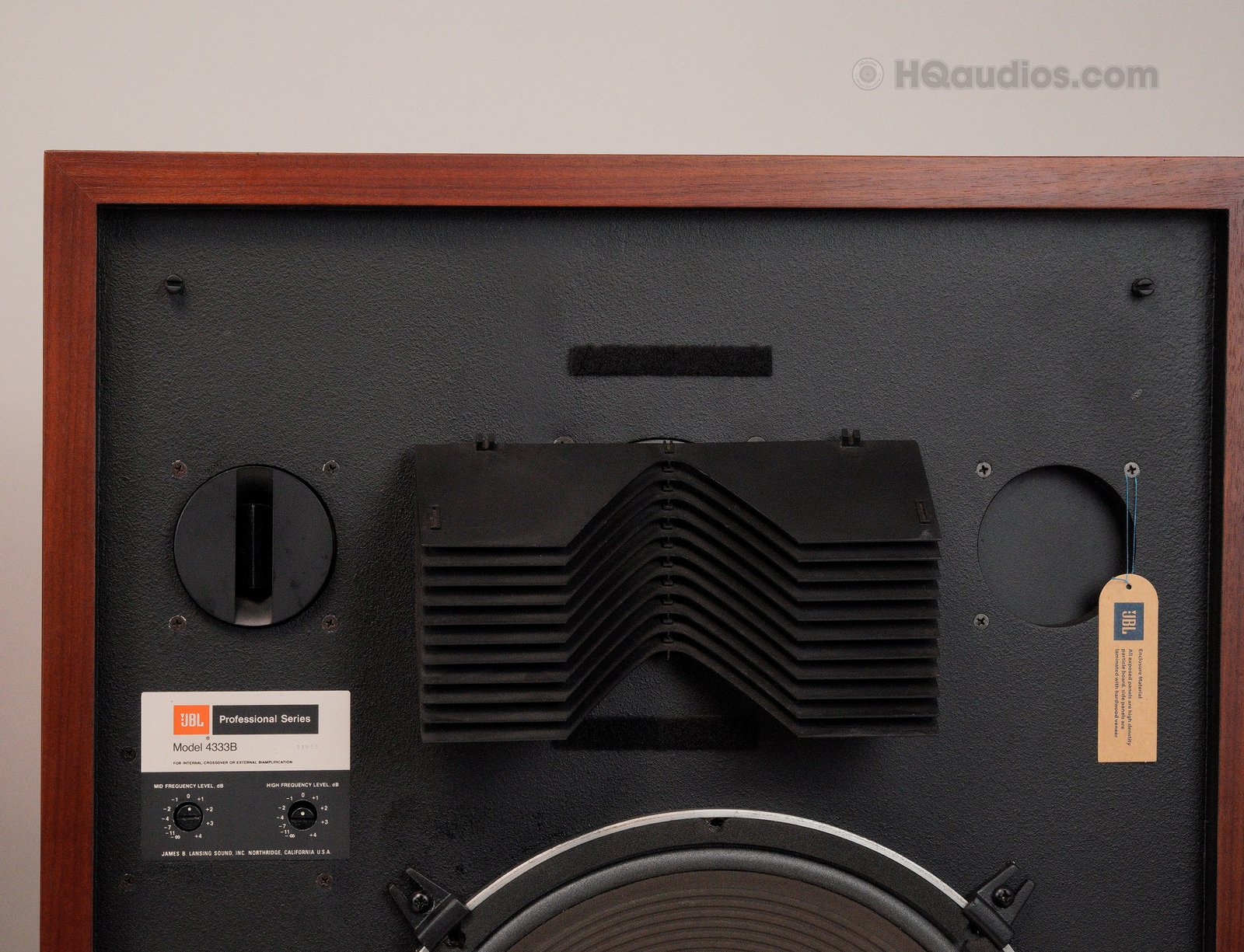

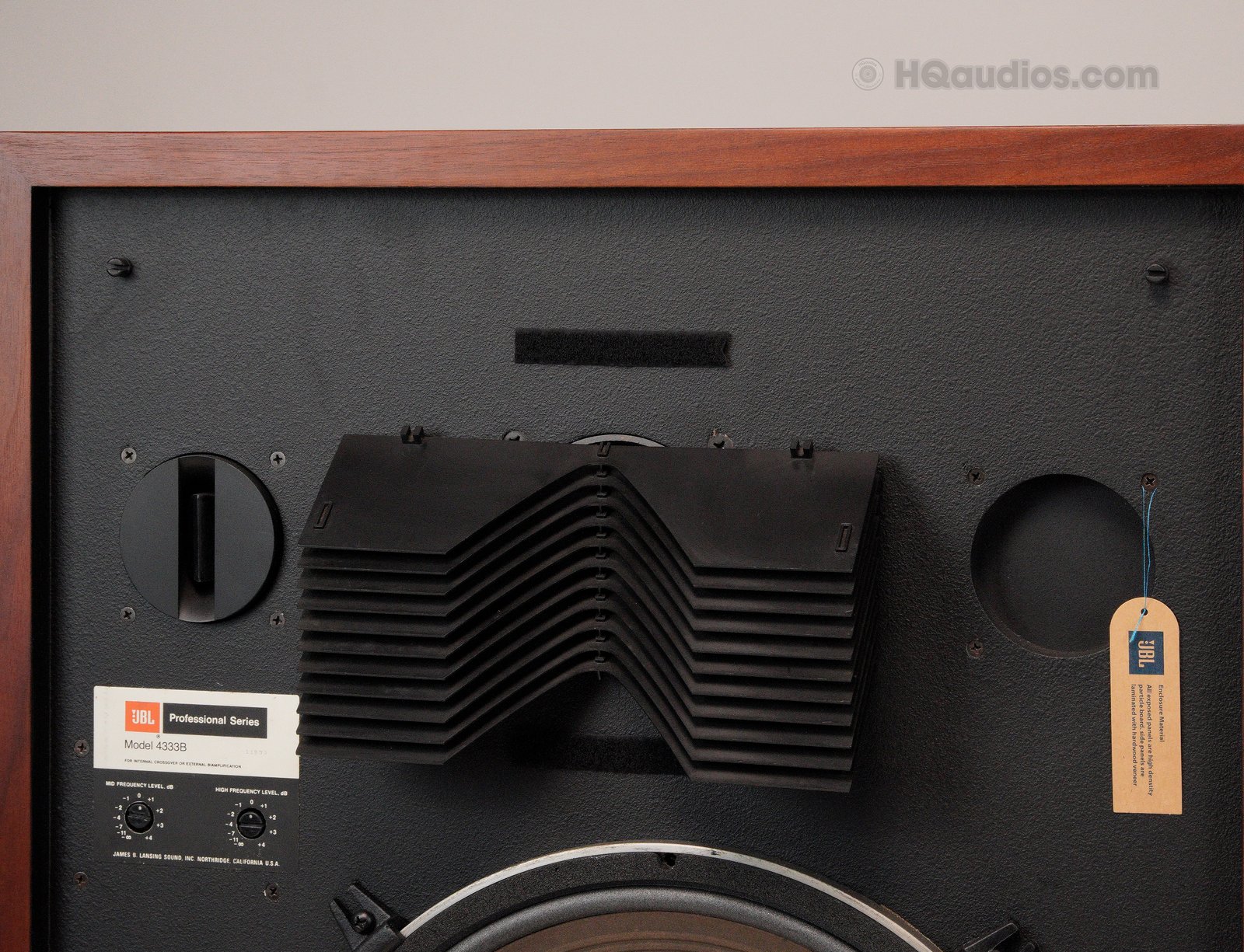

2420 Compression Driver, 2312 Horn & 2308 Acoustic Lens
The high-frequency section uses the JBL 2420 compression driver coupled to the 2312 horn and 2308 acoustic lens, providing the controlled projection and directivity associated with JBL’s professional monitor systems.
2405 Ultra-High-Frequency Transducer
The dedicated 2405 extends the upper range of the 4333B and contributes additional high-frequency detail and transient clarity.
3133A Network & Bi-Amplification
The 4333B uses the 3133A passive network with crossover points at 800 Hz and 8.5 kHz. The system can operate through its internal crossover or be configured for external bi-amplification.
These areas receive particular attention throughout HQaudios’ restoration and testing process. Additional close-up photos or videos are available upon request.
Specifications
| Specification | Details |
|---|---|
| Brand | JBL |
| Model | 4333B |
| Series | Professional Series |
| Type | 3-Way, 3-Driver Bass-Reflex Studio Monitor |
| Low Frequency Driver | 2231H – 15 in / 380 mm |
| Mid-Bass Driver | Not Applicable |
| Midrange / High Frequency Driver | 2420 Compression Driver |
| Horn | 2312 |
| Acoustic Lens | 2308 |
| Ultra-High Frequency Driver | 2405 |
| Nominal Impedance | 8 Ohms |
| Maximum Input | 75 Watts |
| On-Axis Frequency Response | 35 Hz – 20 kHz ±3 dB |
| Engineering Frequency Range | 32 Hz – 20 kHz |
| Sensitivity | 94 dB SPL, 1 W / 1 m |
| Crossover / Network | 3133A Internal Passive Network; 800 Hz / 8.5 kHz; Switchable for External Bi-Amplification |
| Polar Response | No less than -3 dB at 60° horizontal and 30° vertical to 16 kHz |
| Dimensions | 30.75 H × 22.75 W × 20.25 D in (781 × 578 × 514 mm) |
| Operation | Passive / External Bi-Amplification Capable |
| Finish | Oiled Walnut |
| Grille | Dark Blue Fabric |
| Condition | Professionally Restored by HQaudios |
| Warranty | 1-Year HQaudios Warranty |
What Is Included
1 Pair (2) JBL 4333B Professional Series Studio Monitors
Matching dark blue grille panels and acoustic-lens assemblies shown in the product photos.
Only the items clearly shown in the photos or specifically listed in the description are included.
Video Test & Sound Demo
We understand that purchasing vintage audio equipment online requires confidence.
If you would like to see or hear this JBL 4333B pair in operation before purchasing, please contact us directly. Whenever available, we are happy to provide additional photos, close-up images, operational videos, or sound demonstrations.
You are also welcome to visit the HQaudios YouTube channel to explore restoration projects, product demonstrations, and listening sessions featuring professionally restored vintage audio equipment.
Suggested Pairing
The JBL 4333B pairs exceptionally well with amplification that provides clean power, strong woofer control, and a smooth presentation through the horn and ultra-high-frequency sections.
McIntosh System
McIntosh C28 / C29 Preamplifier + McIntosh MC2105 / MC2205 Power Amplifier
Result: Strong control of the 2231H with smooth tonal balance and excellent dynamic authority.
Marantz System
Marantz 7 or compatible preamplifier + Marantz Model 8B or suitable power amplifier
Result: Rich tonal density, strong vocal presence, and a slightly warmer overall presentation.
Professional-Style System
Quality preamplifier + Crown DC-300A or comparable period power amplification
Result: High headroom, strong low-frequency control, and a more studio-oriented presentation.
For the best performance, ensure that all connected equipment is electrically and mechanically compatible with the JBL 4333B and properly configured before use.
Basic Use Guide
To help maintain the long-term performance of this studio monitor system, we recommend the following:
- Use amplification appropriate for the 8-ohm nominal system impedance.
- Avoid sustained amplifier clipping.
- Verify speaker polarity before operation.
- Confirm the internal crossover / external bi-amplification switch position before connecting amplifiers.
- Use the correct external crossover and wiring arrangement when operating in bi-amplified mode.
- Protect exposed drivers, horn assemblies, and acoustic lenses during handling.
- Keep bass-reflex ports unobstructed.
Please contact us if you need assistance with setup, amplifier matching, speaker connection, or system configuration.
Trade-In Program
Do you have vintage audio equipment you’d like to trade in?
HQaudios welcomes trade-ins on receivers, amplifiers, speakers, cassette decks, reel-to-reel decks, turntables, and other classic audio components.
Simply send us photos and basic information about your equipment. Our team will review your items and discuss available trade-in options.
Build Your Vintage System
Looking to build a complete high-end vintage audio system?
The JBL 4333B pairs beautifully with professionally restored vintage preamplifiers, power amplifiers, receivers, turntables, reel-to-reel decks, and related source components available from HQaudios.
Save $100 when purchasing this item together with an eligible restored vintage audio component from HQaudios.
Please contact us before purchase so we can confirm availability and prepare a combined offer.
Shipping & Packaging
Vintage studio monitors of this size and value require careful packing. This pair will be professionally packed by HQaudios for safe delivery.
- Carefully wrapped and protected.
- Heavy-duty protective packing materials used.
- Extra protection around cabinets, veneer, corners, drivers, acoustic lenses, grilles, controls, and rear terminals.
- Tracking information provided after shipment.
- Signature may be required for delivery.
Specialized freight shipping, palletizing, and custom wooden crating may be used when appropriate.
Local pickup may also be available by appointment.
1-Year HQaudios Warranty
This item is backed by our 1-Year HQaudios Warranty, covering proper electronic and functional operation under normal home use.
If you experience an issue, please contact us first. We are committed to helping our customers and will work with you to resolve the problem in a fair and reasonable way.
The warranty does not cover misuse, improper setup, unauthorized repair, physical damage, cosmetic wear, shipping damage after delivery, amplifier clipping, incorrect wiring, incompatible equipment, or operation outside the manufacturer’s intended specifications.
Customer Service
Once your item arrives, if you have questions about speaker connection, passive / bi-amplified operation, level-control settings, placement, amplifier matching, or general operation, please contact us.
We are happy to help you get the best performance from your vintage audio system.
Important Note for Buyers
Vintage professional studio monitors require proper setup, compatible amplification, careful handling, and appropriate maintenance.
We do our best to describe each item clearly and provide detailed photos so you can buy with confidence. Please review all photos, read the full description, and contact us with any questions before purchase.
Always verify speaker impedance, amplifier compatibility, polarity, and passive / bi-amplification configuration before operation.
