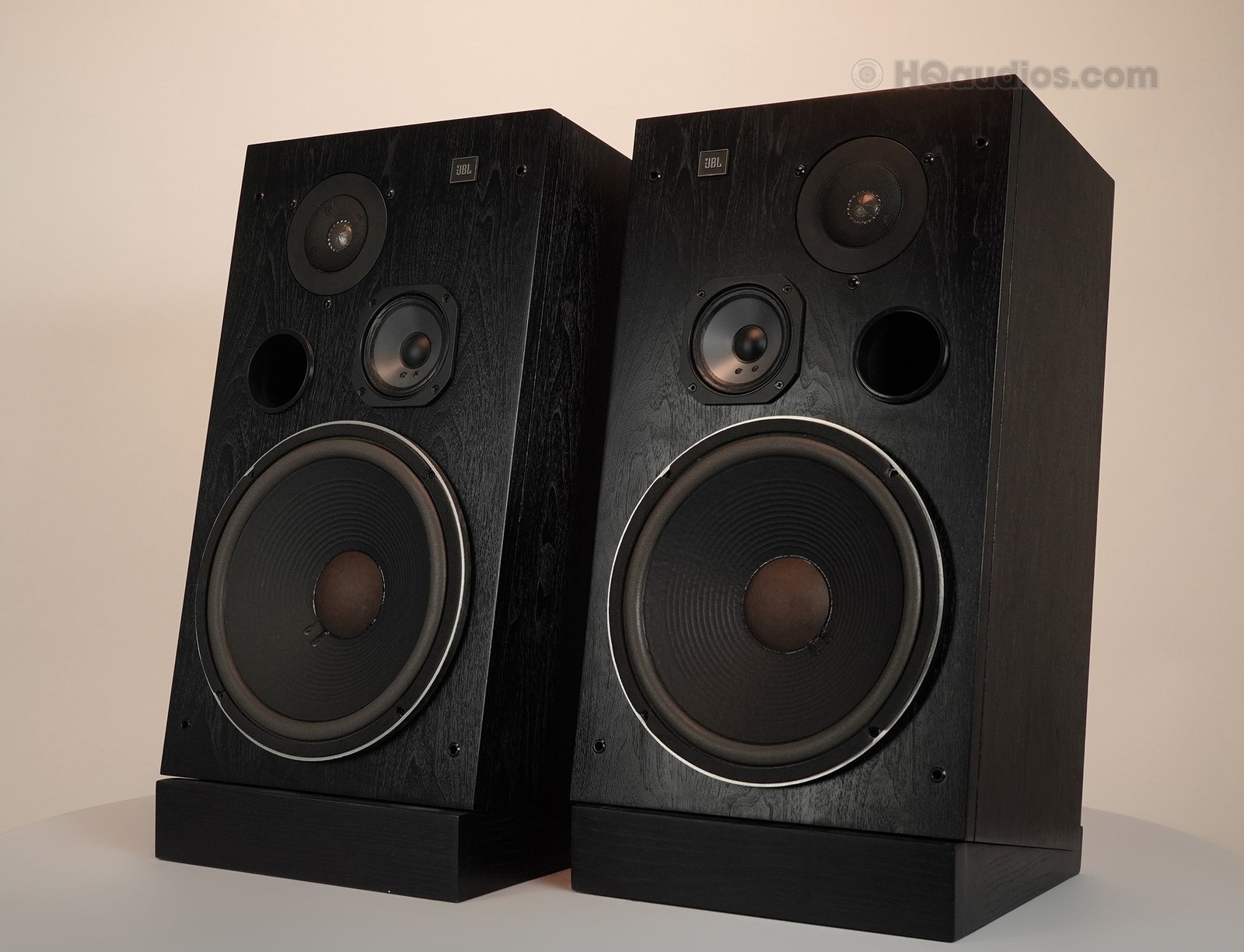

JBL 120Ti 3-Way Speaker Pair – Black Wood-Grain Finish – Restored – 1-Year Warranty

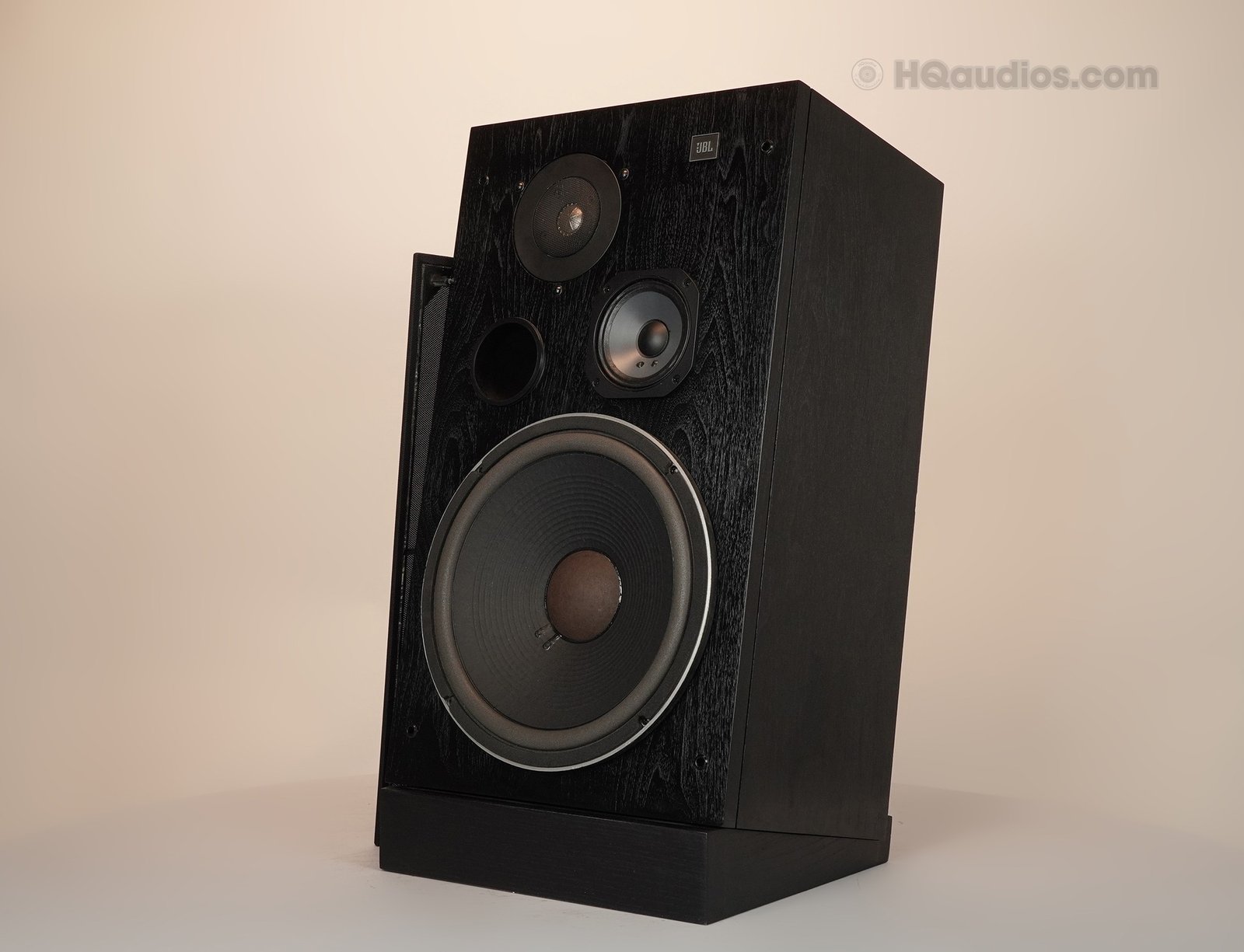

JBL 120Ti – 3-way bass-reflex floor/stand speaker from JBL’s Ti Series (1984–1990)

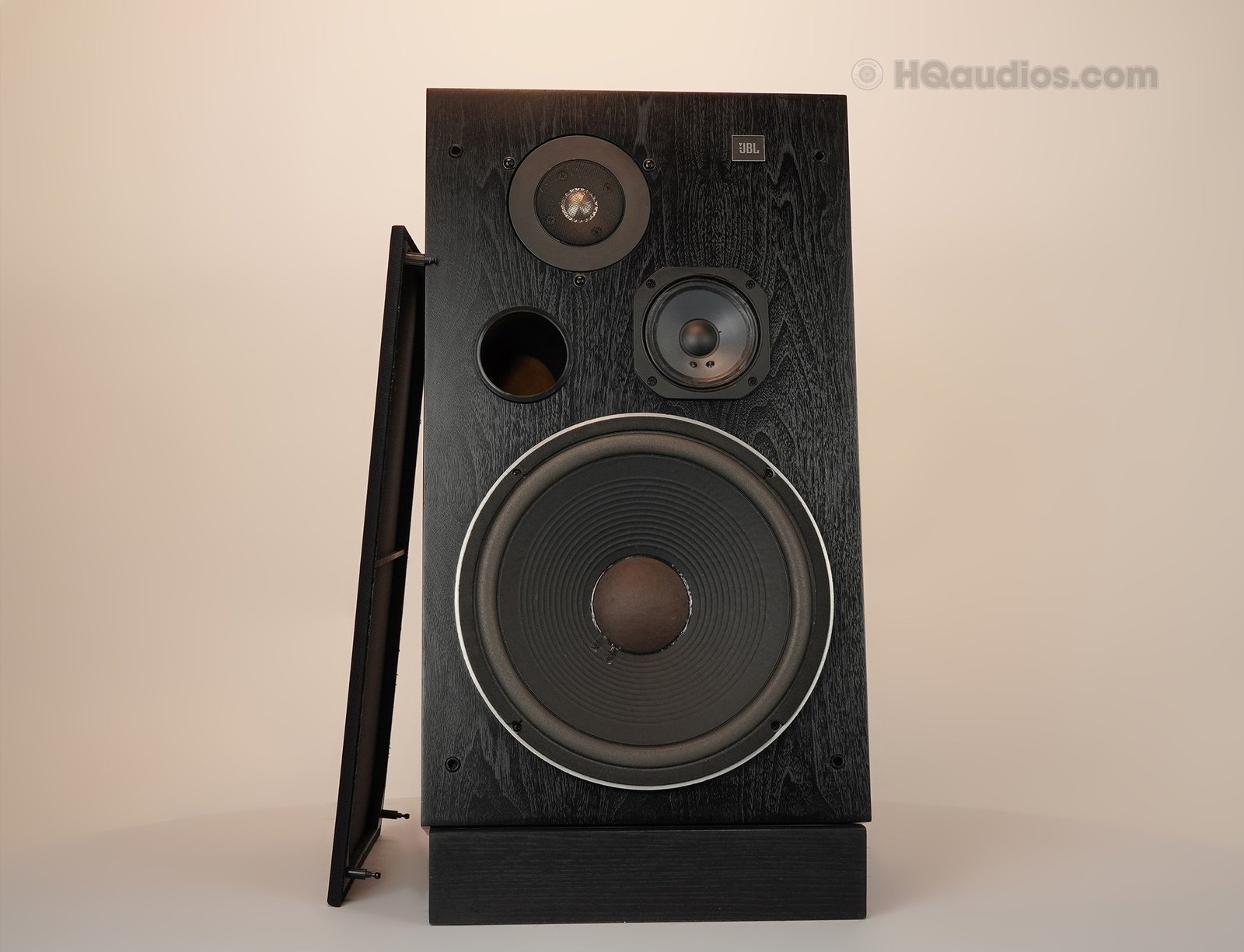

12-inch woofer, 5-inch midrange and 1-inch titanium-dome tweeter in each cabinet

35 Hz – 27 kHz, 89 dB sensitivity, crossover at 900 Hz and 4 kHz

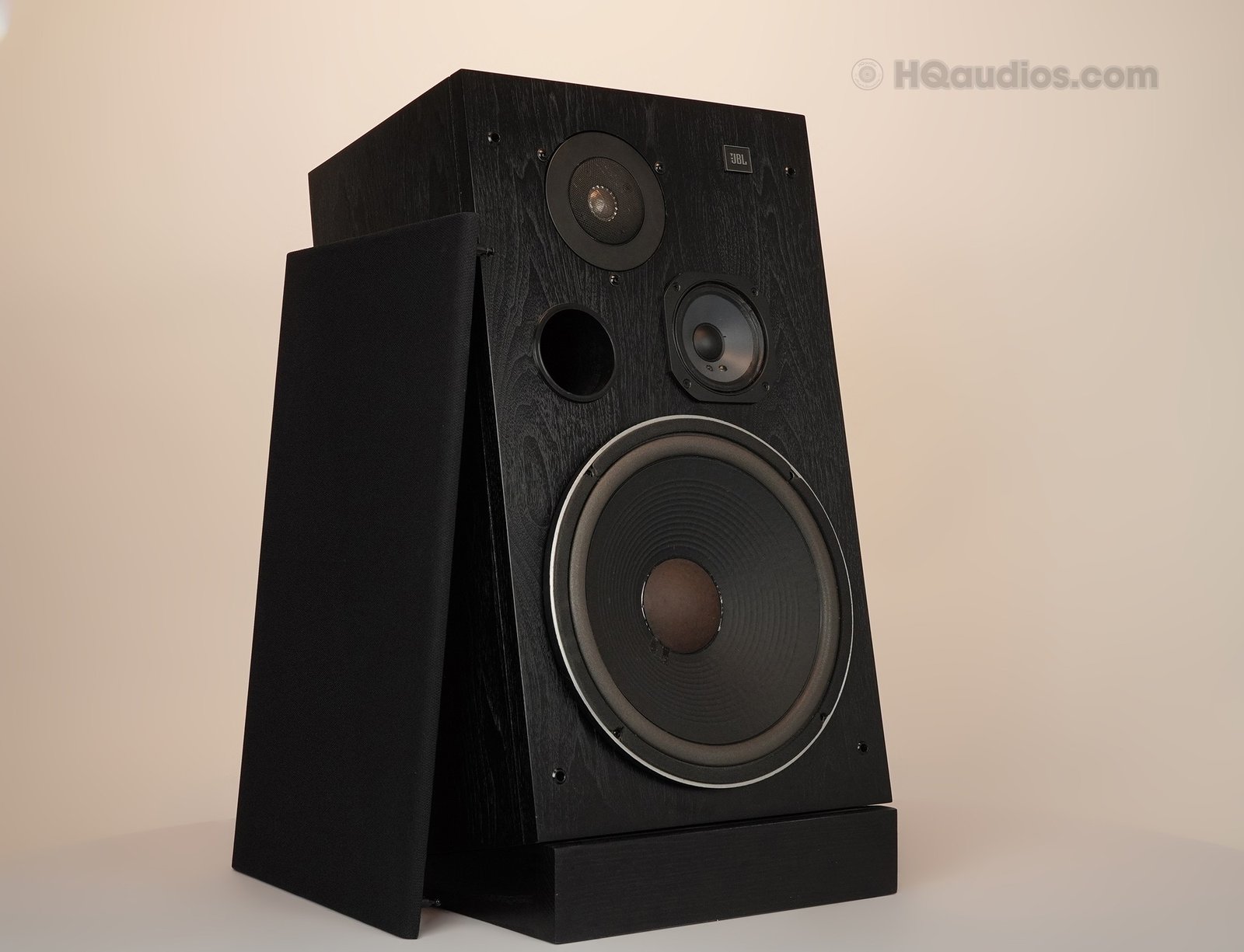

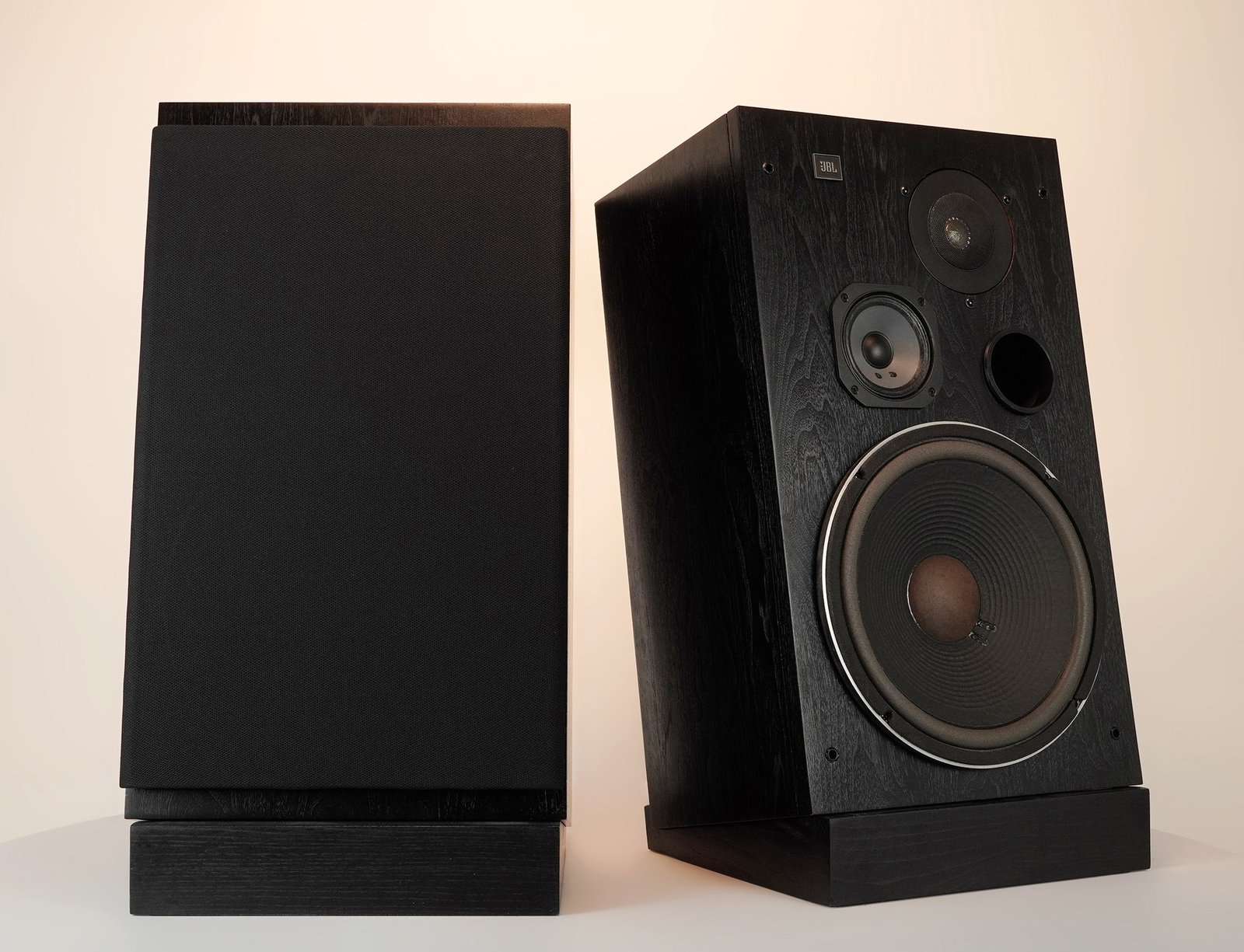

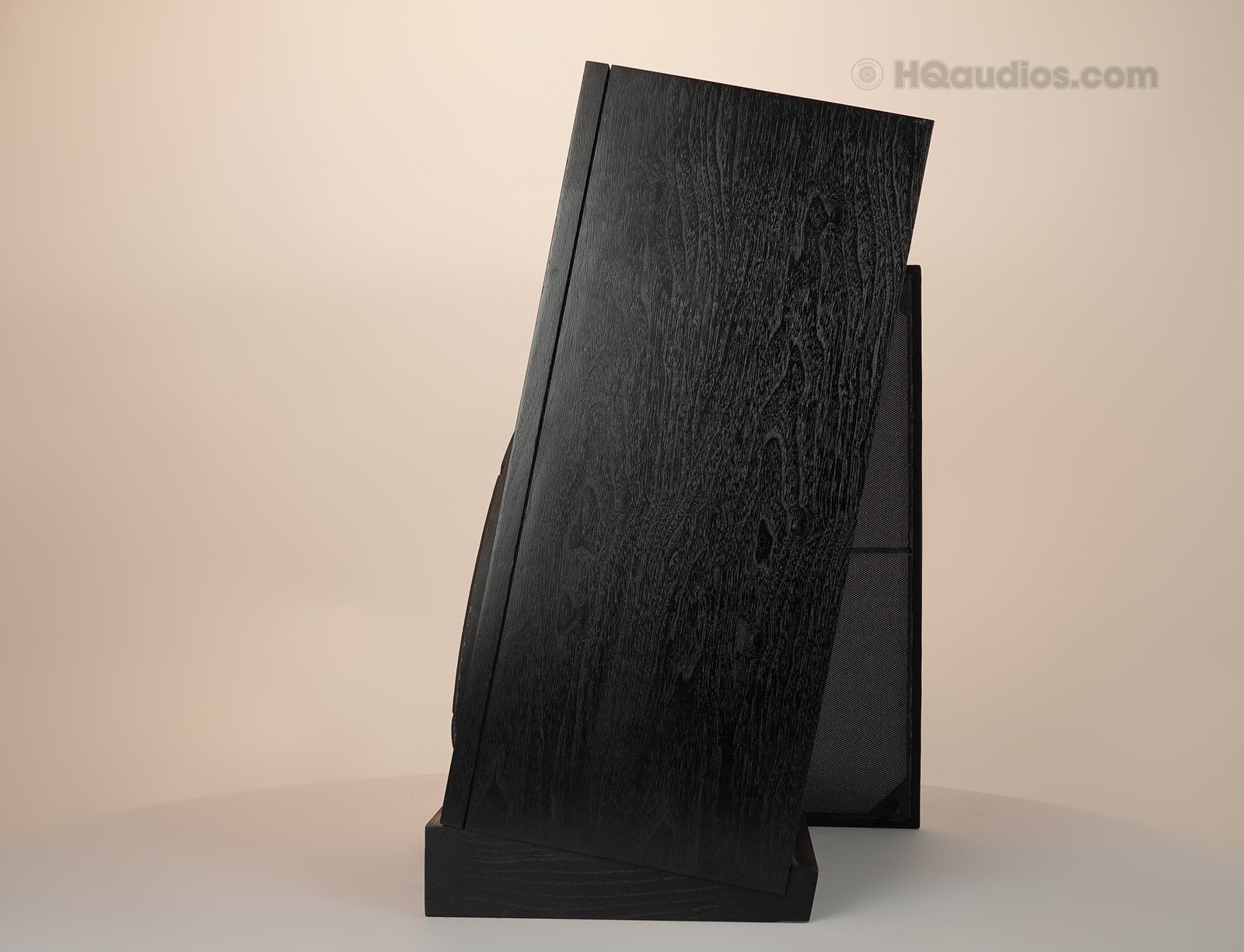

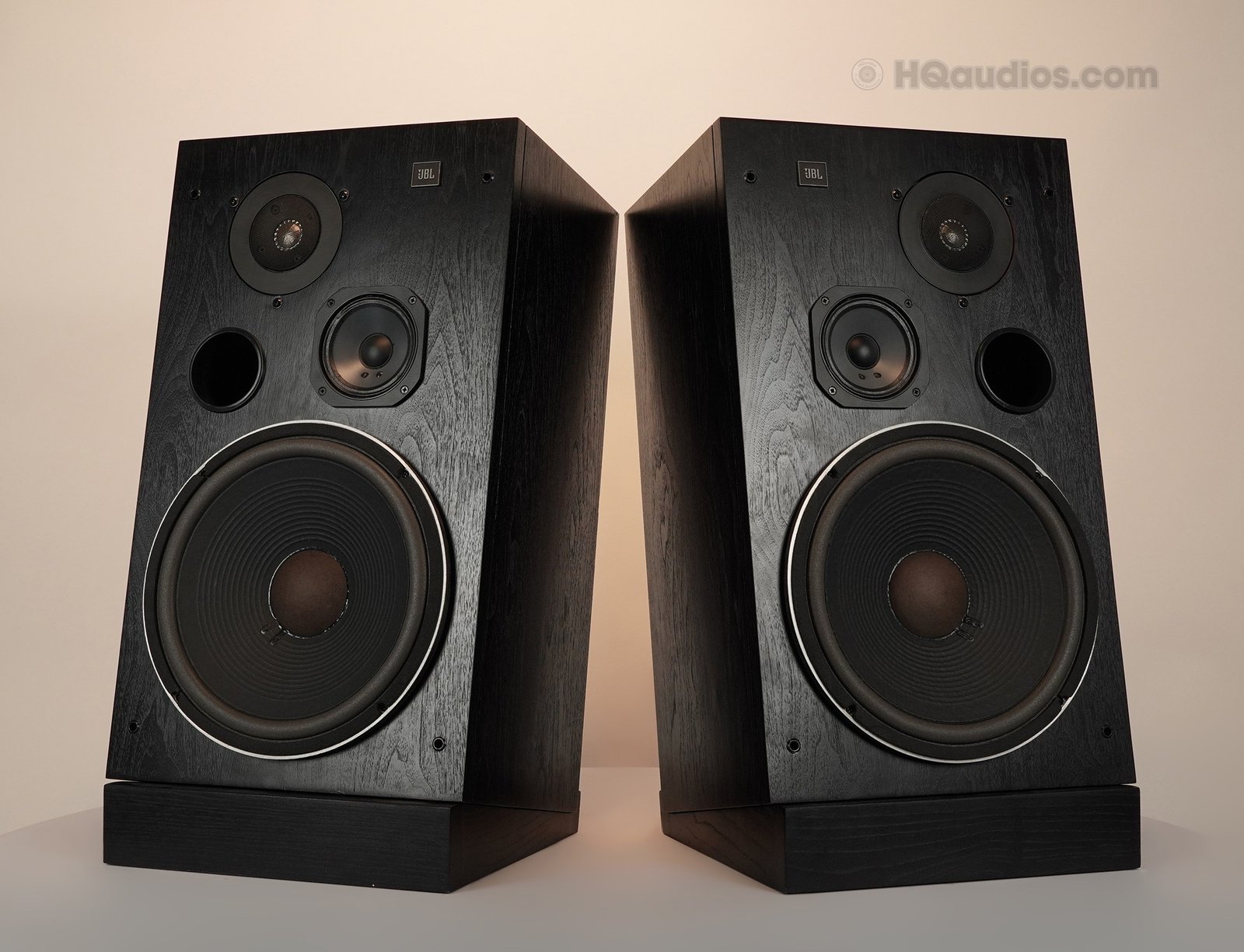

Black wood-grain cabinet finish with black front grilles

Serial numbers 01679 and 00544

Inspected and tested by HQaudios – every driver checked for voice-coil rub and DC resistance

Backed by our 1-Year HQaudios Seller Warranty

Before Restoration

This JBL 120Ti pair was carefully inspected upon arrival to evaluate its mechanical, electrical, and cosmetic condition.

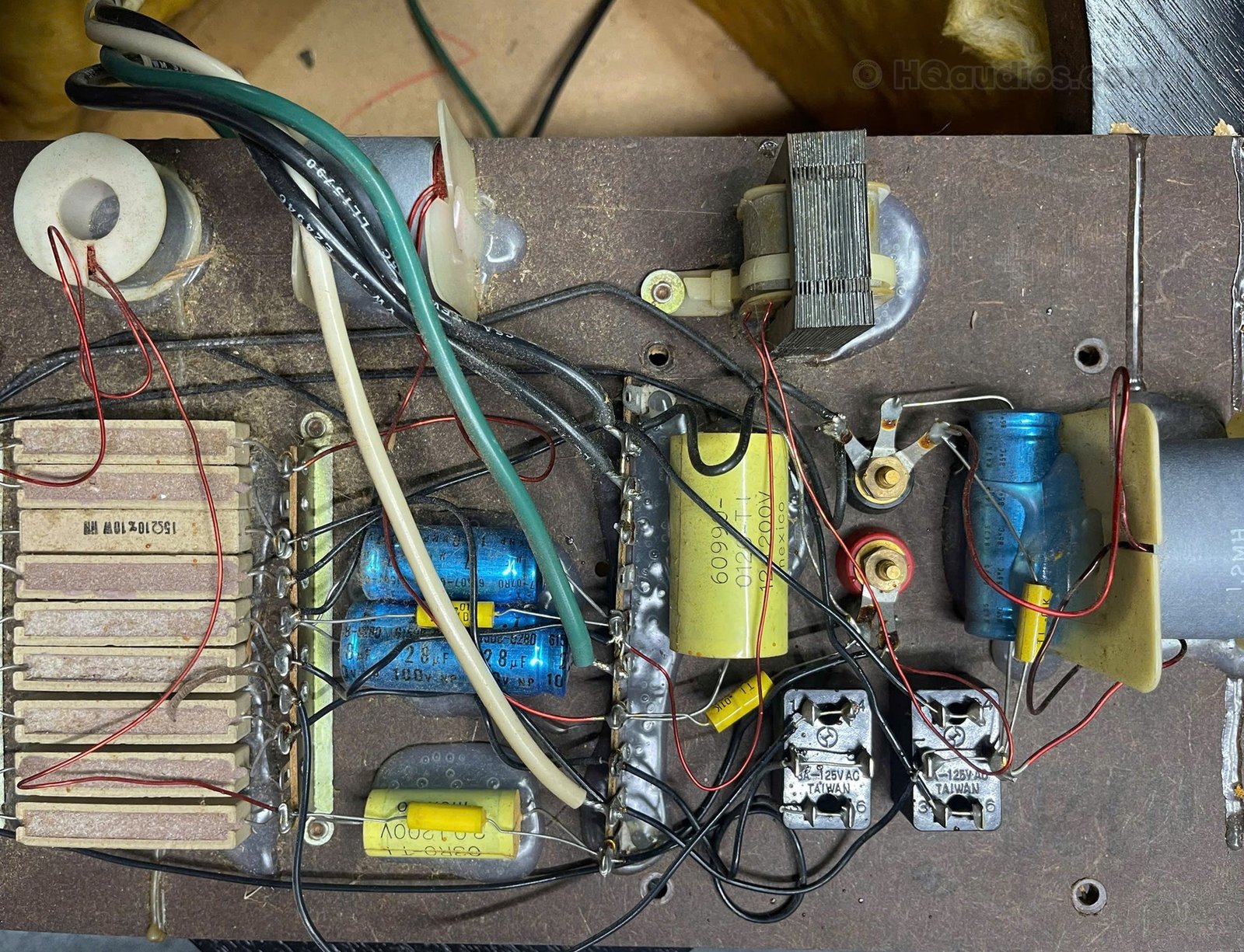

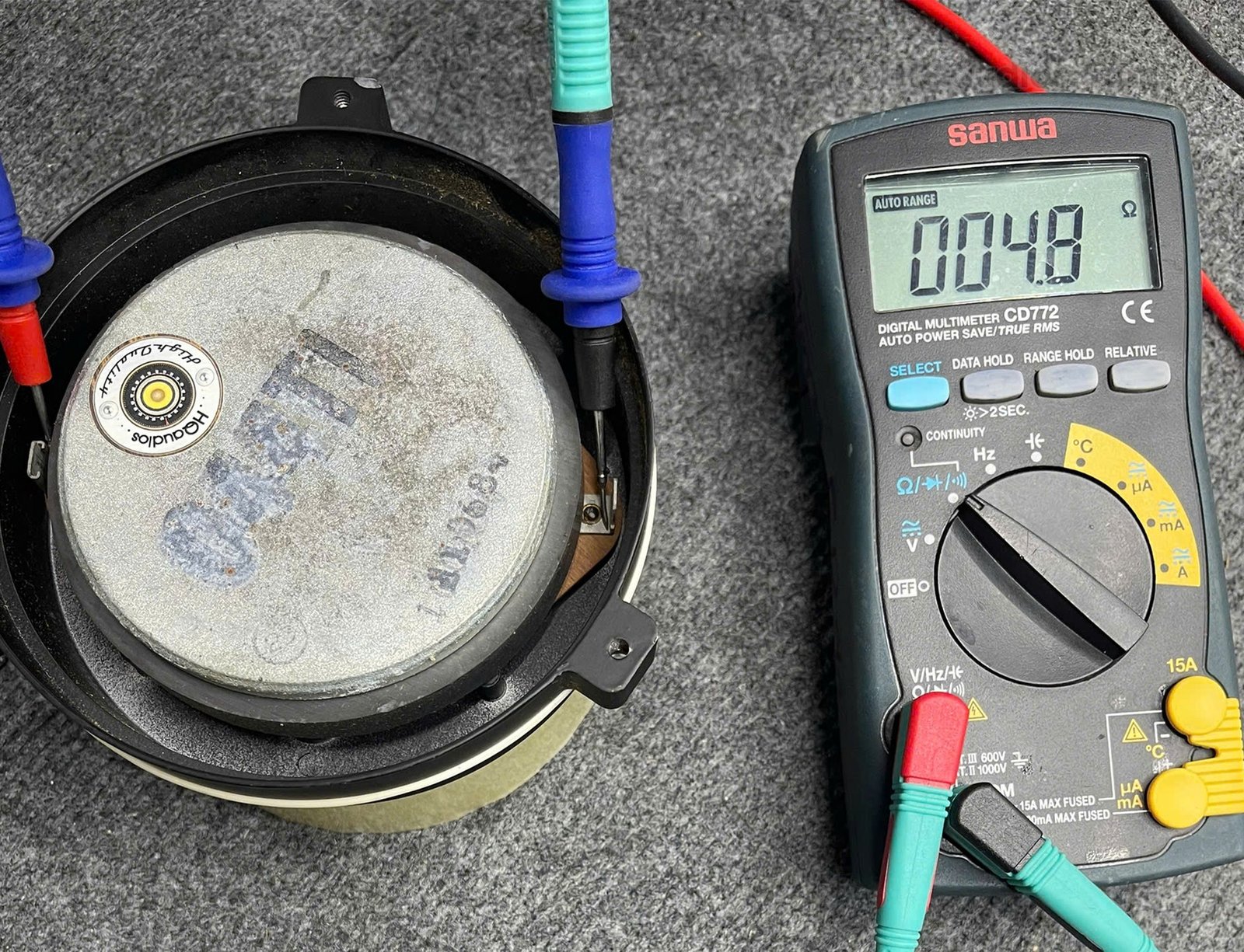

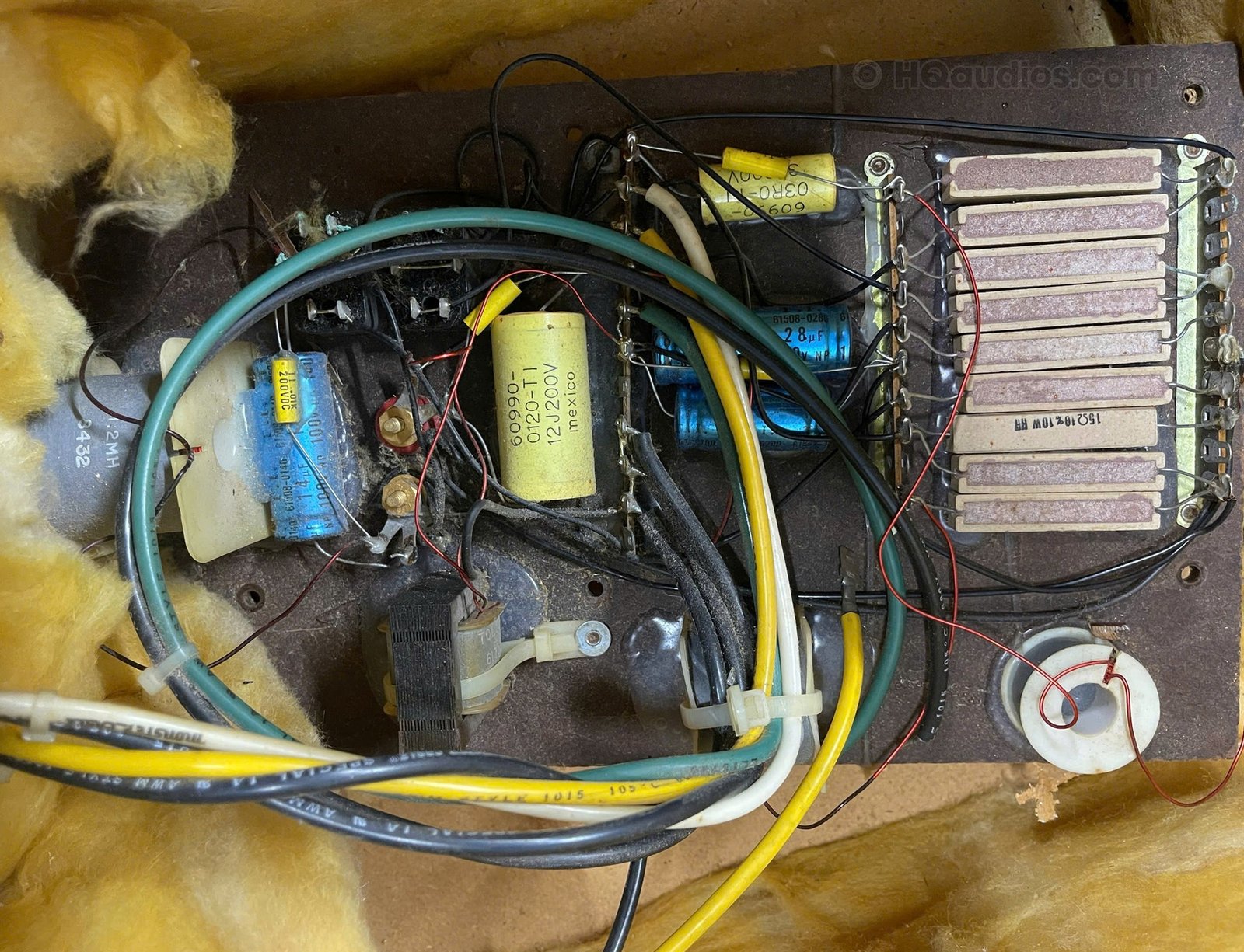

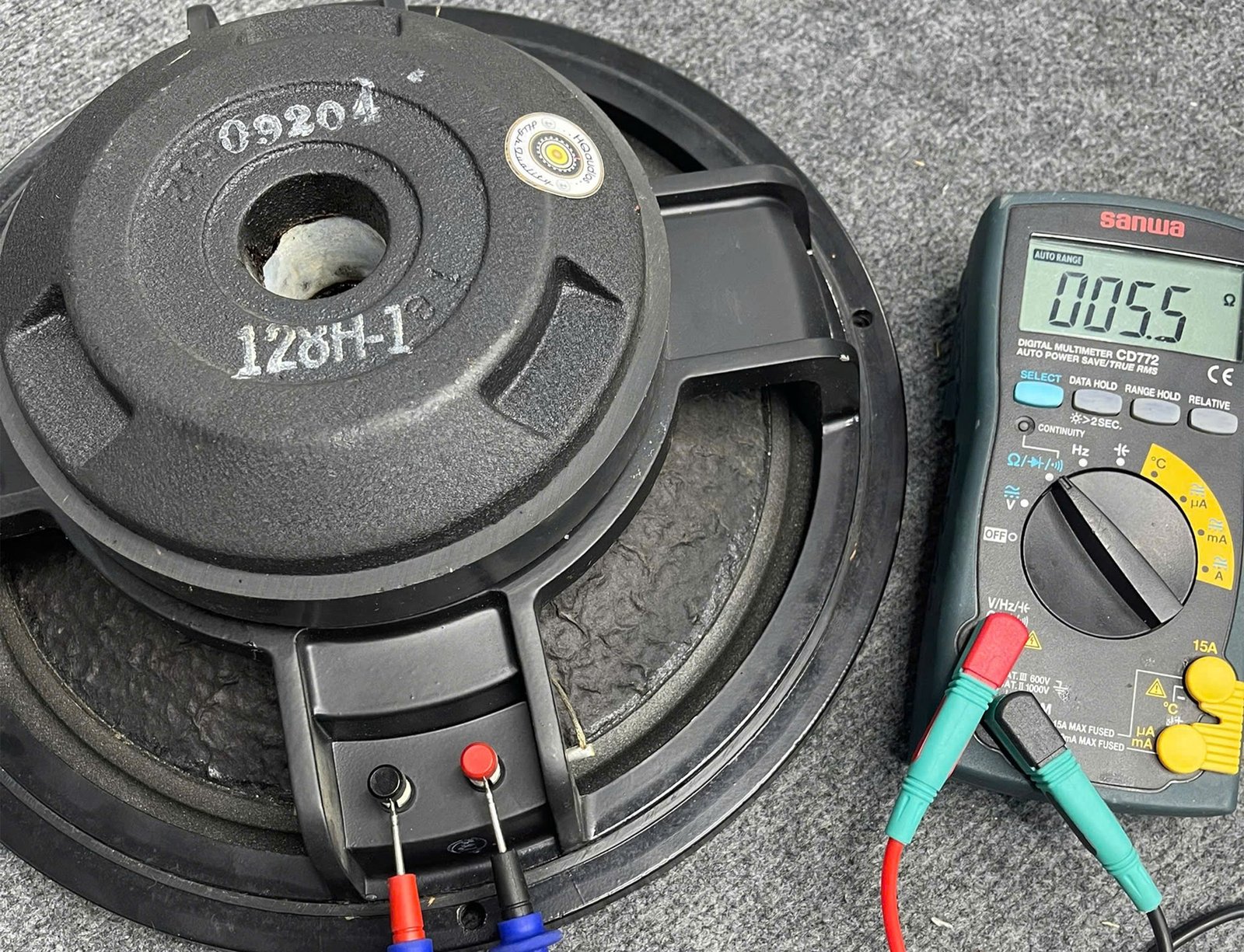

Each cabinet, cone, surround, and spider was checked for originality and for glue joints that had loosened or shifted with age. Every driver was tested by hand for voice-coil rub – a scratching noise or a stiff, binding cone indicates a shifted or heat-damaged voice coil. The DC resistance of every driver was checked against its nominal impedance. The crossover networks were examined for bulging or leaking capacitors, each capacitor was measured against its original value (within 10% tolerance), and the wiring and terminals were inspected.

The inspection results were used to determine the work required for this specific pair.

Technical Condition

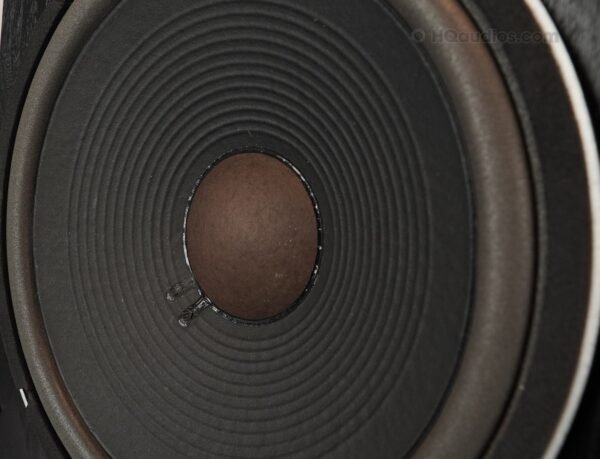

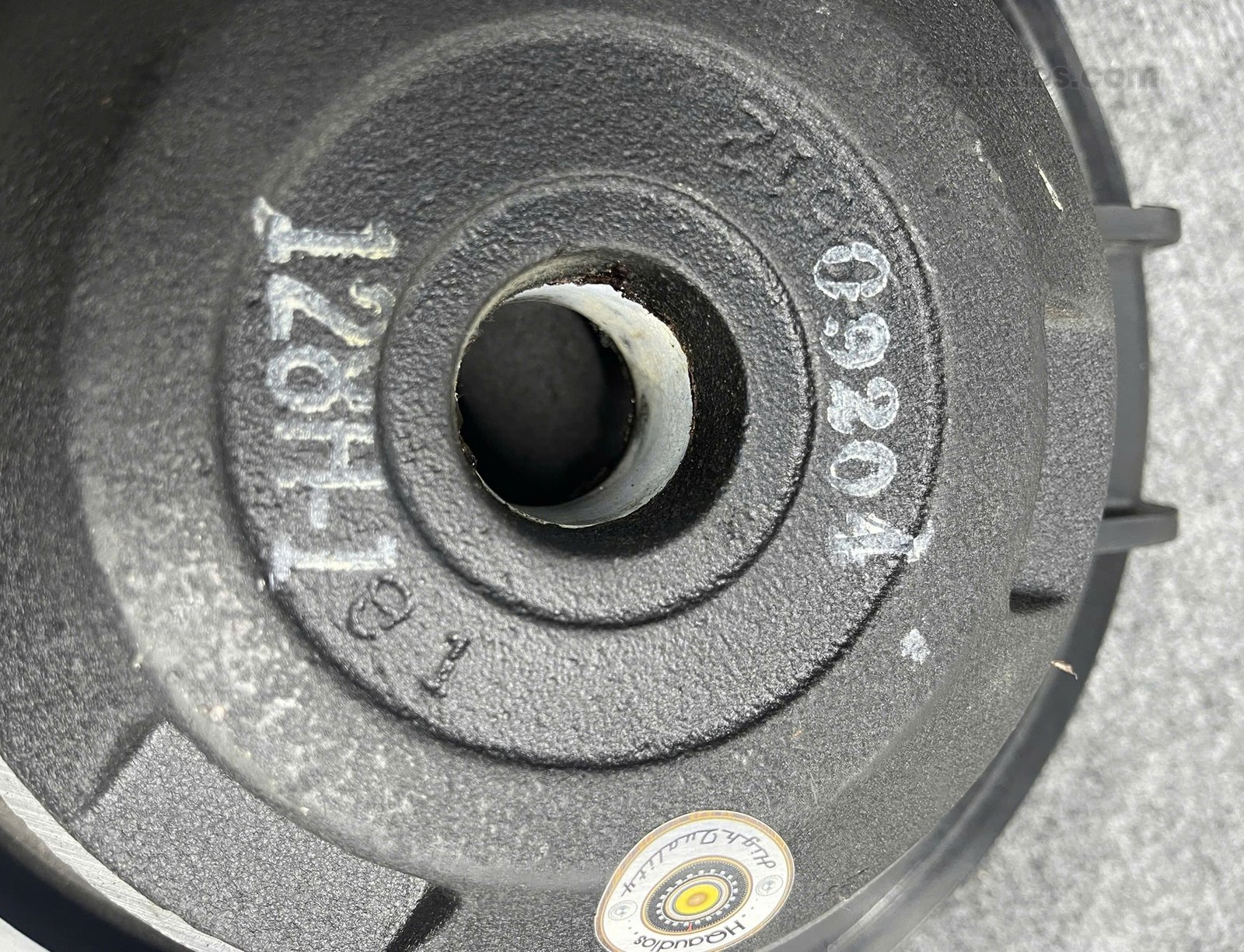

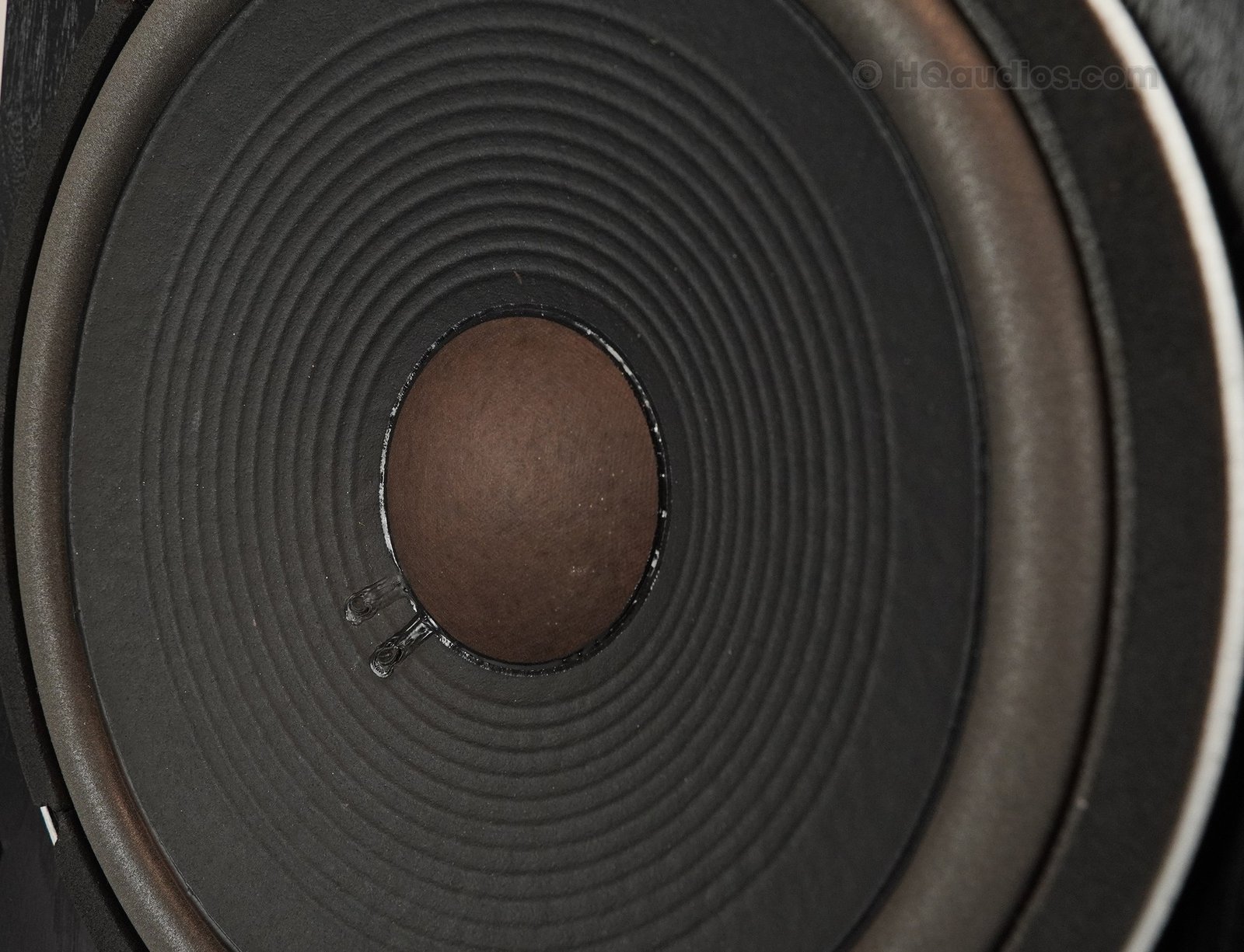

Woofers: 12-inch woofers working on both speakers

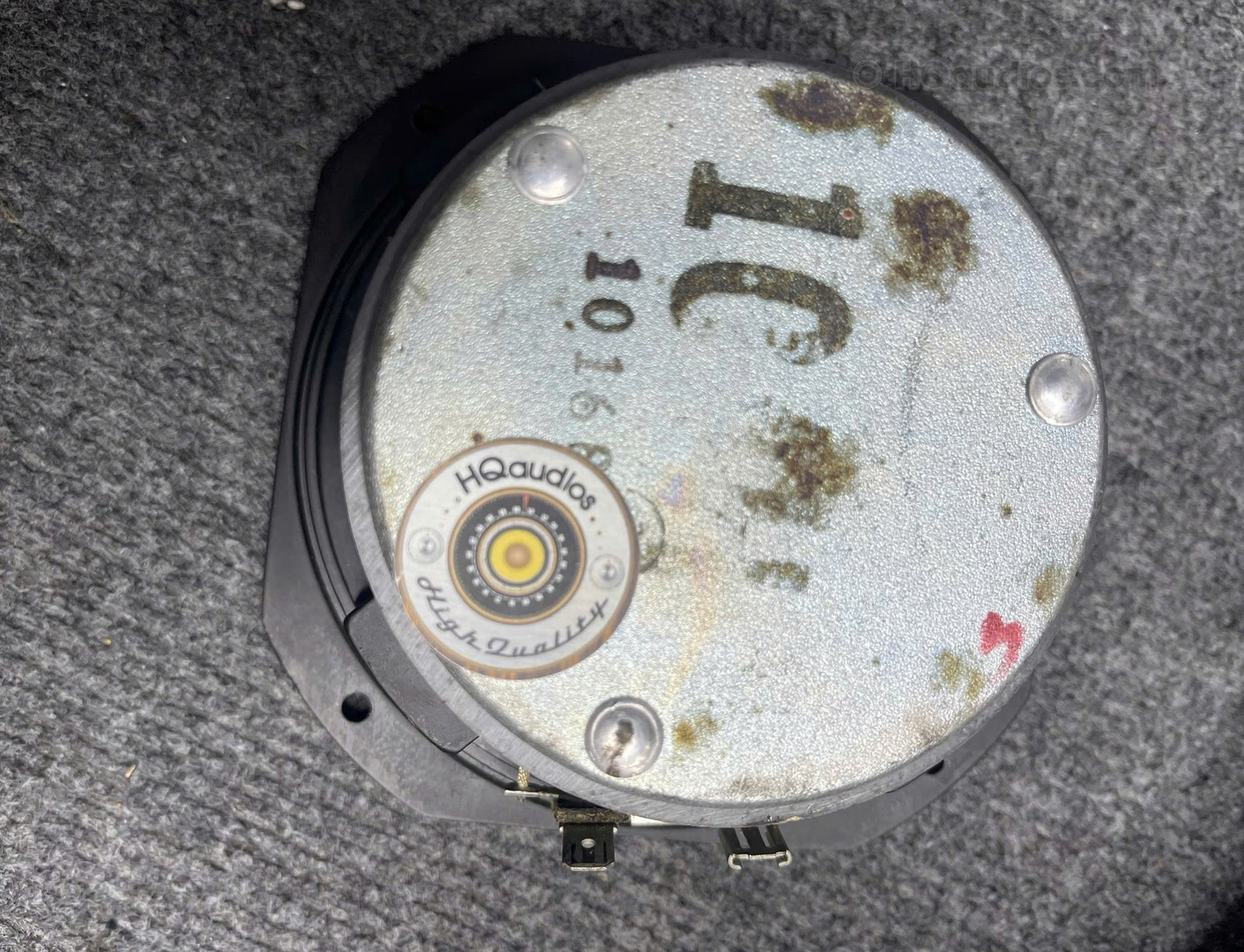

Midrange: 5-inch midrange drivers working on both speakers

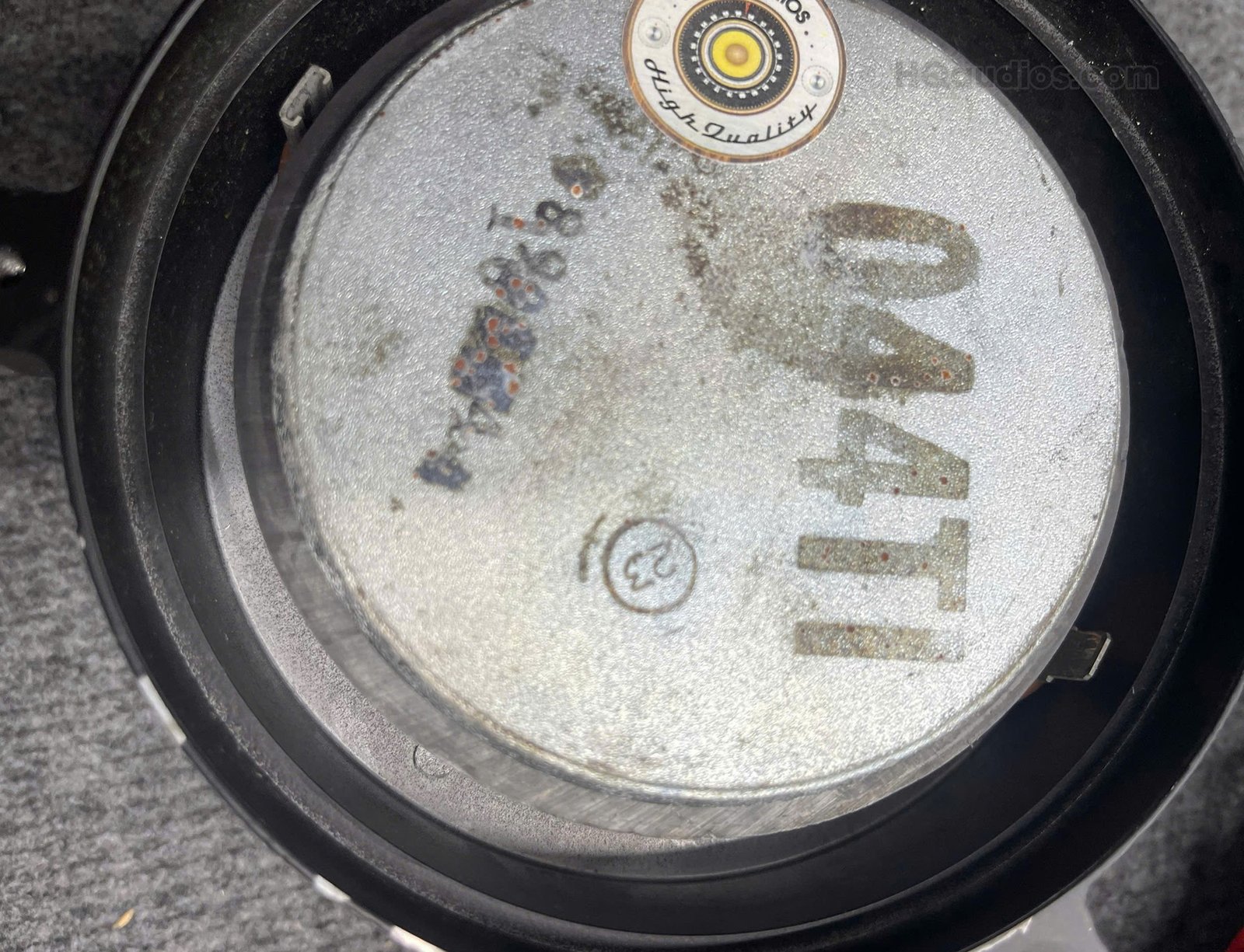

Tweeters: Titanium-dome tweeters working on both speakers

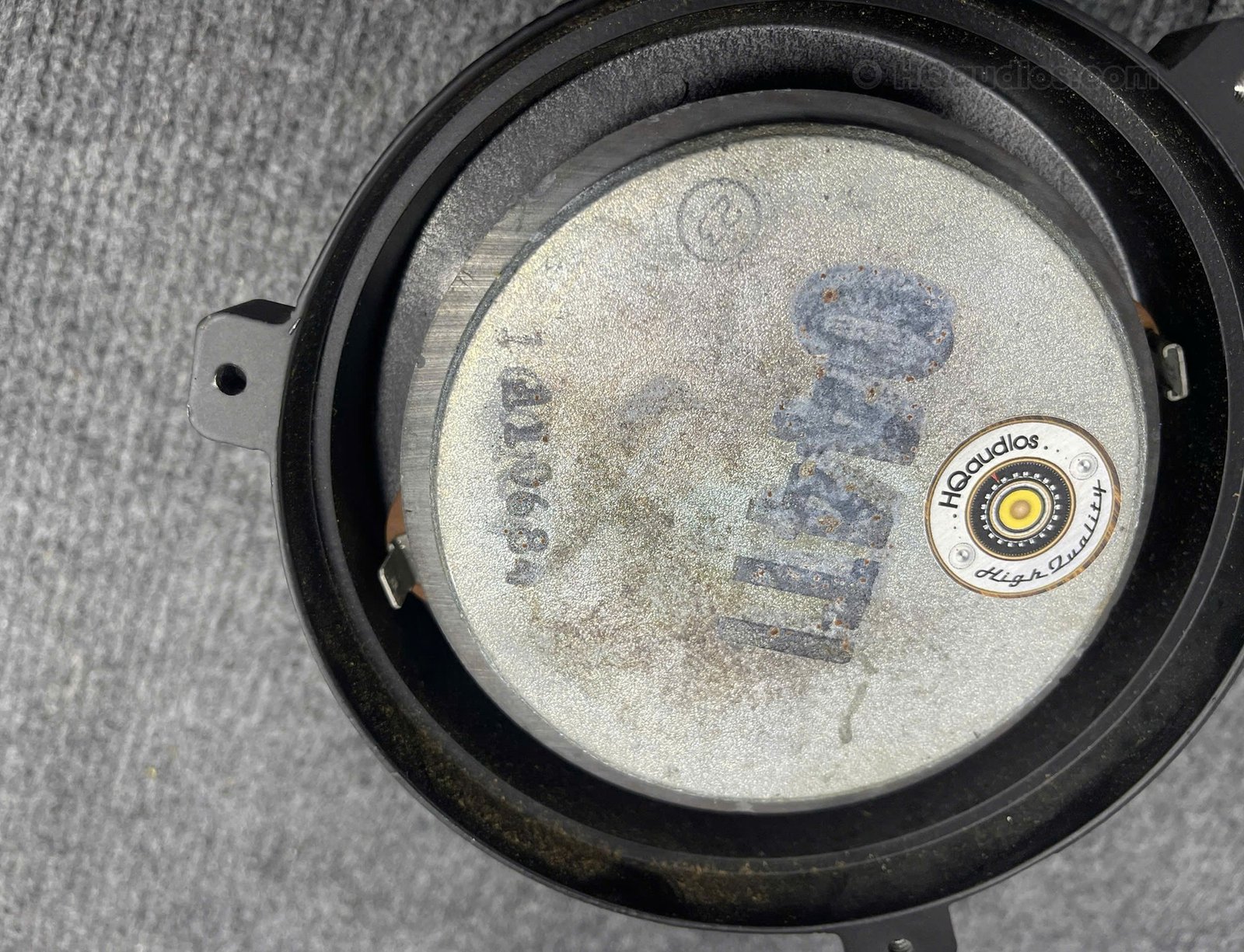

Drivers: Checked for voice-coil rub and DC resistance

Crossovers: Inspected; capacitors measured against original values

Phase: Polarity checked on both speakers

Brand: JBL

Model: 120Ti

Type: 3-Way, 3-Driver Bass-Reflex Speaker

Years of Production: 1984 – 1990

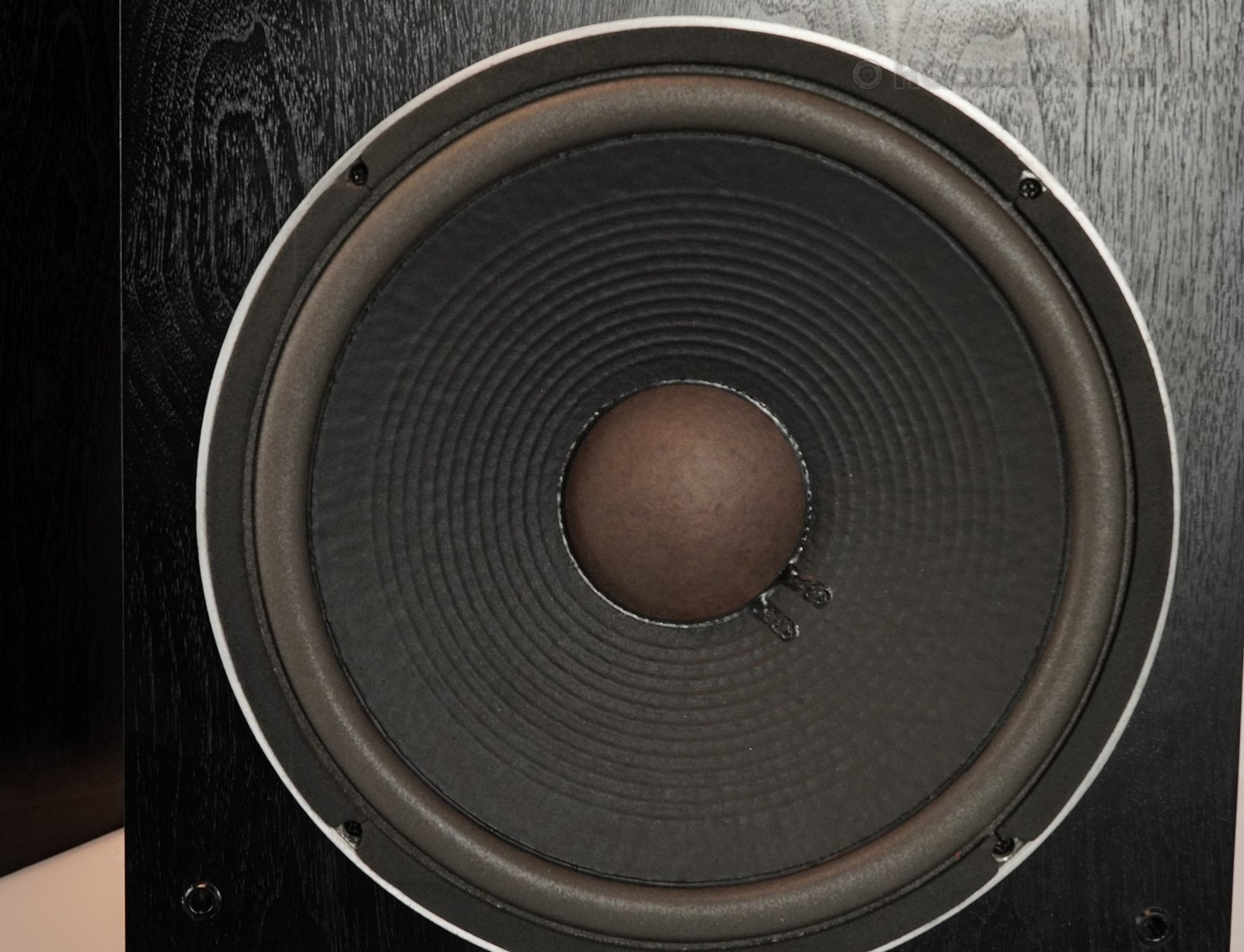

Woofer: 12-inch (300 mm) cone

Midrange: 5-inch (130 mm)

Tweeter: 1-inch titanium dome

Crossover Frequencies: 900 Hz and 4 kHz

Frequency Response: 35 Hz – 27 kHz

Sensitivity: 89 dB (1 W / 1 m)

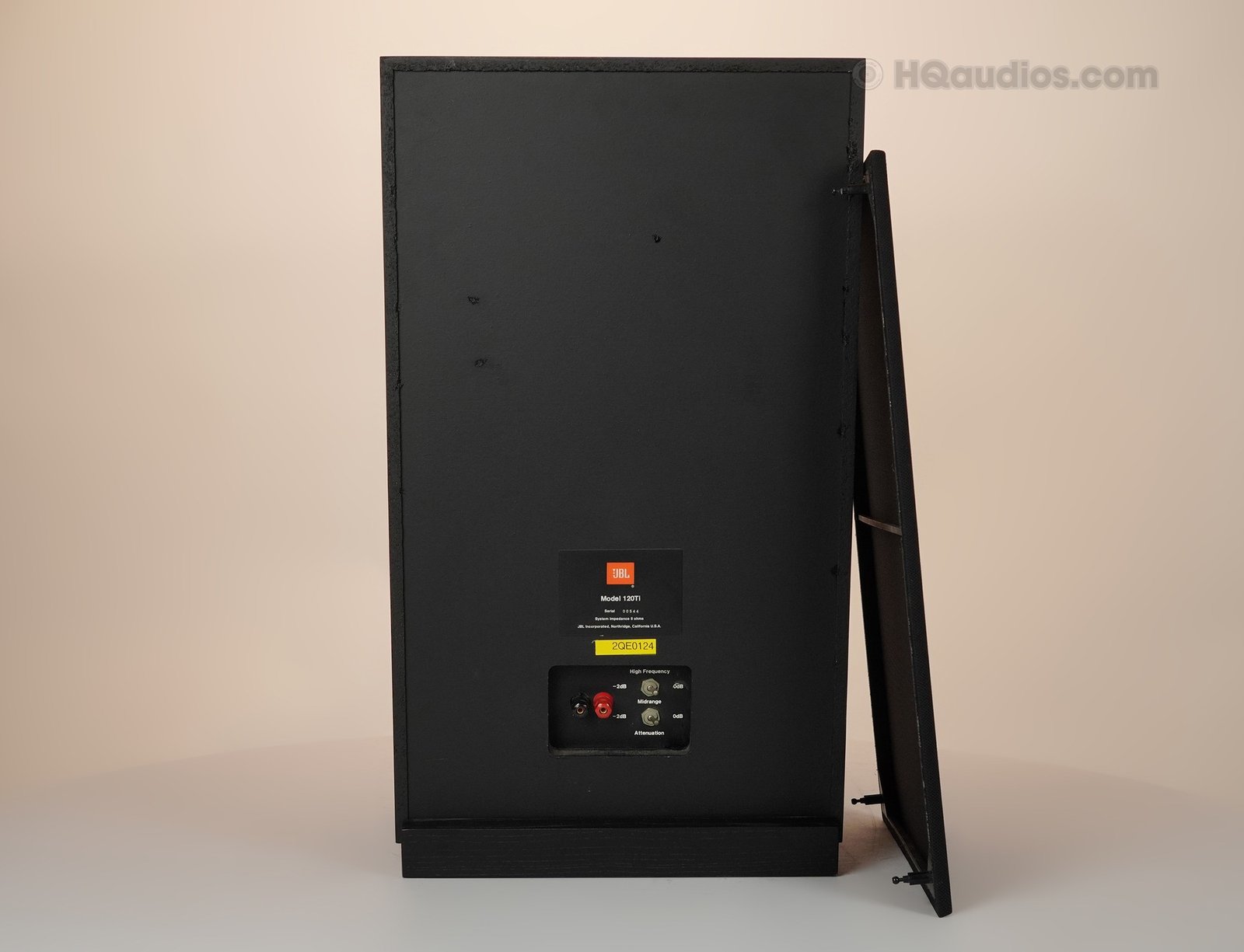

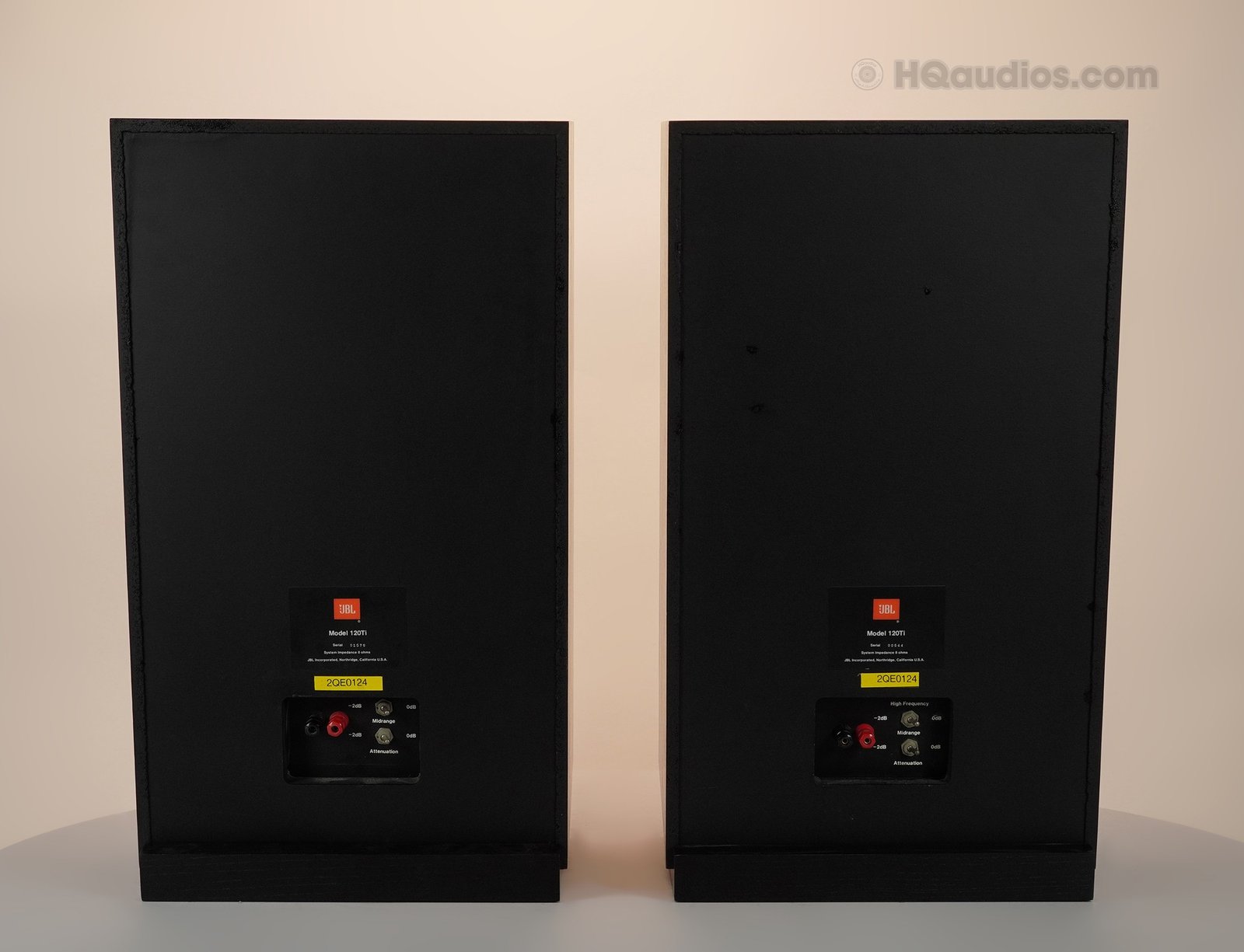

Impedance: 8 ohms rated, 6 ohms minimum (rear label on this pair: 6 ohms)

Recommended Amplifier Power: up to 250 W per channel

Dimensions (each): approx. 14.25 W x 24.5 H x 13.1 D in

Weight (each): approx. 56 lbs

Serial Numbers: 01679 / 00544

Country of Origin: USA

Only the items specifically listed above are included. The speaker stands, cables and other equipment shown in the photos are not included.
