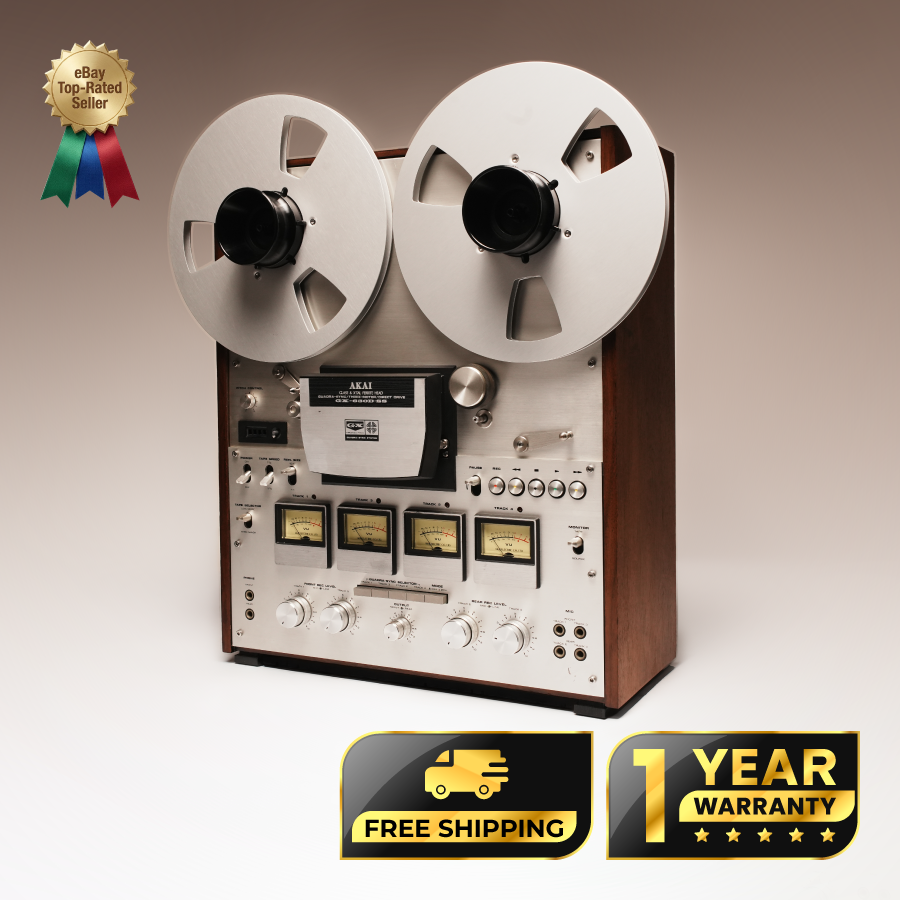

AKAI GX-630D-SS Quadra-Sync Reel-to-Reel Tape Deck – Restored – 1-Year Warranty

$2,999

-

  • AKAI GX-630D-SS 4-Channel Reel-to-Reel Tape Deck
  • Professionally Restored by HQaudios
  • Quadra-Sync Synchronized Overdubbing System
  • 4-Track, 4-Channel / 2-Channel Compatible Architecture
  • GX Glass & Crystal Ferrite Record and Playback Heads
  • Four-Head System with Separate Record and Playback Heads
  • Three-Motor Transport with Direct-Drive Capstan
  • Supports Reels up to 10.5 Inches
  • 7.5 ips and 3.75 ips Tape Speeds
  • Four VU Meters, Pitch Control and Mic/Line Mixing
  • 1-Year HQaudios Warranty with Customer Support

1 in stock

SKU: 15TJKE4047 - VS20 Categories: ,

SOUND DEMO / AUDIO EXPERIENCE


AKAI GX-630D-SS Sound Demo

For the best audio experience, please use headphones or external speakers.
AKAI GX-630D-SS Quadra-Sync Reel-to-Reel Tape Deck – Restored – 1-Year Warranty
Professionally Restored by HQaudios – Inspected & Tested – Backed by Our 1-Year Warranty

KEY HIGHLIGHTS
AKAI GX-630D-SS 4-Channel Reel-to-Reel Tape Deck
Professionally Restored by HQaudios
Quadra-Sync Synchronized Overdubbing System
4-Track, 4-Channel / 2-Channel Compatible Architecture
GX Glass & Crystal Ferrite Record and Playback Heads
Four-Head System with Separate Record and Playback Heads
Three-Motor Transport with Direct-Drive Capstan
Supports Reels up to 10.5 Inches
7.5 ips and 3.75 ips Tape Speeds
Four VU Meters, Pitch Control and Mic/Line Mixing
1-Year HQaudios Warranty with Customer Support

PRODUCT OVERVIEW
The AKAI GX-630D-SS is a large-format reel-to-reel tape deck built around AKAI’s GX Glass & Crystal Ferrite head technology, its distinctive Quadra-Sync overdubbing system, and a three-motor transport.
Designed for both conventional two-channel stereo and four-channel recording/playback, the GX-630D-SS combines four individual VU meters, separate channel controls, microphone and line mixing, and a dedicated synchronized recording function.
Quadra-Sync allows previously recorded tracks to be monitored through the recording-head path while new material is recorded. This reduces the timing offset associated with conventional record-to-playback head monitoring during overdubbing.
The machine accepts reels up to 10.5 inches, offers 7.5 ips and 3.75 ips tape speeds, and uses a dedicated direct-drive capstan motor with separate reel motors.
The GX-630D-SS is an appealing choice for collectors and enthusiasts building a vintage stereo or quadraphonic recording system. It is a 4-channel / 2-channel compatible tape deck, not an auto-reverse model.
This unit has been professionally restored and serviced by HQaudios, with the transport, GX head system, switching contacts, controls, recording/playback paths, four-channel functions, and final real-world operation carefully evaluated before sale.

HQAUDIOS RESTORATION & TESTING

Before Restoration
The deck was inspected to evaluate its overall mechanical, electrical, and cosmetic condition.
The transport, tape path, heads, controls, switches, inputs, outputs, meters, and exterior surfaces were checked for age-related wear and contamination.
Record, playback, monitoring, and transport functions were evaluated before service.

During Restoration
The chassis, transport area, tape path, heads, controls, and exterior surfaces were carefully cleaned and detailed.
Accessible switches, selectors, jacks, electrical contacts, wiring, and connections were cleaned and inspected.
The capstan, pinch roller, tape guides, reel tables, and other accessible transport components were checked for proper operation.
Record, playback, and transport functions were serviced and evaluated through their normal operating ranges.

After Restoration / Final Testing
Play, Stop, Pause, Fast Forward, and Rewind were tested for consistent operation.
Record, playback, monitoring, meters, inputs, outputs, and available tape speeds were evaluated.
Tape movement, reel operation, transport stability, and braking behavior were checked during use.
The deck underwent an extended real-world recording and playback evaluation before final approval by HQaudios.

CONDITION

Technical Condition
Transport: Play, Stop, Pause, Fast Forward, and Rewind were evaluated for consistent operation.
Record & Playback: Recording, playback, monitoring and channel operation were evaluated.
Tape Speeds: Both available tape speeds were included in the operational evaluation.

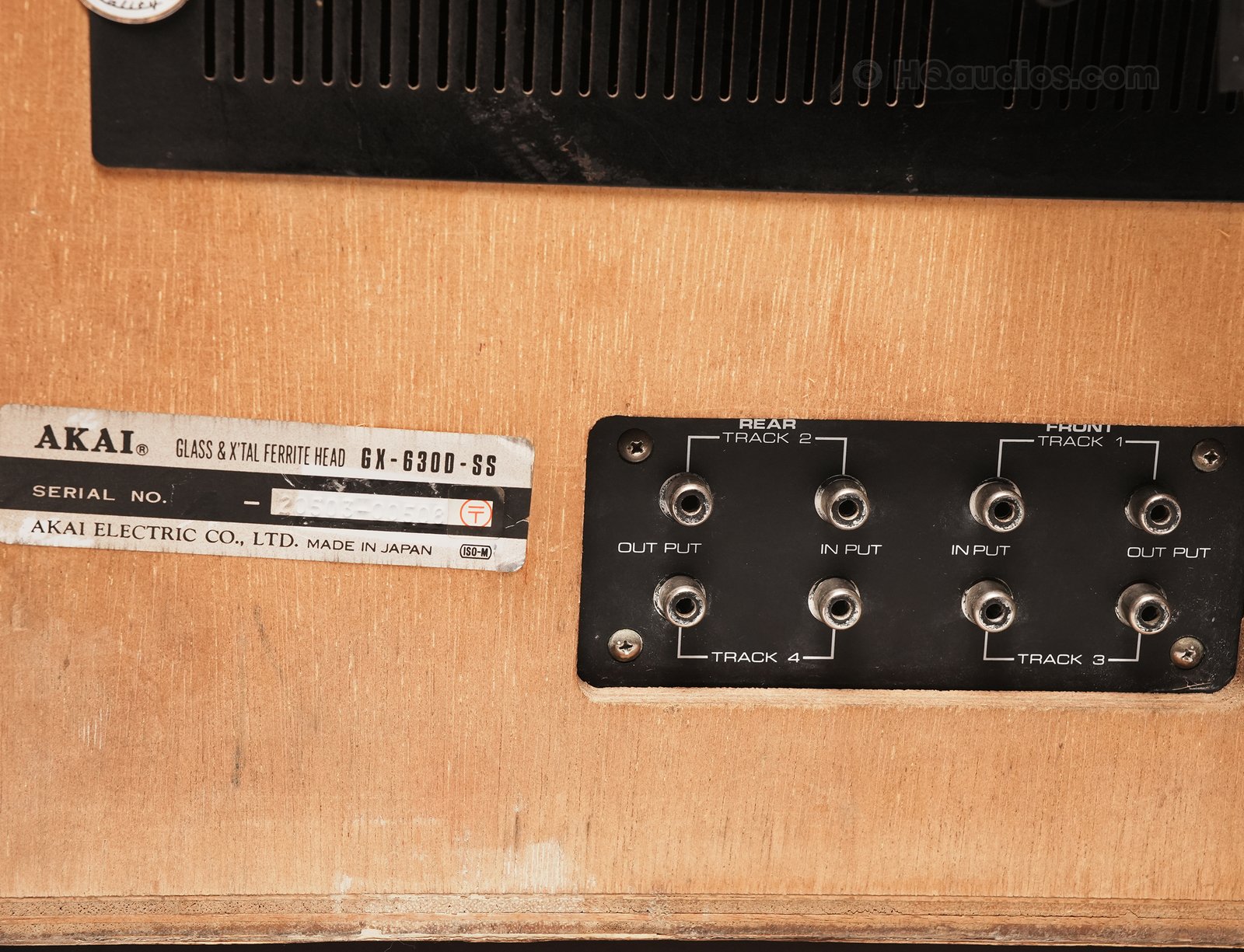

VU Meters & Connections: Meters, inputs and outputs were included in functional testing.
Mechanical Operation: Tape movement, reel operation, transport stability and braking behavior were evaluated.

Cosmetic Condition

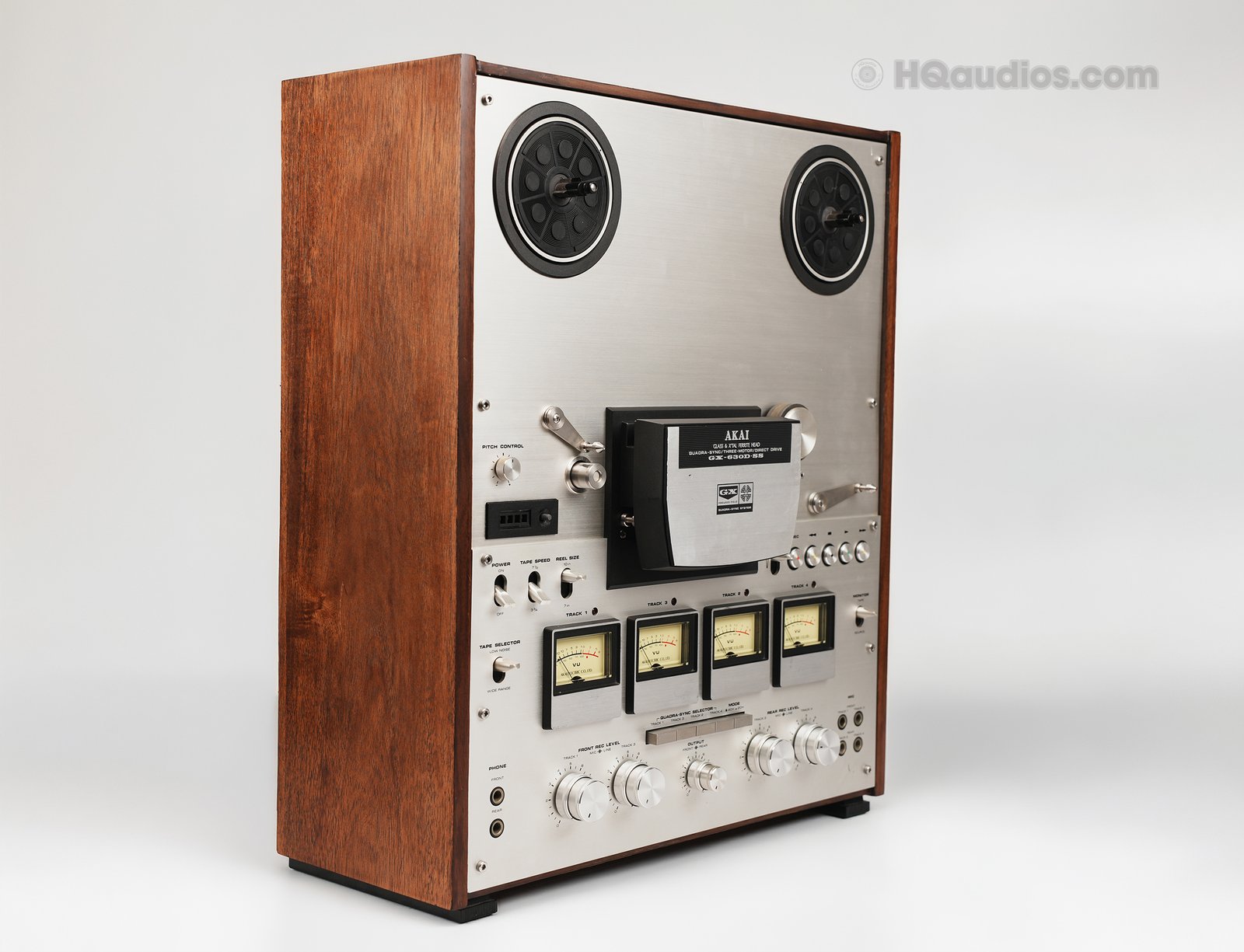

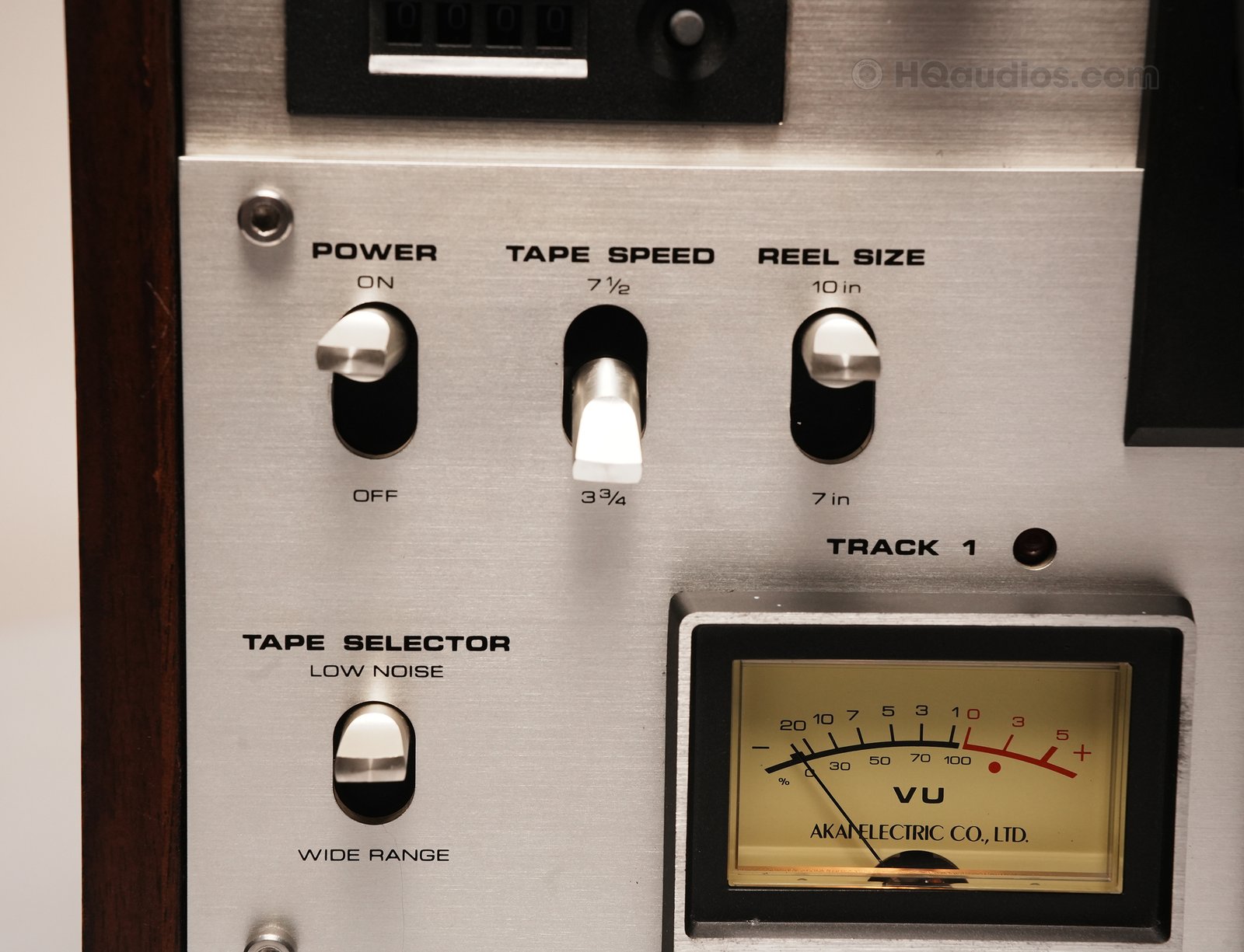

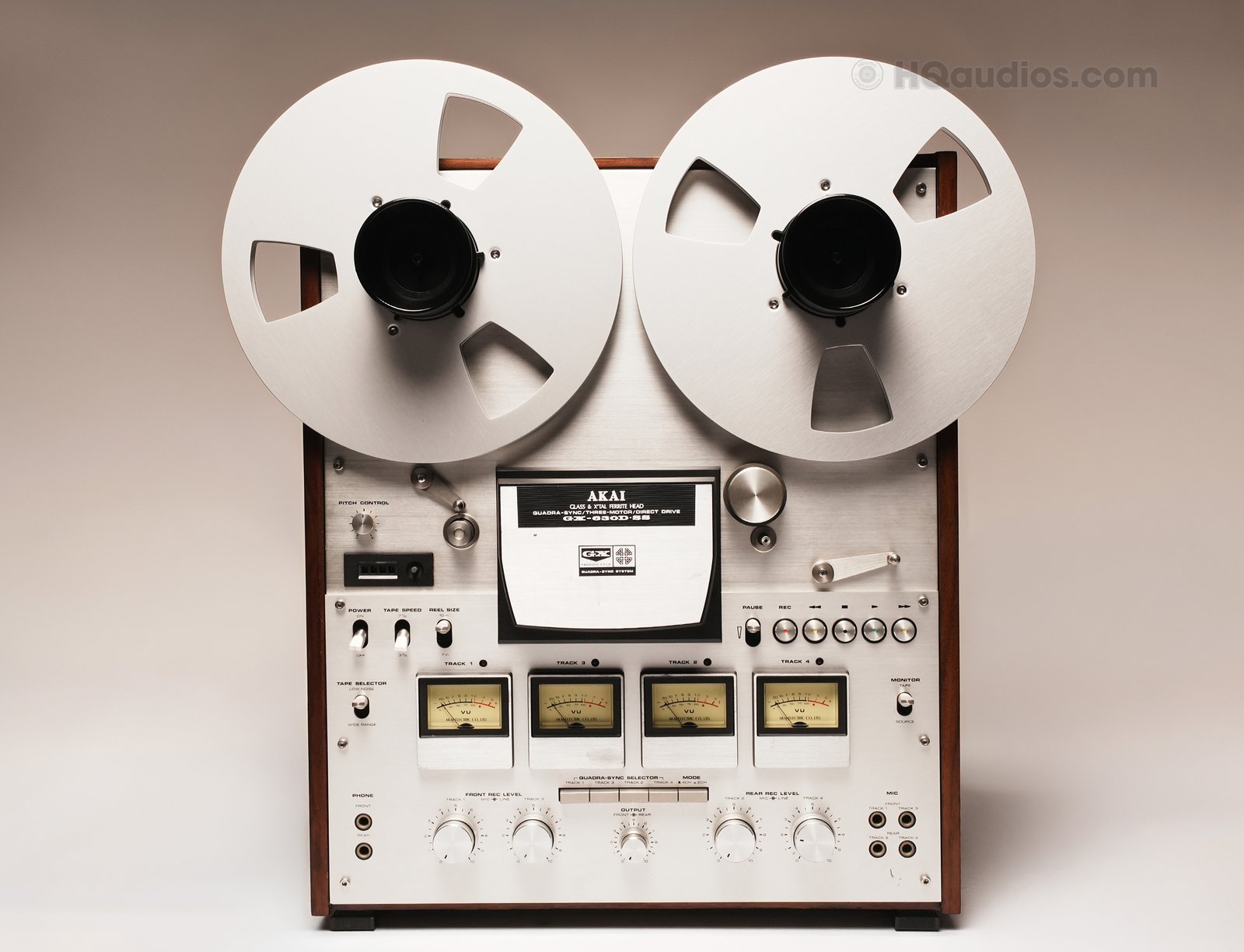

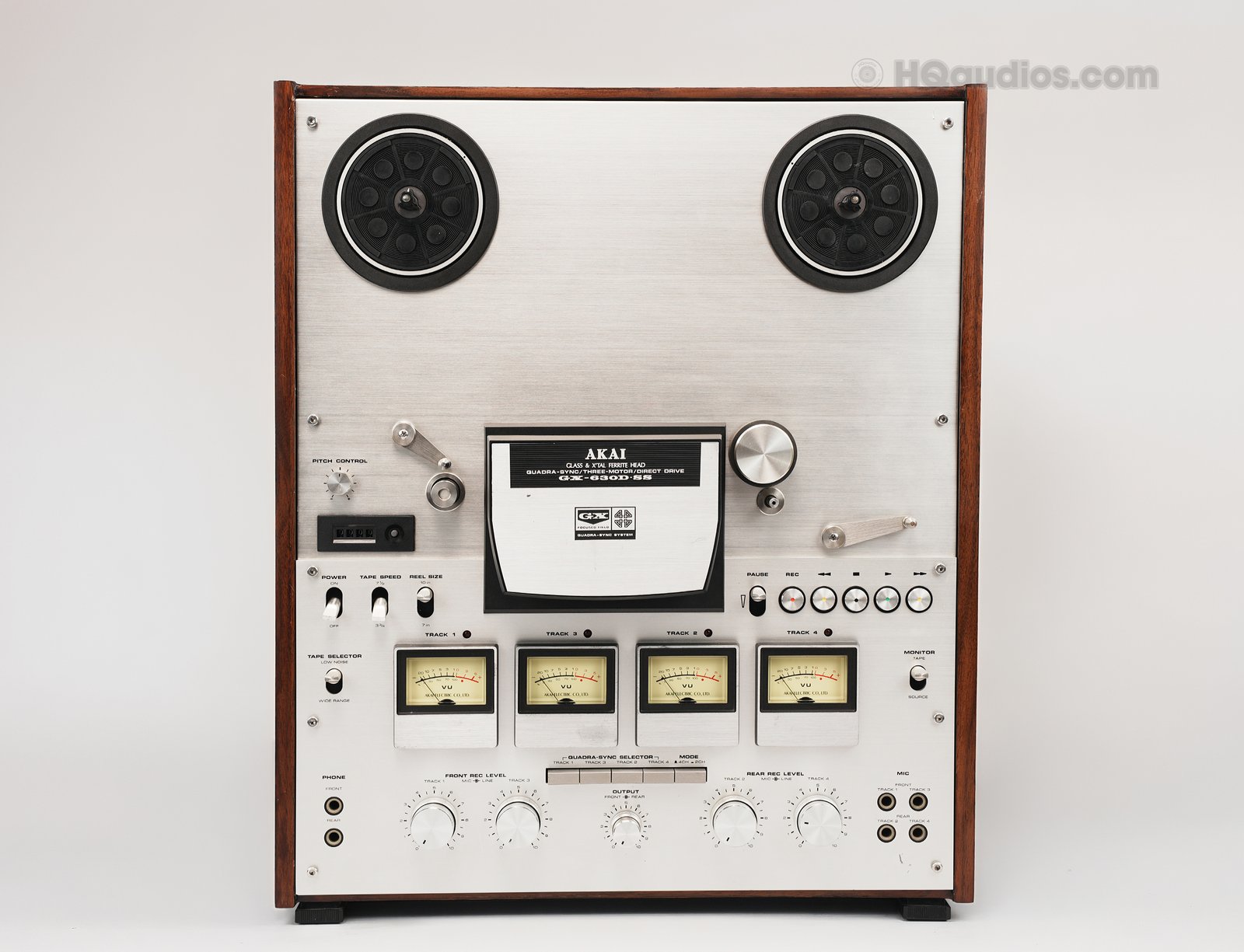

Front Panel: Brushed-aluminum faceplate with the classic AKAI control arrangement.

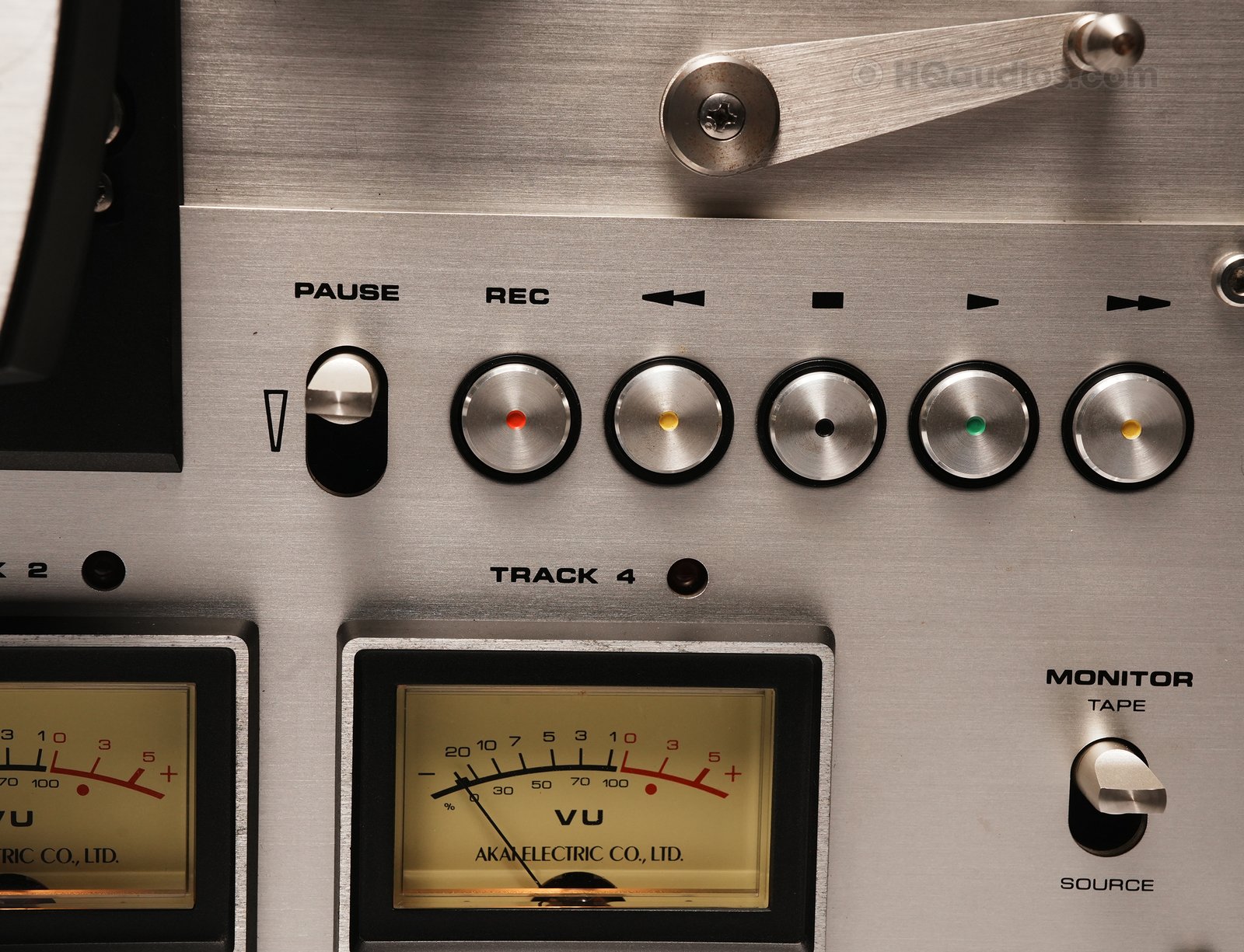

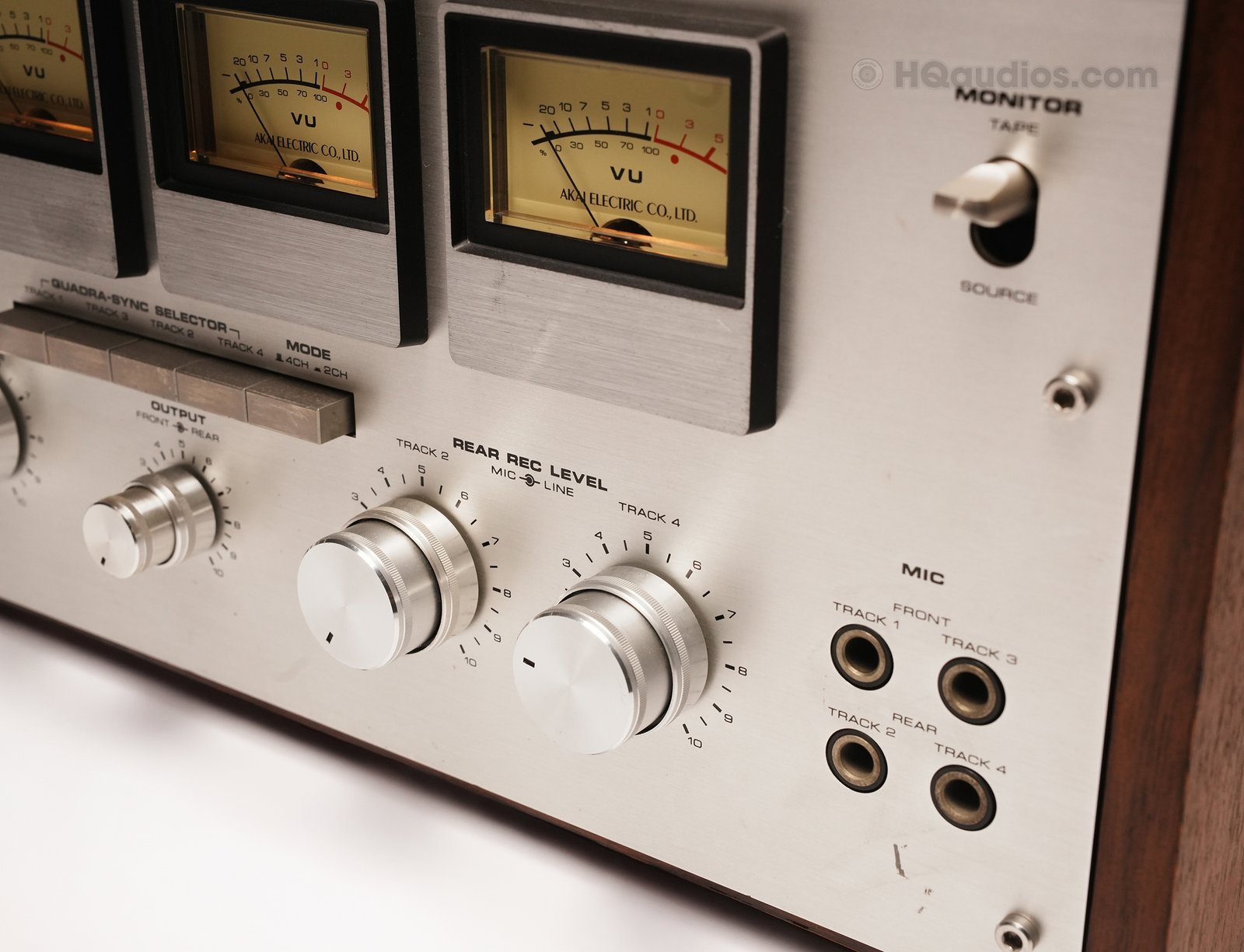

VU Meters: Four individual analog meters.

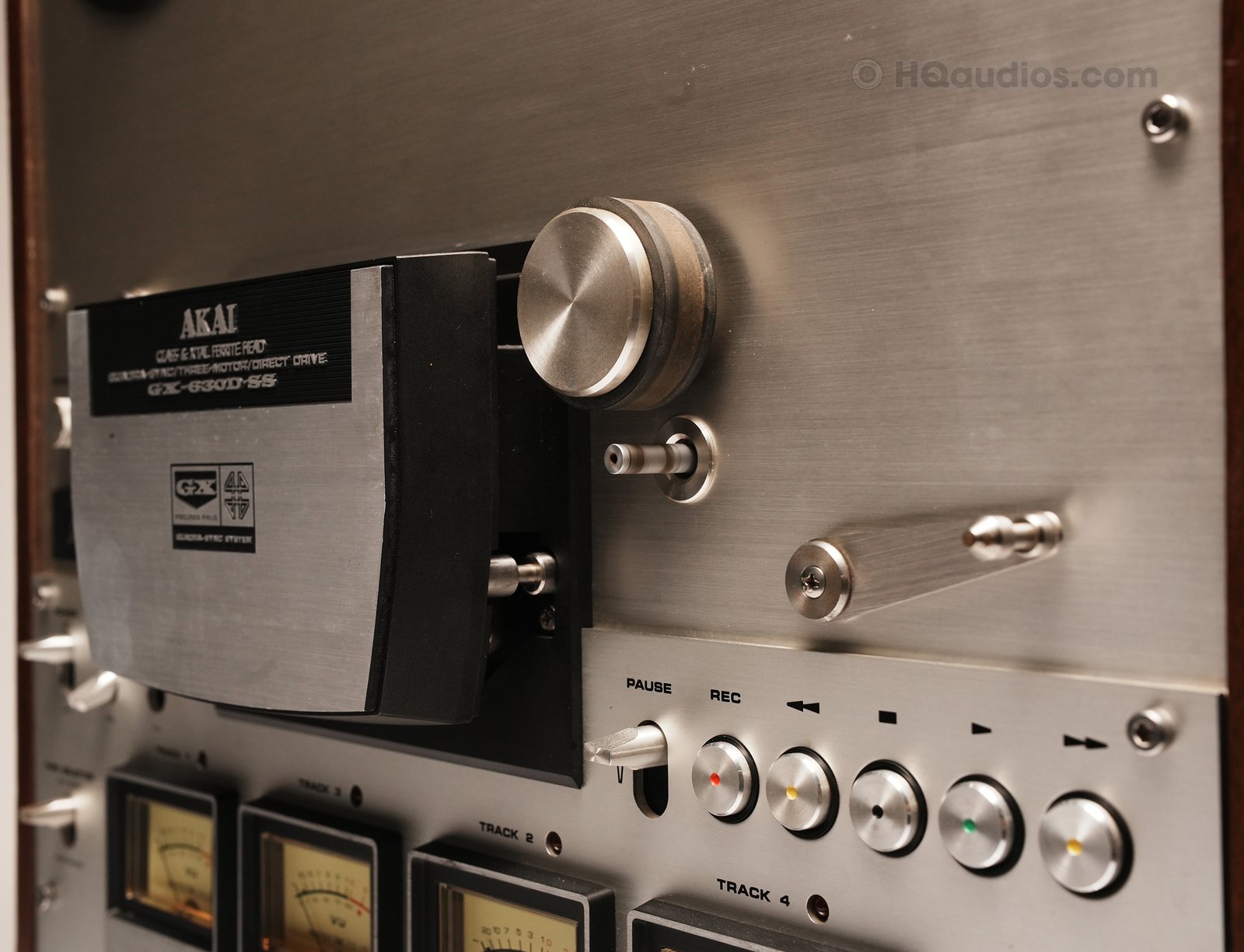

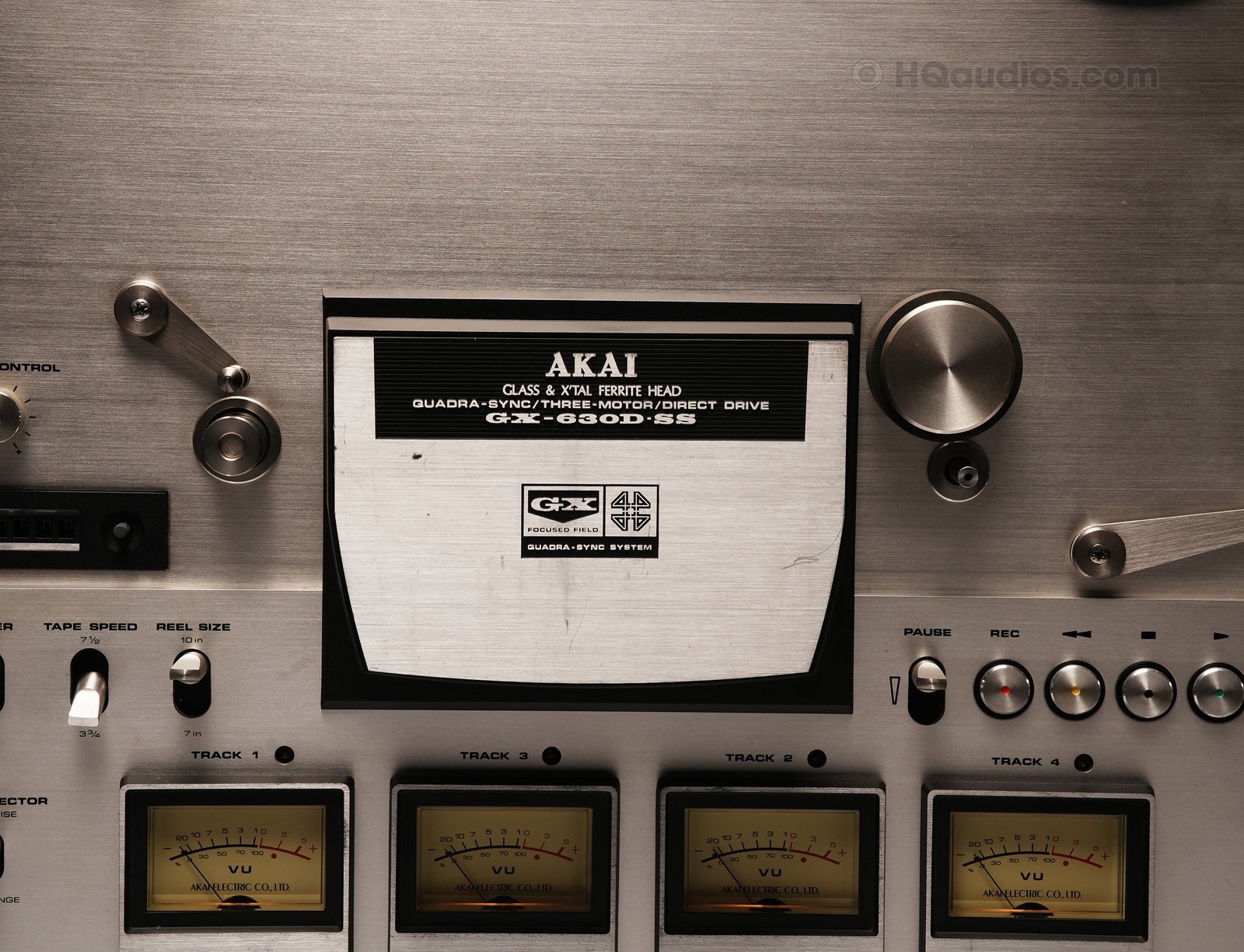

Transport Area: GX head assembly with Quadra-Sync identification.

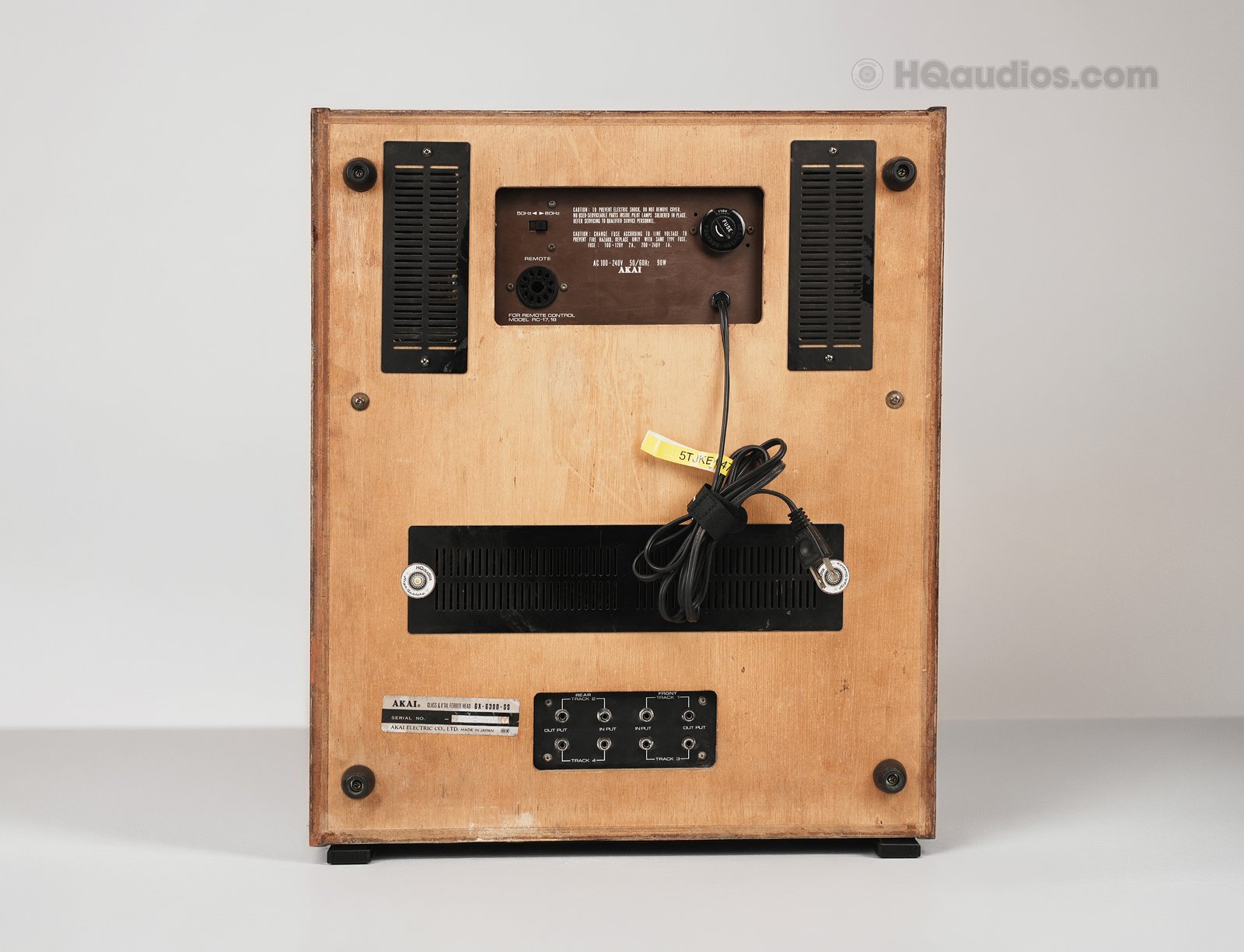

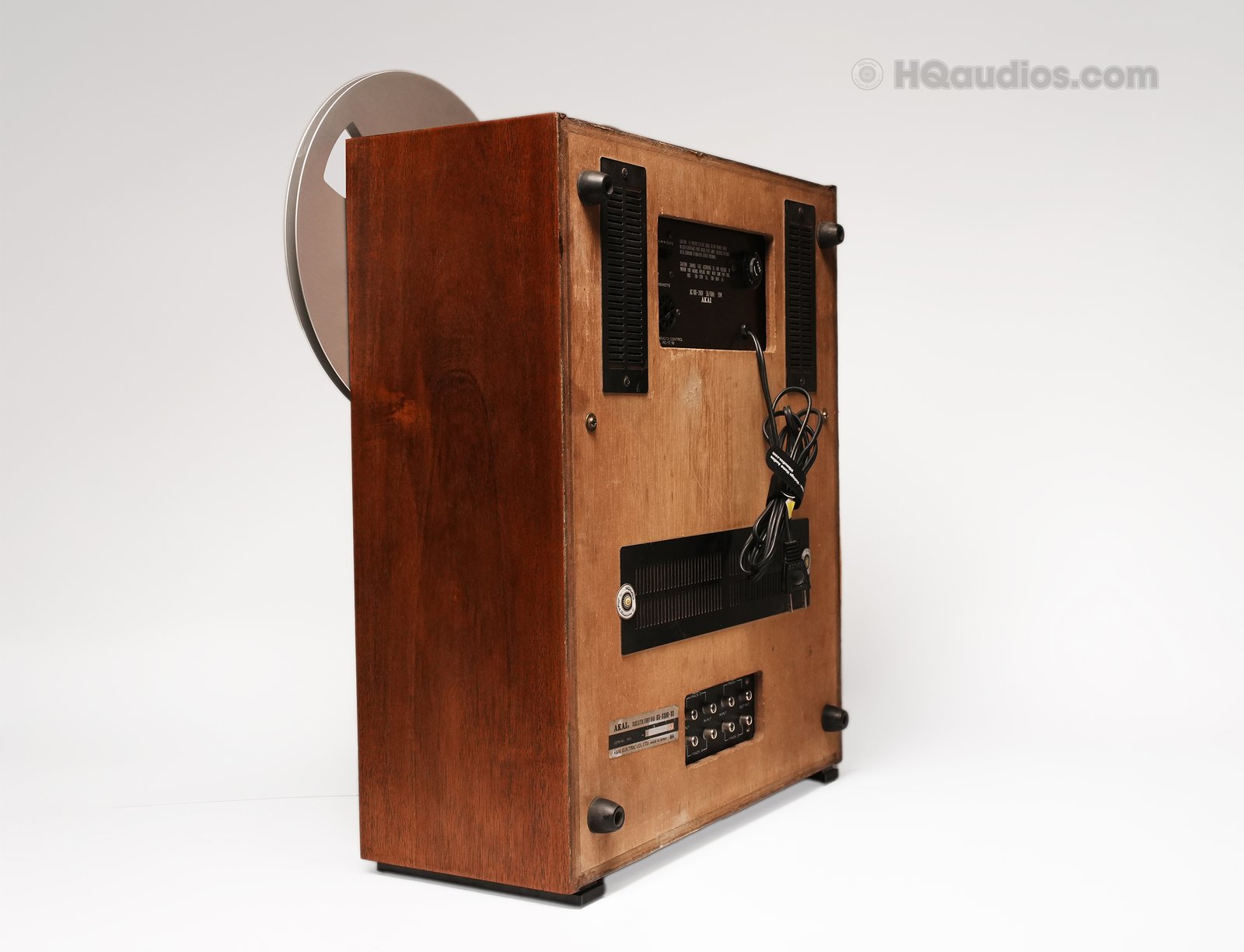

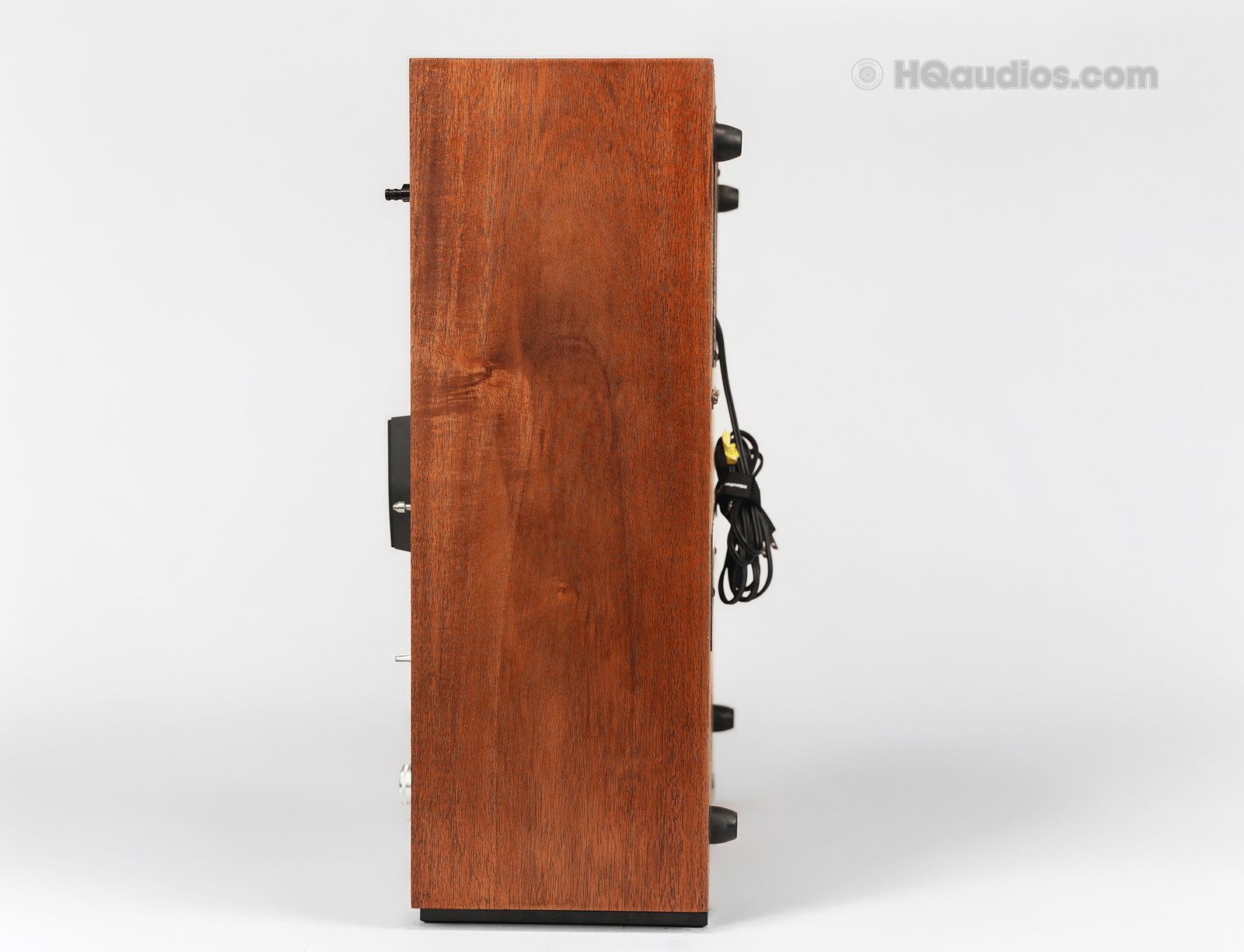

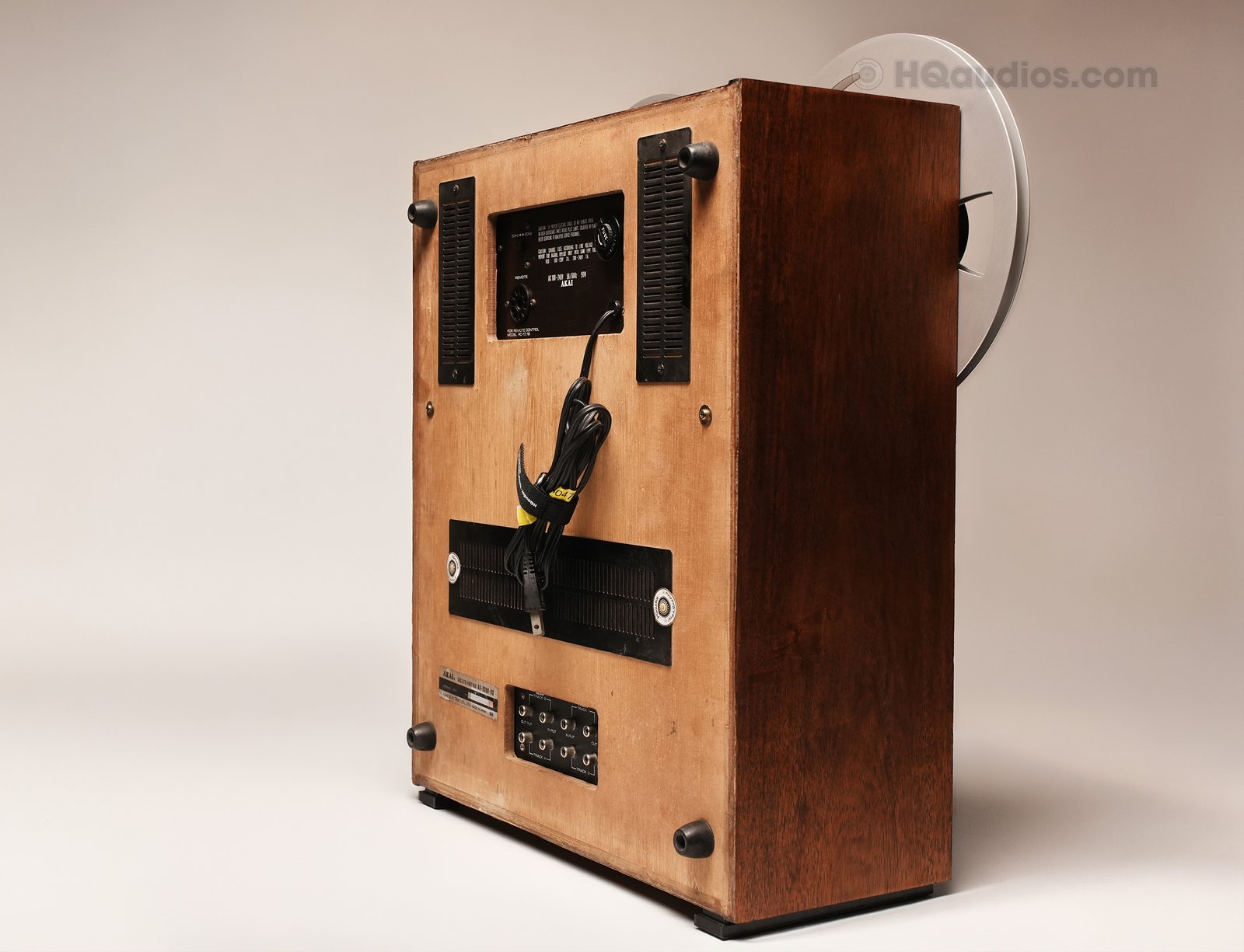

Cabinet: Vintage wood cabinet.
Overall Appearance: Please review the actual product photographs for the faceplate, lettering, controls, cabinet finish and age-related cosmetic characteristics.

Transport Functions Evaluated
Recording and Playback Evaluation Completed
Tape Handling and Braking Evaluated
Extended Recording and Playback Evaluation Completed

SPECIFICATIONS
Brand: AKAI
Model: GX-630D-SS
Type: Reel-to-Reel Tape Recorder
Track System: 4-Track, 4/2-Channel Compatible
Recording Feature: Quadra-Sync Synchronized Overdubbing
Maximum Reel Size: 10.5 in
Tape Speeds: 7.5 ips / 3.75 ips
Pitch Control: +/- 5%
Head System: 4 Heads – GX Record, GX Playback and 2 Erase Heads
Motor System: 3 Motors
Capstan Drive: CPG AC Servo Direct Drive
Reel Drive: 2 Eddy-Current Reel Motors
Frequency Response at 7.5 ips: 30 Hz – 21 kHz (+/- 3 dB)
Frequency Response at 3.75 ips: 30 Hz – 15 kHz (+/- 3 dB)
Wow & Flutter at 7.5 ips: Less Than 0.06% WRMS
Wow & Flutter at 3.75 ips: Less Than 0.09% WRMS
Total Harmonic Distortion: Less Than 0.5% at 7.5 ips (1 kHz, 0 VU)
Signal-to-Noise Ratio: Better Than 54 dB
Erase Ratio: Better Than 70 dB
Bias Frequency: 100 kHz
Microphone Input Sensitivity: 0.25 mV / 10 kOhms
Line Input Sensitivity: 70 mV / 150 kOhms
Line Output: 0.775 V at 0 VU
Dimensions (W x H x D): 17.3 x 20.7 x 9.4 in
Weight: 45.5 lbs
Country of Manufacture: Japan

WHAT IS INCLUDED
1 x AKAI GX-630D-SS Reel-to-Reel Tape Deck
Only the item specifically listed above is included.

SHIPPING & PACKAGING
Your vintage audio equipment will be professionally packed by HQaudios using protective materials appropriate for its size, weight, and construction. Large or heavy items may be palletized and shipped by freight when required for safer transportation.

HQaudios Professional Shipping and Packaging

Please contact us before purchase for the most current availability information.

1-YEAR WARRANTY & CUSTOMER SUPPORT
Your purchase is backed by our 1-Year HQaudios Seller Warranty. This is an HQaudios warranty, not an AKAI manufacturer warranty. Our team provides support before and after your purchase. If you have questions about setup, operation, compatibility, or your order, please contact HQaudios for assistance.
