Before Restoration

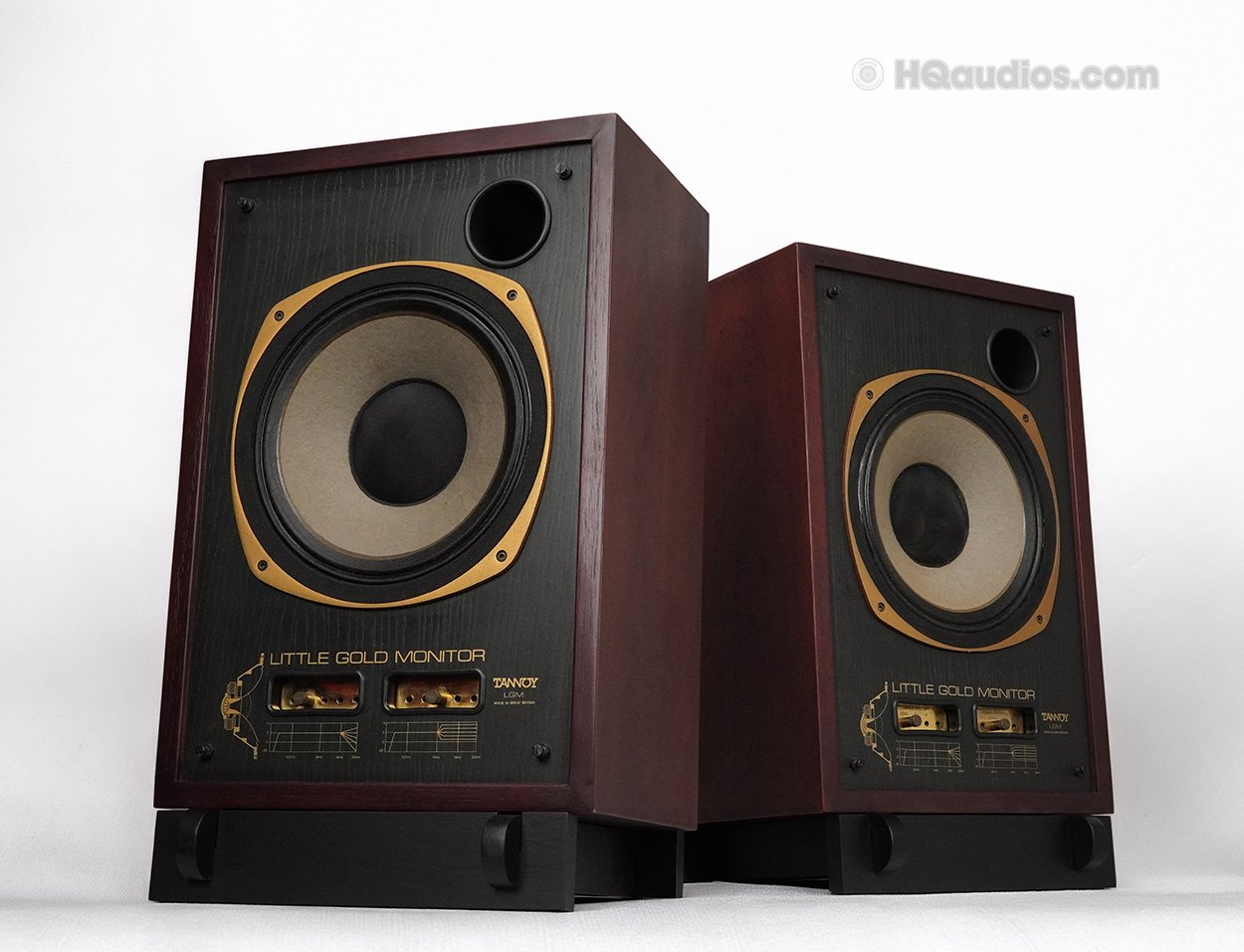

We inspected the two speaker assemblies before service, including the Dual Concentric driver components, crossover networks, internal wiring, terminal contacts, cabinet surfaces, and grille assemblies.

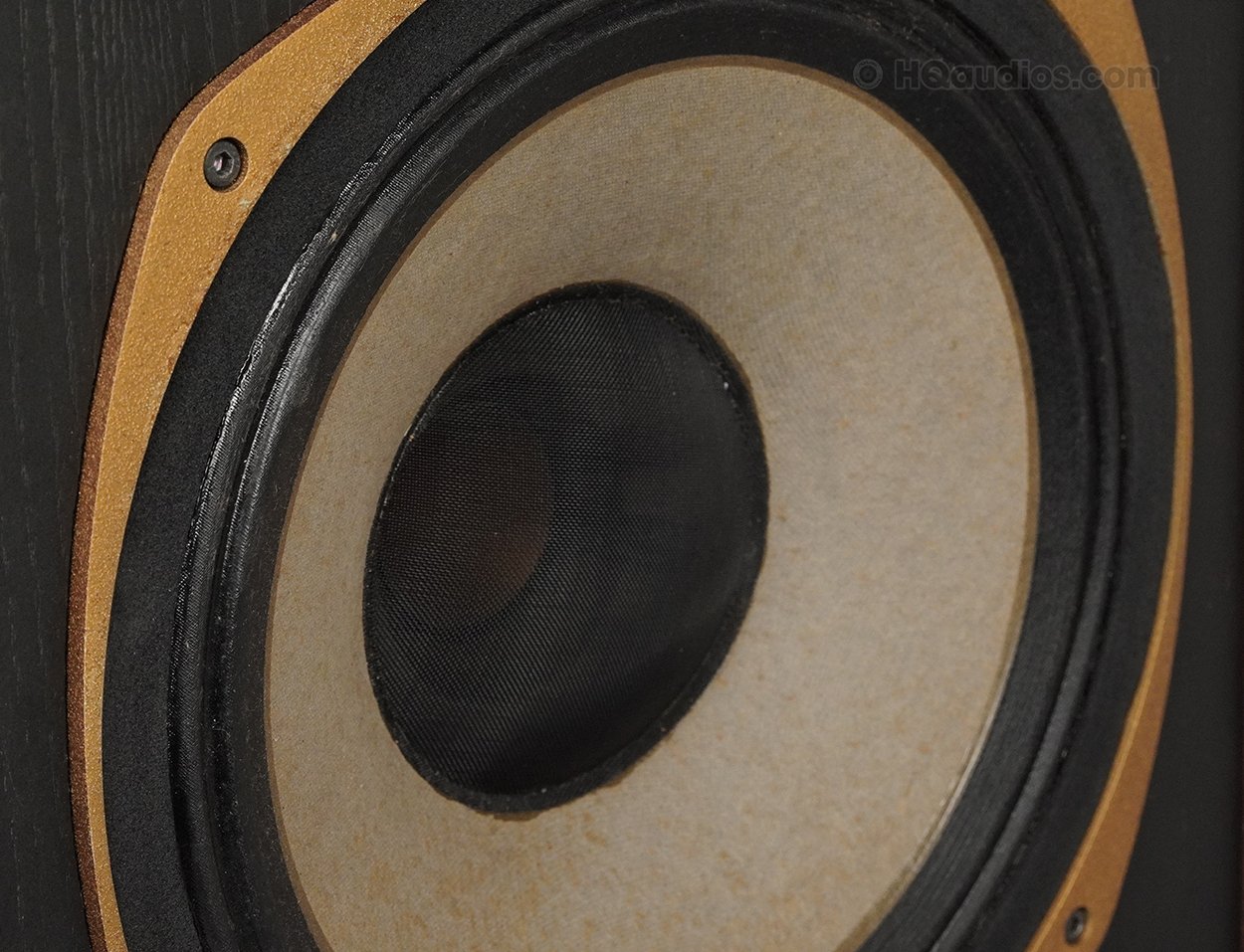

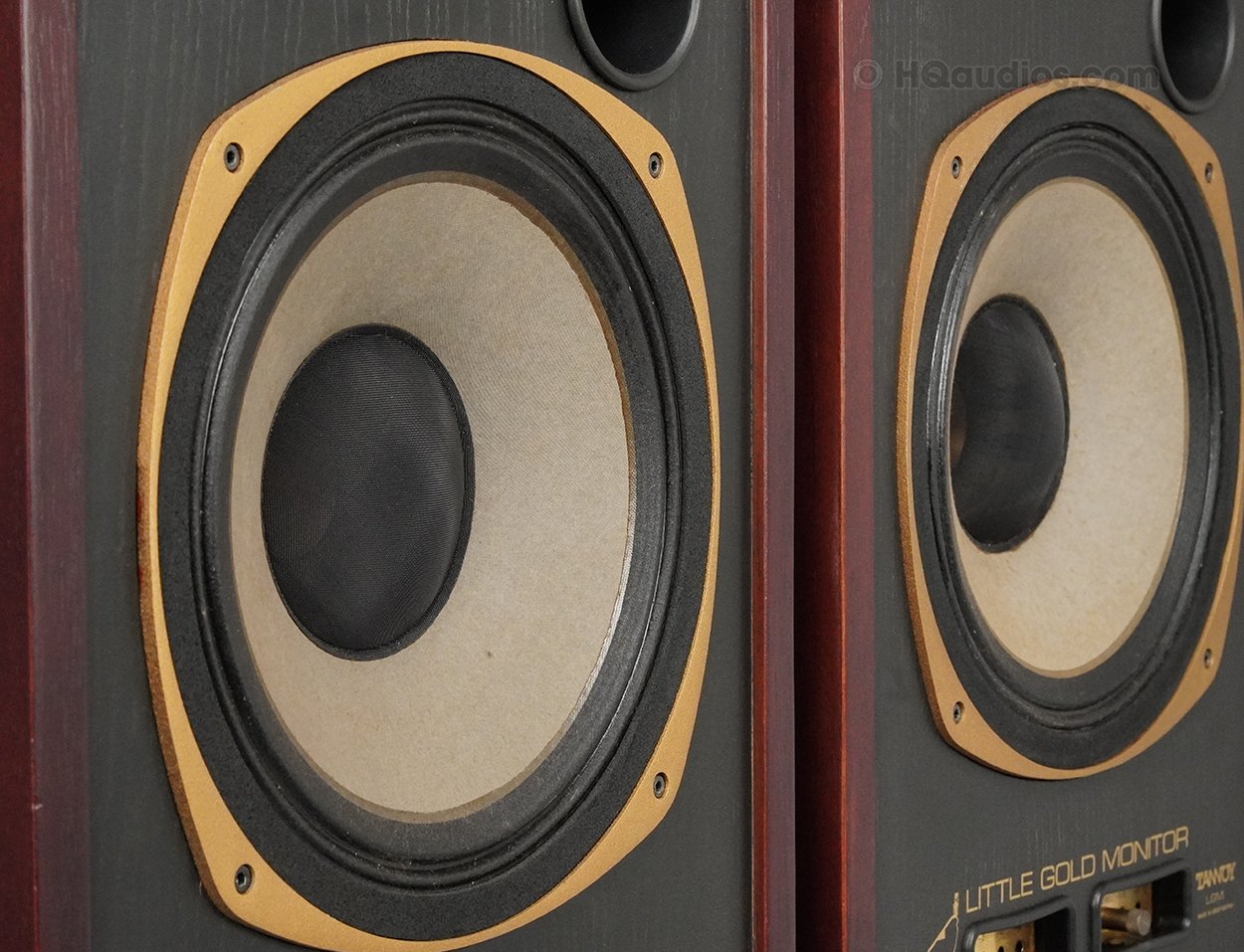

Driver Assemblies: We examined the 12-inch driver assemblies, visible diaphragm surfaces, suspension components, and electrical connections.
Crossover Networks: We inspected the crossover assemblies and evaluated their components, with particular attention to capacitors susceptible to age-related deterioration.
Capacitor Evaluation: We examined capacitor values against their nominal ratings to identify components with capacitance deviations beyond the established service tolerance.
Internal Wiring & Terminals: We inspected wiring paths, connection points, solder joints, and external speaker terminals.

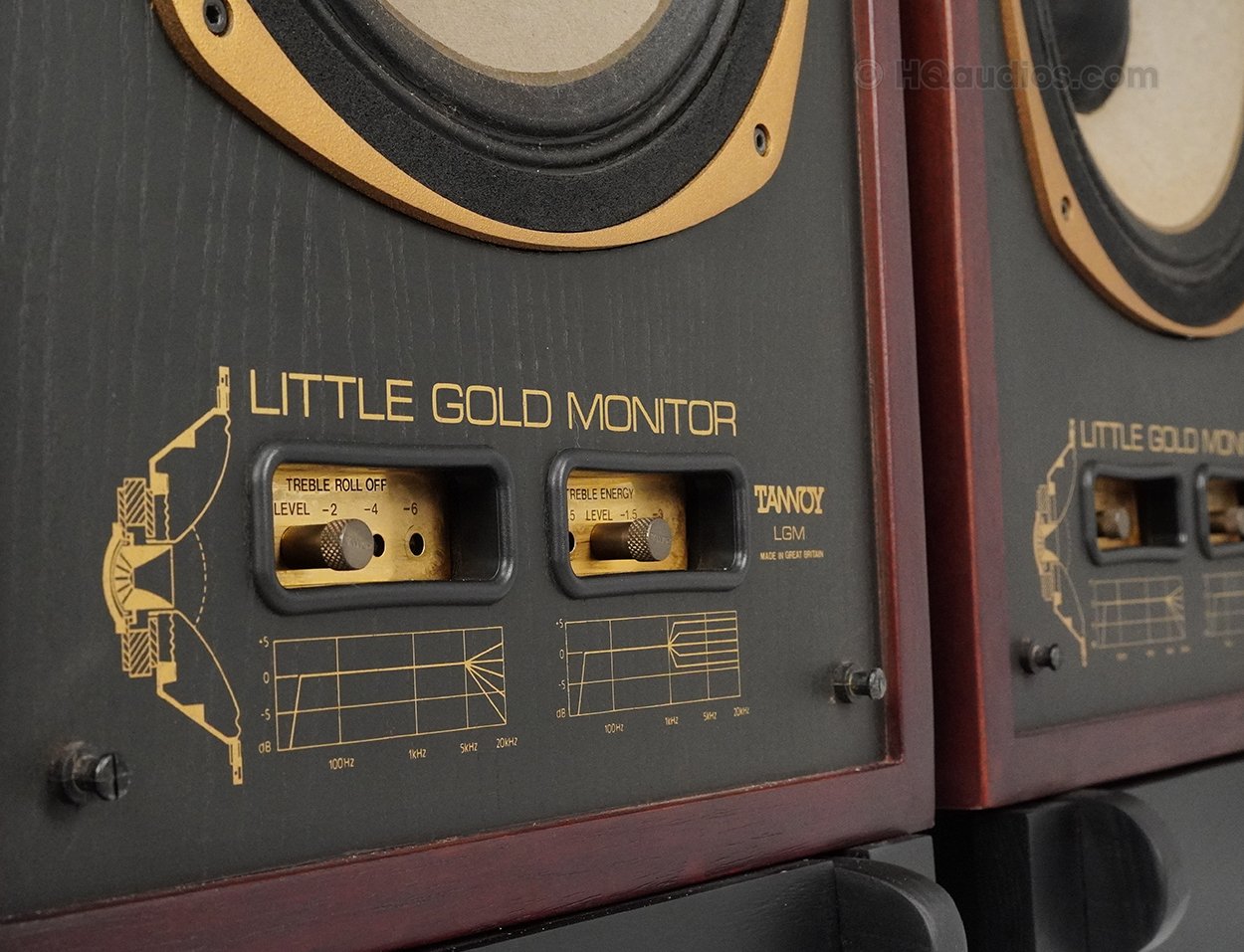

Cabinets & Grilles: We examined cabinet surfaces, mounting areas, exterior hardware, and grille assemblies as part of the initial maintenance inspection.
During Restoration
We carried out service and maintenance work on the speaker pair, focusing on the driver assemblies, electrical integrity, crossover component condition, and exterior presentation.

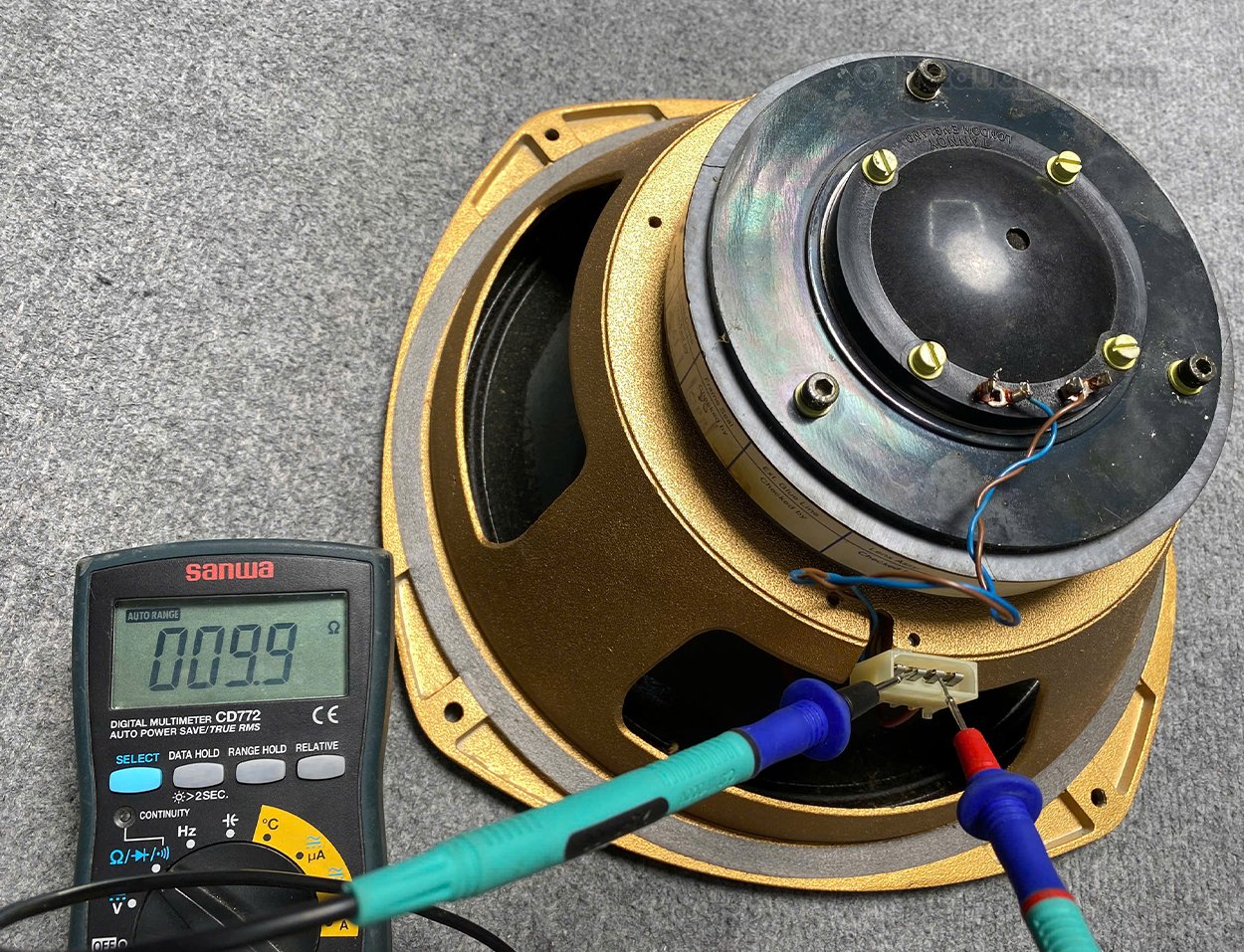

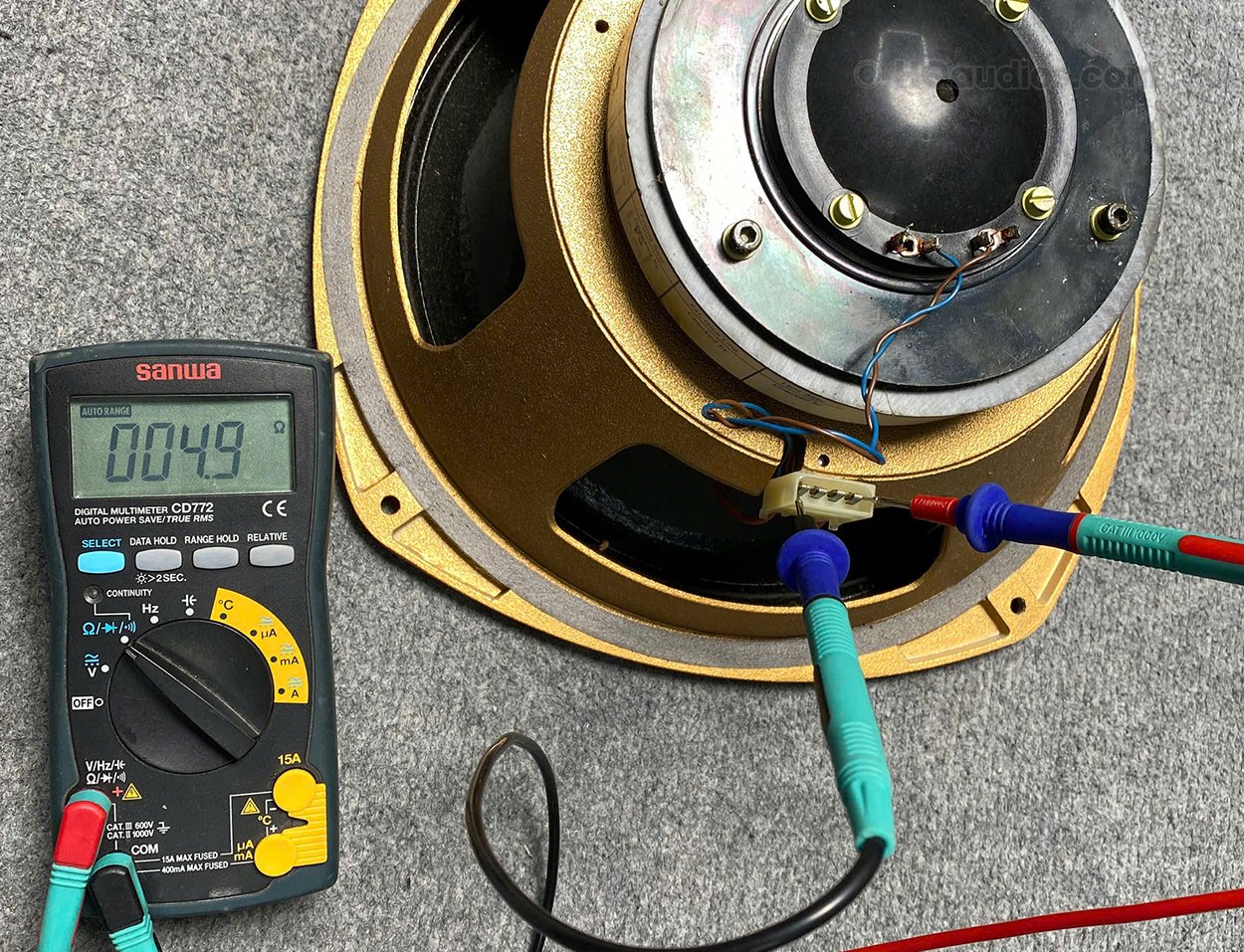

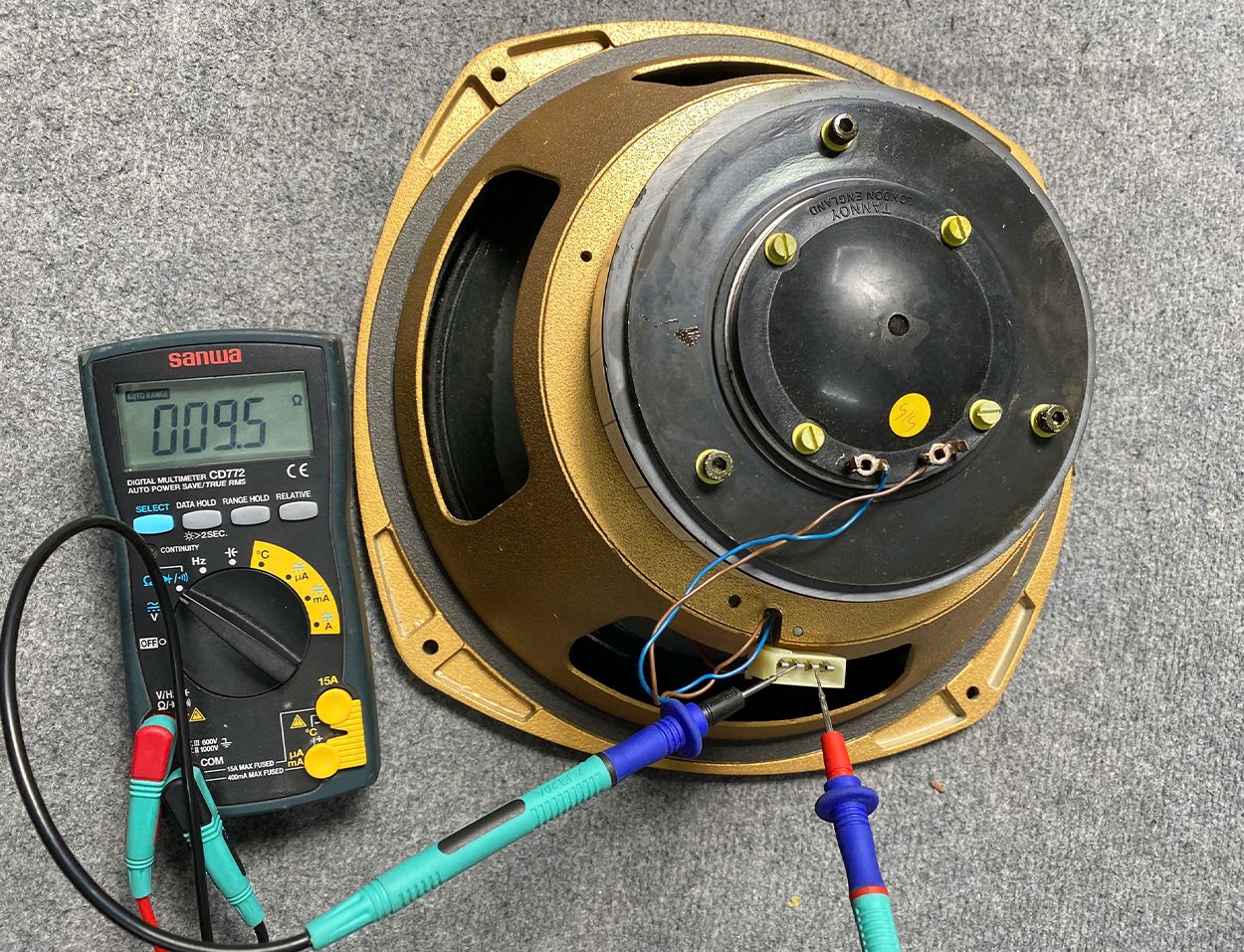

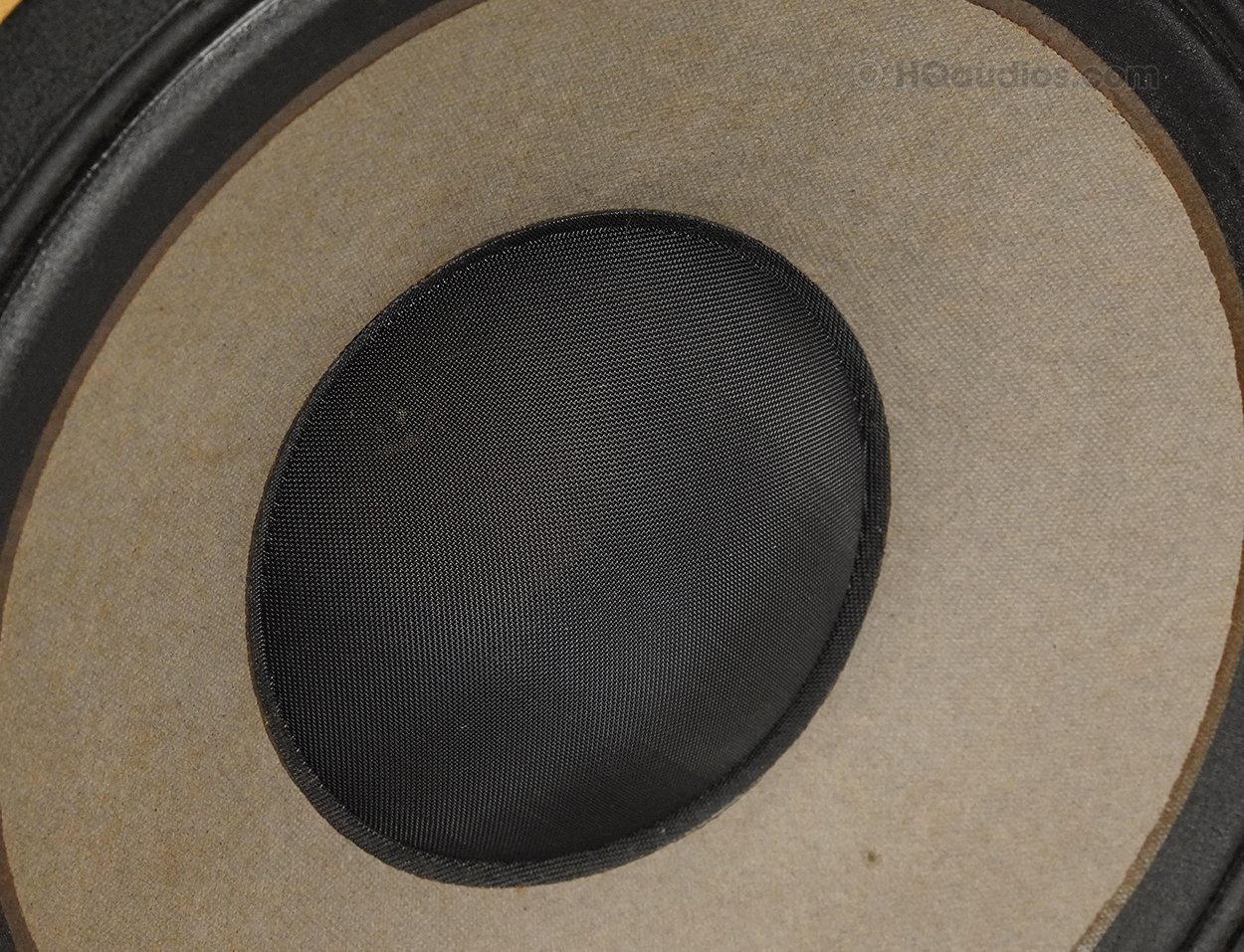

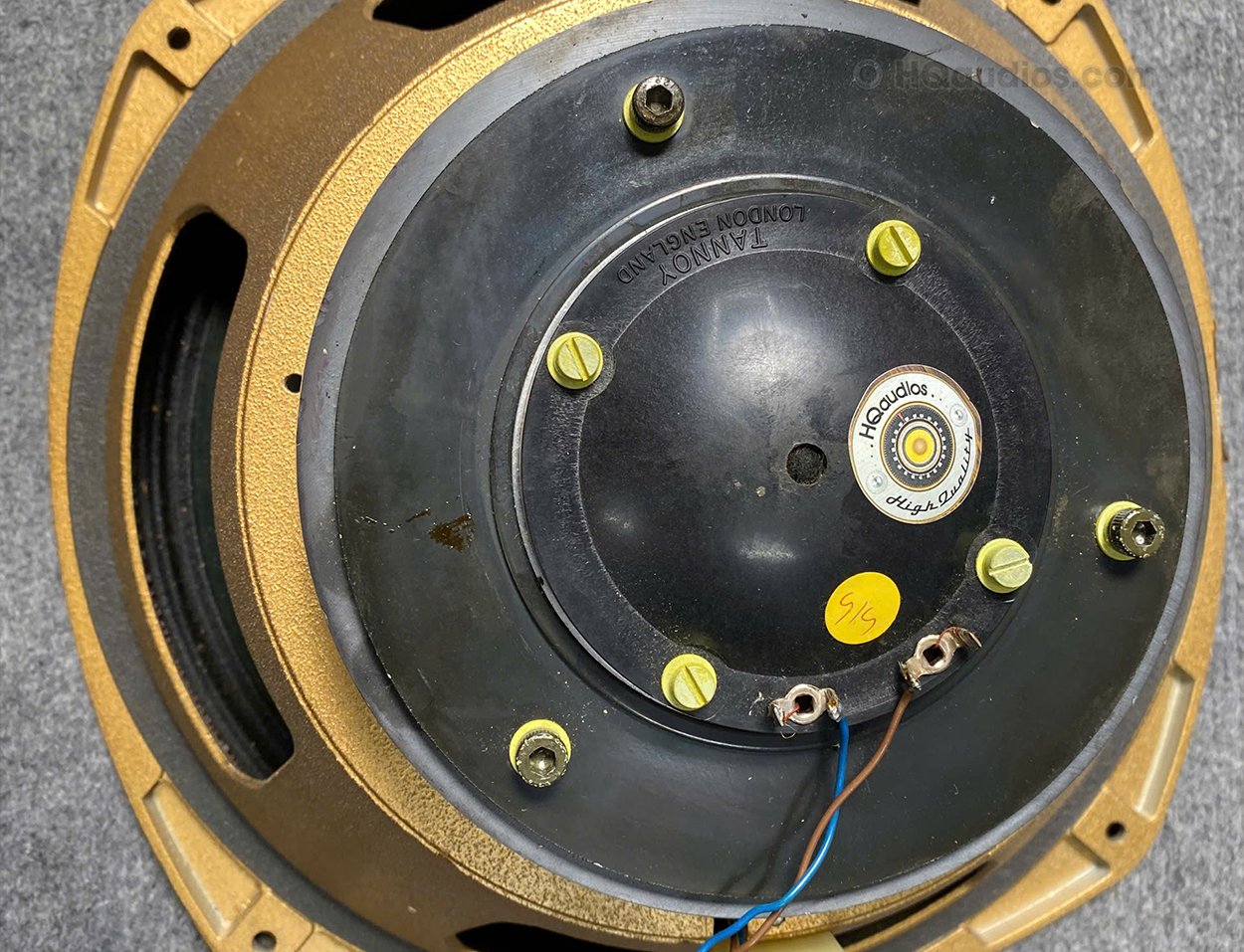

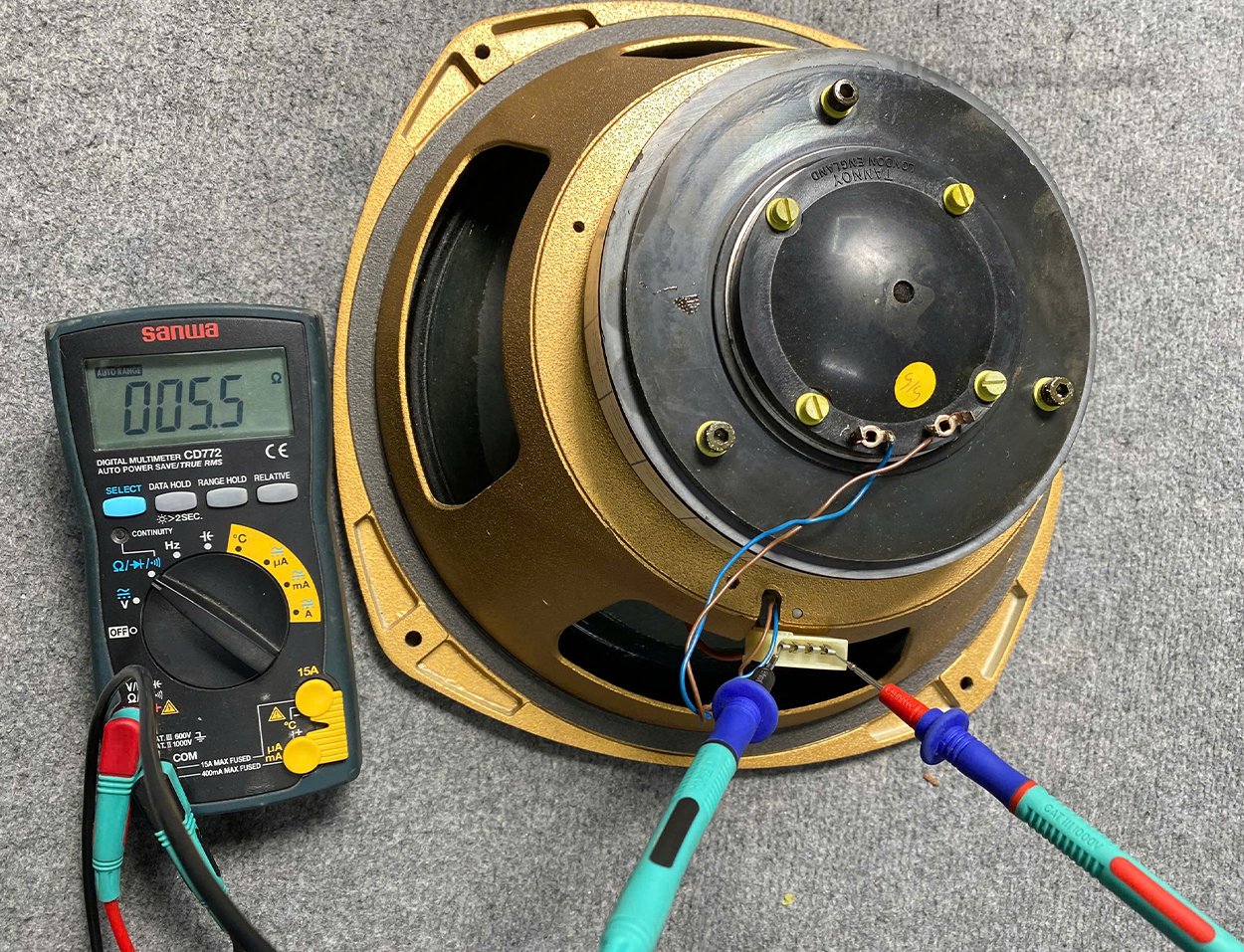

Dual Concentric Driver Inspection & Service: We inspected and cleaned the driver assemblies, examined their visible diaphragms and suspension components, and reviewed the associated electrical connection points.
Crossover Network Inspection: We inspected the crossover networks in both speakers, including capacitors, resistors, inductors, electrical connections, and solder joints.
Capacitor Measurement & Replacement: We evaluated capacitor values against their nominal capacitance ratings. Capacitors exhibiting age-related capacitance deviation exceeding ±5% were replaced with new components selected for suitable capacitance, voltage ratings, and crossover applications.
Crossover Connection Service: We examined the connections and contact points associated with the crossover networks and serviced the relevant electrical interfaces.
Internal Wiring Inspection: We inspected wiring routes between the crossover assemblies, driver connections, and speaker terminals.

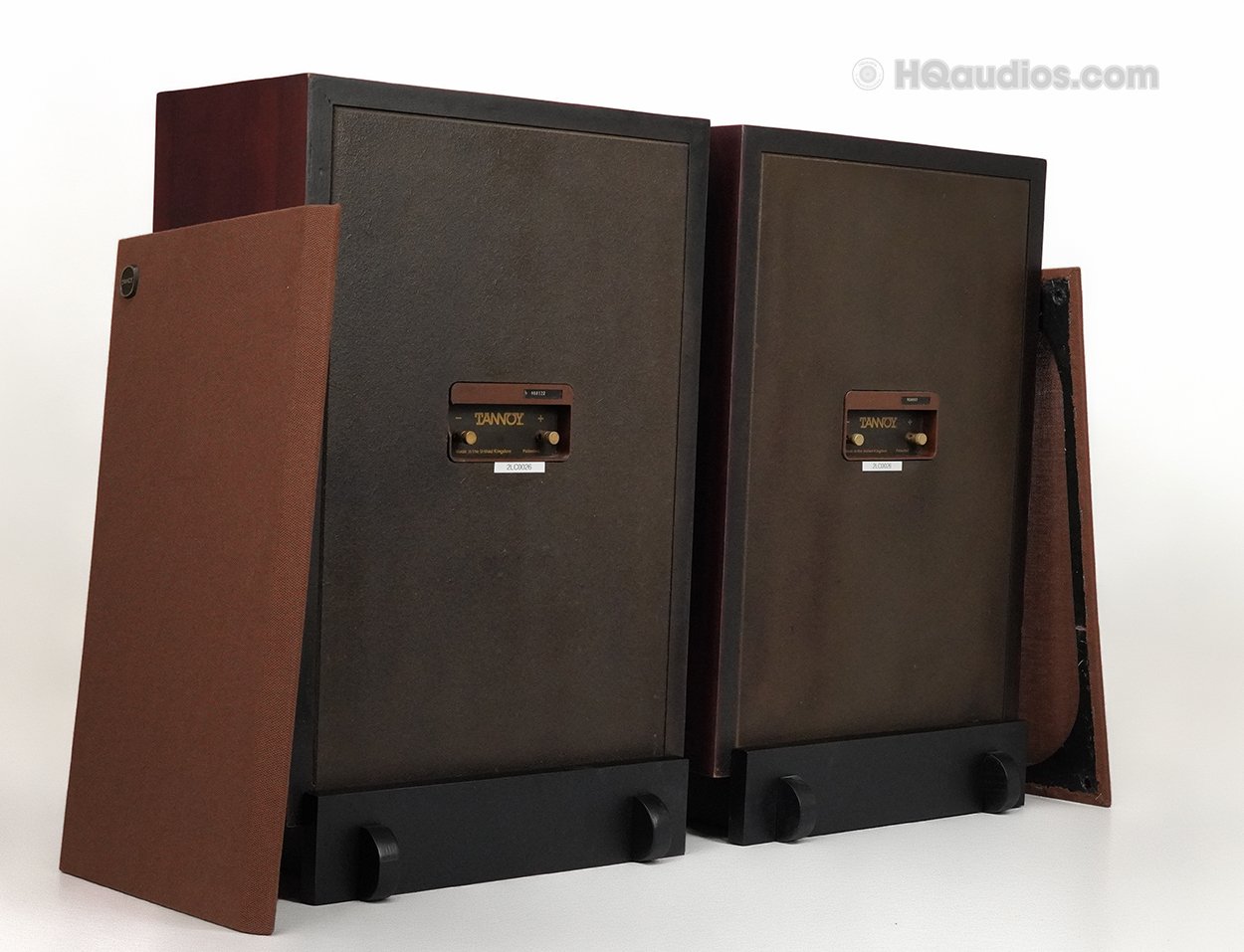

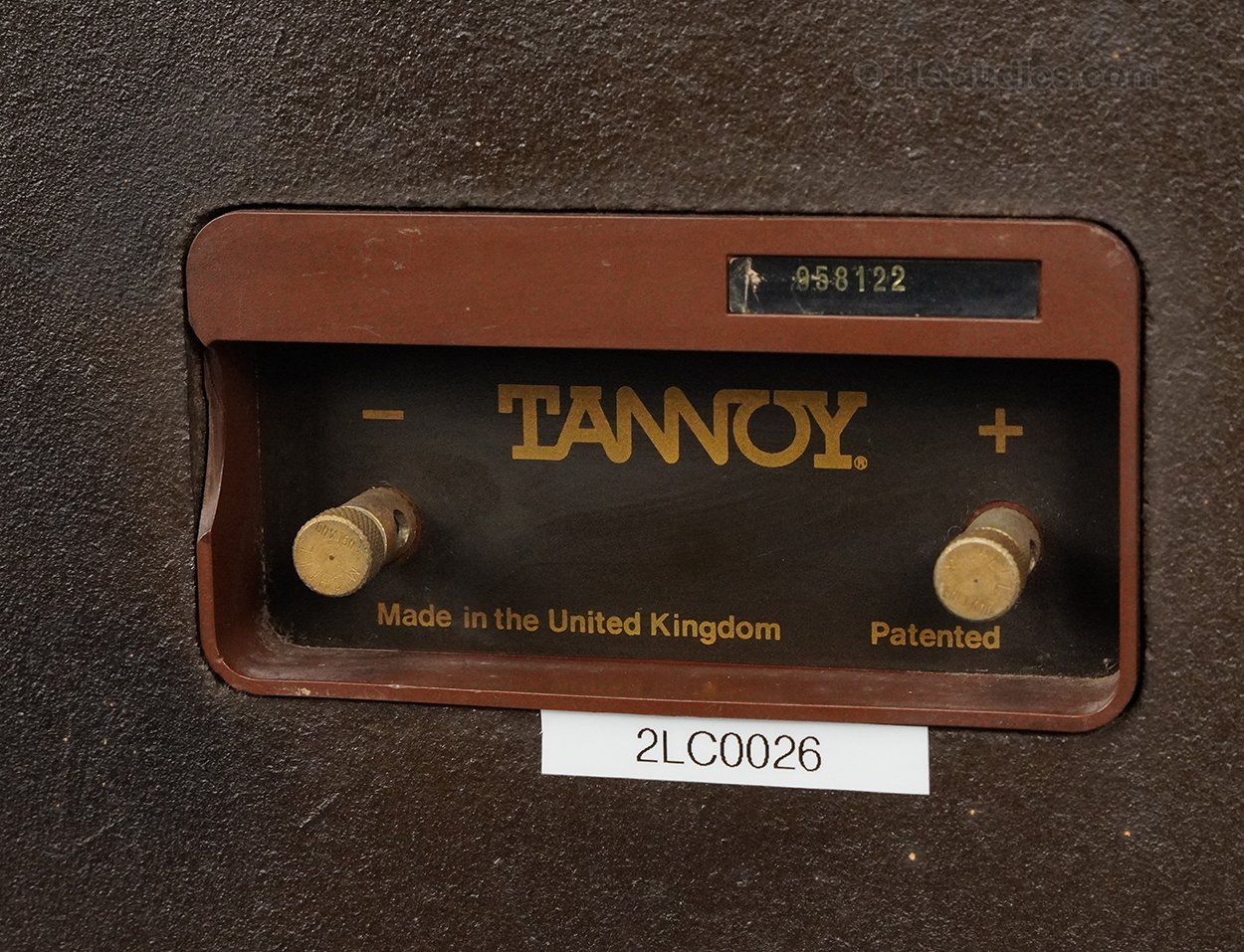

Speaker Terminal Maintenance: We inspected and cleaned the external speaker terminals and their associated connection points.
Cabinet Maintenance: We cleaned the cabinet surfaces and examined driver mounting areas, structural attachment points, and visible exterior hardware.

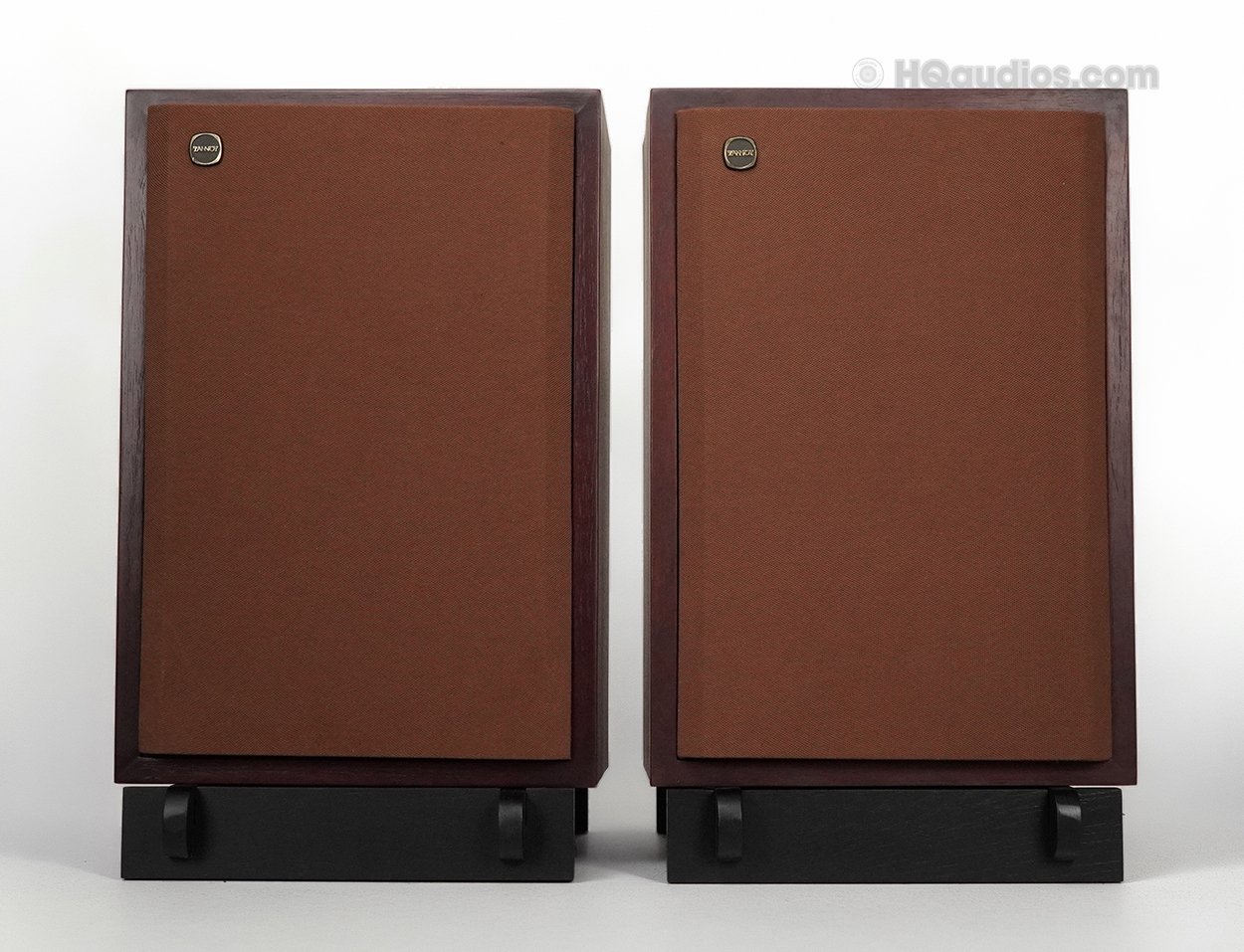

Grille & Exterior Detailing: We cleaned and maintained the grille assemblies and visible exterior components.
Post-Service Assembly Review: We reviewed the serviced assemblies and connection points following the maintenance work.
After Restoration / Final Testing
After servicing, the speaker pair underwent a post-service functional review covering the driver sections, crossover networks, electrical connections, and overall audio operation.
Driver Output: The low- and high-frequency sections were included in the post-service audio evaluation.
Crossover Operation: Both serviced crossover networks were reviewed during functional operation.
Left / Right Comparison: Both speakers were included in a stereo-pair listening comparison.
Speaker Connections: Terminal contacts and internal connection integrity were reviewed following service.
Mechanical Review: The driver mounting areas, cabinet components, and grille assemblies were examined after maintenance.
Music Playback Evaluation: The speaker pair was included in a post-service music playback evaluation of overall loudspeaker operation.
