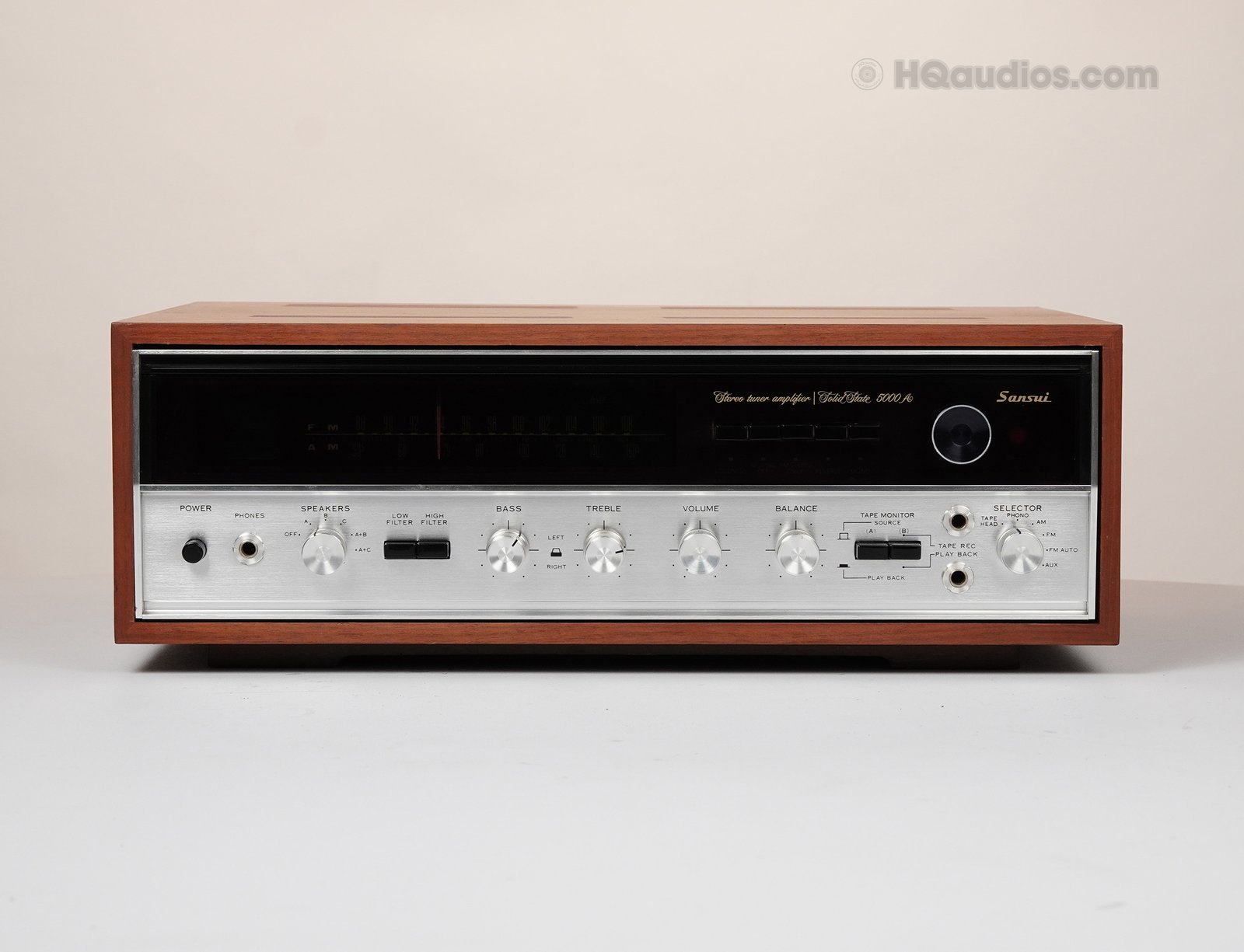

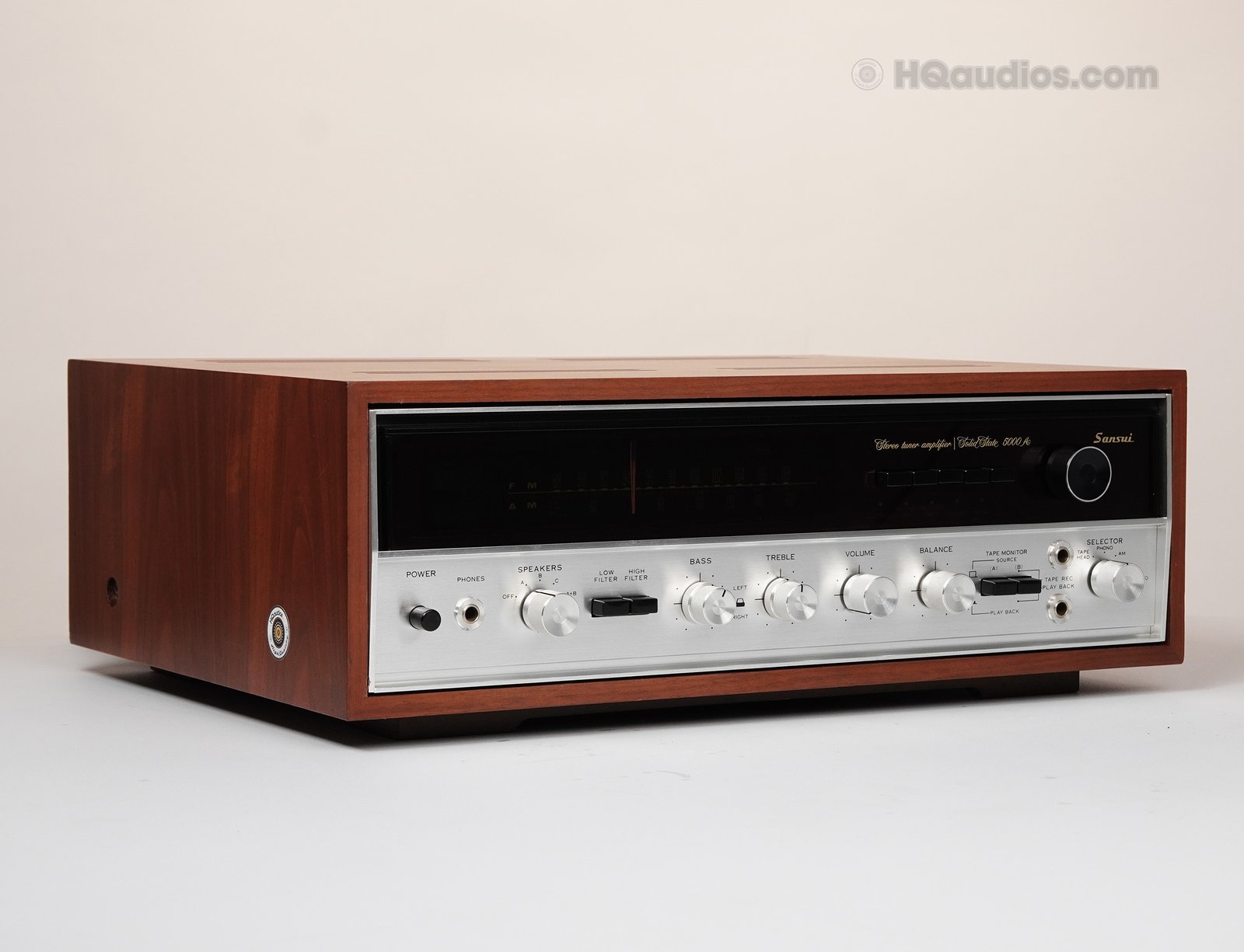

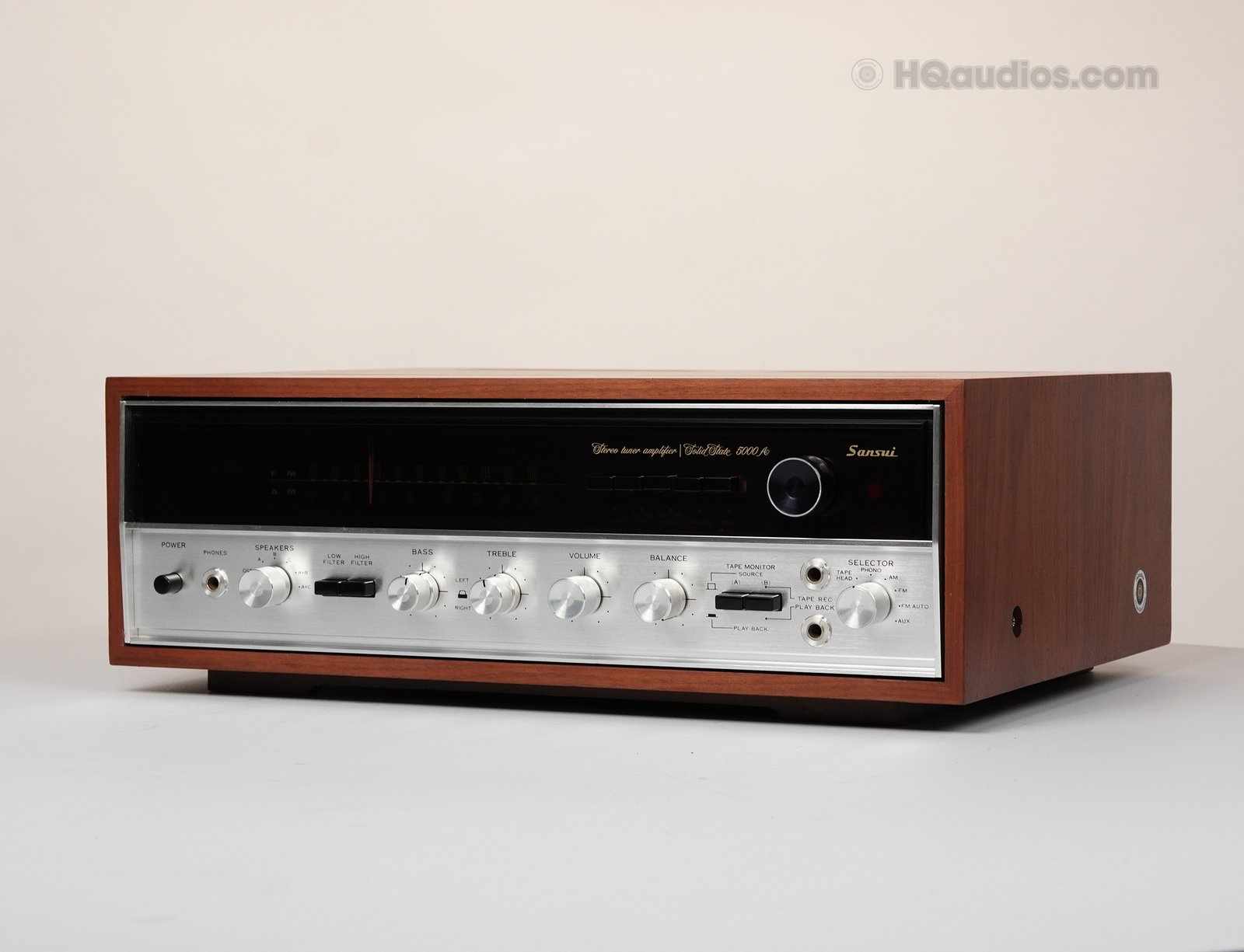

SANSUI 5000A VINTAGE STEREO RECEIVER

The Sansui 5000A is a highly regarded vintage AM/FM stereo tuner amplifier from Sansui’s late-1960s golden era, well known for its rich midrange tone, natural musicality, and classic discrete analog engineering. With 55 watts per channel into 8 ohms, the 5000A provides ample power and delivers a warm, engaging sound that enhances vocals, jazz, acoustic, and classic rock, while still offering enough drive for modern speakers.

This model is especially loved for its ability to play loud with control, keeping details and warmth intact. It is a perfect match for vintage receivers and powerful integrated amplifiers, delivering energetic and full-bodied sound.

Condition: Excellent – Restored, Serviced, Tested, and Cleaned
Model: Sansui 5000A
Type: AM/FM Stereo Tuner Amplifier
Protection Plan: 1-Year Warranty Included
Free Support: Must be used before requesting return
SKU: 15TUE0061

Customer Service

Once your item arrives, if you have any questions about setup, placement, or system matching, please CONTACT US. We are always happy to help.

TRADE-IN PROGRAM

If you have vintage audio equipment (receivers, speakers, cassette decks, reel-to-reel, etc.) and want to upgrade to the fully serviced Sansui 5000A, don’t hesitate to contact us for the best deal. You only need to pay for the difference between your equipment and ours.

Note: Actual appearance may vary slightly due to lighting and display differences.

SPEC

Type: AM/FM Stereo Tuner Amplifier
Power Output: 55 watts per channel into 8Ω (stereo)
Frequency Response: 20Hz – 30kHz
Total Harmonic Distortion: 0.8%
Damping Factor: 15
Signal-to-Noise Ratio:

• Phono (MM): 65dB

• Line: 70dB
  Channel Separation:

• Phono (MM): 50dB

• Line: 50dB

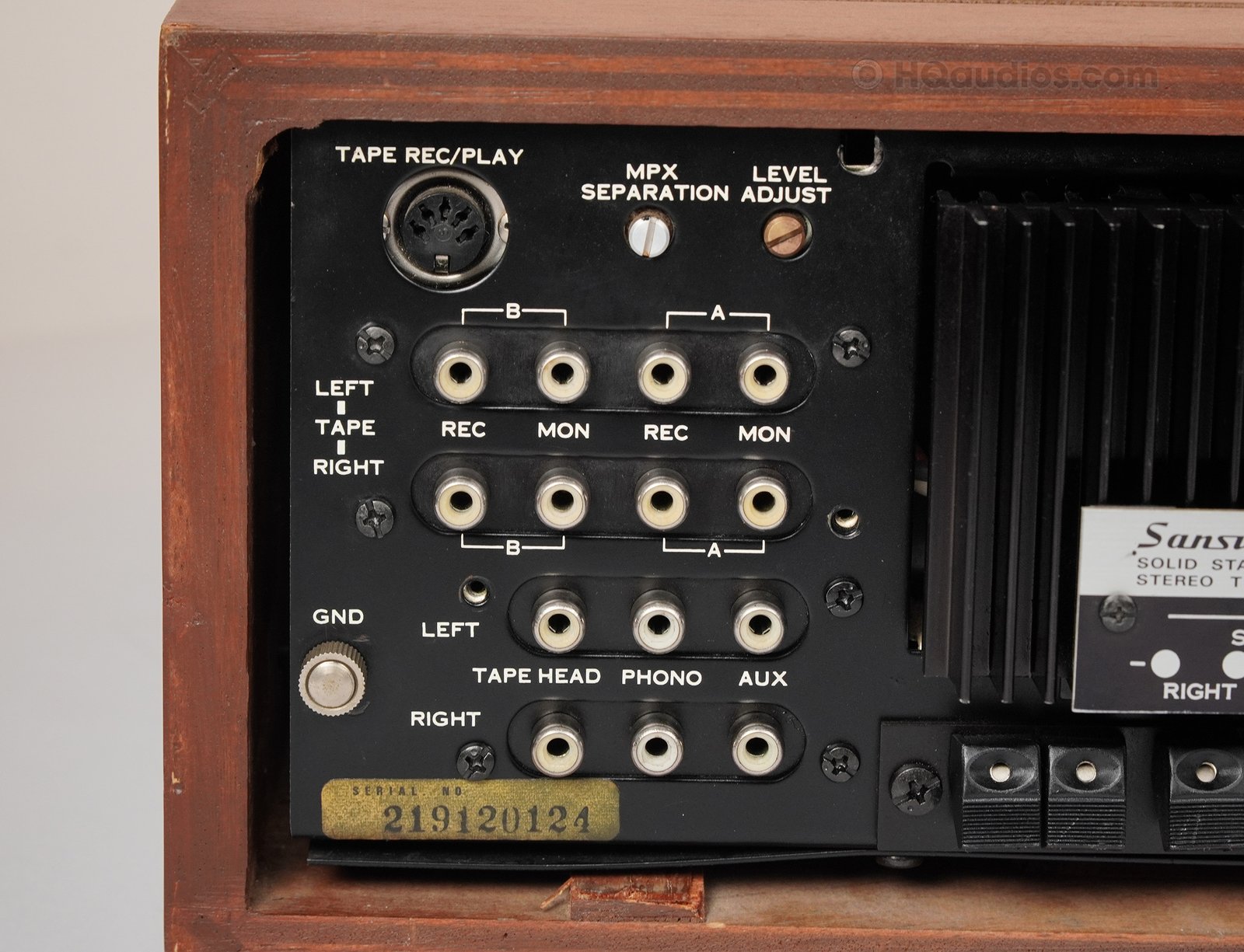

  Input Sensitivity:

• Phono (MM): 2.5mV

• DIN: 200mV

• Line: 150mV
  Output:

• Line: 200mV

• DIN: 40mV

• Pre-Out: 1V
  Speaker Load Impedance: 4Ω to 16Ω
  Semiconductors:

• 52 x transistors

• 3 x FET

• 4 x IC

• 33 x diodes

• 3 x zener diodes
  Dimensions: 17-11/32″ (W) × 4-17/32″ (H) × 14-9/16″ (D)
  Weight: 29.1 lbs
  Year: 1969–1970

KEY FEATURES

• 55WPC Sansui Power – Delivers confident dynamics, rich warmth, and natural musicality for an immersive listening experience.
• FM/MW Tuner Section – Offers stable analog tuning with excellent radio reception, ensuring clear, reliable listening for your favorite stations.
• MM Phono Input – Perfectly designed for vinyl lovers, providing the proper sensitivity (2.5mV) for an authentic analog sound.

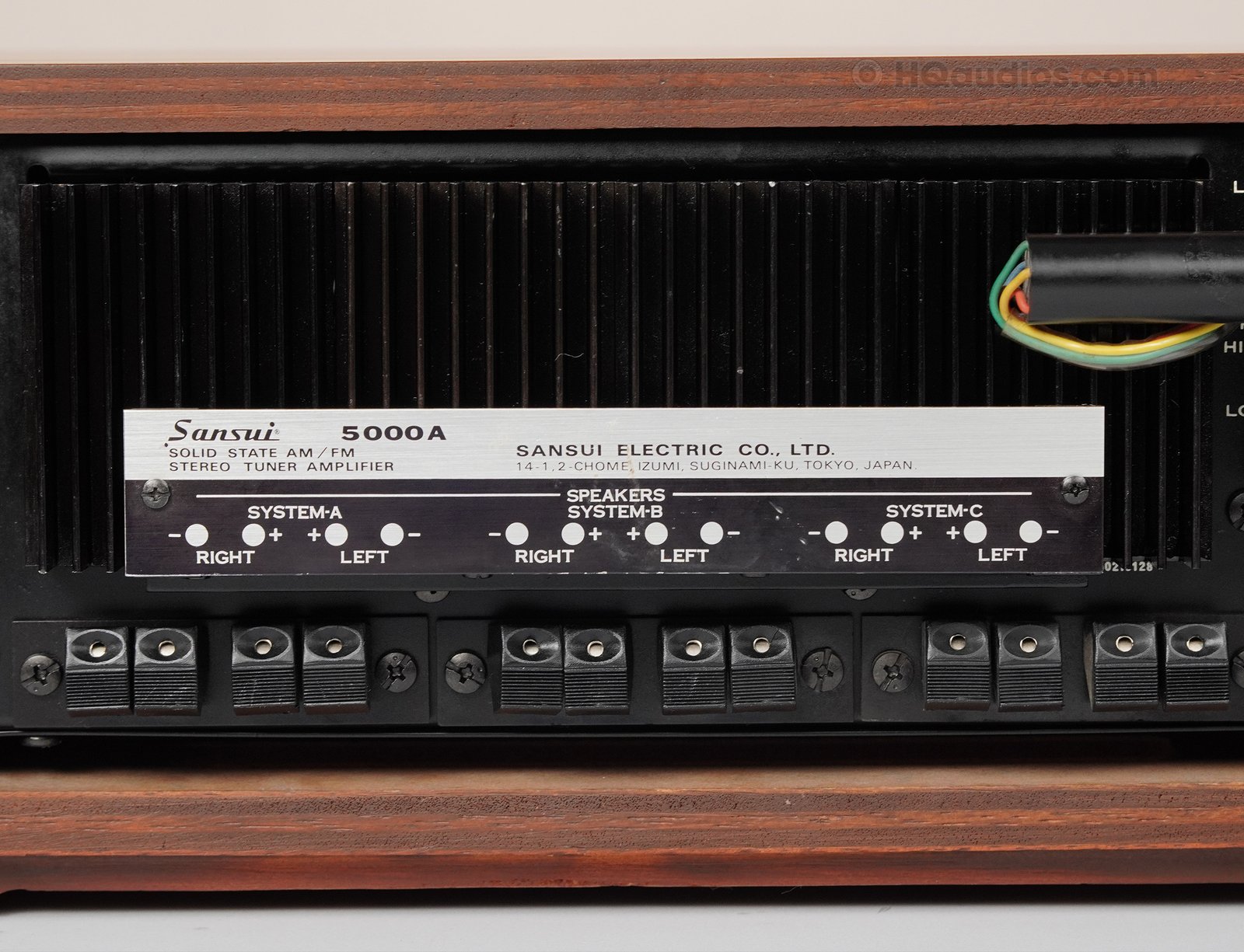

• Wide Speaker Compatibility – Supports 4Ω to 16Ω speaker loads, making it a versatile option for various speaker systems, both vintage and modern.
• Discrete Vintage Engineering – Features robust semiconductor design and serviceable construction, built to last and deliver high-quality audio for years to come.
• Collector-Favorite Era – Representing the peak of late-60s Sansui craftsmanship, this receiver showcases classic analog sound and build quality that audiophiles cherish.

REFURBISHED

Electronic Service & Repair

• Full Inspection & Professional Service:
  The Sansui 5000A has undergone a comprehensive inspection and professional servicing to address common age-related issues such as noisy controls, intermittent contacts, and performance instability. All components were thoroughly tested and restored, ensuring optimal operation and delivering the legendary sound quality Sansui is known for.
• Component Replacement:
  Several weak or failure-prone components, including critical capacitors and transistors, were replaced with high-quality modern equivalents. This proactive approach prevents future failures and ensures that the receiver operates at peak performance for years to come.

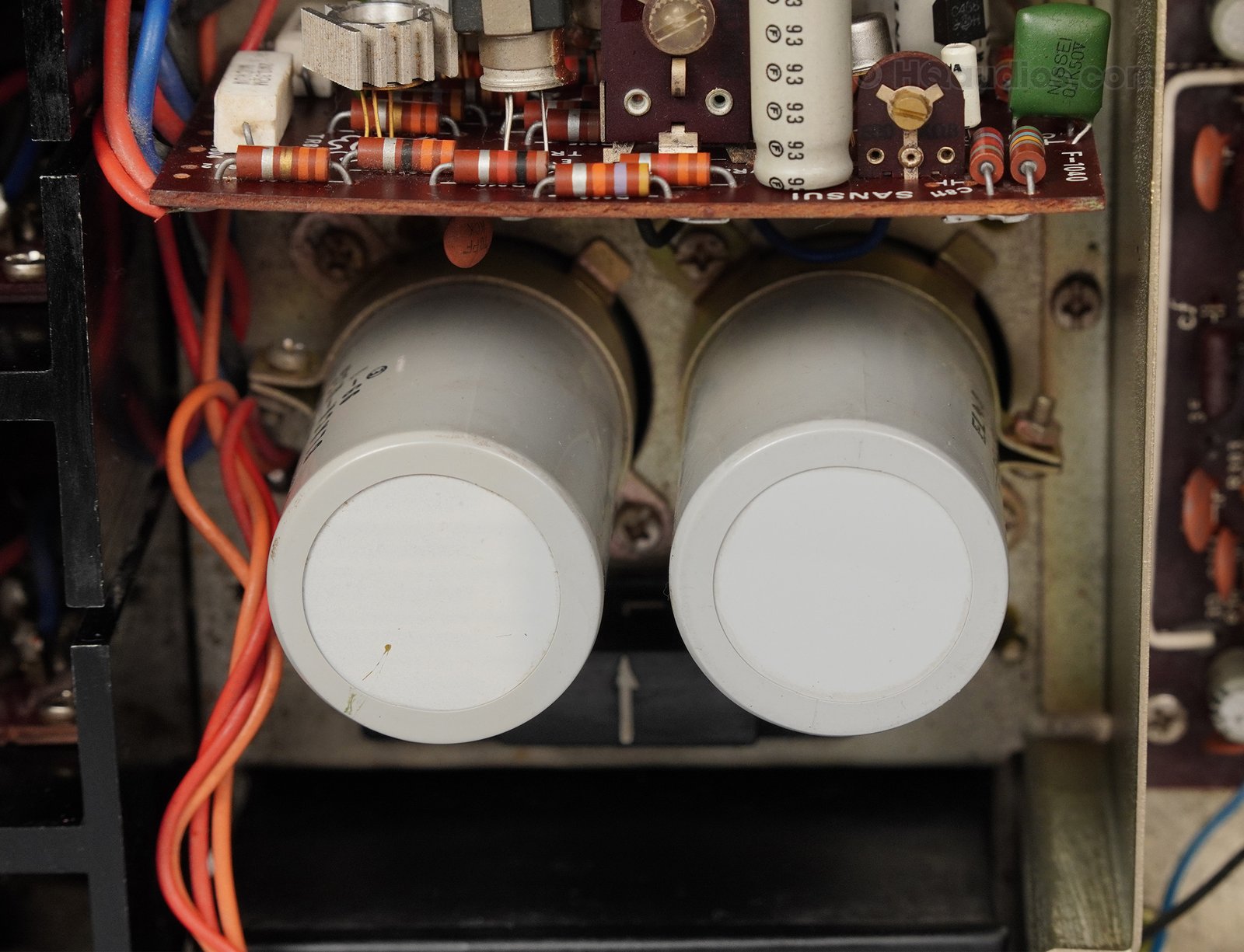

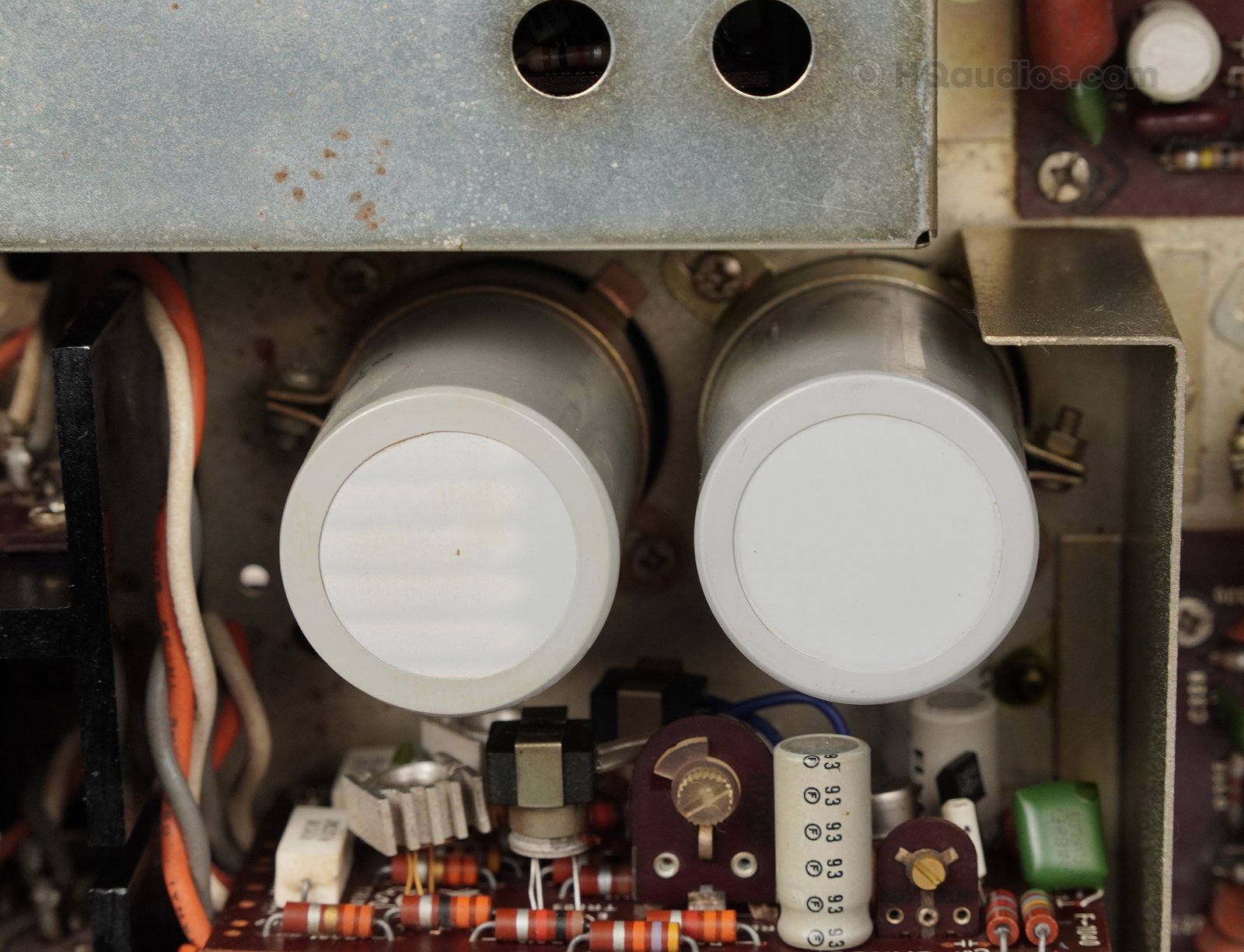

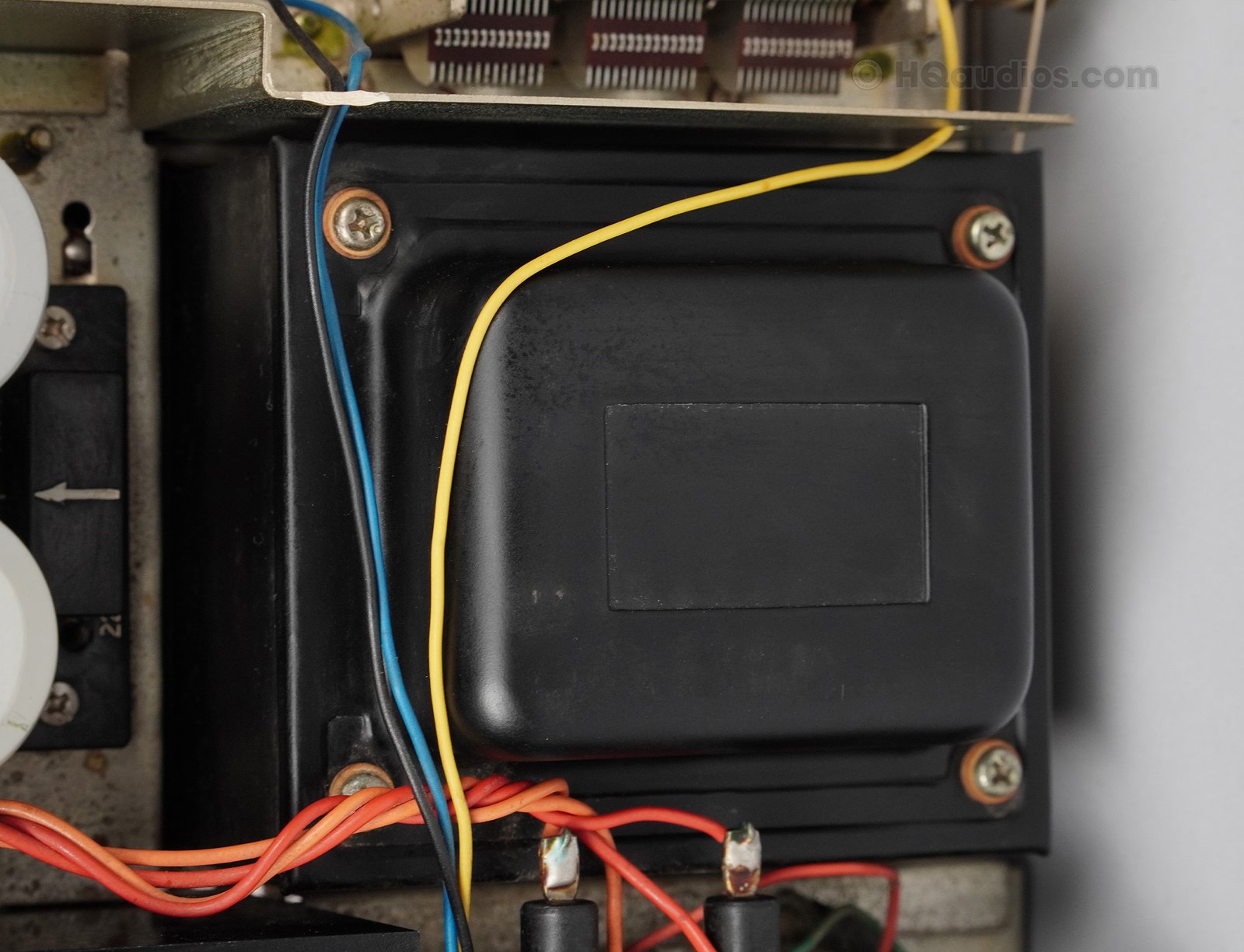

• Power Supply Overhaul:
  The power supply was thoroughly inspected and stabilized to ensure consistent voltage delivery, preventing fluctuations that could affect overall performance. This helps to maintain smooth and reliable operation over long periods of use.
• Signal Path Restoration:
  The signal path was carefully cleaned and optimized to eliminate distortion and maintain clean, detailed sound. The channel balance was restored, resulting in clear, balanced audio with no loss of quality. This ensures the receiver continues to produce the rich, dynamic sound that Sansui enthusiasts love.

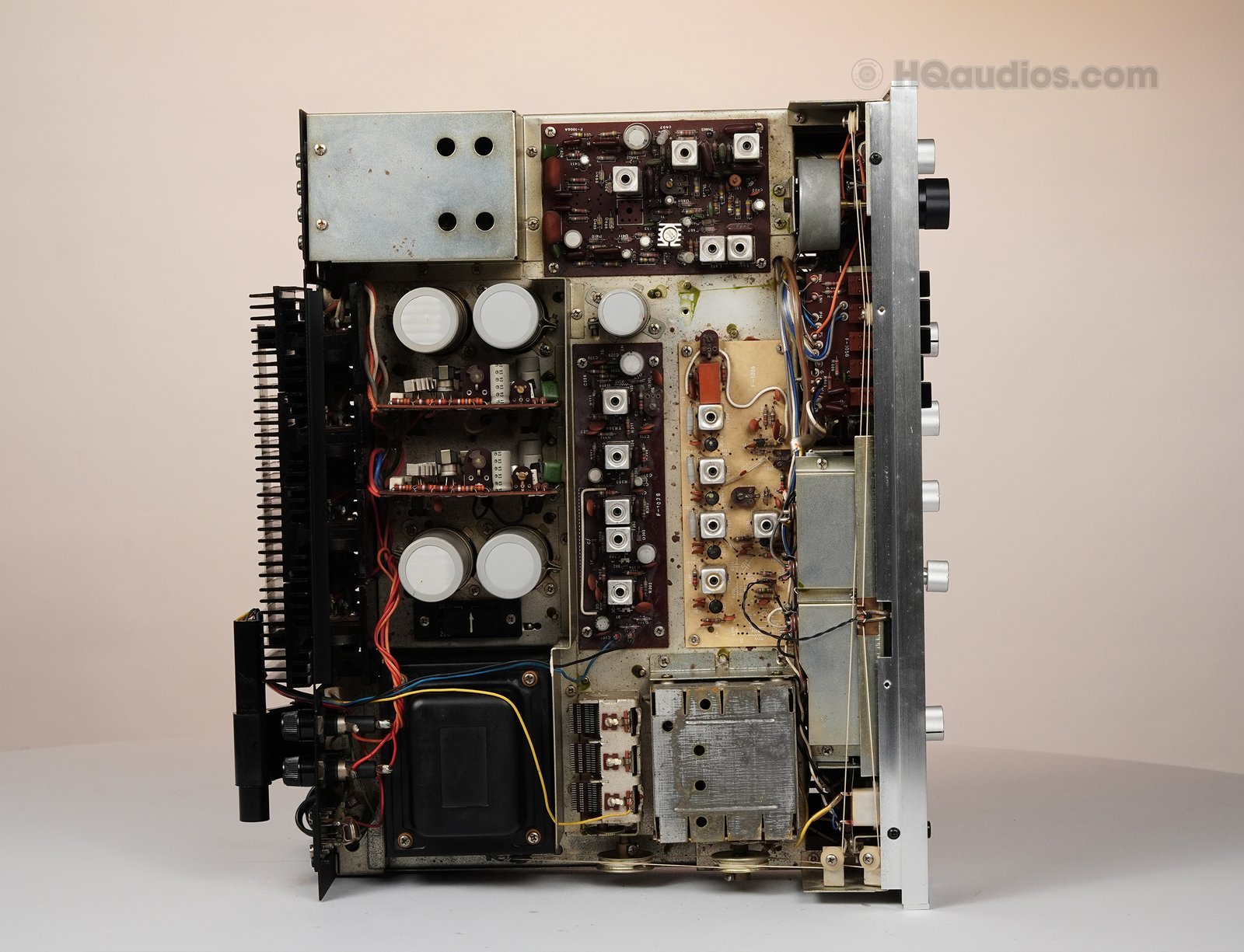

Restored Internal Circuitry

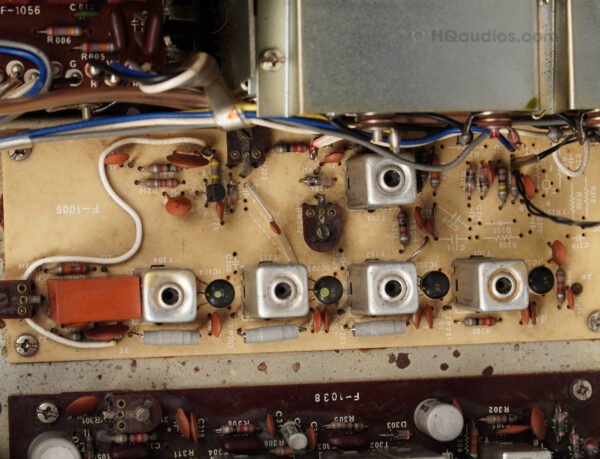

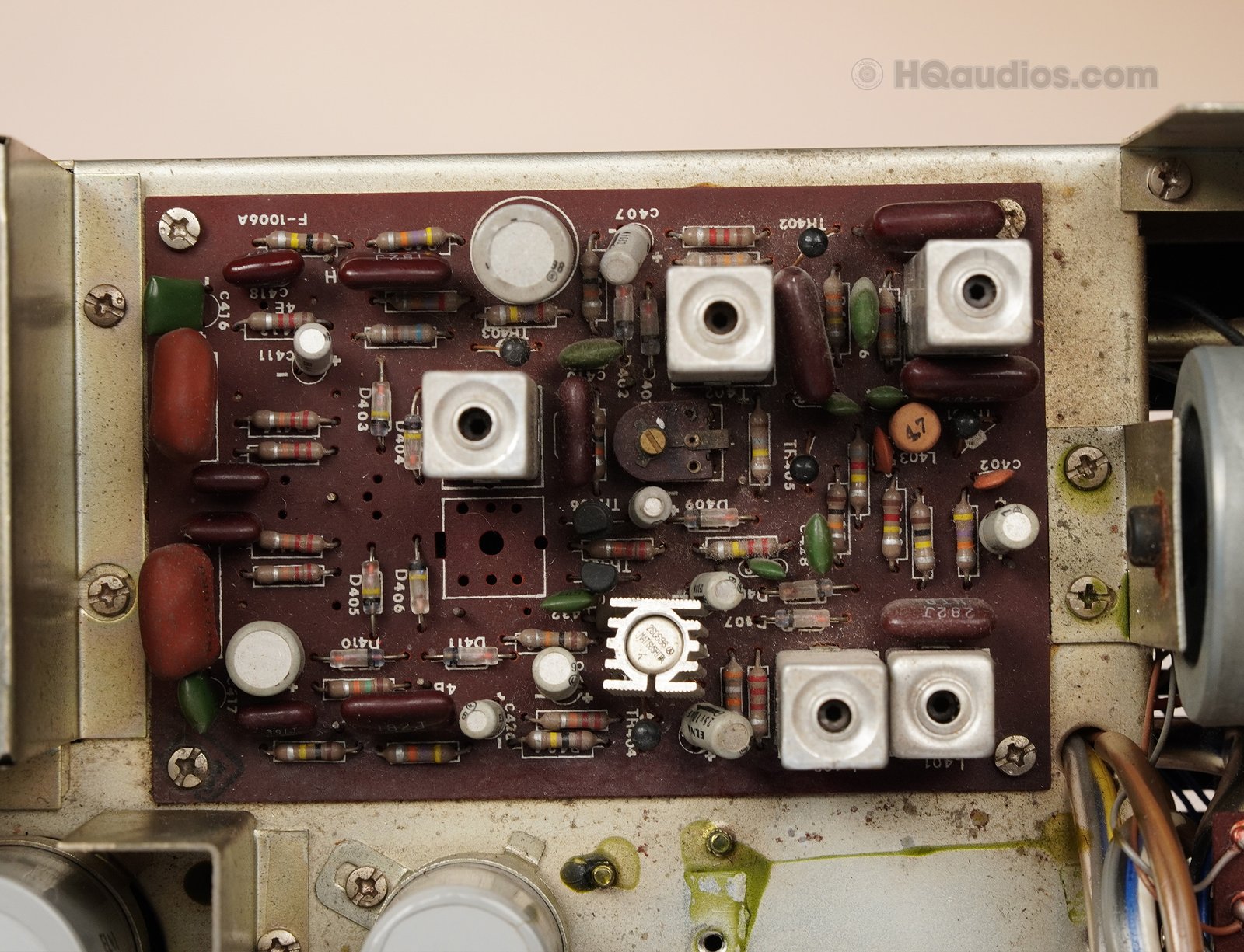

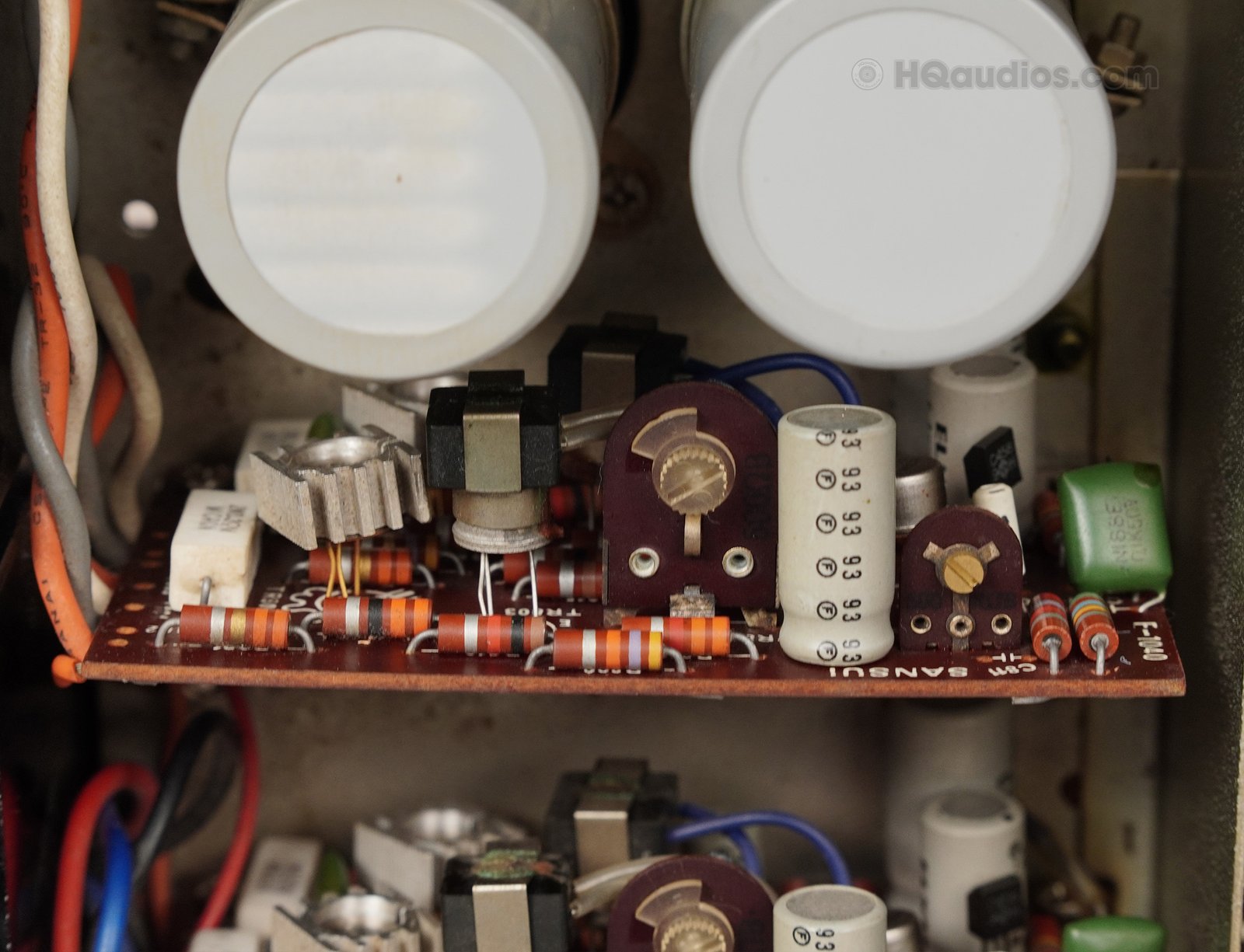

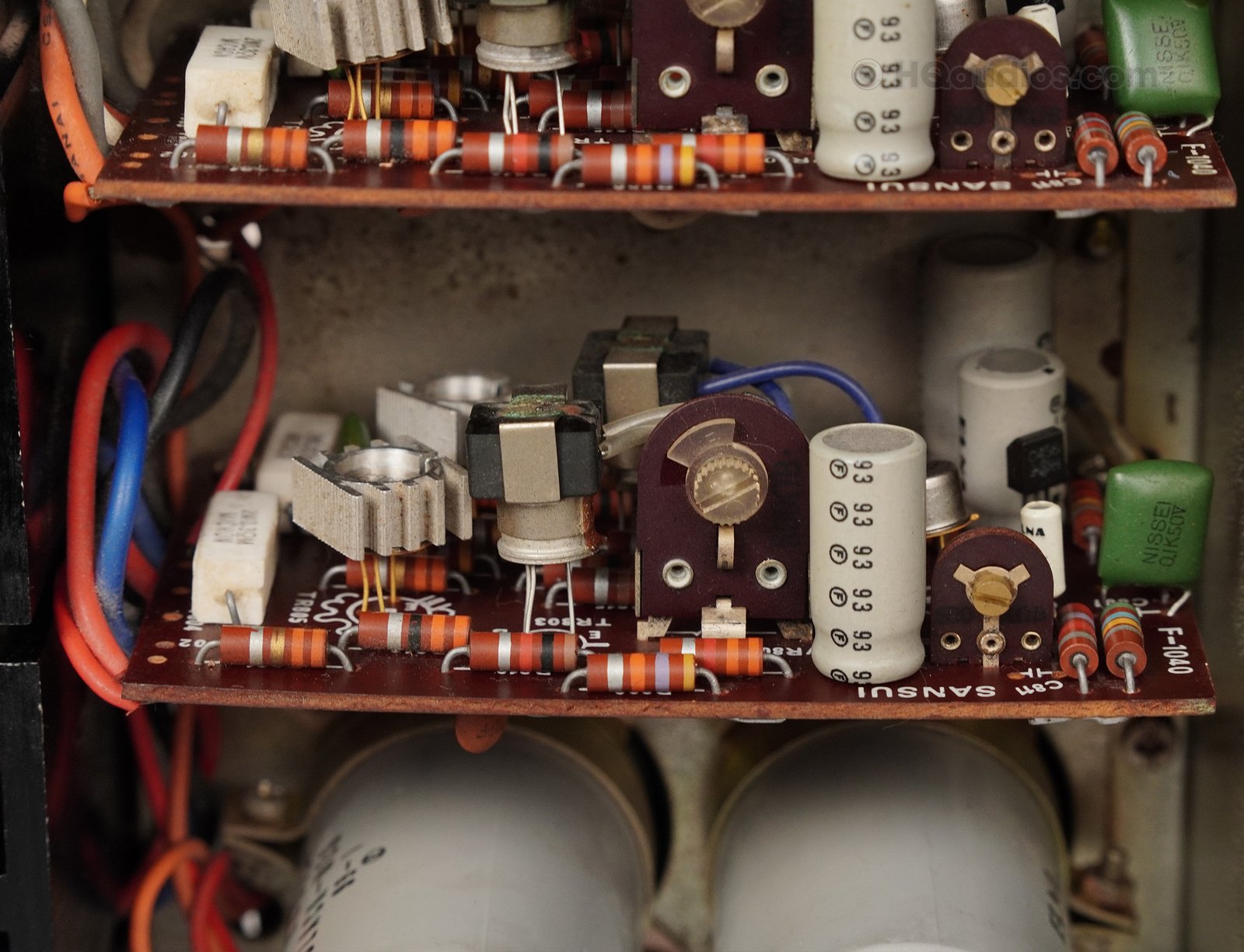

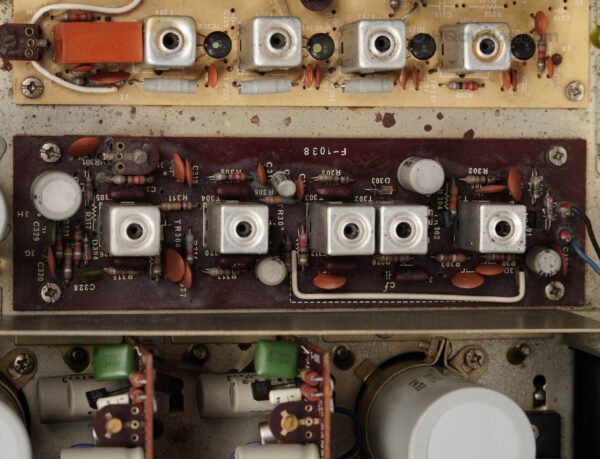

• Restored Circuit Boards:
  The internal circuitry, including key components on the power supply board, amplifier board, and signal path, was restored to factory specifications. These boards were cleaned, repaired, and optimized to ensure the 5000A delivers optimal performance, bringing out the best in both vintage and modern speakers.
• Capacitor & Transistor Replacement:
  Critical capacitors and transistors were replaced to restore signal integrity and prevent distortion or signal loss. This is essential for maintaining the receiver’s classic warmth and analog sound, making sure it continues to deliver a top-tier audio experience.
• Bias and DC Offset Adjustments:
  Bias and DC offset were adjusted to factory settings to ensure optimal performance, prevent overheating, and protect connected speakers from potential damage. These adjustments help the receiver maintain its stability and safe operation during long listening sessions.

Extended Performance Testing

• Waveform & Performance Testing:
  After servicing, the receiver underwent rigorous bench testing, confirming that it produces clean, stable output with balanced channels. The output was checked for distortion, signal quality, and voltage stability, ensuring the receiver is ready for daily operation.
• Input/Output Verification:

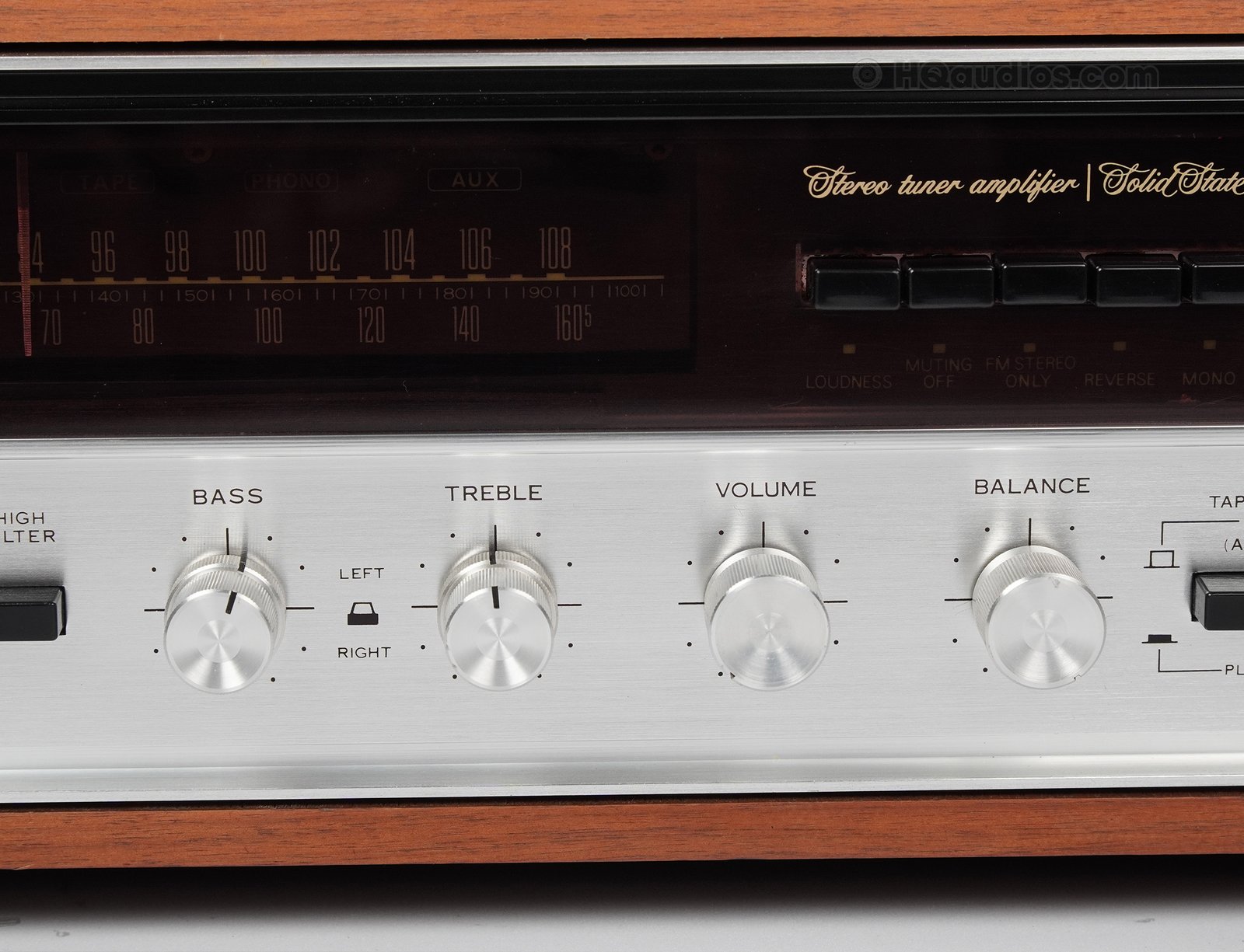

  The inputs and outputs, including volume, balance, tone, filters, and mode selectors, were fully tested to verify that each function operates as it should, ensuring seamless performance across all settings.

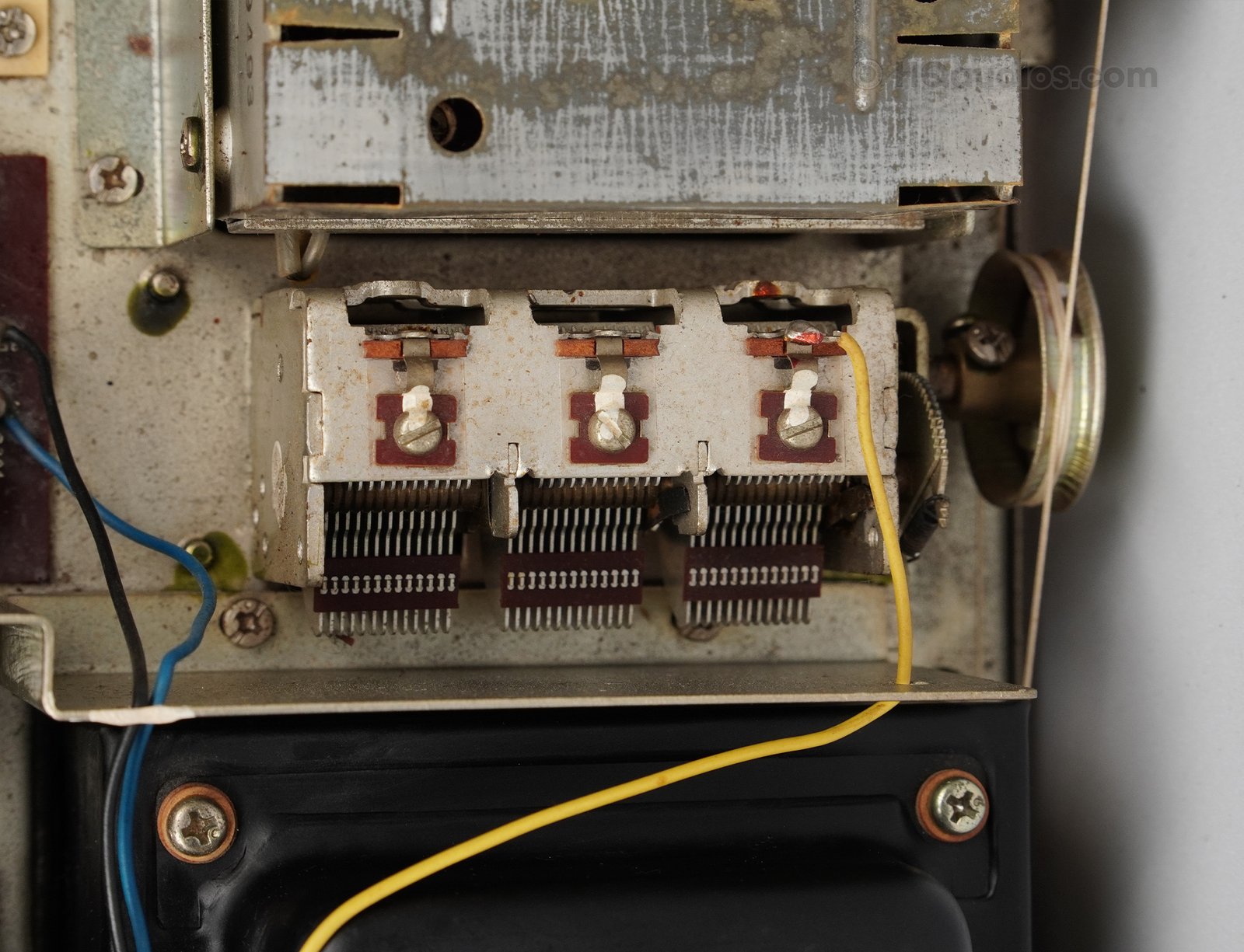

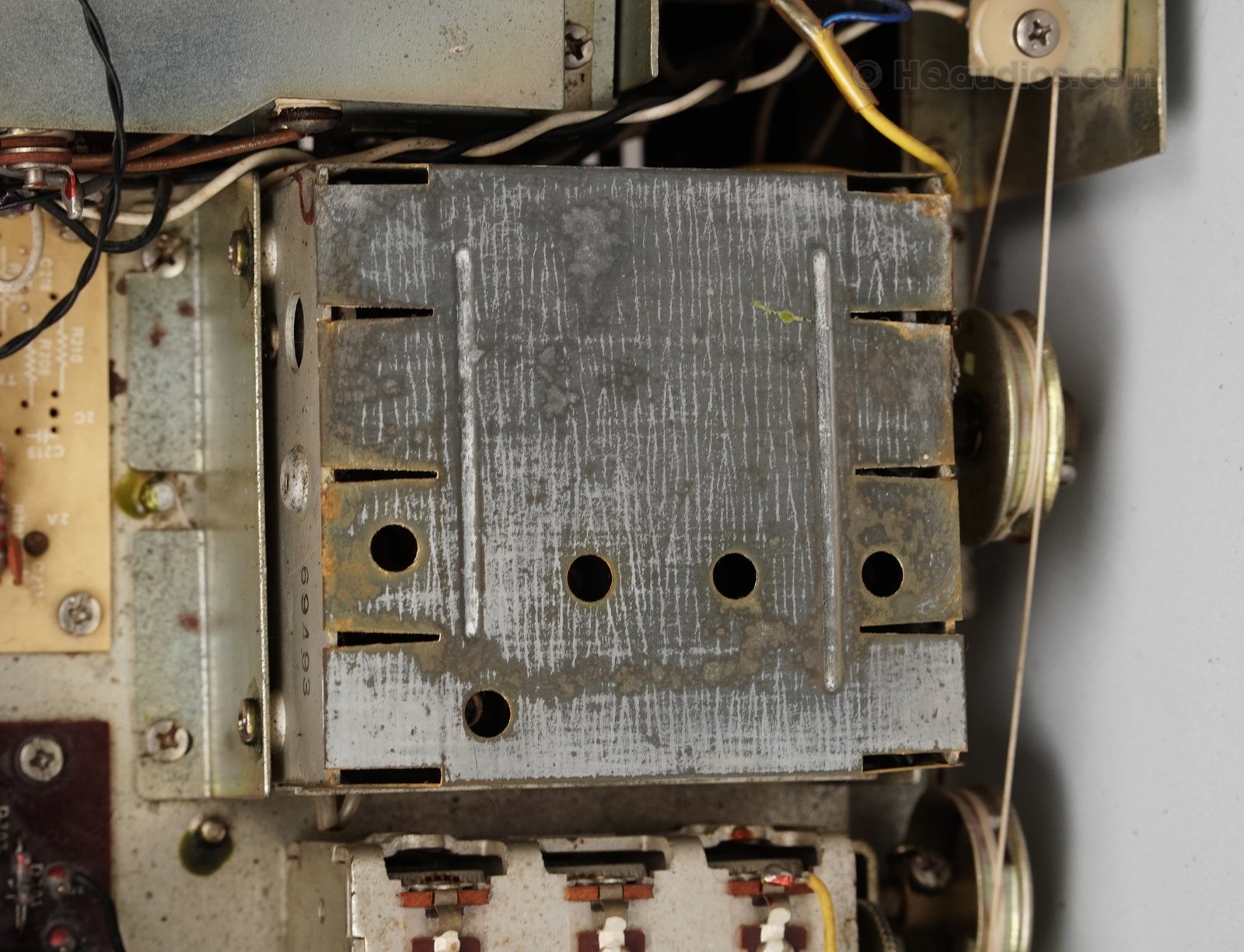

• FM/AM Tuner Testing:
  The FM/AM tuner was thoroughly tested for reliable reception, clear stereo signals, and stable tuning. Whether you’re enjoying vinyl or listening to the radio, the Sansui 5000A guarantees excellent reception and flawless performance.


Lamps Replaced / Serviced

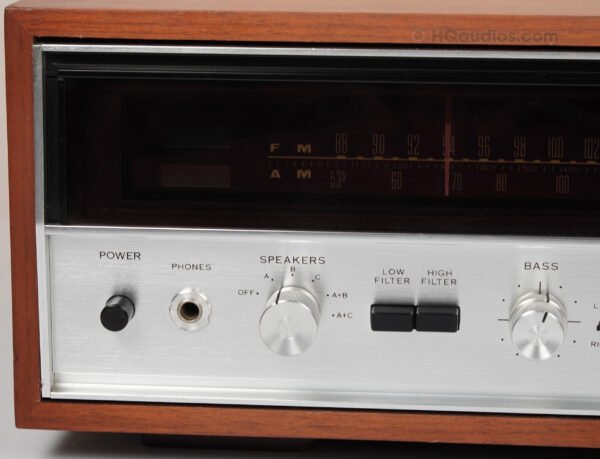

• Dial, Meter & Indicator Lamps:
  All dial, meter, and indicator lamps were inspected and replaced where necessary, ensuring consistent and reliable illumination. This adds to the aesthetic appeal and ensures that the receiver is easy to use, even in low-light environments.
• Dial Window & Diffuser:
  The dial window and diffuser were cleaned and restored to ensure smooth and clear lighting, preserving the classic vintage look that Sansui receivers are known for.


Cleaning & Detail Restoration

• Complete Internal Cleaning:
  The interior was thoroughly cleaned, removing dust and debris to ensure proper airflow and prevent overheating. All circuit boards were cleaned to restore their functionality and prevent long-term issues.
• Controls Treatment:
  All knobs, switches, and selectors were treated with DeoxIT to reduce noise and prevent intermittent contact, ensuring smooth operation and extending the life of the controls.
• Exterior Cleaning & Polishing:
  The exterior was carefully cleaned and polished, including the faceplate and knobs. Any wear or tarnish was removed to restore the original luster and enhance the receiver’s vintage aesthetic.
• Connectors & Inputs Cleaning:
  All connectors and inputs were thoroughly cleaned and inspected to ensure secure, stable connections, providing optimal performance.


Extended Testing After Restoration:
After the restoration process, the Sansui 5000A was tested under load for several hours to ensure long-term reliability. The receiver performed flawlessly during extended listening sessions, maintaining stability without distortion or overheating.

Cosmetically, the wooden cabinet shows minor veneer lifting and light cosmetic wear consistent with age, most noticeable at the corners. These areas have been cleaned, stabilized, and carefully refinished by the HQaudios team to present the unit in the best possible condition. The imperfections are purely cosmetic and do not affect structural integrity or performance.

SUGGESTED PAIRINGS

Speakers:

• JBL L100 / L112
  Ideal for: Rock, Blues, Funk
  These JBL speakers deliver punchy bass and a dynamic midrange, making them perfect for rock and blues. Their ability to produce deep, controlled bass enhances guitar-heavy tracks and lively funk beats, making them an ideal match for the Sansui 5000A‘s rich sound.
• ADS L710 / L810
  Ideal for: Jazz, Classical, Acoustic
  The ADS L710 excels at delivering crystal-clear highs and a well-balanced midrange, making them perfect for genres that require detail and precision such as jazz, classical, and acoustic music. The Sansui 5000A pairs beautifully with these speakers to highlight the natural and balanced tones of acoustic instruments.
• Klipsch Heresy / Heresy II
  Ideal for: Jazz, Blues, Live Recordings
  The Klipsch Heresy series is known for its horn-loaded design that brings bright, vibrant highs and an engaging presence. They are an excellent choice for genres like jazz and blues, where clarity and instrumental detail are crucial. The Sansui 5000A amplifies these features, giving an energetic and lively listening experience.


Turntables:

• Technics SL-1200
  Ideal for: Electronic, Hip-Hop, Dance
  The Technics SL-1200 is renowned for its precision and high-torque playback, making it the perfect turntable for electronic, hip-hop, and dance genres. Paired with the Sansui 5000A, this turntable ensures crisp sound and deep bass, providing excellent playback for intricate beats and samples.
• Pioneer PL-518
  Ideal for: Rock, Pop, Indie
  The Pioneer PL-518 is great for rock, pop, and indie music, offering smooth playback and a warm tone. This turntable brings out the best in vocal and guitar tracks, complementing the Sansui 5000A’s dynamic and balanced performance.
• Dual 1229
  Ideal for: Jazz, Classical, Folk
  The Dual 1229 is perfect for high-fidelity playback, providing an open and detailed soundstage, making it ideal for jazz, classical, and folk music. When paired with the Sansui 5000A, the system delivers a precise, natural tonality that captures the subtle nuances of these genres.


Cassette Decks:

• Pioneer CT-F750
  Ideal for: Rock, Funk, Soul
  The Pioneer CT-F750 offers warm, rich sound that is perfect for rock, funk, and soul music. The combination of its full-bodied vocals and punchy basslines pairs perfectly with the Sansui 5000A, making it a great match for vintage cassette tapes.
• Pioneer CT-F900
  Ideal for: Blues, R&B, Pop
  The Pioneer CT-F900 is known for its high-fidelity playback, offering a detailed sound profile that brings out the richness of blues and R&B. It also works beautifully for pop music, enhancing the dynamics and delivering vibrant sound when paired with the Sansui 5000A.

TEAC A-450
Ideal for: Acoustic, Classical, Jazz
The TEAC A-450 cassette deck is an excellent choice for acoustic, classical, and jazz music, offering clear, precise sound with smooth tape transport. Paired with the Sansui 5000A, it provides a natural and immersive listening experience that brings out the subtleties and nuances of these genres.
