Pioneer SX-1250 Receiver

The Pioneer SX-1250 is widely regarded as one of the greatest vintage stereo receivers ever produced. Released during Pioneer’s golden era, the SX-1250 was engineered as a no-compromise flagship, delivering massive power reserves, outstanding build quality, and a refined yet authoritative sound signature that continues to impress decades later.

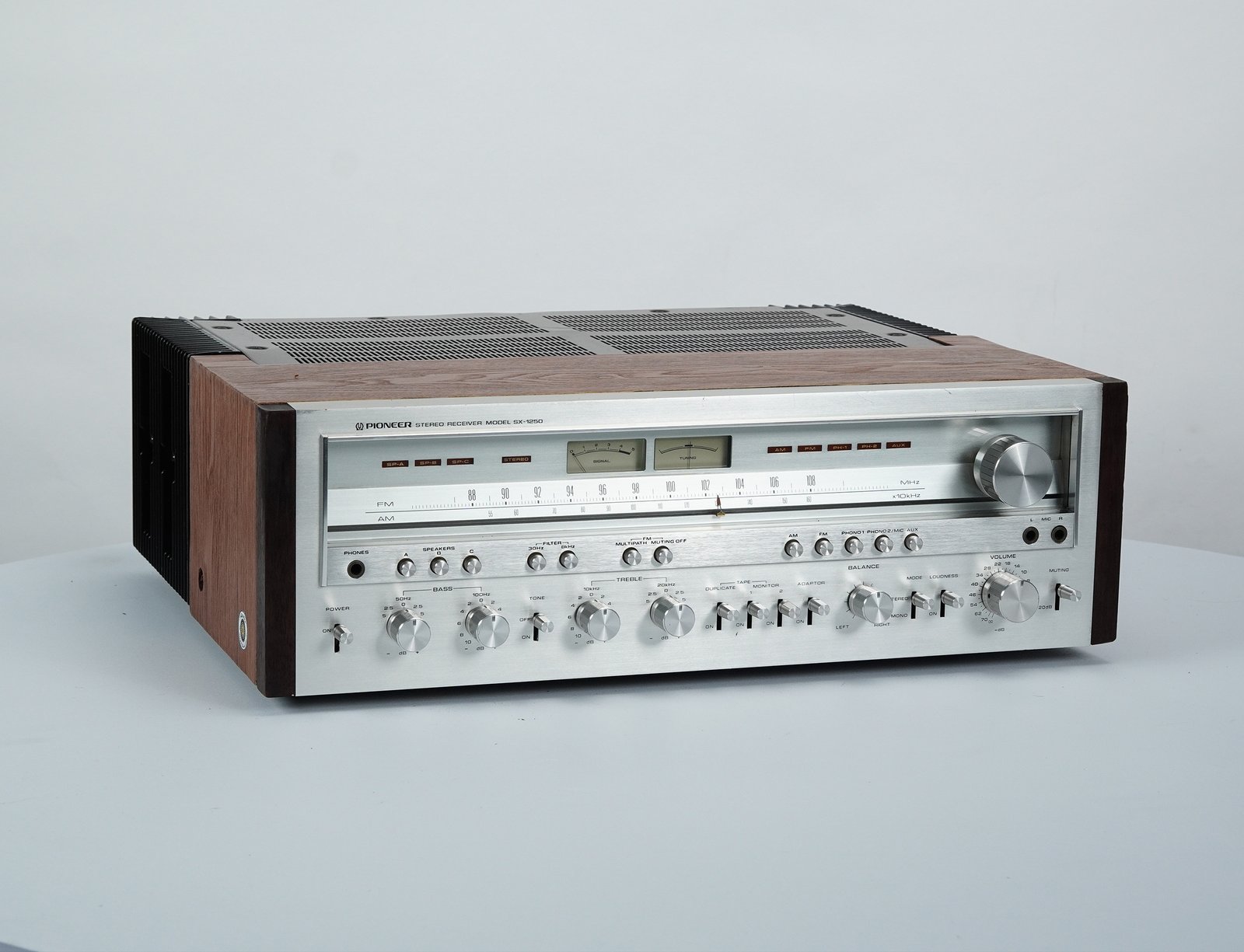

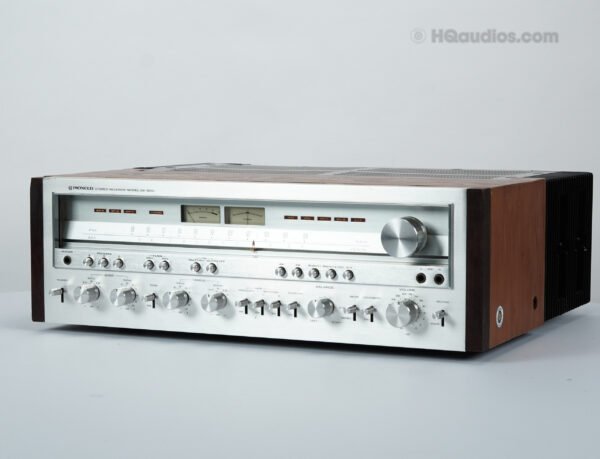

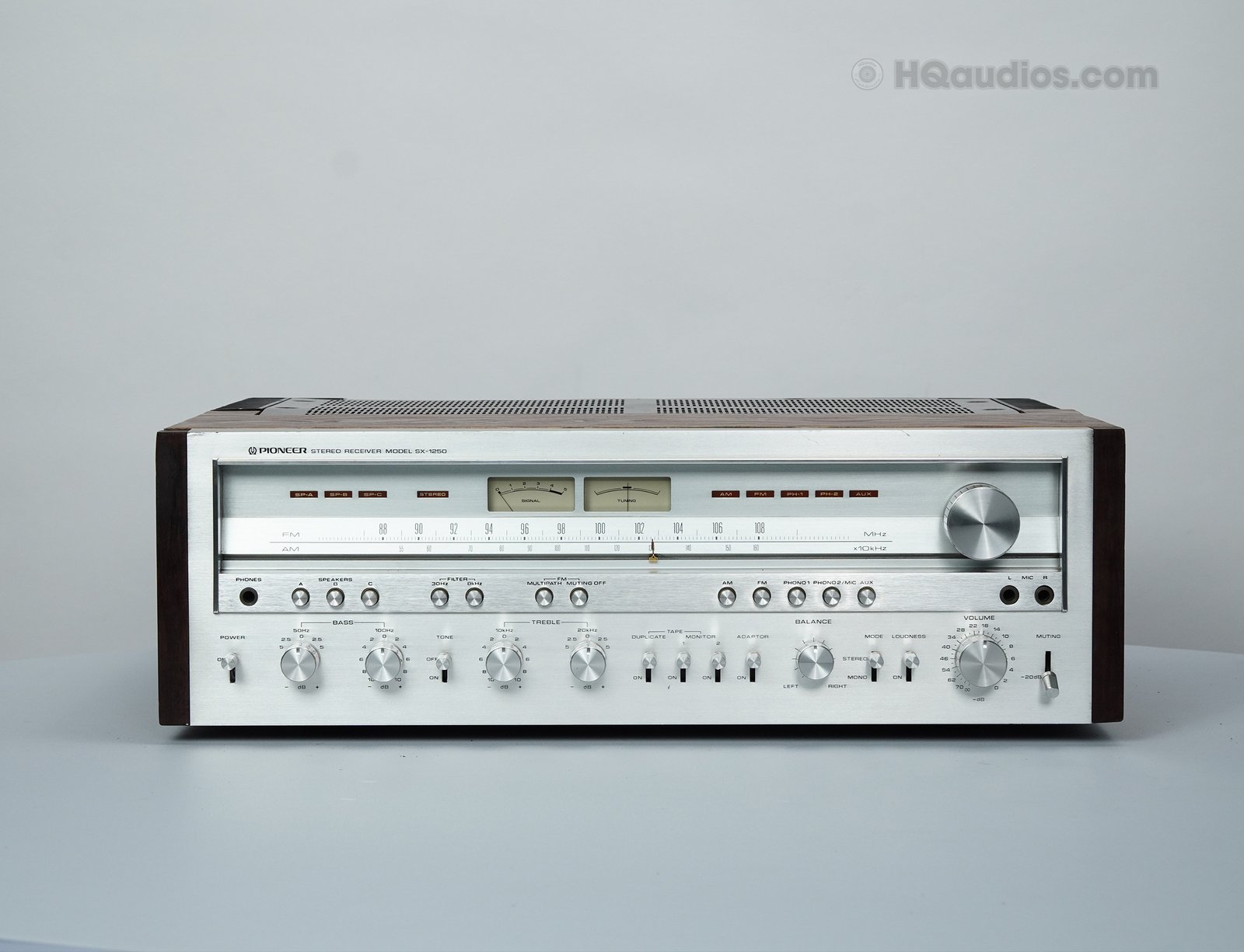

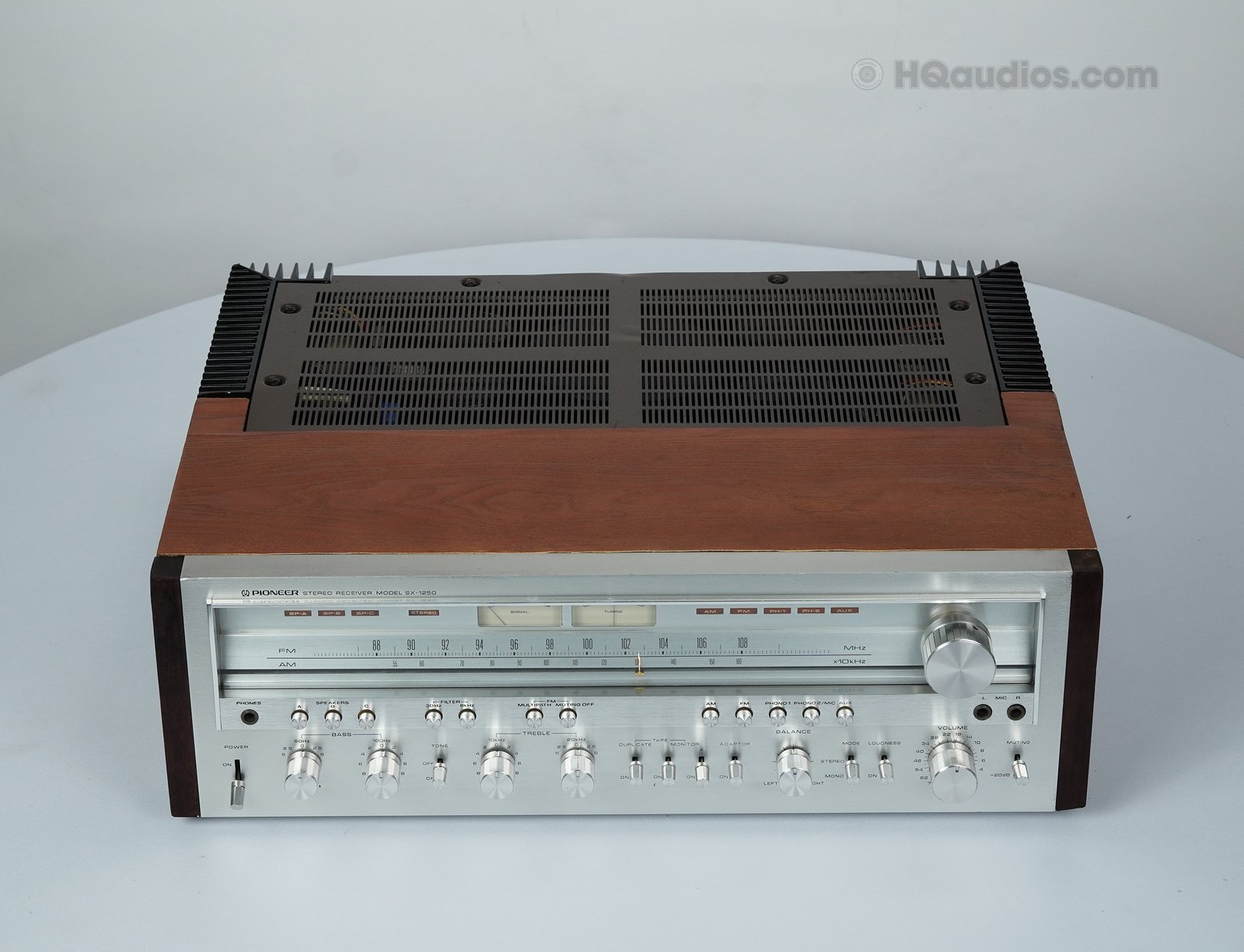

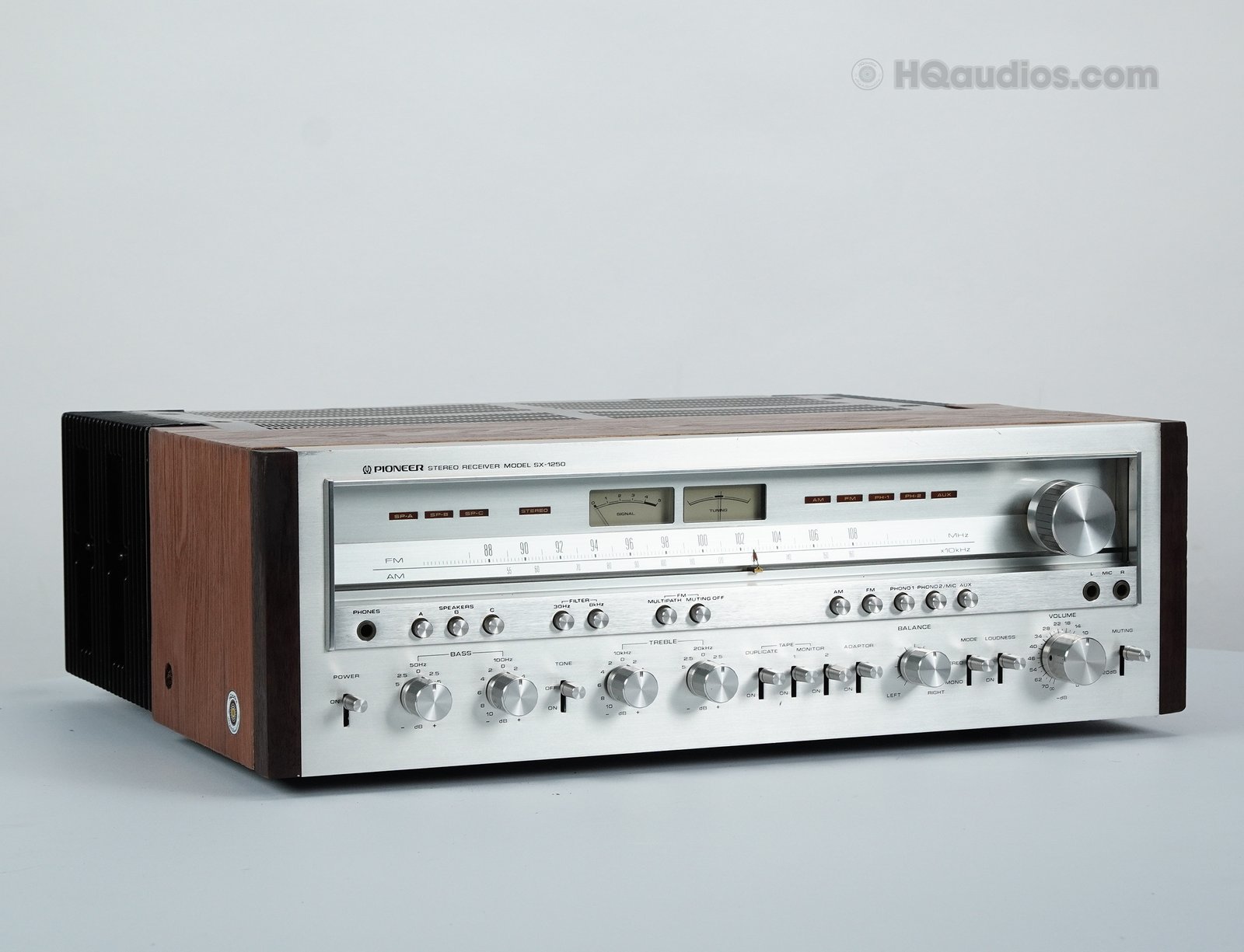

Visually, the SX-1250 is unmistakable: a wide brushed-aluminum faceplate, large dual analog meters, precision tuning dial, and a solid walnut wood cabinet that gives it commanding presence in any listening room. Sonically, it offers deep, controlled bass, a rich and natural midrange, and clean, extended highs—equally suitable for high-efficiency vintage speakers or more demanding modern designs.

This unit has been professionally serviced and comprehensively restored, ensuring stable operation, clean signal flow, and long-term reliability while preserving the character that has made the SX-1250 a true collector’s reference.

Model: Pioneer SX-1250

Type: 2-Channel Stereo Receiver

Protection Plan: 1-Year Warranty Included

Free Support: Must be used before requesting return

Packaging: Securely packed, insured, and tracked

Accessories: Walnut Wood case

SKU: 151LILC0661

Customer Service:

Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

Note:

The actual color of the product may sometimes differ slightly from the photos due to lighting conditions, temperature, and the device used. Some angles in the photos may not fully reflect the product’s condition. Please read the description carefully and feel free to message us if you have any questions.

SPECS

Tuning range: FM, MW

Power output: 160 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.1%

Damping factor: 30

Input sensitivity: 6.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 75dB (MM), 90dB (line)

Output: 150mV (line), 30mV (DIN), 1V (Pre out)

Speaker load impedance: 4Ω (minimum)

Dimensions: 21.89 x 7.34 x 18.29 inches

Weight: 64.37 lbs

Year: 1976

KEY FEATURES

Flagship Power Output: Massive, high-current amplification with exceptional headroom

Dual Analog Power Meters: Large, smooth-moving meters for accurate monitoring and classic appeal

High-Performance FM/AM Tuner: Excellent sensitivity, stability, and stereo separation

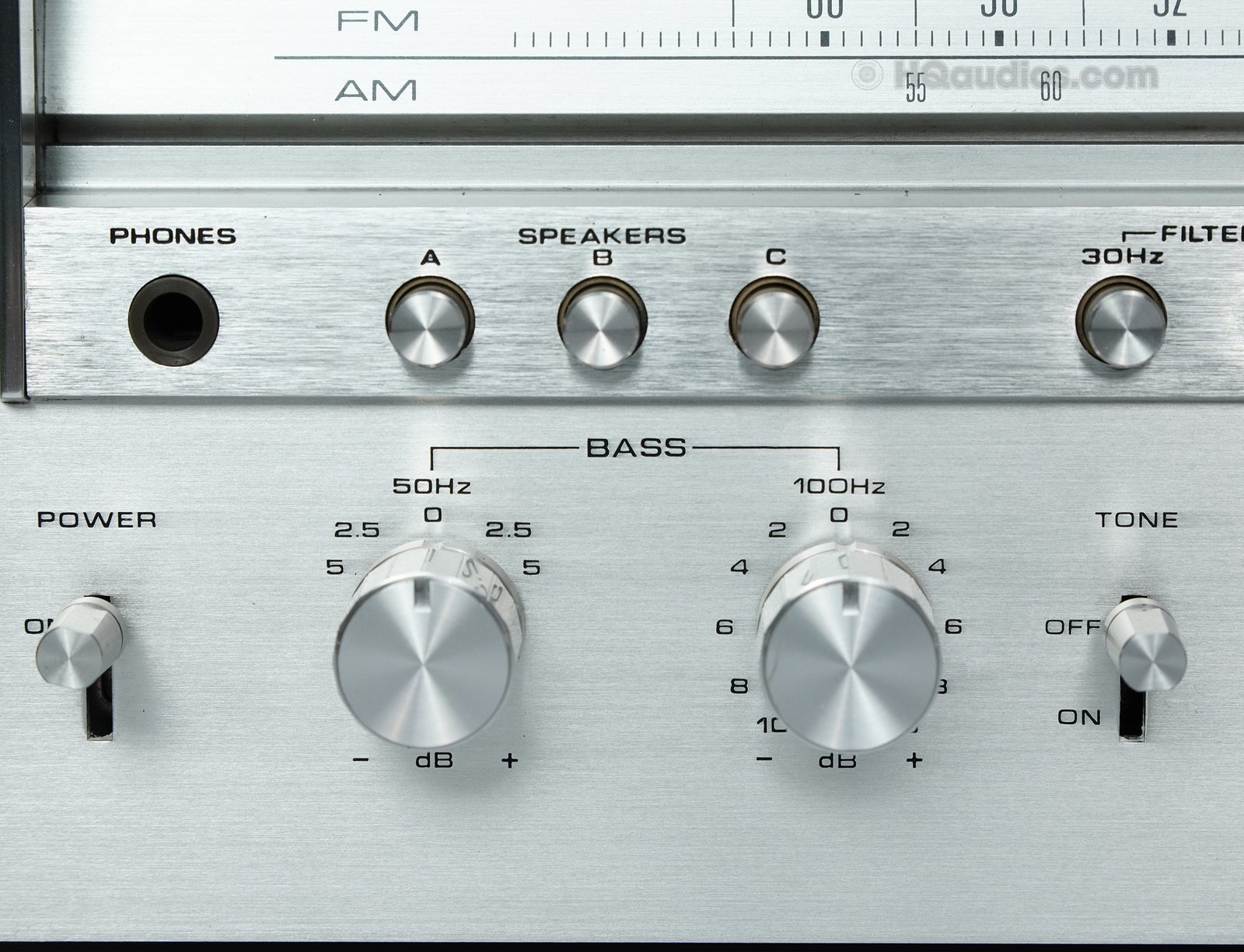

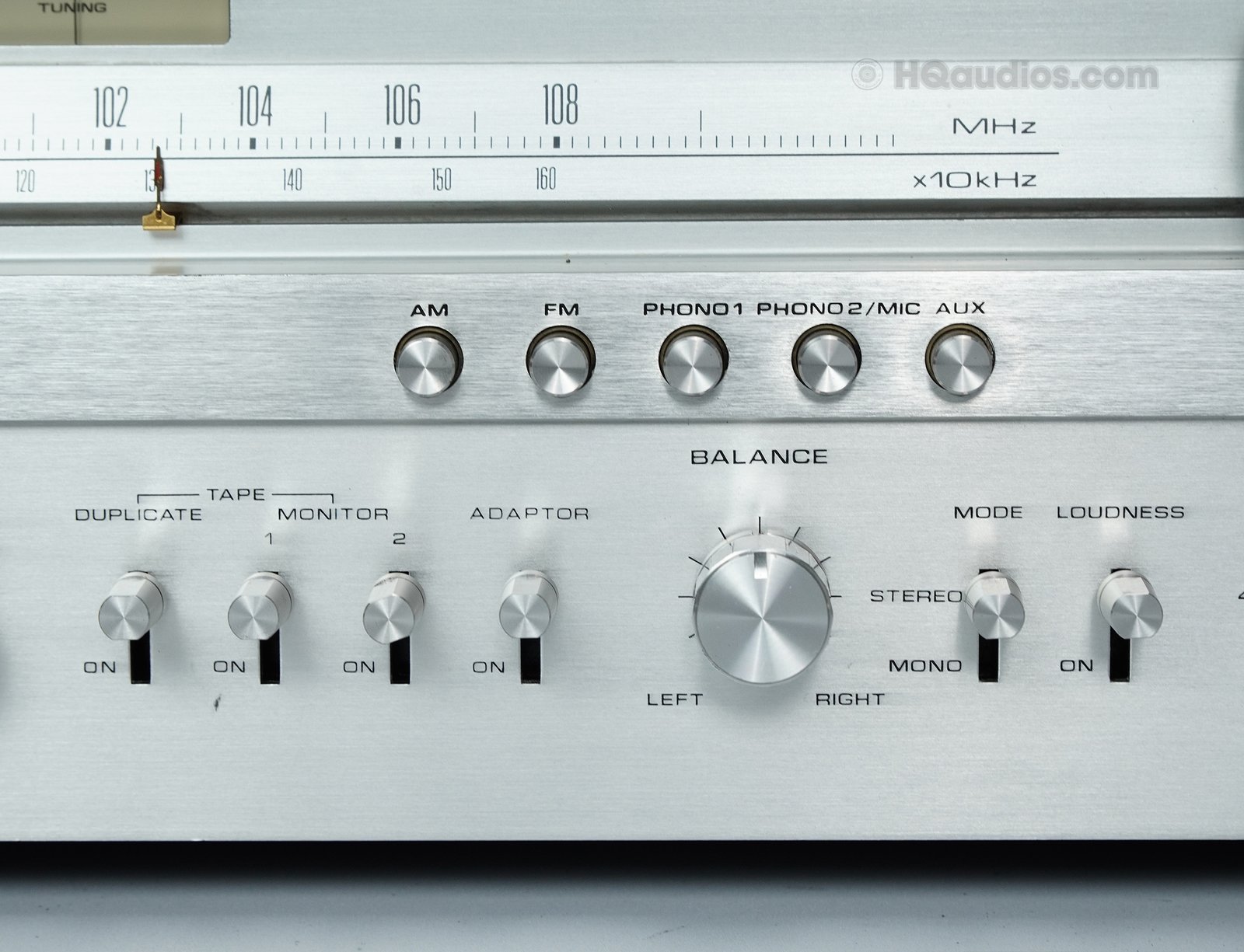

Advanced Tone Controls: Bass, Mid, Treble, Balance, Loudness, and Filters

High-Quality Phono Stage (MM): Warm, detailed, and dynamic vinyl playback

Multiple Inputs: Phono, AUX, Tape Monitor, FM, AM

Multiple Speaker Outputs: Flexible speaker selection for multi-speaker setups

Headphone Output: Clean, powerful headphone listening

Premium Construction: Heavy chassis, oversized power supply, and walnut wood cabinet

REFURBISHED

This Pioneer SX-1250 has undergone a full professional servicing process to restore performance, reliability, and listening confidence while maintaining its original vintage character.

1. General Service & Cleaning

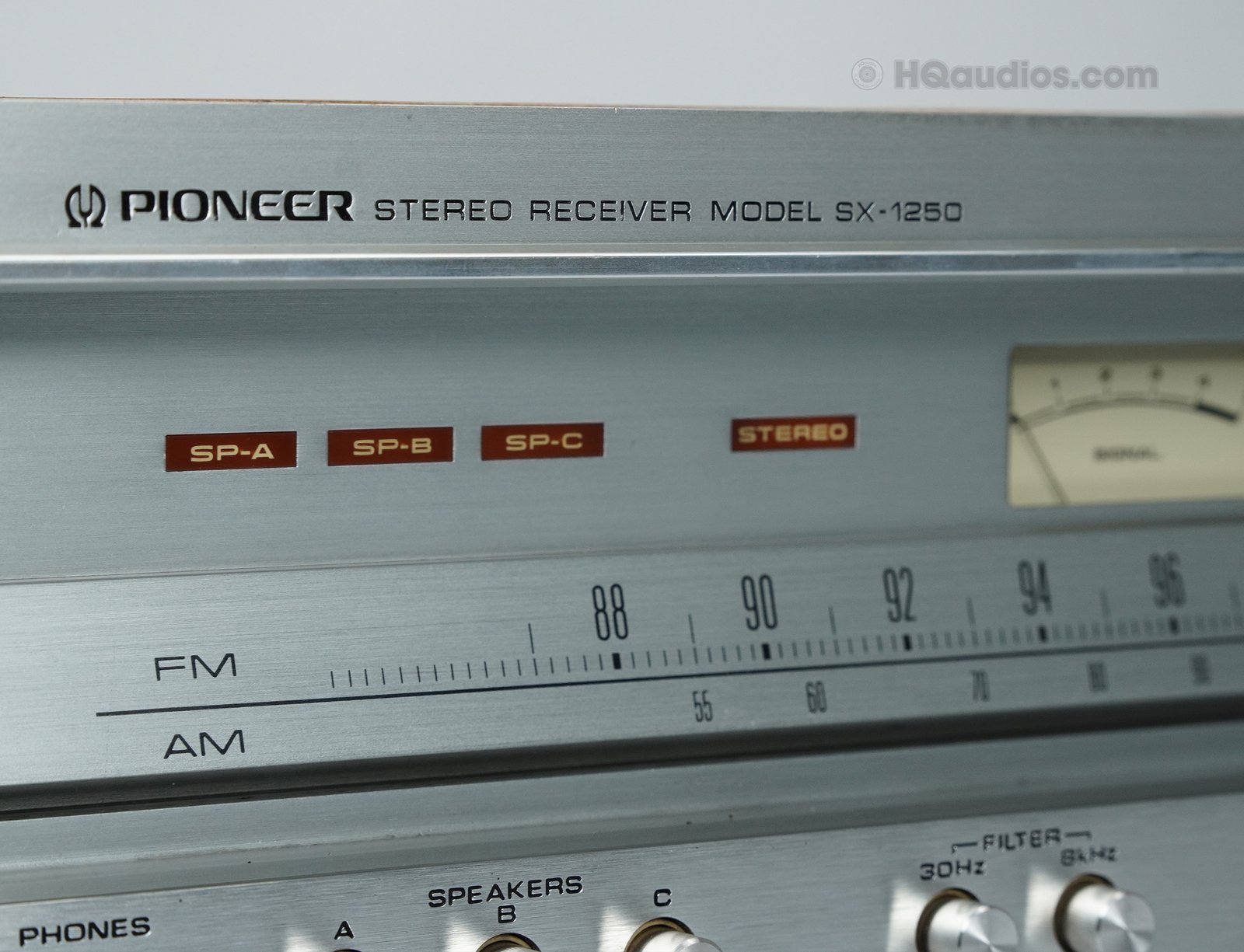

• Brushed aluminum faceplate restored and polished to a mirror finish, providing a sleek, modern look while staying true to the Pioneer design.
• Laser-etched lettering ensures precision, clarity, and durability with painted accents that prevent fading, adding a sharp, long-lasting aesthetic to the receiver.

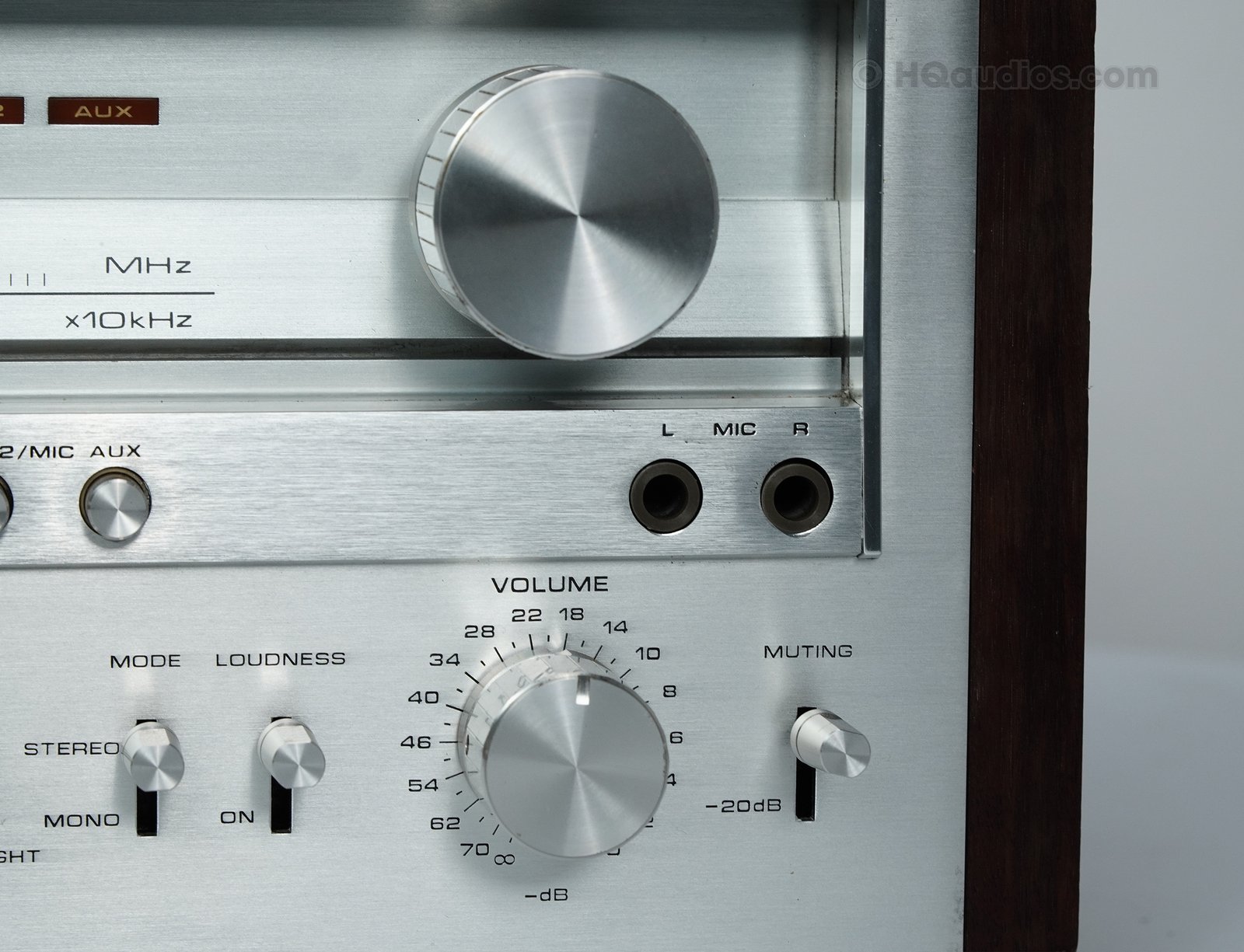

• Knobs, switches, and pushbuttons cleaned and lubricated with DeoxIT, ensuring smooth, responsive operation without any noise or resistance.

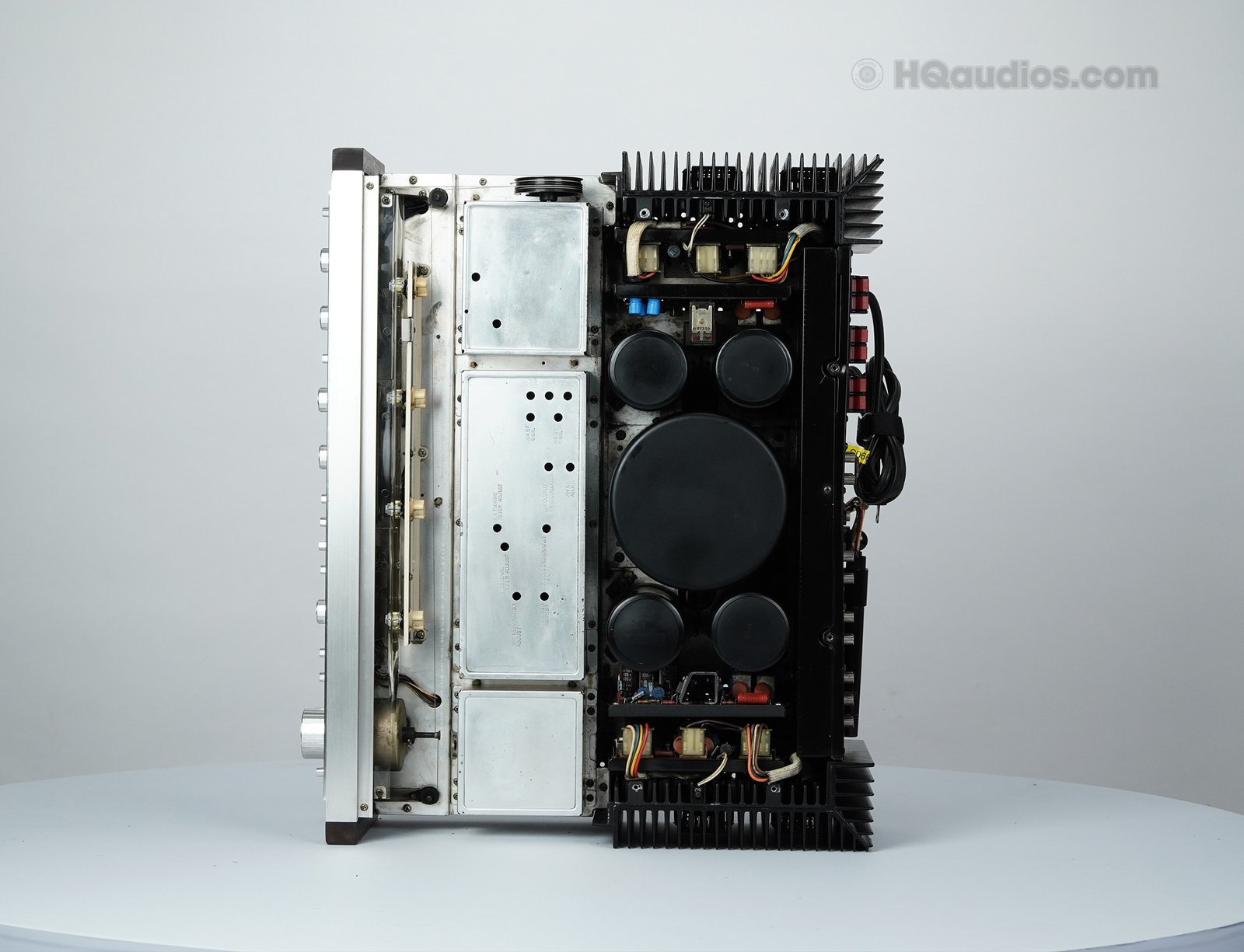

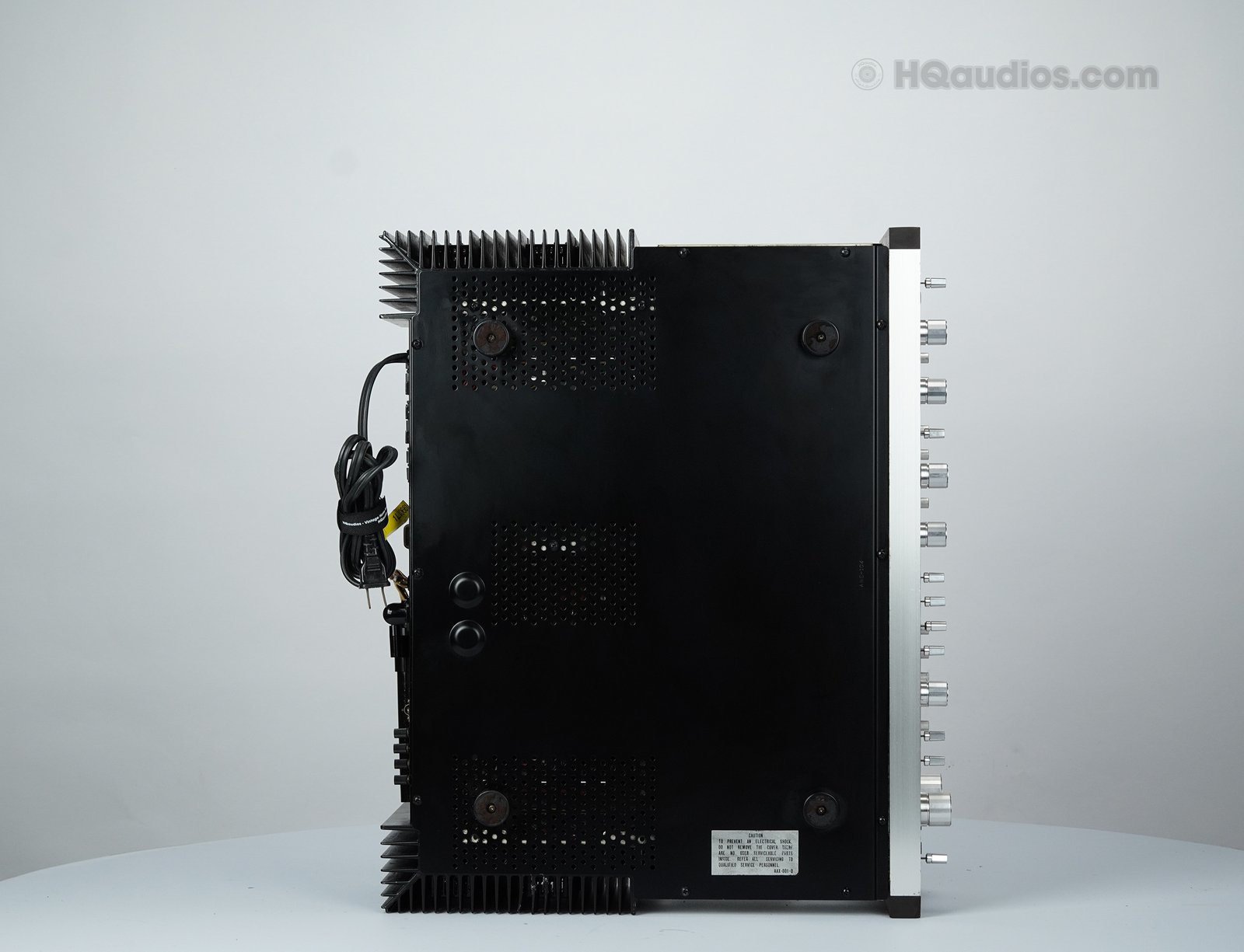

• Chassis cleaned internally and externally, ensuring the receiver looks immaculate on the inside and outside.

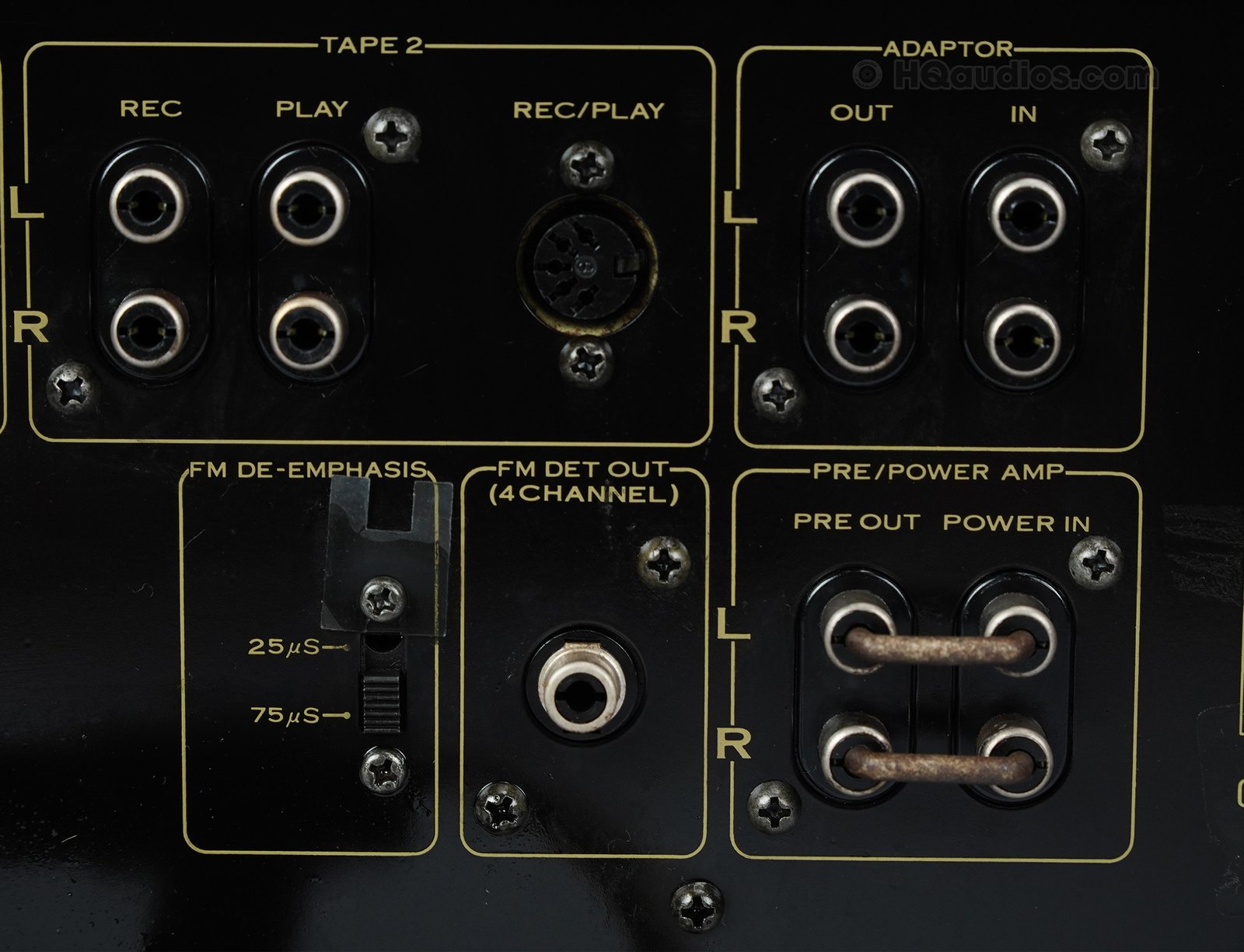

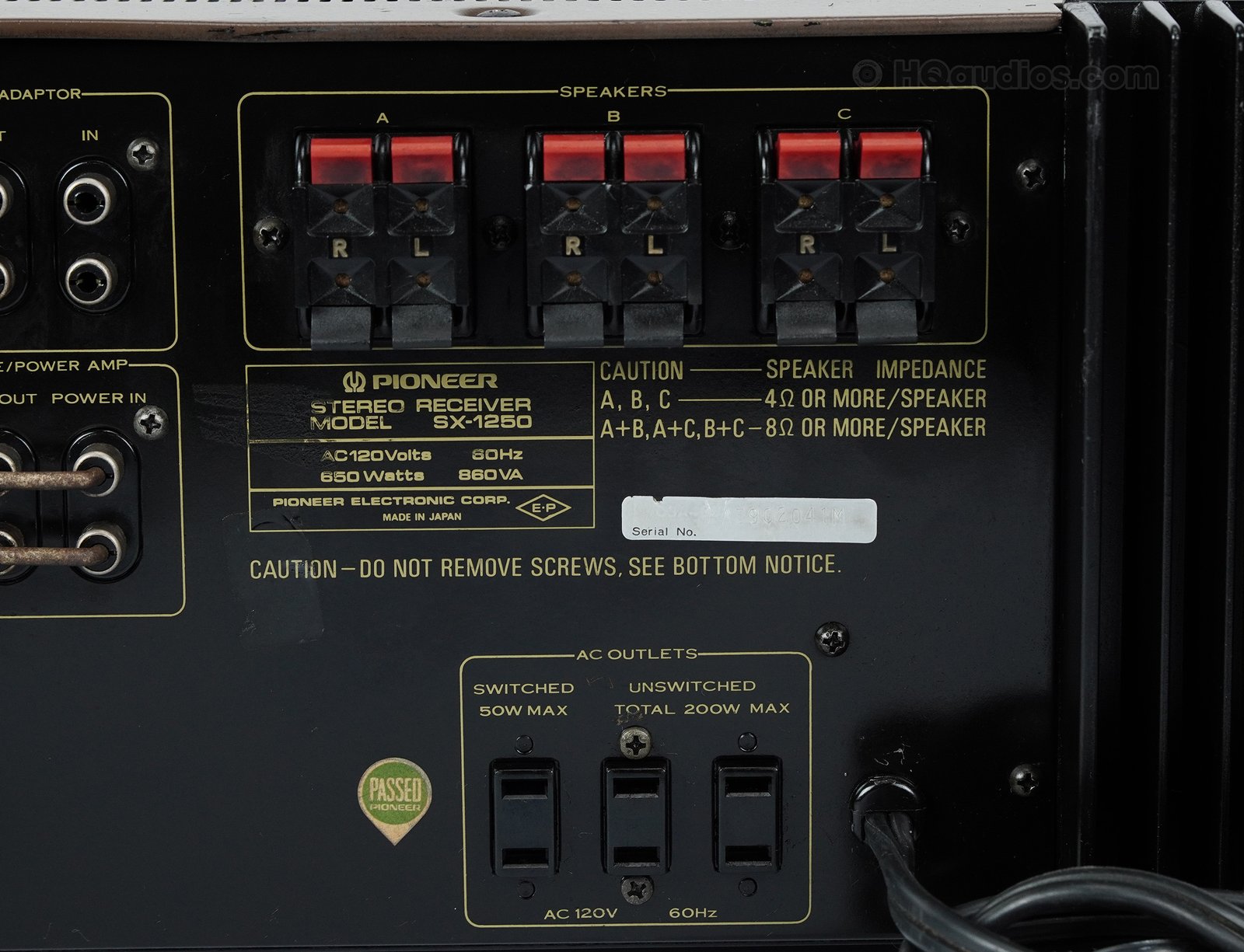

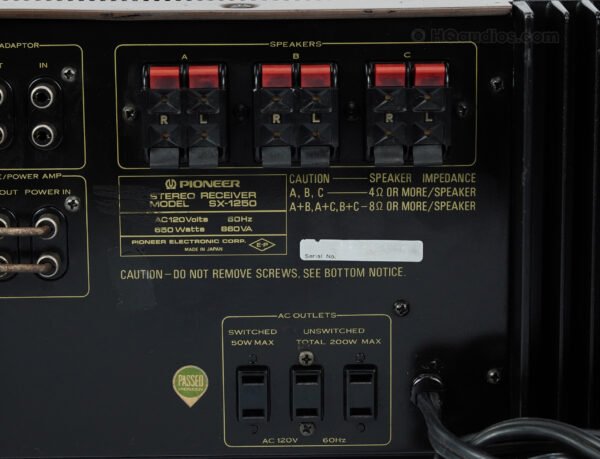

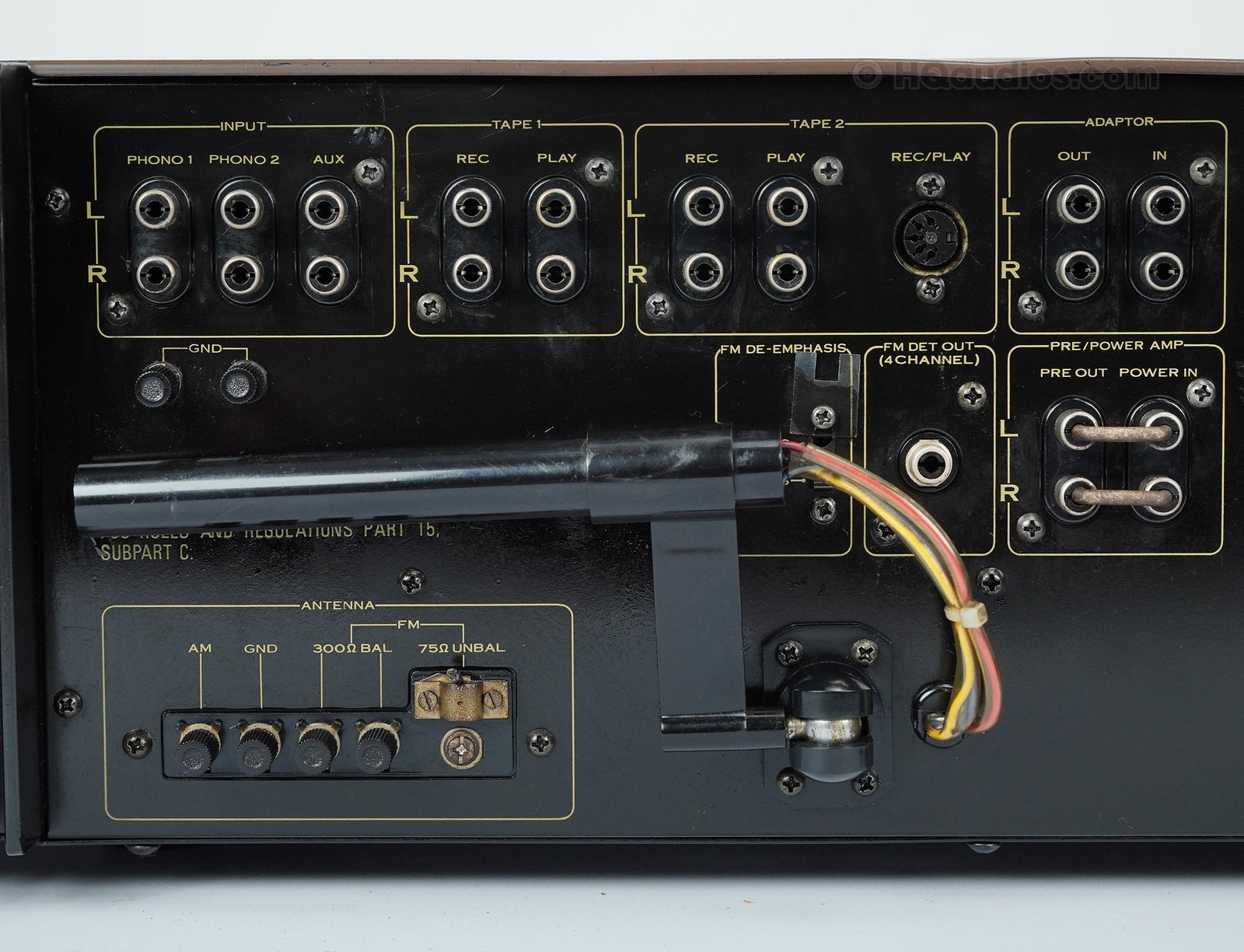

• RCA jacks and speaker terminals serviced, cleaned, and re-tensioned to guarantee optimal signal transfer and secure connections.
• Wood case included, carefully refinished with a premium black piano finish, giving the receiver an elegant, classic touch.
• Headphone output tested to ensure a balanced and distortion-free stereo output across all channels.

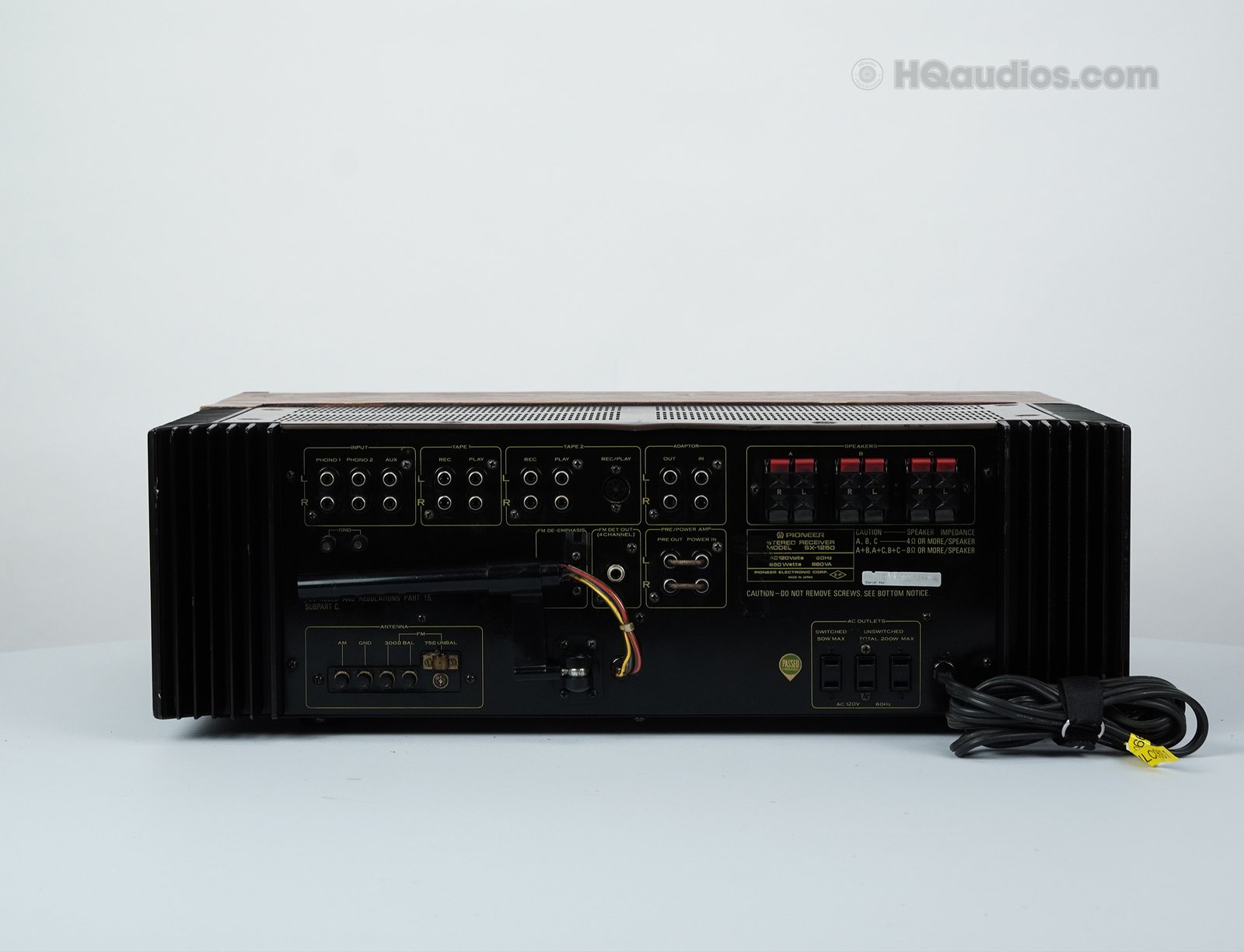

• The rear panel cleaned and detailed, with all lettering preserved and touched up where necessary.

2. Lighting System Replacement

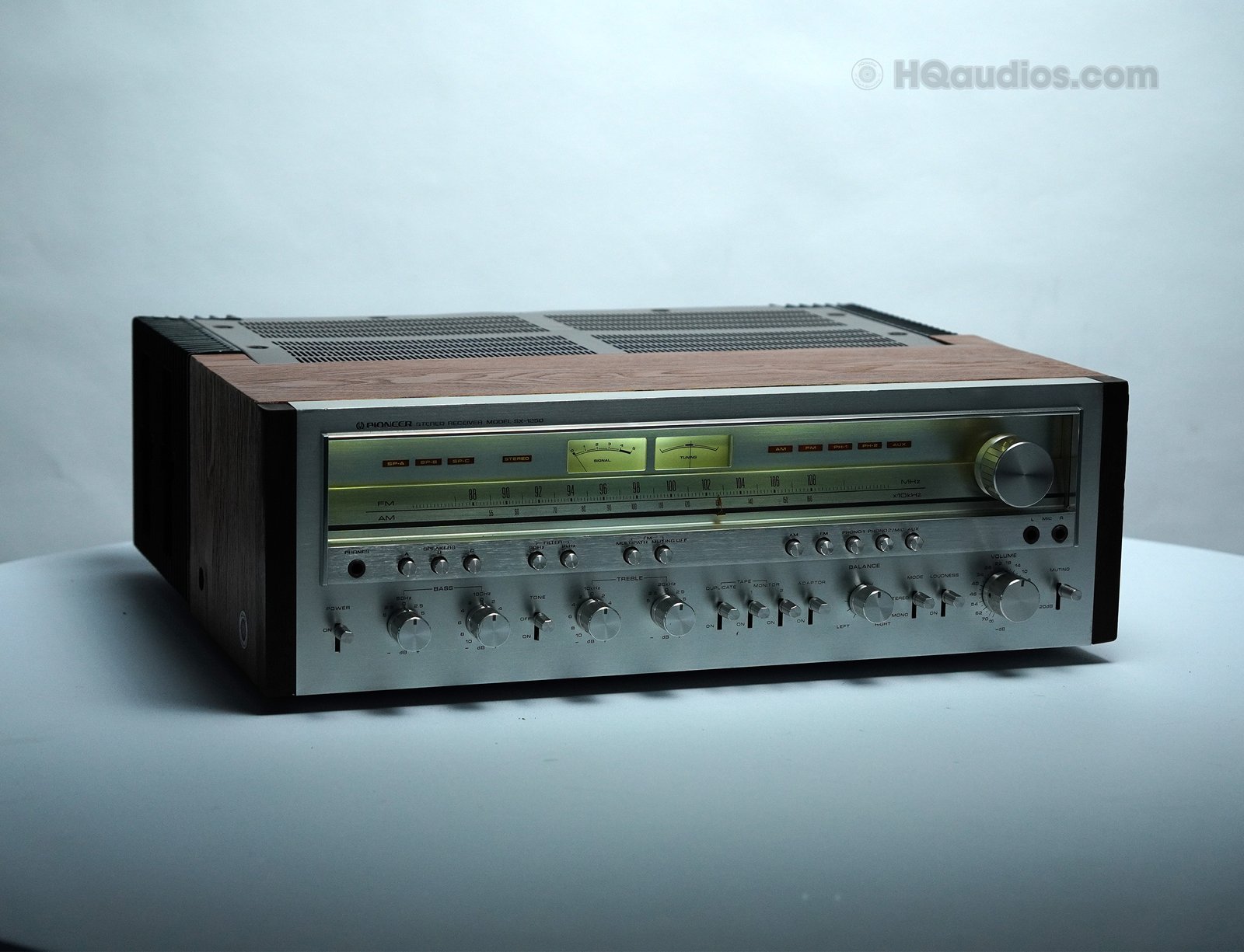

• Full LED upgrade across the dial scale, meters, and indicator lamps, providing modern lighting with a Pioneer blue tone for a fresh, vibrant look.
• LEDs are long-life, low-heat, ensuring efficient operation and minimal heat buildup, guaranteeing reliability for years to come.

• The blue tone has been enhanced to match the unit’s modern aesthetic, giving the receiver a contemporary upgrade while keeping its vintage appeal intact.

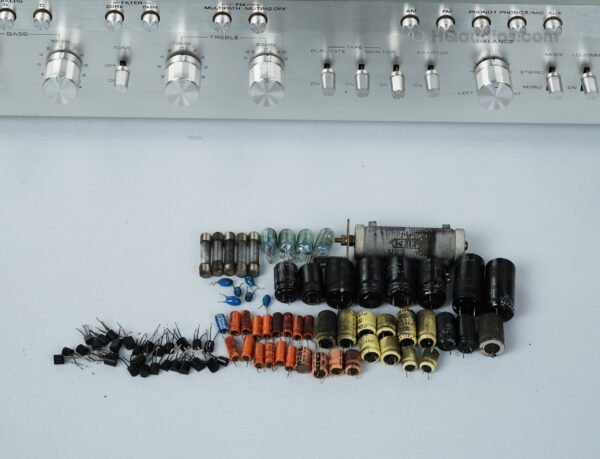

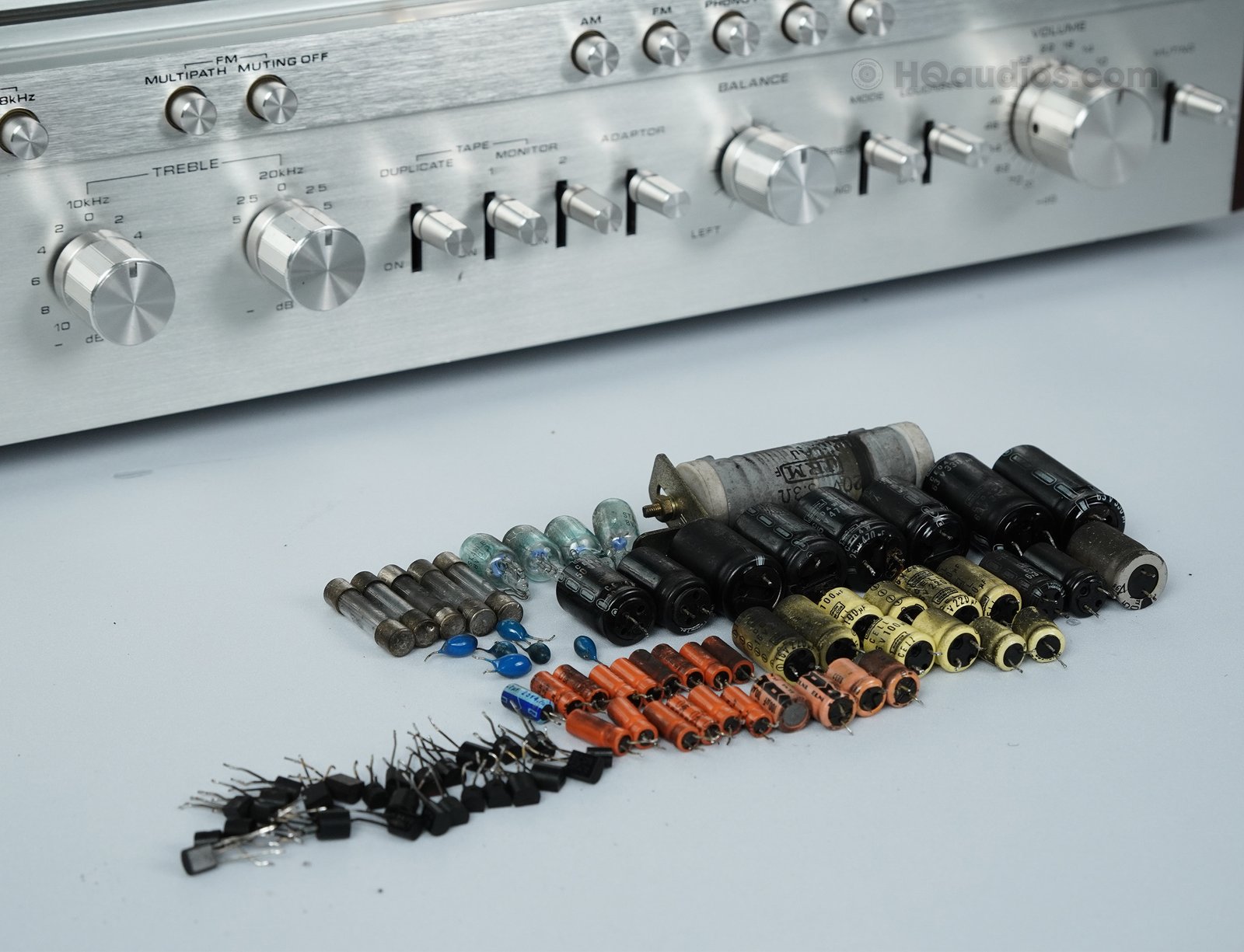

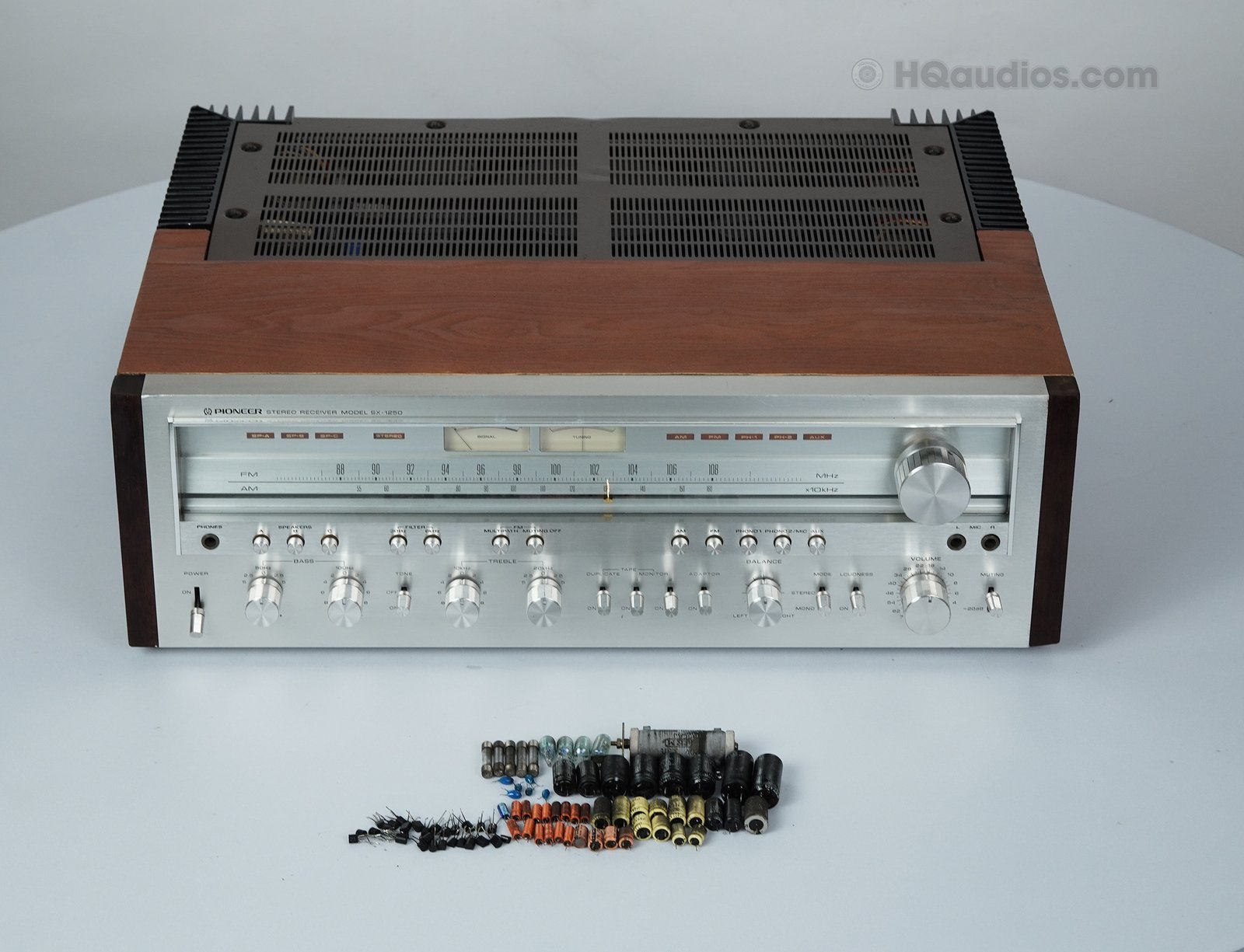

3. Recapped – Electrical Restoration

Using New-Old Stock (NOS) components ensures that this restoration retains the Pioneer character while delivering superior reliability and performance.

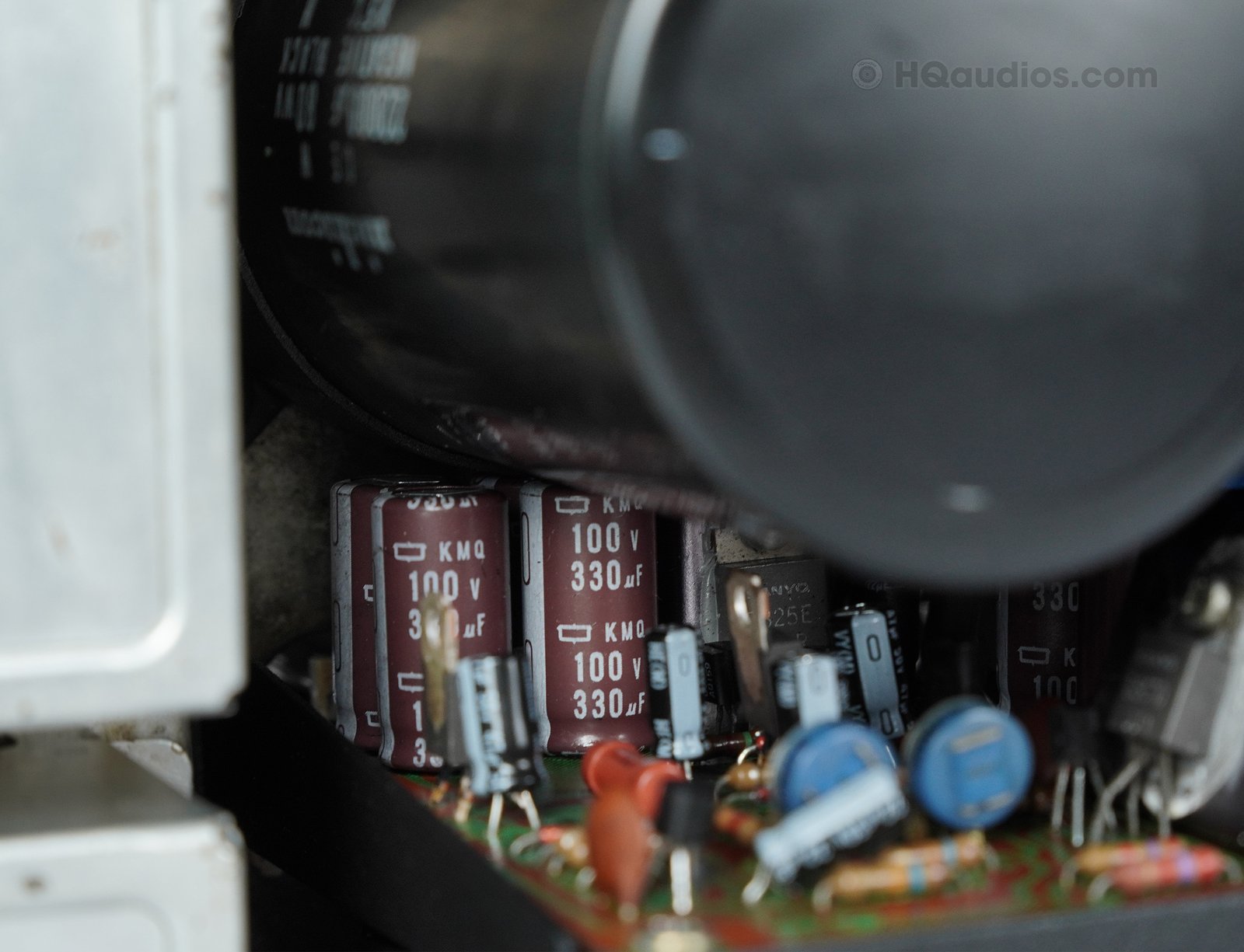

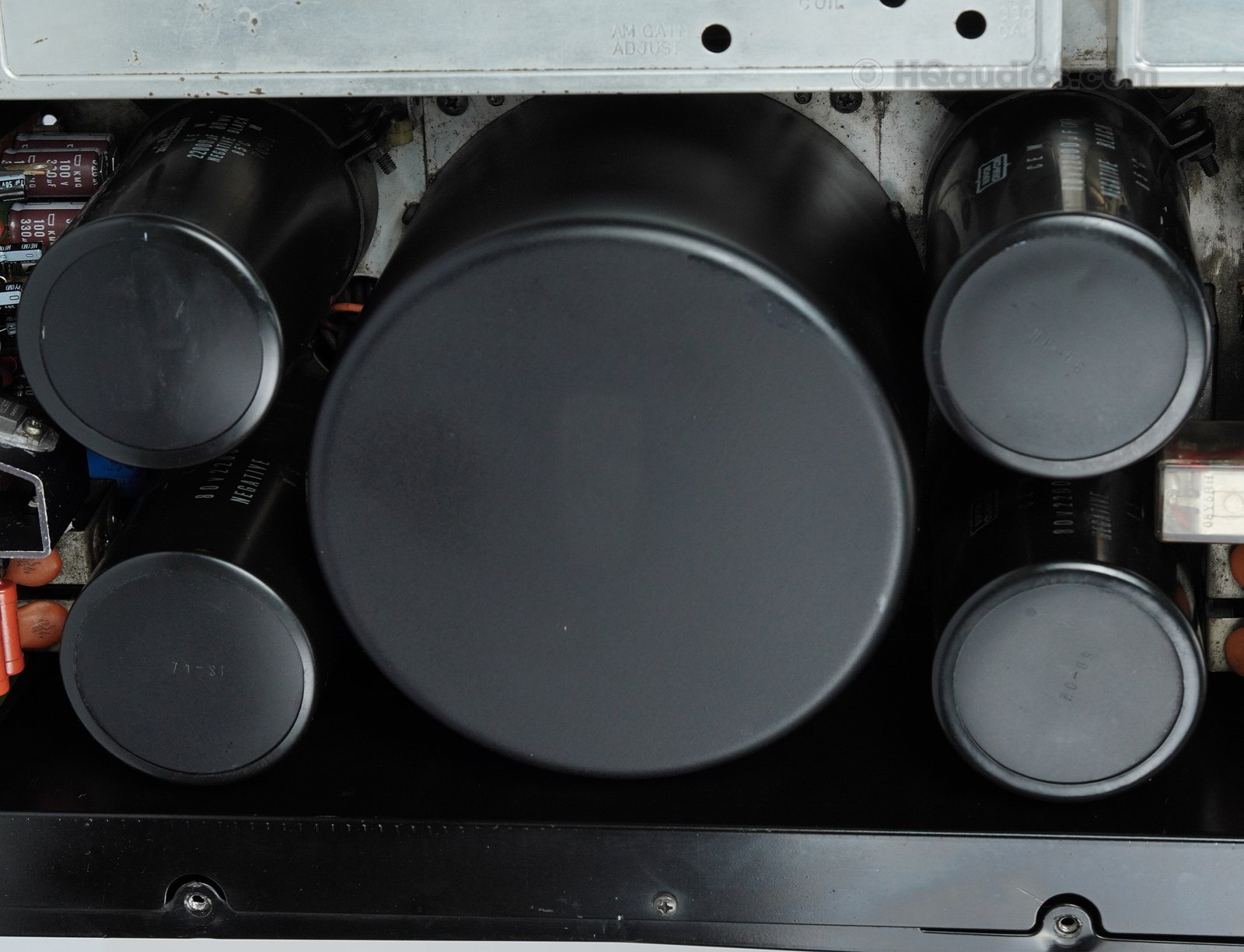

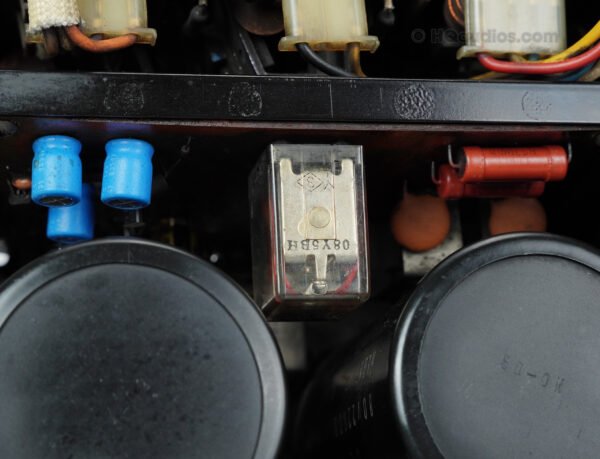

• Power Supply Board:
  • All electrolytic capacitors replaced with fresh, high-quality components to ensure long-lasting reliability.
  • Voltage rails stabilized under load for smooth, consistent operation.
  • Weak solder joints reflowed, and problematic components replaced for durability and improved functionality.
• Main Amplifier/Driver Boards:
  • Full recap with low-ESR capacitors to enhance signal integrity, minimize distortion, and provide a cleaner audio experience.
  • Bias and DC offset adjusted to factory specifications to ensure optimal sound reproduction.
  • Transistors tested and replaced with low-noise equivalents to guarantee consistent and reliable output.
  • Thermal stability confirmed after extensive testing, ensuring safe operation even under heavy loads.
• Preamplifier & Tone Board:
  • All electrolytic capacitors replaced for improved sound quality and efficiency.

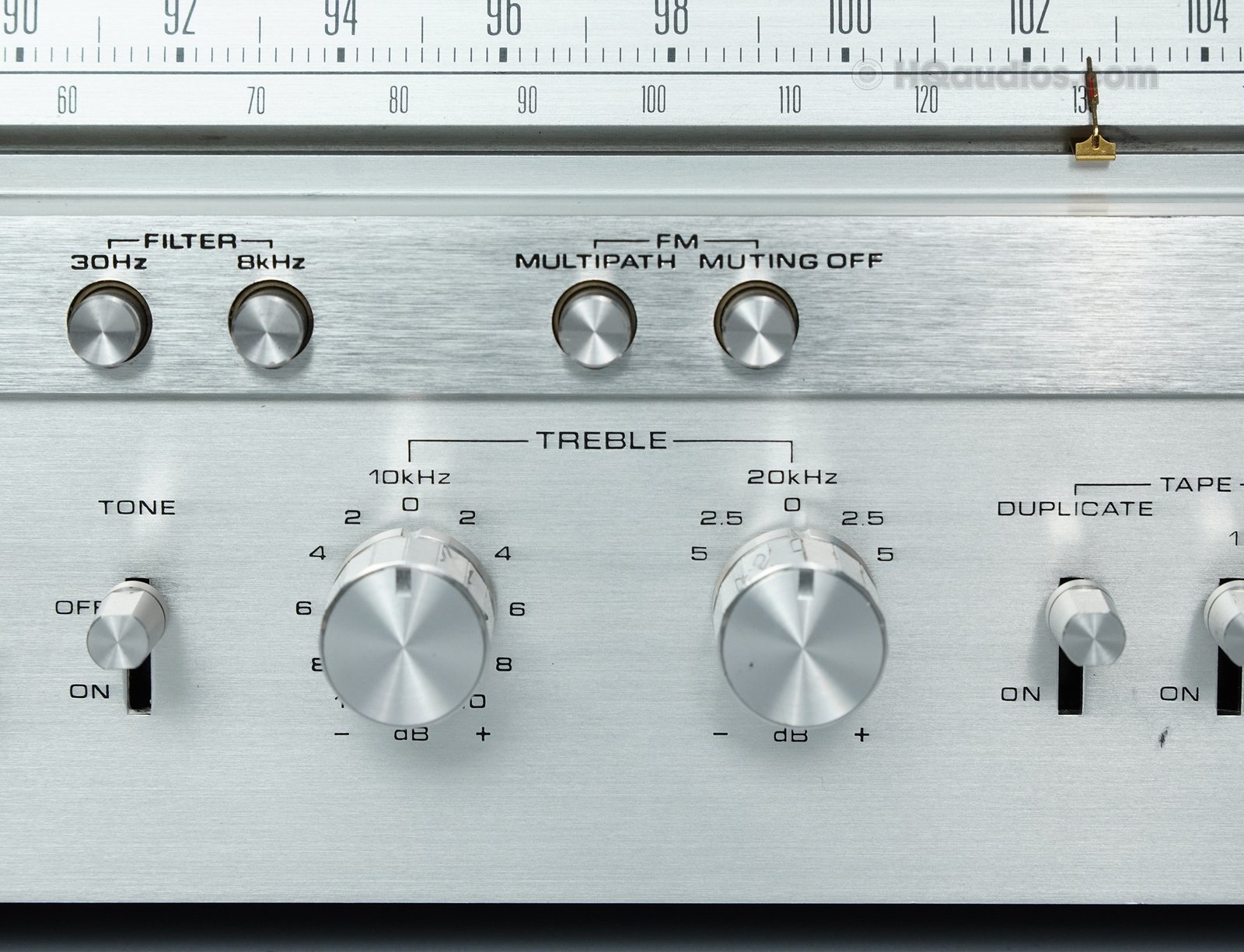

  • Tone controls (bass, mid, treble, balance) fully restored, ensuring smooth, noise-free operation for precise audio control.
  • Pots and switches cleaned and lubricated to eliminate crackling, hiss, or channel imbalance, ensuring long-term use without interference.
• Phono Board:
  • Capacitors replaced to improve phono gain and RIAA accuracy, optimizing sound quality for turntable use.
  • Noise-free performance verified to provide clear, dynamic sound from vinyl sources.

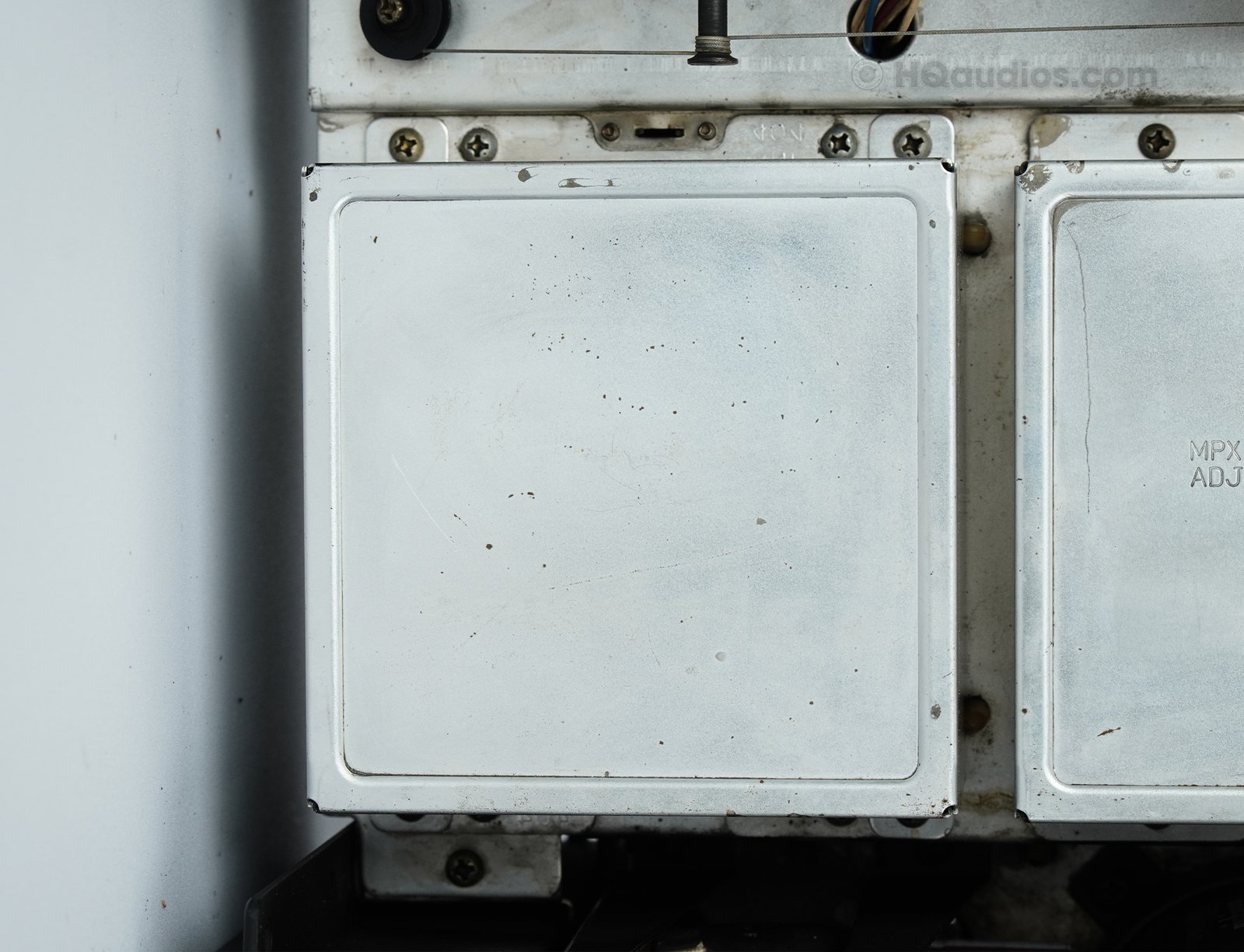

• Tuner Section:
  • Key capacitors replaced to restore signal clarity and reception stability.

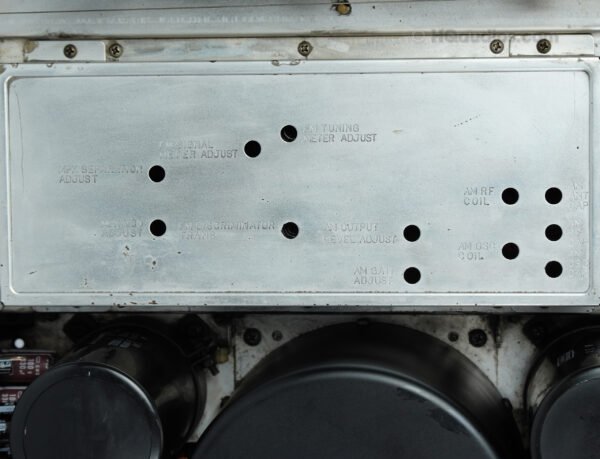

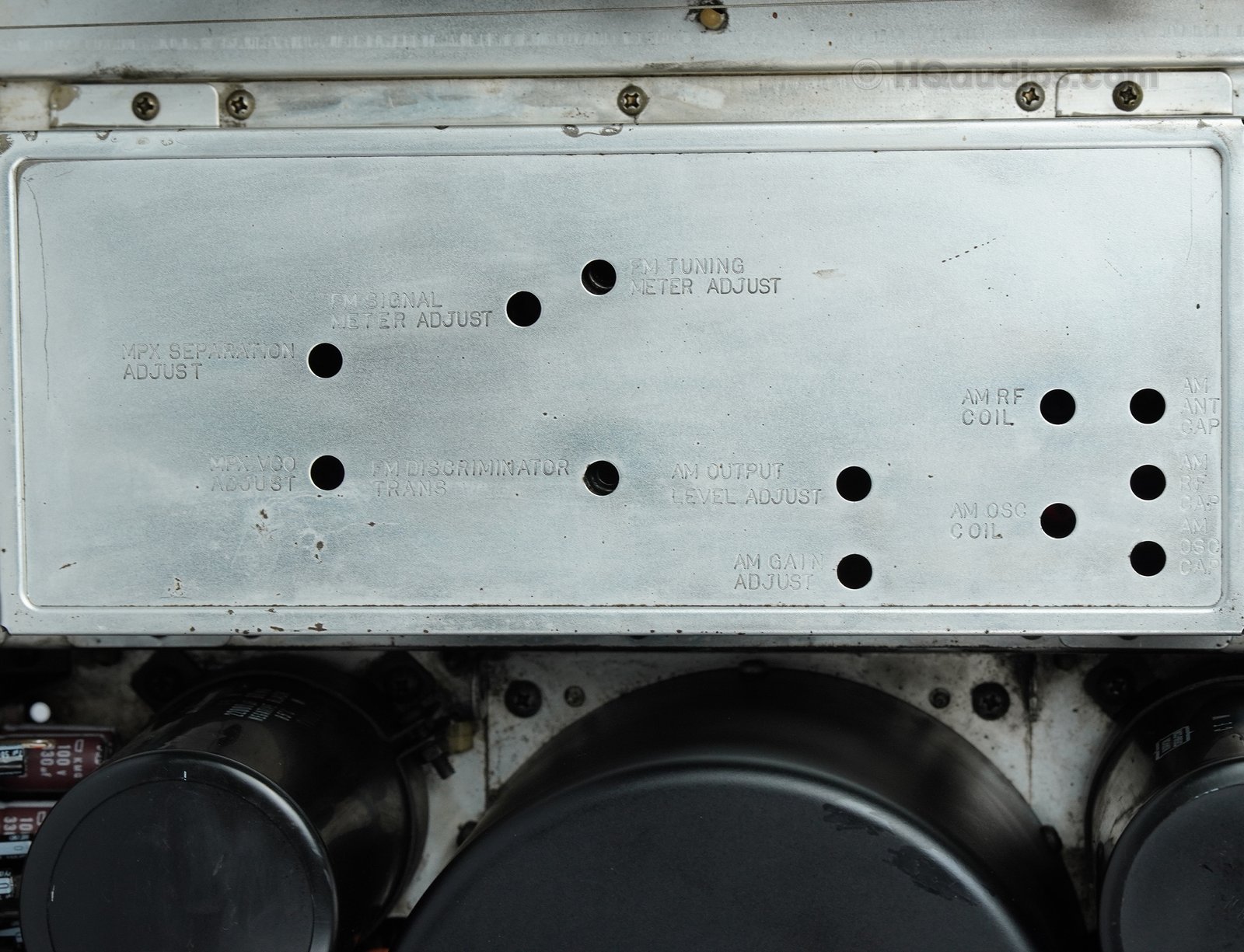

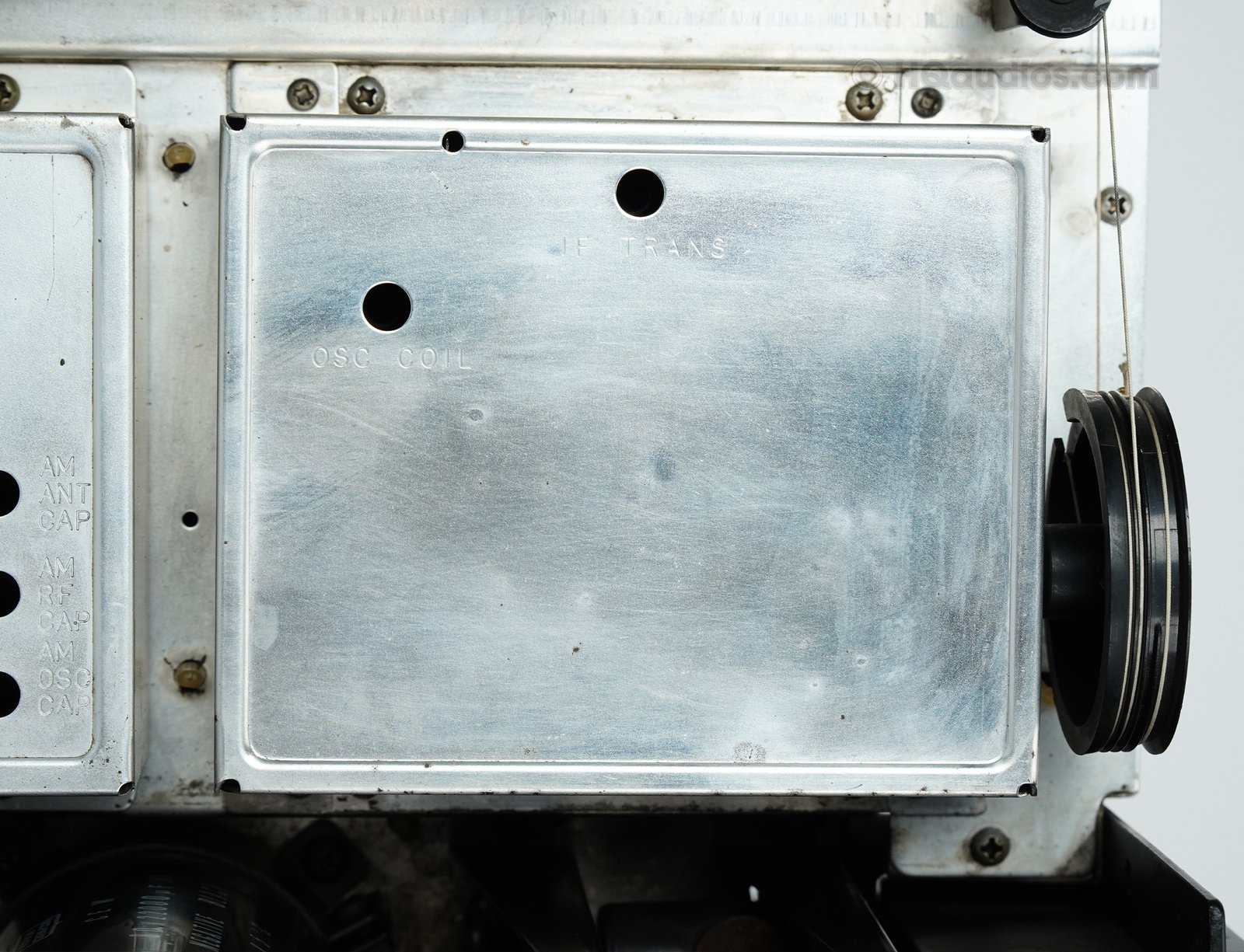

  • RF/IF alignment performed to ensure precise FM/AM tuning with minimal interference.

4. Final Testing & QA

• The unit underwent a 2-hour continuous stress test, verifying its thermal stability, channel balance, and overall performance.
• Frequency and voltage measurement equipment was used to ensure all parameters are restored to original factory specifications.
• Listening tests performed across all inputs to ensure dynamic, distortion-free audio.
• The unit passed HQaudios’ final quality assurance inspection, guaranteeing long-term performance and reliability.

RESULT

The SX-1250 now delivers powerful, controlled, and highly musical sound, with rock-solid operation across all functions.

SUGGESTED PAIRINGS

• Speakers: Pioneer HPM-100 / HPM-150, JBL L100 / L112, Klipsch Cornwall, AR-3a
• Turntables: Pioneer PL-530 / PL-570, Technics SL-1200, Thorens TD-160
• Tape Decks: Pioneer CT-F series, TEAC A-2300, Akai GX series
• Listening Styles: Classic rock, jazz, orchestral, vinyl-focused hi-fi systems
