Marantz 2220B receiver-Fully restored – 1 year WRT(free to choose wood case)!

Marantz 2220B receiver-Fully restored – 1 year WRT(free to choose wood case)!

Marantz 2220B is often chosen by audiophiles due to its reputation for delivering a warm, rich sound quality, considered particularly good for music listening, with a well-built construction, a classic aesthetic, and a great phono stage, all while being relatively low-powered but often delivering enough sound for smaller to medium-sized rooms, especially when paired with efficient speakers; it is also considered a good value for vintage audio enthusiasts looking to restore and enjoy a classic receiver with excellent sound quality.

TESTING VIDEO

Technical Specifications:

• Tuning range: FM, MW
• Power output: 20 watts per channel into 8Ω (stereo)
• Frequency response: 10Hz to 50kHz
• Total harmonic distortion: 0.9%
• Damping factor: 45
• Input sensitivity: 1.8mV (MM), 180mV (line)
• Signal to noise ratio: 77dB (line)
• Channel separation: 35dB (line)
• Speaker load impedance: 4Ω to 16Ω
• Dimensions: 17-21/64 x 5-25/64 x 14 inches
• Weight: 26.4lbs

TRADE-IN PROGRAM

“If you have any vintage audio equipment (receivers, speakers, cassette, reel to reel…) & want to upgrade with the available serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference”

Condition:

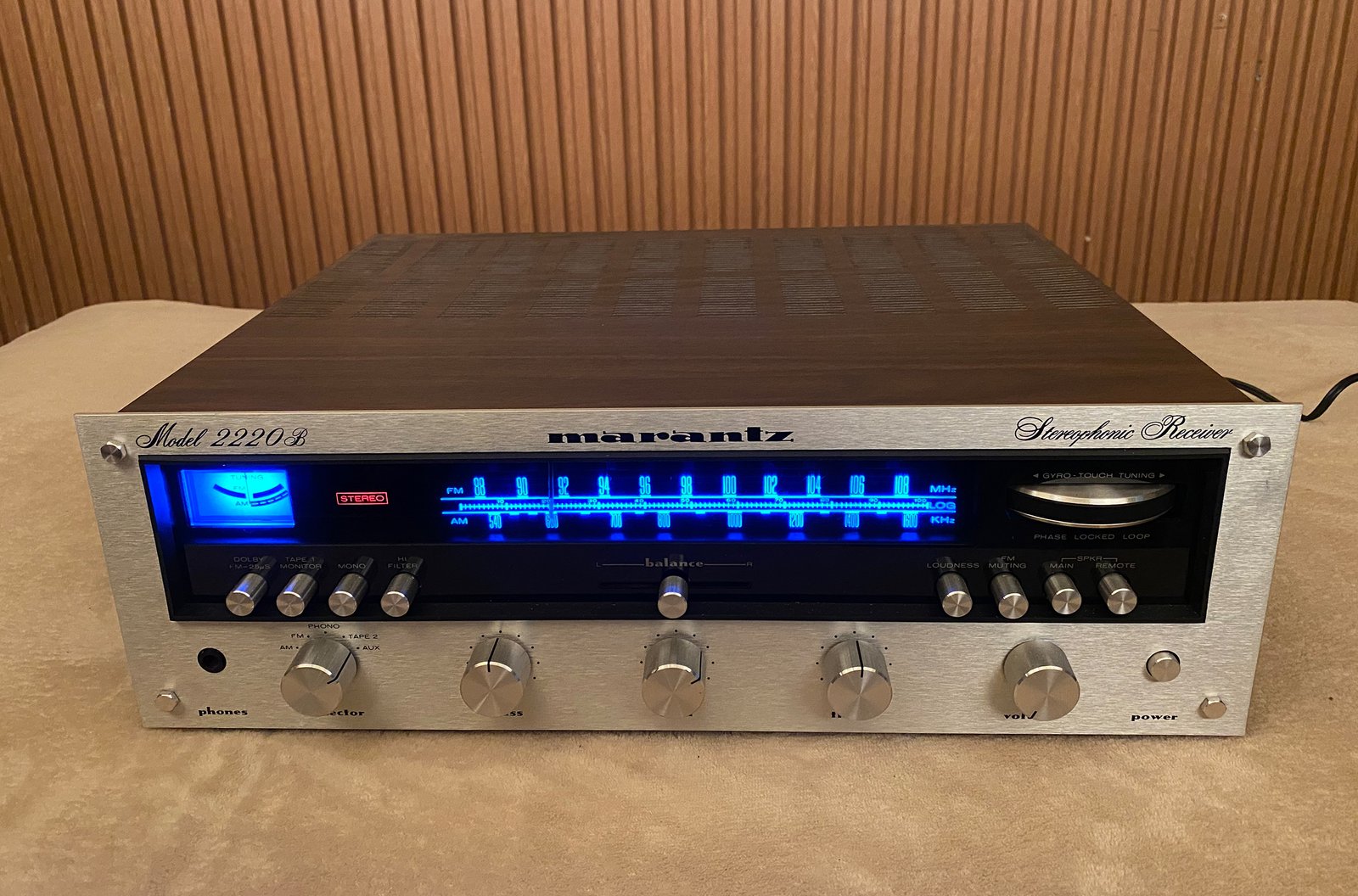

This receiver is in “Excellent” condition, displaying minor signs of use with a bright, clear dial. All knobs, feet, and the attached AM antenna and AC cord are present and intact. Although the manual is missing, it can be found online or we can provide a PDF upon request. Please inspect all photos thoroughly for the actual condition.

Service:

Upon inspection, the unit had scratchy controls, a dim dial, and some distortion in one channel. Therefore, it underwent servicing by our technician. Manufacturer used certain transistors in this model that are known to fail after 40 years, so all of these were replaced. This upgrade resolved the distortion issue. Additionally, several questionable capacitors were replaced.

Testing:

After servicing, the receiver was tested on our bench and performed excellently, delivering a powerful, warm, distortion-free signal characteristic of analog receivers. All inputs, outputs, LED lights upgrade and features were confirmed operational, and the tuner spins smoothly. Additional testing was conducted, and we can provide specific feature information upon request. This is a remarkable find for the vintage audiophile.

Condition Disclosure:

This item exhibits minor wear consistent with light use, as shown in the provided photos. The listing includes exactly what is pictured; no accessories, test equipment, or media are included.
