Excellent Sansui 9090DB Vintage Receiver – Fully Recapped & Restored – 1-Year WRT

• Signal to noise ratio: 70dB (MM), 80dB (DIN), 80dB (line)
• Channel separation: 50dB (MM), 50dB (line)
• Output: 150mV (line), 30mV (DIN), 0.775V (Pre out)
• Dimensions: 21.3″ × 7.2″ × 15.6″
• Weight: 52.0 lbs
• Year: 1976
• SKU: 15UJKE4216

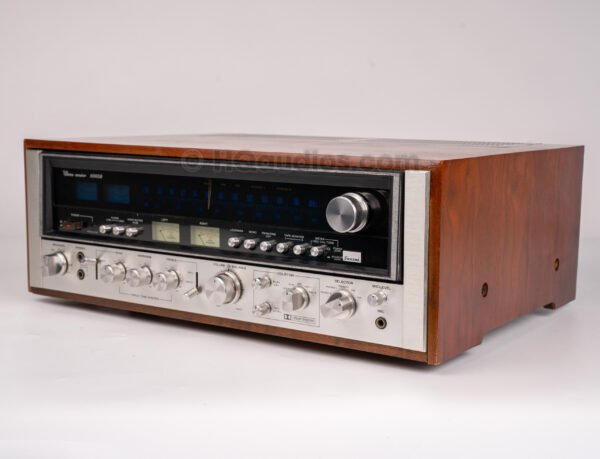

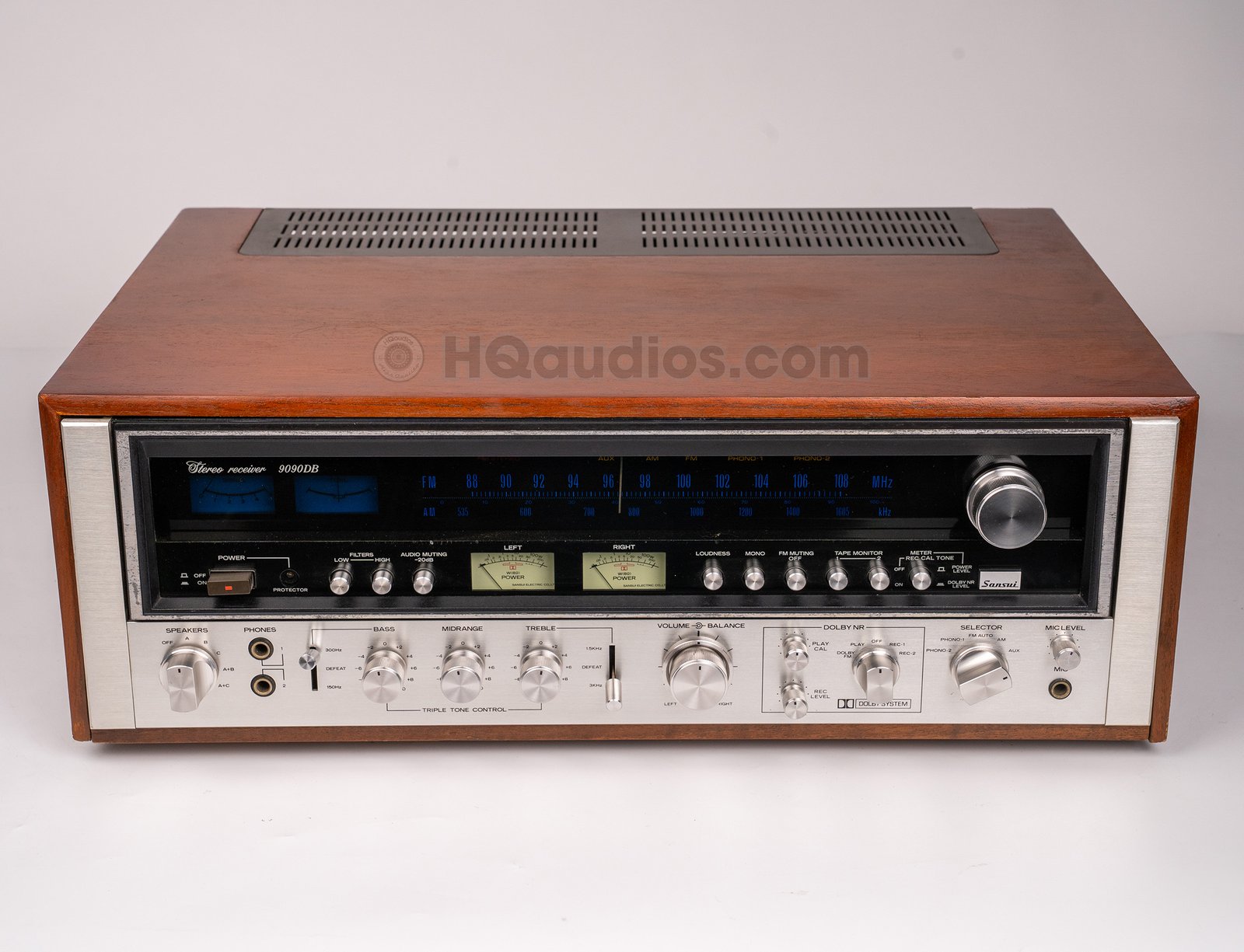

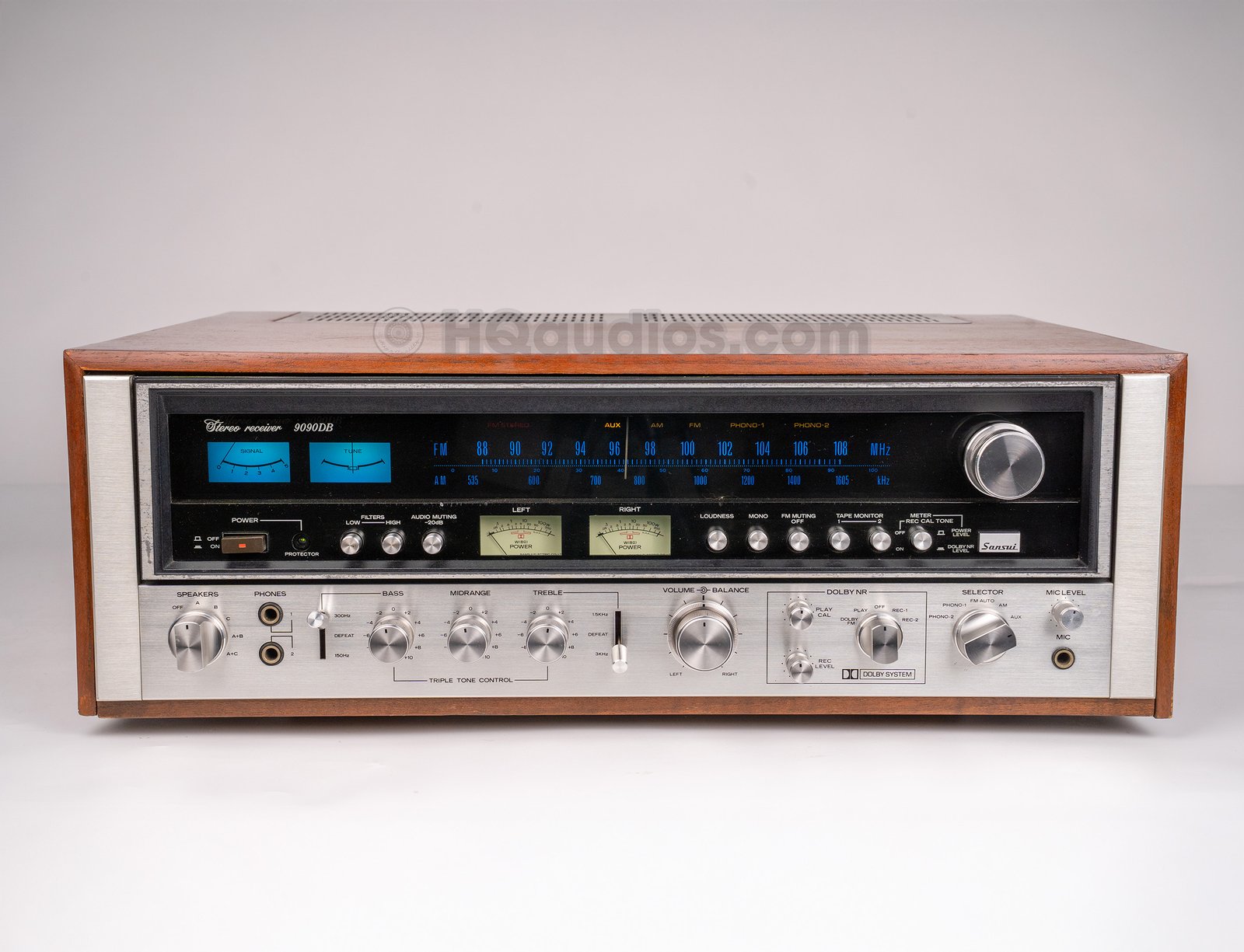

Excellent Sansui 9090DB Vintage Receiver

ABOUT

The Sansui 9090DB represents the pinnacle of Sansui’s 1970s engineering — a flagship receiver that blends immense power with refined musical detail.

Delivering 125 watts per channel, it features the signature Sansui warmth and dynamic soundstage, complemented by the Dolby FM/NR system for lower noise and cleaner reproduction.

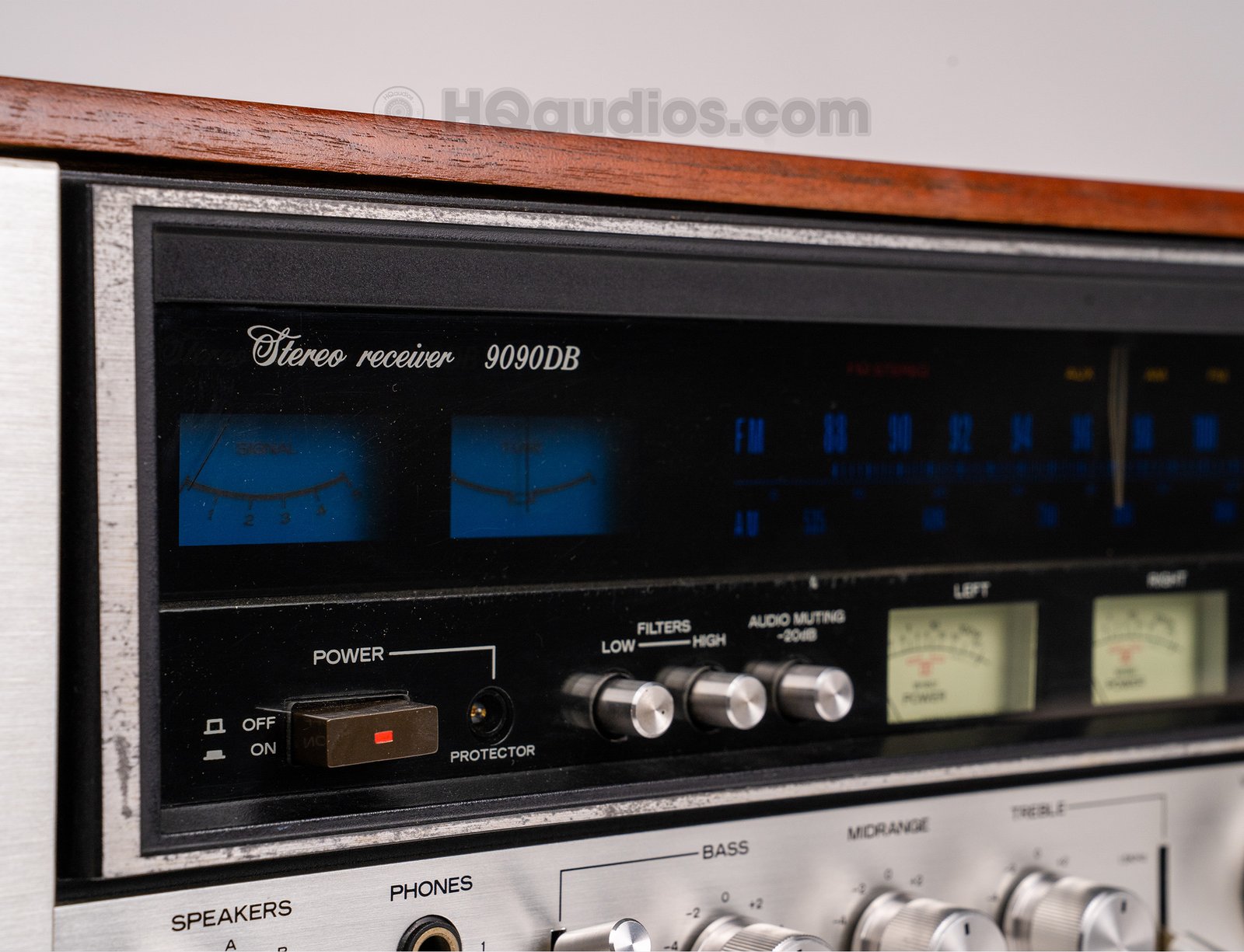

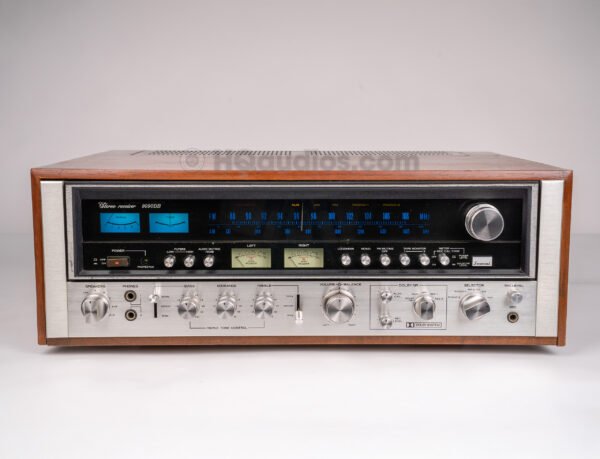

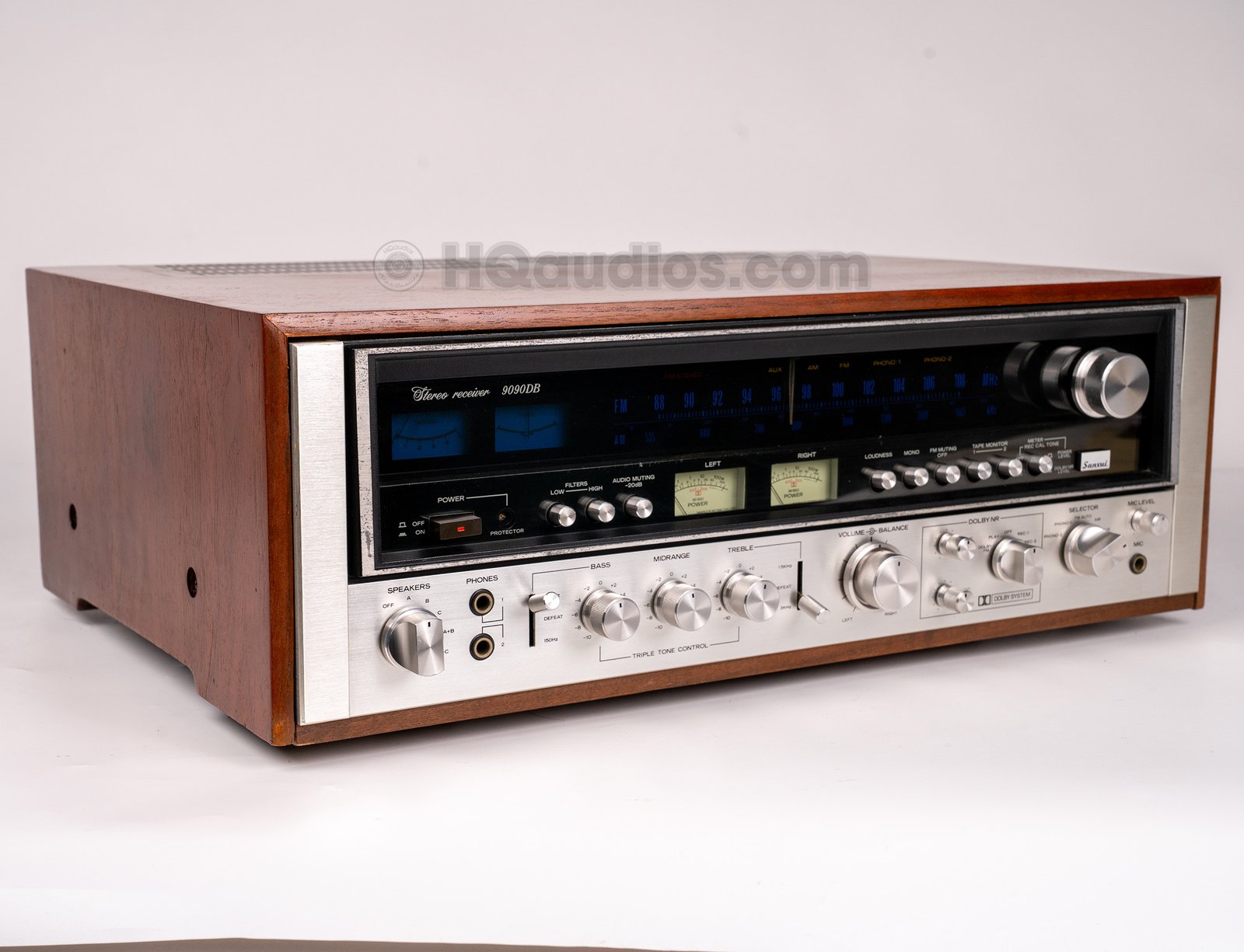

Its bold brushed-aluminum faceplate, precision analog meters, and rich walnut cabinet define the era’s finest design.

Fully serviced, recapped, and Dolby section aligned, this 9090DB performs exactly as intended — powerful, quiet, and stunningly musical.

Customer Service:

Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine…”

Note:

The actual color of the product may sometimes differ slightly from the photos due to lighting conditions, temperature, and the device used. Some angles in the photos may not fully reflect the product’s condition. Please read the description carefully and feel free to message us if you have any questions.

SPECS

• Tuning range: FM, MW
• Power output: 125 watts per channel into 8Ω (stereo)
• Frequency response: 10Hz to 30kHz
• Total harmonic distortion: 0.1%
• Damping factor: 30
• Input sensitivity: 4mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
• Signal to noise ratio: 70dB (MM), 80dB (DIN), 80dB (line)
• Channel separation: 50dB (MM), 50dB (line)
• Output: 150mV (line), 30mV (DIN), 0.775V (Pre out)
• Dimensions: 21.3″ × 7.2″ × 15.6″
• Weight: 52.0 lbs
• Year: 1976
• SKU: 15UJKE4216

KEY FEATURES

• 125 watts per channel @ 8 Ω — flagship Sansui power and authority

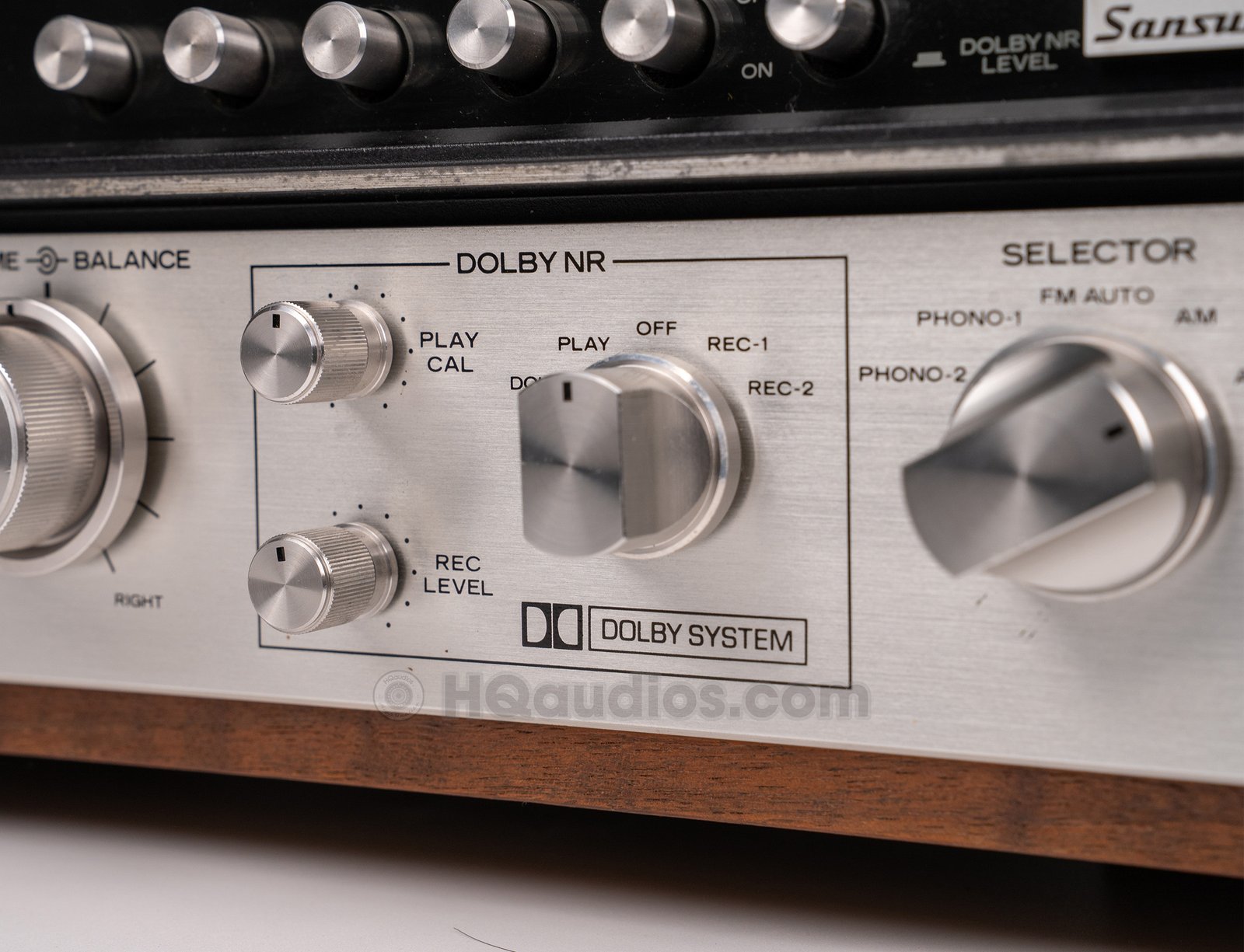

• Dolby FM/Noise Reduction circuit for reduced tape and broadcast hiss
• Fully recapped, cleaned, and bias-aligned for long-term reliability
• Tuner section aligned for optimal FM sensitivity and channel separation
• Brushed aluminum faceplate detailed to near-mint finish, with original knobs
• Lighting updated according to model compatibility
• Tested over 3 hours of continuous playback – zero hum, distortion, or imbalance

REFURBISHED

This Sansui 9090DB has been fully refurbished by HQaudios with comprehensive electronic restoration, mechanical servicing, and cosmetic detailing. The 9090DB is one of the most desirable receivers of the 1970s—a powerful, dynamic, and warm-sounding model known for its outstanding tuner section, clean phono stage, and strong output power.

All dial lamps and indicator lights have been fully replaced with high-quality LEDs/filament-type bulbs, providing better brightness, lower heat, and long-term reliability.

Cosmetic Notes

The metal trim around the glass has a few minor oxidation spots (common on 9090DB).

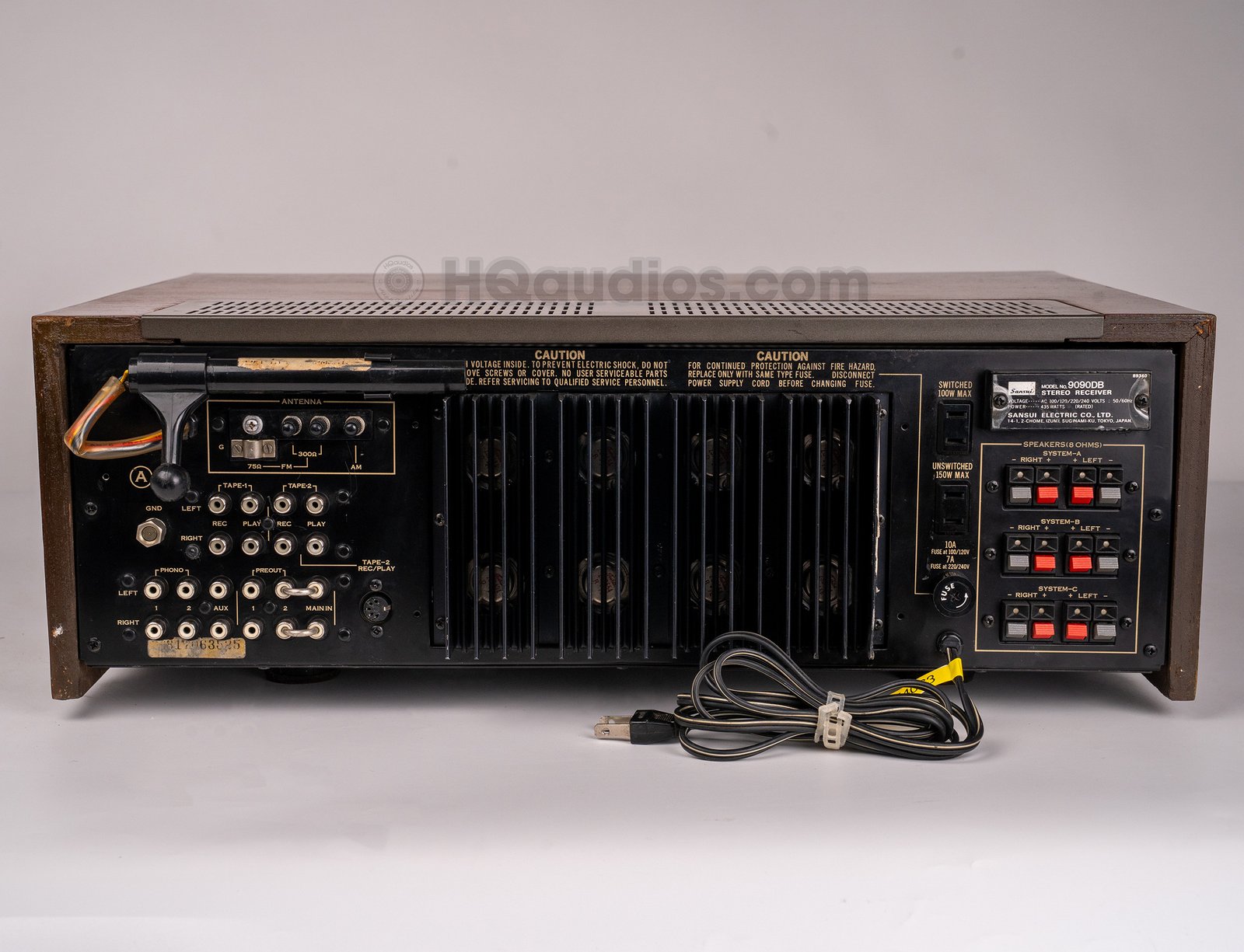

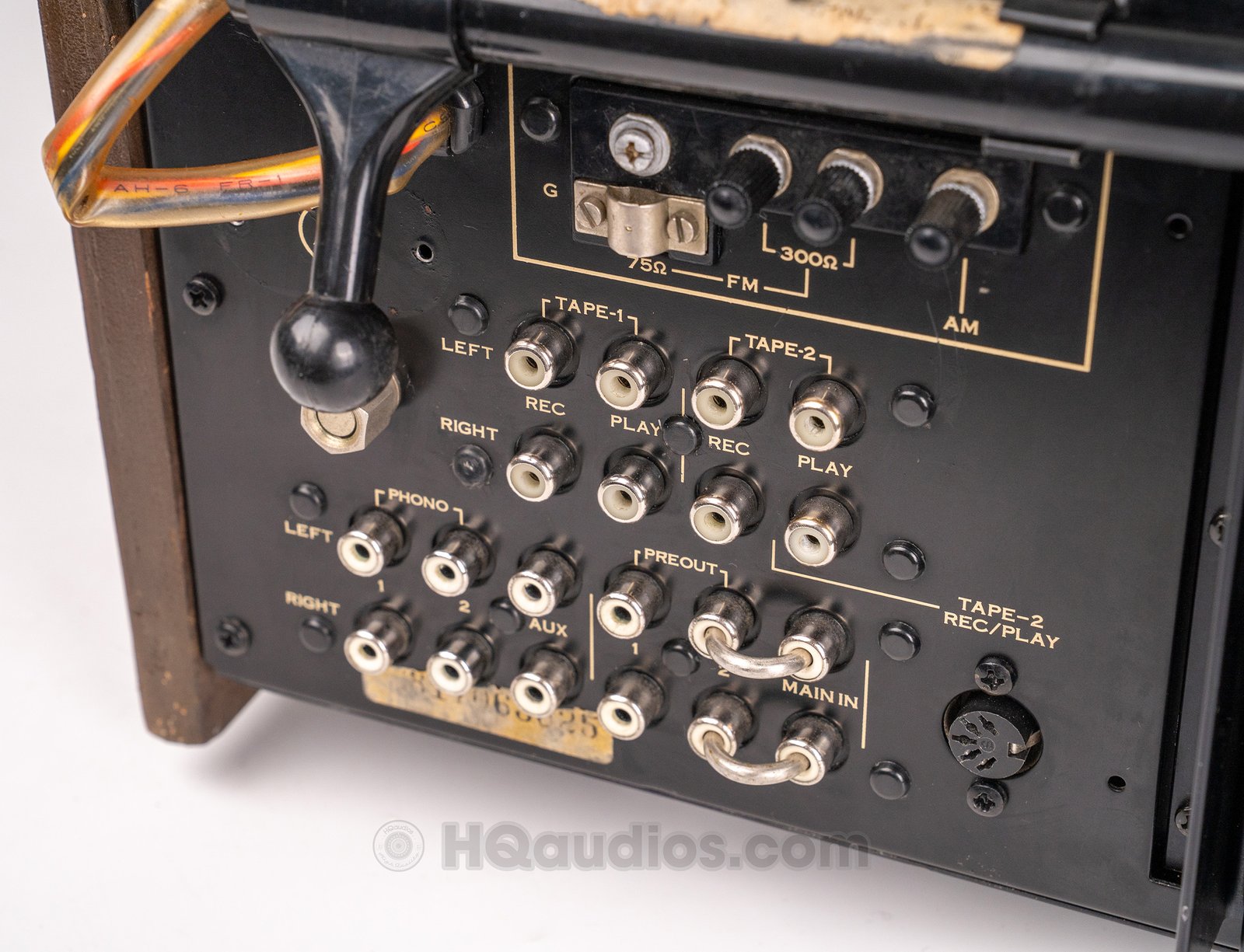

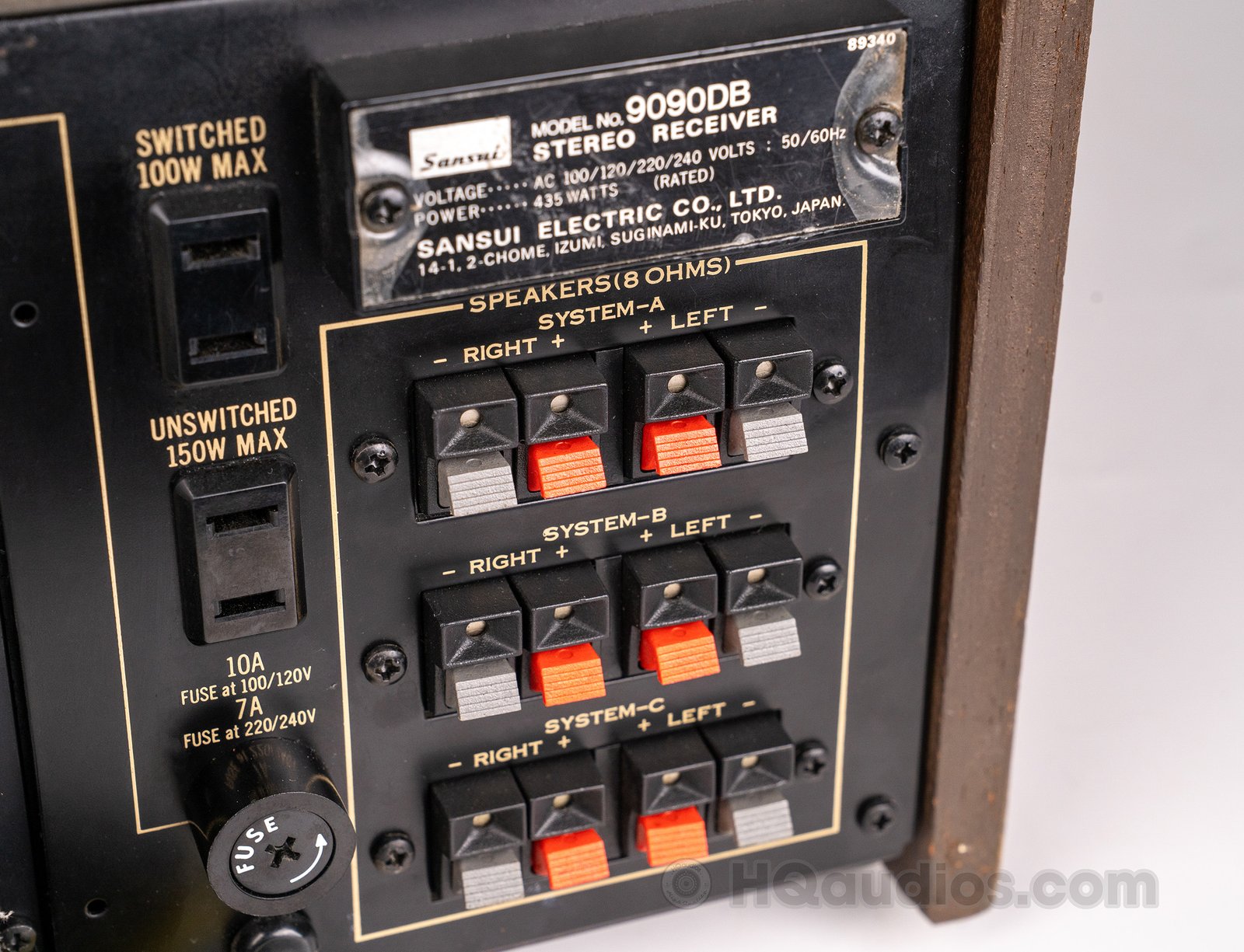

The rear panel has been deep-cleaned, but a few light scratches remain.

The wood cabinet has been fully refinished and repainted, giving it a fresh, clean appearance.

These cosmetic imperfections do not affect performance.

1. Initial Inspection & Diagnostics

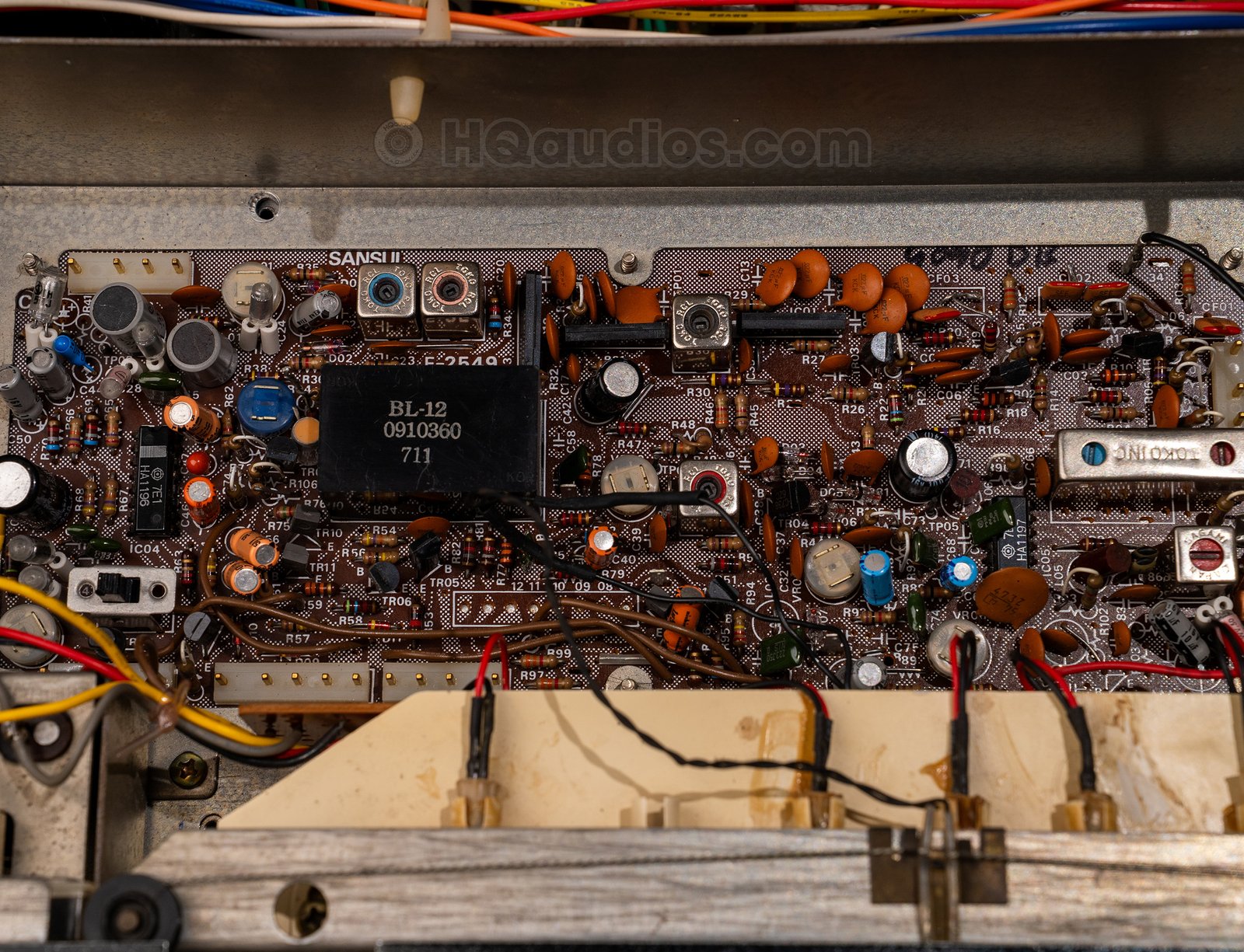

Full internal inspection of driver board (F-2624), power supply, Dolby board, tuner board

Testing of relay, speaker outputs, headphone output

Tuner sensitivity, stereo separation, and signal strength evaluated

All knobs/switches tested for smooth operation

Multipath and AM/FM tuning circuits checked

2. Electronic Refurbishment

Replacement of key electrolytic capacitors throughout the unit using Nichicon / Panasonic

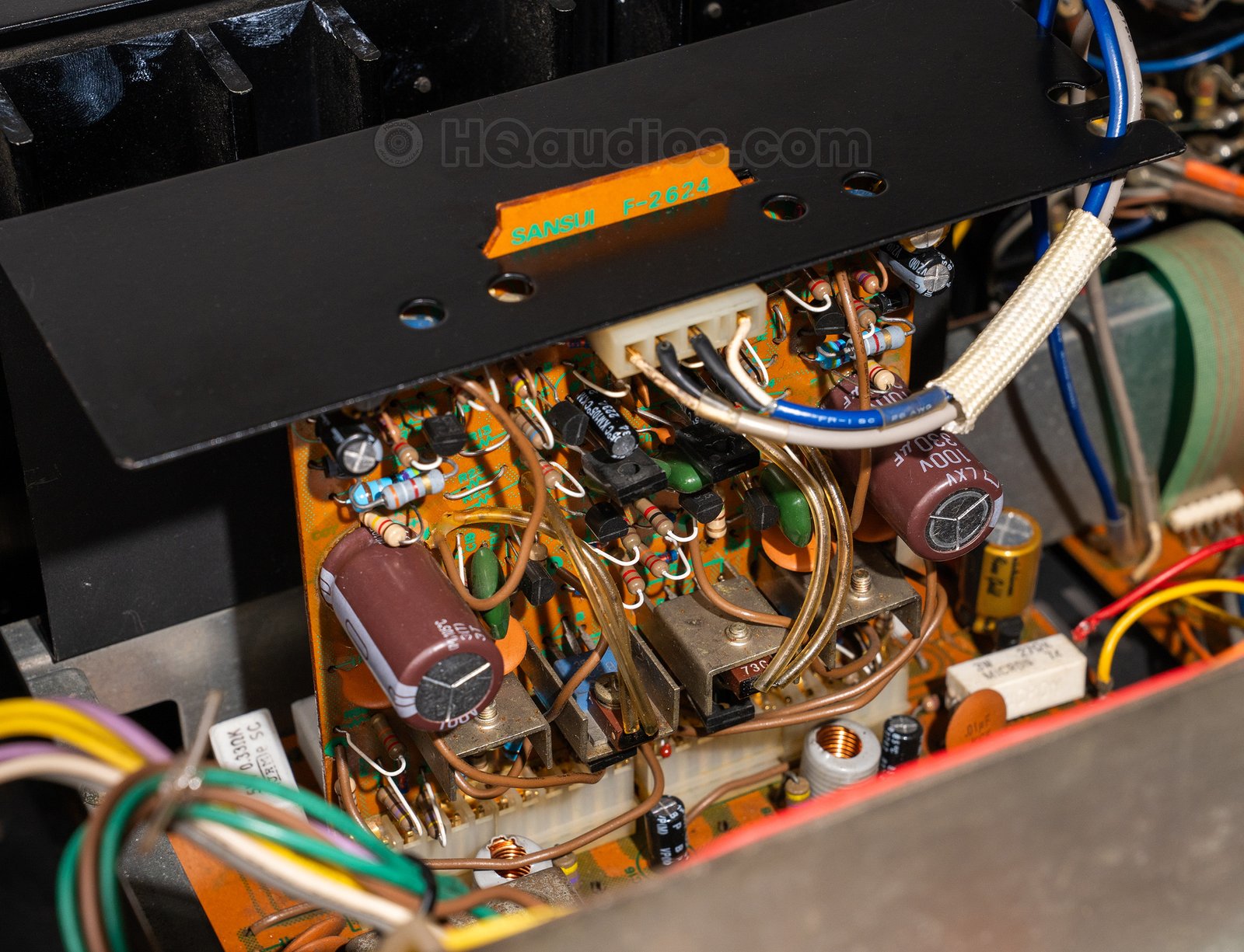

The driver board rebuilt:

New capacitors

Replacement of weak/bad transistors (common failure points)

Reflow of cracked/cold solder joints

Dolby board cleaned and serviced

Protection relay cleaned or replaced for noise-free switching

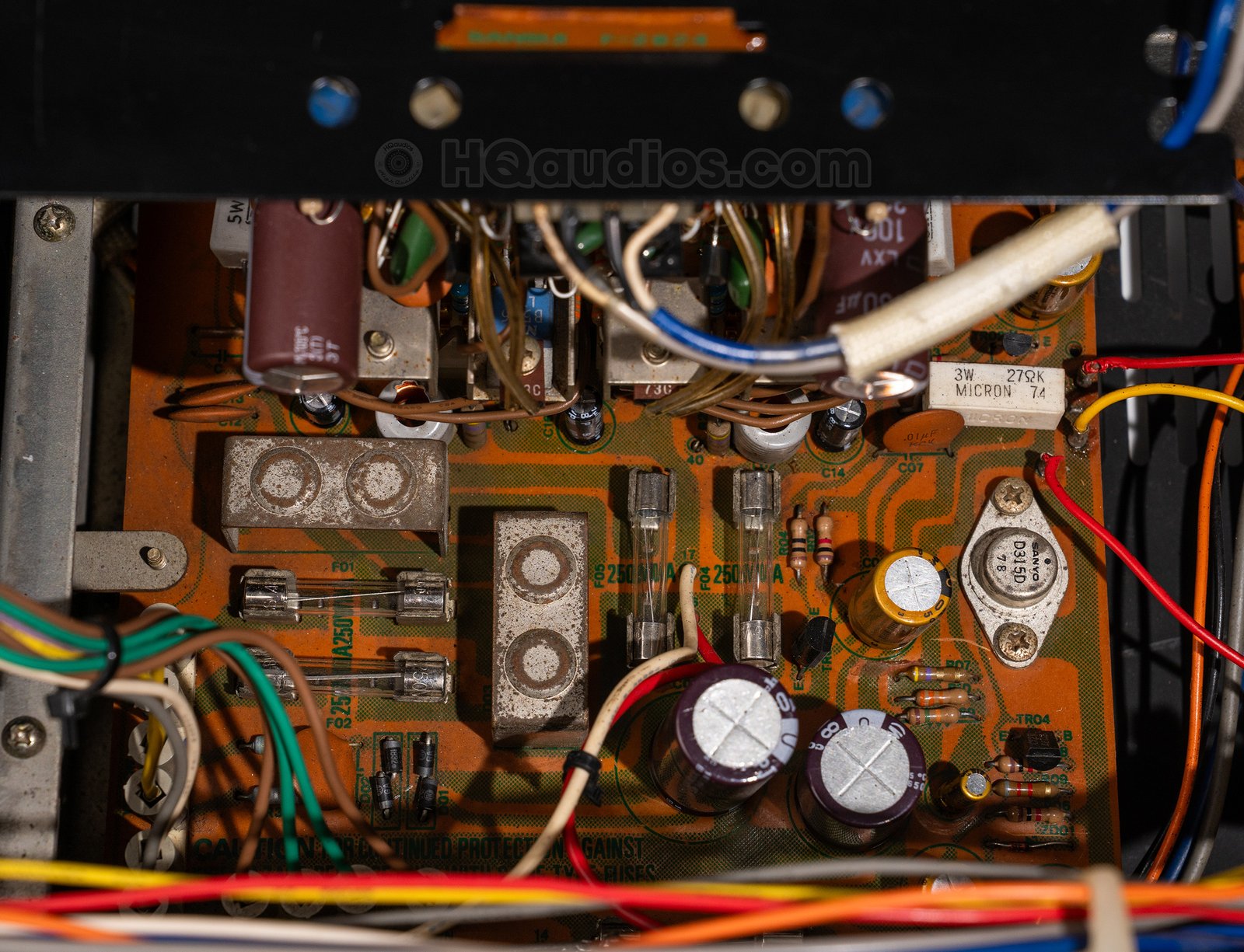

Power supply voltages calibrated and tested under load

Deoxidation and servicing of all signal-path switches

FM/AM tuner sections checked and aligned

3. Lamps, Indicators & Displays

Full LED/filament upgrade for:

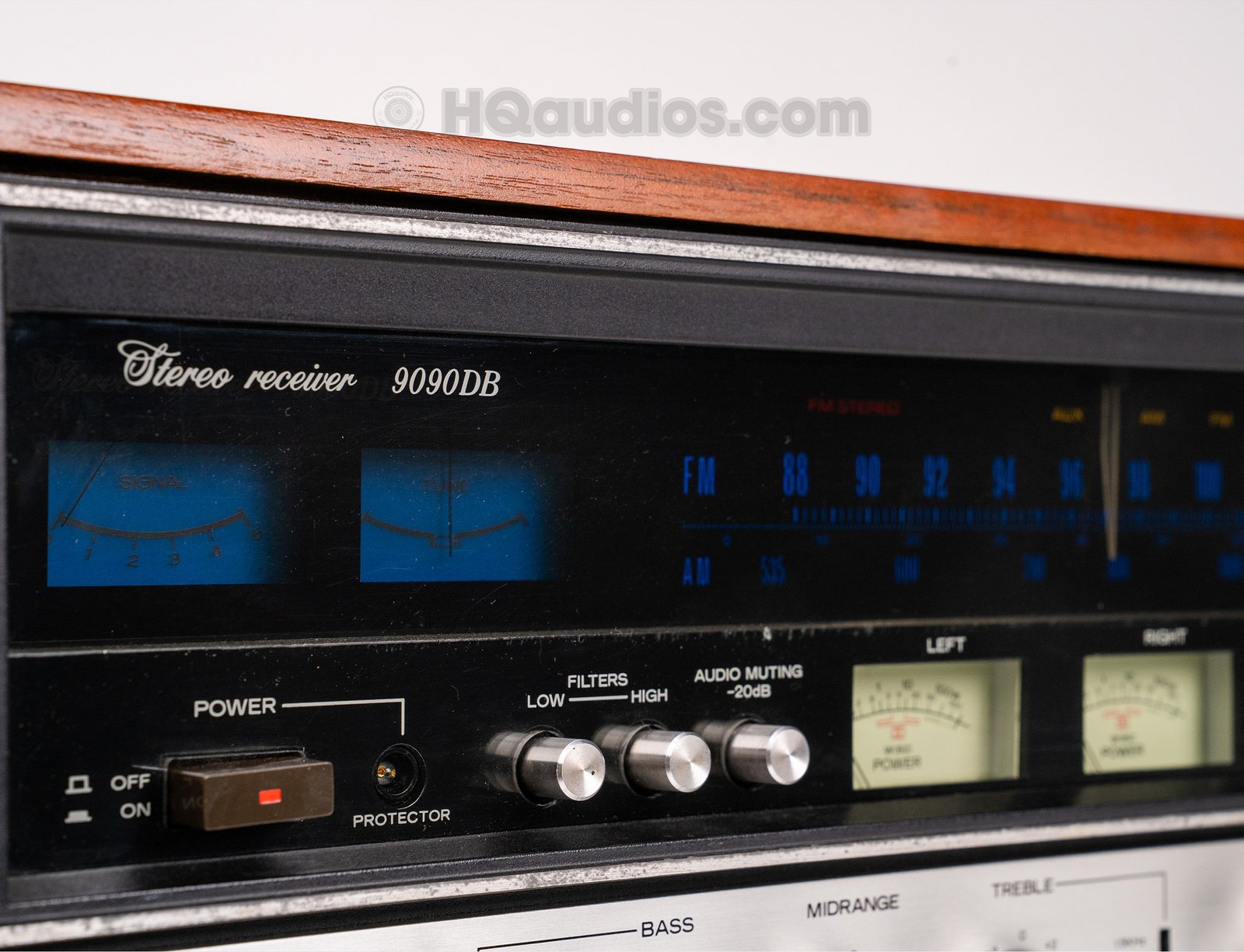

Dial lamps

Meter lamps

Indicator lights

Ensures long lifespan, lower heat, and strong color consistency

4. Controls & Switches

All rotary pots (volume, bass, mid, treble, balance) cleaned with DeoxIT

Full restoration of toggle switches, tape monitor, filter switches, loudness

Dolby calibration pots cleaned

Smooth, noise-free operation across all controls

5. Cosmetic Restoration

Wood case refinished and repainted

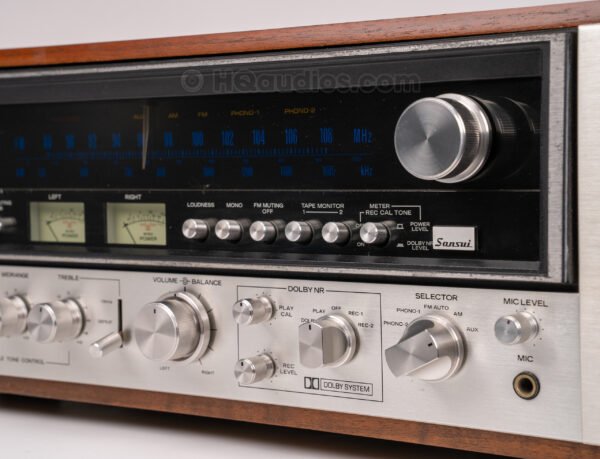

Front faceplate cleaned and detailed

Polished knobs

Glass washed and detailed

Trim ring shows mild oxidation

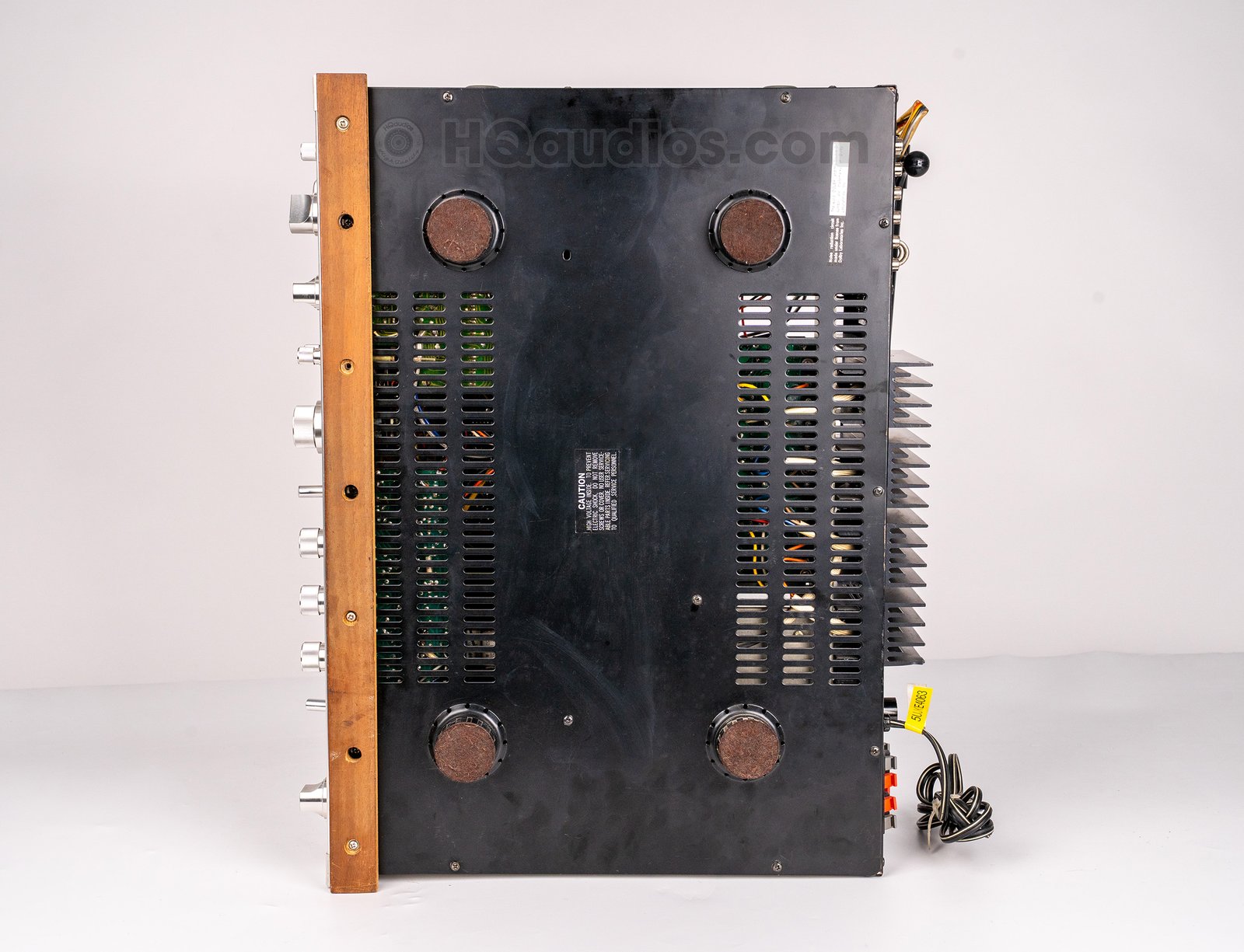

Rear chassis cleaned; small scratches remain but overall clean and presentable

6. Final Calibration & Audio Testing

Bias and DC offset adjusted to factory specification

Frequency response measured across L/R channels

Phono stage tested for noise, gain, and channel balance

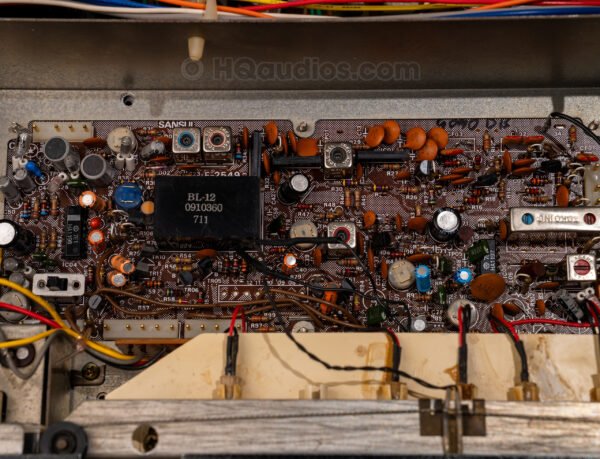

Tuner alignment (IF, MPX) checked

Tape monitor playback verified

2-hour burn-in test for thermal stability

Standard HQaudios Certified QC passes

SUGGESTED PAIRINGS

Ideal pairings include JBL L100, Klipsch Heresy I, or Sansui SP-5500 speakers, each brings out the 9090DB’s commanding presence and warmth.

Combine with a Sansui SR-717 turntable or SC-3110 cassette deck for a full vintage Sansui stack.

💡 Buy as a combo and save $100 — message us for details!
