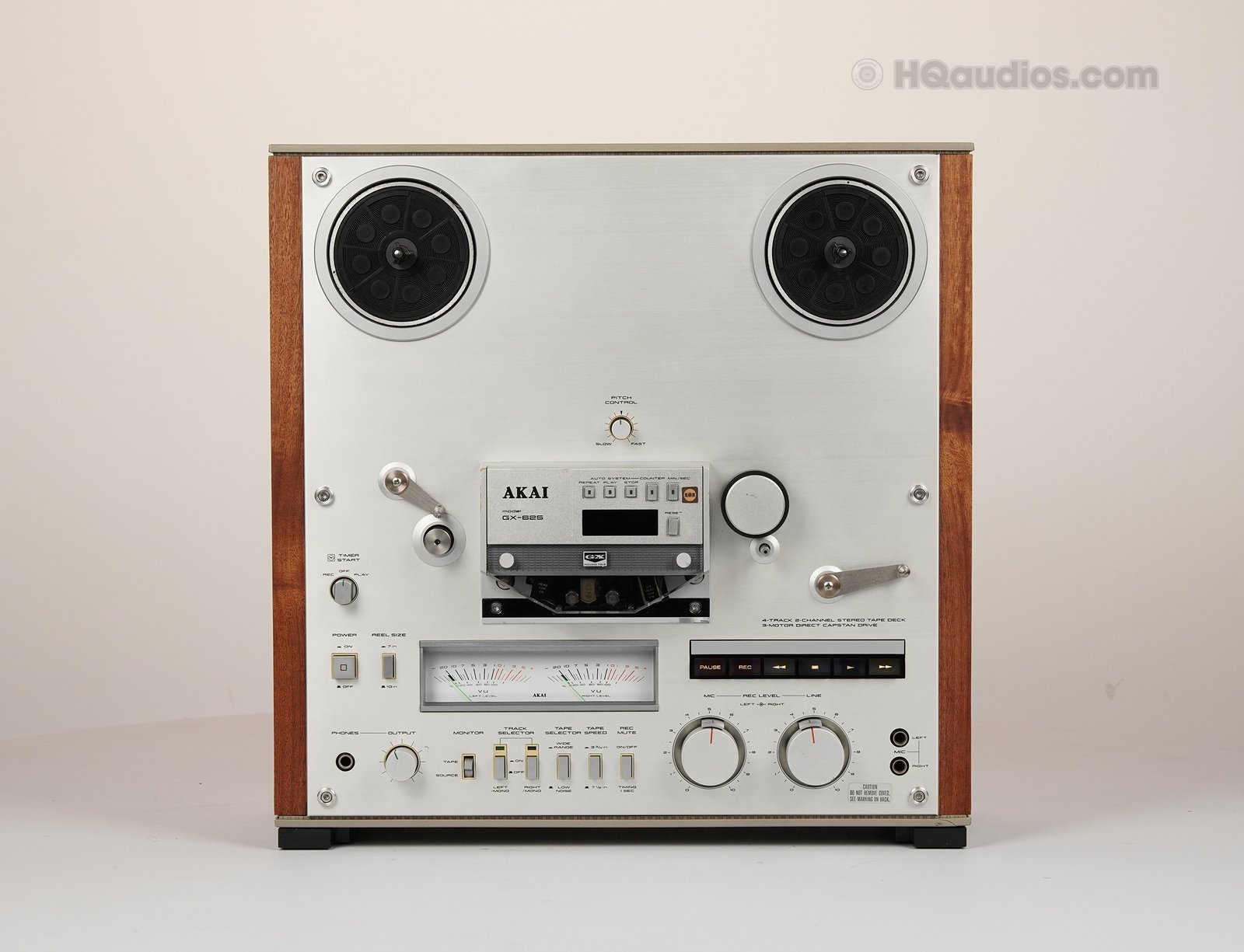

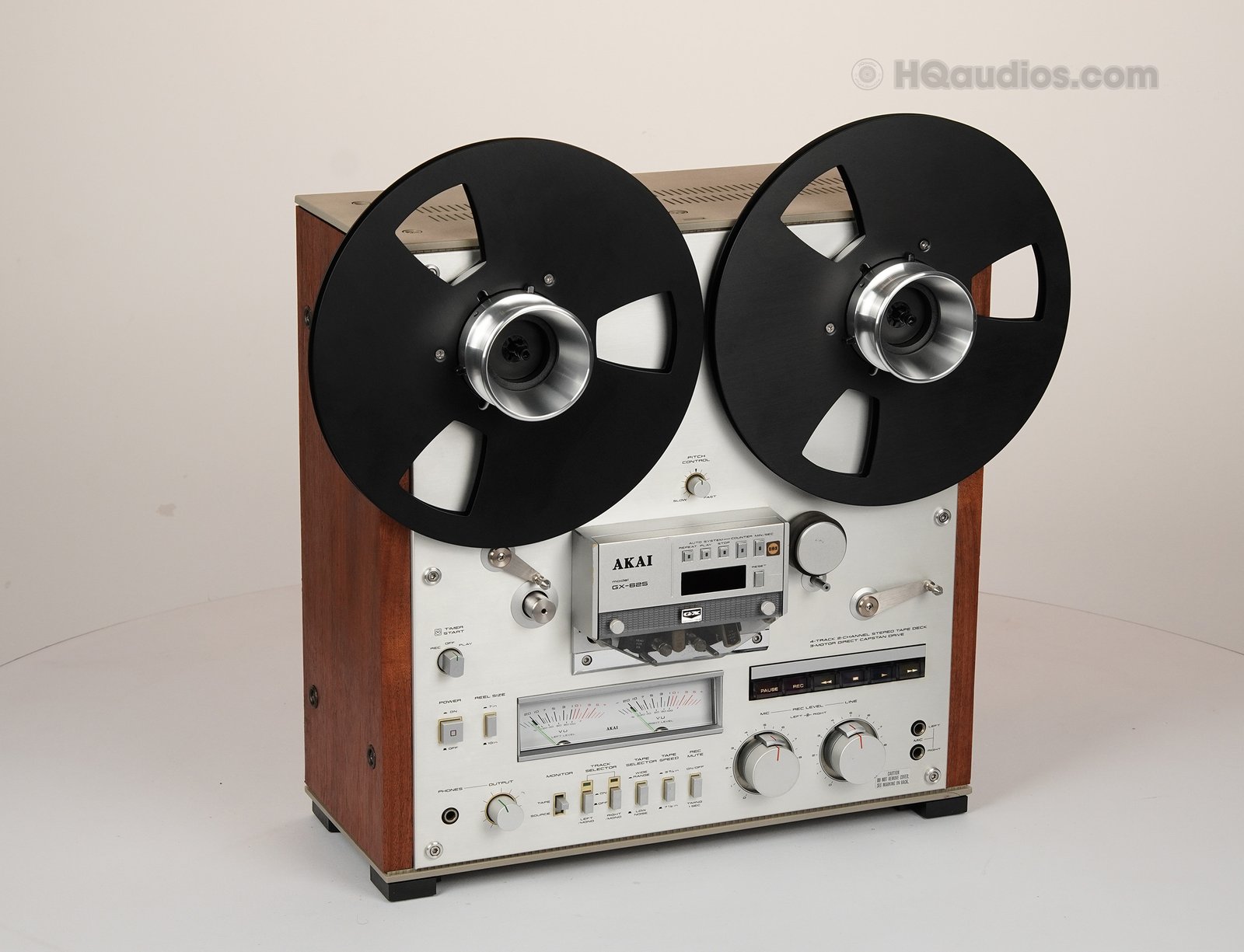

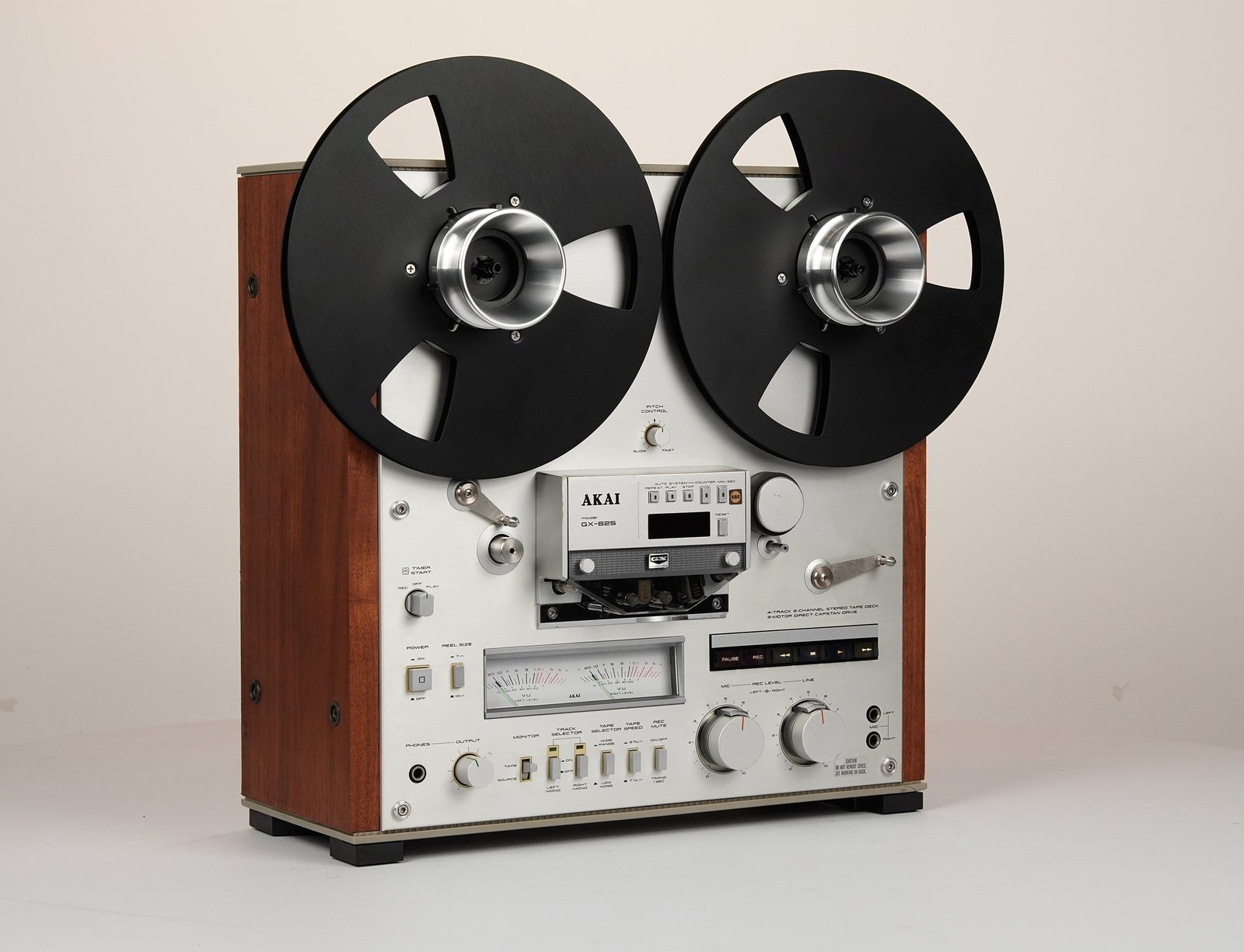

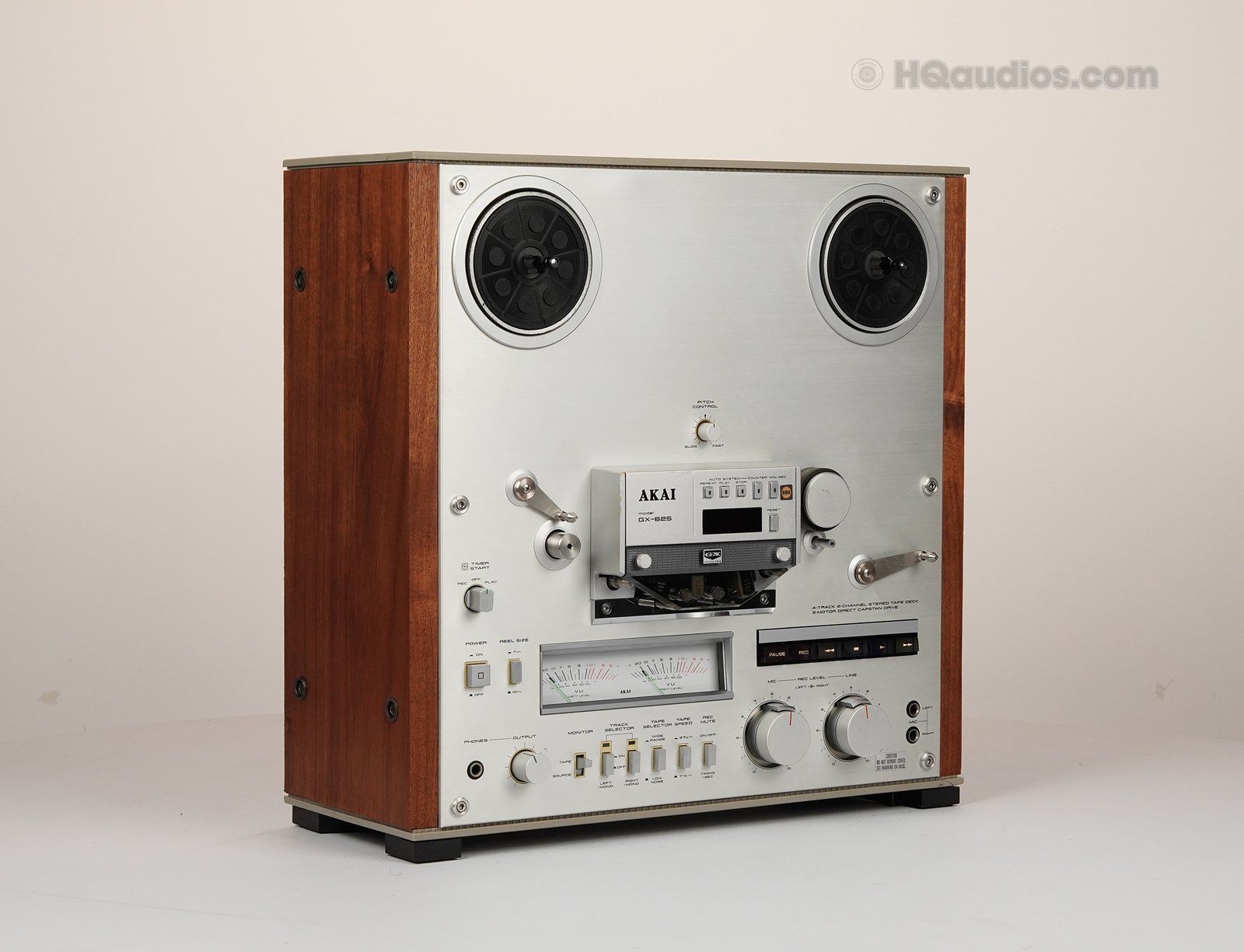

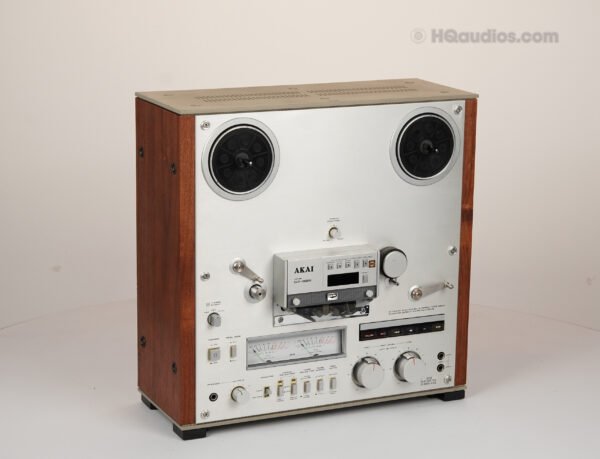

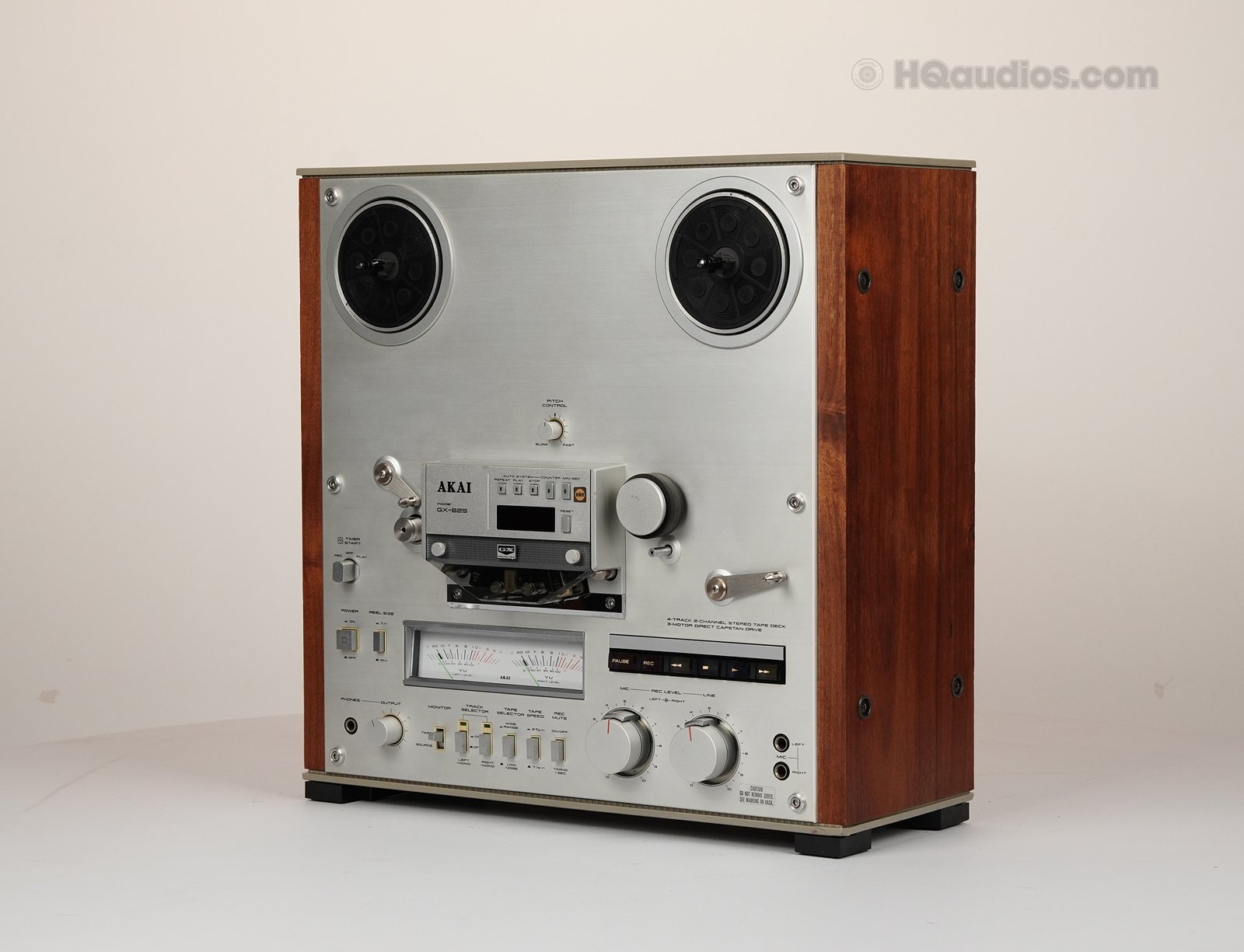

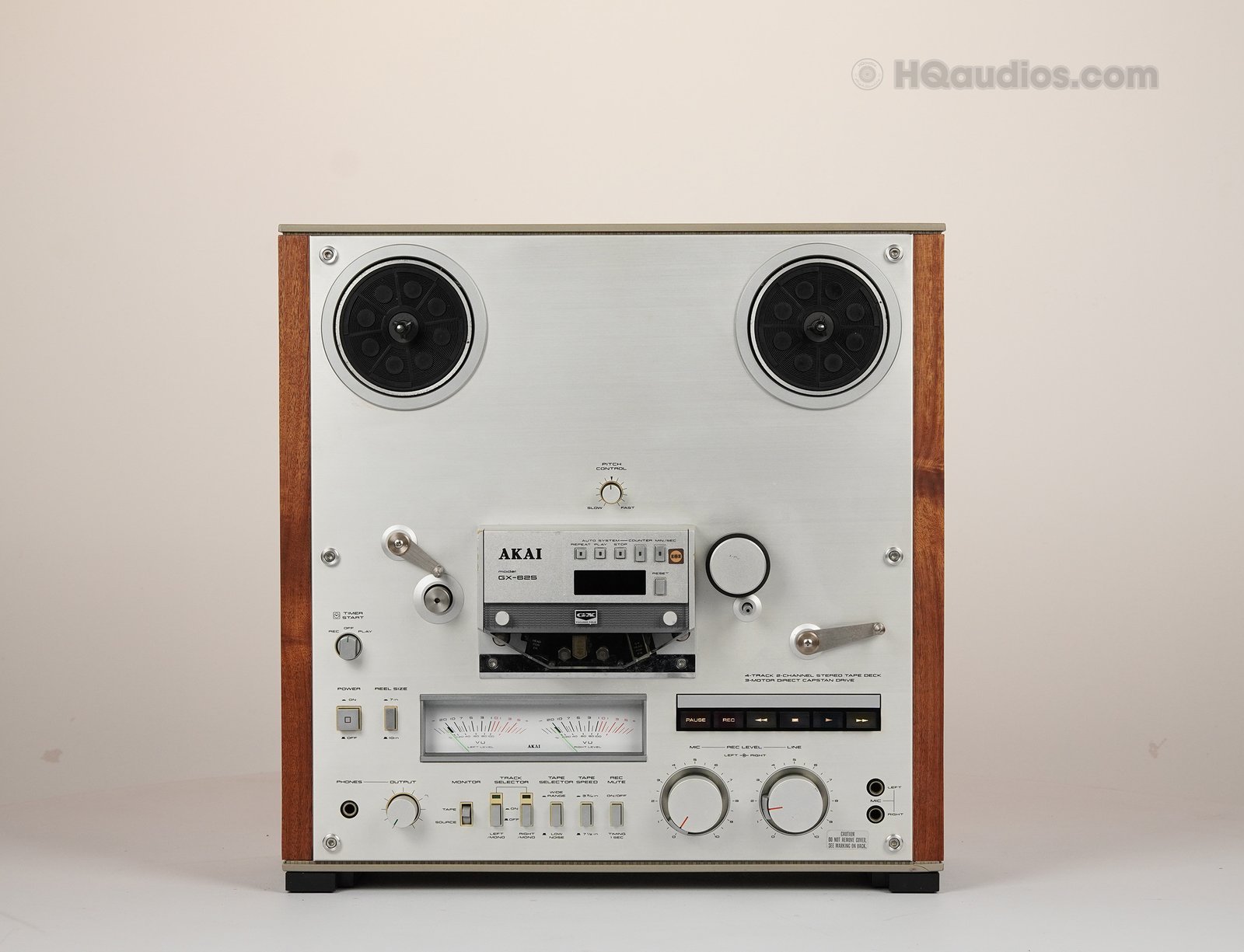

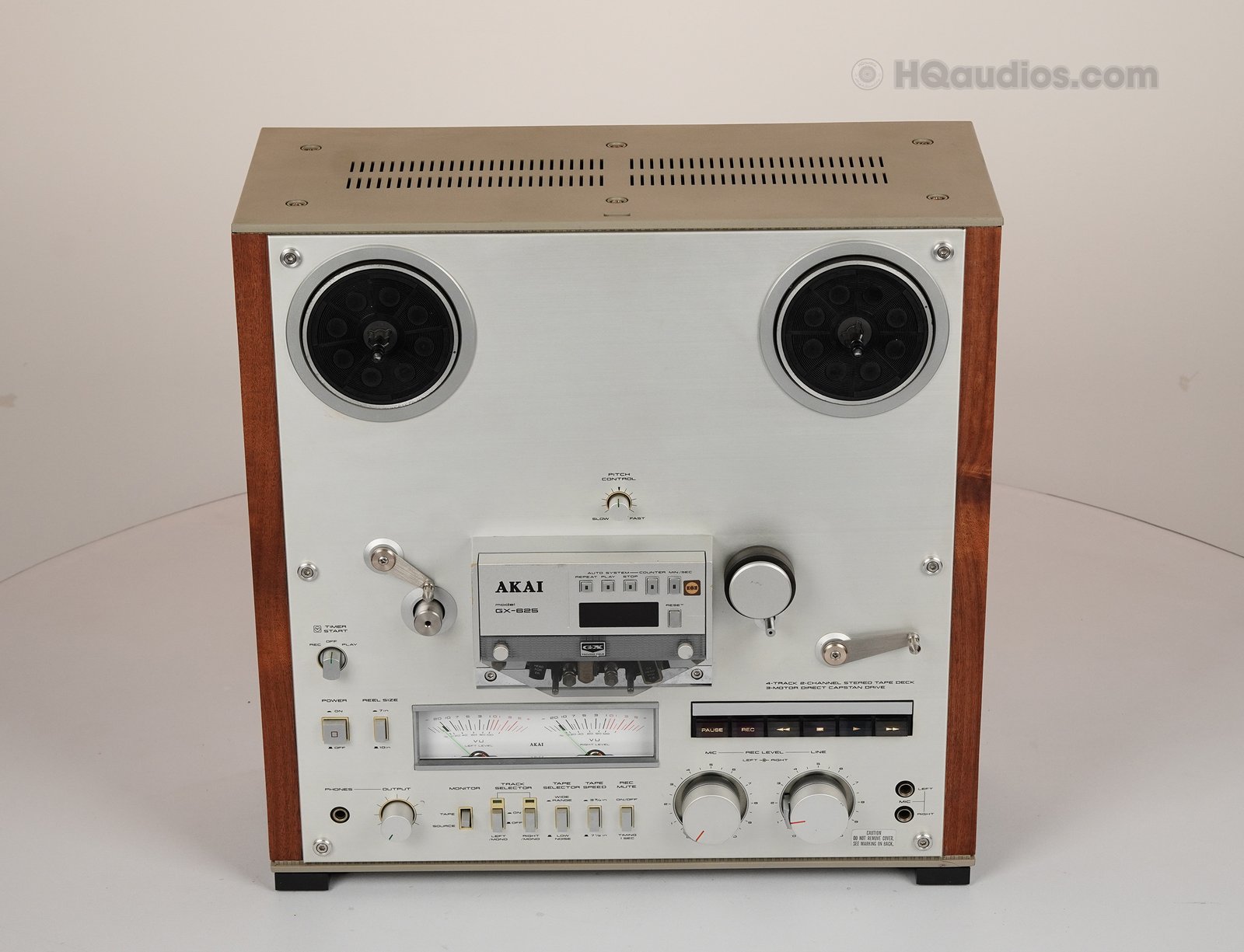

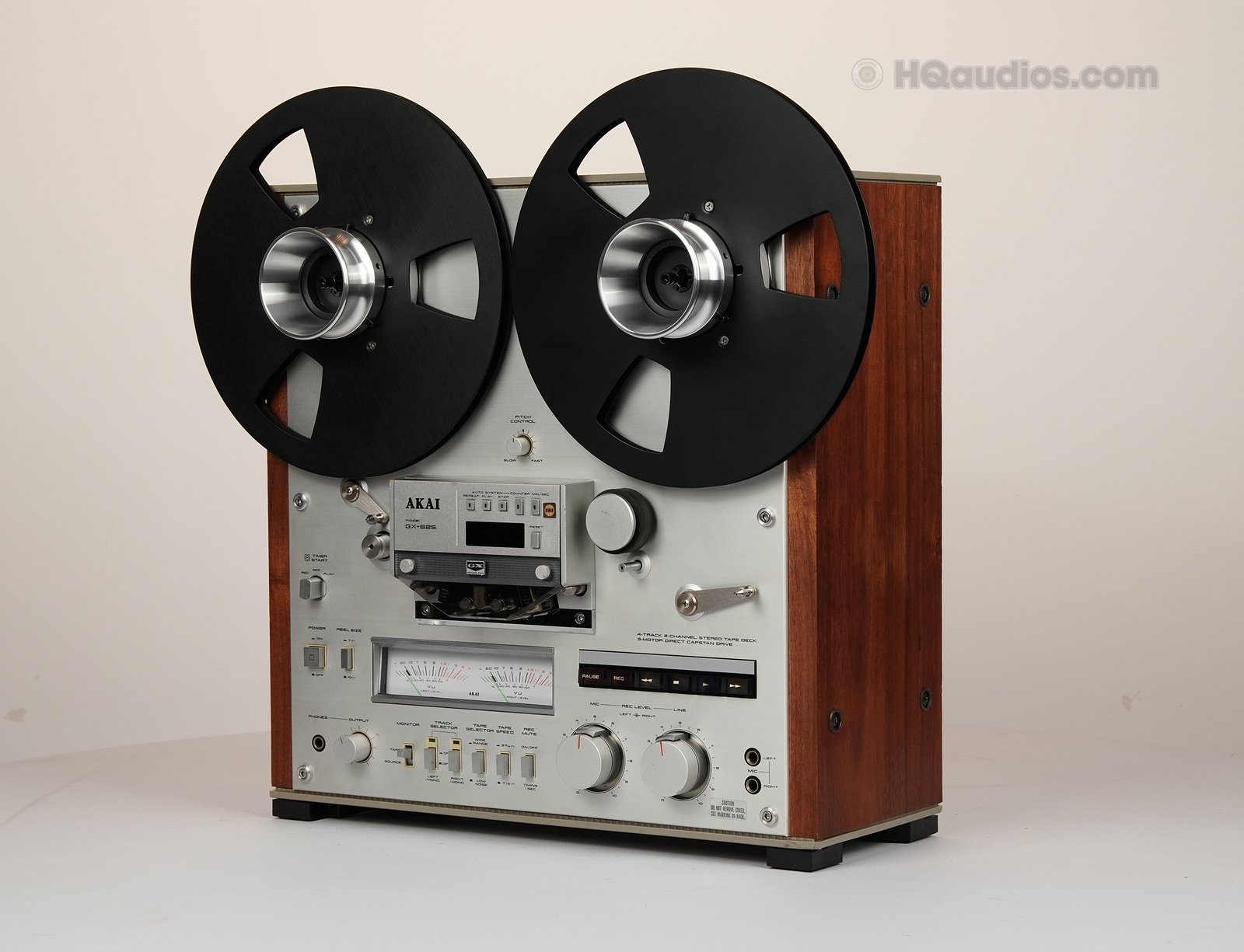

AKAI GX-625 Vintage RTR

The AKAI GX-625 is a classic auto-reverse reel-to-reel tape deck, well known for its mechanical reliability, smooth tape handling, and legendary GX (Glass & Crystal Ferrite) heads, which are virtually wear-free and designed for extremely long service life.

With its stable transport system, precise auto-reverse operation, and clean analog sound signature, the GX-625 delivers an authentic reel-to-reel listening and recording experience. This model remains a favorite among serious analog enthusiasts and collectors seeking dependable performance with classic AKAI build quality.

This unit has been fully serviced, calibrated, and tested, and is ready to deliver the true magic of analog tape playback and recording with excellent stability and long-term reliability.

Condition: Excellent – Serviced, tested, and cleaned

Model: AKAI GX-625

Type: Open-Reel Tape Deck (Auto-Reverse)

Protection Plan: 1-Year Warranty Included

Free Support: Must be used before requesting return

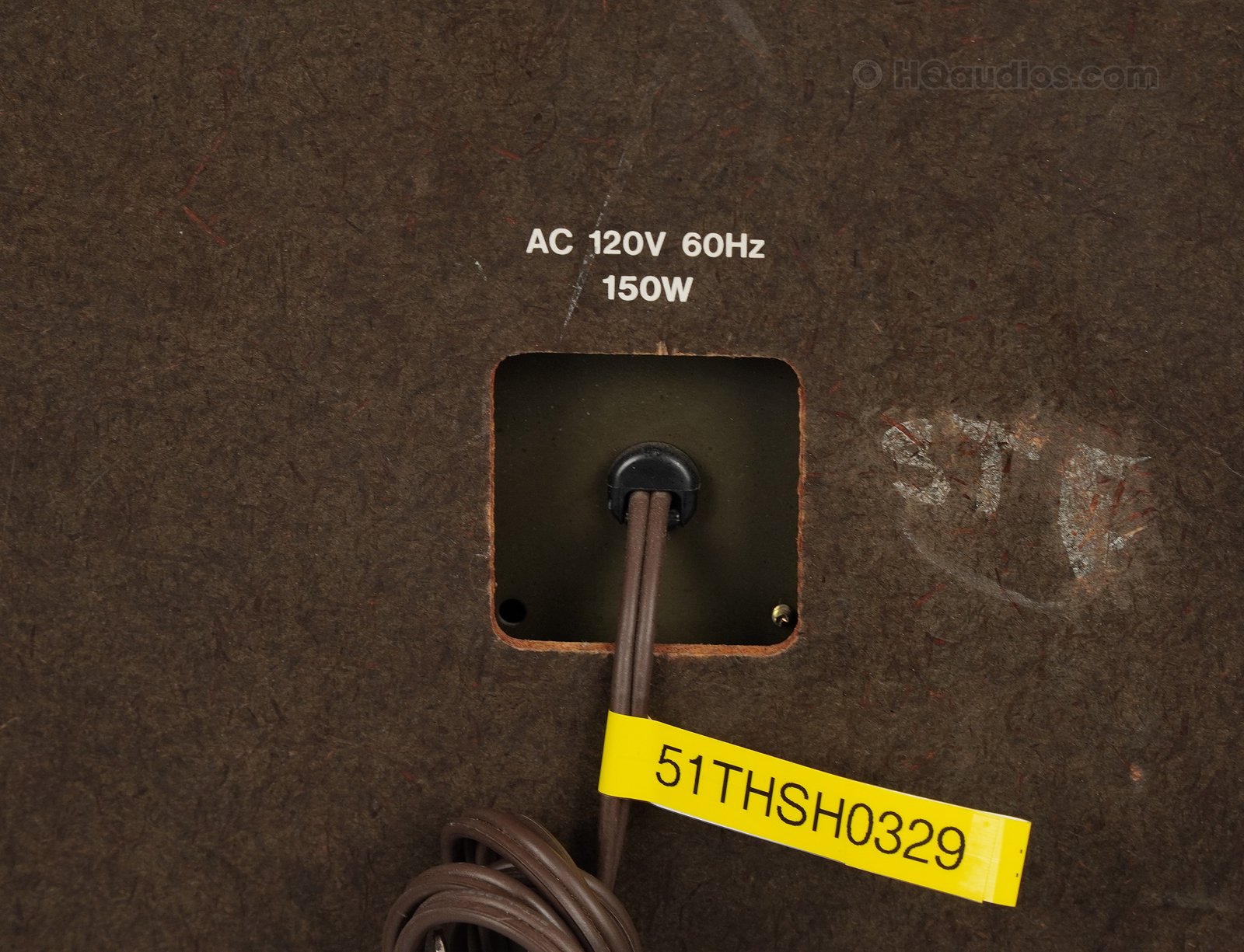

SKU: 151THSH0329

Customer Service:

Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

Note:

The actual color of the product may sometimes differ slightly from the photos due to lighting conditions, temperature, and the device used. Some angles in the photos may not fully reflect the product’s condition. Please read the description carefully and feel free to message us if you have any questions.

SPECS

Track system: 4-track, 2-channel, stereo/monaural system

Heads: 1 x GX record, 1 x GX playback, 1 x erase

Motor: 2 x reel drive, 1 x capstan

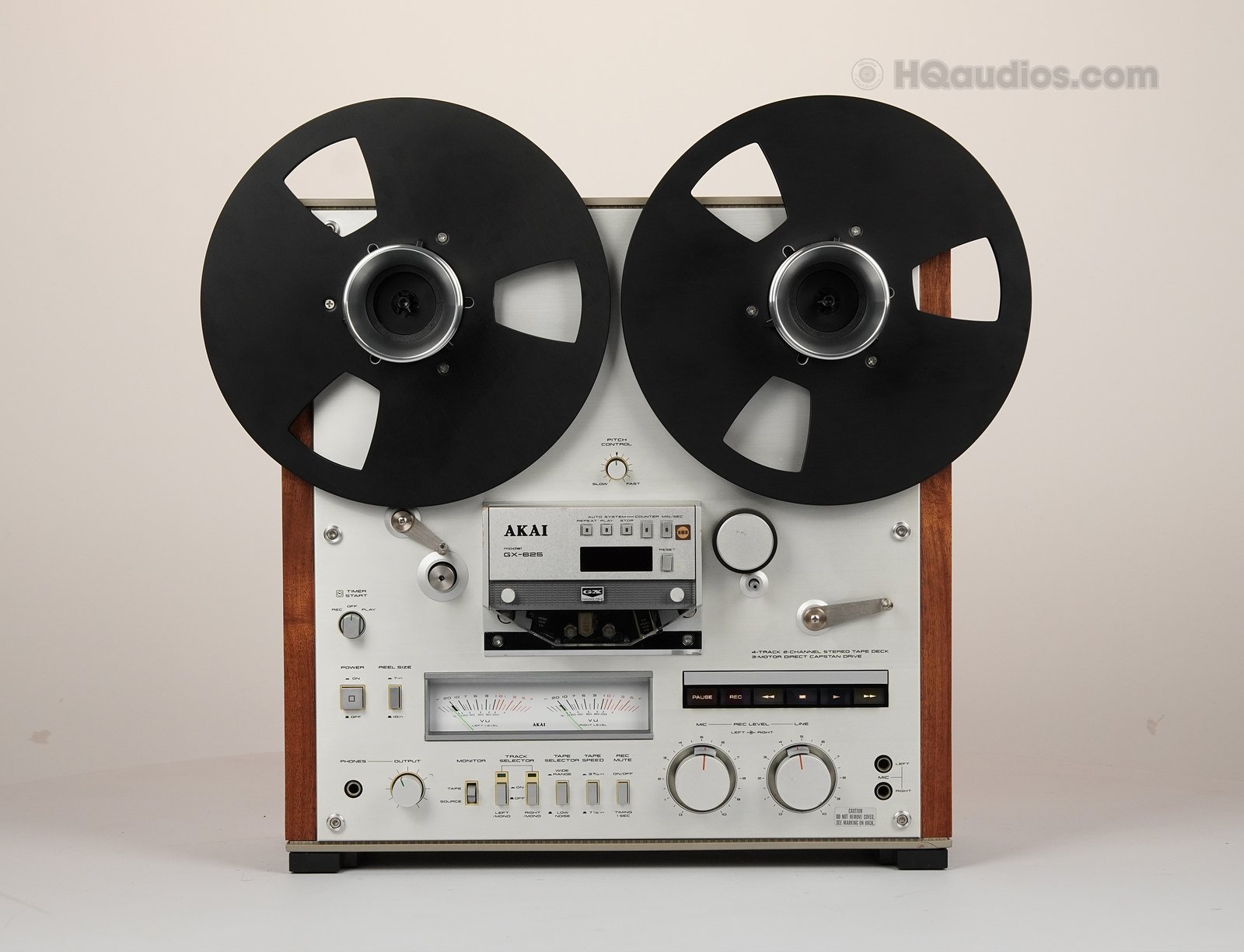

Reel size: up to 10.5 inch reel

Tape speeds: 3 3⁄4  7 1⁄2 ips

Wow and flutter: 0.03% (7 1⁄2 ips)

Frequency response: 30Hz to 26kHz (7 1⁄2 ips)

Signal to Noise Ratio: 62dB

Total harmonic distortion: 0.5%

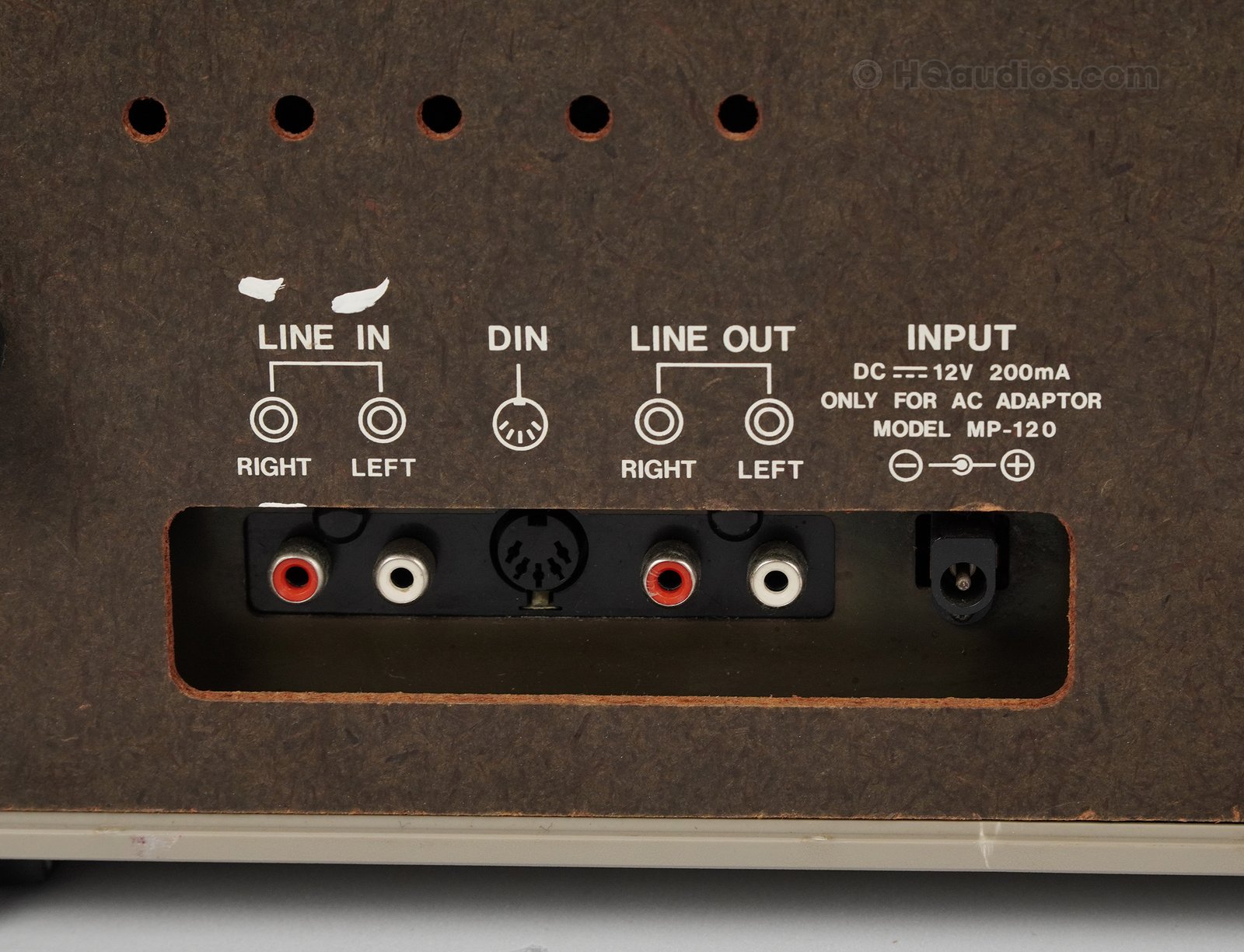

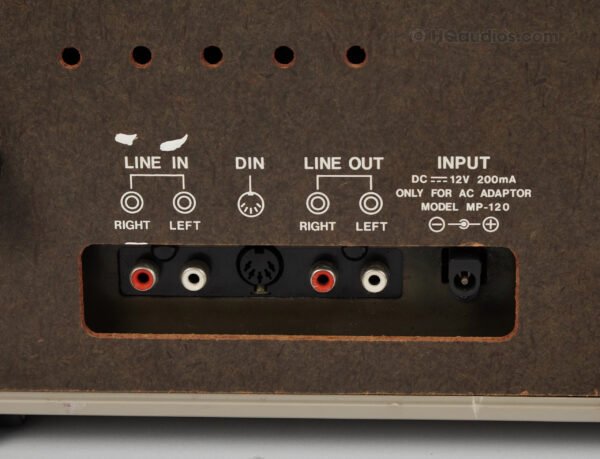

Input: 70mV (line), 2mV (DIN), 0.25mV (mic)

Output: 0.775V (line), 0.775V (DIN)

Dimensions: 17.32 × 17.56 × 9.49 inches

Weight: 38.8 lbs

KEY FEATURES

Auto-Reverse playback and recording

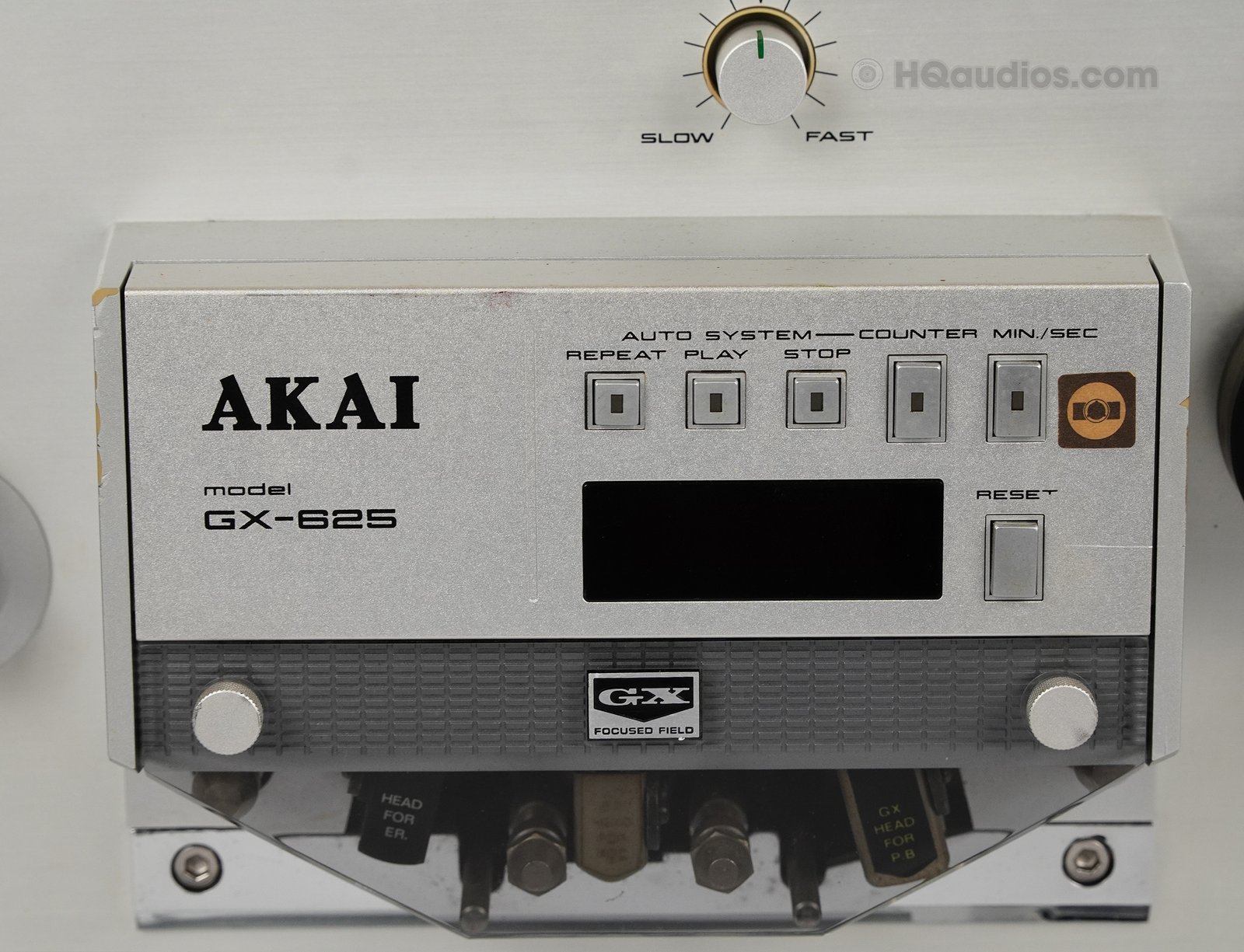

Legendary GX Glass & Crystal Ferrite heads for extreme durability

Stable, precision tape transport system

Smooth tape handling with accurate tension control

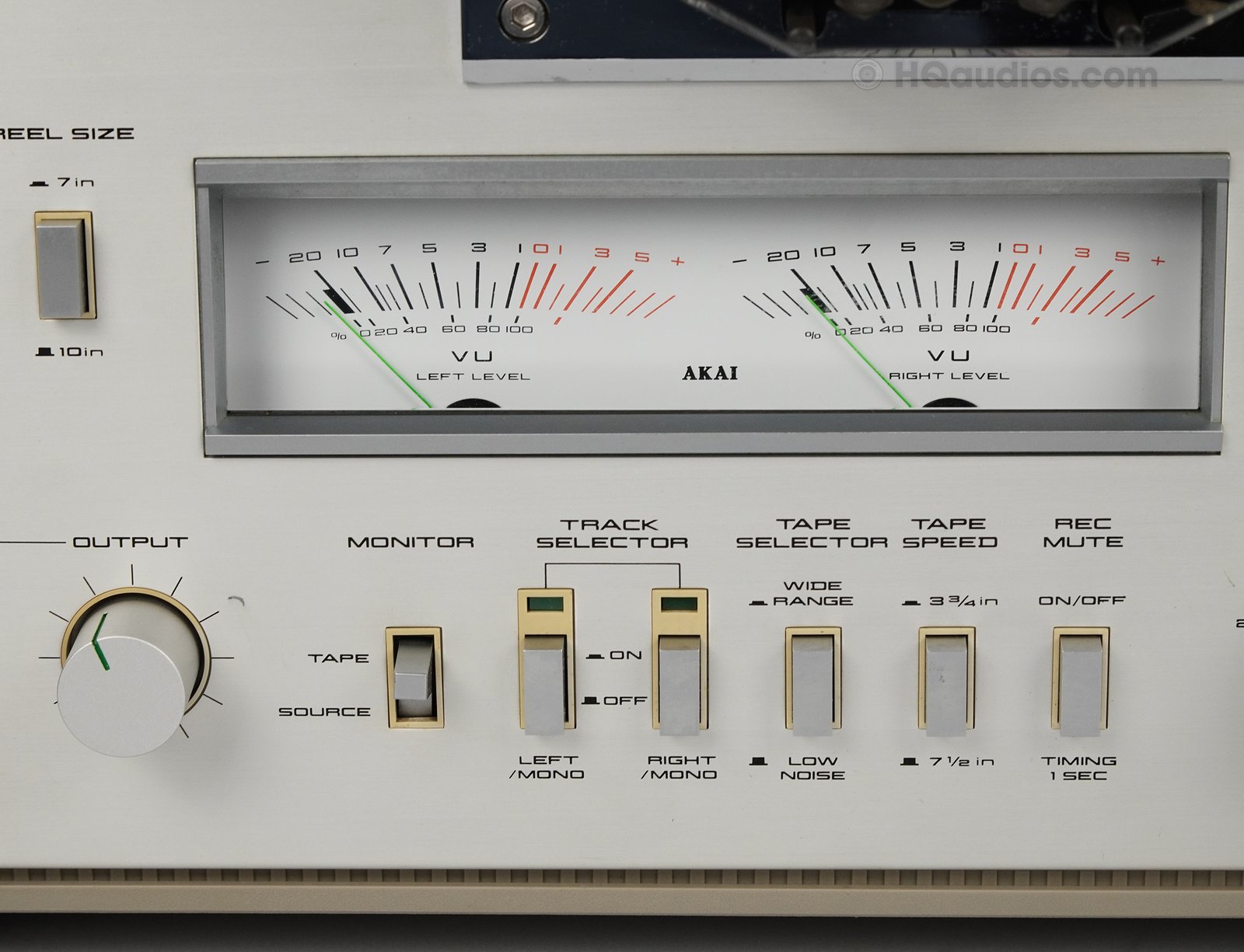

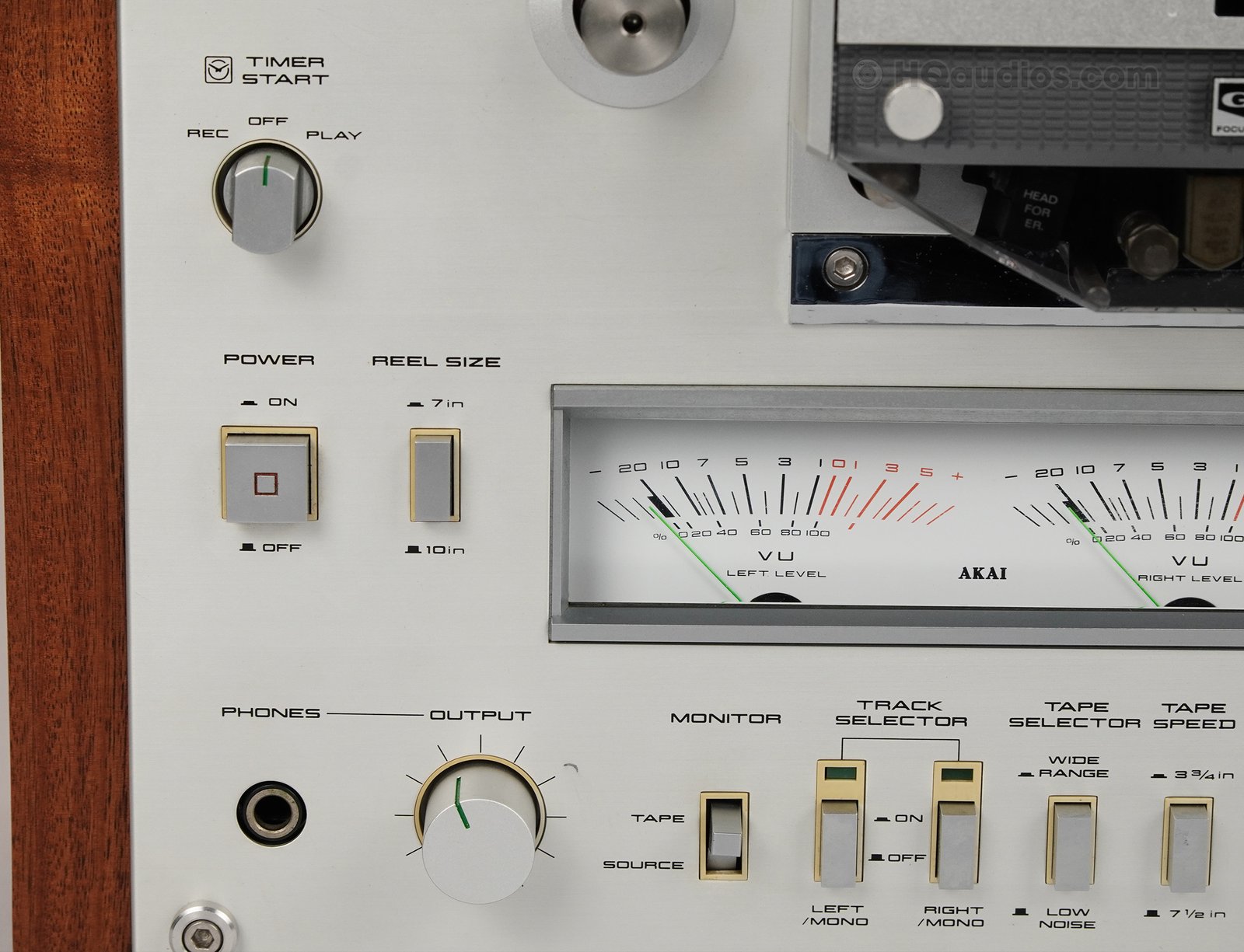

Clear, responsive VU meters

Supports standard reel-to-reel tape speeds

Solid AKAI mechanical construction and classic industrial design

REFURBISHED

This AKAI GX-625 has undergone a full, professional refurbishment carried out with meticulous attention to both mechanical precision and audio accuracy. The restoration process addressed all age-related wear, serviced every critical system, and recalibrated the deck to ensure stable transport performance, accurate tape handling, and clean, balanced analog sound.
After refurbishment, the unit operates smoothly, consistently, and reliably—delivering performance that meets or exceeds original factory expectations.

1. Initial Evaluation & Diagnostics

• Complete mechanical and electronic inspection prior to service
• Transport system, motors, braking, and tension mechanisms evaluated
• Tape path, head condition, and signal flow inspected
• Baseline measurements recorded for speed, stability, and audio performance

2. Transport System Restoration

• Full service of the transport mechanism
• Reel motors and capstan motor cleaned, inspected, and adjusted
• Brake assemblies restored for smooth, controlled start/stop behavior
• Tape tension system calibrated for consistent tape handling

3. Belt, Roller & Drive System Service

• New capstan belt installed to correct specification
• Pinch rollers cleaned, reconditioned, or replaced depending on condition
• Idler mechanisms serviced to eliminate slippage
• Drive system verified for smooth, stable operation at all speeds

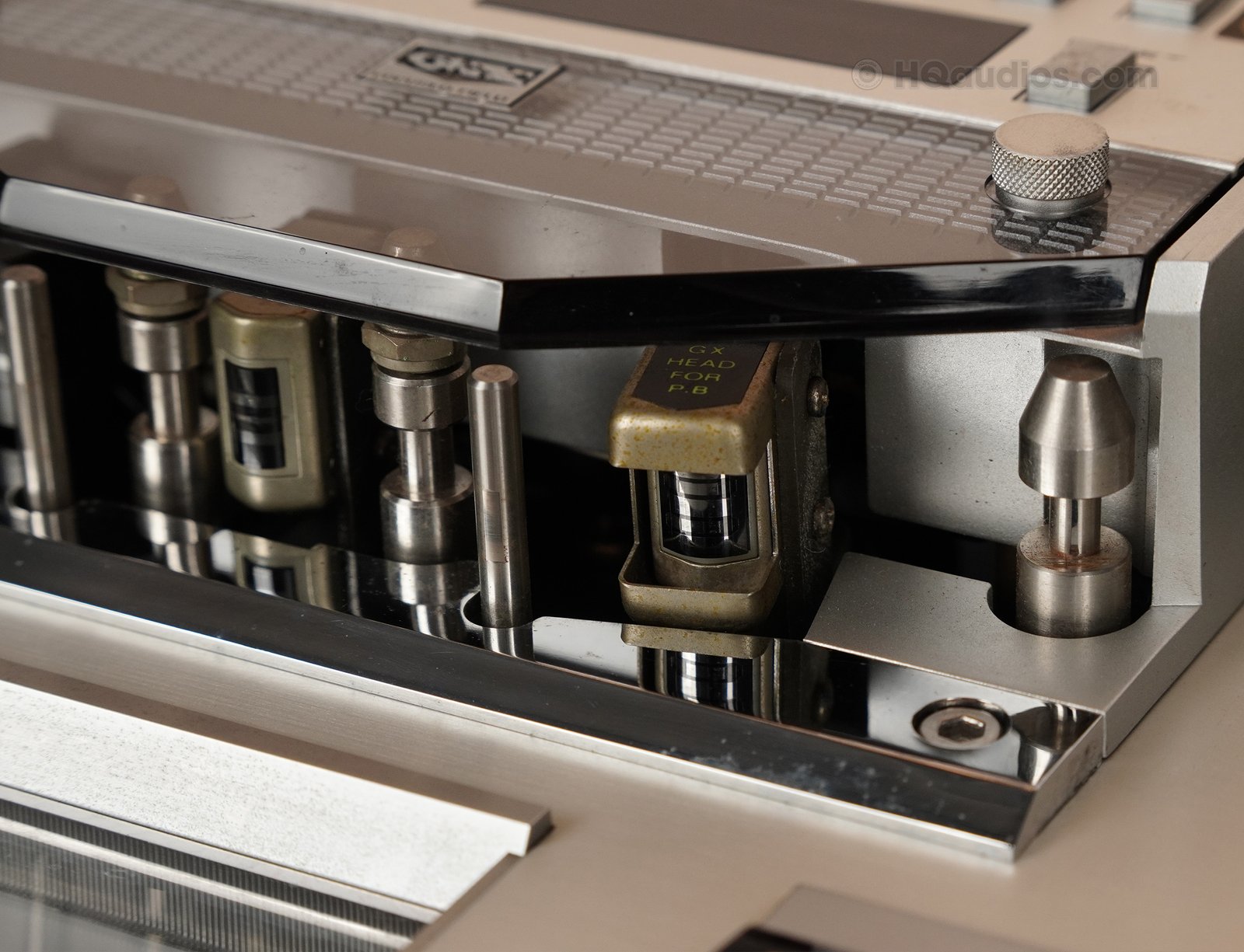

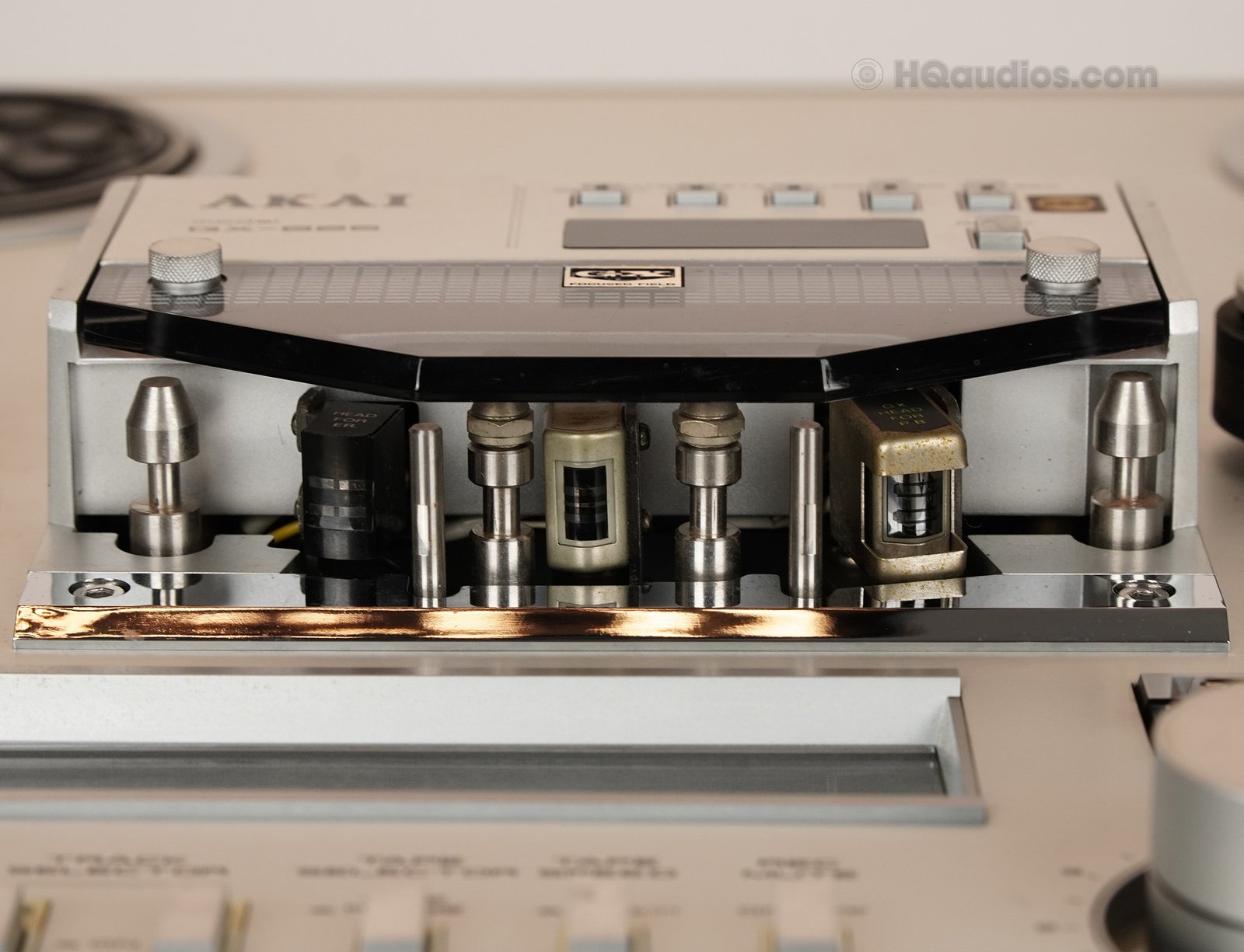

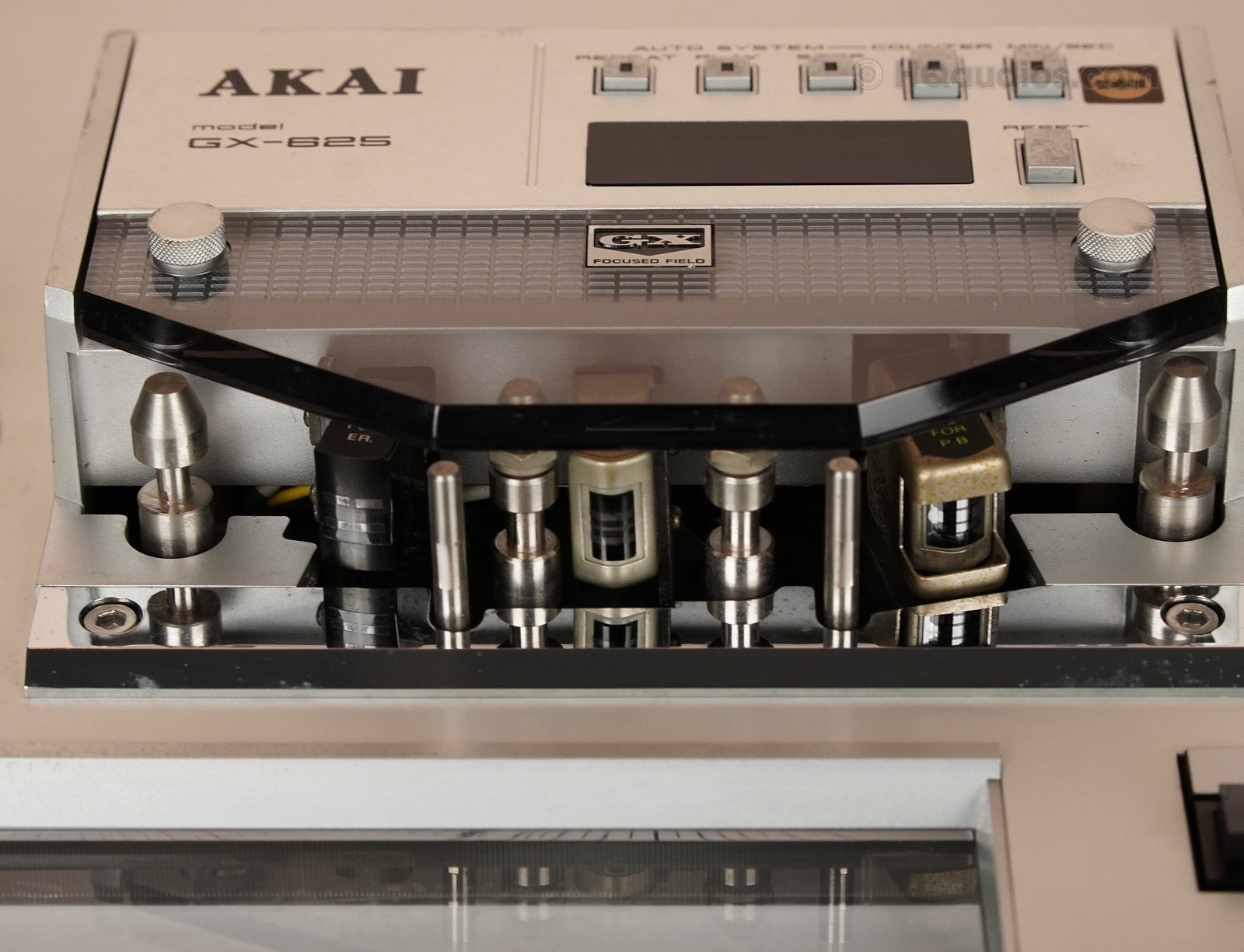

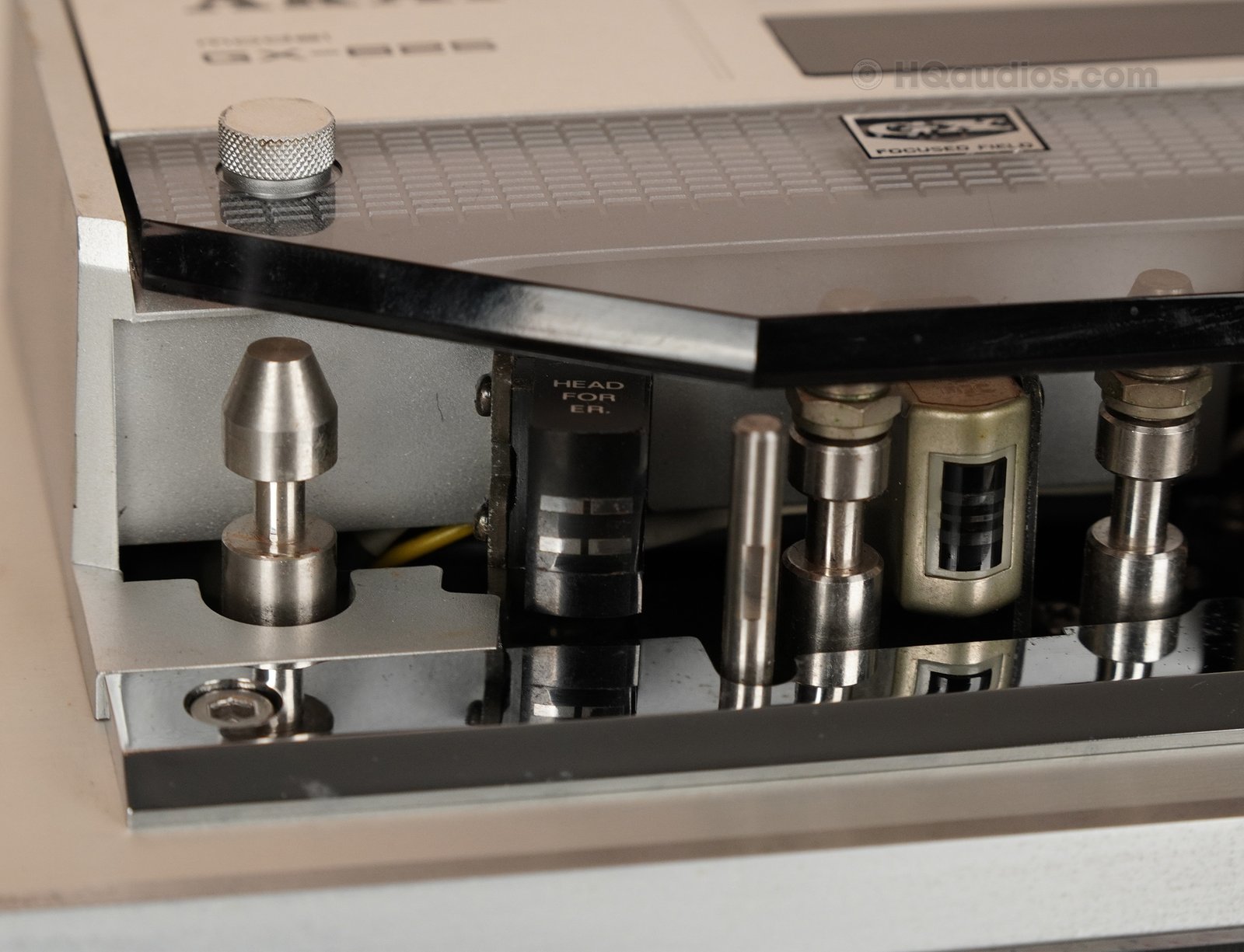

4. Tape Path & Head System Restoration

• Complete cleaning and polishing of tape guides, rollers, and lifters
• GX Glass & Crystal Ferrite heads cleaned and inspected for wear
• Head alignment checked for proper azimuth and tape contact
• Entire tape path optimized for smooth travel and minimal friction

5. Electronic Refurbishment

• Power supply inspected and stabilized
• Critical electronic components serviced where necessary
• Audio signal paths verified for low noise and balanced output
• Heat-stressed solder joints reflowed to ensure long-term reliability

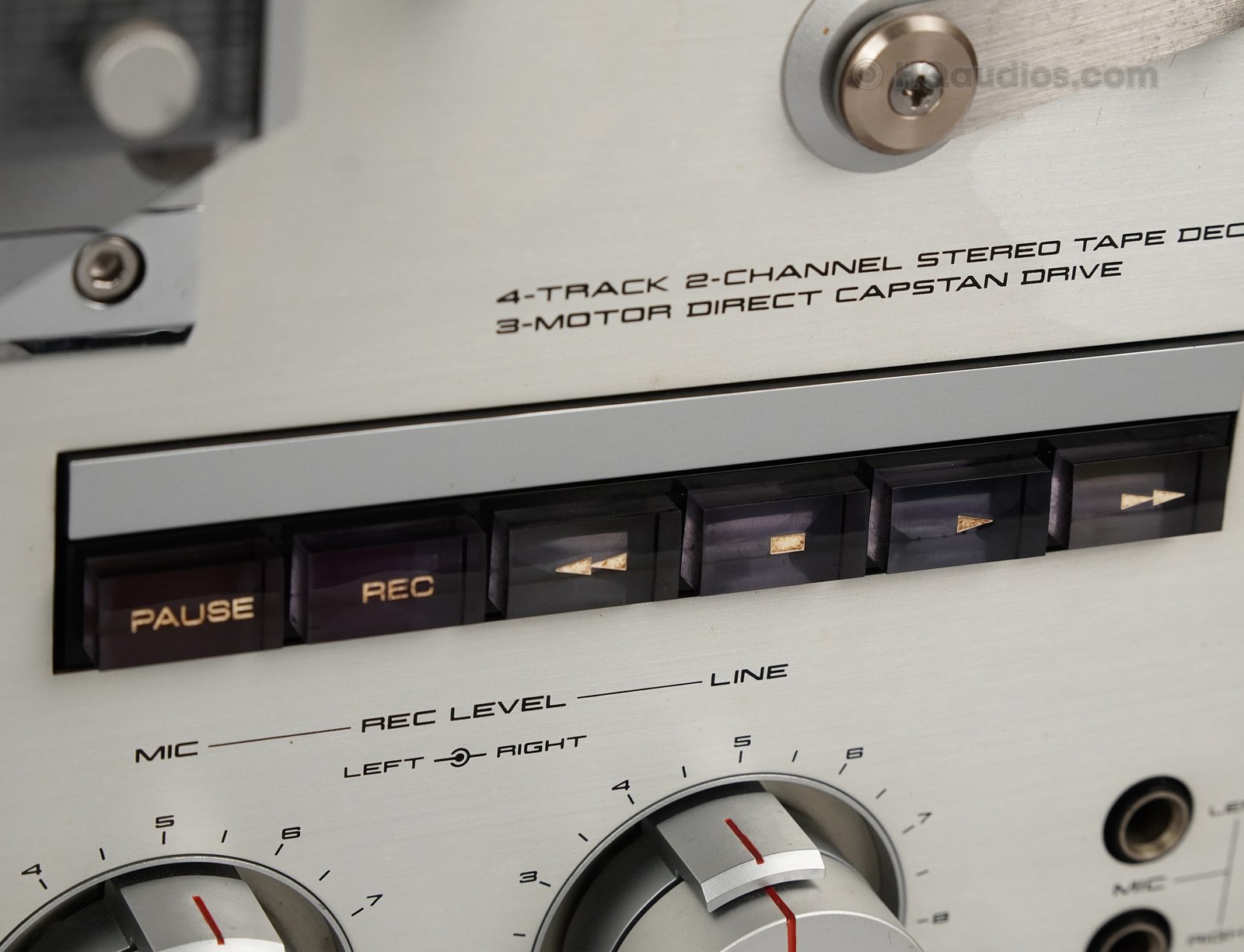

6. Controls & Logic Operation

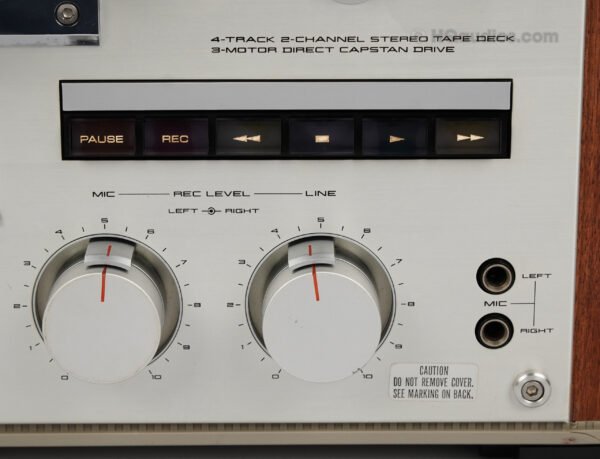

• All switches, knobs, and pushbuttons cleaned and lubricated
• Transport keys restored for smooth, positive engagement
• Auto-reverse logic tested and verified for accurate directional switching
• The IC code is programmed into the product to control, operate, and optimize the mechanical and electronic functions of the machine, ensuring accurate and durable operation.

7. VU Meters & Display

• Completely replace the VU meter to accurately display the audio signal level, ensuring true-to-life and accurate recording quality.
• Meter illumination serviced for even brightness and clarity
• The indicator lights are carefully inspected and maintained.

8. Cosmetic Restoration – Custom Red Finish

• Aluminum surfaces carefully detailed and refinished in a custom red tone
• Lettering refreshed for sharpness and long-term durability
• Overall exterior restored to a clean, refined presentation while retaining vintage character

9. Final Calibration & Testing

• Tape speed calibrated using reference materials
• Playback and record levels adjusted to factory specifications
• Channel balance and frequency response verified
• Extended real-world run testing performed to confirm stability and reliability

Result:
After refurbishment, the AKAI GX-625 delivers silky-smooth tape transport, precise auto-reverse operation, accurate tape speed, and clean analog playback and recording performance. The deck now operates at a level suitable for serious collectors and analog enthusiasts, ready for years of confident, high-quality reel-to-reel enjoyment.

SUGGESTED PAIRINGS

• Amplifiers: AKAI AM-2800, Marantz 1152DC, Sansui AU series
• Speakers: JBL L100, Pioneer HPM-100, Klipsch Heritage series
• Optional custom real-wood case (Walnut, Zebrawood, Ash) for enhanced display and protection
