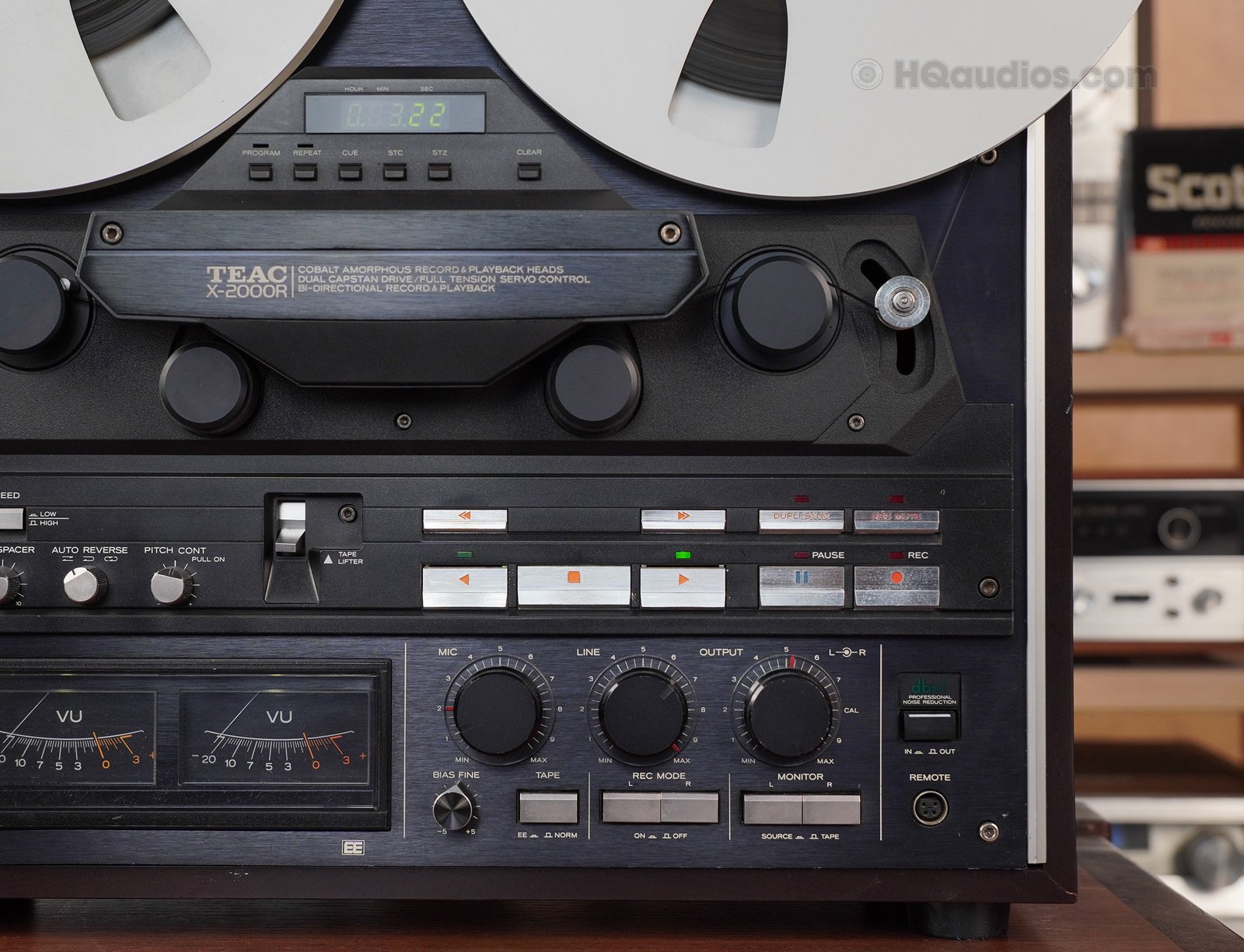

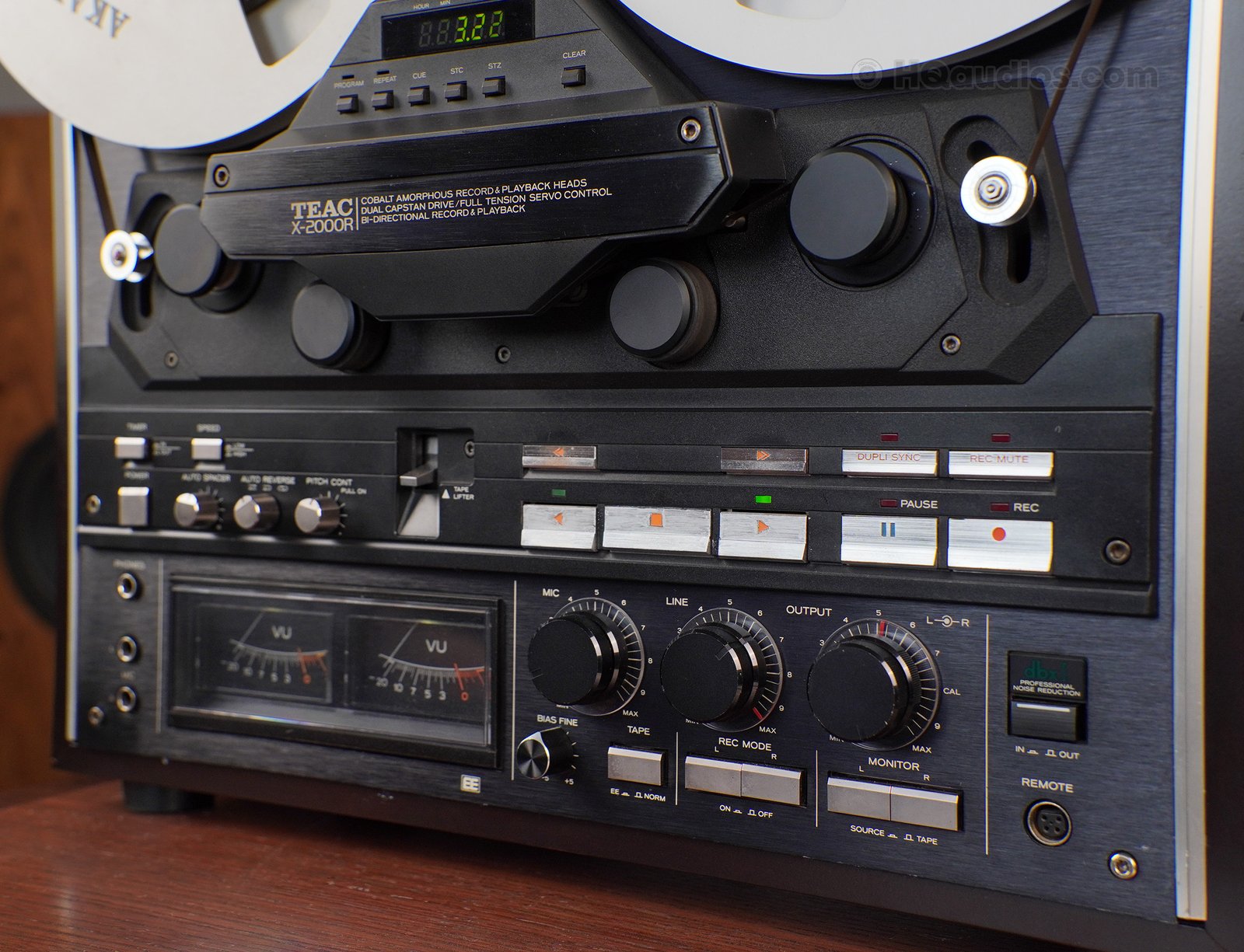

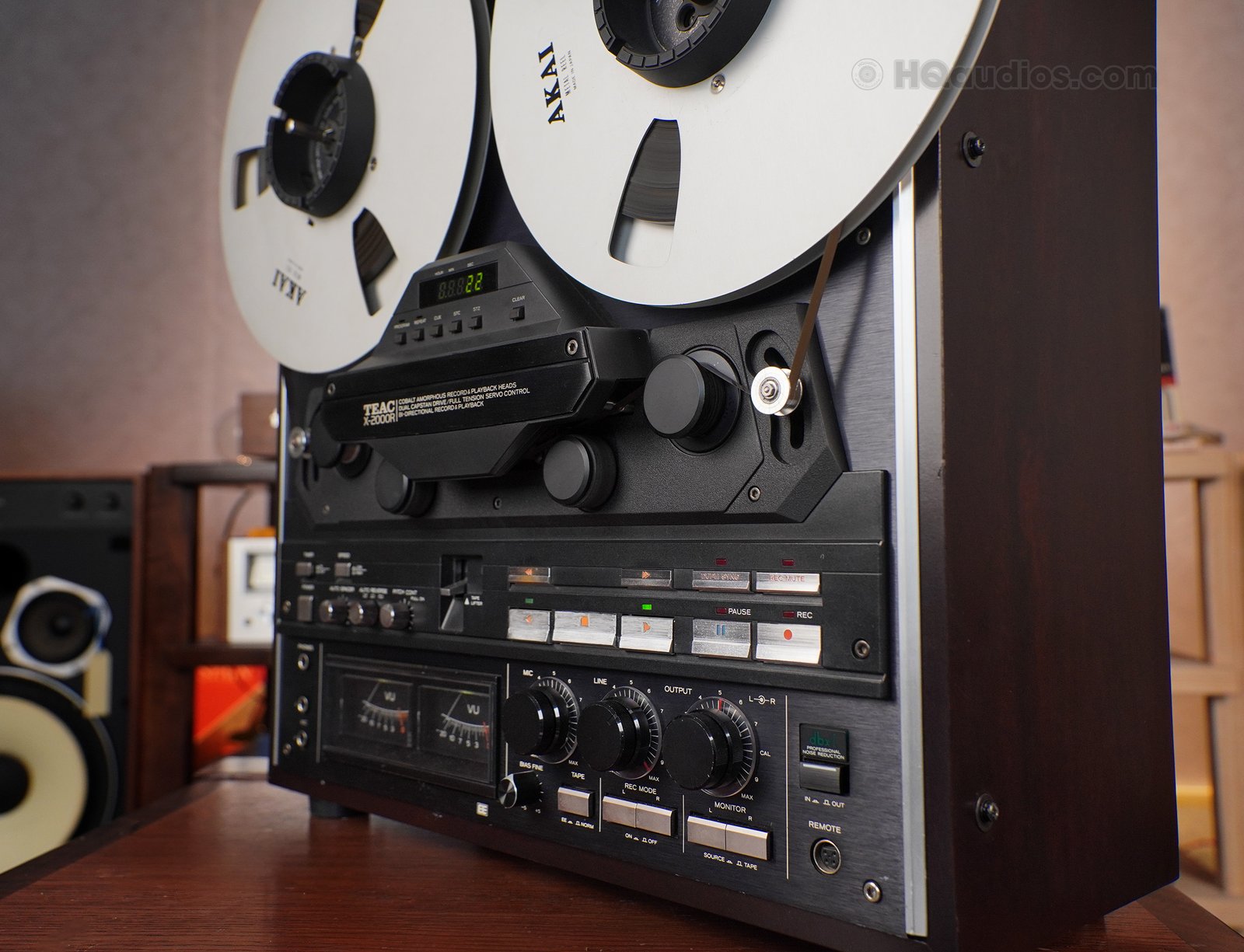

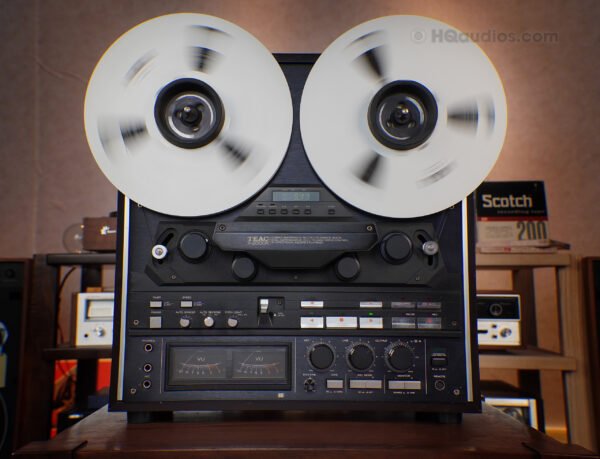

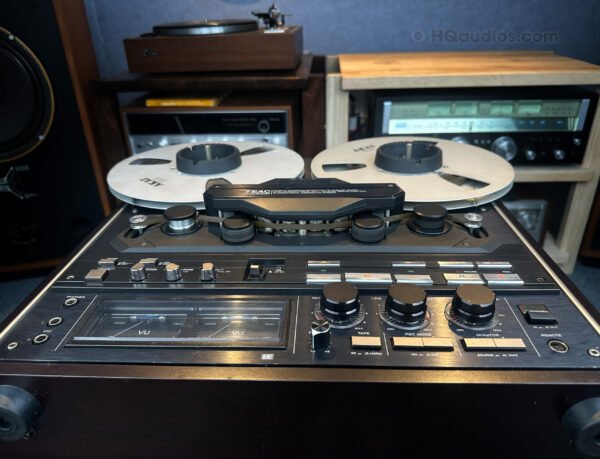

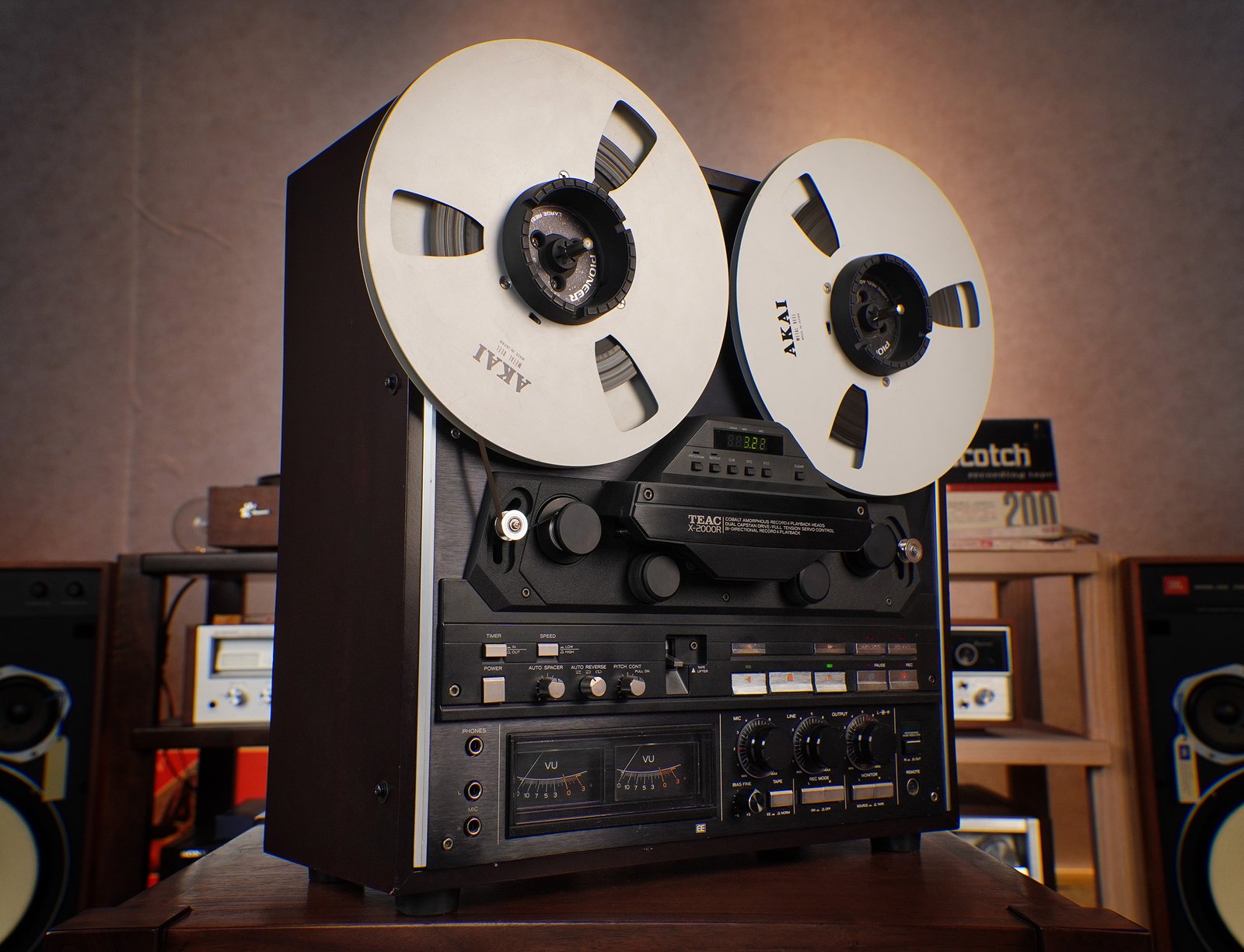

TEAC X-2000R Vintage Reel-to-Reel Tape Recorder –Fully Restored– 1-Year Warranty

• Condition: Excellent – professionally restored, calibrated, and fully tested
• MODEL: TEAC X-2000R
• TYPE: Open-Reel Tape Deck (Auto-Reverse, DBX, Logic Control)
• PROTECTION PLAN: 1-Year Warranty Included
• FREE SUPPORT: Must be used before requesting return
• SKU: 15QUSE0037

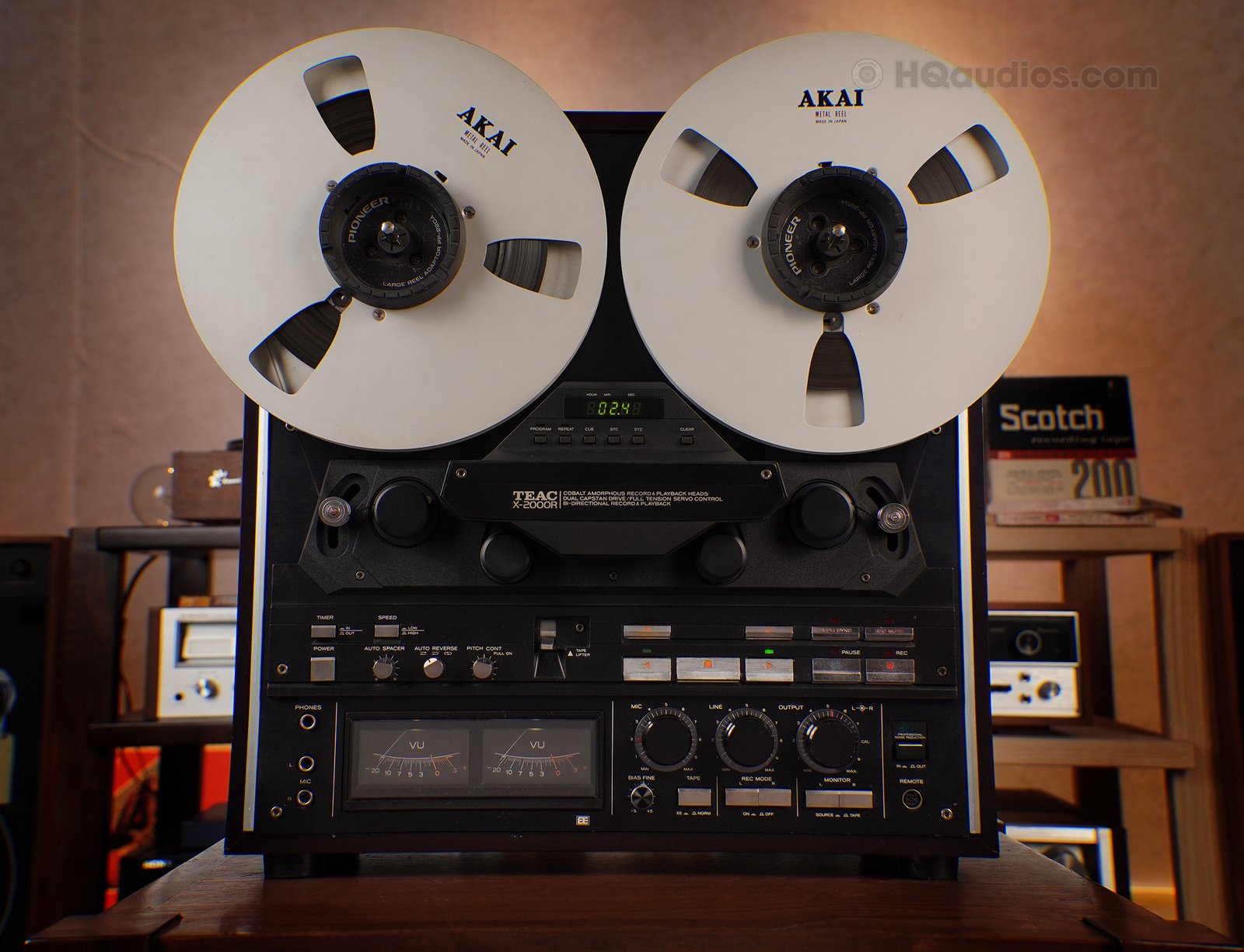

TEAC X-2000R Vintage Reel-to-Reel Tape Recorder

• Condition: Excellent – professionally restored, calibrated, and fully tested

📘 ABOUT

The TEAC X-2000R is widely regarded as one of the last great reel-to-reel decks from the golden age of analog tape. Built with precision engineering, a dual capstan closed-loop drive, and advanced features such as auto-reverse recording and DBX noise reduction, this deck delivers true professional‑grade performance for both playback and recording.

This unit has been professionally restored and calibrated, ensuring stable operation, accurate tape handling, and reliable long-term performance. It is fully ready for both casual listeners and serious tape enthusiasts.

Condition: Excellent – professionally restored, calibrated, and fully tested
MODEL: TEAC X-2000R
TYPE: Open-Reel Tape Deck (Auto-Reverse, DBX, Logic Control)
PROTECTION PLAN: 1-Year Warranty Included
FREE SUPPORT: Must be used before requesting return

SKU: 15QUSE0037

⚙️ SPECS

Track system: auto reverse, 4-track, 2-channel, stereo/monaural system

Heads: 2 x playback, 2 x record, 2 x erase

Motor: 2 x reel, 1 x capstan

Reel size: up to 10.5 inch reel

Tape speeds: 3 3⁄4  7 1⁄2 ips

Wow and flutter: 0.03% (7 1⁄2 ips)

Frequency response: 30Hz to 40kHz (7 1⁄2 ips)

Signal to Noise Ratio: 63dB

Total harmonic distortion: 0.8%

Input: 60mV (line), 0.25mV (mic)

Output: 0.45V (line)

Dimensions: 17 × 18 × 10.5 in

Weight: 46 lbs

🌟 KEY FEATURES

Dual Capstan Direct Drive for superior tape stability

Auto-Reverse Recording and Playback

DBX Noise Reduction for clean, dynamic audio

Block Repeat & Auto-Locator for studio-level precision

LED Peak Level Meters & Real-Time Counter

Pitch Control for fine speed adjustment

Customizable EQ and Bias settings for different tape formulations

Headphone jack for direct monitoring

🛠️ REFURBISHED

This TEAC X-2000R has been fully restored by HQaudios’ professional service team to meet Certified Quality Standards.

After extensive mechanical, electrical, and cosmetic components have been serviced or calibrated to restore the machine’s original performance and aesthetics. All functions now operate with precision and reliability, ready for both studio use and collector-grade display.

This listing includes the deck only. HUB adapters and reel tapes are not included. Includes 1-year HQaudios warranty.

Below is the complete refurbishment scope:

1. Initial Evaluation & Diagnostics

• Complete pre-service evaluation of the entire transport mechanism, including reel motors, dual-capstan drive, brake system, and tension arms.
• Inspection of head block for wear pattern, gap uniformity, and azimuth accuracy.
• Testing of auto-reverse direction logic, real-time counter, speed switching, and servo capstan control circuits.
• Verification of all switches, pots, I/O connectors, and logic-controlled functions.
• Full baseline playback and recording tests were conducted to assess performance prior to restoration.

2. Transport System Restoration

• Dual-capstan assemblies cleaned, lubricated, and electronically tested
• Capstan motor serviced and tested for speed and torque stability
• Reel motors restored for smooth torque and responsive FF/REW operation
• Brake assemblies cleaned and adjusted to factory specifications
• Tension rollers and arms cleaned and recalibrated
• Counter mechanism serviced and restored
• All moving parts lubricated using high-grade synthetic oils

3. Belt, Roller & Drive System Service

• New capstan belt and counter belt installed
• Pinch rollers rebuilt or replaced depending on condition
• Idler mechanisms cleaned and checked for proper grip
• Servo system recalibrated for stable dual-capstan synchronization

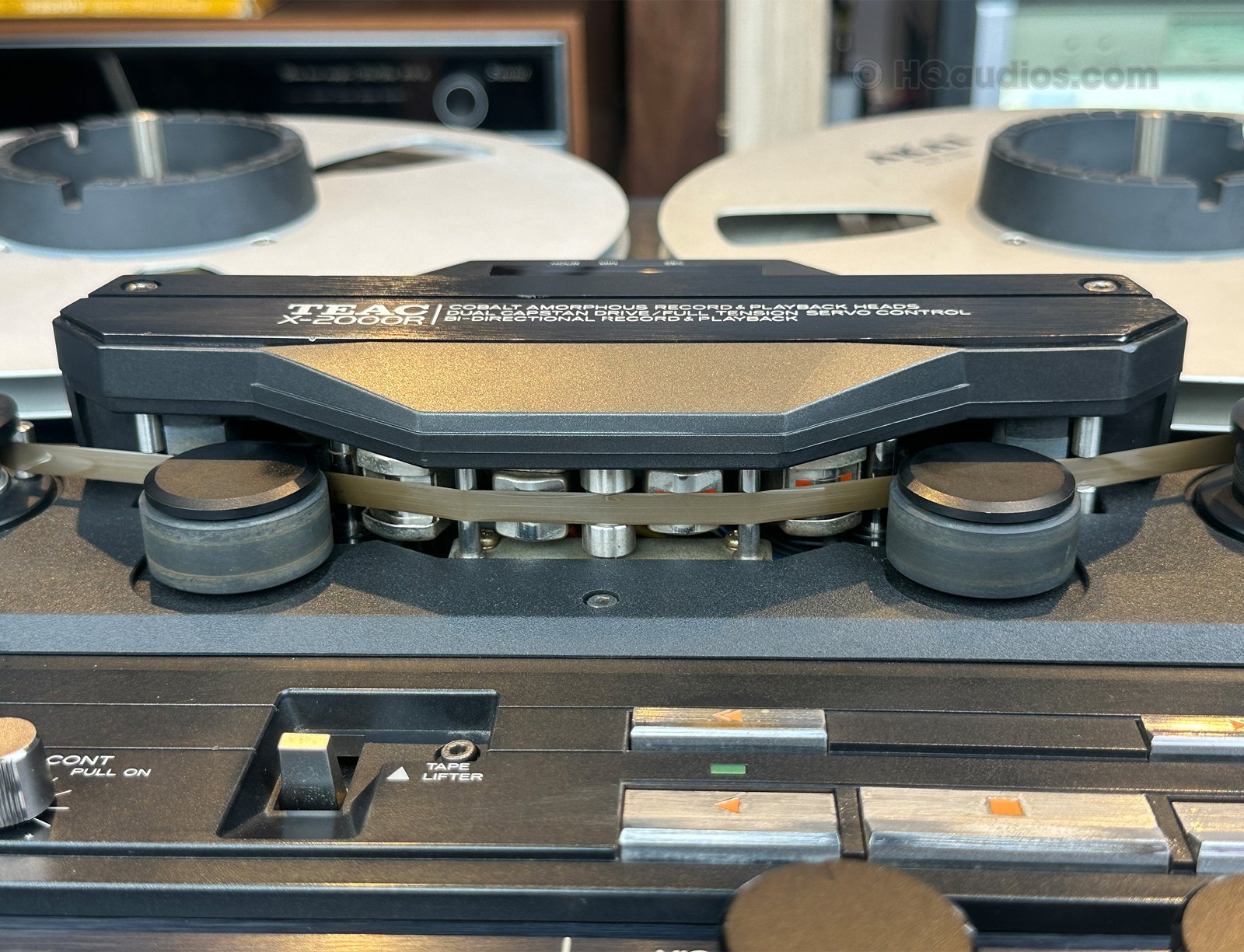

4. Tape Path & Head System Restoration

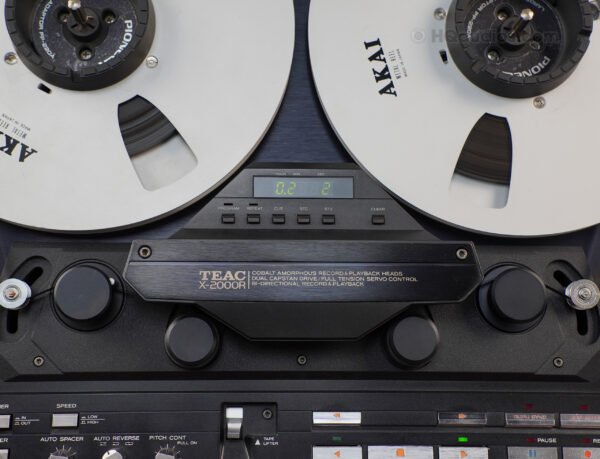

• Complete cleaning and polishing of tape guides, rollers, lifters, and head block
• TEAC glass-crystal heads deep-cleaned, polished, and inspected for even wear pattern
• Entire tape path and head system fully demagnetized
• Azimuth alignment performed for accurate stereo tracking in both forward and reverse playback
• Tape path optimized for smooth travel and low-friction operation

5. Electronic Refurbishment

• Replacement of critical electrolytic capacitors on audio, bias, and transport control boards
• Reflowing of oxidized or weak solder joints across key circuit boards
• Protection relay serviced or replaced to ensure clean signal switching
• Power supply voltages tested, calibrated, and stabilized under operational load
• Playback amplifier evaluated for noise floor, distortion, and channel balance
• Record circuit recalibrated for accurate bias, EQ, and output level
• Auto-reverse logic circuitry cleaned and tested for precise timing and switching response
• Pitch control circuit checked and confirmed for linearity and stability

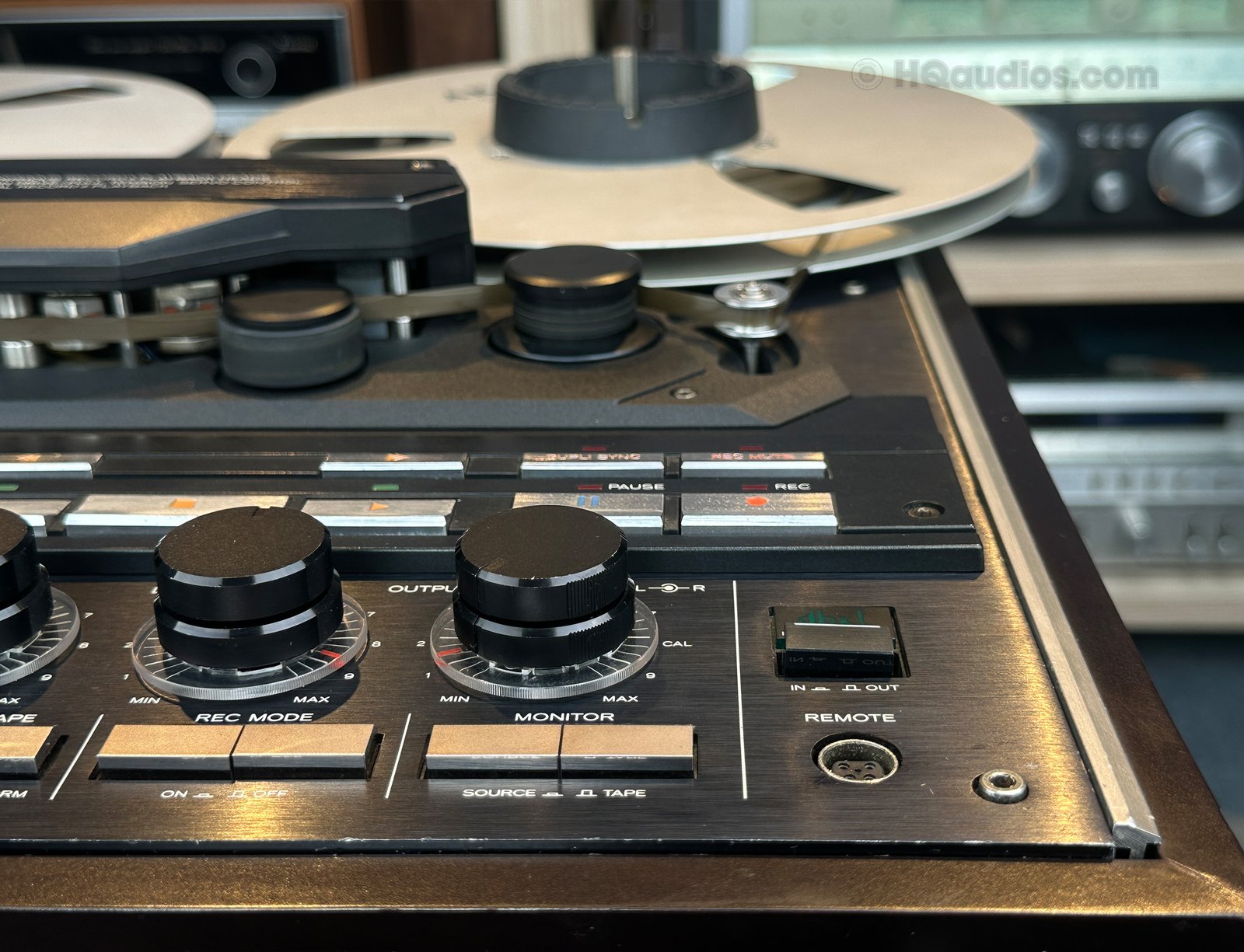

6. Controls & Logic Operation

• All switches, pots, and feather-touch pushbuttons cleaned and restored with DeoxIT for smooth, noise-free operation
• Transport buttons tested and calibrated for consistent actuation across all modes
• Auto-reverse switching system calibrated for precise and reliable direction changes
• Speed selector (7½ and 3¾ ips) tested for stability and accuracy
• Timer, block repeat, and remote-control functions verified for proper response and full logic integration

7. VU Meters & Display

• VU meters cleaned internally and externally for clear visibility and smooth movement
• Meter movement aligned and calibrated for proper sensitivity and level accuracy
• Backlighting tested and replaced where needed for even illumination
• Digital real-time tape counter display verified for full functionality
• All display indicators and transport LEDs tested for correct logic response

8. Cosmetic Restoration

• Original black anodized faceplate carefully cleaned and detailed
• Knobs, switches, and control trims polished to restore uniform finish
• Wood side panels cleaned, conditioned, and restored to satin sheen

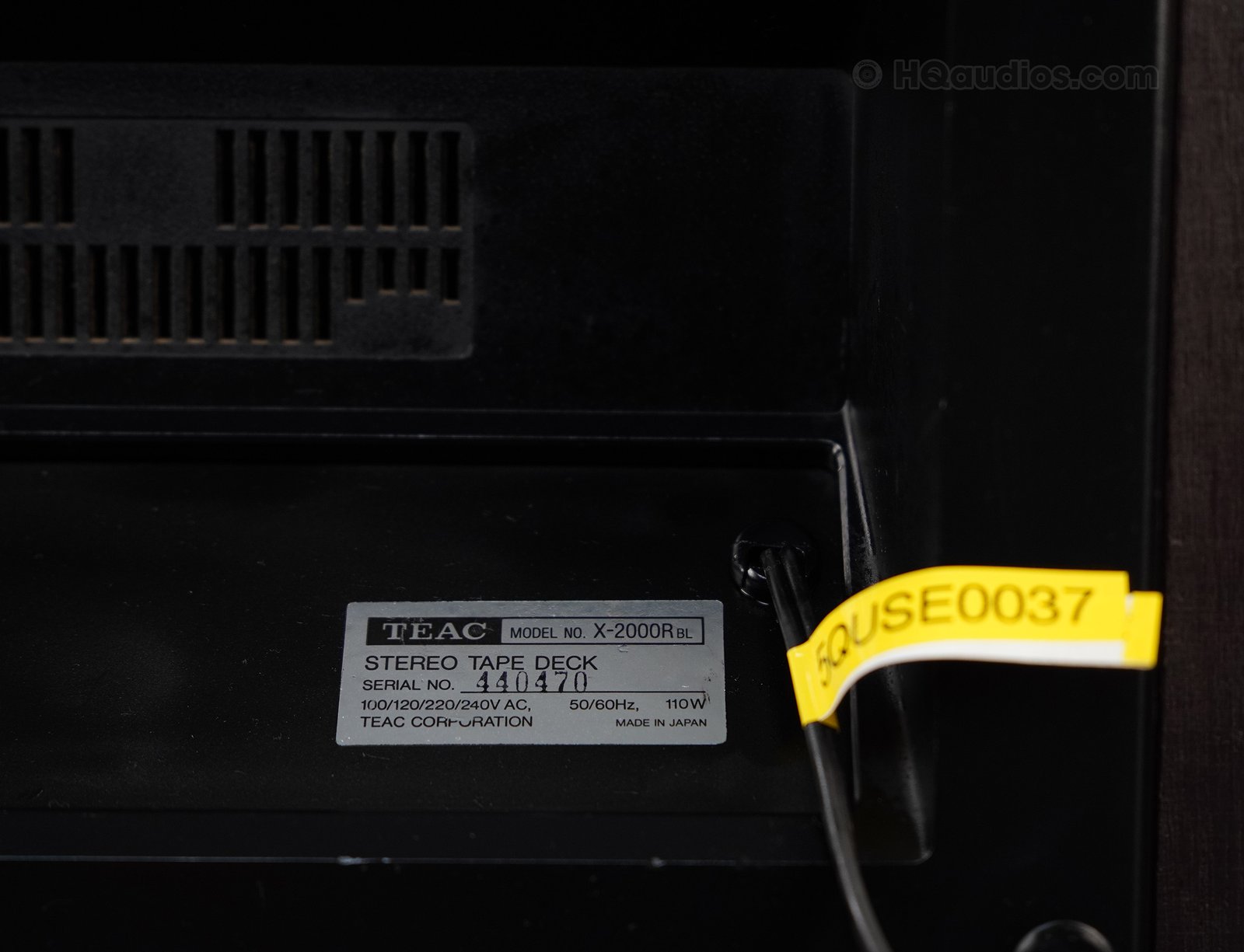

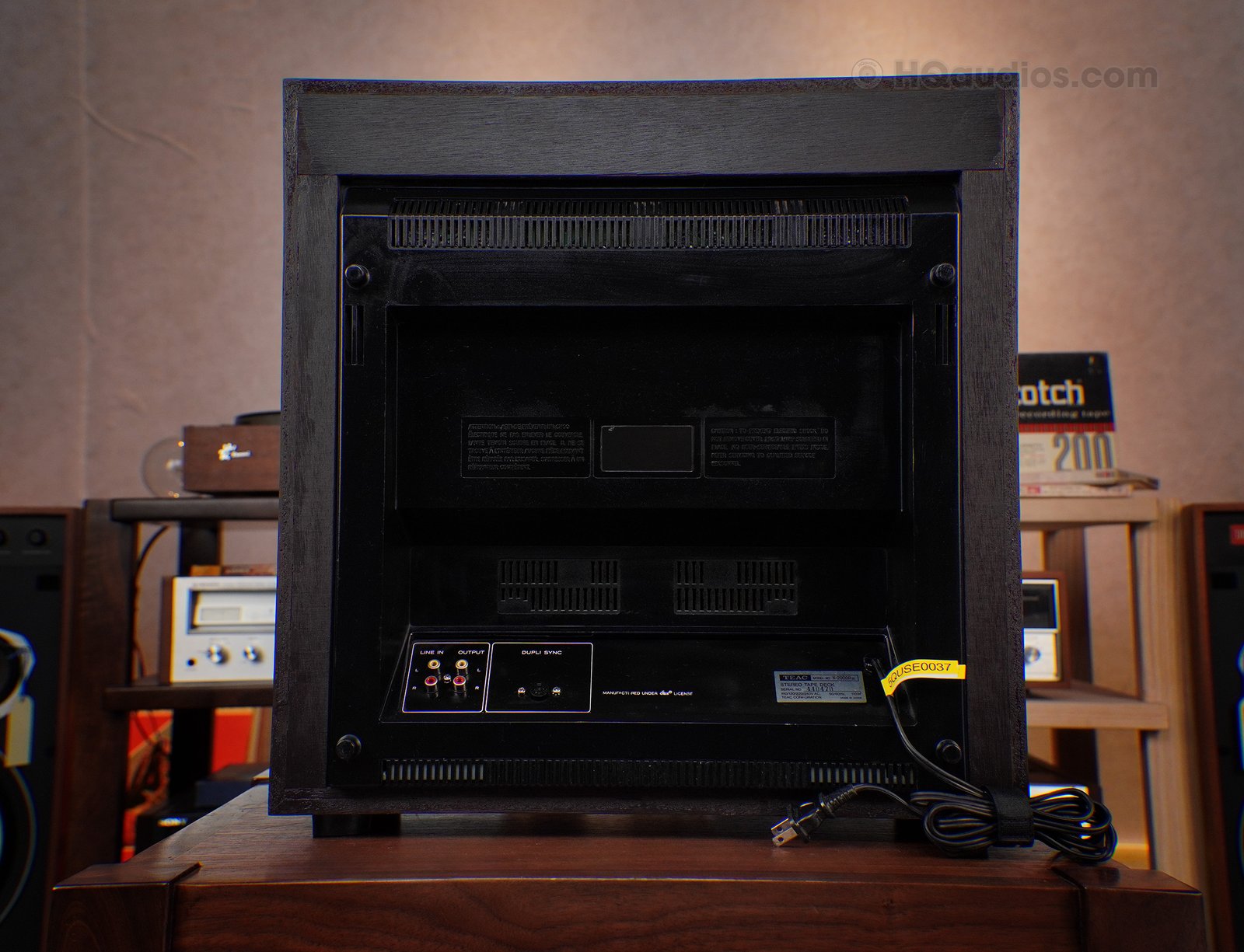

• Rear panel and chassis detailed with labeling preserved
• All screws and hardware inspected, touched-up, or replaced where needed
• Result: a clean, vintage-accurate aesthetic suitable for any serious collection

9. Final Calibration & Testing

• Speed calibrated using TEAC-certified test tapes at both 3¾ ips and 7½ ips*
• Wow & Flutter measured and confirmed to be within original factory specifications
• Recording and playback alignment adjusted for both forward and reverse operation
• Frequency response tested from 20Hz to 20kHz, depending on tape formulation
• Auto-reverse mechanism tested under repeated cycling to ensure reliable switching
• Completed a 2-hour continuous burn-in test to verify thermal stability and signal integrity

⚠️ Note: This product does not include empty reels or tape.

✅ Backed by 1-Year Warranty (repair or replacement)

🔊 SUGGESTED PAIRINGS

• Amplifiers: Pioneer SA-9900, Marantz 2325, Sansui AU-919
• Speakers: JBL 4312, AR-3a, or Klipsch Cornwall
• Accessories: Vintage metal reels, NAB hub adapters, TEAC RC-90 wired remote
• Rack Mounting: Fits TEAC original wood case or custom display racks

💡 Bundle with a vintage amplifier or speakers and save — message us for package pricing.
