Sansui QRX-9001 Quad Receiver-Fully Restored/Recapped – Fast Shipping- 1-Year WRT

• MODEL: Sansui QRX-9001
• TYPE: 4-Channel Quadraphonic
• PROTECTION PLAN: 1-Year Warranty Included
• FREE SUPPORT: Must be used before requesting return
• SKU: 15QTTVE0011

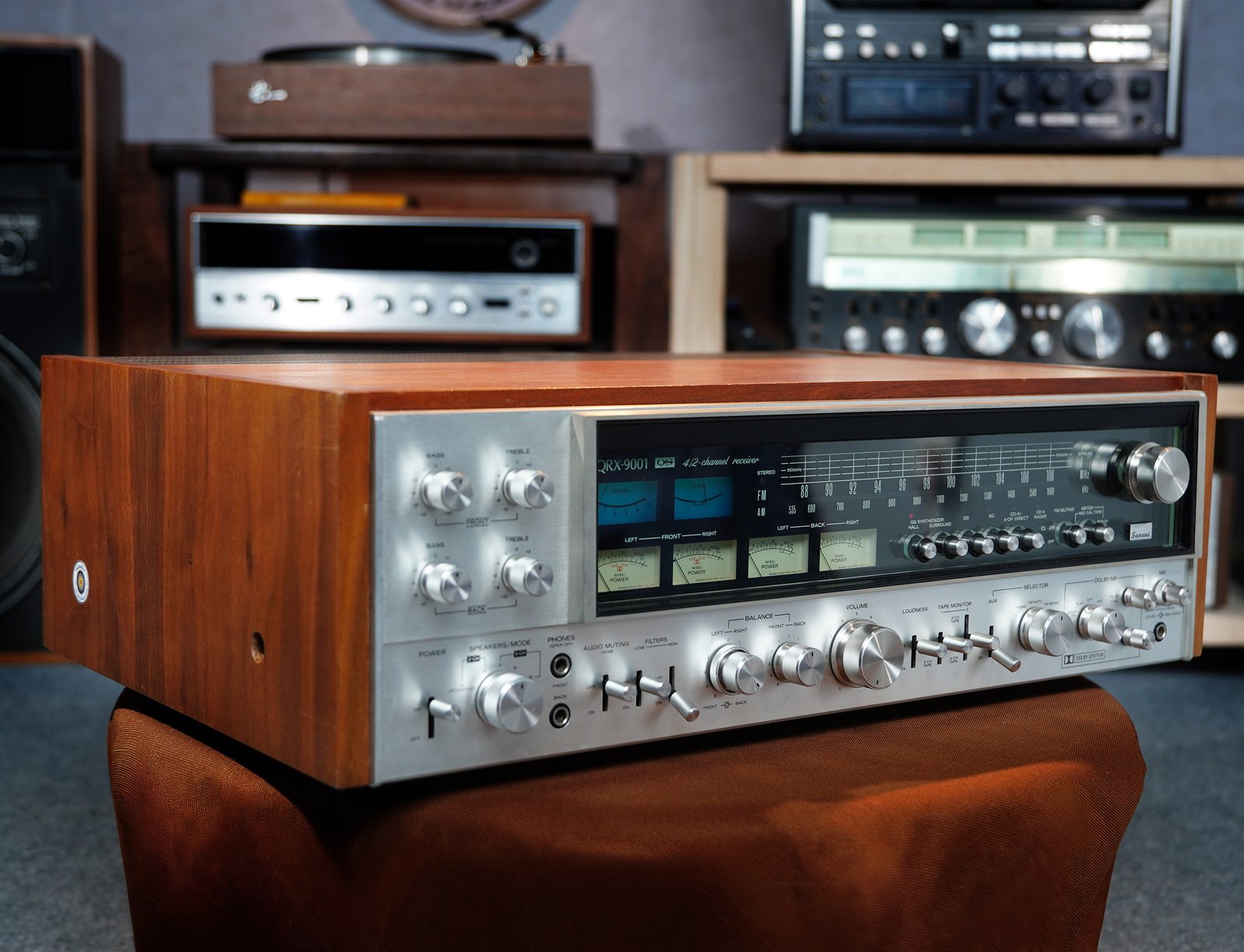

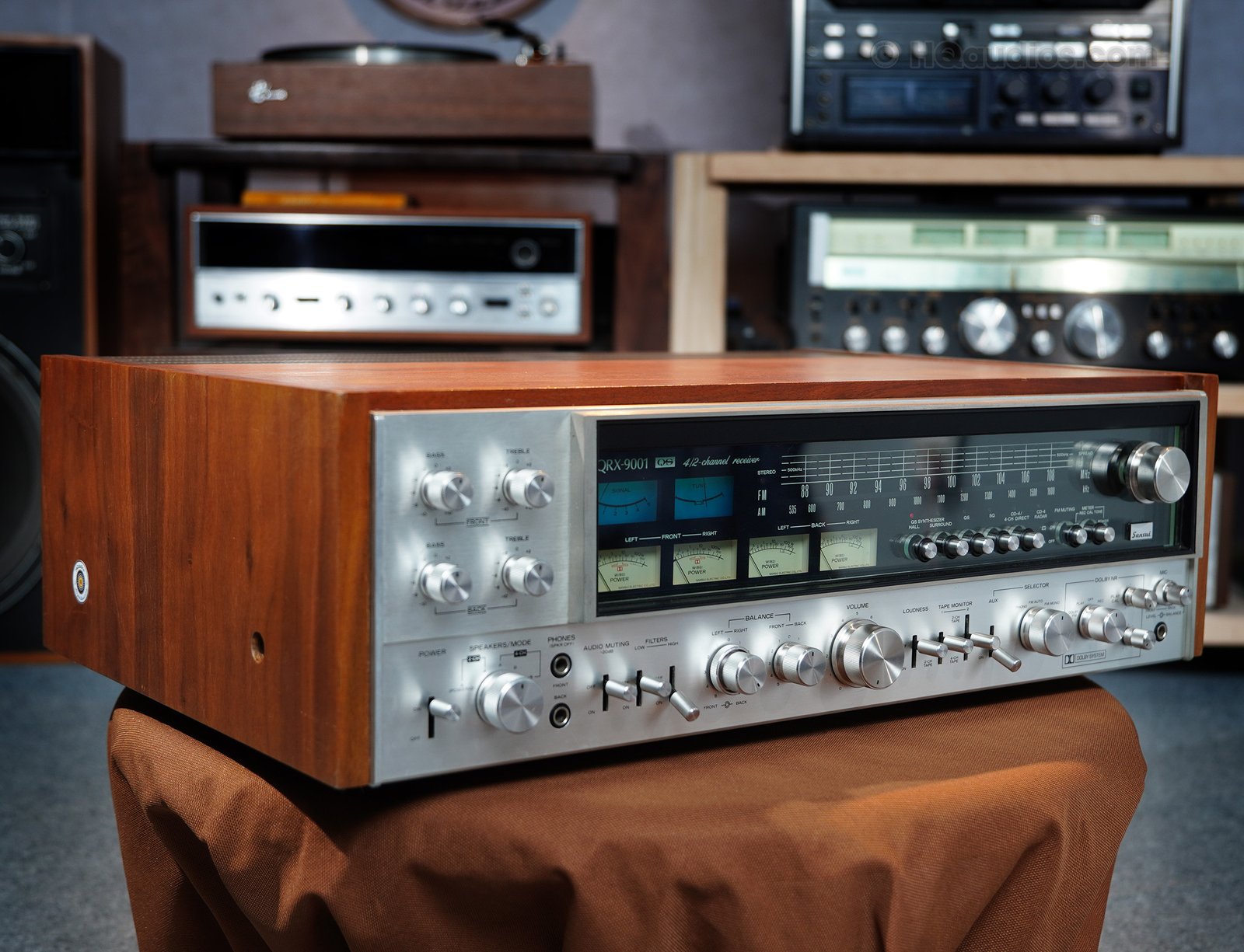

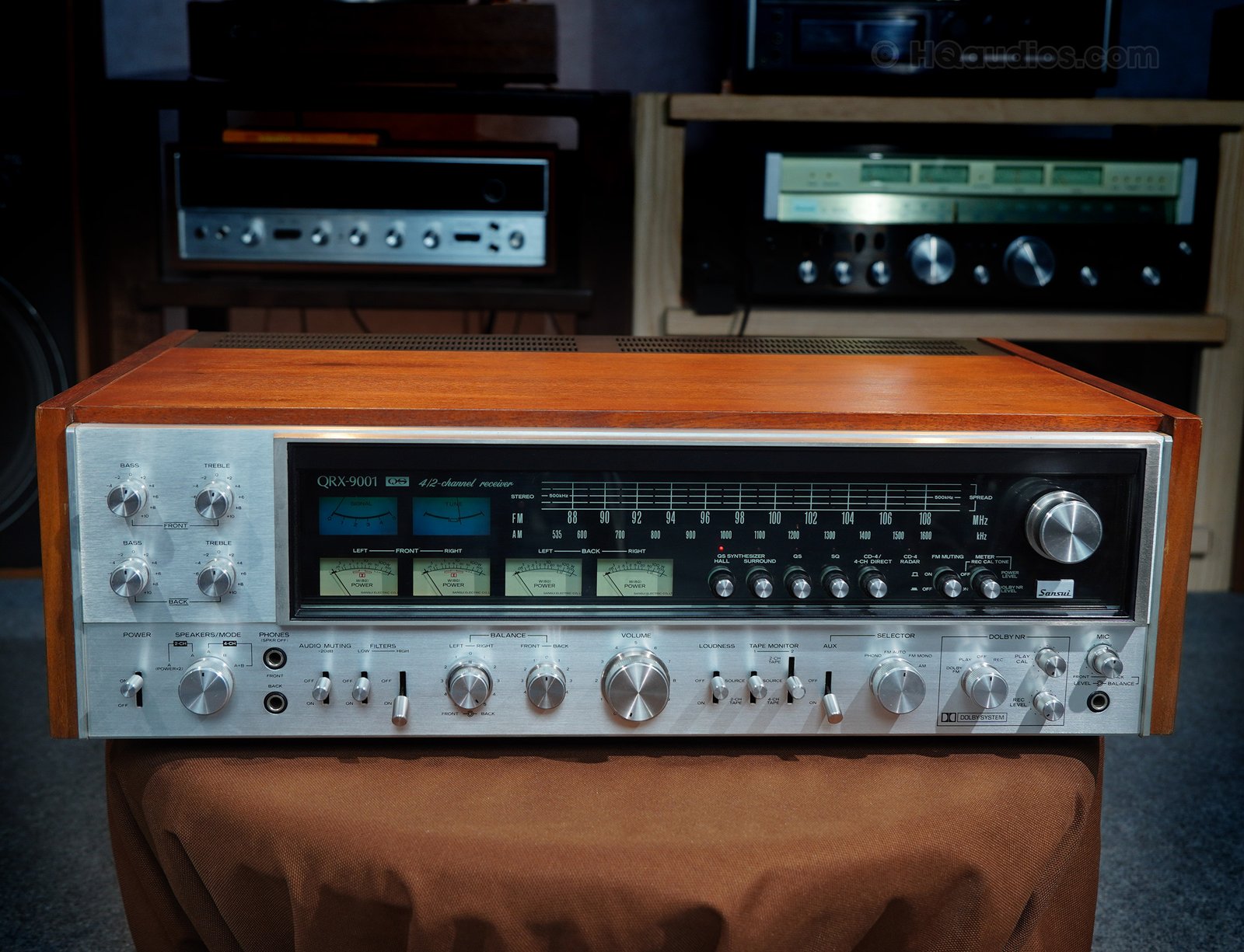

Sansui QRX-9001 Quad Receiver

ABOUT

The Sansui QRX-9001 is widely considered the pinnacle of Sansui’s quadraphonic engineering—an audiophile-grade receiver designed to deliver immersive 4-channel reproduction with unmatched clarity. Its massive power supply, precision decoding, and signature Sansui warmth make it a must-have piece for collectors. This example has undergone a complete, professional restoration with no detail overlooked.

• MODEL: Sansui QRX-9001
• TYPE: 4-Channel Quadraphonic
• PROTECTION PLAN: 1-Year Warranty Included
• FREE SUPPORT: Must be used before requesting return
• SKU: 15QTTVE0011

Customer Service:

Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

Note:

The actual color of the product may sometimes differ slightly from the photos due to lighting conditions, temperature, and the device used. Some angles in the photos may not fully reflect the product’s condition. Please read the description carefully and feel free to message us if you have any questions

SPECS

• Tuning range: FM, MW
• Power output: 120W/ch (stereo), 60W/ch into 8Ω (quadraphonic)
• Frequency response: 20Hz to 30kHz
• Total harmonic distortion: 0.3%
• Damping factor: 30
• Input sensitivity: 2.5mV (MM), 100mV (DIN), 100mV (line)
• Signal to noise ratio: 70dB (MM), 80dB (DIN), 80dB (line)
• Channel separation: 45dB (MM), 45dB (line)
• Output: 100mV (line), 30mV (DIN)
• Speaker load impedance: 4Ω to 8Ω
• Dimensions: 23.62 x 6.85 x 16.34 inch
• Weight: 50.70 lbs

KEY FEATURES

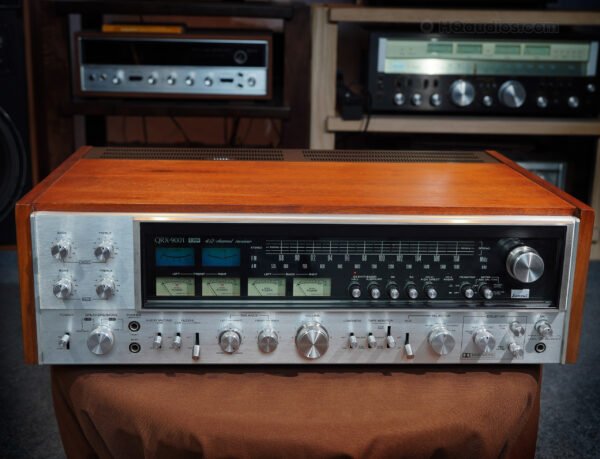

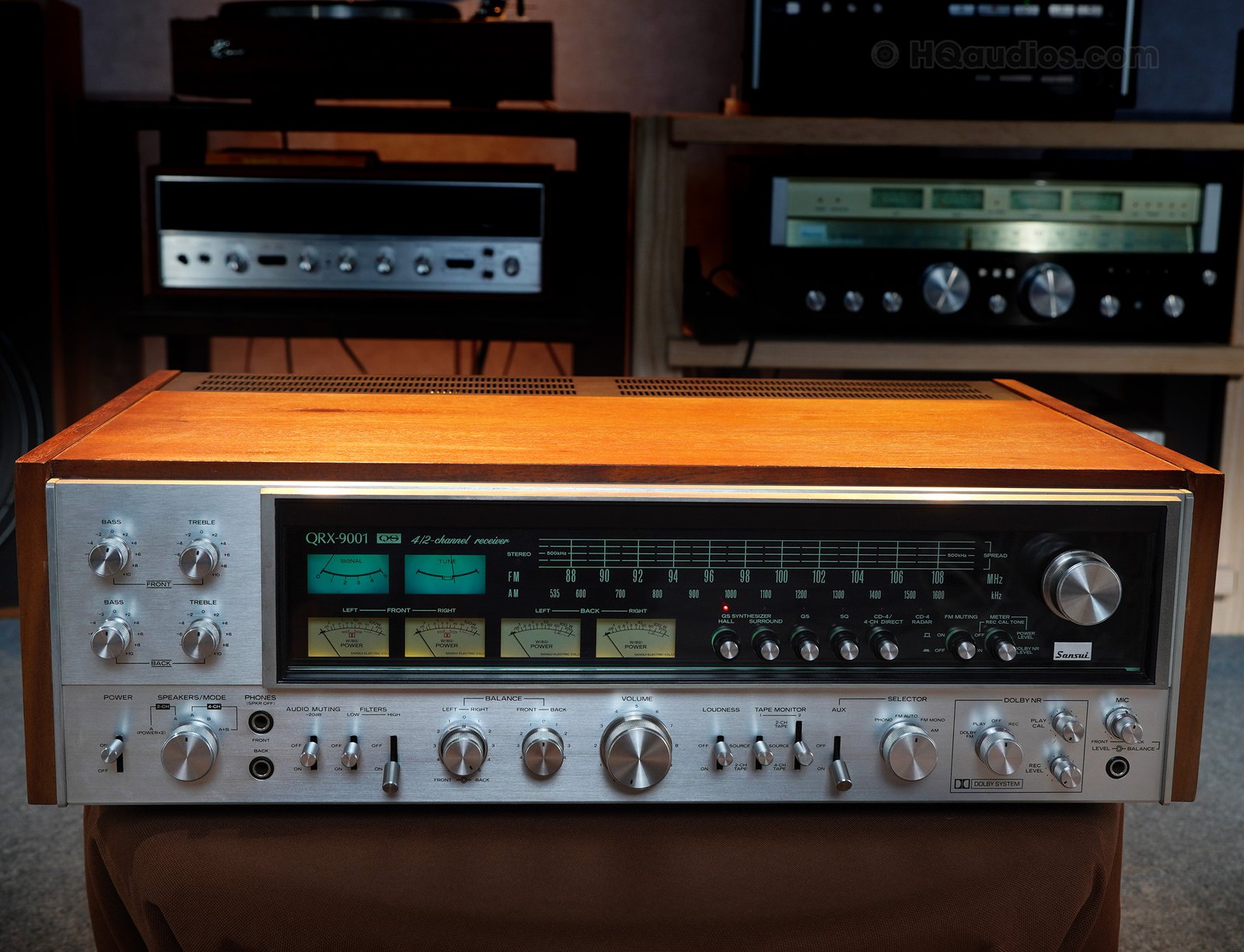

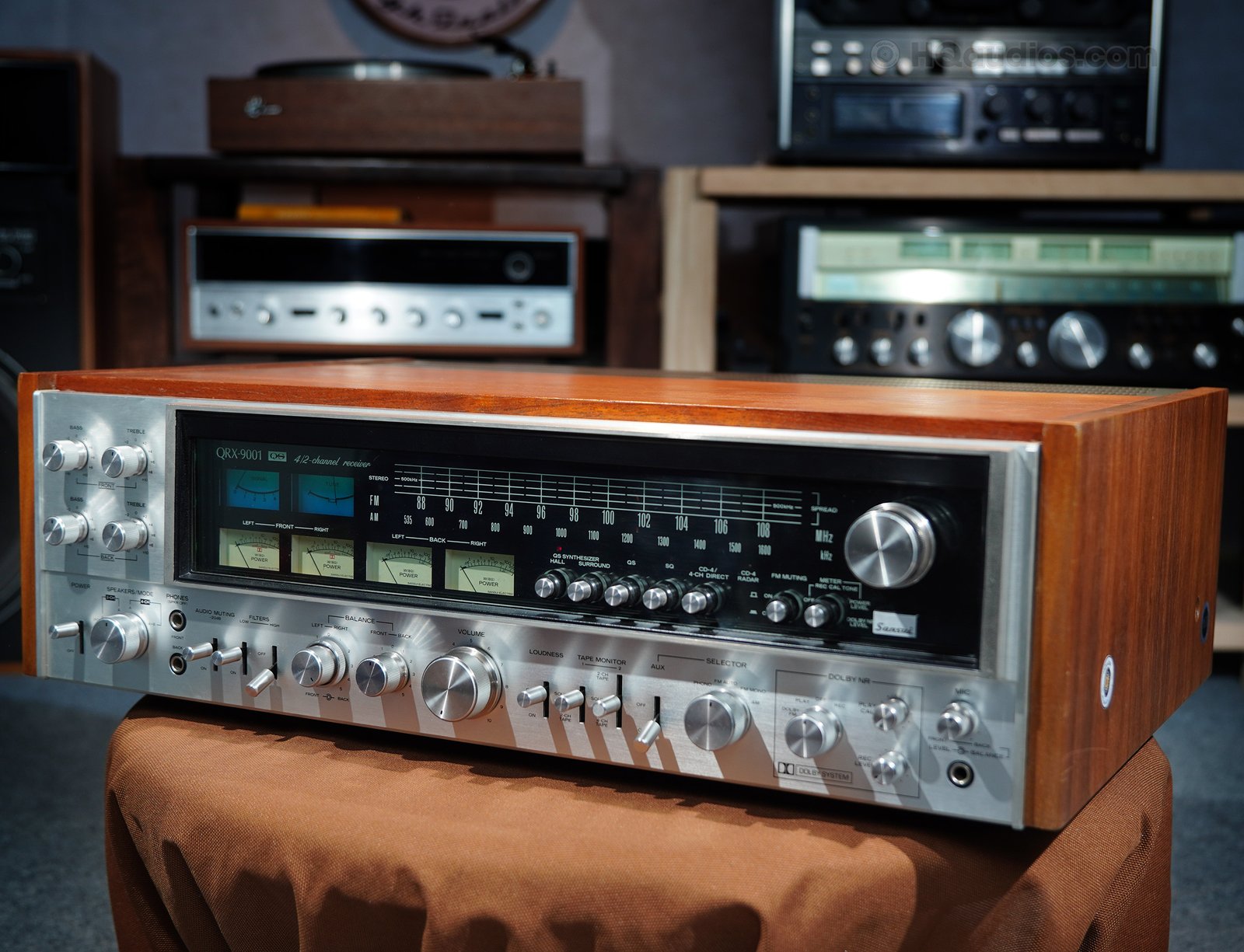

Iconic Sansui black dial with bright multi-meter display

Vario-Matrix technology for wide quad staging

Robust transformers & power rails for highly dynamic playback

Heavy anodized aluminum faceplate

Premium handcrafted walnut case included

REFURBISHED (FULL DETAILS)

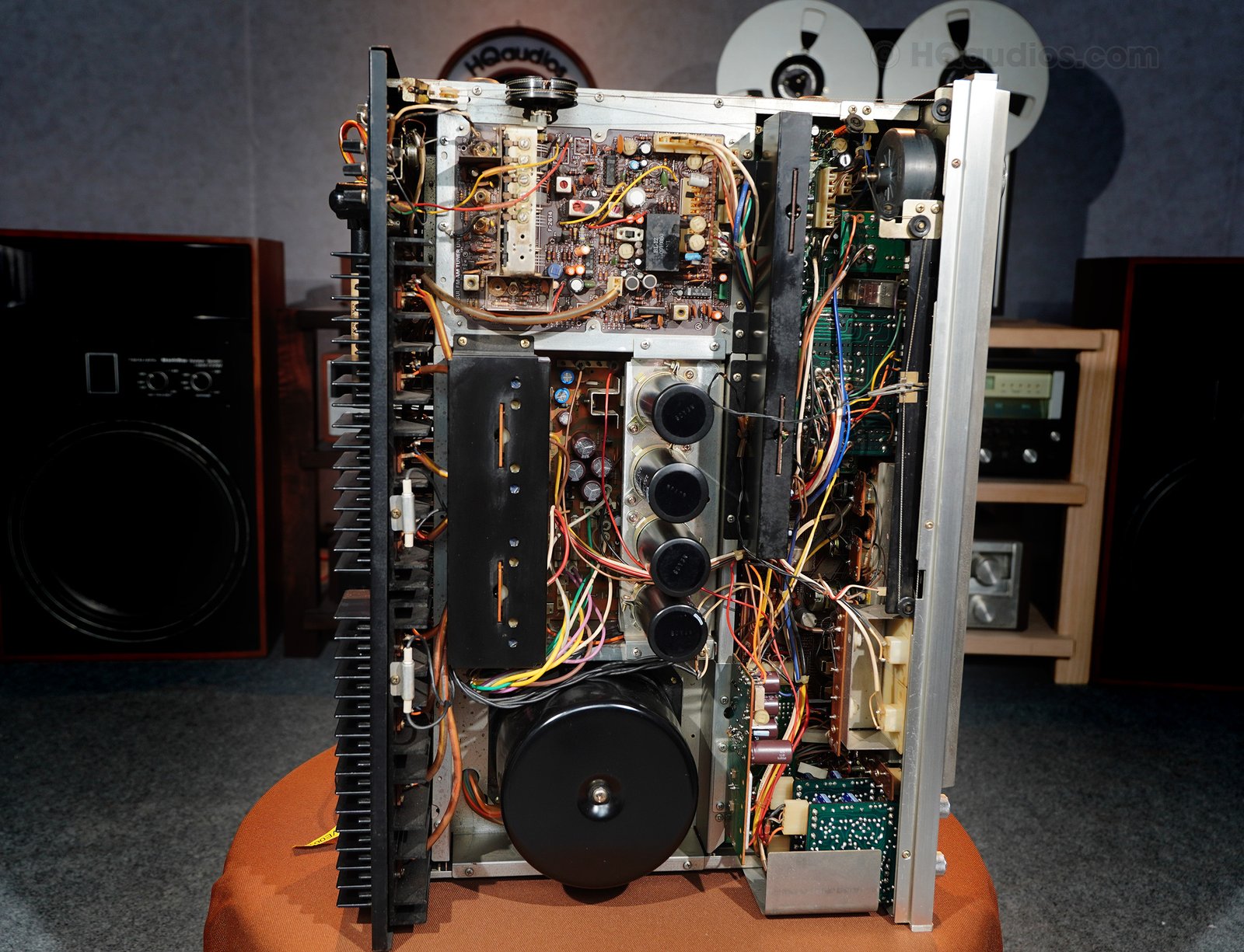

Full Recap & Circuit Service

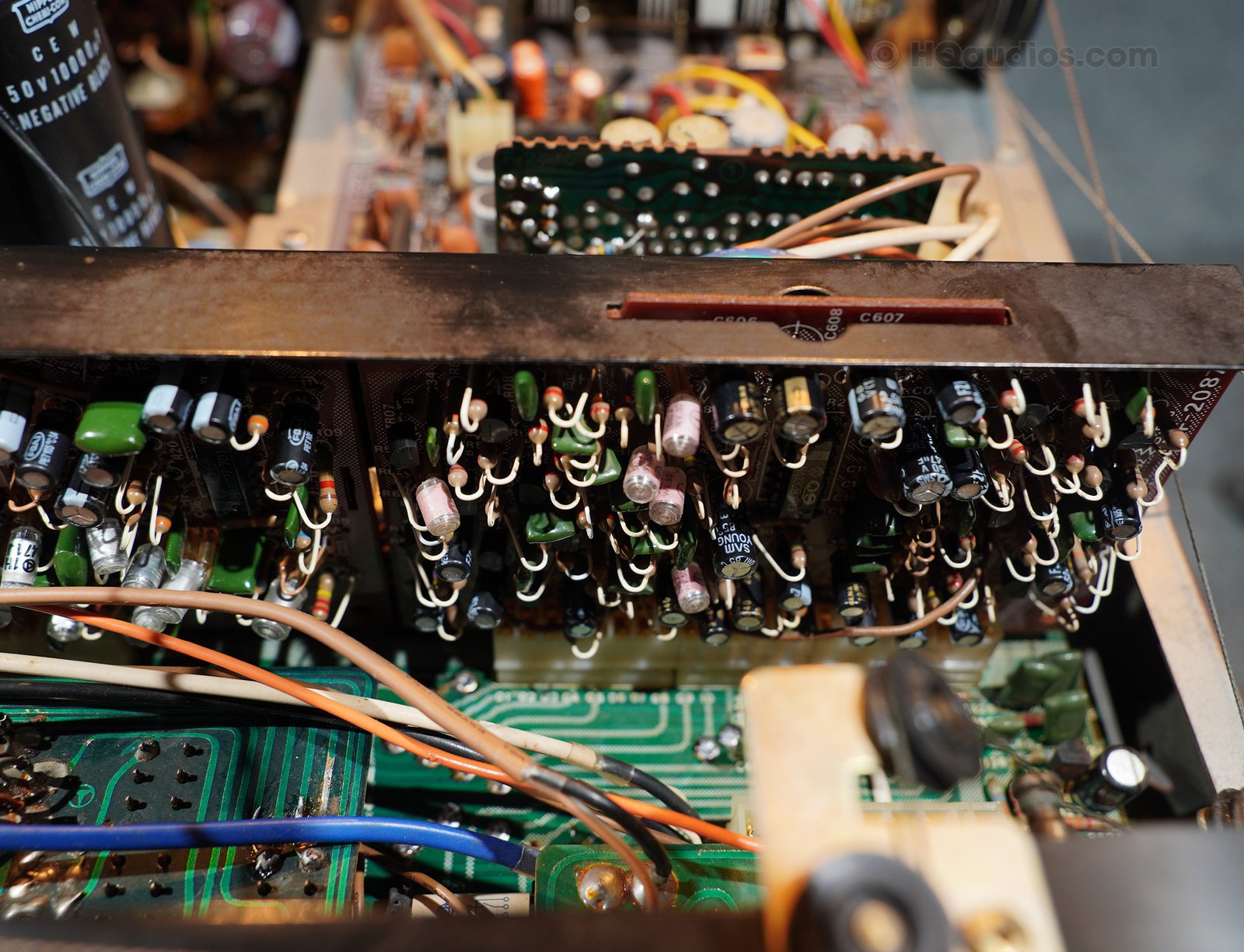

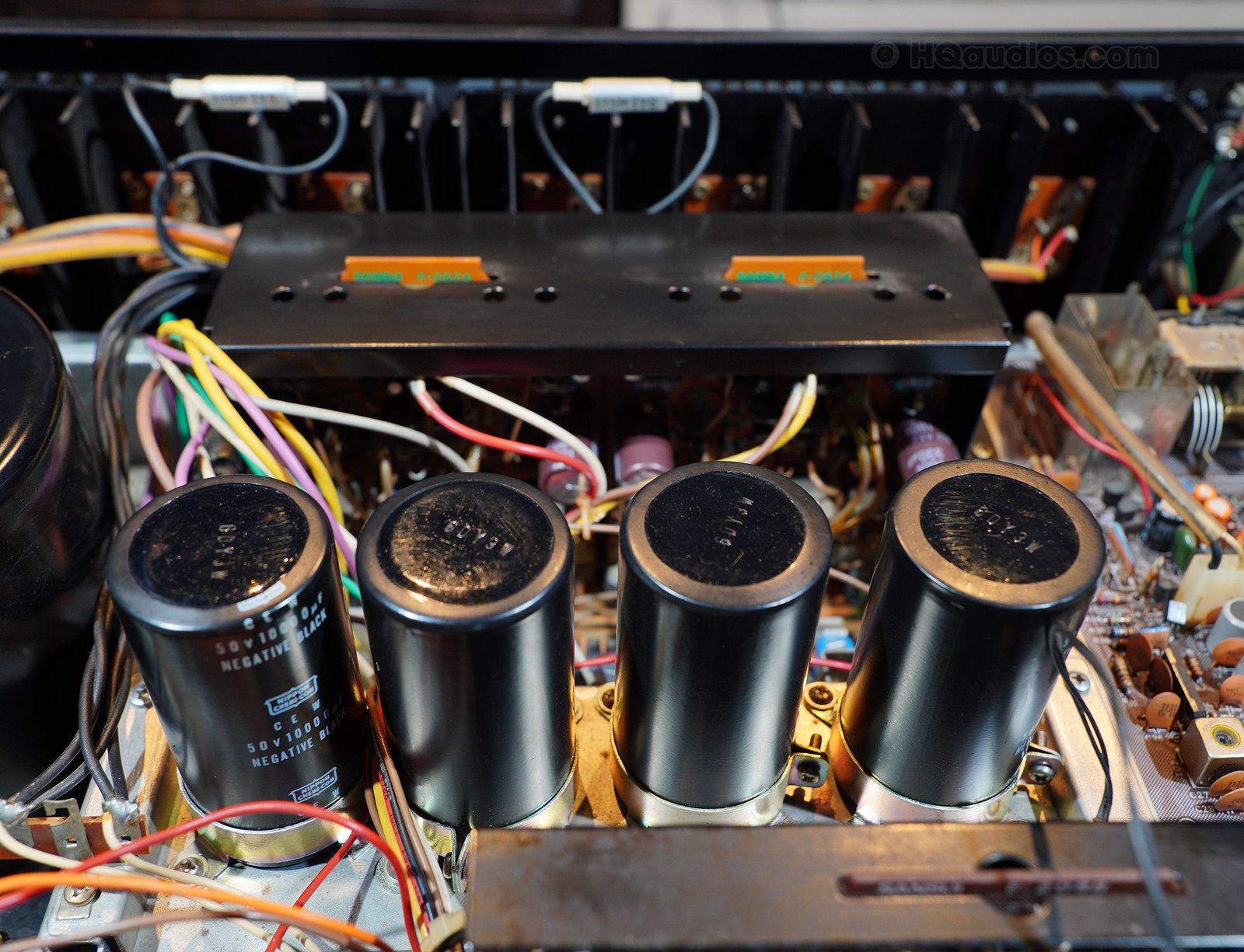

All electrolytic capacitors replaced across every PCB

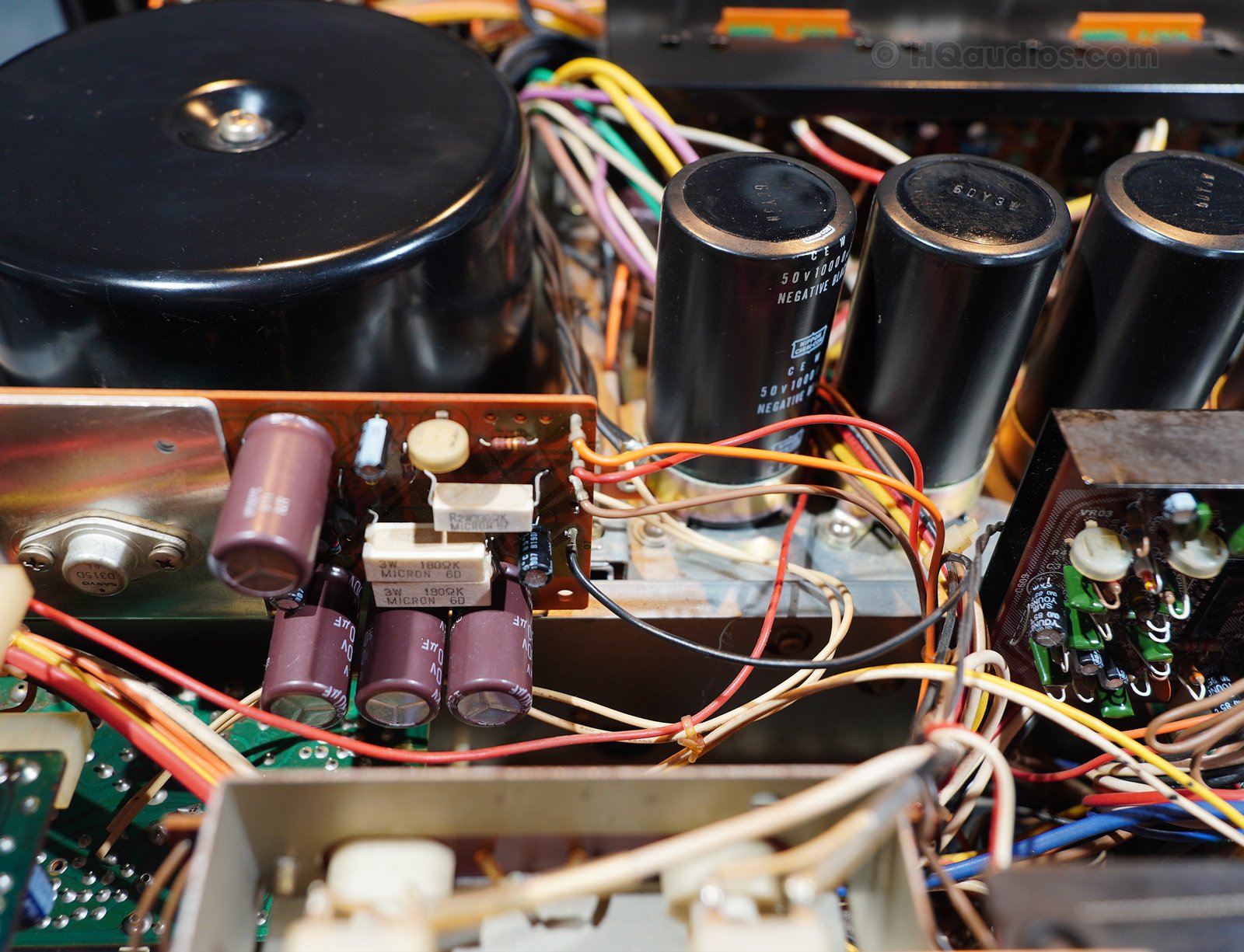

Power supply refreshed with new caps, diodes, and upgraded trimmers

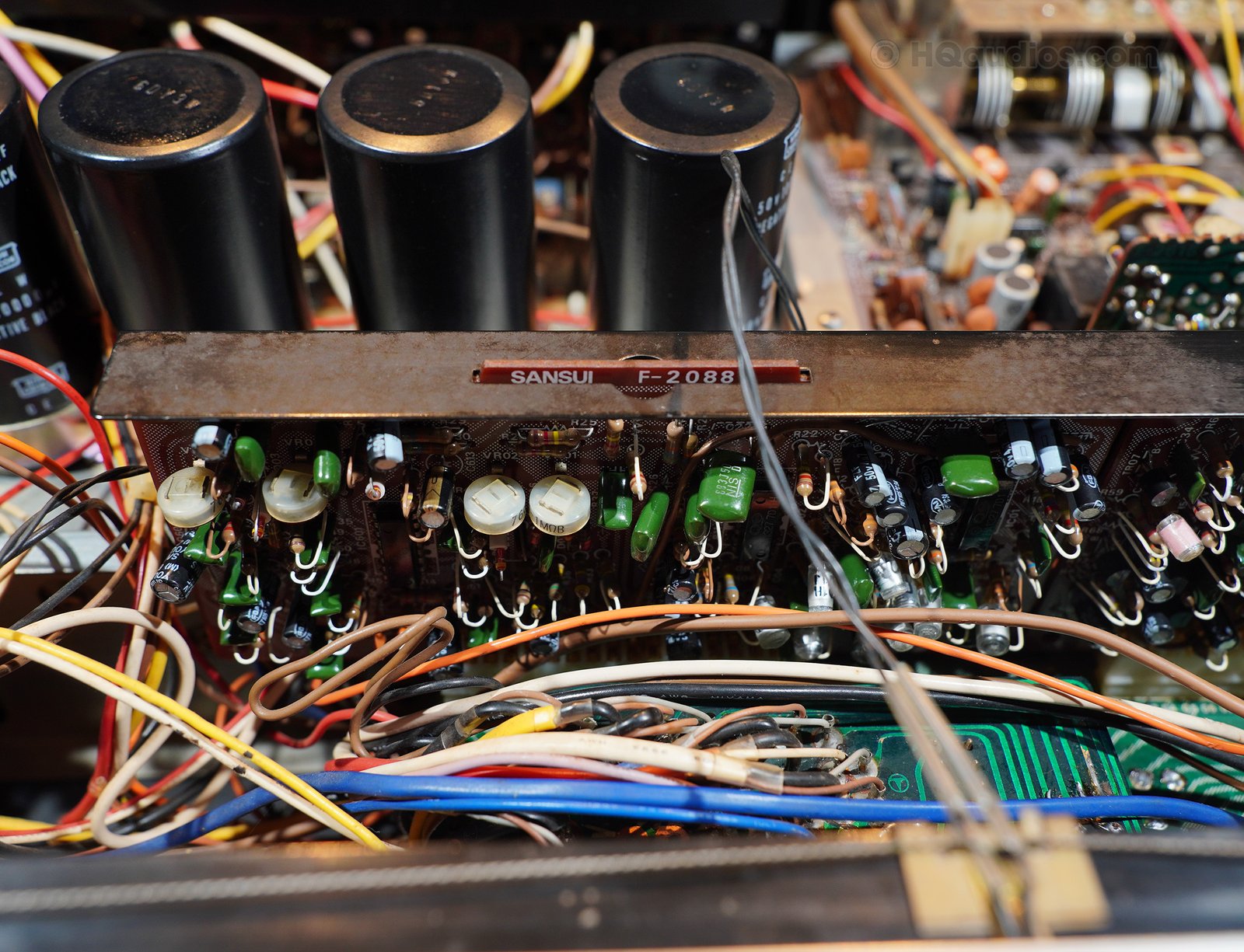

Right and left driver boards rebuilt, transistors matched, bias recalibrated

High-stress components replaced proactively

Quadraphonic Decoder Restoration

CD-4 demodulator fully rebuilt and re-aligned

SQ/QS decoding circuits balanced for proper separation

Matrix sections calibrated to ensure stable imaging in 4-channel mode

All four power channels tested for equal gain and clean output

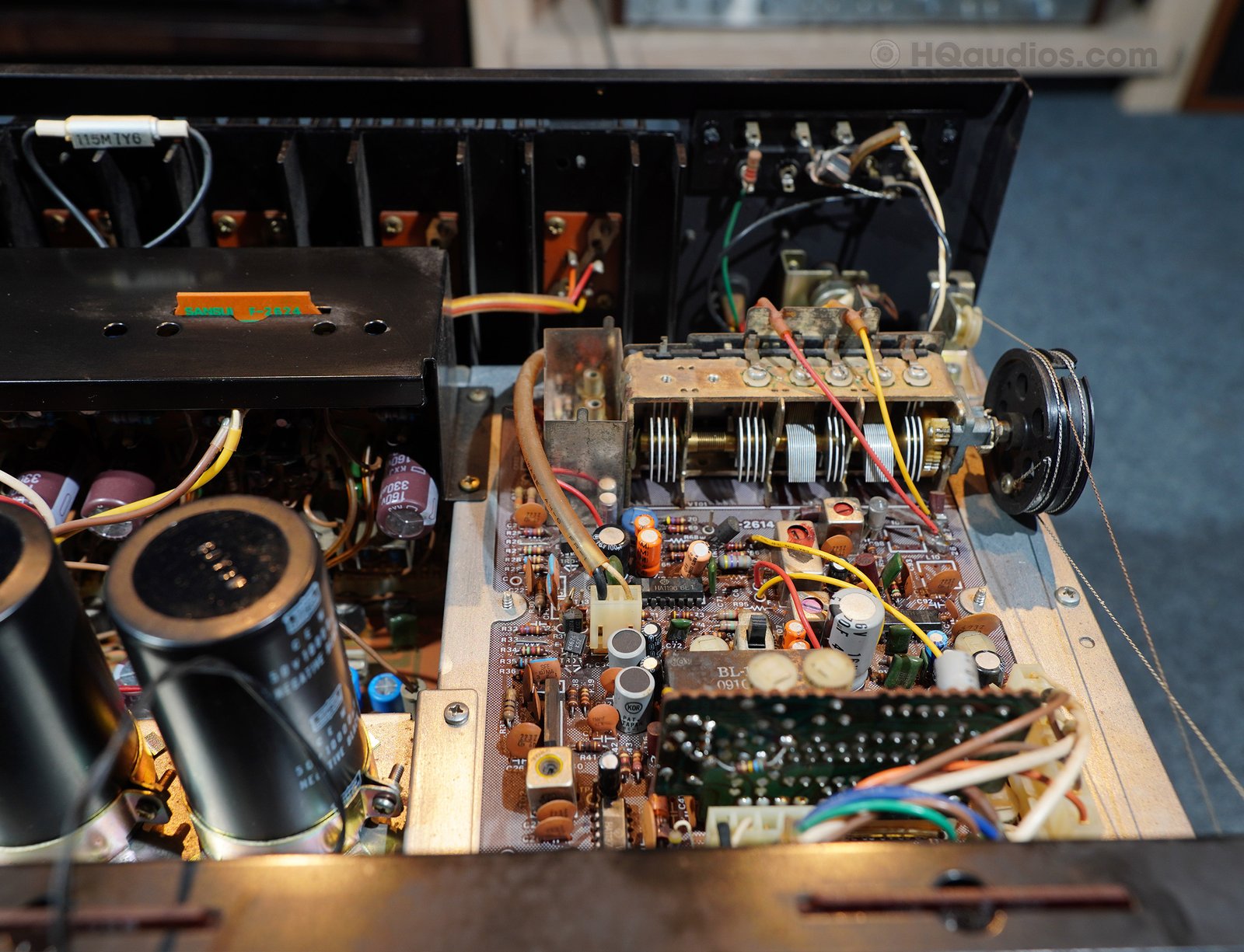

Tuner Accuracy Restoration

Front-end tuning aligned for maximum sensitivity

MPX decoder adjusted for clean stereo lock

New dial illumination and pointer calibration

Cosmetic Restoration

Full LED conversion including meters, dial, and indicators

Faceplate detailed and reconditioned

Knobs professionally polished

Internal chassis cleaned and detailed

New walnut veneer cabinet hand-crafted and finished

Mechanical Work

All switches and pots deep-cleaned

Tape monitor and filter switches serviced

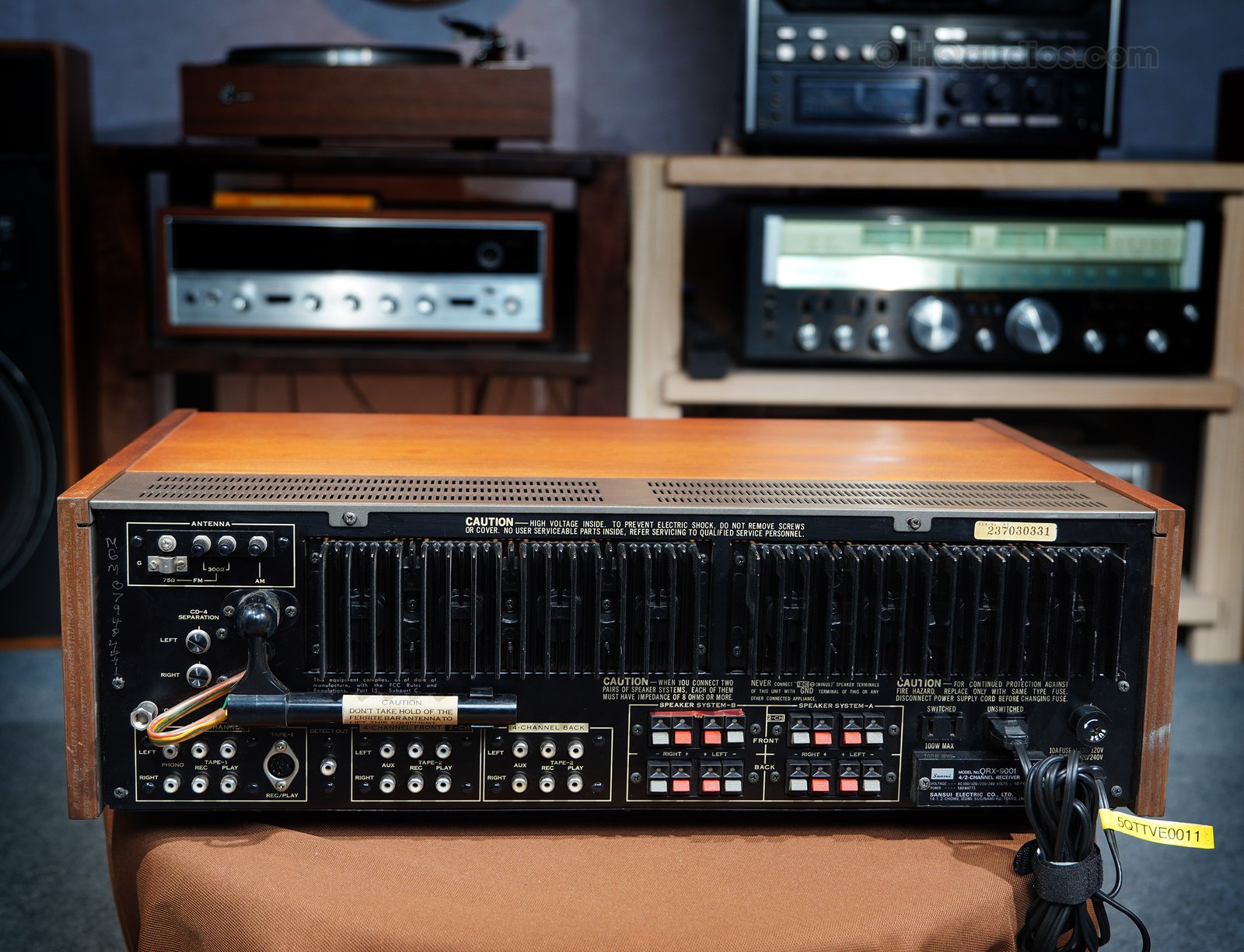

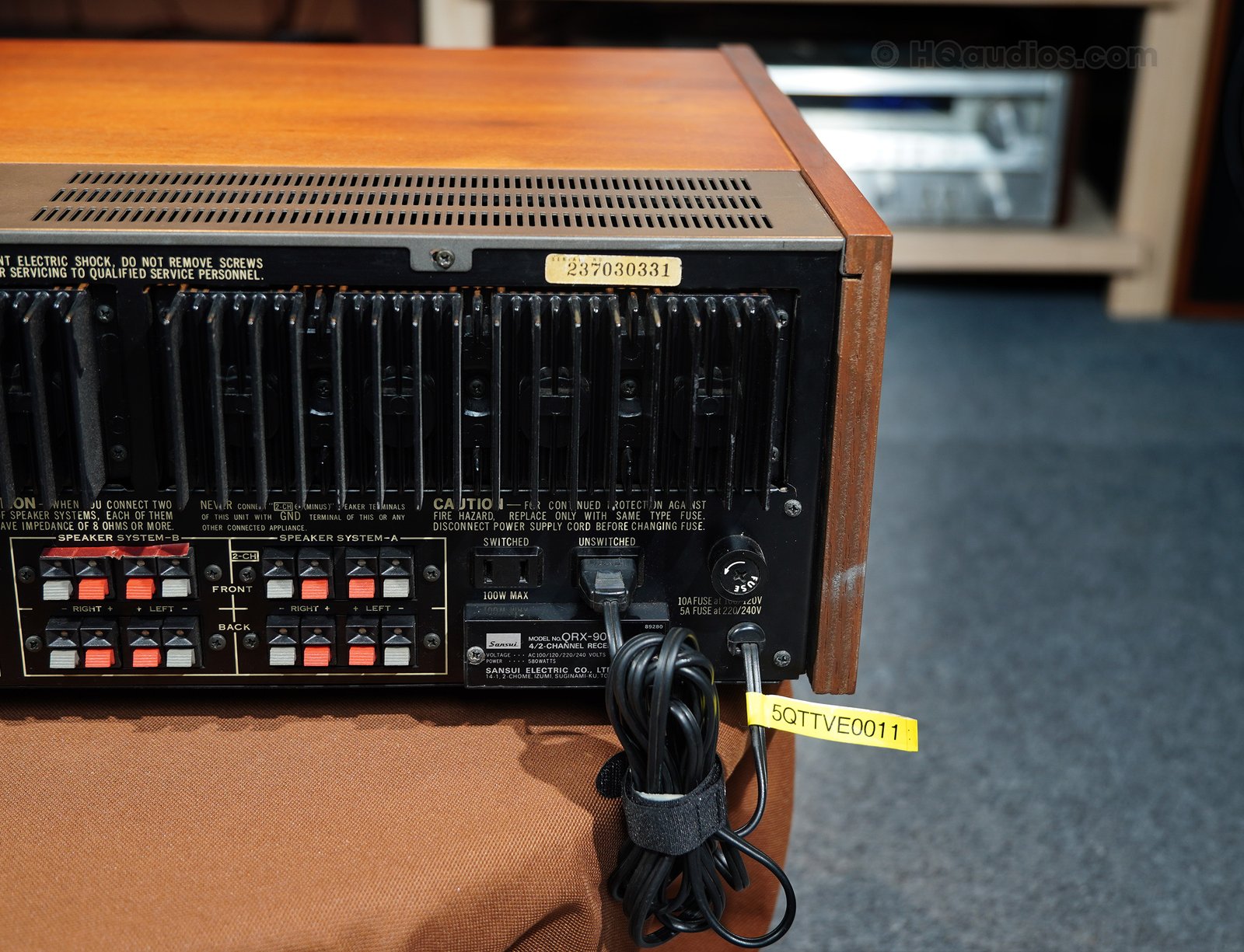

Speaker terminals cleaned and tightened

Cooling channels dusted for proper ventilation

This unit performs beautifully across all modes—2-channel, 4-channel, and CD-4 playback—with exceptional clarity and power.

SUGGESTED PAIRINGS

Speakers: JBL L100 / L112 / 4311; Klipsch Heresy; Forte; Tannoy Monitor Gold; Sansui QS-Series (for quad setup)

Turntables: Sansui SR-838 / SR-929 • Thorens TD-160 • Technics SL-1200MK2
