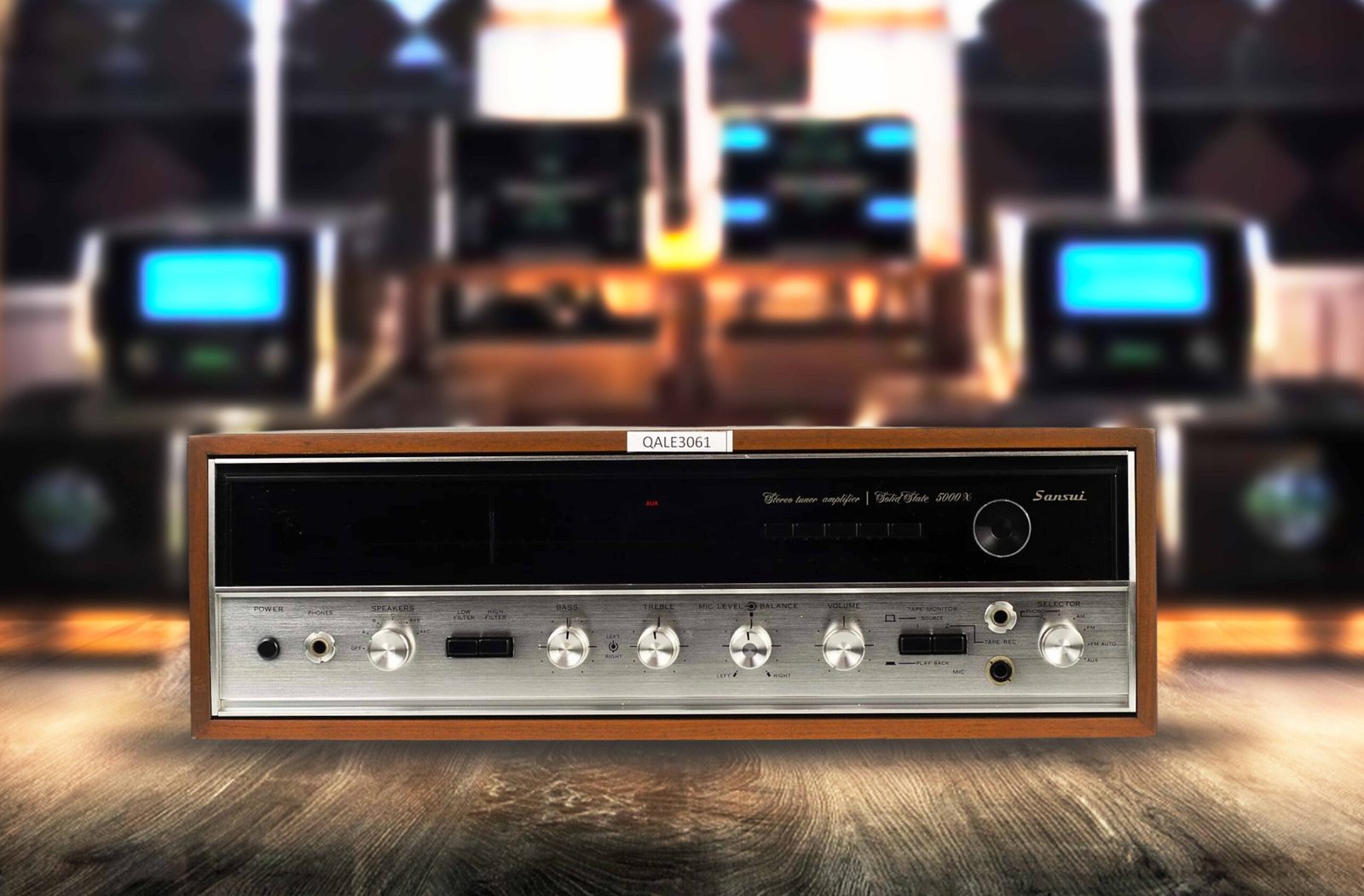

Sansui 5000X Vintage Receiver

The Sansui 5000X is a vintage receiver that remains a favorite among audiophiles for its warm, rich sound and robust power output. As part of the 5000 series, the 5000X offers 55 watts per channel, providing ample power for most home audio setups. The unit is known for its excellent tonal balance, detailed mids, and smooth highs, making it ideal for vinyl playback and FM listening. With its durable build and classic design, including a wooden cabinet option, the Sansui 5000X is both a visual and auditory delight. It also features reliable protection circuits, making it one of the more robust vintage receivers in its class.

Sansui 5000X Video

Key Features of the Sansui 5000X

• Power Output: 55 watts per channel at 8 ohms, providing enough power to drive most speakers with ease

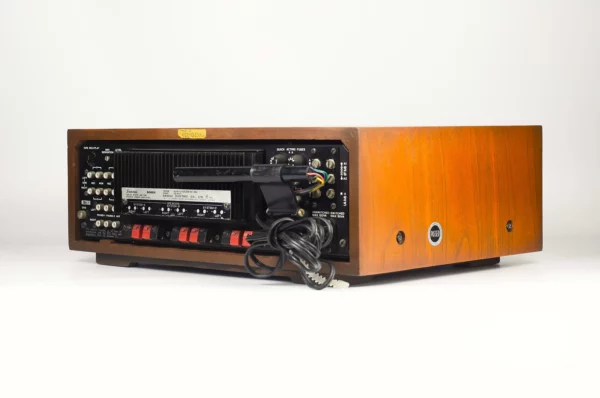

• Inputs & Outputs: Phono input for vinyl turntables, Aux input for connecting modern sources, two tape monitors for recording and playback, and pre-out/main-in for additional flexibility
• FM Tuner: Sensitive AM/FM tuner with large tuning dial and signal strength meter for precise station tuning
• Tone Controls: Separate bass and treble controls for adjusting sound balance
• A/B Speaker Switching: Allows for two sets of speakers to be connected and switched between
• Durable Design: Classic Sansui aesthetics with a rugged build that ensures long-lasting performance

Technical Specifications

• Power Output: 55 watts per channel into 8 ohms
• Frequency Response: 20Hz to 20kHz
• Total Harmonic Distortion (THD): Less than 0.5%
• Signal-to-Noise Ratio (SNR): 75dB (Phono), 85dB (Aux)
• FM Tuner Sensitivity: 2.0 µV for 30 dB quieting
• Dimensions: 17-1/4″ (W) x 6-1/2″ (H) x 15-1/2″ (D)
• Weight: 35 lbs

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

Service:

Upon inspection, the unit had scratchy controls, a dim dial, and some distortion in one channel. Therefore, it underwent servicing by our technician. Manufacturer used certain transistors in this model that are known to fail after 40 years, so all of these were replaced. This upgrade resolved the distortion issue. Additionally, several questionable capacitors were replaced.

Testing:

After servicing, the receiver was tested on our bench and performed excellently, delivering a powerful, warm, distortion-free signal characteristic of analog receivers. All inputs, outputs, and features were confirmed operational, and the tuner spins smoothly. Additional testing was conducted, and we can provide specific feature information upon request. This is a remarkable find for the vintage audiophile.

Condition Disclosure:

This item exhibits minor wear consistent with light use, as shown in the provided photos. The listing includes exactly what is pictured; no accessories, test equipment, or media are included.
