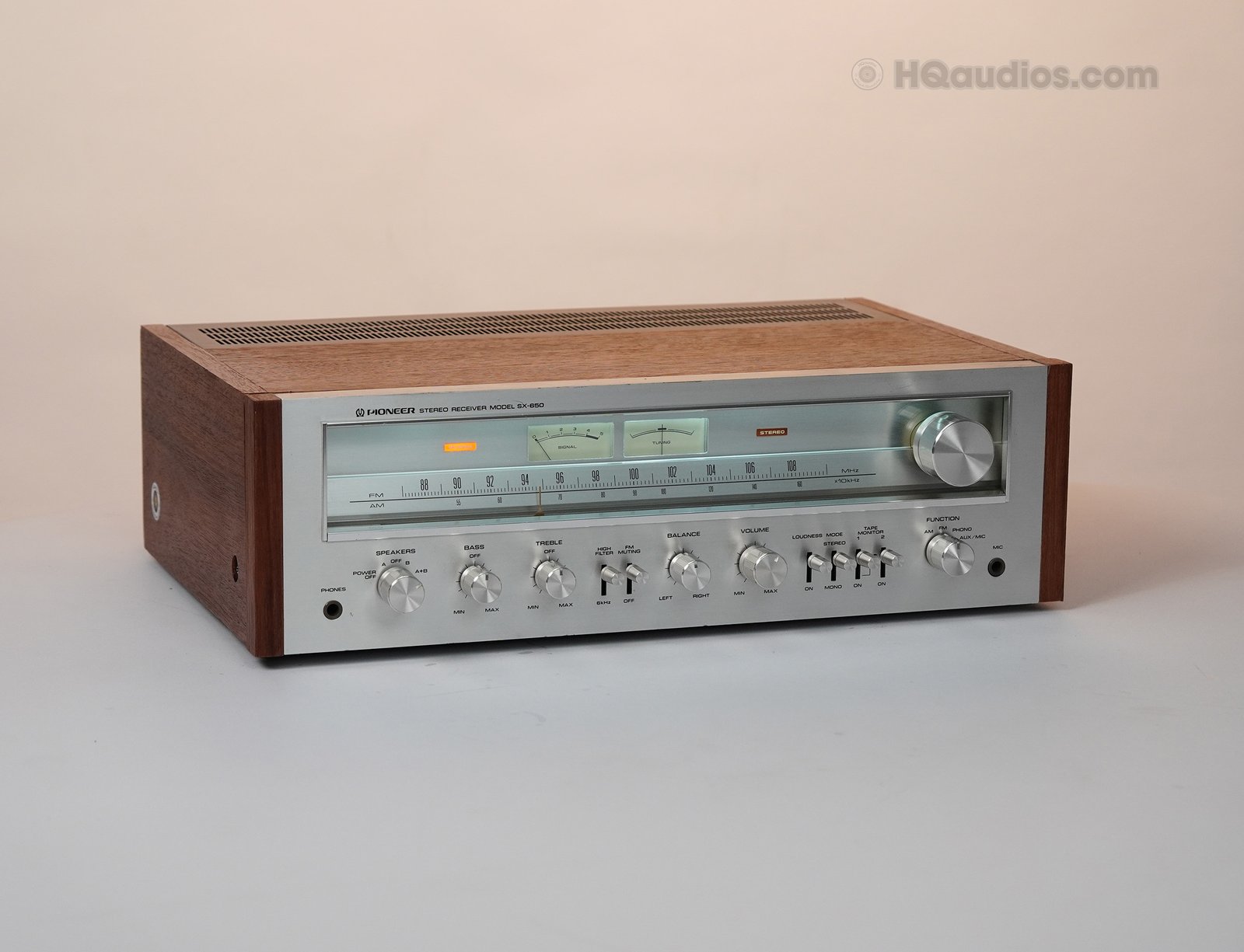

Pioneer SX-650 Stereo Receiver

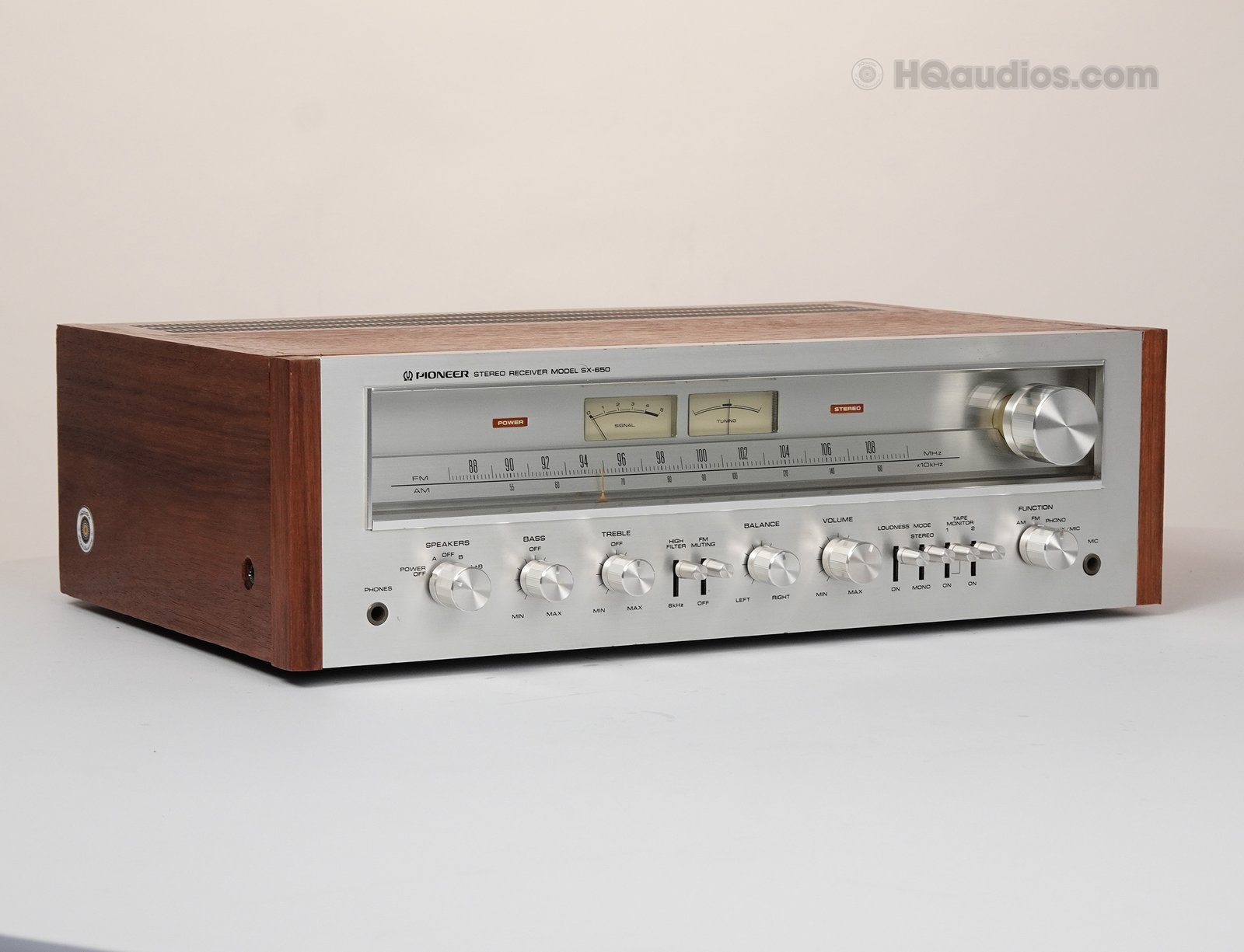

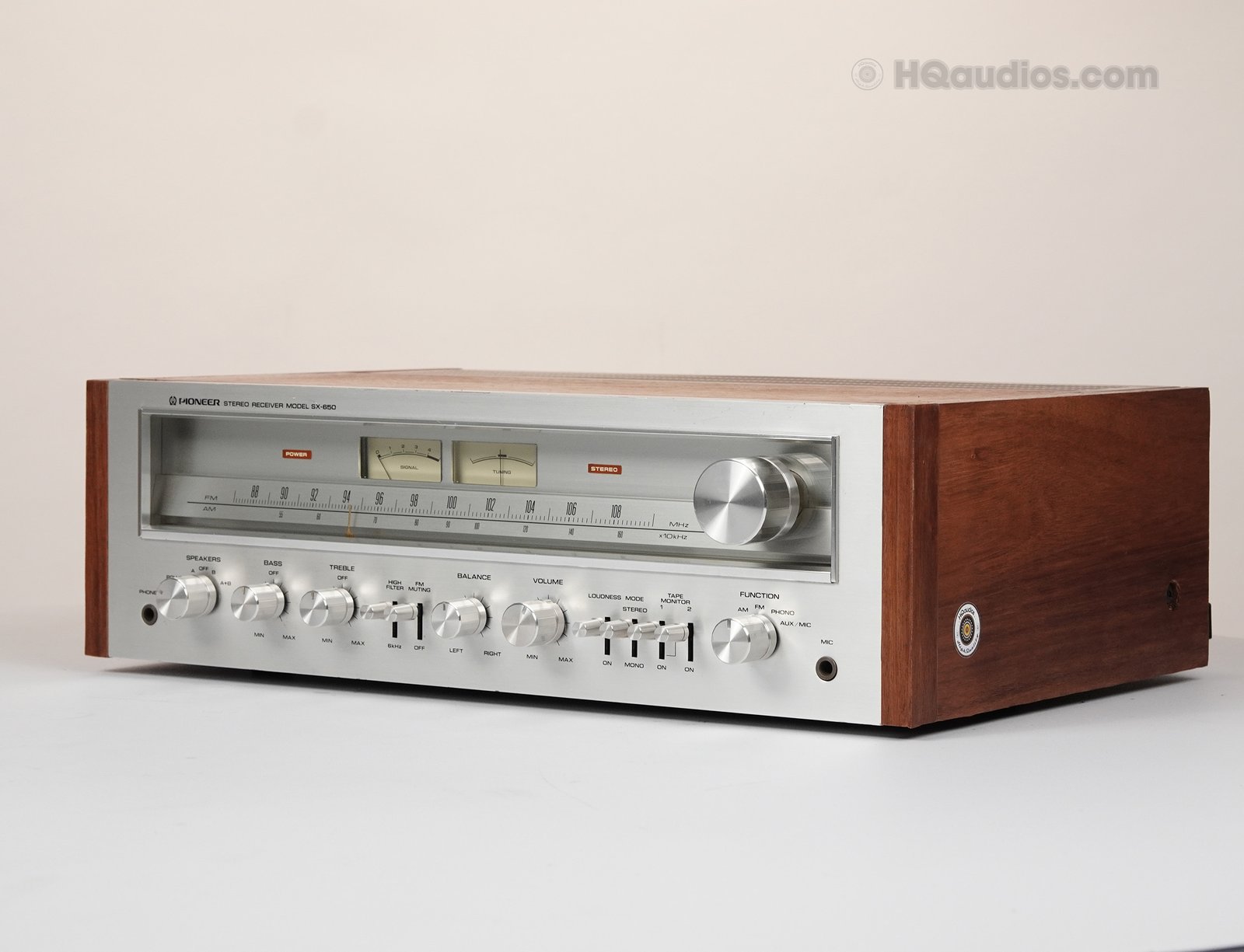

The Pioneer SX-650 is a vintage stereo receiver that delivers the classic, rich sound and timeless design that has made Pioneer a legend in the audio industry. With its sleek brushed aluminum faceplate and walnut veneer side panels, this receiver combines both visual appeal and outstanding audio performance. It is a beloved piece among audiophiles and collectors, offering quality sound at an affordable price.

This particular Pioneer SX-650 has been fully serviced and restored by HQaudios to ensure optimal performance. It has been thoroughly cleaned, tested, and upgraded, making it ready to deliver the signature Pioneer sound with long-lasting reliability. Whether you’re new to vintage audio or a seasoned collector, the SX-650 is a great addition to any audio setup.

• Model: Pioneer SX-650
• Type: 2-Channel Stereo Receiver
• Protection Plan: 1-Year Warranty Included
• Free Support: Must be used before requesting return
• ACCESSORIES: Walnut Woodcase
• SKU: 15JKE4518

Customer Service:

Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.

TRADE-IN PROGRAM

“If you have any vintage audios (receivers, speakers, cassette, reel to reel…) & want to upgrade with the serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine….”

Note:

The actual color of the product may sometimes differ slightly from the photos due to lighting conditions, temperature, and the device used. Some angles in the photos may not fully reflect the product’s condition. Please read the description carefully and feel free to message us if you have any questions.

SPECS

Tuning range: FM, MW

Power output: 35 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.3%

Damping factor: 30

Input sensitivity: 7mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 70dB (MM), 90dB (line)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 1 x FET, 9 x IC, 21 x transistors, 29 x diodes

Dimensions: 18.9 x 5.87 x 14.61 inches

Weight: 28.88 lbs

Year: 1976

KEY FEATURES

• Power Output: 35 watts per channel at 8 ohms for clear, reliable audio
• Tone Controls: Bass, Treble, and Balance for personalized sound customization

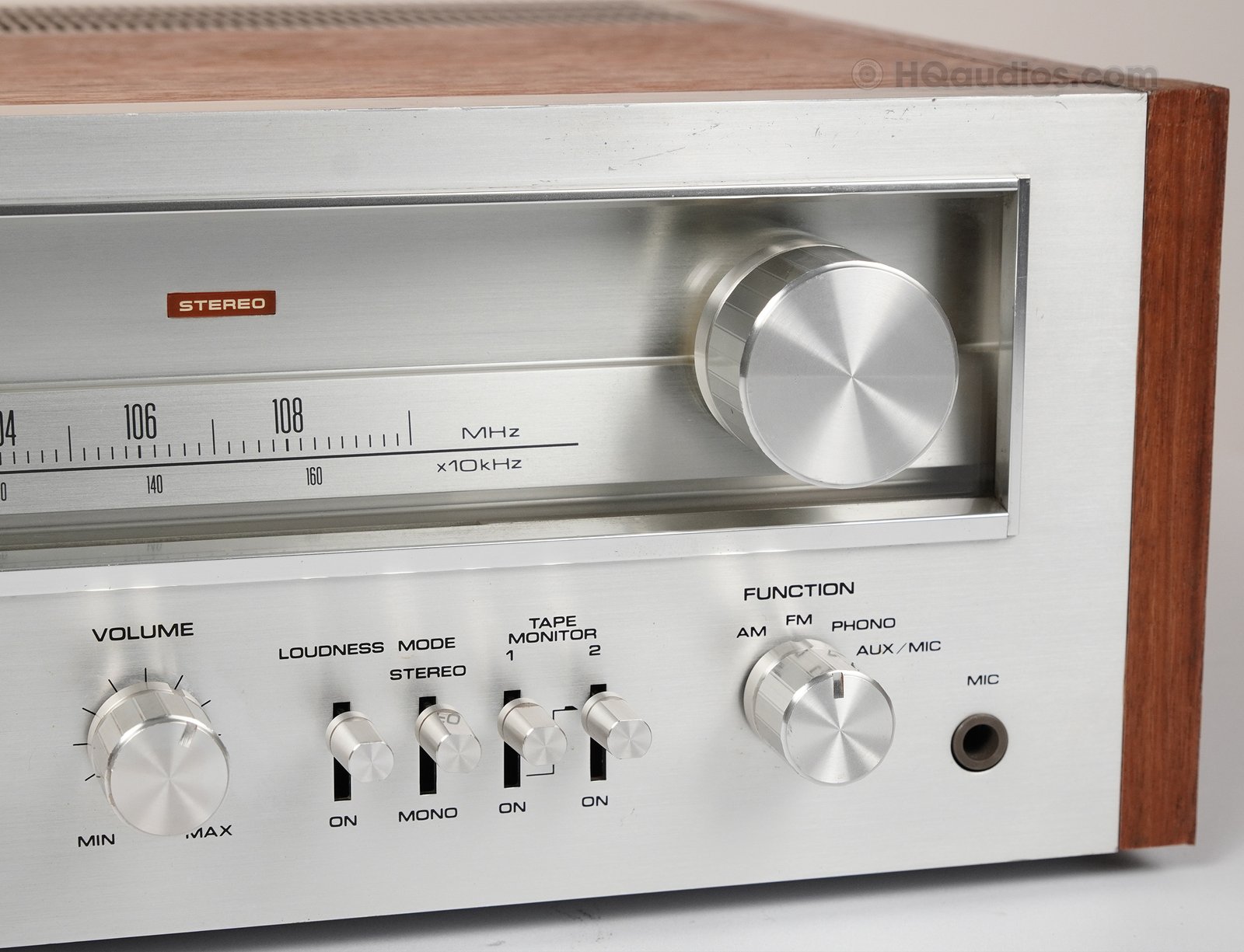

• Tuning: Clear FM/AM stereo tuning with signal strength meters

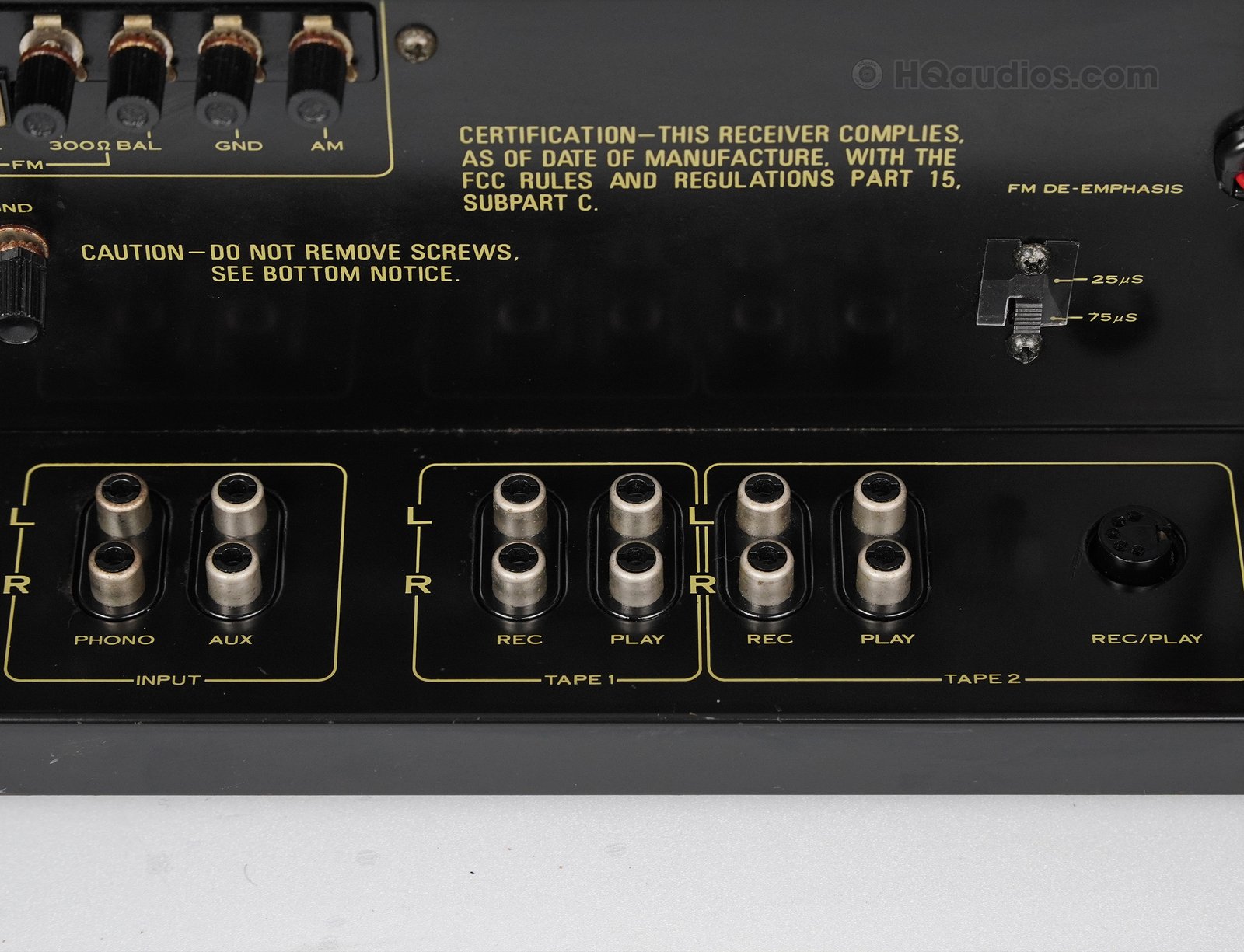

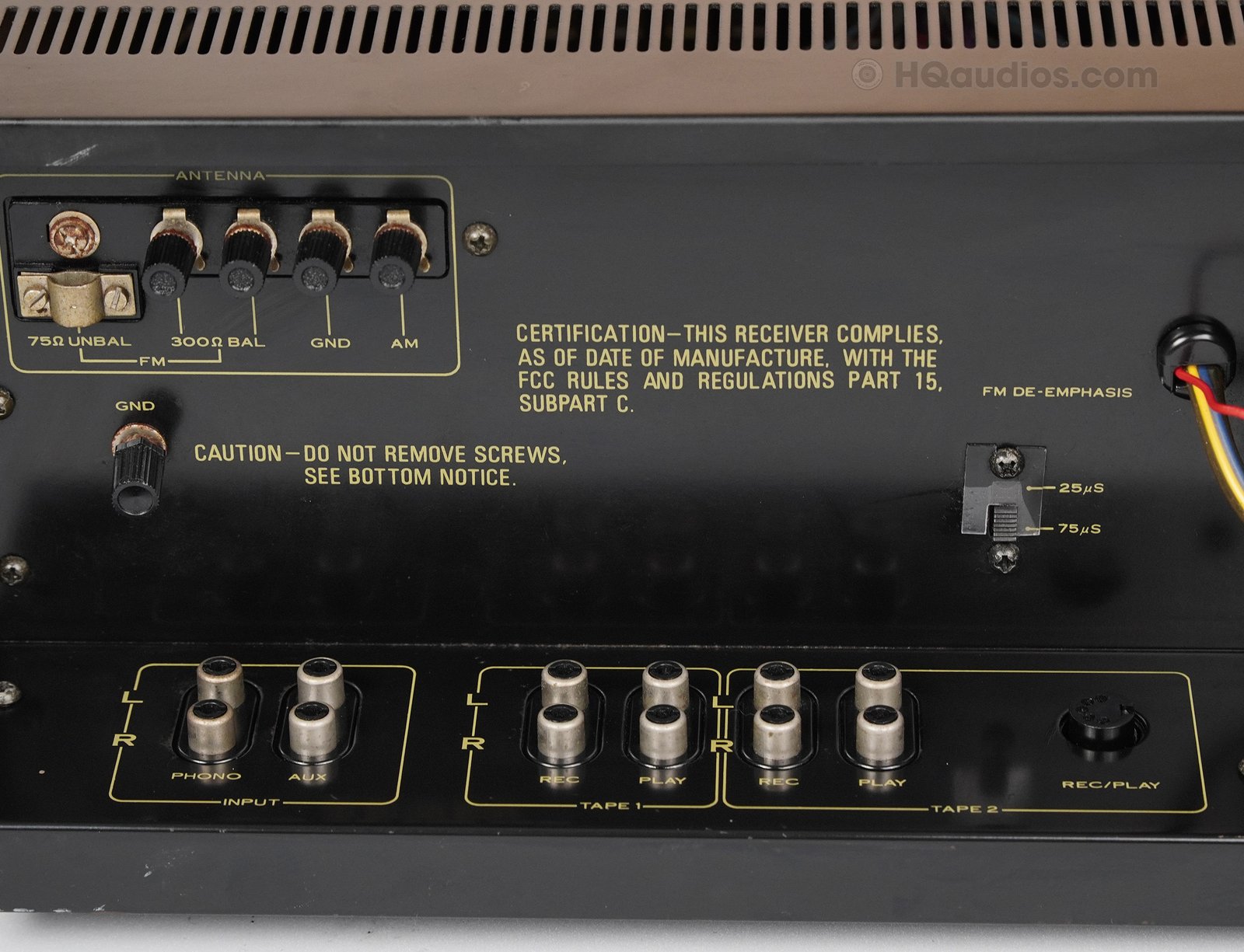

• Connectivity: Phono, Tape, and AUX inputs for versatile audio sources

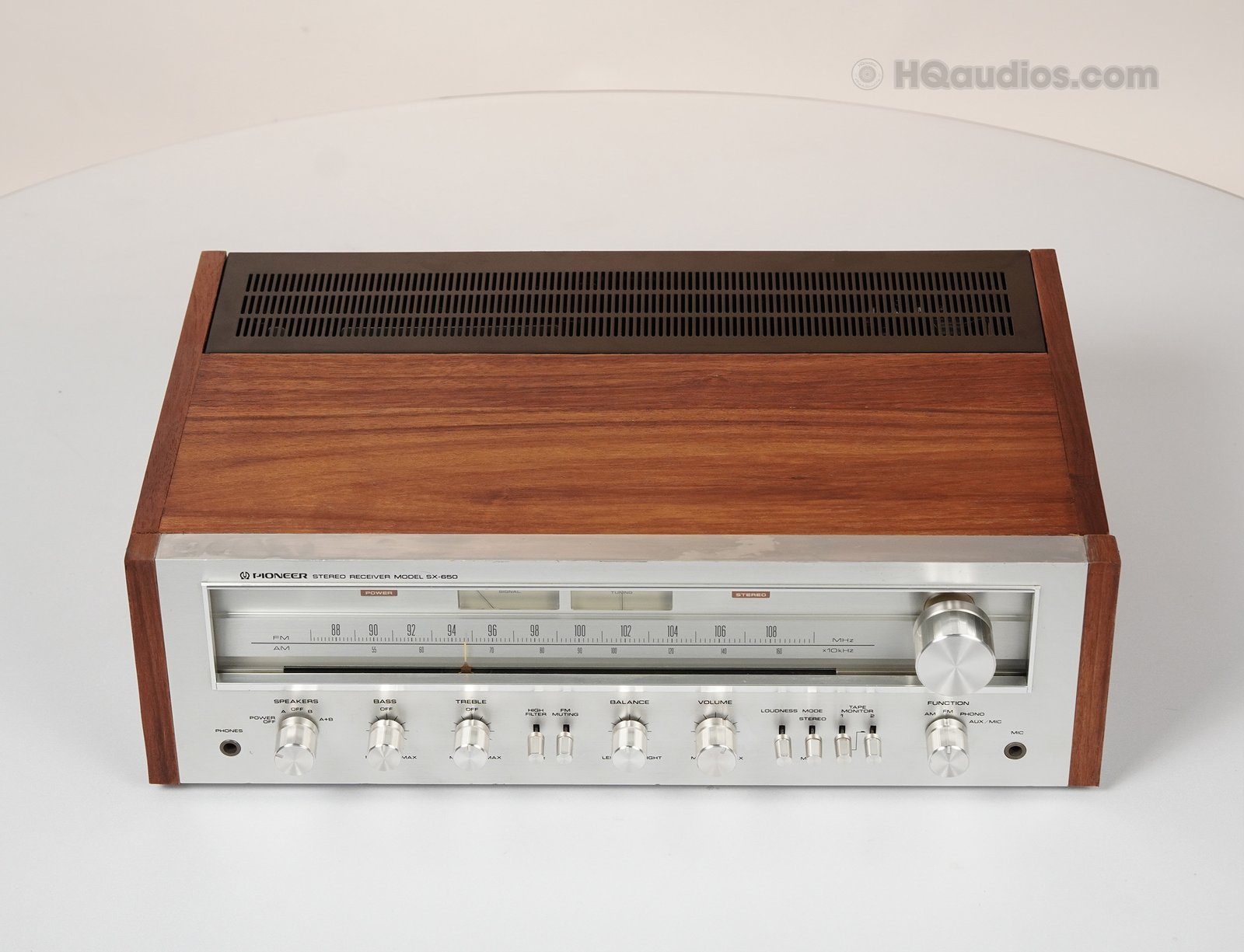

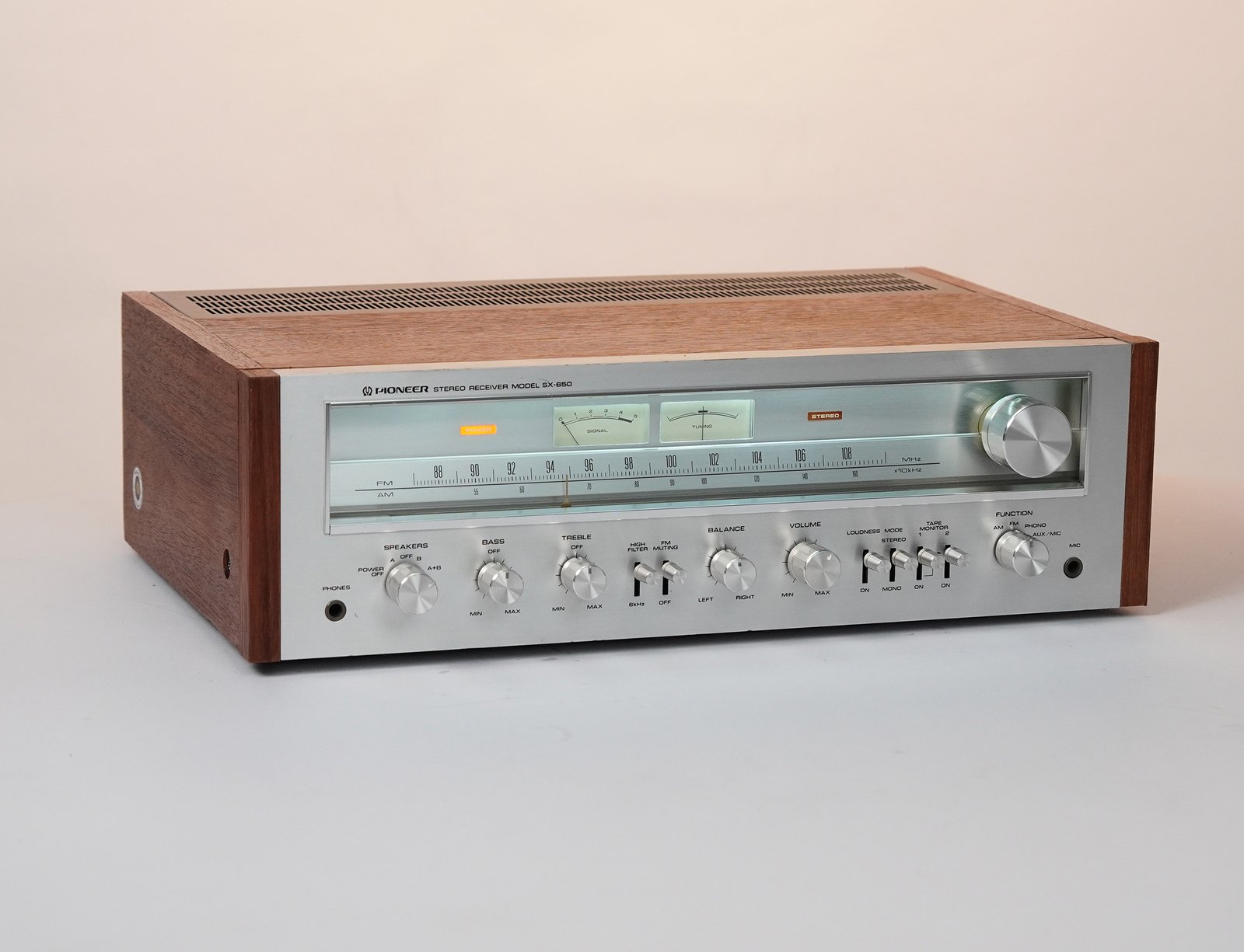

• Design: Classic brushed aluminum faceplate with walnut wood veneer side panels
• Durability: Built to last with high-quality materials and construction

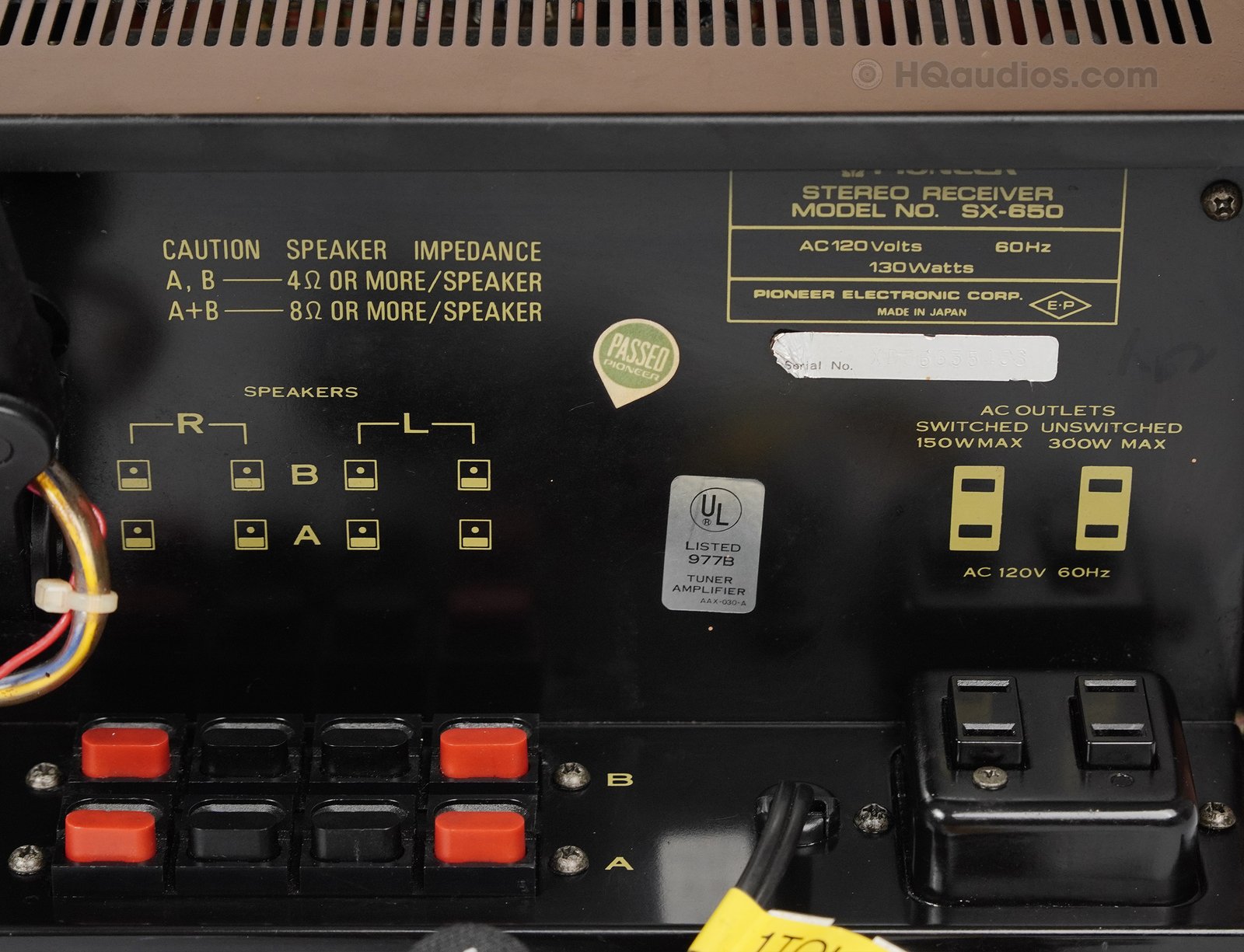

• Speaker Options: A and B speaker connections for flexible audio setup

REFURBISHED

The Pioneer SX-650 has undergone a meticulous restoration process to ensure it performs like new, preserving its original vintage character while enhancing its overall performance. Every component has been tested, cleaned, and upgraded to guarantee optimal functionality and long-lasting reliability.

1. Fully Serviced

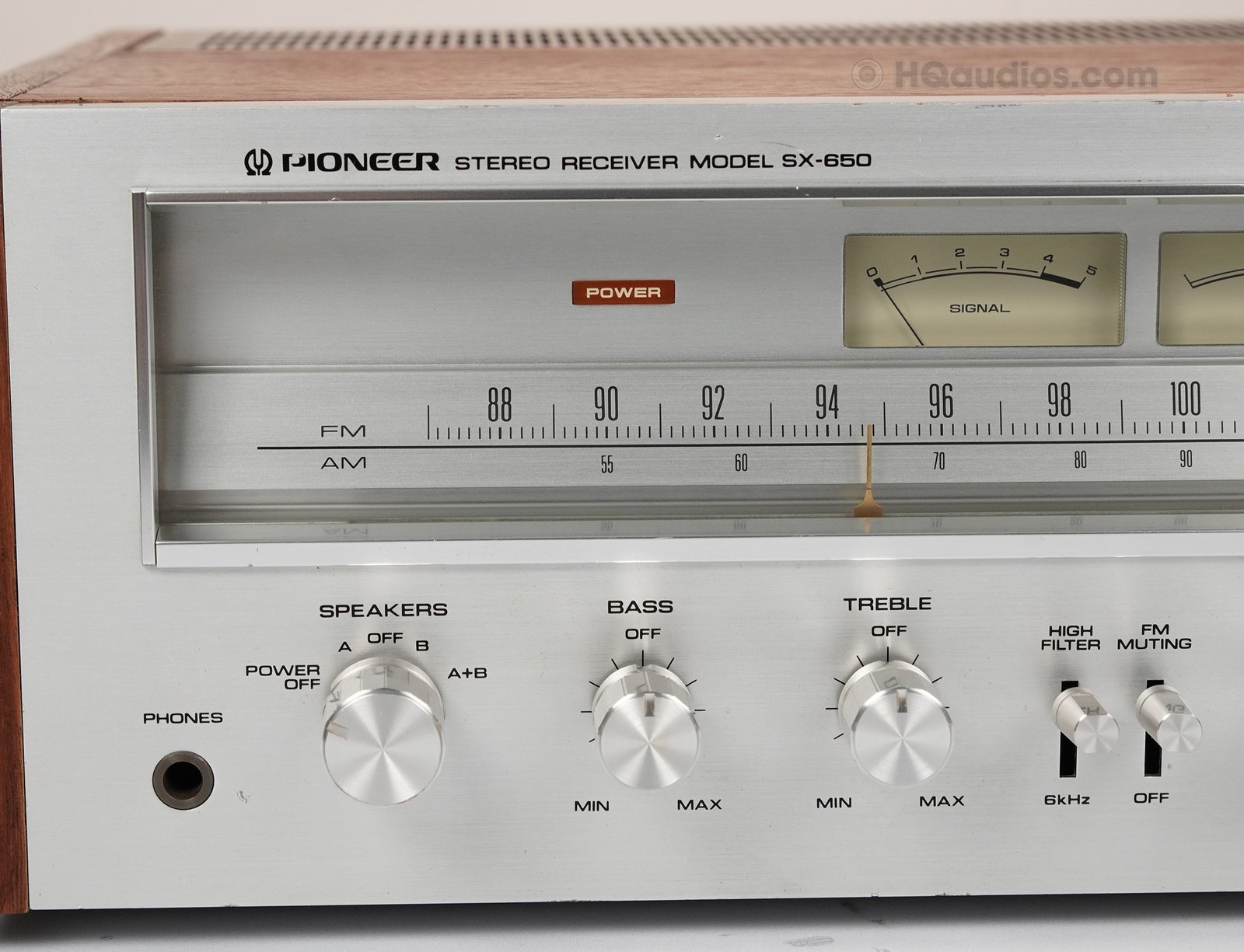

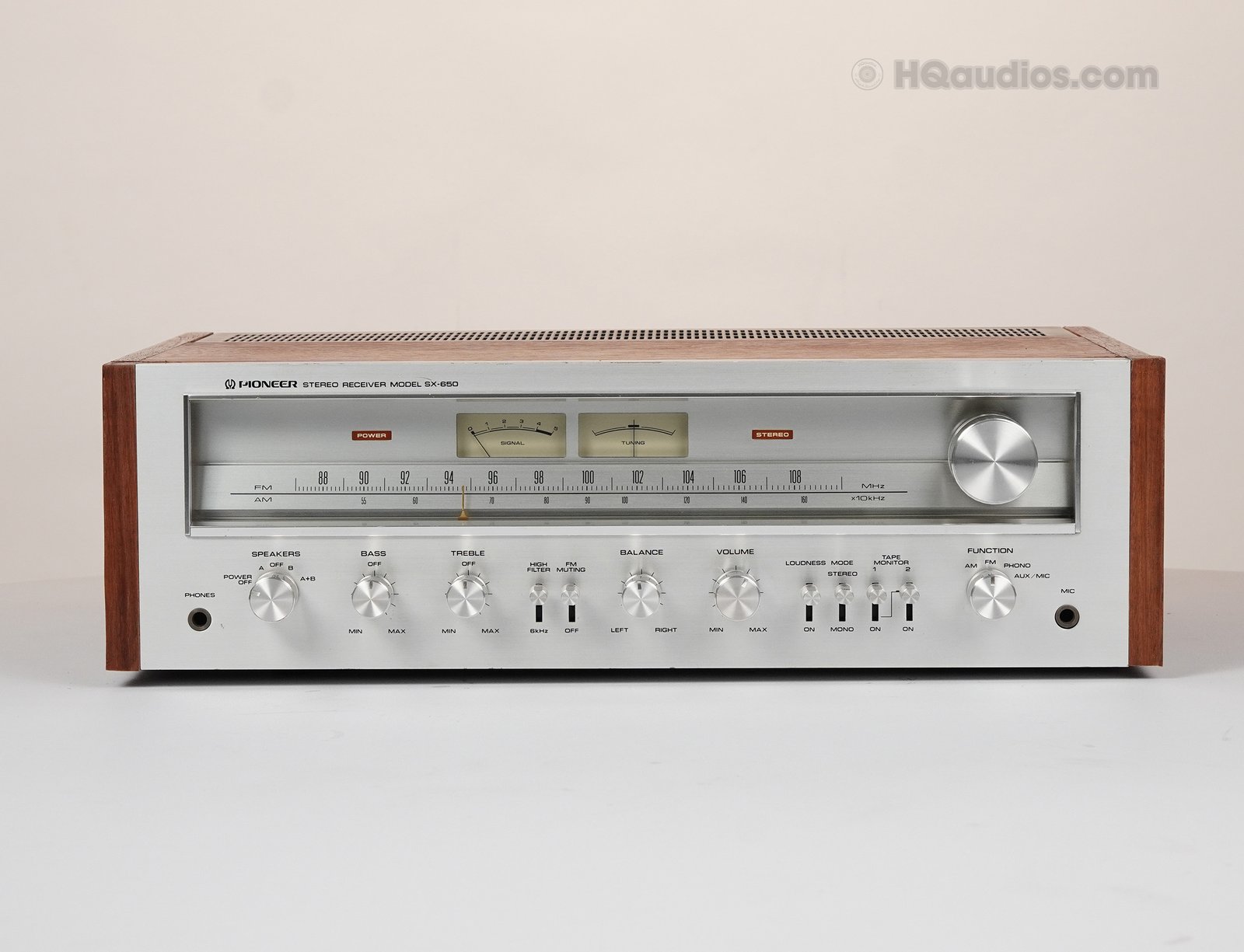

• Brushed aluminum faceplate professionally cleaned and polished to restore its original shine
• Knobs, switches, and pushbuttons cleaned and lubricated for smooth, noise-free operation
• Tone controls (bass, treble, balance) tested and calibrated to factory specifications
• Speaker terminals cleaned and re-tensioned for secure connections
• Headphone output tested for balanced, clear stereo performance
• RCA inputs cleaned and re-tensioned for optimal signal integrity

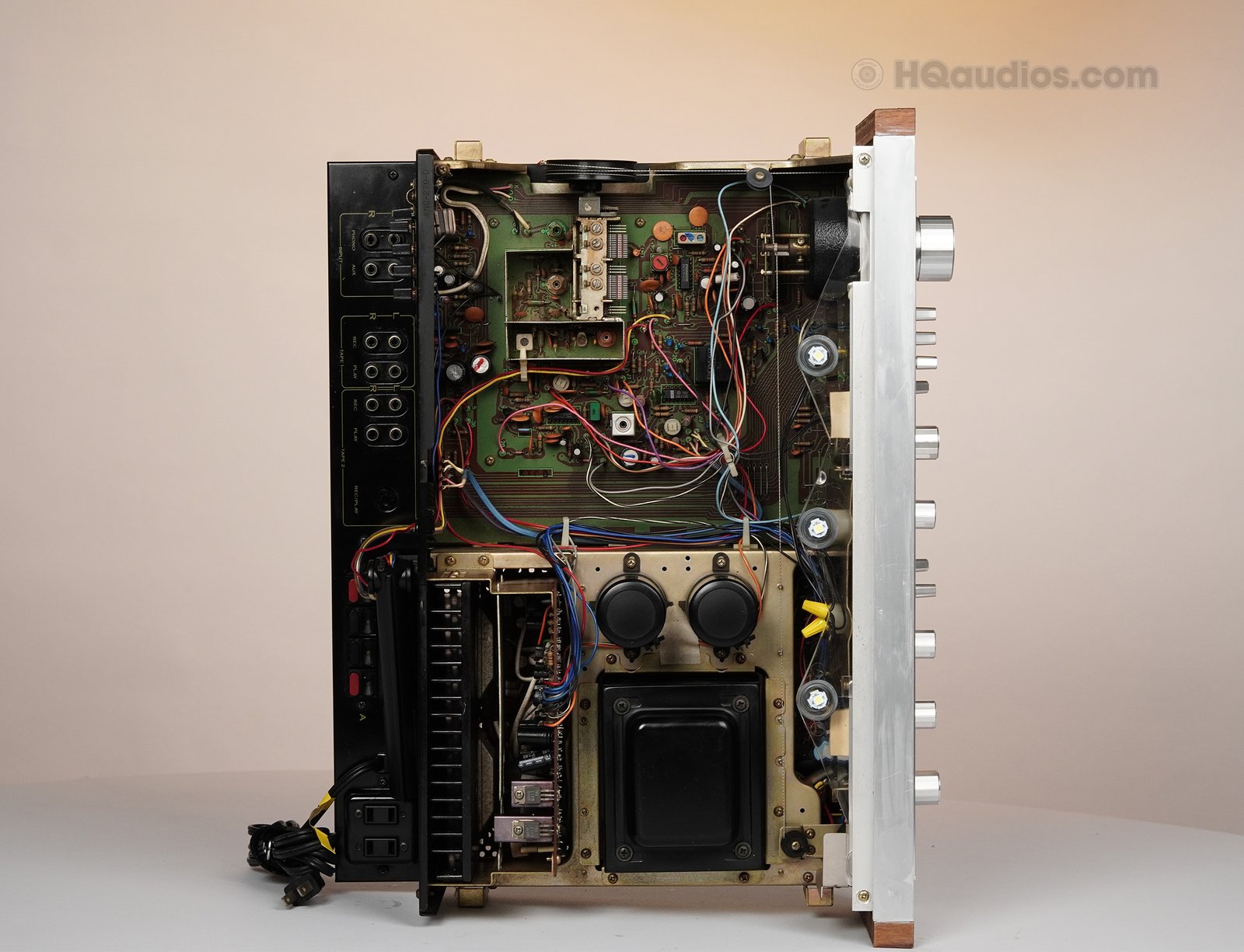

• Internal chassis cleaned, dusted, and detailed for a pristine presentation

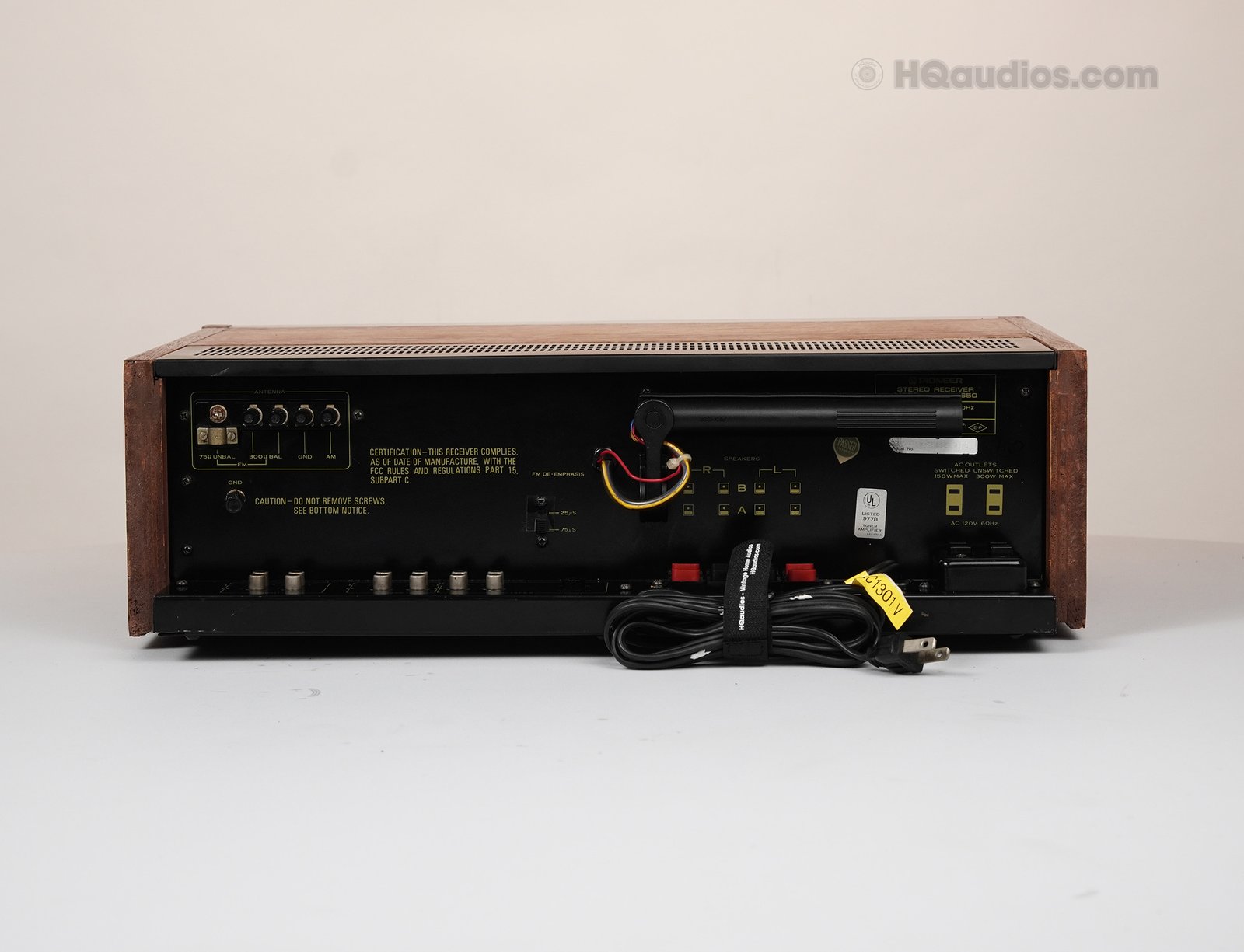

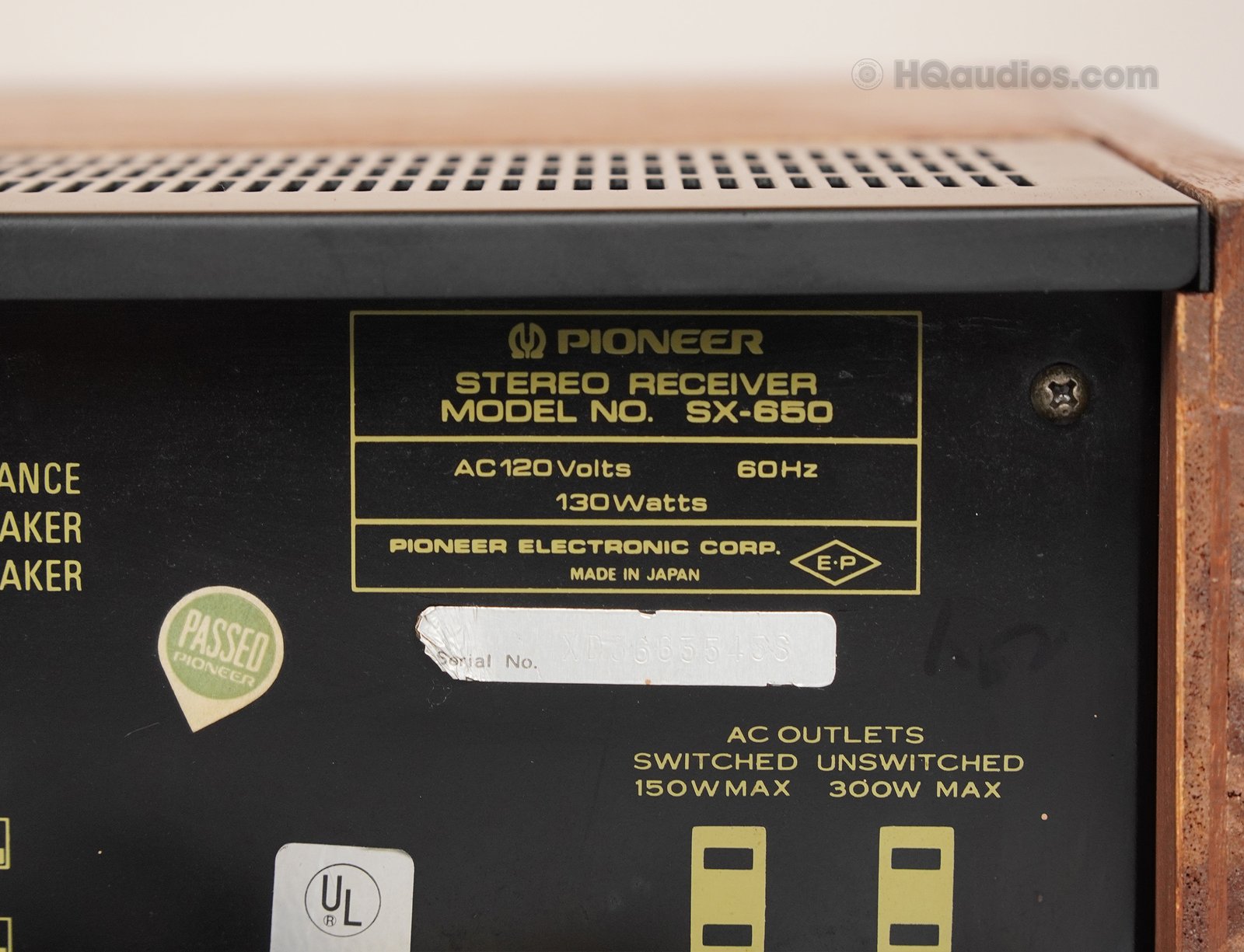

• Rear panel cleaned, lettering preserved or touched up for consistency

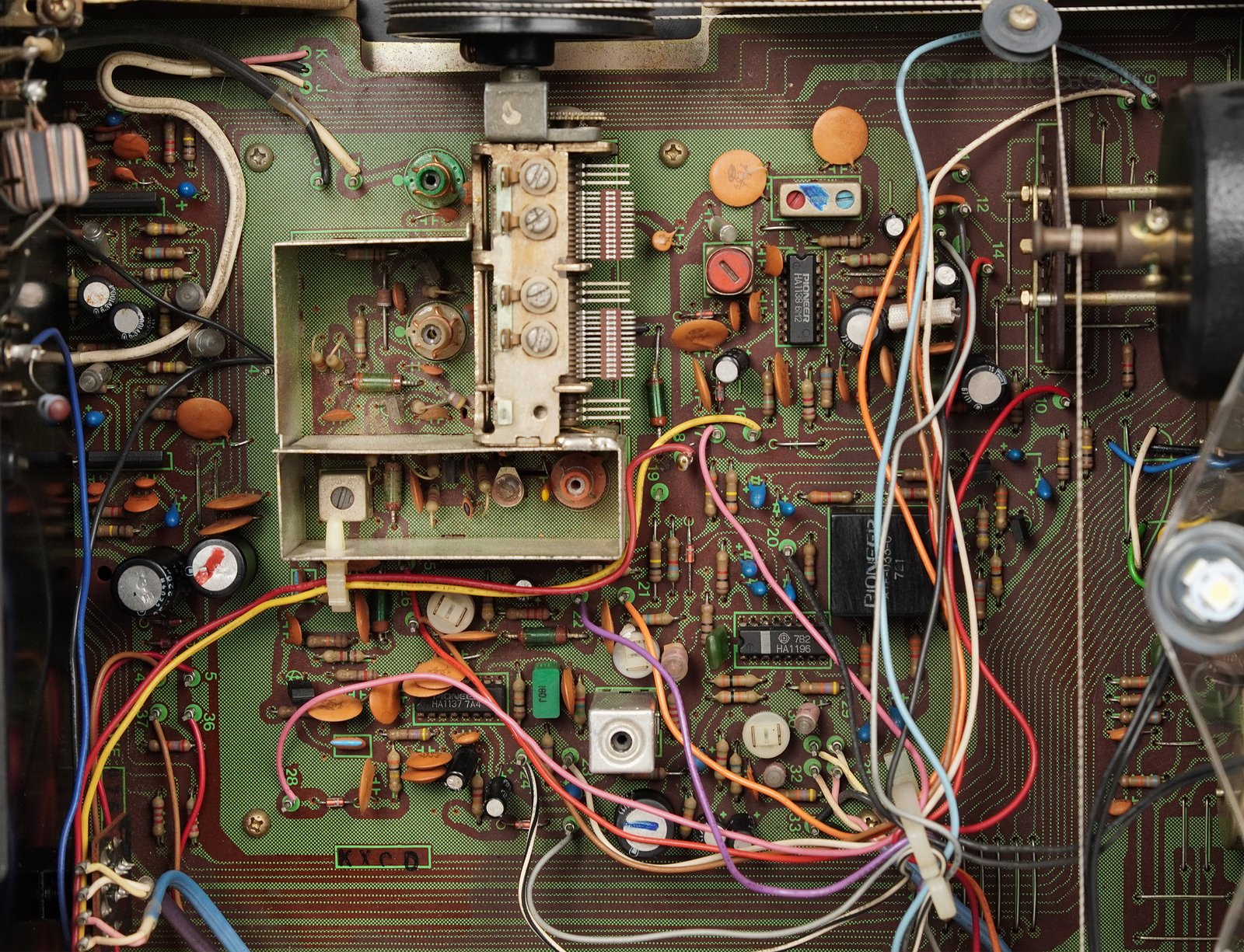

2. Electronic Restoration

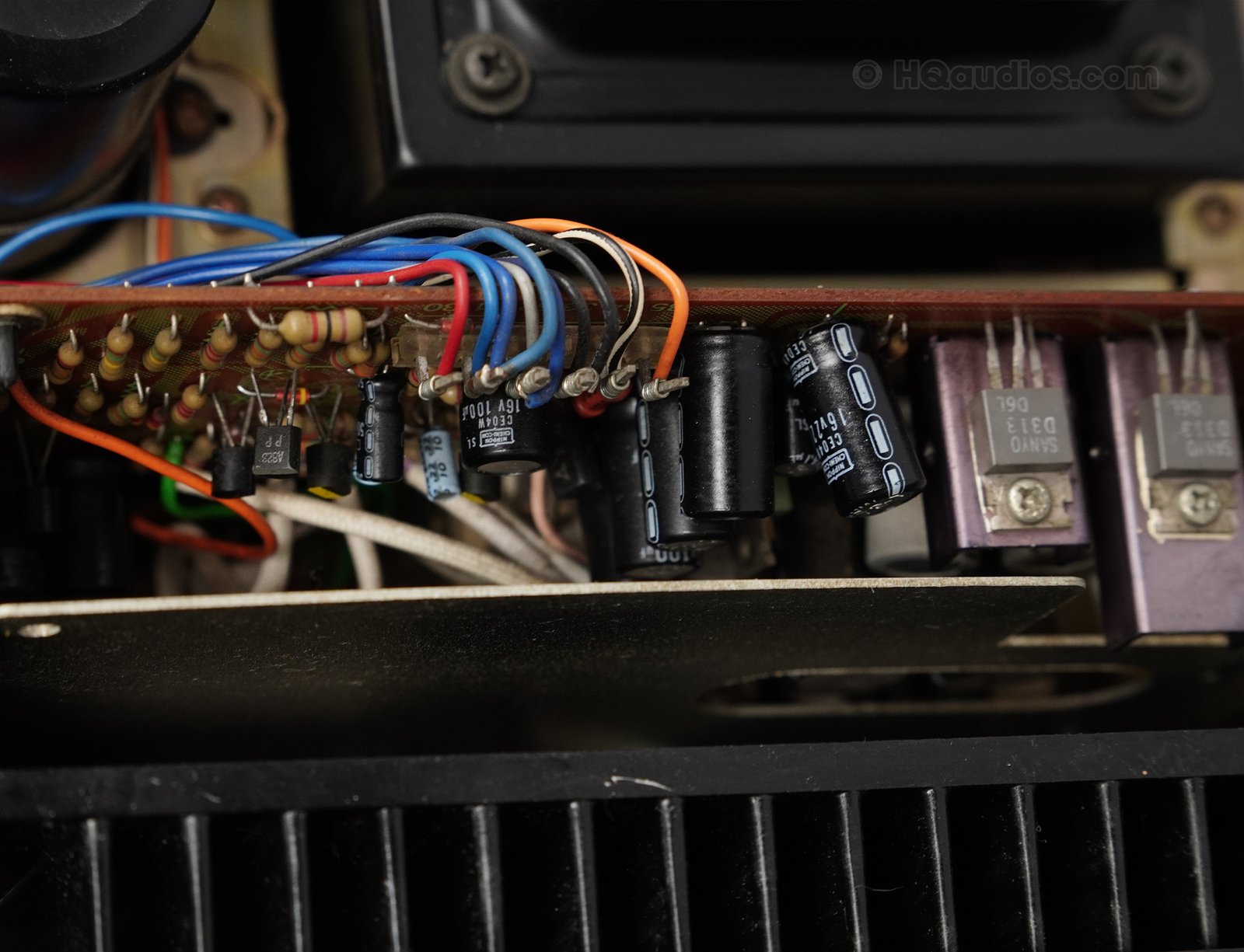

• Capacitors replaced across the power supply, preamp, tone control, and power amplifier sections

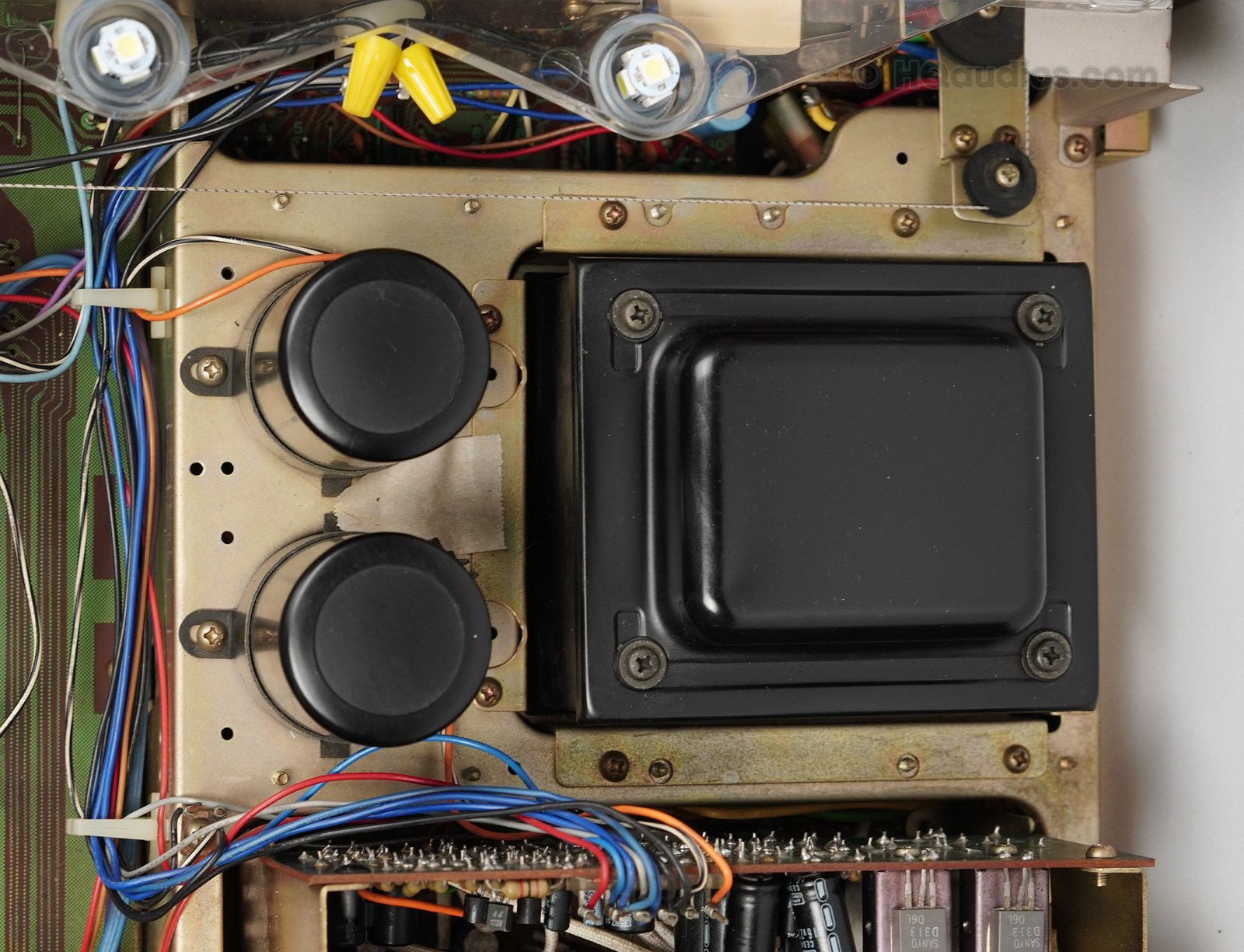

• Power rails tested and regulated for stable output
• DC offset and bias recalibrated to factory settings
• Transistors tested and replaced with low-noise equivalents where necessary
• Solder joints reflowed in heat-sensitive areas for long-term reliability

3. Signal Path & Connectivity

• RCA jacks and speaker terminals cleaned and secured for consistent signal flow
• Phono stage tested for correct gain and low-noise performance
• Headphone output tested for distortion-free, balanced output

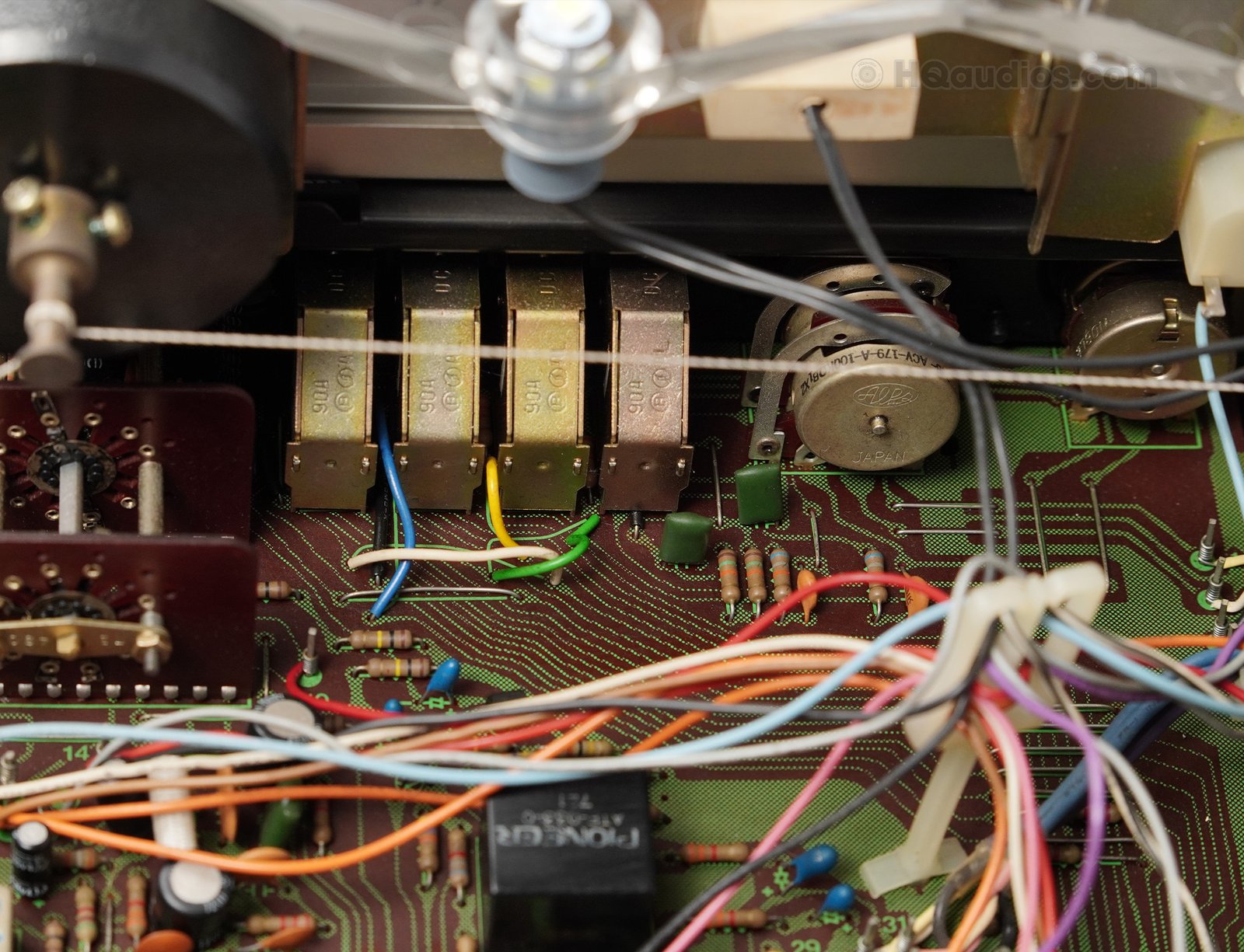

4. Tuner & Meter System

• FM/AM tuner fully aligned for stable reception

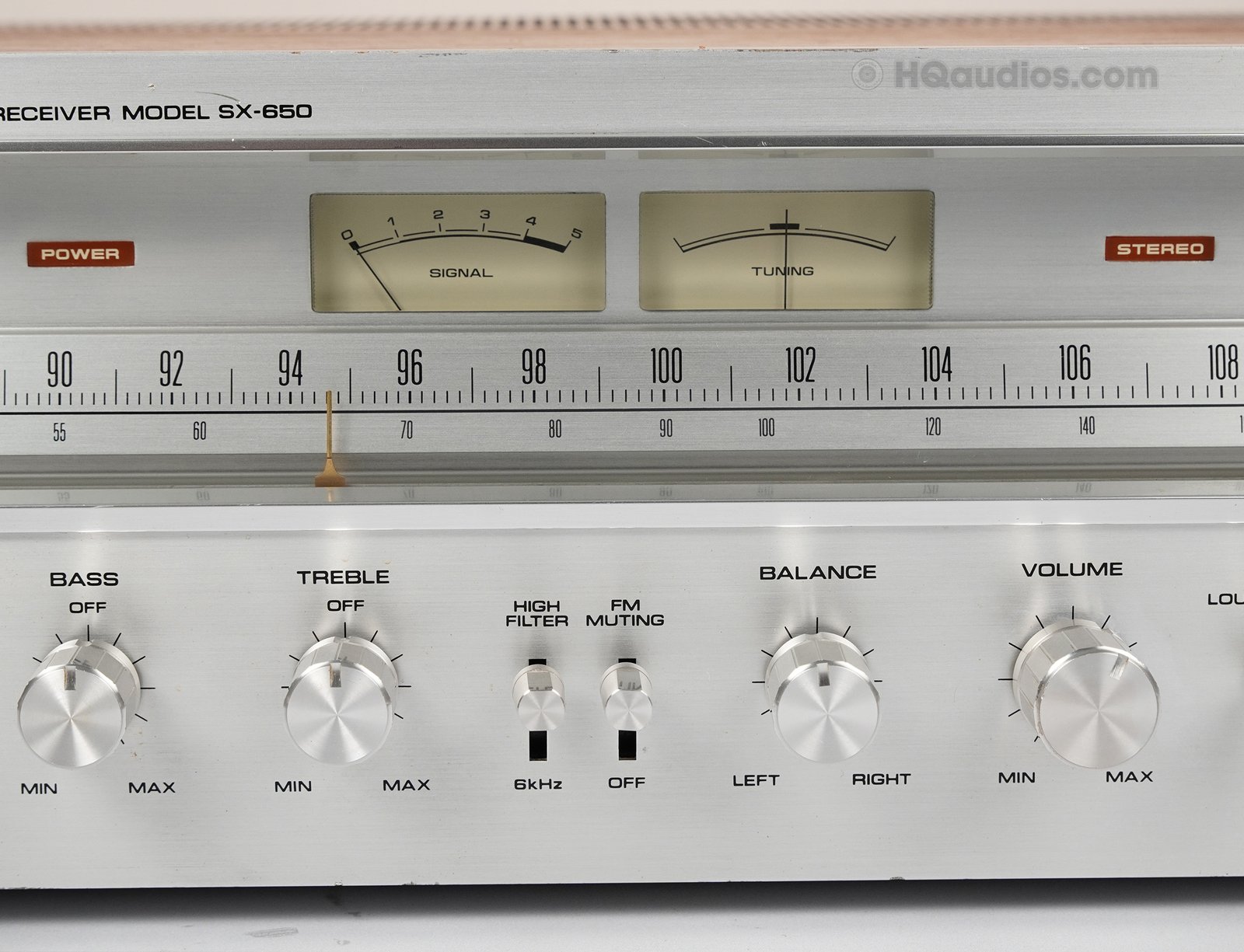

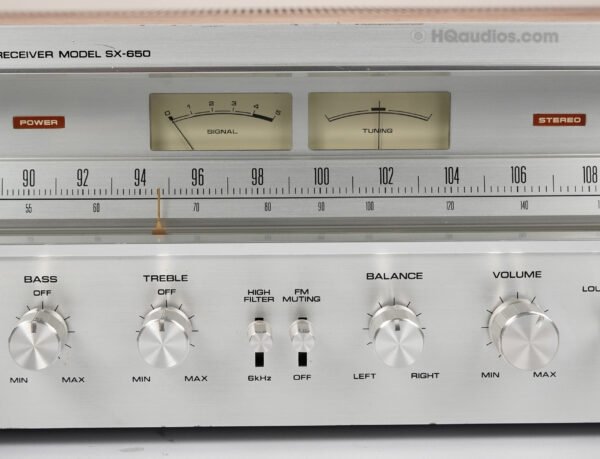

• Signal strength and tuning meters calibrated for accuracy
• Dial and meter illumination restored for consistent brightness
• FM Stereo lamps replaced (8V) and FM stereo center alignment performed using a frequency generator for perfect tuning. The FM stereo function is now fully operational.

5. Final Testing & Quality Control

• Extended burn-in period with real-world listening tests
• All inputs and outputs tested for full functionality
• Channel balance, dynamics, and thermal stability verified

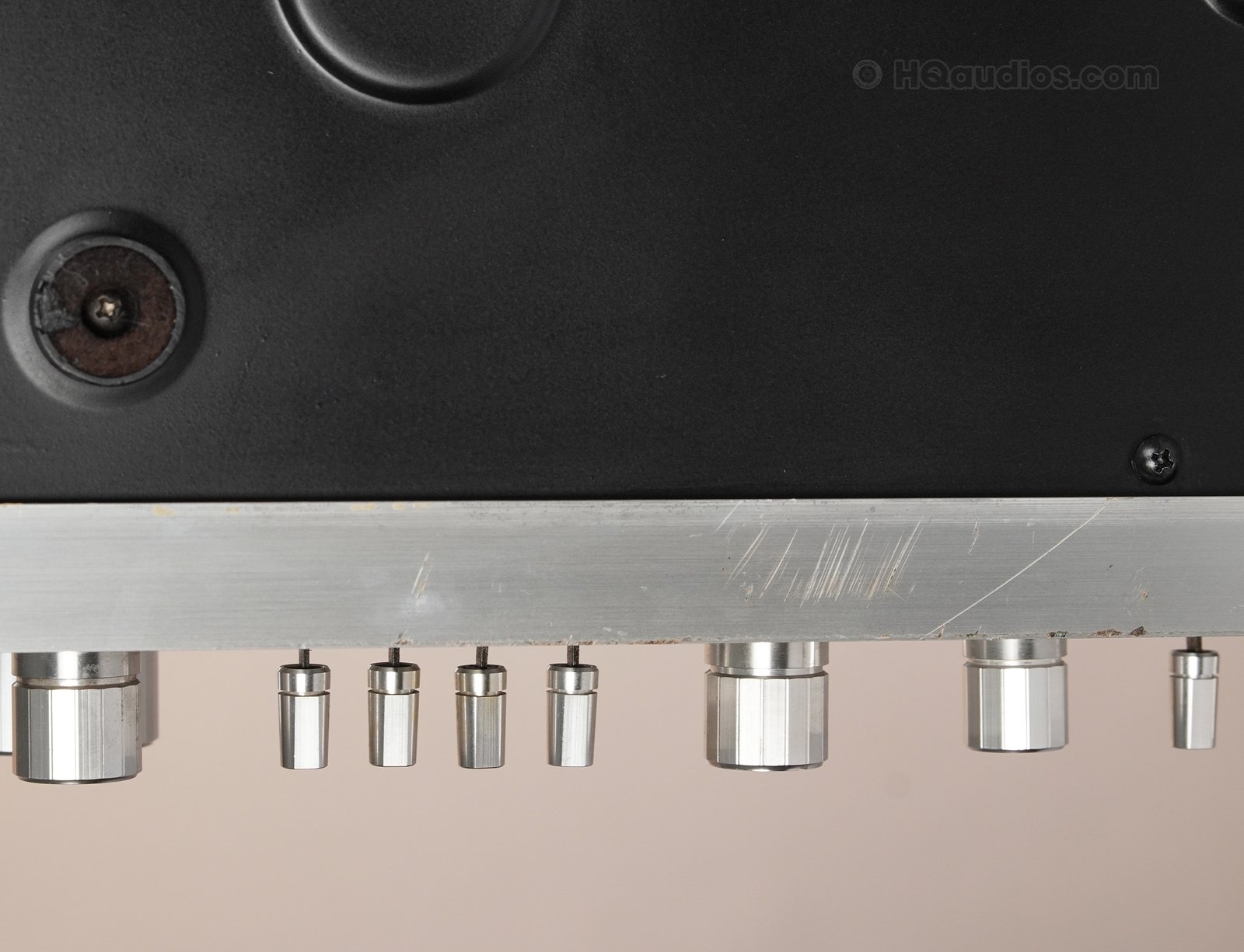

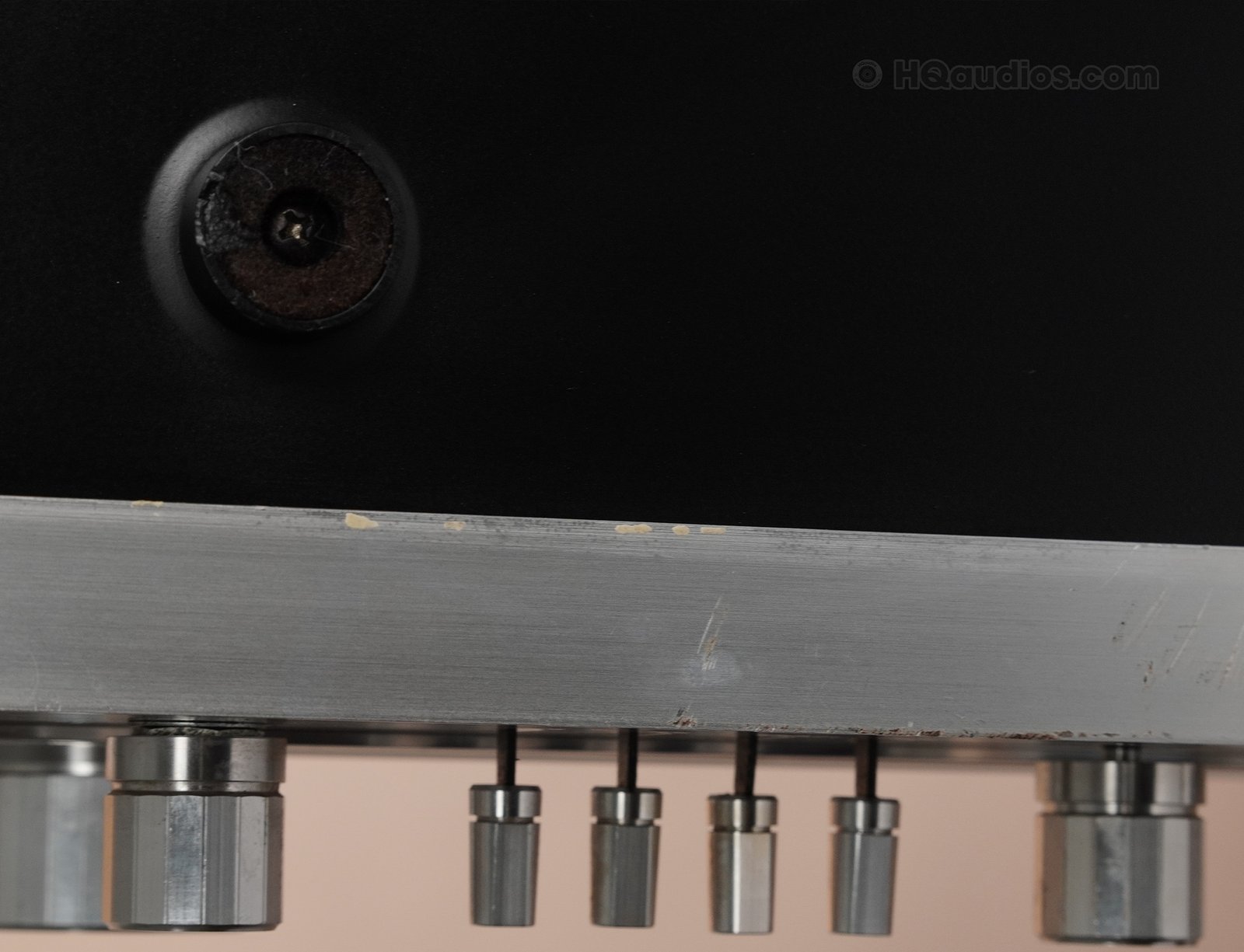

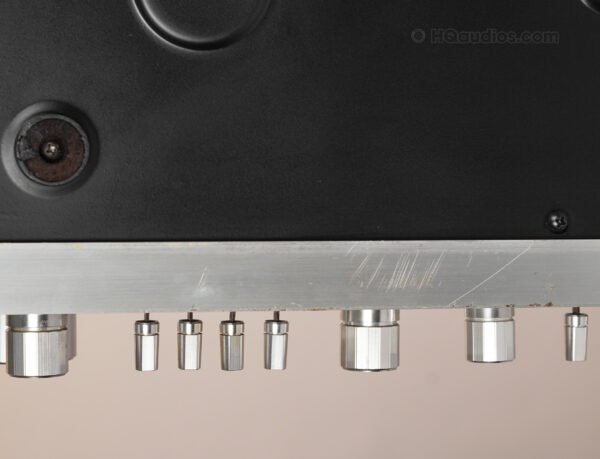

While the Pioneer SX-650 has been fully restored, the top panel shows minor scratches that are hard to see from the front, adding character but not affecting functionality. The front panel also exhibits light wear due to normal usage over time, including some slight scratching. These cosmetic imperfections do not impact the receiver’s functionality and are a testament to its vintage charm.

SUGGESTED PAIRINGS

• Speakers: JBL L26, Klipsch Heresy, Pioneer HPM-60
• Turntables: Technics SL-1200, Dual 1219, Thorens TD-160
• Cassette Decks: TEAC A-2300, Pioneer CT-F900, Akai GX-747
