Sansui 5000A receiver – Fully restored/Recapped – 1 year warranty

Sansui 5000A receiver – Fully restored/Recapped – 1 year warranty

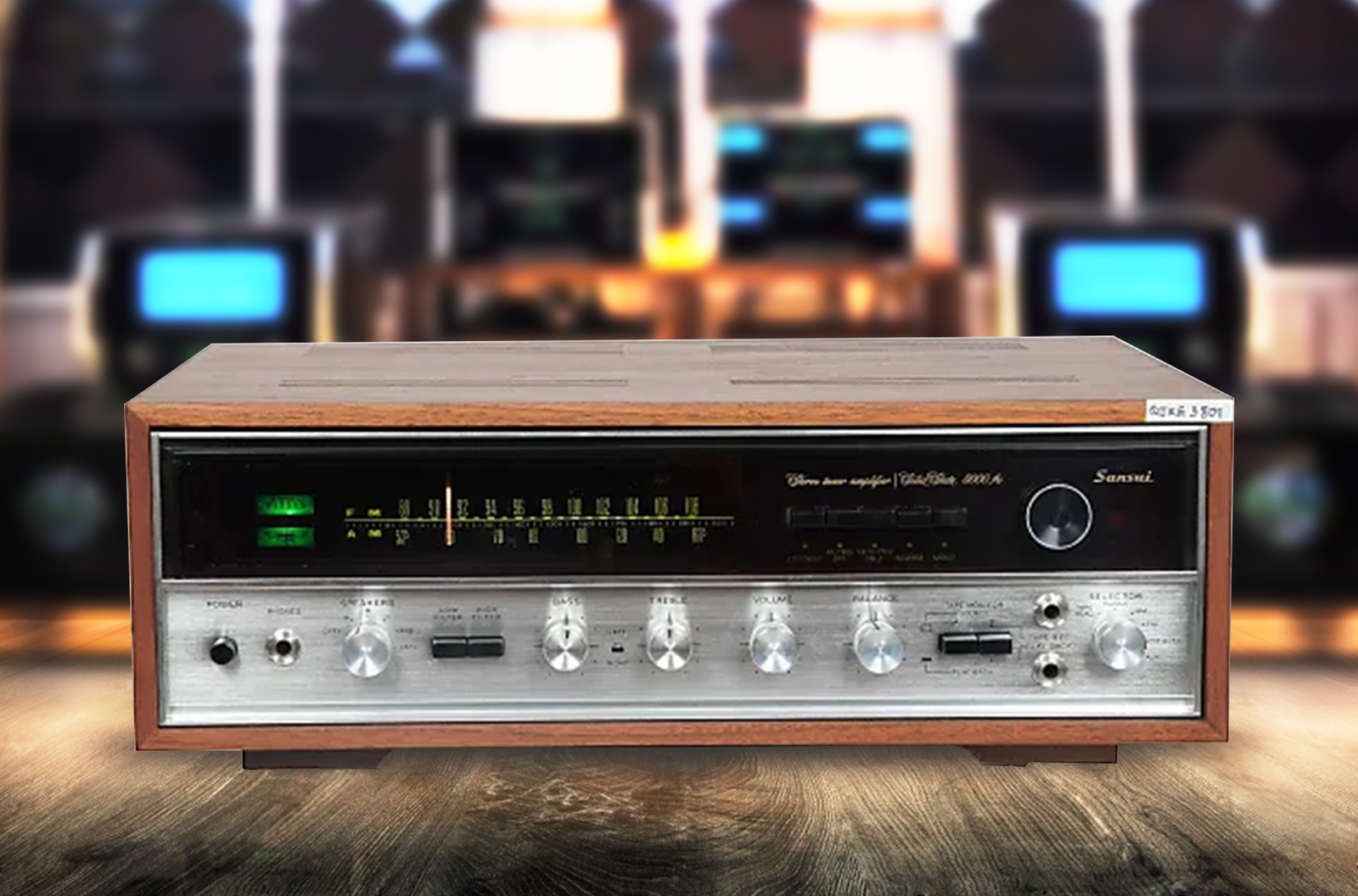

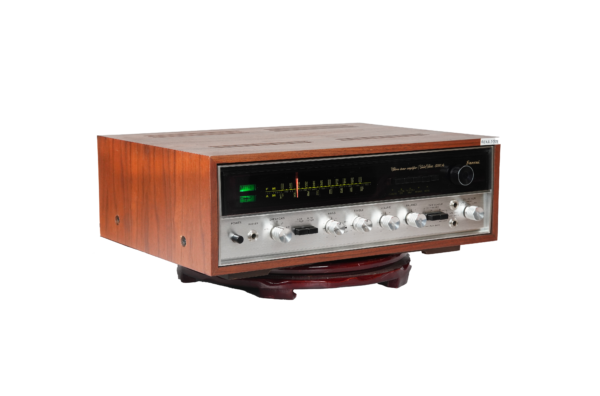

Elevate your vintage audio experience with the stunning Sansui 5000A Receiver. This classic piece of audio history has been fully restored and recapped to deliver the warm, rich sound Sansui is renowned for. With a 1-year warranty, you can enjoy peace of mind while adding a beautiful centerpiece to your sound system.

🎶 Impressive Power: 55 watts per channel at 8 ohms, perfect for a smooth, balanced sound.

🔧 Fully Restored: Expertly restored with premium capacitors and updated transistors, ensuring peak performance and longevity.

🪞 Iconic Design: Beautiful brushed aluminum faceplate paired with a vintage wooden cabinet—perfect for any home setup.

🔊 Warm, Classic Sound: Delivers the natural, analog warmth that modern systems can’t replicate.

🔗 Versatile Connections: Supports phono input for turntables, AUX, and tape decks to accommodate your favorite devices.

TESTING VIDEO

Technical Specifications:

• Tuning range: FM, MW
• Power output: 55 watts per channel into 8Ω (stereo)
• Frequency response: 20Hz to 30kHz
• Total harmonic distortion: 0.8%
• Damping factor: 15
• Input sensitivity: 2.5mV (MM), 200mV (DIN), 150mV (line)
• Signal to noise ratio: 65dB (MM), 70dB (line)
• Channel separation: 50dB (MM), 50dB (line)
• Output: 200mV (line), 40mV (DIN)
• Speaker load impedance: 4Ω to 16Ω
• Semiconductors: 52 x transistors, 3 x FET, 4 x IC, 33 x diodes, 3 x zener diodes
• Dimensions: 17-11/32 x 4-17/32 x 14-9/16 inches
• Weight: 29.1lbs
• Year: 1969

💥 Own a Piece of Vintage Audio History! 💥

Don’t miss this opportunity to own a beautifully restored Sansui 5000A Receiver—a timeless classic that combines stunning looks with exceptional sound

#Sansui5000A #VintageReceiver #RestoredAudio #AudiophileGear #ClassicSound #AnalogAudio #HiFiEquipment

TRADE-IN PROGRAM

“If you have any vintage audio equipment (receivers, speakers, cassette, reel to reel…) & want to upgrade with the available serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference”

Condition:

This receiver is in “Excellent” condition, displaying minor signs of use with a bright, clear dial. All knobs, feet, and the attached AM antenna and AC cord are present and intact. Although the manual is missing, it can be found online or we can provide a PDF upon request. Please inspect all photos thoroughly for the actual condition.

Service:

Upon inspection, the unit had scratchy controls, a dim dial, and some distortion in one channel. Therefore, it underwent servicing by our technician. Manufacturer used certain transistors in this model that are known to fail after 40 years, so all of these were replaced. This upgrade resolved the distortion issue. Additionally, several questionable capacitors were replaced.

Testing:

After servicing, the receiver was tested on our bench and performed excellently, delivering a powerful, warm, distortion-free signal characteristic of analog receivers. All inputs, outputs, LED lights upgrade and features were confirmed operational, and the tuner spins smoothly. Additional testing was conducted, and we can provide specific feature information upon request. This is a remarkable find for the vintage audiophile.

Condition Disclosure:

This item exhibits minor wear consistent with light use, as shown in the provided photos. The listing includes exactly what is pictured; no accessories, test equipment, or media are included.
