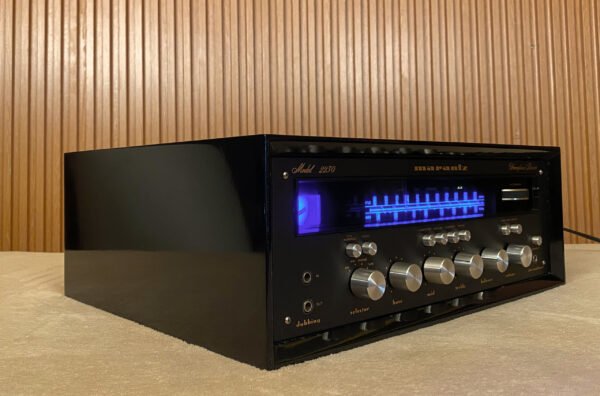

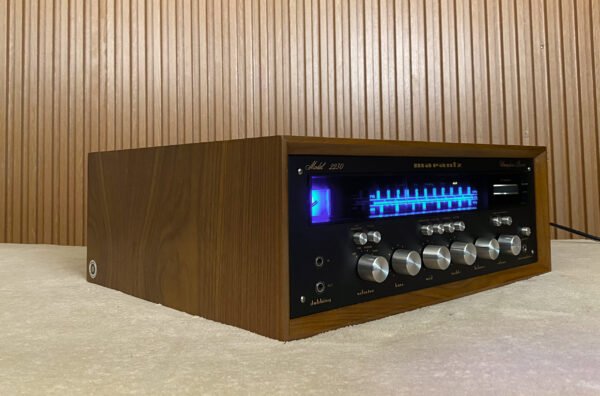

Beautiful Marantz 2230 receiver w/wood case -Fully restored/1 year WRT (free to choose WC colors)



Specification:

• • Condition: Excellent – Refurbished (professionally serviced, tested, and guaranteed) + Wooden Cabinet, Pro Packaged
  • MODEL:  2230
  • Brand: MARANTZ
  • Protection Plan: 1 year warranty
  • Band: Radio/AM/FM
  • FREE SUPPORT: MUST BE UTILIZED BEFORE RETURN IS REQUESTED
  • Type: Stereo Receiver
  • Pro packaged, insured and includes tracking.
  • SKU: 5QJKE4044

Service:

Upon inspection, the unit had scratchy controls, a dim dial, and some distortion in one channel. Therefore, it underwent servicing by our technician. Manufacturer used certain transistors in this model that are known to fail after 40 years, so all of these were replaced. This upgrade resolved the distortion issue. Additionally, several questionable capacitors were replaced.

All Service Bulletins performed.

Electrolytic capacitors replaced throughout.  (Filter caps and tuner caps unchanged – tested and found within specification.)

New relay

All switches (removed and opened), selectors and potentiometers cleaned

Troublesome transistors/diodes replaced where necessary

Fully tested. Fully functional

TESTING VIDEO

🎯 Buy Now before it’s gone!

📩 Questions? Message us anytime – we’re here to help!

Marantz 2230 is a celebrated vintage stereo receiver, known for its superior sound quality and timeless design. Ideal for audiophiles and vintage audio enthusiasts, this receiver offers a warm, rich sound that modern digital receivers often struggle to match. Its robust construction and classic aesthetics make it a standout addition to any audio setup.

Detailed Specifications

• Power Output: 30 watts per channel into 8 ohms
• Frequency Response: 20 Hz – 20 kHz
• Total Harmonic Distortion: 0.1%
• Signal-to-Noise Ratio: 90 dB (line), 70 dB (phono)
• Dimensions: 17.5 inches (W) x 14 inches (D) x 5.5 inches (H)
• Weight: 26 lbs
• Inputs: Phono, Aux, Tape Monitor
• Outputs: Speaker A/B, Headphone Jack
• Tuner: FM/AM with Signal Strength and Tuning Meters

TRADE-IN PROGRAM

“If you have any vintage audio equipment (receivers, speakers, cassette, reel to reel…) & want to upgrade with the available serviced one, don’t hesitate to contact us for the best deal. You only need to pay for the difference”

Condition:

This receiver is in “Very Good” condition, displaying minor signs of use with a bright, clear dial. All knobs, feet, and the attached AM antenna and AC cord are present and intact. Although the manual is missing, it can be found online or we can provide a PDF upon request. Please inspect all photos thoroughly for the actual condition.

Testing:

After servicing, the receiver was tested on our bench and performed excellently, delivering a powerful, warm, distortion-free signal characteristic of analog receivers. All inputs, outputs, LED Light upgrade, and features were confirmed operational, and the tuner spins smoothly. Additional testing was conducted, and we can provide specific feature information upon request. This is a remarkable find for the vintage audiophile.

Condition Disclosure:

This item exhibits minor wear consistent with light use, as shown in the provided photos. The listing includes exactly what is pictured; no accessories, test equipment, or media are included.

Additional Notes:

Physical Condition:  Each item is as described and images.  What you see in the images is exactly what we will ship.  We want you to know exactly what you are getting.  If you want additional/better images please ask and we will provide.

Customer Service:  Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.  We are audiophiles as well and love to help out other audiophiles.

For demo playing, pls search our SKU: 5QJKE4044 on youtube

Thank you for viewing our listing! Please kindly ensure you read all the provided information carefully!
